New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
1 / 5
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn
New Compact Construction Equipment with Low Price Zl50gn

New Compact Construction Equipment with Low Price Zl50gn

Customization: Available
Certification: ISO
Condition: New
Send Inquiry

Product Description

Basic Information

Model NO.
ZL50GN
Rated Load
5 Tons
Transmission
Hydraulic
Walking Mode
Wheeled
Bucket Capacity
3.0 M3
Operating Weight
17500 Kg
Tyre
23.5-25-16pr
Specification
8165× 3016× 3485mm

Product Highlights

New compact construction equipment with low price ZL50GN
✔ Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
✔ The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation.
✔ The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

Main Specification

  • Model: ZL50GN
  • Engine: Shangchai SC11CB220G2B1
  • Rated Power: 162kW/2200r/min
  • Rated Load: 5 ton
  • Transmission: Planetary power shift
  • Brake Axle: Arvin Meritor dry brake
  • Control: Hydraulic pilot control system
  • Cabin: AC Standard (Cooling & Heating)
  • Standard Bucket: 3.0m3
  • Tires: 23.5-25-16PR
  • Weight: 17500kg
  • Dimensions: 8165x3016x3485mm

Technical Parameters

Description Specifications
Bucket capacity3.0 m3 (Standard) / 2.5 m3 (Rocket)
Rated load5000 kg
Dumping clearance3090 mm
Dumping reach1130 mm
Max. breakout force170 kN
Operating weight17500 kg
Raising time≤6S
Total cycling time≤11S
Max drawing force165±5 KN
Min. turning radius6400 mm
Wheel base3300 mm
Travelling speed1st(F/R)11.5/16.5 KM/H
Travelling speed2nd(F)38 KM/H
Engine modelShangchai SC110B220G2B1 (162kW)

Photo Gallery

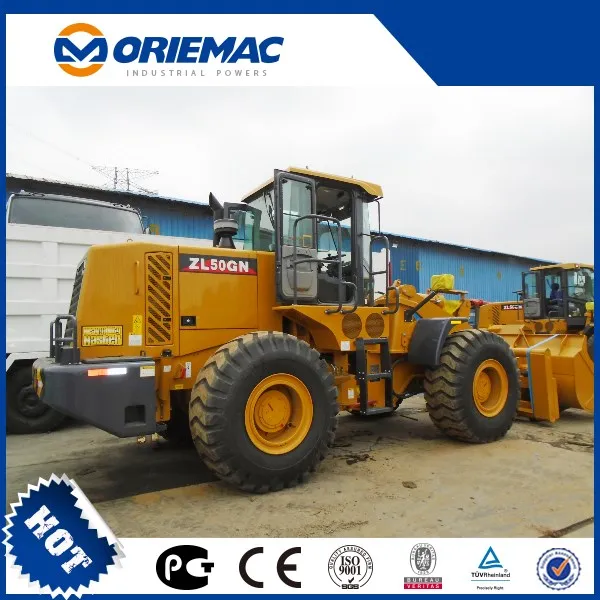

ZL50GN Wheel Loader Photo 1
ZL50GN Wheel Loader Photo 2

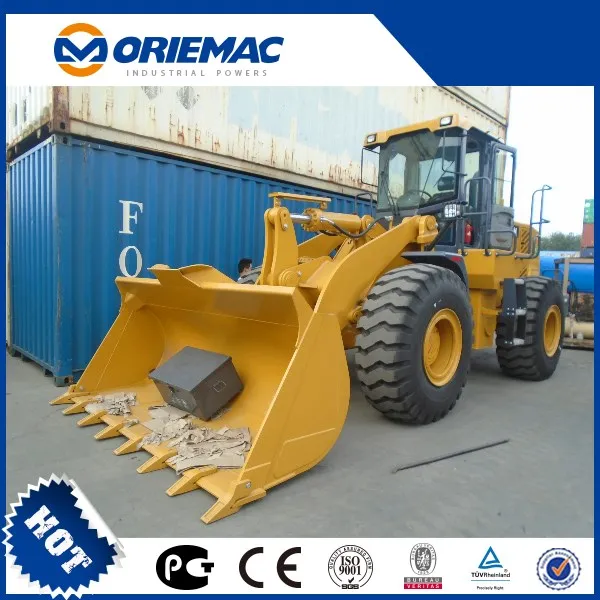

ZL50GN Wheel Loader Photo 3

Frequently Asked Questions

1. What is the rated load capacity of the ZL50GN wheel loader?
The ZL50GN is designed for heavy-duty tasks with a rated load capacity of 5 tons (5000 kg).
2. What type of engine is equipped in this model?
It features a Shangchai engine (SC11CB220G2B1) under Caterpillar C6121 license, providing a rated power of 162kW.
3. Is the ZL50GN suitable for mining or rocky conditions?
Yes, it is specifically designed for rocky conditions with thick high-strength boards, an improved 3.0m³ rock bucket, and abrasion-resistant teeth.
4. What are the standard bucket options?
The standard configuration includes a 3.0m³ bucket, but a 2.5m³ rock bucket is also available for tougher environments.
5. Does the cabin include an air conditioning system?
Yes, the standard cabin is equipped with both cooling and heating air conditioning for operator comfort.
6. What is the total cycling time for loading operations?
The ZL50GN is highly efficient, with a raising time of ≤6 seconds and a total cycling time of ≤11 seconds.
