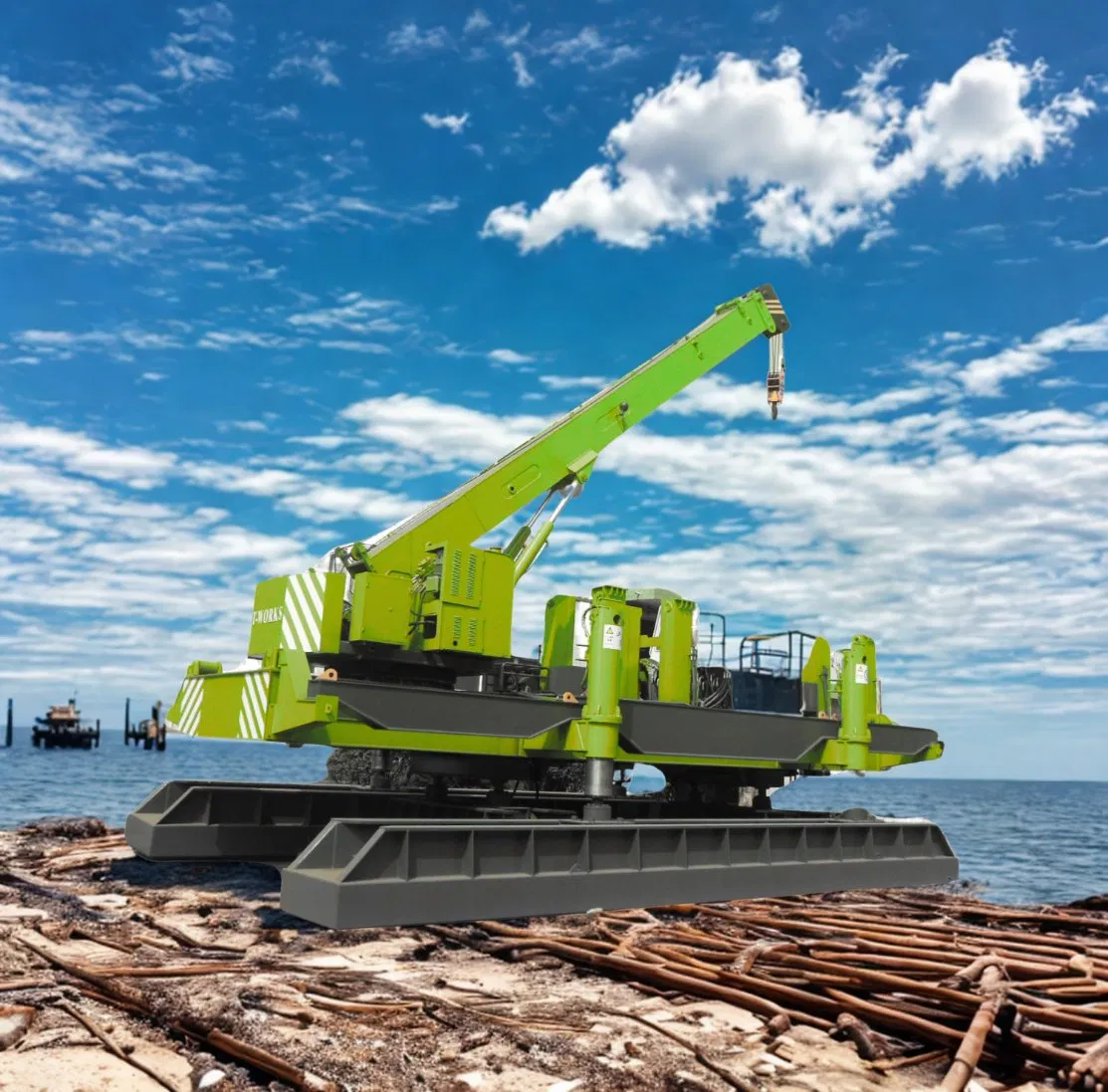

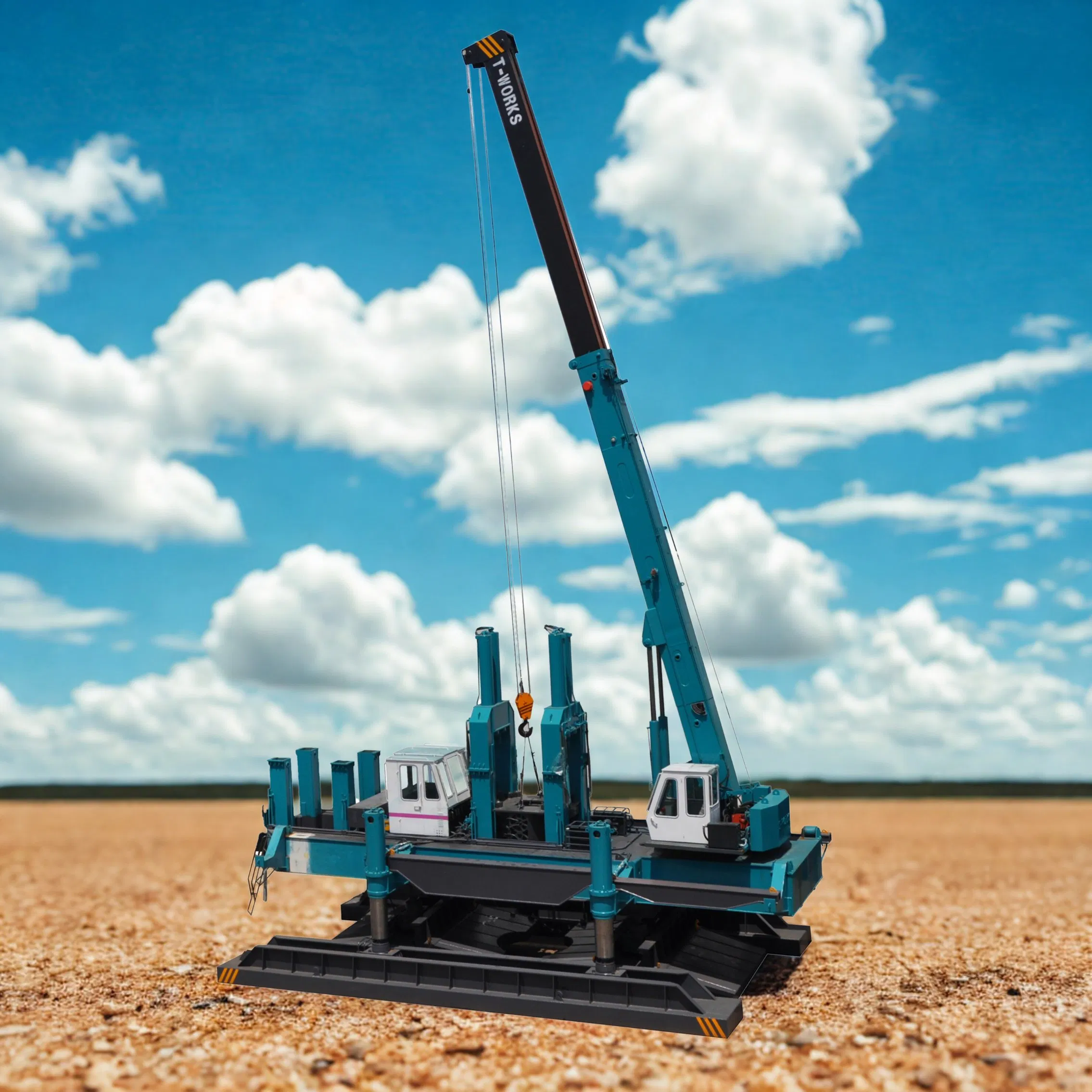

Compact Mini Piling Equipment for Efficient Construction Projects

1 / 5

Compact Mini Piling Equipment for Efficient Construction Projects

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

Send Inquiry

Product Description

Overview

Specification

Features

After-Sales

FAQ

ℹ️

Basic Information

Model NO.ZYC860

TypePressure Pile Driver

Drive TypeHydraulic

Power SourceDiesel

Noise LevelLow Noise

CertificationCE, ISO 9001:2000

Weight120t

Suitable PileH-Pile, Sheet, Concrete, Steel Tube

Operating EfficiencyHigh Efficiency

Production Capacity300 Sets/Year

🏗️

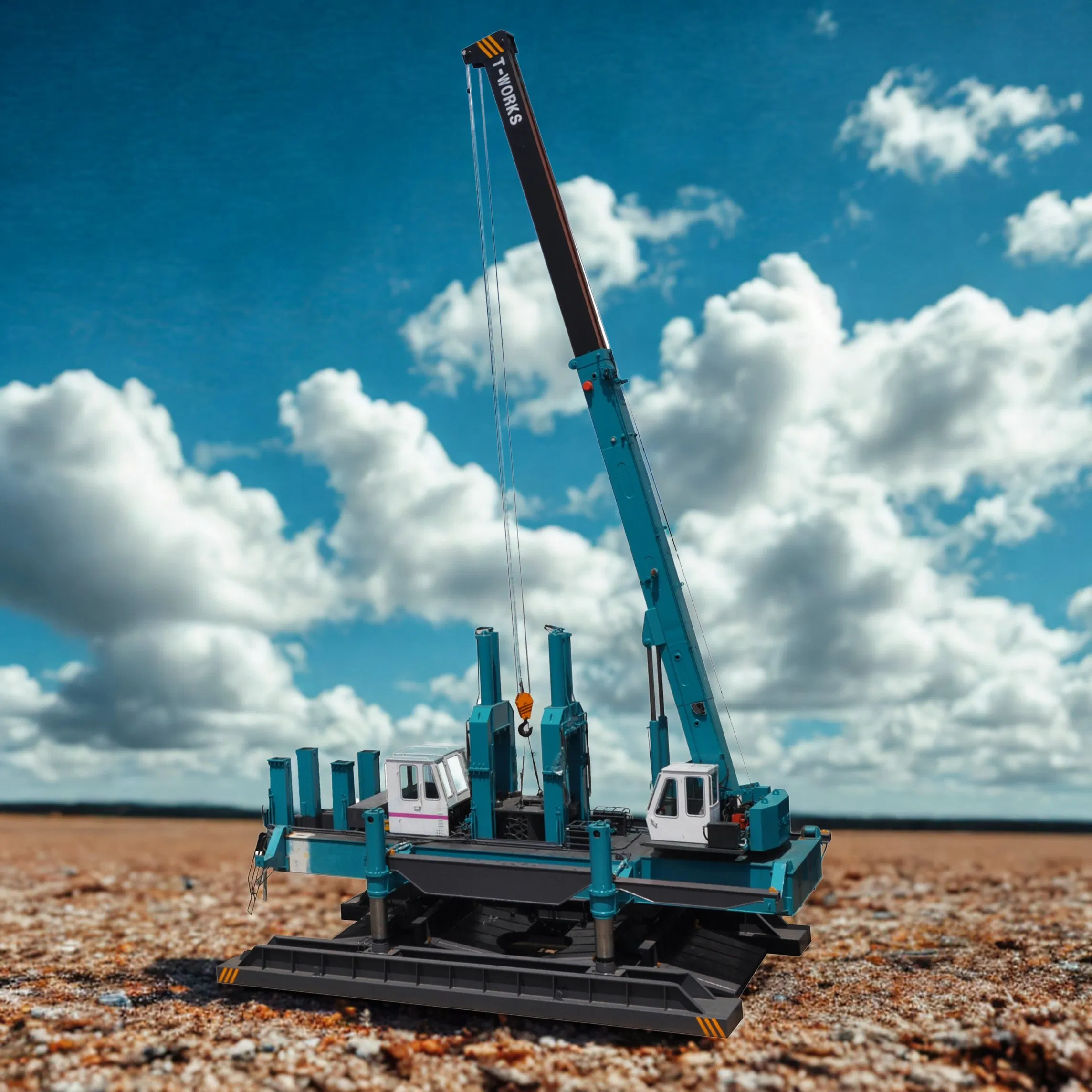

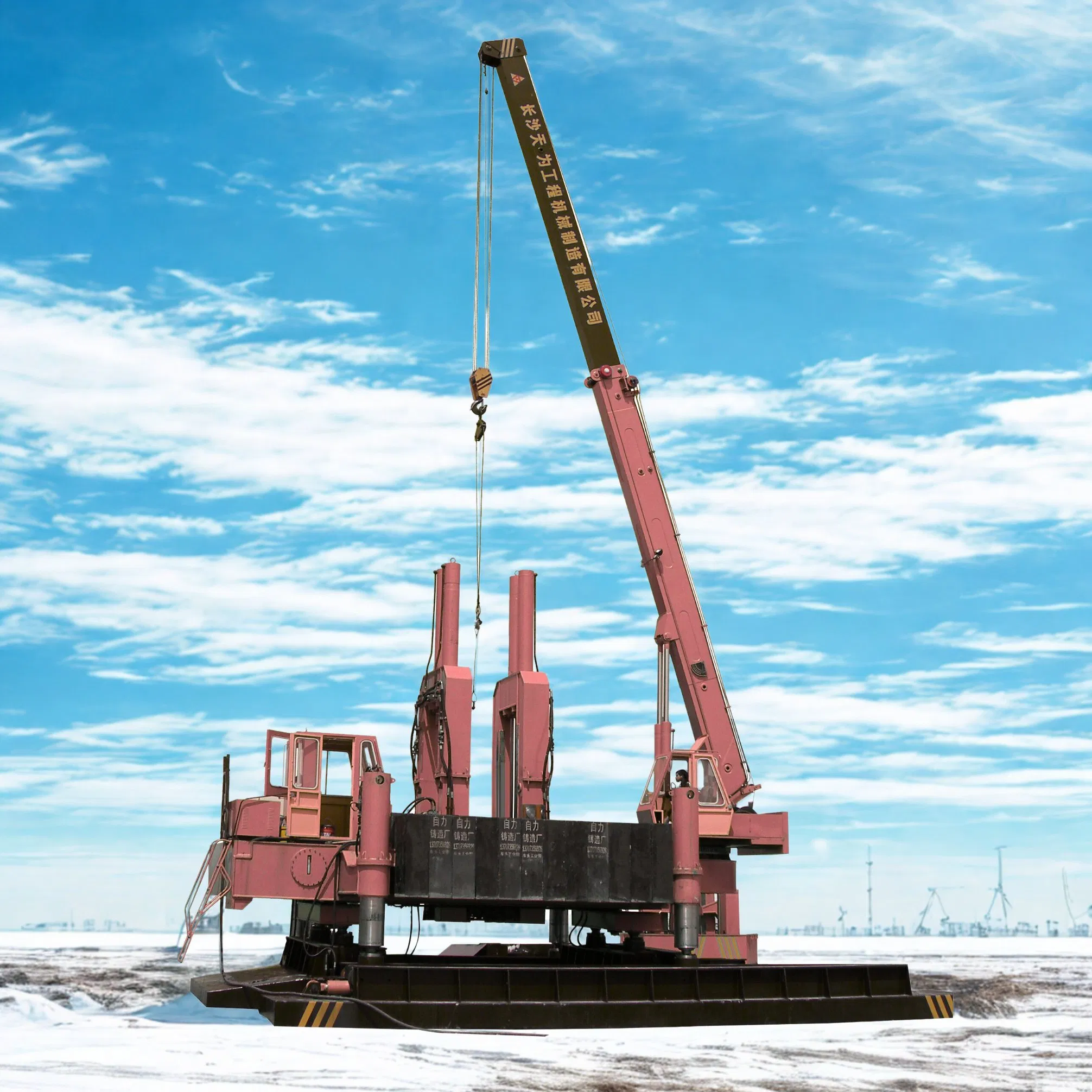

Eco-Friendly Hydraulic Piling Rig

Revolutionize your construction endeavors with our cutting-edge hydraulic static pile driver, an innovation crafted for the intricate demands of urban landscapes. This technological marvel redefines industry standards with its impeccable noise-free, vibration-less operation, fully embracing eco-friendly methodologies. Step beyond traditional diesel or hydraulic hammers with our advanced motorized hydraulic system, proficient in handling a diverse range of cement piles—be it pipe, square, triangle, or sheet—with an impressive capacity range from 60 to an astounding 1200 tons.

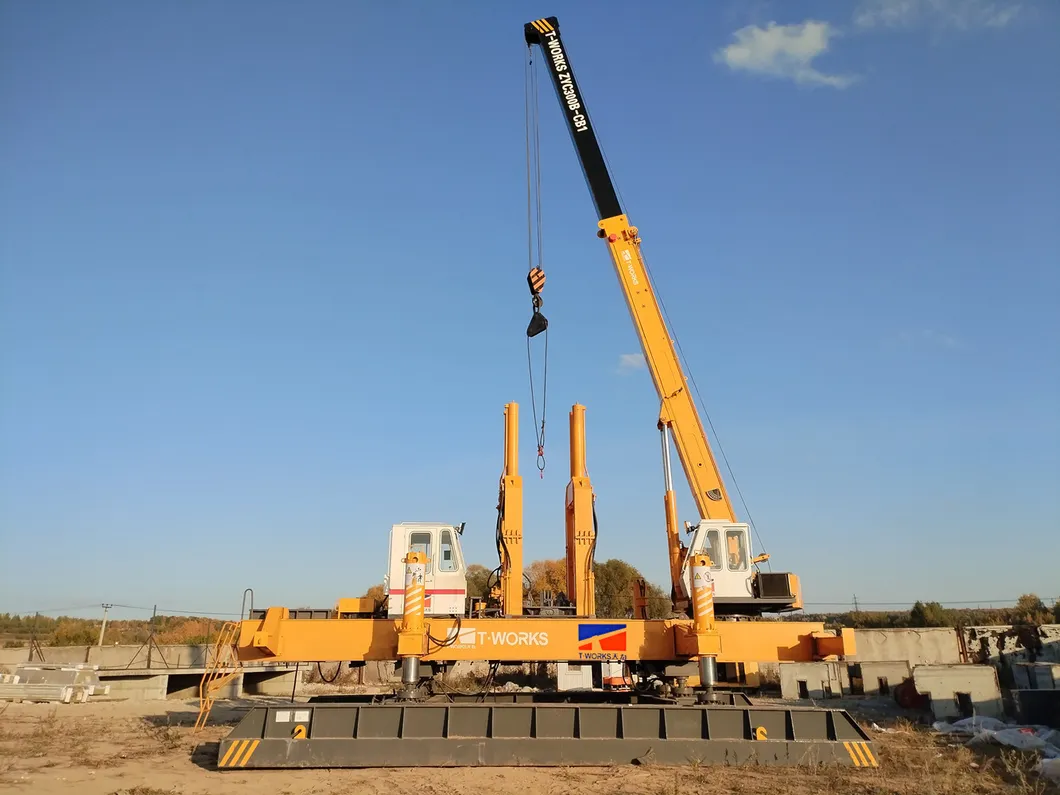

Hydraulic Static Pile Driver Applications

🌟

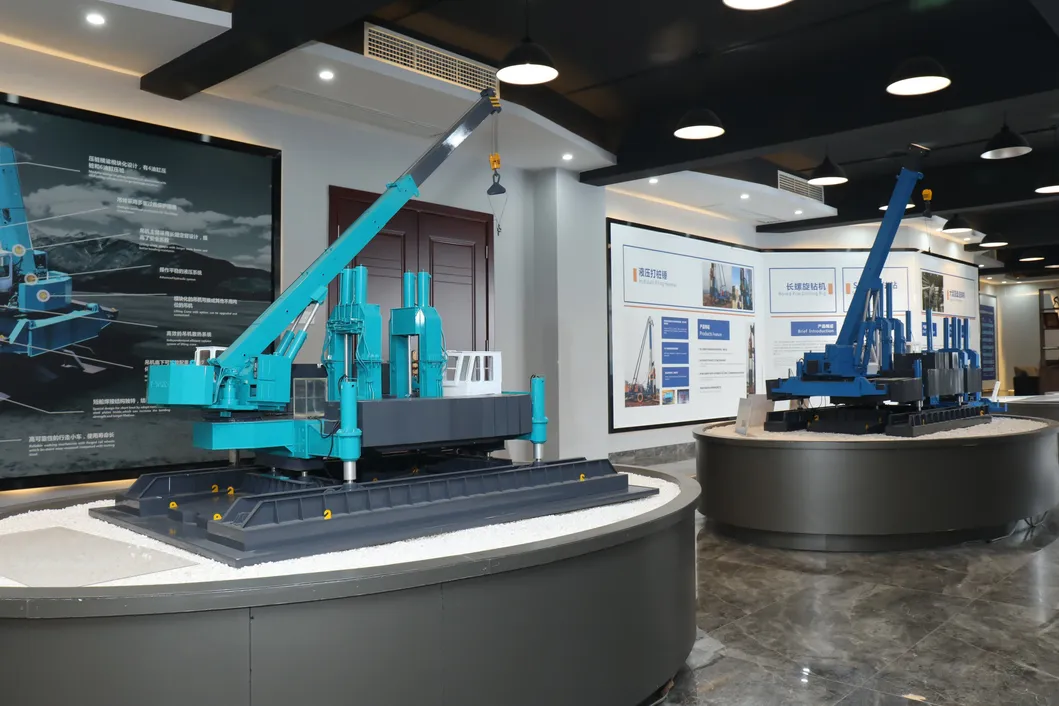

Main Product Features

Forged Material Excellence: Roller wheels and clamping jaws are crafted from forged materials for superior wear resistance.
Eccentric Wheel Innovation: Design ensuring precise vertical alignment by adjustable gap features.
Inverted Cylinder Strength: Robust supporting legs increasing cylinder durability.
Six-Cylinder Efficiency: Significantly boosting construction speed and operational efficiency.
Strategic Counterweight Design: Expertly positioned for optimal weight distribution and maximizing driving force.

📊

Technical Specifications

Parameter / Model		ZYC180	ZYC260	ZYC300	ZYC360	ZYC460	ZYC600	ZYC680	ZYC860	ZYC960
Rated Piling Pressure (KN)		1800	2800	3000	3600	4600	6000	6800	8600	9600
Piling Speed (m/min)	Fast	8.7	7.2	7.2	7.8	9	7.9	9	9	9.8
Piling Speed (m/min)	Low	2.7	1.8	1.8	1.9	1.6	1.4	1	1.4	1.6
Max Square Pile (mm)		400	500	500	600	600	600	800	550	600
Max Circle Pile (mm)		400	500	500	500	500	500	550	600	800
Total Weight (T)		180	260	300	360	460	600	680	860	960

🛠️

After-Sales Commitment

Standard Warranty: 12-month or 2,000 operating hours protection plan.

Extended Warranty: Optional protection available for up to 36 months.

Global Support: 24/7 technical support and availability of spare parts worldwide.

Training Services: Remote or onsite training to optimize equipment performance.

❓

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company? What machines do you produce? A: We are a pioneering manufacturer with over 20 years of experience. Our products include hydraulic static pile drivers, bored pile drilling rigs, hydraulic hammers, disc pelletizers, and mini crawler dumper trucks.

Q2: What is the hydraulic static pile driver used for? A: It is designed for jacking in precast concrete piles (square, round, triangle, tubes, and H-piles) with zero noise, pollution, or vibration.

Q3: What are the lead time and payment terms? A: Standard lead time is typically 30 days after deposit. We accept T/T and L/C payment terms.

Q4: What about after-sale service and warranty? A: We offer expert assembly and operator training. Warranty includes 1 year on machine structure and 6 months on main spare parts, plus lifelong service.

Q5: Is customization acceptable for your piling rigs? A: Yes, we provide customization options to meet specific project requirements.

Q6: Which terrains are suitable for static pile drivers? A: They are perfectly suited for clay, soft soil, sand layers, and urban areas with strict noise and vibration regulations.
