Construction Waste Management Solutions for Urban Demolition Projects

Customization:	Available
After-sales Service:	Provide on-Site Planning
Warranty:	1 Year

Overview & Basic Information

Model NO.

GX300

Condition

New

Certification

ISO, CE

Automation

Automatic

Screw

Multi-Screw

Product Name

Construction Waste Sorting Recycling

Capacity

100-1000 tons Per Day

Origin

China

Product Description

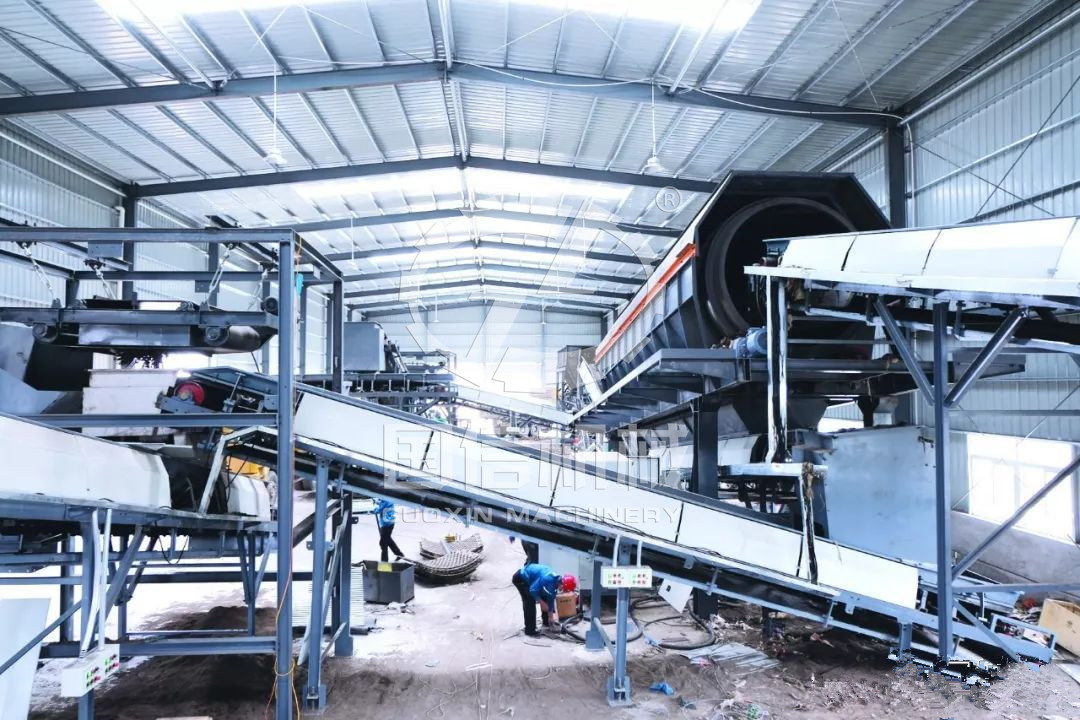

Municipal Solid Waste Sorting Machine

This complete municipal solid waste (MSW) utilization solution adheres to the principles of reduction, harmlessness, recycling and energy recovery, integrating waste into a full-line system for comprehensive resource utilization. Through automatic sorting, MSW is classified into recyclable metals and high-calorific-value fuels applicable to industrial boilers, waste incineration and gasification power stations.

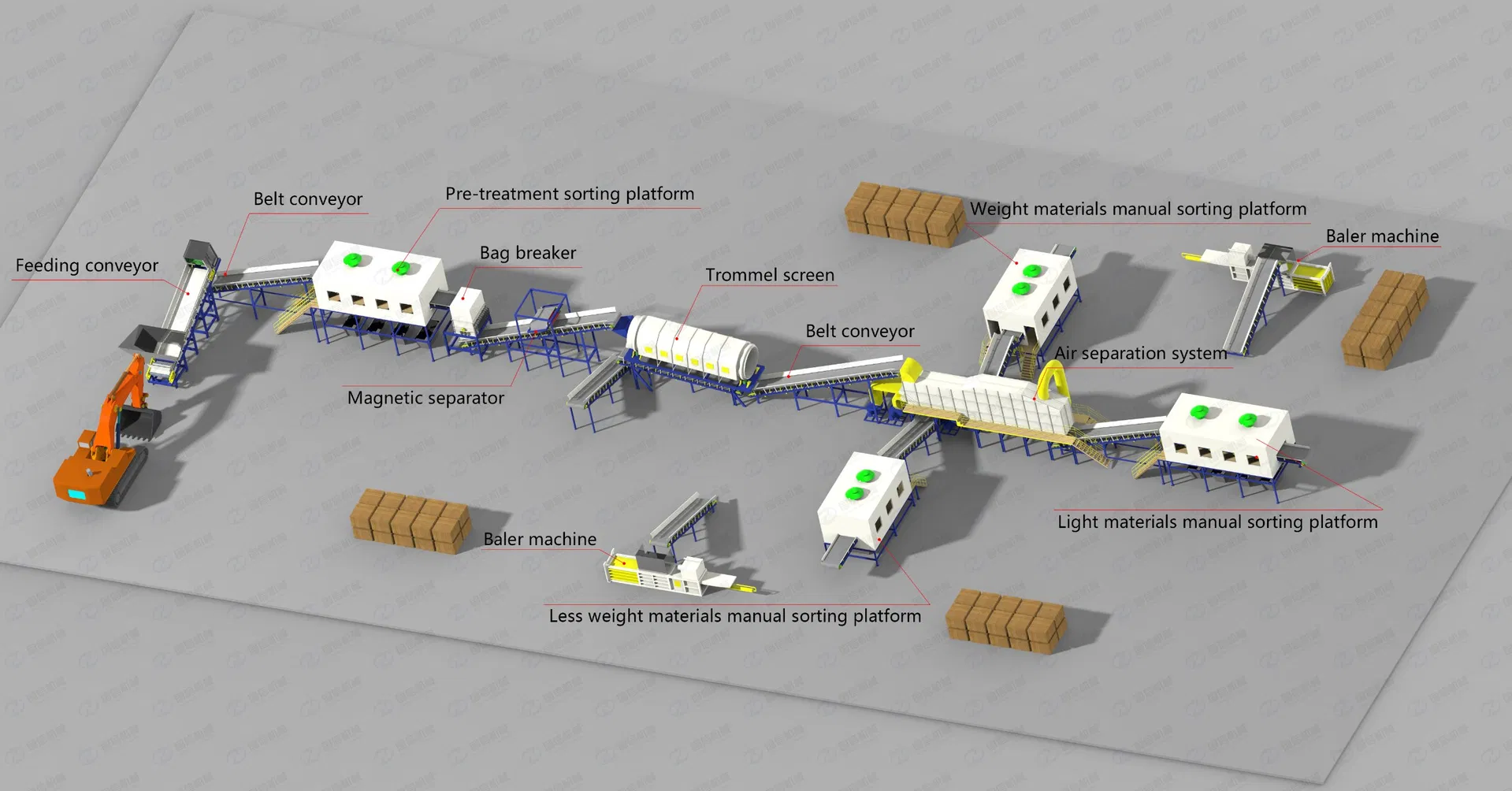

Core Components of Sorting Line

Chain feeder: Feeds materials uniformly for a smooth workflow.
Bag breaking system: Features internal blades to open bags without shredding content.
Trommel screen: Custom-sized (3-7cm) to sort materials by size.
Iron separator: Efficiently extracts magnetic materials such as iron.

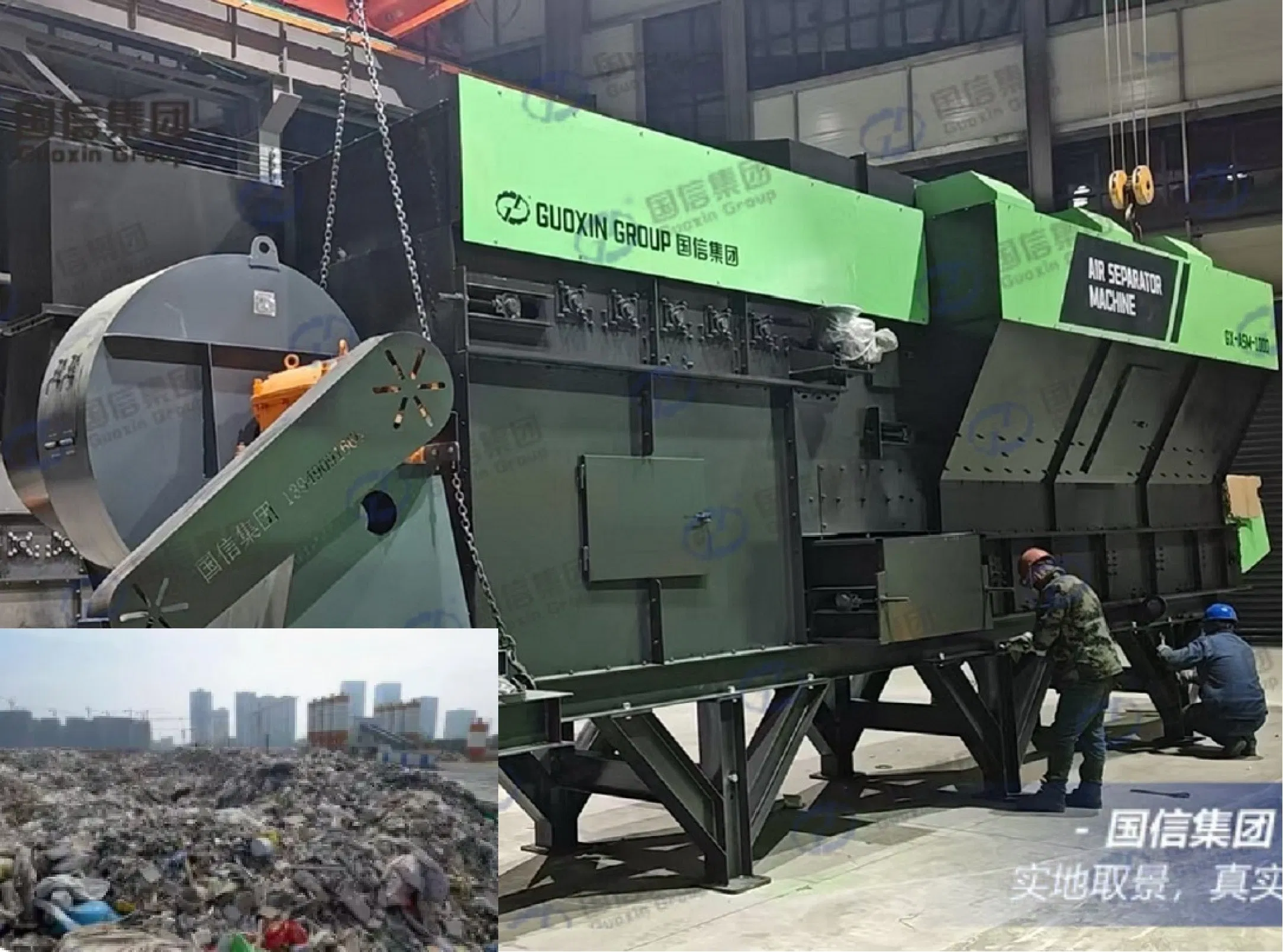

Air sorting machine: Uses positive and negative pressure to achieve a 95% sorting rate.
Baling machine: Compresses combustible materials into blocks for further processing.

Sorting Process & Application

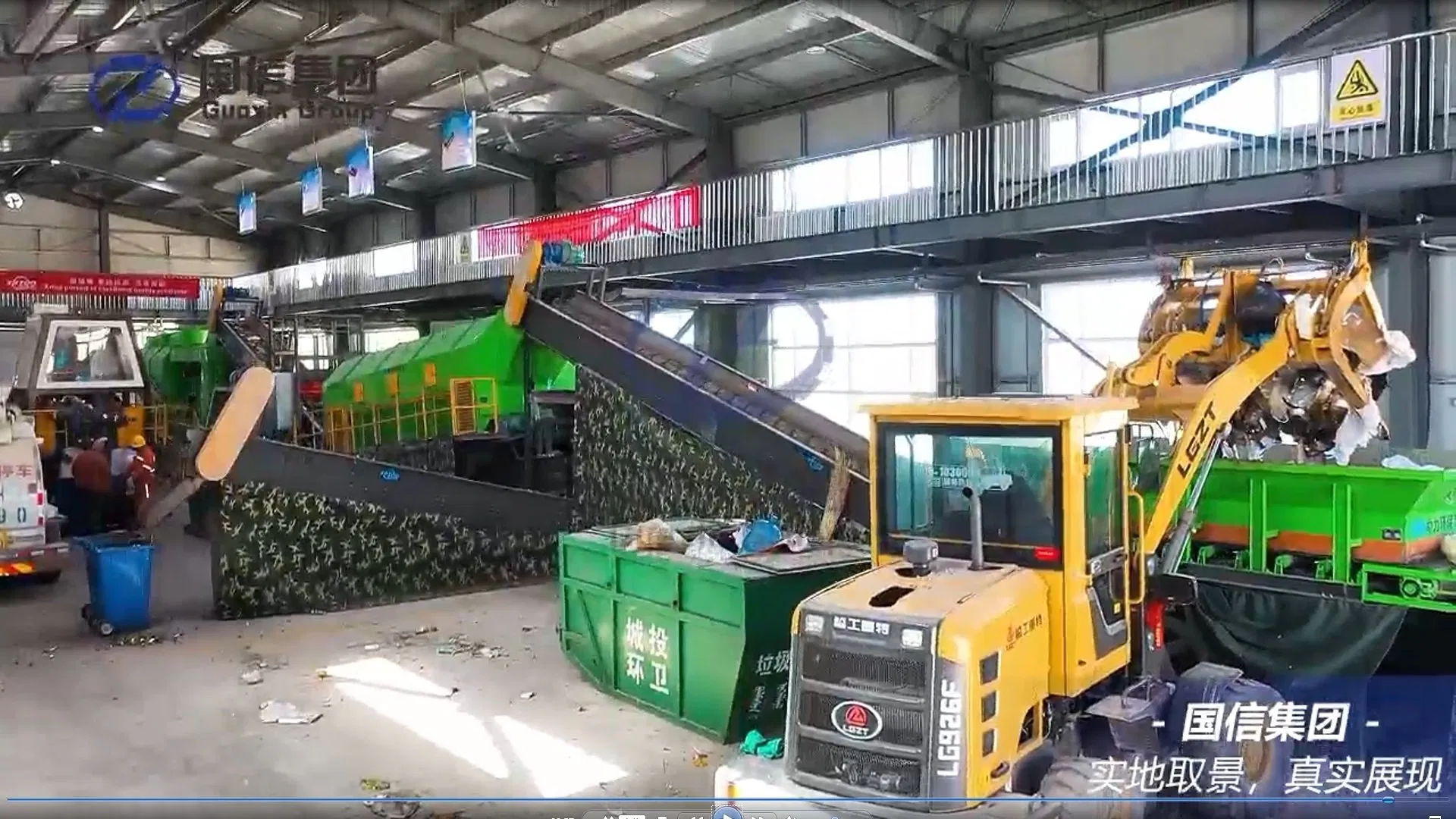

Raw waste is transferred via grab bucket to a feeder, then conveyed to a 50mm-aperture drum screener. This splits waste into undersize (organic) and oversize (plastics, stones) fractions. Both fractions undergo magnetic separation. Oversize residues are processed via an air separator into heavy materials (incineration or roadbed soil) and light materials (plastics, paper for baling).

Technical Specifications

MODEL	GX-100	GX-200	GX-300
Raw Materials	Municipal solid waste, household waste, industrial waste, landfill waste, urban waste, construction and demolition waste
Capacity	100T/DAY	200-300T/DAY	400-500T/DAY
Power	149KW	224.7KW	279KW
Area Required	2400 m²	2800 m²	3000 m²

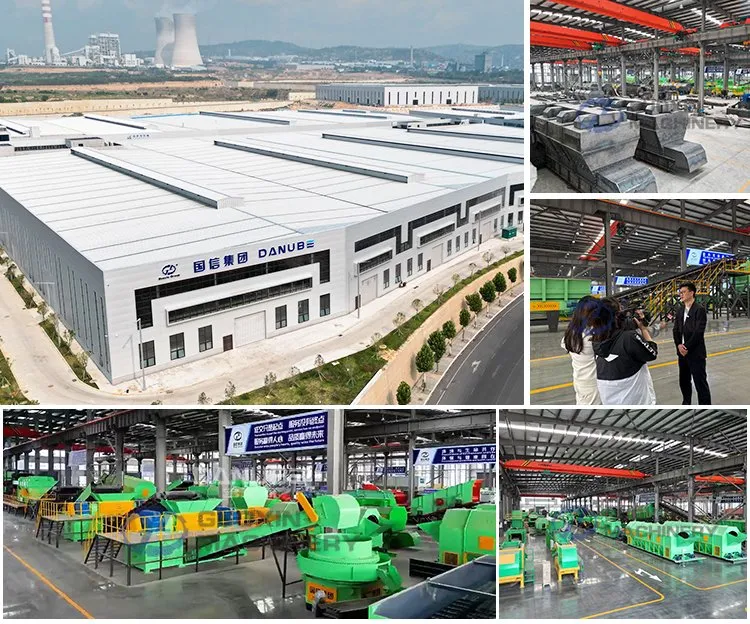

Manufacturing & Global Support

Customized R&D

Independent professional technical teams provide tailor-made solutions to meet your specific regional waste management needs.

Global After-Sales

Professional support teams are available globally, covering markets in Malaysia, Russia, the United States, and more.

Packaging & Shipping

We are committed to providing the most reliable and cost-effective delivery solutions tailored to your specific logistics requirements.

Frequently Asked Questions

What types of waste can this system process?

The system is designed to handle municipal solid waste (MSW), household waste, industrial waste, landfill waste, and construction or demolition waste.

What is the sorting efficiency of the air separator?

The air sorting machine utilizes both positive and negative pressure, achieving a sorting rate of up to 95% for light and heavy materials.

What are the end products of the recycling process?

Classified materials include recyclable metals, organic matter for fertilizer, high-calorific RDF fuel, and aggregates for roadbed or brick production.

Is the sorting line customizable for different capacities?

Yes, we offer models ranging from 100 tons to over 500 tons per day, and the screen sizes and line layouts can be customized based on your site requirements.

Does the equipment meet international standards?

Yes, all our sorting equipment and recycling lines are manufactured under ISO and CE certifications to ensure safety and quality.

Do you provide on-site installation and support?

We have global after-sales teams available to provide technical support, maintenance, and guidance for equipment operation worldwide.
