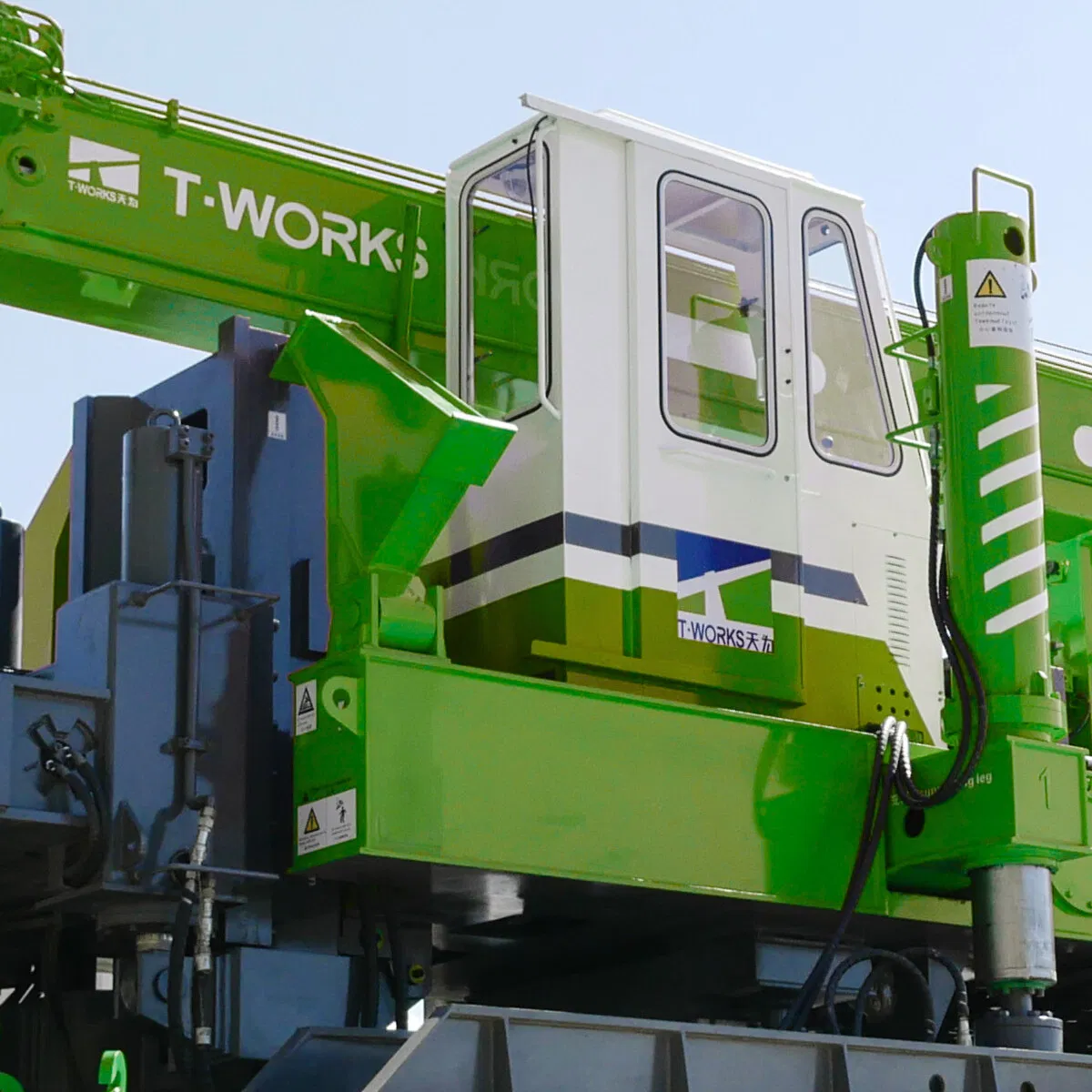

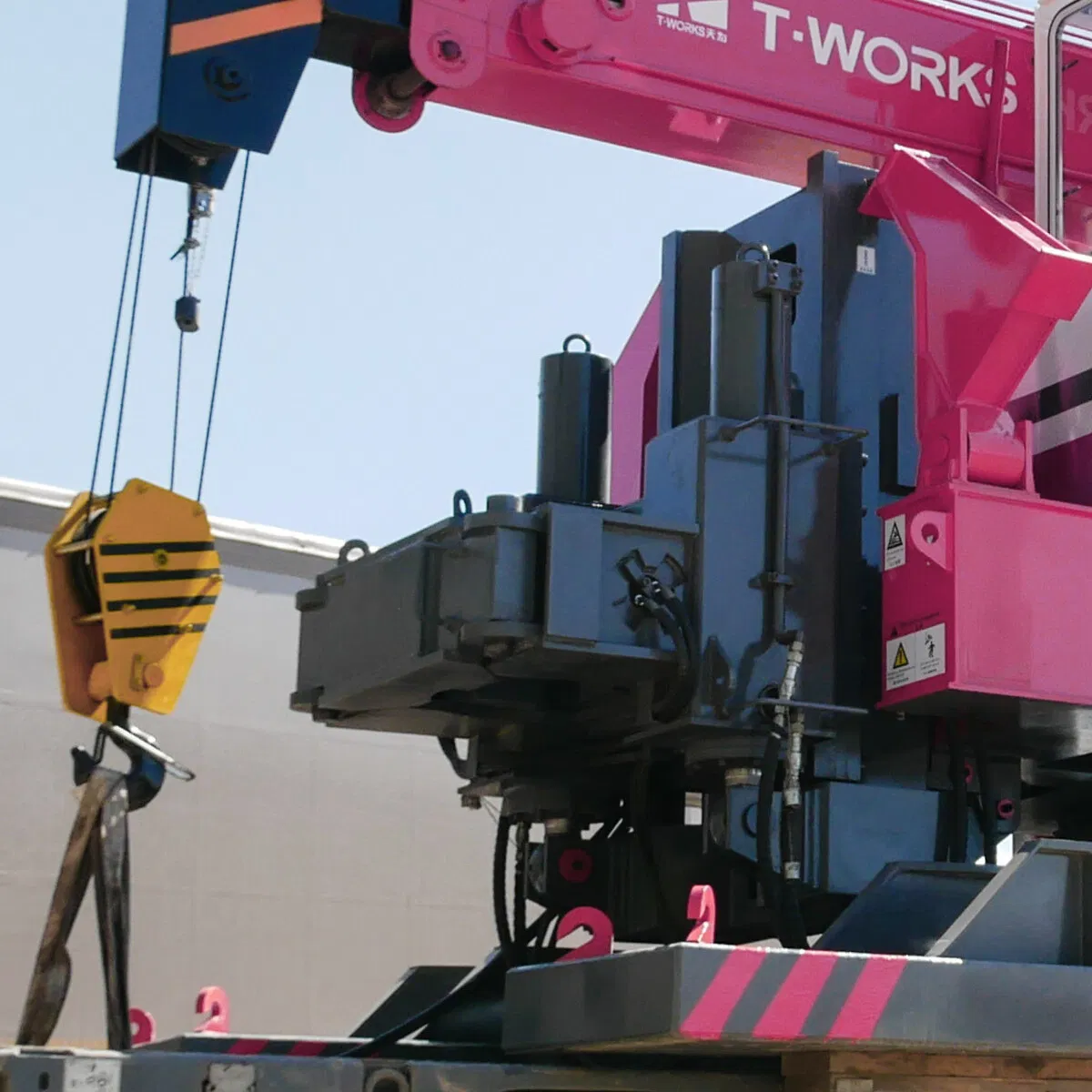

Automated Concrete Pile Driver: Reliable Solutions for Highway Construction

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

ℹ Basic Product Information

Model NO.:ZYC360

Type:Pressure Pile Driver

Pile Driver Type:Hydraulic

Power Source:Diesel

Noise Level:Low Noise

Certification:CE, ISO 9001:2000

Condition:New

Efficiency:98%

Suitable Piles:H-Pile, Sheet Pile, Concrete Pile, Steel Tube

Package Size:500cm * 300cm * 240cm

Gross Weight:50000.00kg

★ Product Description

Eco-Friendly Hydraulic Piling Rig with Advanced Static Functionality

Transform your construction methodologies with our pioneering Hydraulic Static Pile Driver. Unlike the conventional diesel or hydraulic hammers, this cutting-edge equipment is meticulously crafted for urban settings, delivering a tranquil, vibration-free, and eco-conscious solution. Equipped with a sophisticated motorized hydraulic system, it skillfully manages a diverse spectrum of cement piles—pipe, square, triangle, sheet, and more—showcasing an extraordinary capacity range from 60 to an impressive 1200 tons.

Main Product Features

Forged Material Excellence: Roller wheels and clamping jaws crafted from forged materials for superior wear resistance.
Eccentric Wheel Innovation: Ensures precise vertical alignment by adjustable gap features.
Inverted Cylinder Strength: Supporting legs that withstand greater radial forces and increase durability.
Six-Cylinder Piling Efficiency: Large-tonnage machines boost construction speed and operational efficiency.
Strategic Counterweight & Boom: Optimized weight distribution and extended main boom for superior performance.

⚙ Technical Specifications

Model / Type (ZYC)		180	260	300	360	460	600	860	960
Rated Pressure (KN)		1800	2800	3000	3600	4600	6000	8600	9600
Piling Speed (m/min)	Fast	8.7	7.2	7.2	7.8	9.0	7.9	9.0	9.8
Piling Speed (m/min)	Low	2.7	1.8	1.8	1.9	1.6	1.4	1.4	1.6
Piling Stroke (m)		1.9	1.9	1.9	1.9	1.9	1.9	1.9	1.9
Square Pile Max (mm)		400	500	500	600	600	600	550	600
Lifting Weight (t)		8.0	12.0	12.0	16.0	16.0	20.0	20.0	25.0
Total Weight (T)		180	260	300	360	460	600	860	960

🛠 After Sales Service & Support

Standard Warranty: 12-month warranty or up to 2,000 operating hours, whichever comes first.
Extended Warranty: Optional coverage available for up to 36 months.
Global Support: 24/7 technical assistance and a reliable supply chain for spare parts.
Training Services: Detailed on-site or remote operation and maintenance training programs.

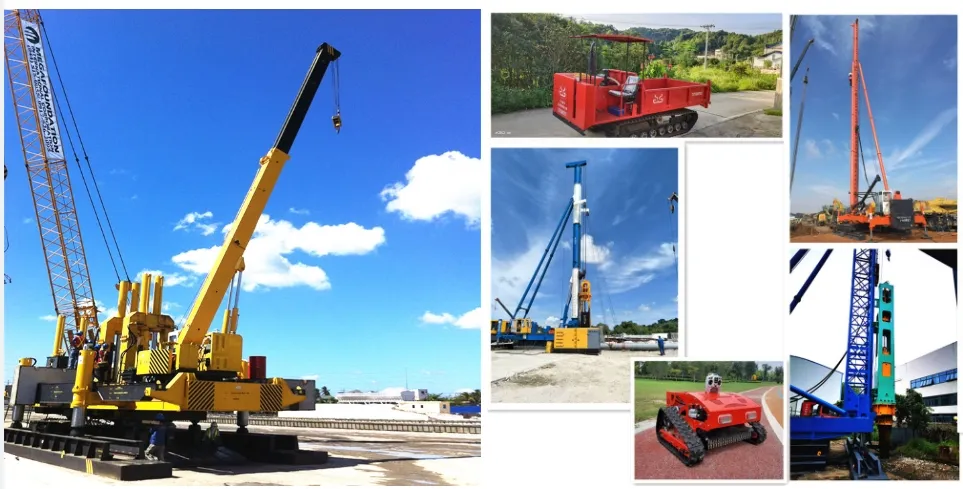

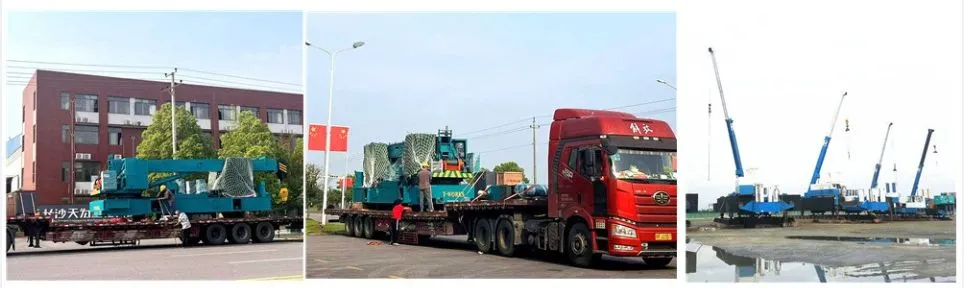

📷 Visual Display

❓ Frequently Asked Questions

Q1: What types of machinery do you specialize in? We are a manufacturer with over 20 years of experience, producing hydraulic static pile drivers, bored pile drilling rigs, hydraulic hammers, and other foundation equipment.

Q2: What are the primary uses for the hydraulic static pile driver? It is designed for jacking in precast concrete piles (square, round, triangle, H-piles) with zero noise and vibration, making it ideal for urban environments.

Q3: What is the typical lead time and payment terms? The standard lead time is approximately 30 days after the deposit is received. We typically accept T/T and L/C payment terms.

Q4: What kind of warranty and after-sales service is provided? We provide a 1-year warranty on the machine structure and 6 months on key spare parts. Services include assembly, operator training, and lifelong technical support.

Q5: Is customization available for specific project needs? Yes, we offer customization options to adapt our machinery to various foundation conditions and specific customer requirements.

Q6: Are your machines suitable for noise-sensitive urban areas? Absolutely. Our static pile drivers operate without the impact noise of traditional hammers, making them perfect for cities with strict environmental regulations.
