Efficient Pile Machine Solutions with High-Efficiency Rig for Construction

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

Send Inquiry

Product Description

Basic Info & Specifications

Model NO.ZYC600B-B1

TypePressure Pile Driver

Power SourceDiesel

CertificationCE, ISO 9001:2000

ConditionNew

Piling Speed7.0 M/Min

Unique Selling PointHigh Operating Efficiency

Dimension14*8.32*3.15 m

Efficiency98%

Suitable PileH-Pile, Sheet Pile, Concrete Pile

Product Description

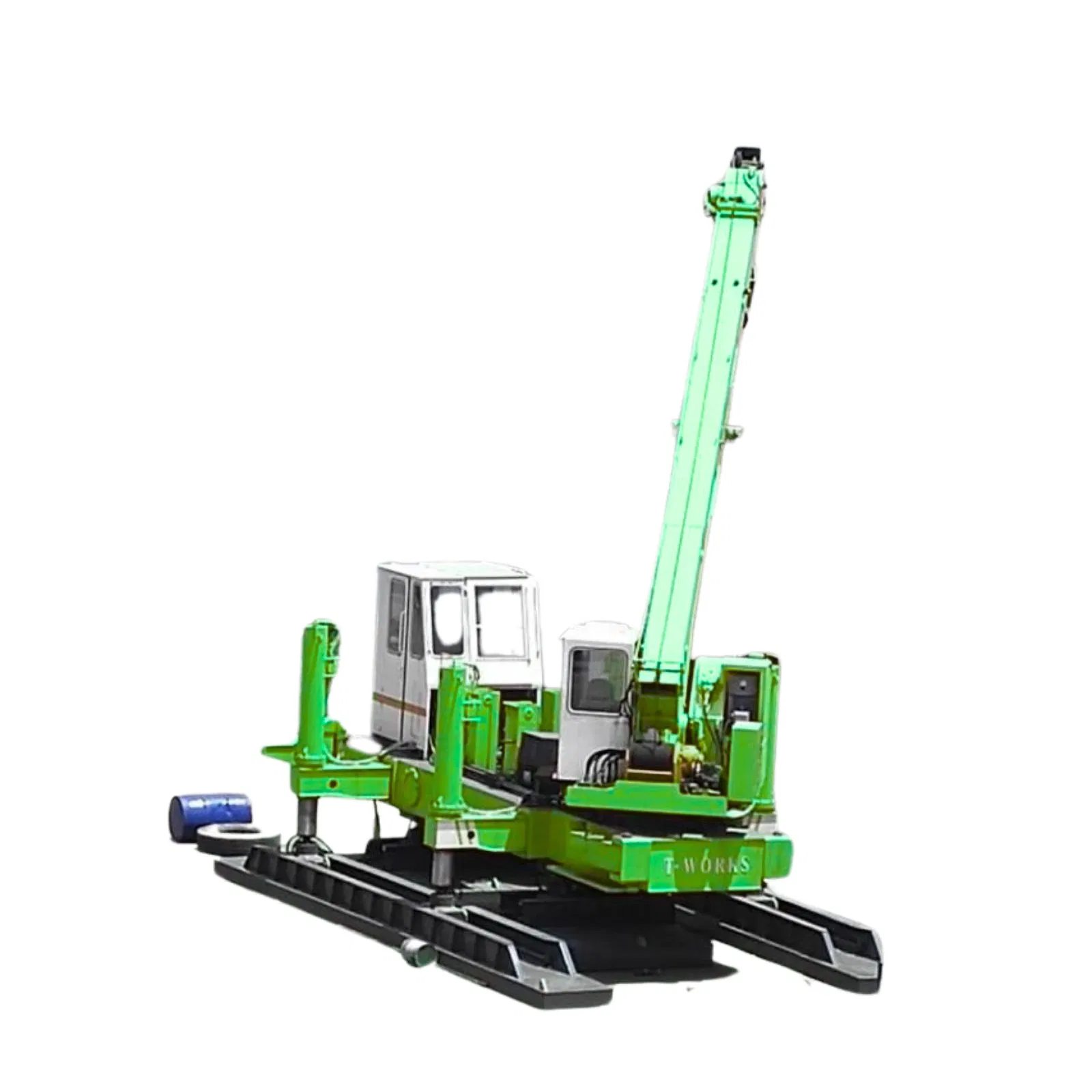

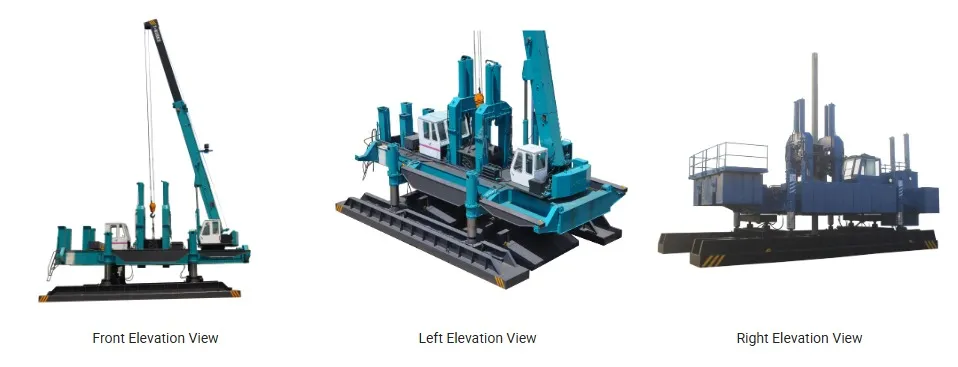

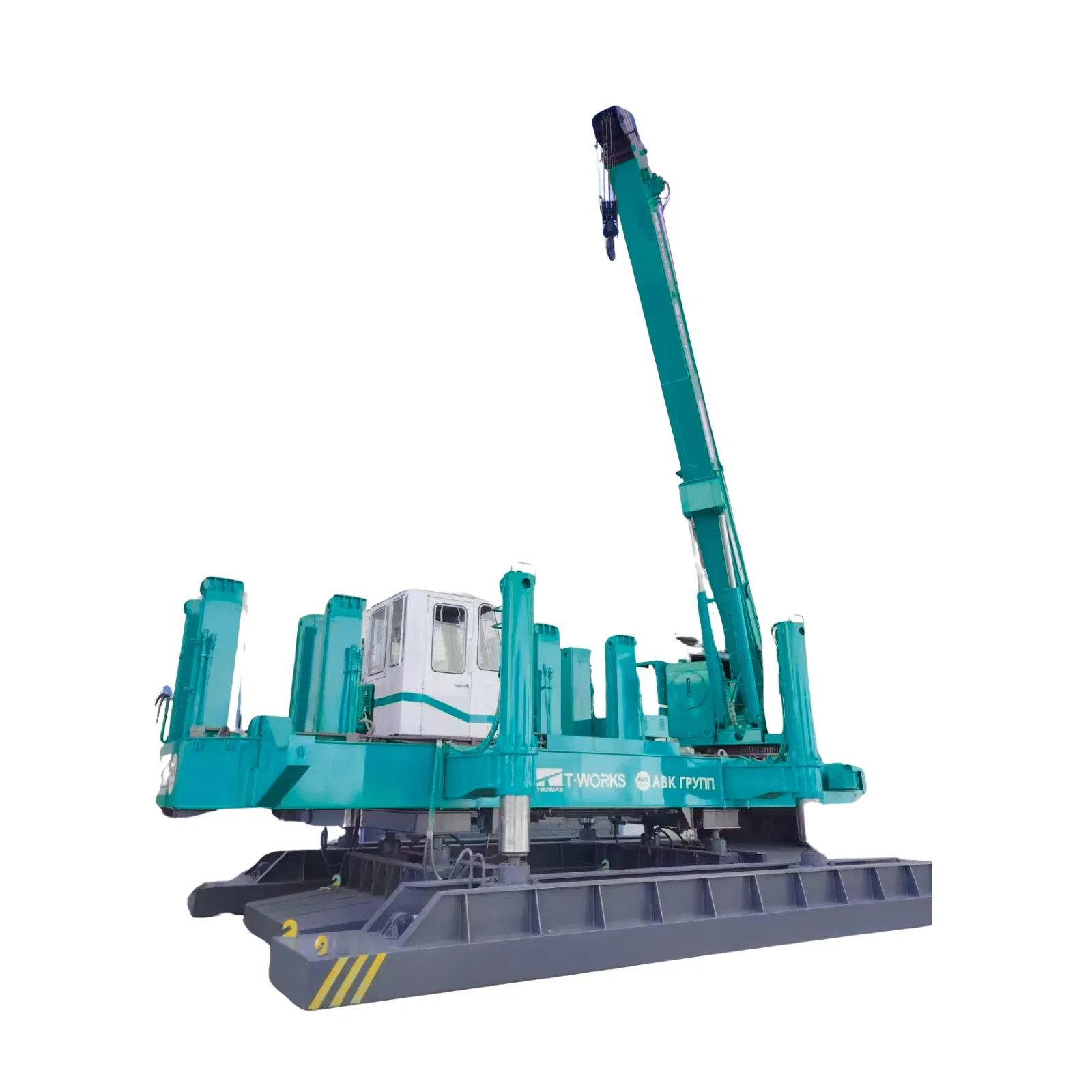

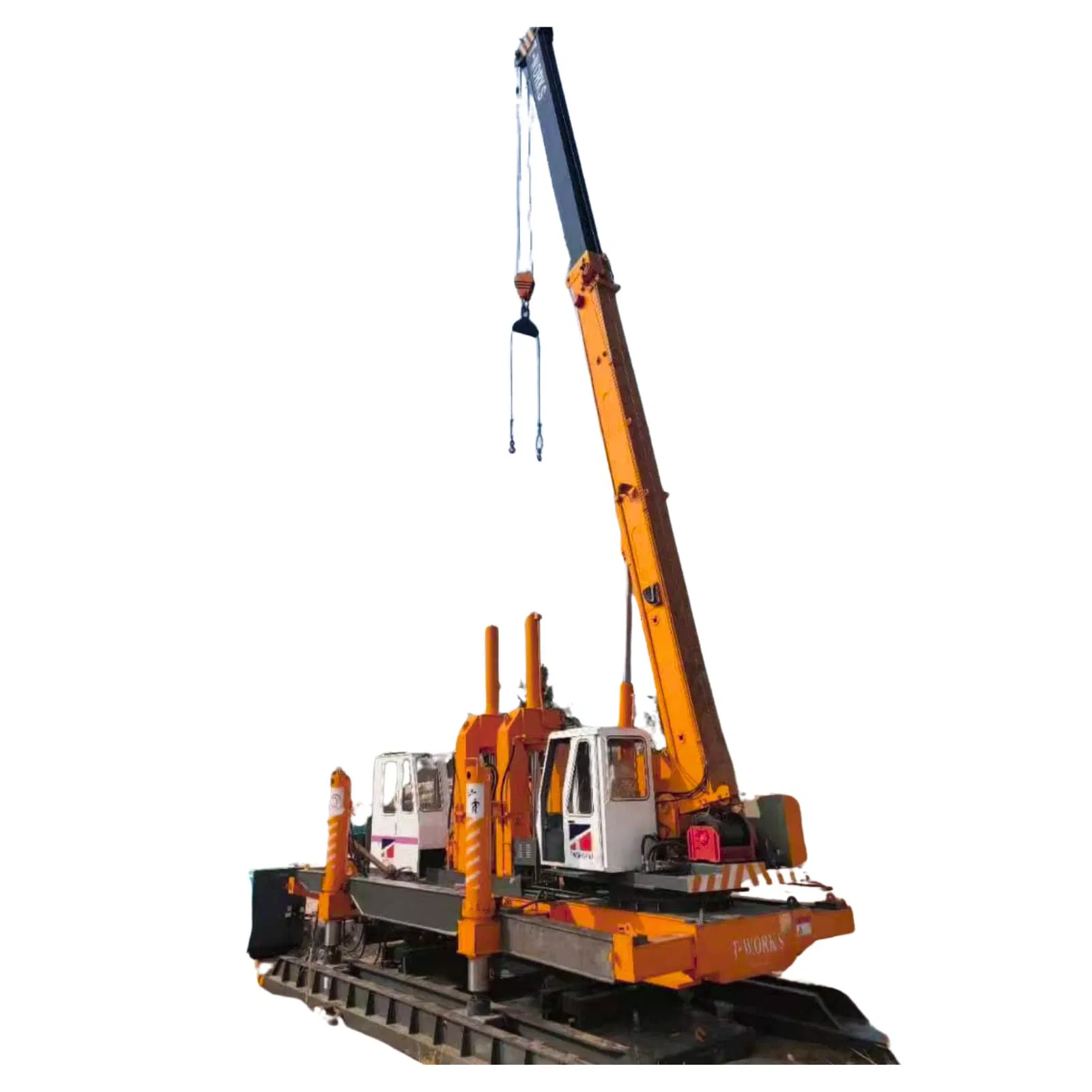

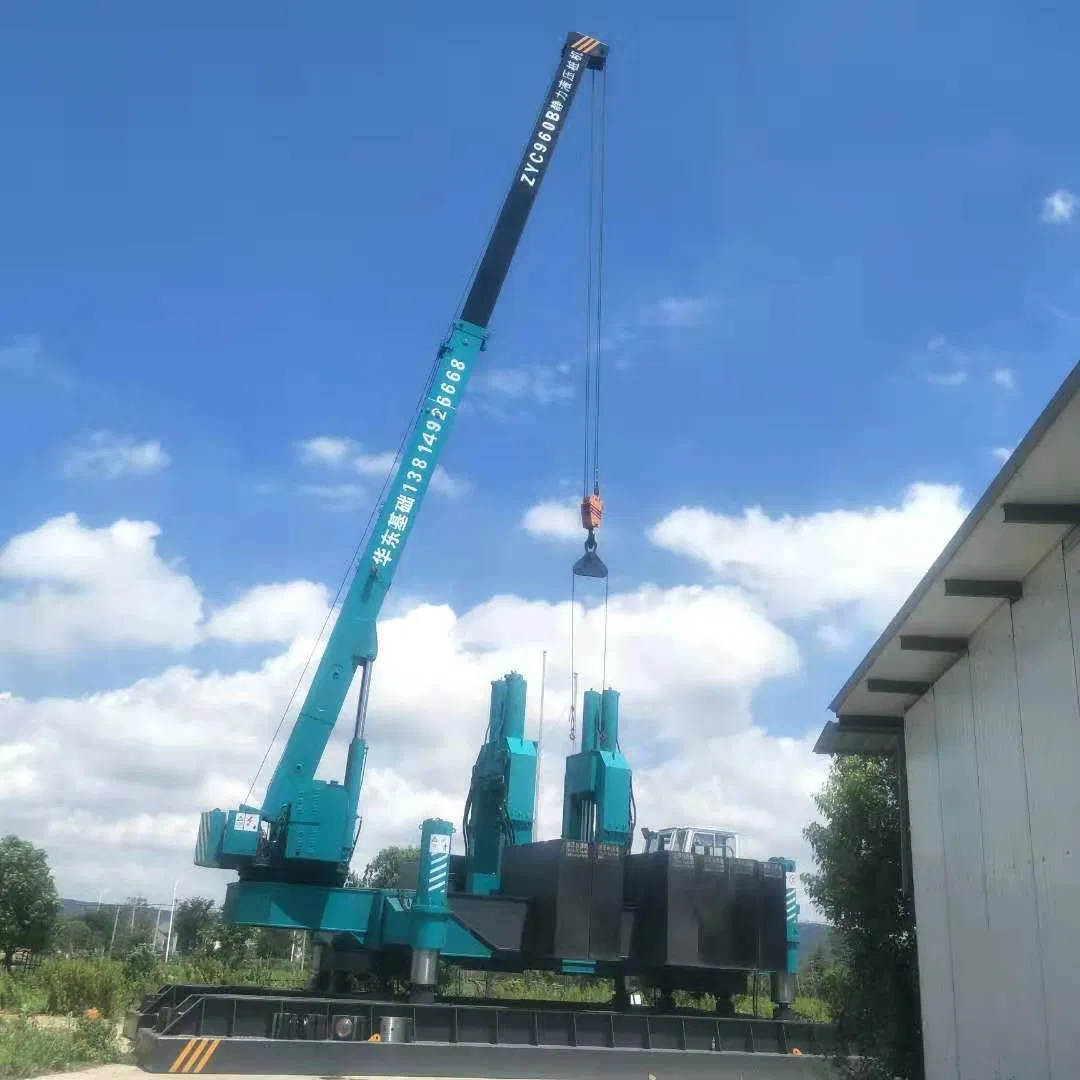

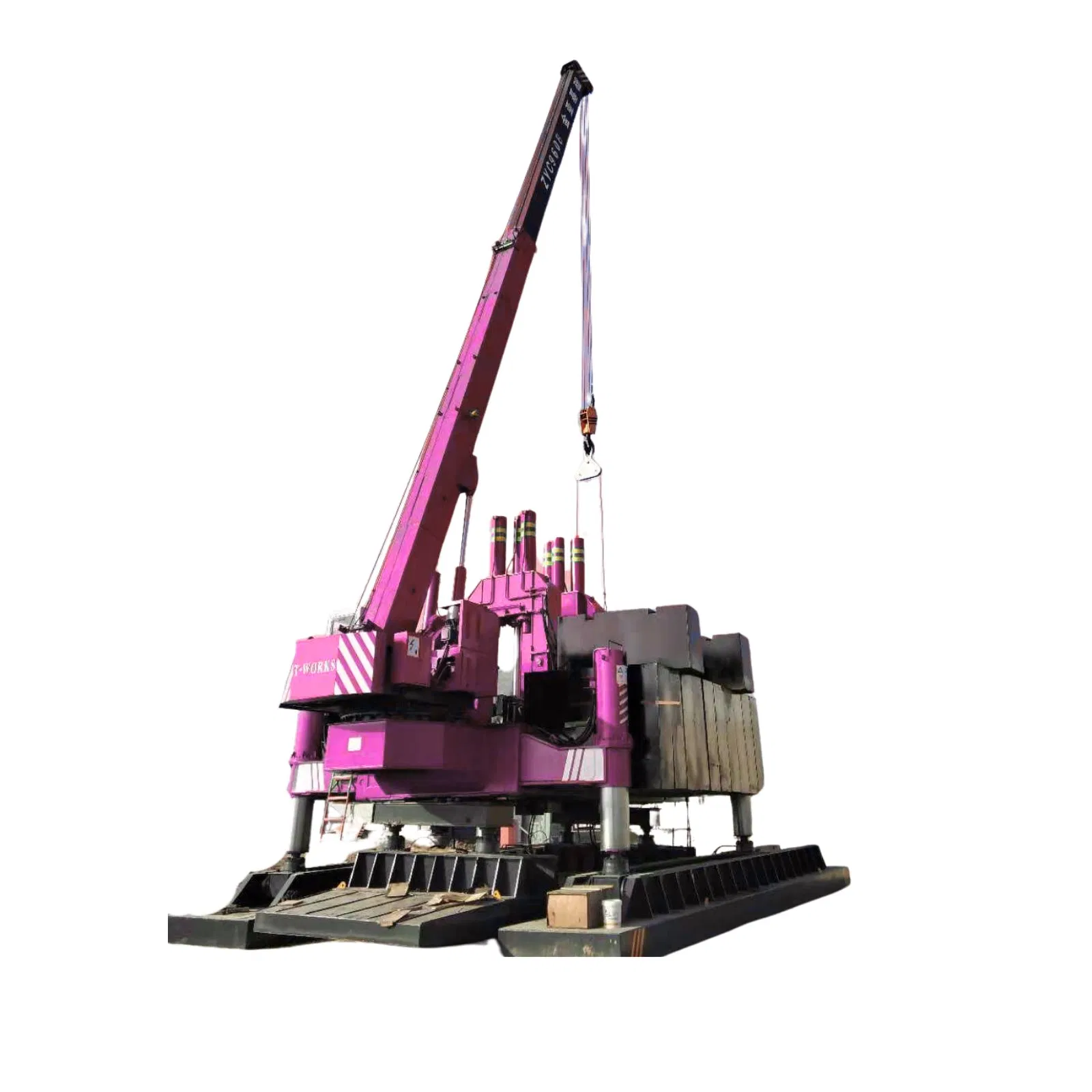

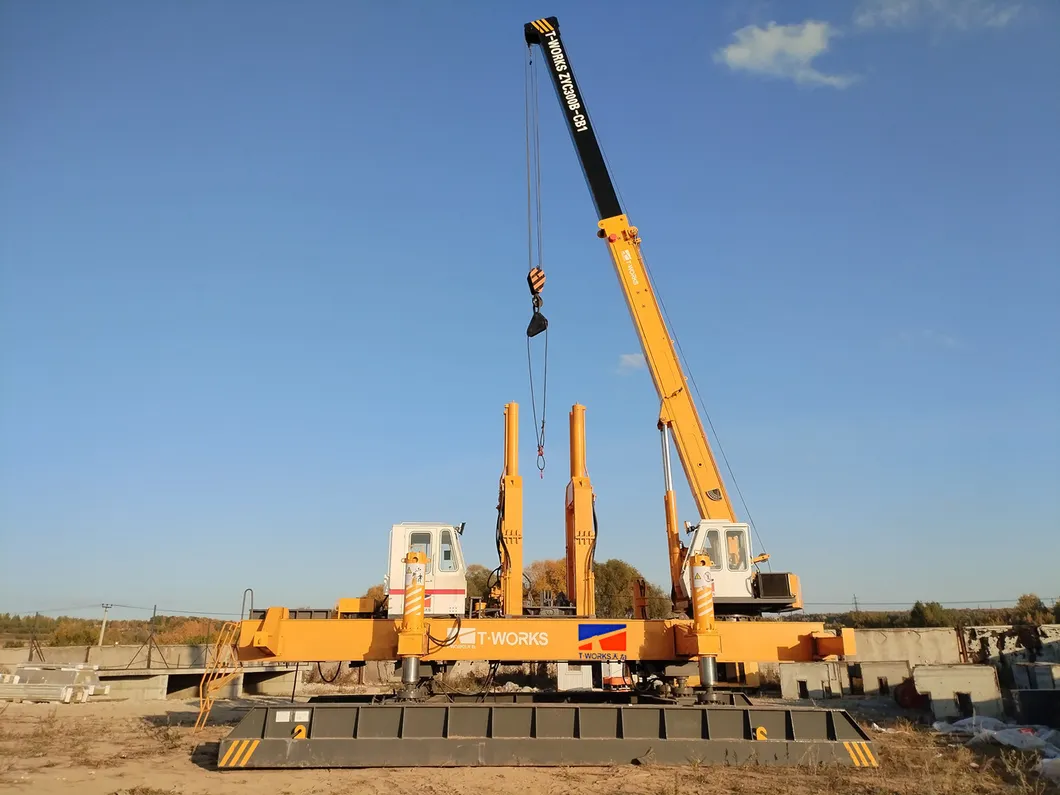

Efficient Hydraulic Piling Rig with Static Function and Customization Options

Transform your construction capabilities with our cutting-edge hydraulic static pile driver. Unlike traditional diesel or hydraulic hammers, this advanced machine is tailor-made for urban environments, offering a tranquil, vibration-free, and environmentally sustainable alternative. With its sophisticated motorized hydraulic system, it masterfully manages a wide assortment of cement piles, such as pipe, square, triangle, and sheet, with an astonishing capacity ranging from 60 to 1200 tons.

Forged Material Excellence: Roller wheels and clamping jaws crafted from forged materials for superior wear resistance.

Eccentric Wheel Innovation: Clamping box guide wheel ensures precise vertical alignment via adjustable gaps.

Inverted Cylinder Strength: Robust supporting legs increase durability and withstand greater radial forces.

Six-Cylinder Piling Efficiency: Large-tonnage machines feature six piling cylinders, boosting construction speed.

Optimized Boom Length: Meticulously designed crane with an extended main boom for superior performance.

Technical Specifications

Parameter / Model		ZYC 180	ZYC 300	ZYC 460	ZYC 600	ZYC 860	ZYC 960
Rated piling pressure (KN)		1800	3000	4600	6000	8600	9600
Piling speed (m/min)	Fast	8.7	7.2	9.0	7.9	9.0	9.8
Piling speed (m/min)	Low	2.7	1.8	1.6	1.4	1.4	1.6
Max Square pile (mm)		400	500	600	600	800	600
Max Circle pile (mm)		400	500	500	500	550	800
Power Piling (KW)		60	60	111	111	111	148

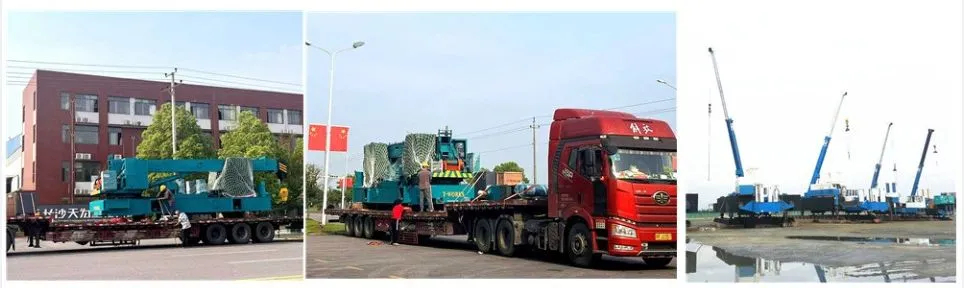

After Sales Service

Standard Warranty: 12-month warranty or 2,000 operational hours.

Extended Warranty: Optional protection up to 36 months.

Global Support: 24/7 technical support and reliable spare parts supply.

Training Services: On-site or remote programs for operation and maintenance.

Frequently Asked Questions

What kind of machinery do you specialize in?

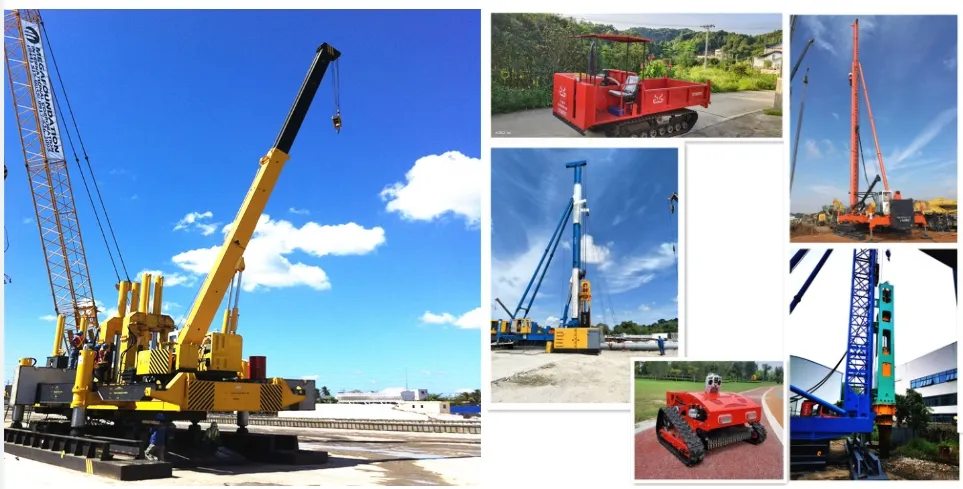

We are a pioneering manufacturer with over 20 years of experience in producing hydraulic static pile drivers, bored pile drilling rigs, hydraulic hammers, and other piling machinery.

What are the primary applications of the hydraulic static pile driver?

It is designed for jacking in precast concrete piles (square, round, H-piles) with zero noise or vibration, making it ideal for urban environments and sensitive terrain like clay or sand.

What is the typical lead time and payment terms?

The standard lead time is 30 days post-deposit. We accept T/T and L/C payment terms for client flexibility.

What does your warranty cover?

We provide a 1-year warranty on the machine structure and 6 months on main spare parts, supported by lifelong after-sale service and operator training.

Is machine customization available?

Yes, we welcome customization to meet specific project requirements and foundation conditions.

Can this machine be used near historic sites or subways?

Absolutely. Due to its vibration-free operation, it is specifically suited for locations near heritage sites, subways, and precision instrument facilities.
