Trenchless Stop Balloon System for Non-Excavation Pipeline Maintenance

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Multi-Size Inflatable Pipe Plugs for Pipeline Sealing & Leak Testing

Our inflatable pipe plugs are designed for versatile pipeline maintenance, providing a reliable seal for leak testing, flow blocking, and non-excavation repairs across various pipe materials.

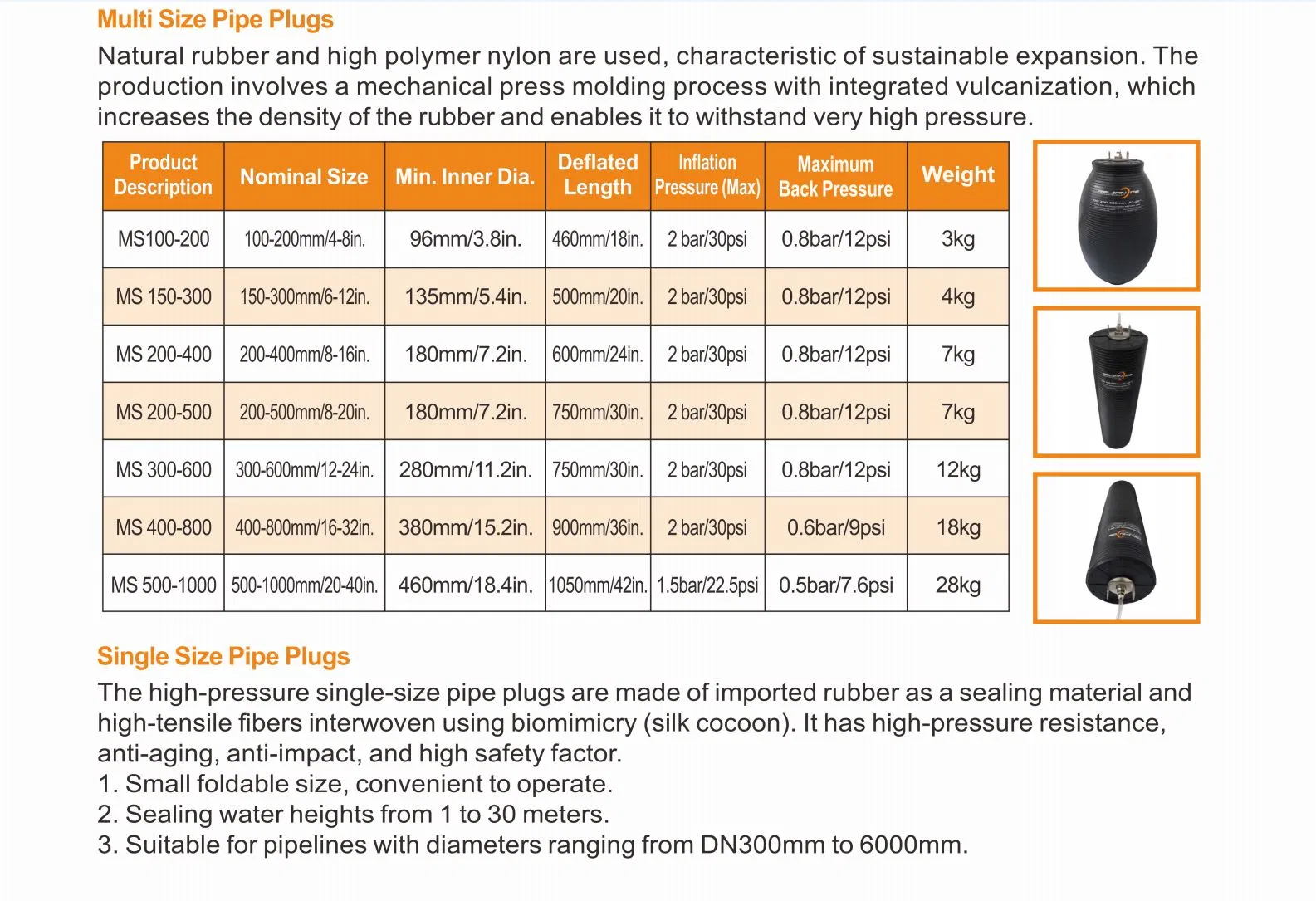

Basic Specifications

Model NO.

SS700

Material

EPDM Rubber, Reinforced Fabric

Seal Mechanism

Inflated with Air or Water

Size Range

DN50 to DN3600+

Technics

Reinforced Multi-layer

Weight

Lightweight, Flexible

Features

Inflation Gauges, Safety Valves

HS Code

4016950090

Product Display

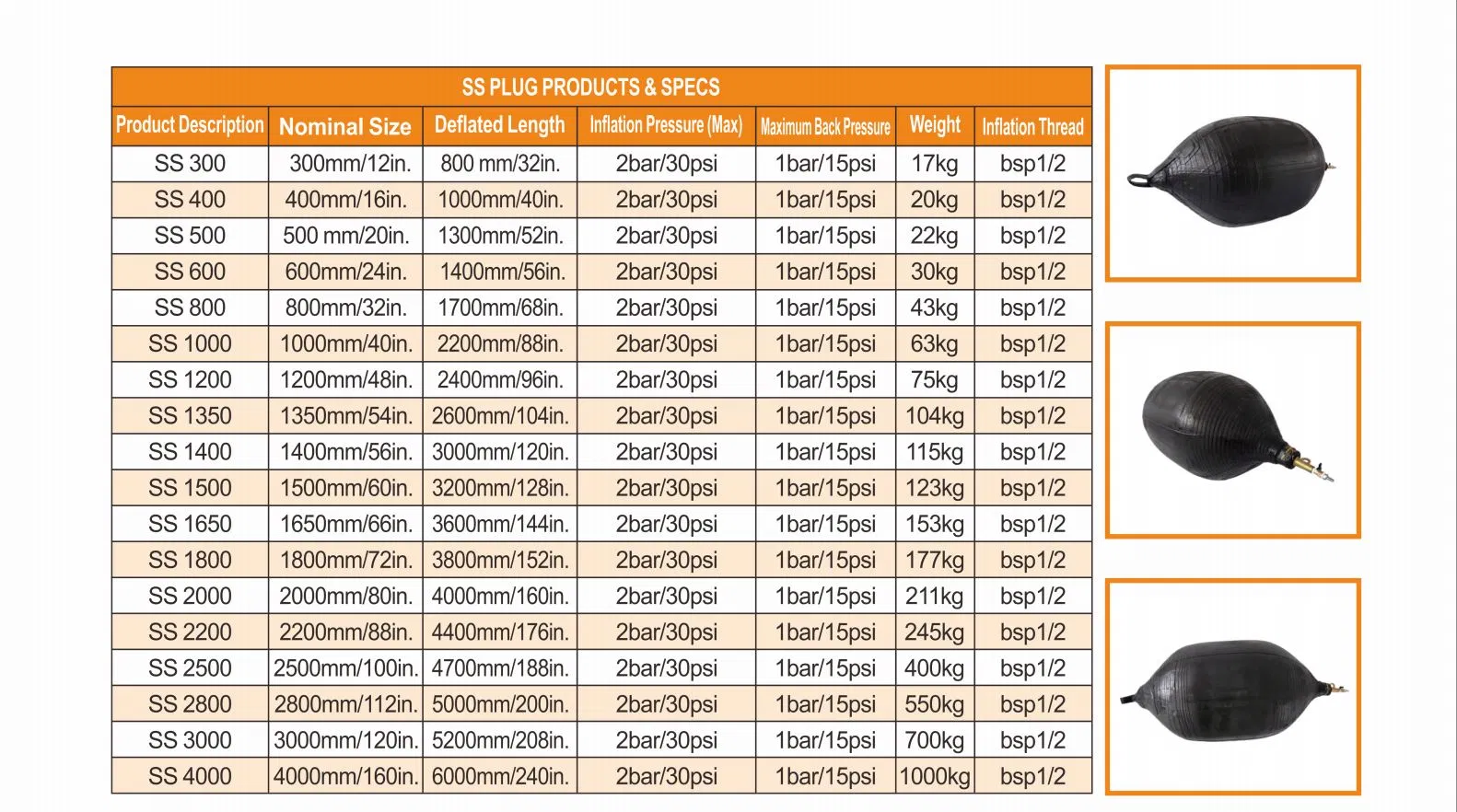

Technical Highlights Comparison

FEATURE	Inflatable Plug (RTT-IPP)	Mechanical Plug (RTT-MPP)
Material	Reinforced rubber + fabric layers	Aluminum or ABS + rubber seal
Pressure Rating	Up to 2.5 bar	Up to 5 bar
Pipe Compatibility	Concrete, PVC, HDPE, steel	Steel, cast iron, plastic

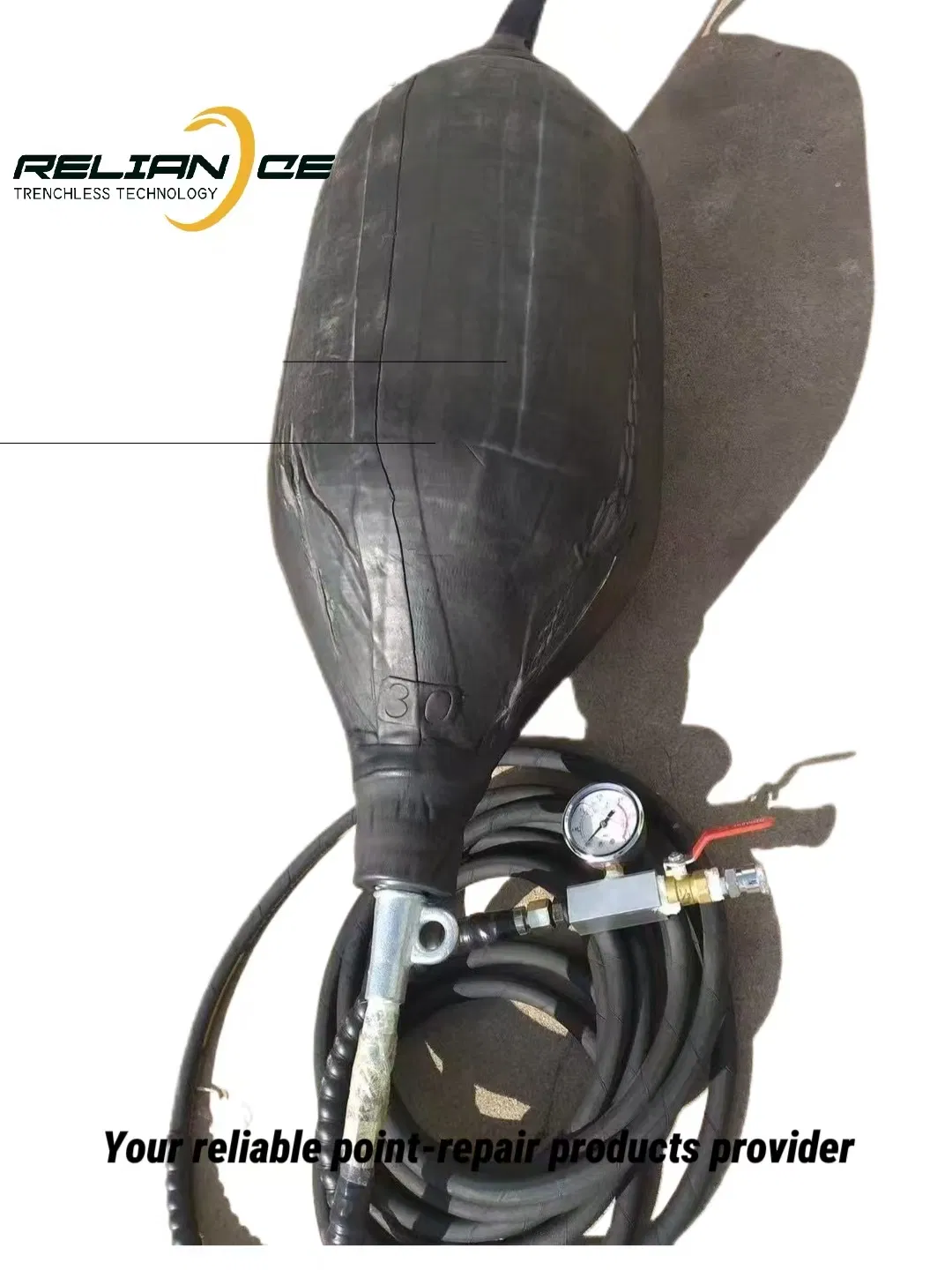

Inflation Method	Manual pump or compressor	N/A
Reusability	Yes	Yes
Application	Leak testing, flow blocking	Pipe end sealing, dust protection

Quality Certification & Packaging

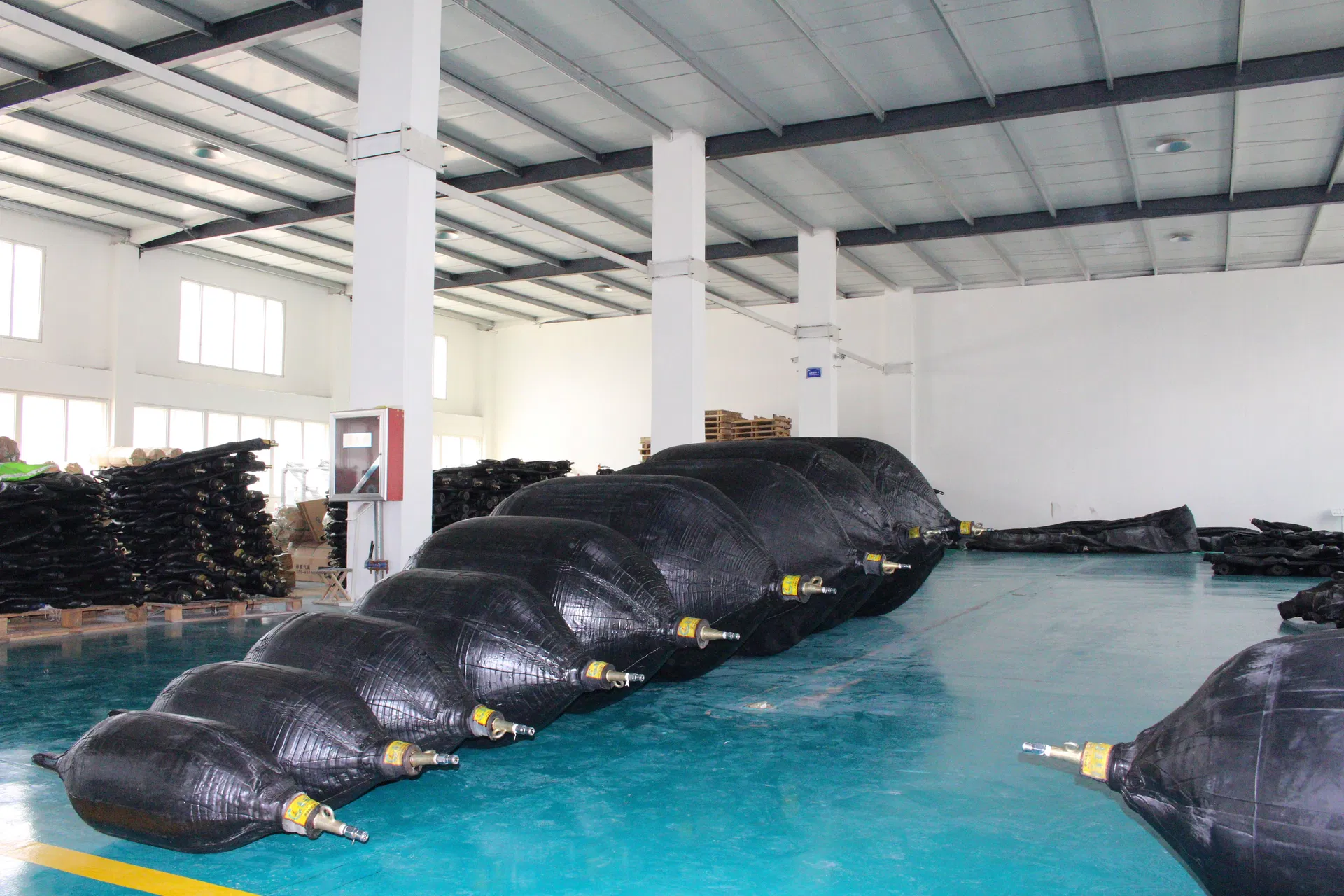

Packaging Details: Standard items are packed in reinforced wooden boxes or export cartons (approx. 50cm x 50cm x 50cm) with moisture protection. Gross weight starts at approximately 50kg depending on size.

Frequently Asked Questions

What's the difference between inflatable and mechanical pipe plugs?

Inflatable plugs use air pressure to expand and seal the pipe, ideal for irregular shapes or temporary isolation. Mechanical plugs use a rubber seal compressed by a metal frame — better for high-pressure or permanent sealing.

Can these plugs be reused?

Yes, both inflatable and mechanical types are designed for multiple uses with proper handling, cleaning, and storage after each application.

What pipe materials are compatible?

Our plugs are compatible with a wide range of materials including concrete, PVC, HDPE, steel, and cast iron pipelines.

Do you offer custom sizes or configurations?

Absolutely. We can customize plug dimensions, inflation ports, and bypass features to meet specific project requirements.

What is the typical lead time for an order?

Standard production usually takes 5–7 working days. Rush orders can often be accommodated based on current stock levels and production schedules.

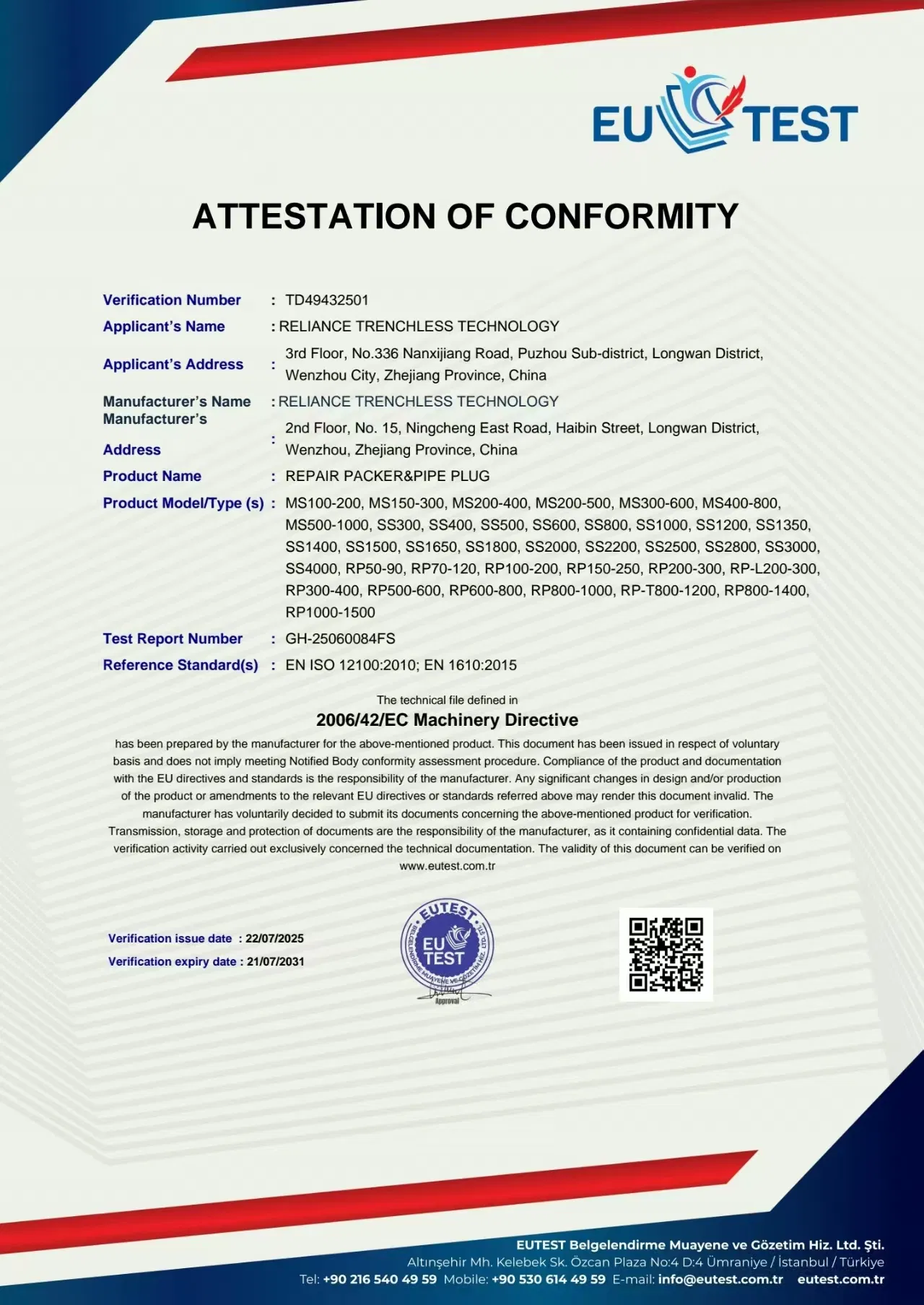

Are the pipe plugs certified for safety?

Yes, our plugs meet rigorous quality standards and carry CE certification to ensure safe operation during pipeline testing and maintenance.
