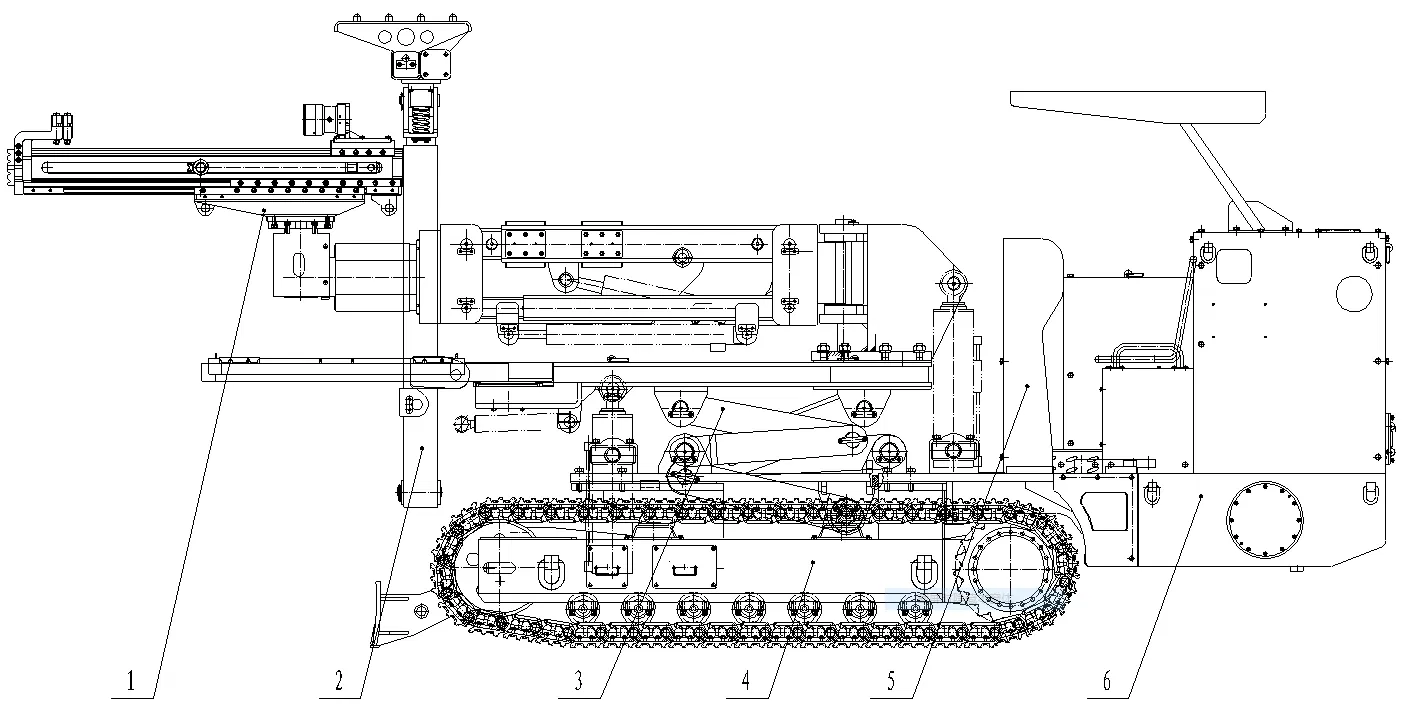

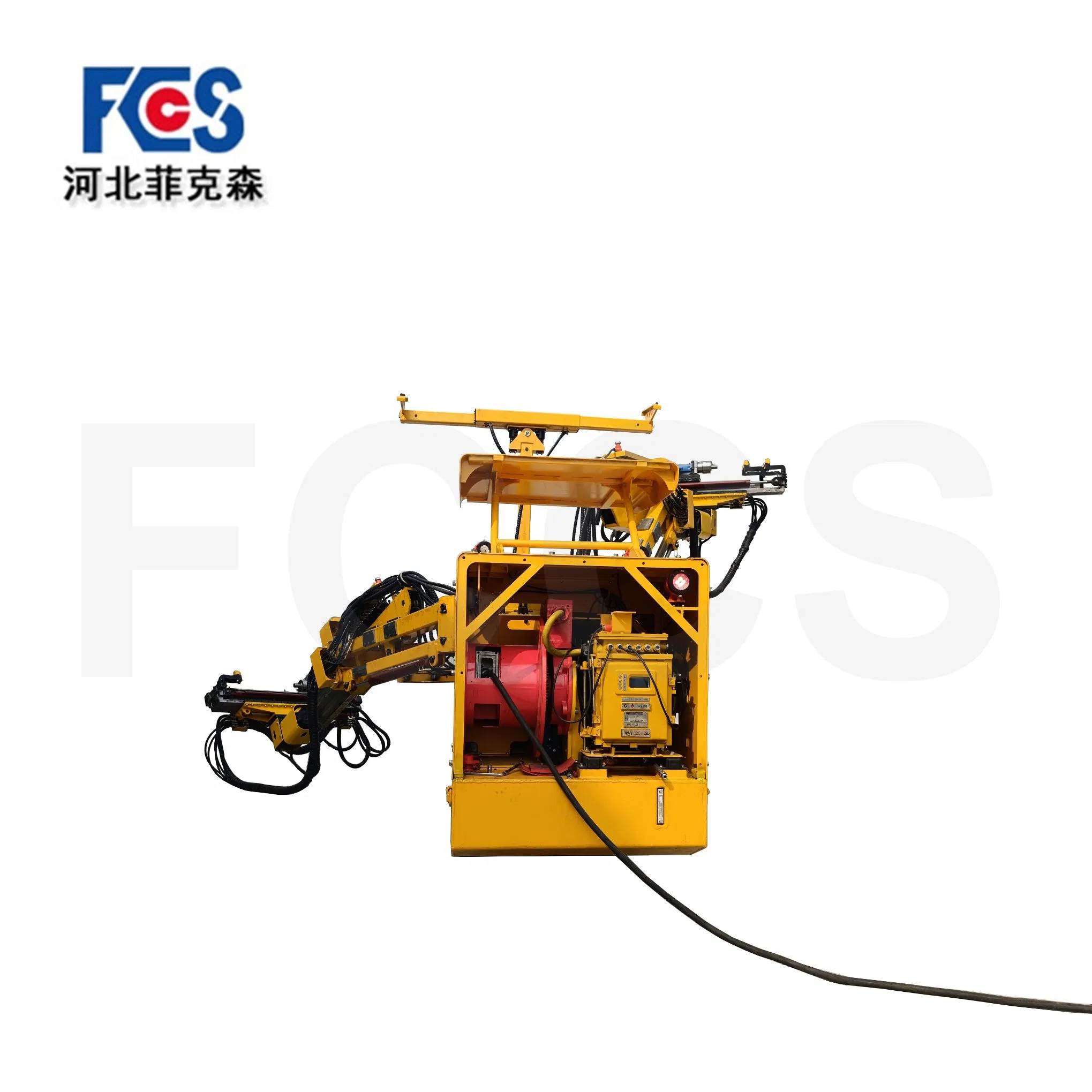

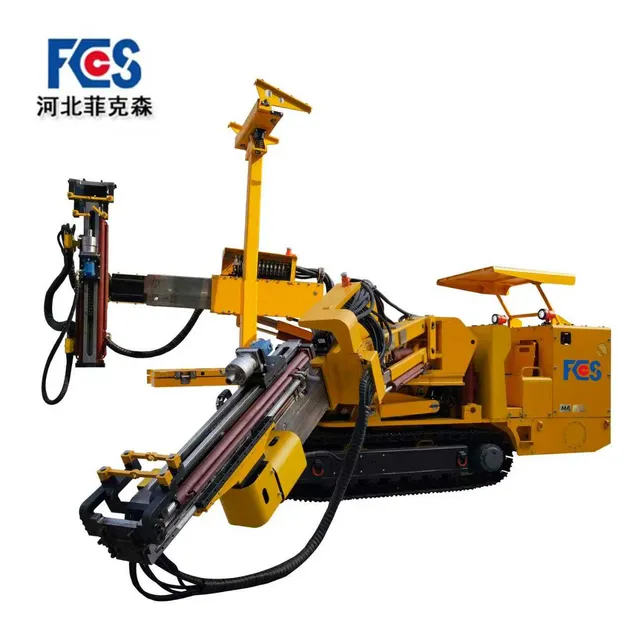

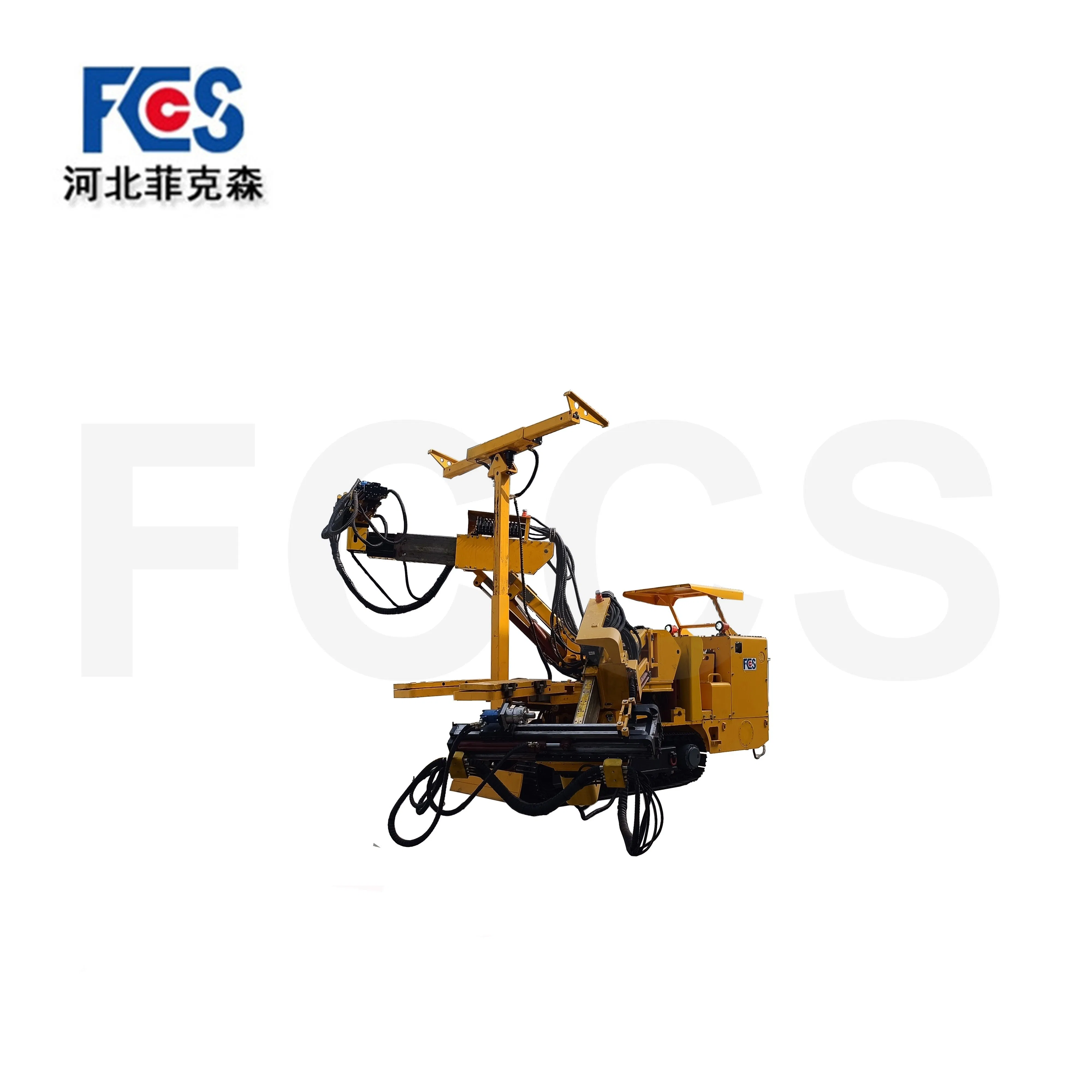

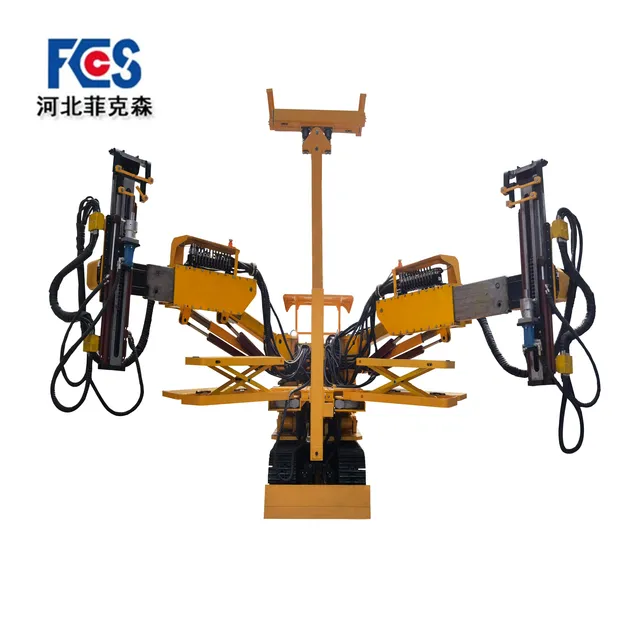

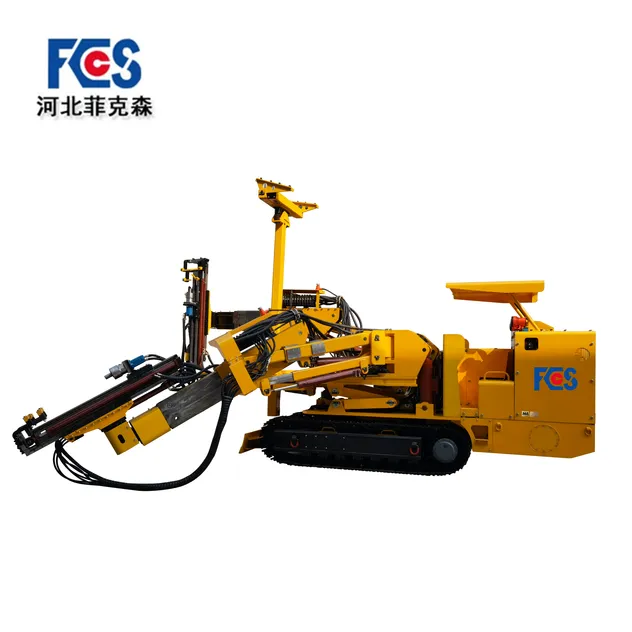

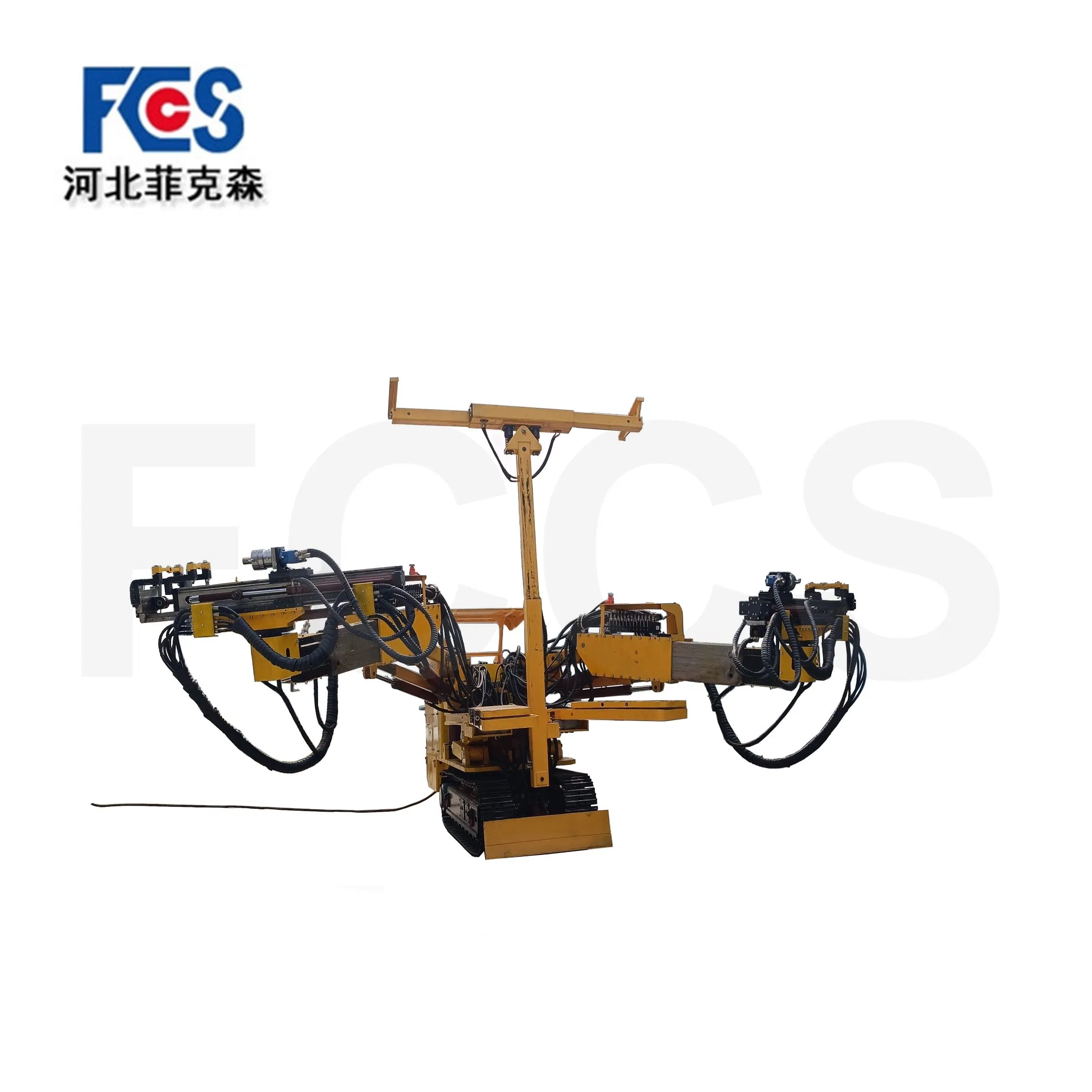

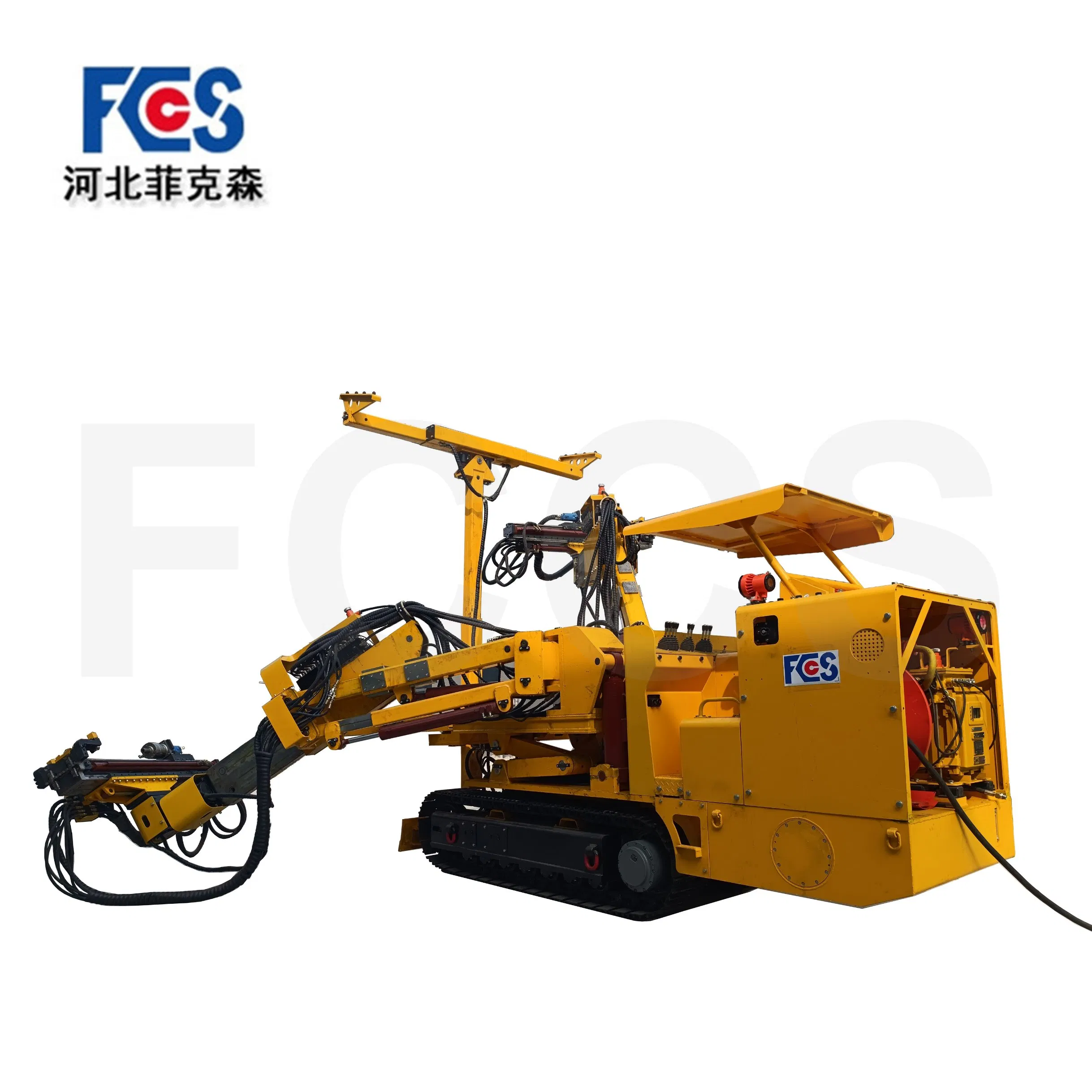

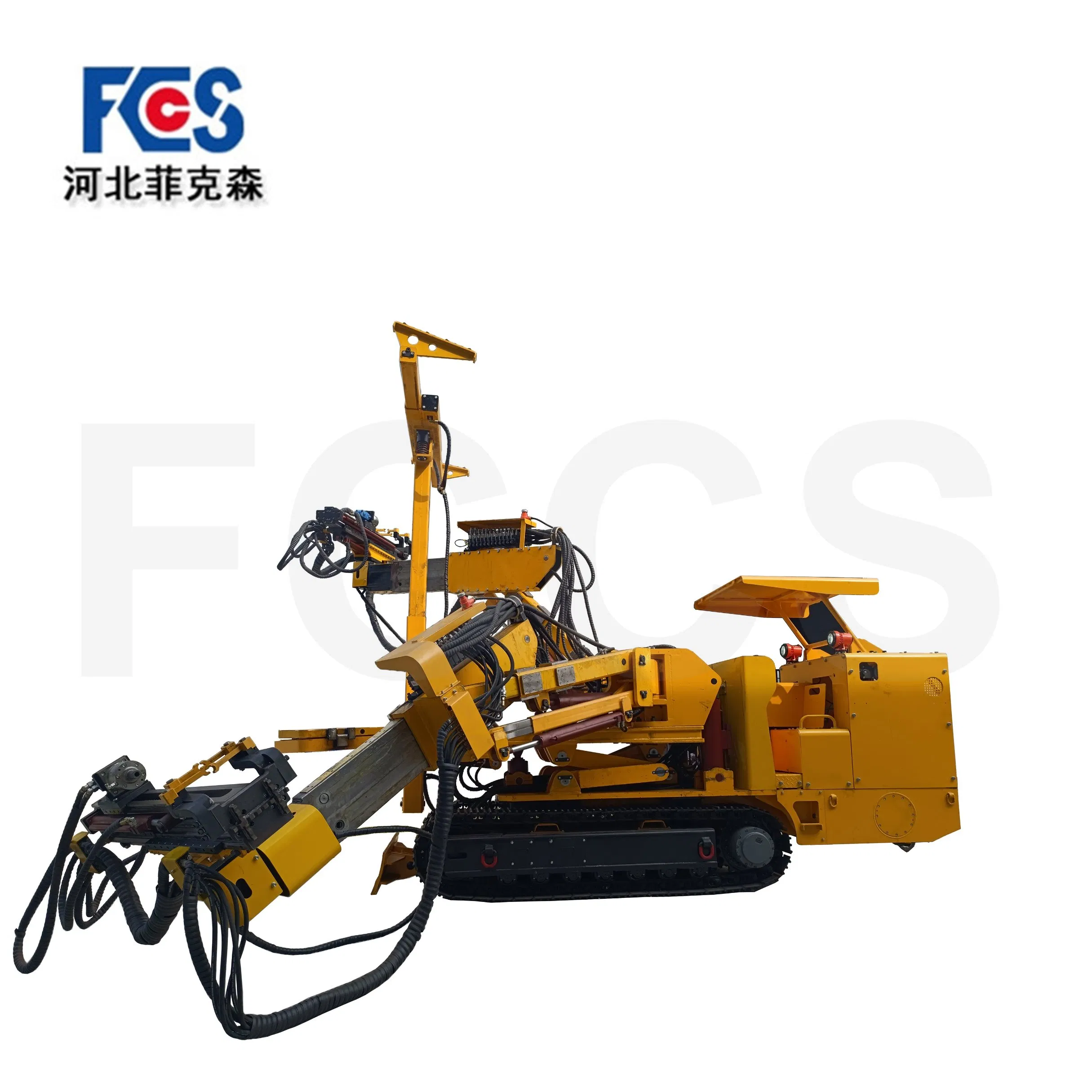

Hydraulic Anchor Bolt Drilling Machine
The CMM2 series Hydraulic Anchor Bolt Drilling Machine is a new type of roadway support machinery. Used in conjunction with a tunneling machine, it is suitable for support operations at the roadway excavation face and represents an advanced anchor bolt and cable support system capable of transforming current roadway excavation techniques. The CMM2 series hydraulic anchor bolt drilling rig features a compact structure, reasonable design, and is small and flexible. Its simple hydraulic system facilitates operation and maintenance for workers.
| Items | Unit | CMM2-15 | CMM2-20 | CMM2-23 | CMM2-25 | CMM2-27 | CMM2-30 | CMM2-34 | CMM2-36 |
|---|---|---|---|---|---|---|---|---|---|
| Tunnel Cross-section | m2 | 15 | 20 | 23 | 25 | 27 | 30 | 34 | 36 |
| Working Range (W×H) | mm | 3000×5000 | 4000×5000 | 4600×5000 | 5000×5000 | 5000×5500 | 5000×6000 | 5700×6000 | 5700×6500 |
| Drill Arms | — | 2 | |||||||
| Operating Dimensions | mm | 6300×1300×2620(±50) | |||||||
| Drill Hole Diameter | mm | ≤φ42 | |||||||
| Rated Torque | N•m | 300 | |||||||
| Motor Power | kw | 45 | |||||||
We are a professional manufacturer of coal mining machinery, committed to delivering advanced equipment and integrated solutions for underground operations. With solid industry expertise and continuous innovation, we serve mining enterprises with products that combine safety, efficiency, and reliability.
Our core product lines include hydraulic and pneumatic drilling rigs, crawler-type transportation vehicles, and auxiliary equipment supporting tunneling and excavation tasks. We offer comprehensive after-sales support, including technical training and maintenance guidance to help customers improve productivity and reduce costs.
