Product Description

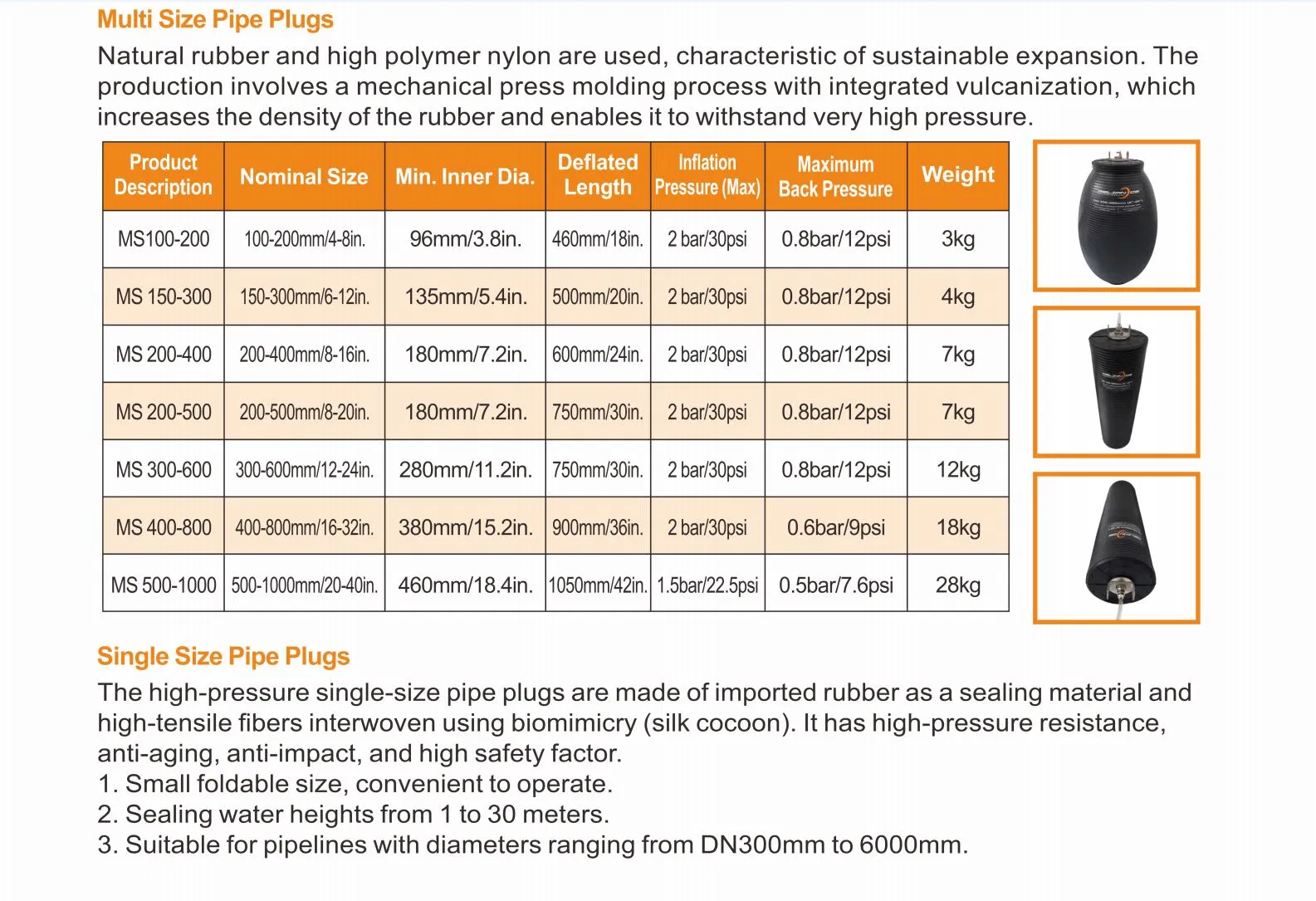

Overview

Multi-Size Inflatable Pipe Plugs for Pipeline Sealing & Leak Testing

Model NO.

MS100-200

Material

EPDM Rubber, Reinforced Fabric

Type

Underground Pipe Plug

Seal Mechanism

Inflated with Air or Water

Size Range

DN50 to DN3600+

Weight

Lightweight, Flexible

Optional Features

Inflation Gauges, Safety Valves, Bypass Ports

HS Code

4016950090

Specification

Technical Highlights

FEATURE	Inflatable Plug (RTT-IPP)	Mechanical Plug (RTT-MPP)
Material	Reinforced rubber + fabric layers	Aluminum or ABS + rubber seal
Pressure Rating	Up to 2.5 bar	Up to 5 bar
Pipe Compatibility	Concrete, PVC, HDPE, steel	Steel, cast iron, plastic
Inflation Method	Manual pump or compressor	N/A
Reusability	Yes	Yes
Application	Leak testing, flow blocking	Pipe end sealing, dust protection

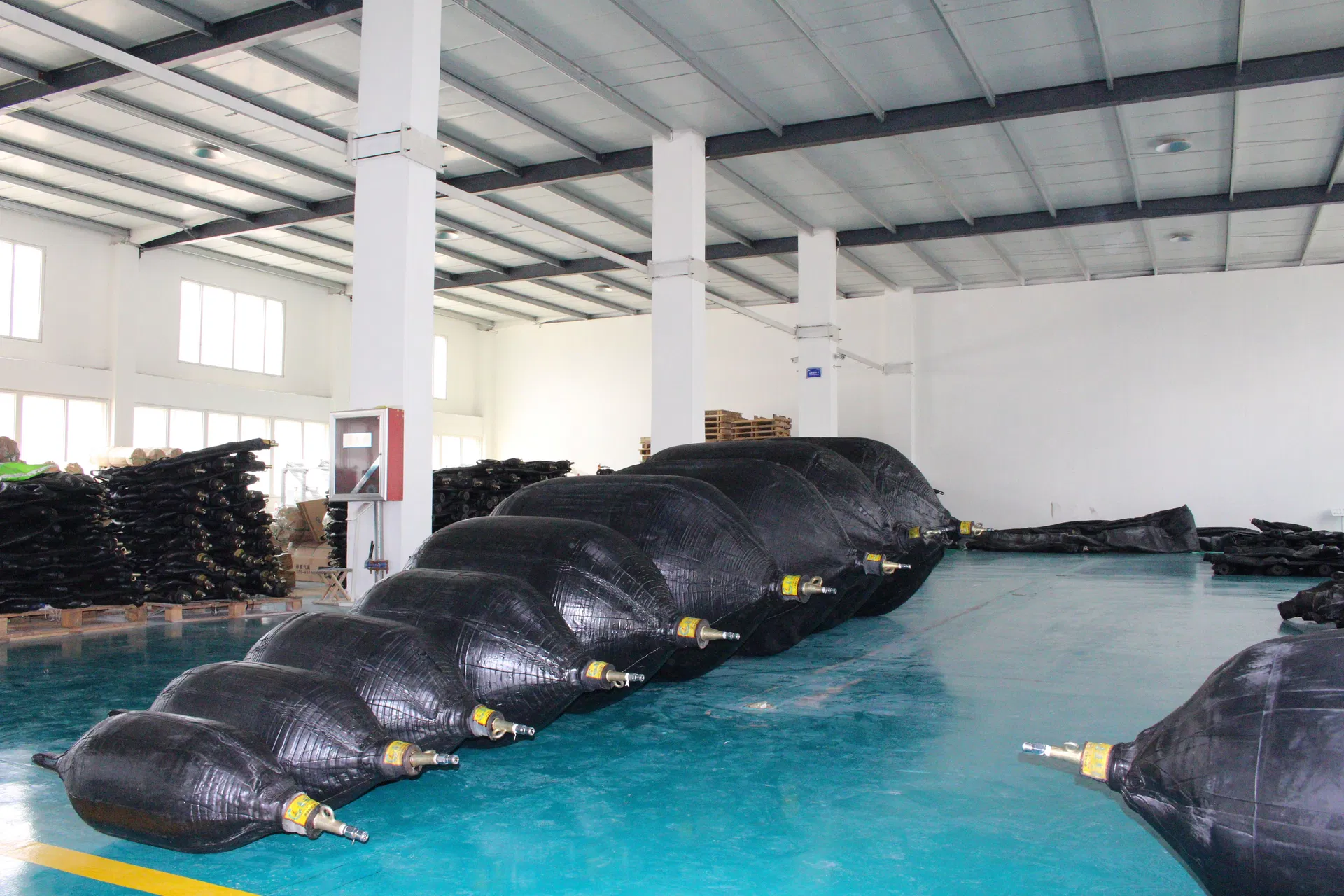

Packing & Delivery

Package Type

Wooden Box / Reinforced Export Cartons

Package Size

50.00cm * 50.00cm * 50.00cm

Gross Weight

25.000kg

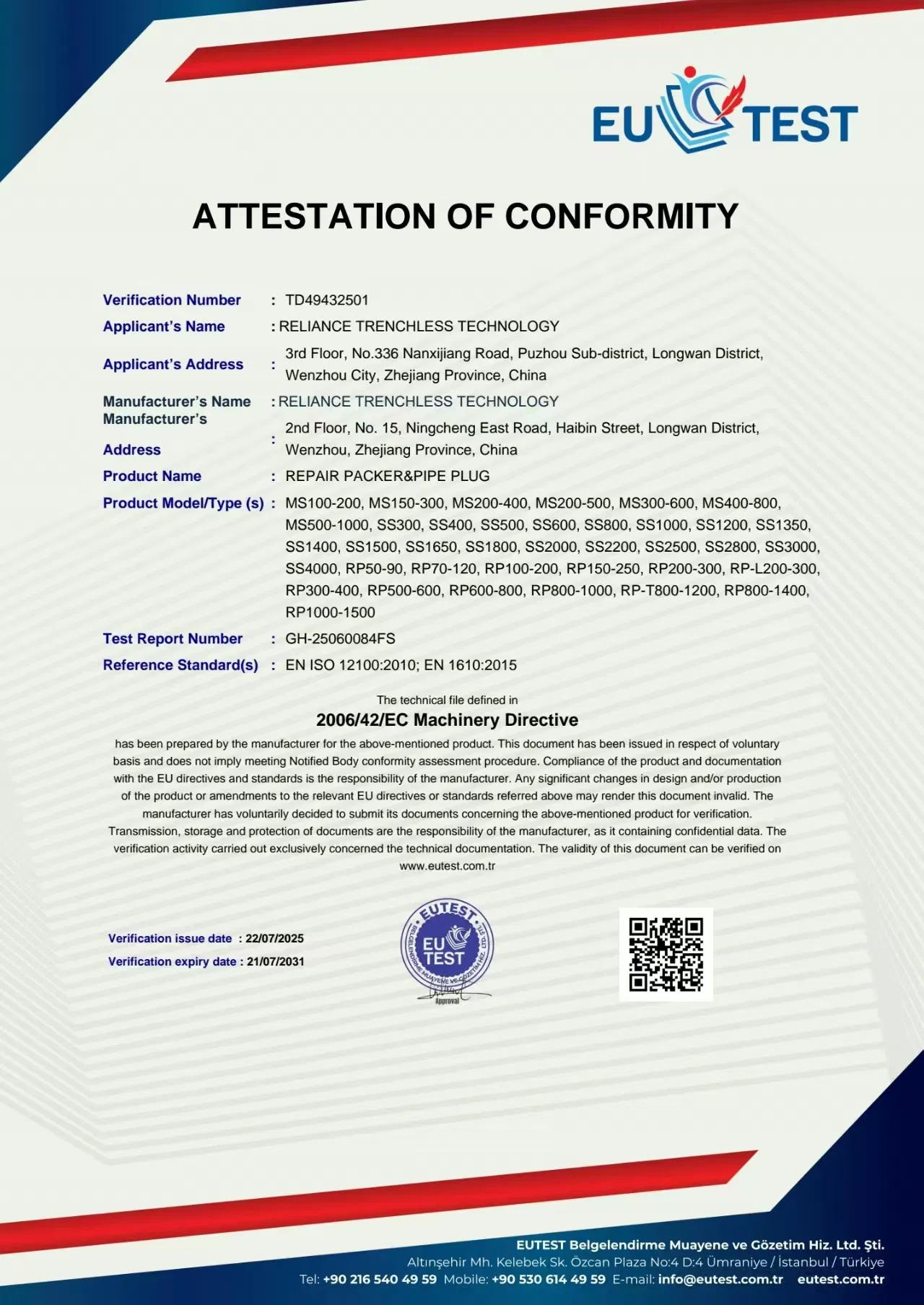

Certifications

Frequently Asked Questions

What's the difference between inflatable and mechanical pipe plugs?

Inflatable plugs use air pressure to expand and seal the pipe, ideal for irregular shapes or temporary isolation. Mechanical plugs use a rubber seal compressed by a metal frame — better for high-pressure or permanent sealing.

Can the plugs be reused?

Yes, both types are designed for multiple uses with proper handling, cleaning, and storage after each application.

What pipe materials are compatible?

Our plugs work effectively with concrete, PVC, HDPE, steel, and cast iron pipelines.

Do you offer custom sizes?

Absolutely. We can customize plug dimensions, inflation ports, and pressure ratings to meet specific project requirements.

What is the typical lead time?

Standard production typically takes 5–7 working days. Rush orders can be accommodated based on current stock levels and production schedules.

Are the plugs certified for safety?

Yes, our plugs carry CE certification and are manufactured under strict quality control standards to ensure reliability during high-pressure testing.
