Real-Time Monitoring Heavy-Duty Excavator Guidance System for Mining Operations

Customization:	Available
After-sales Service:	Remote After-Sales Service
Warranty:	1 Year

📋 Basic Information

Model NO.HYAT-GW16

TypeCrawler Excavator

UsageGM Excavator

BucketBackhoe

TransmissionHydraulic Transmission

Drive TypeInternal Combustion Drive

Bucket Capacity<0.1m³

SizeSmall-Scale

CertificationEUR5/EPA4

ConditionNew

Operating Weight1600kg

PowerGasoline / Diesel

Max Digging Depth2150mm

Specification3550*1150*1870mm

🏗️ Product Overview

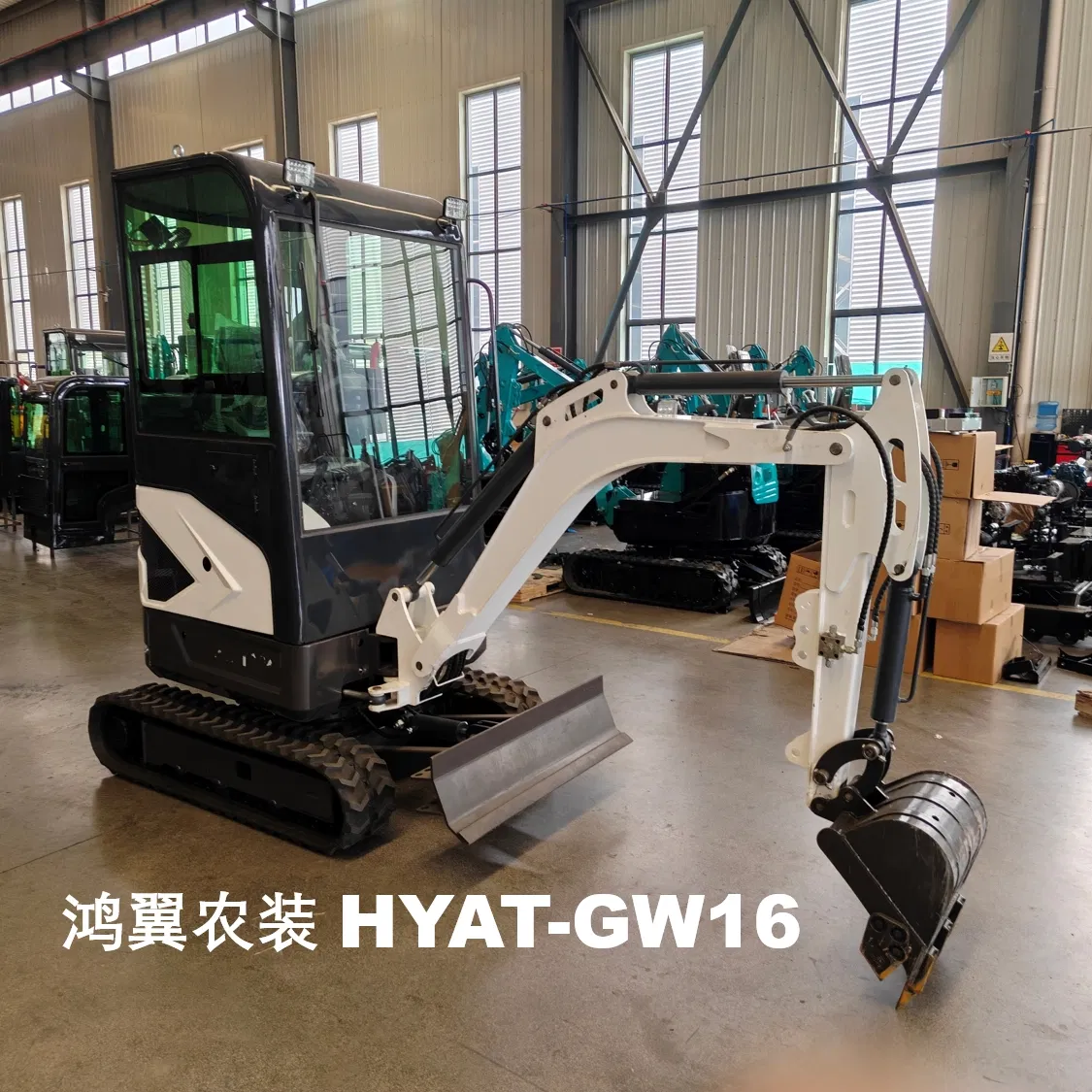

Crawler Hydraulic Mini Excavator GW16 is a compact and versatile construction machine designed for precise digging and excavation tasks in confined spaces. Its size, maneuverability, and ability to accommodate various attachments make it an invaluable tool for a wide range of industries and construction projects.

This small excavator has become a highly cost-effective model, equipped with a telescopic chassis, concealed piston high and low speed motors, variable piston pump, and a Load-sensitive valve. The machine is highly responsive and offers a comfortable operation experience.

🎯 Main Applications

Construction: Building foundations, trenching, and demolition.
Roadwork: Land leveling, ditch digging, and material handling.
Mining: Quarrying, ore extraction, and loading operations.
Agriculture: Land clearing and irrigation channel digging.
Forestry: Log handling and land preparation.

⚙️ Key Configurations

1. Variable Displacement Piston Pump: Offers high energy efficiency and flexible flow/pressure adjustment. Advantages include fuel savings and fast response.

2. Load Sensing Valve: Detects system demand for pressure and flow, ensuring precise and smooth multi-function operation.

3. Piston Rotation Motor: Features low-speed, high-torque efficiency for precise start/stop and powerful rotation.

4. 3-Cylinder Direct Injection Engine: Compact structure with high fuel efficiency and strong low-speed torque.

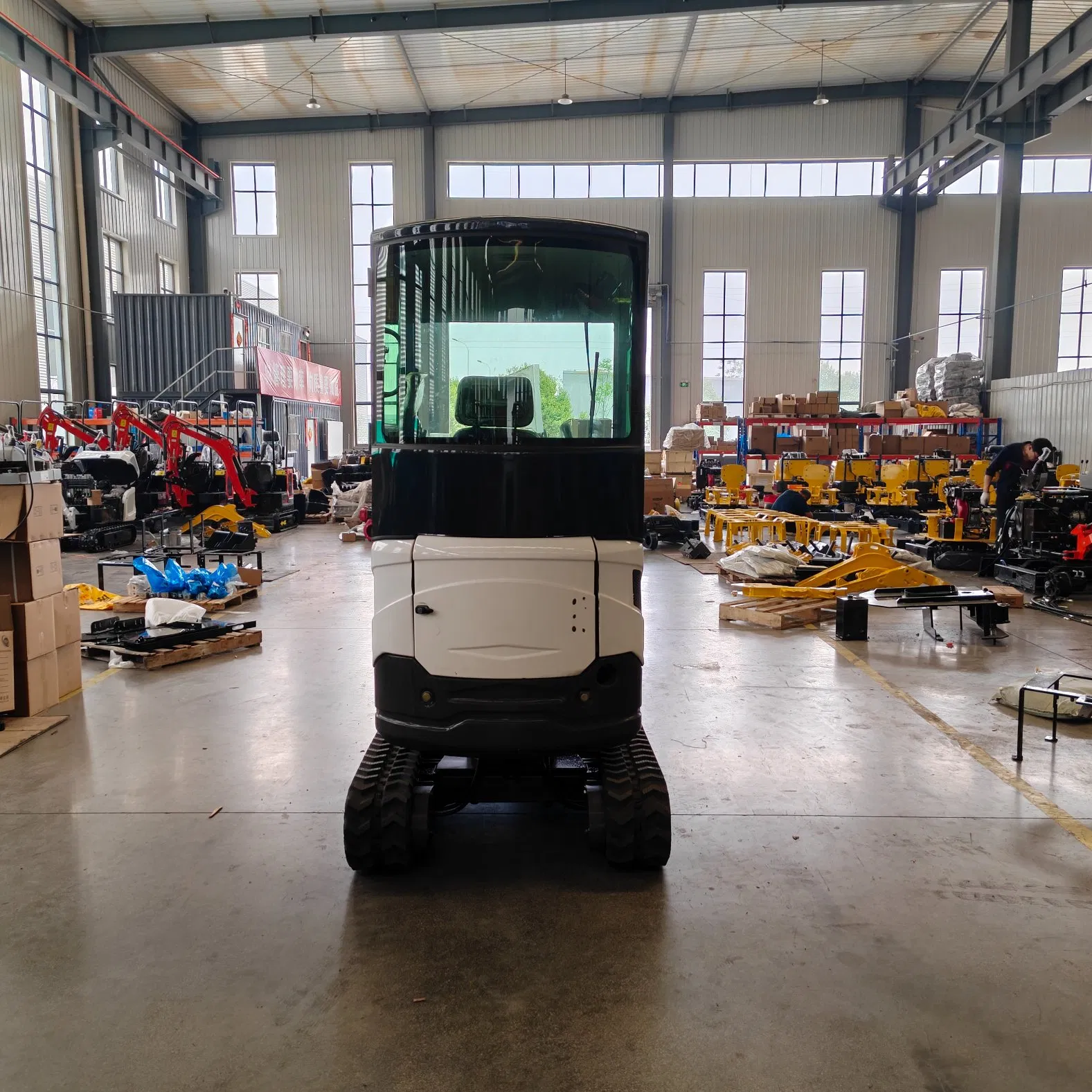

Back View

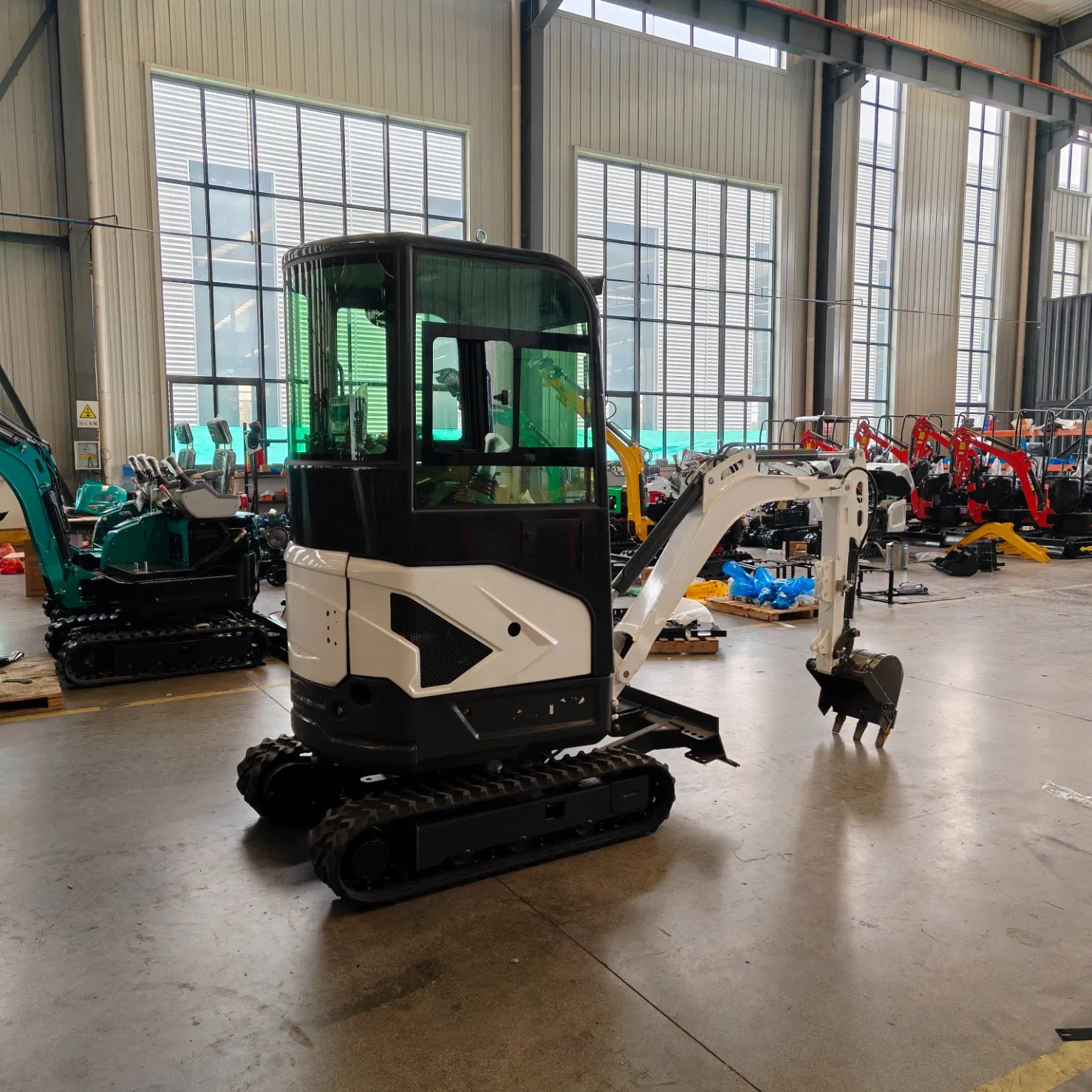

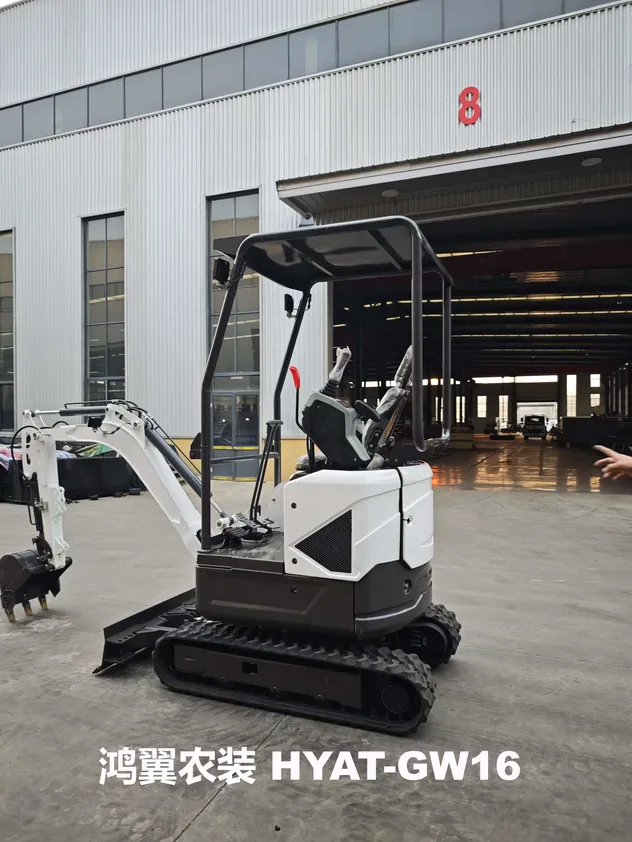

Front View

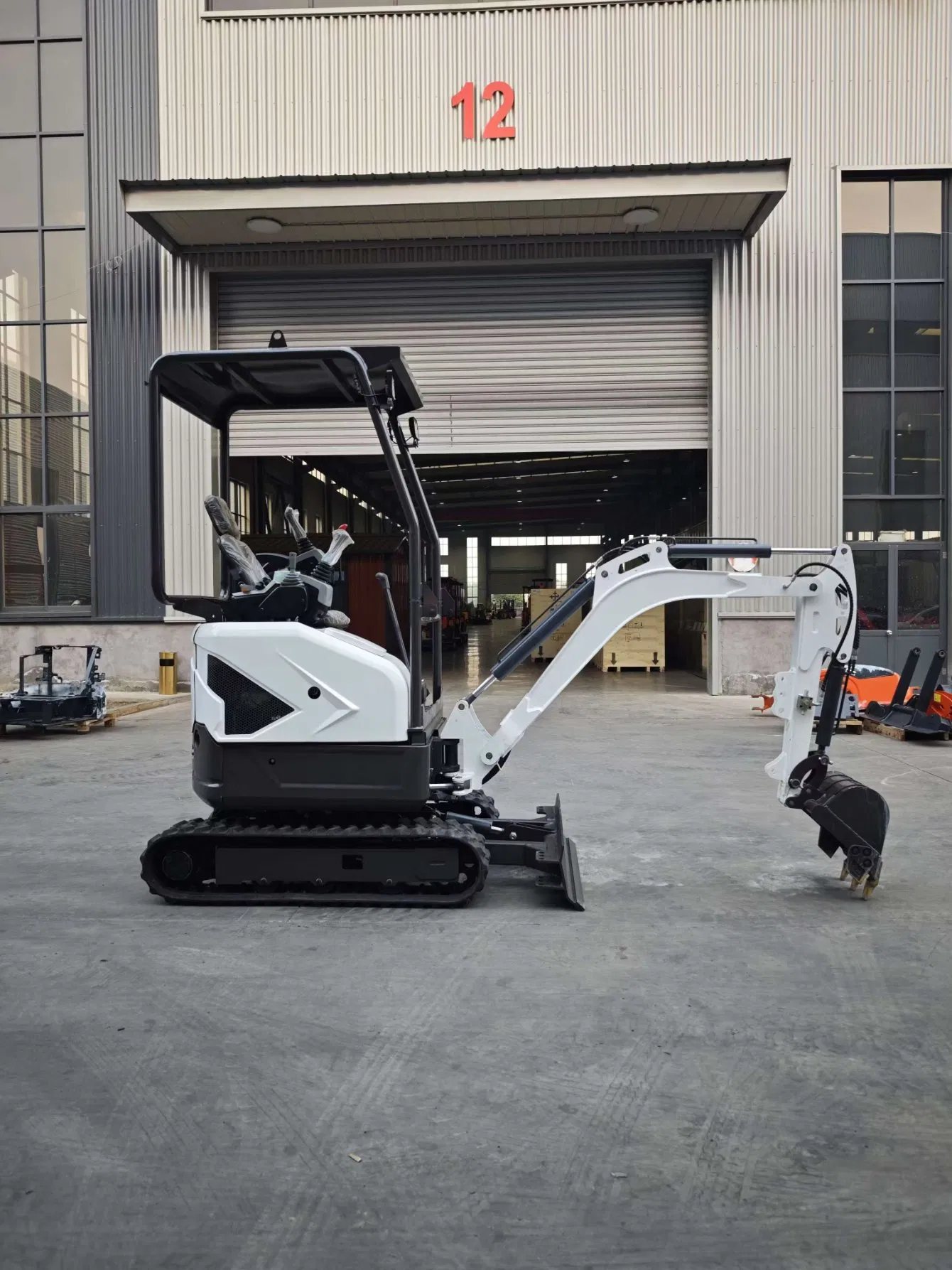

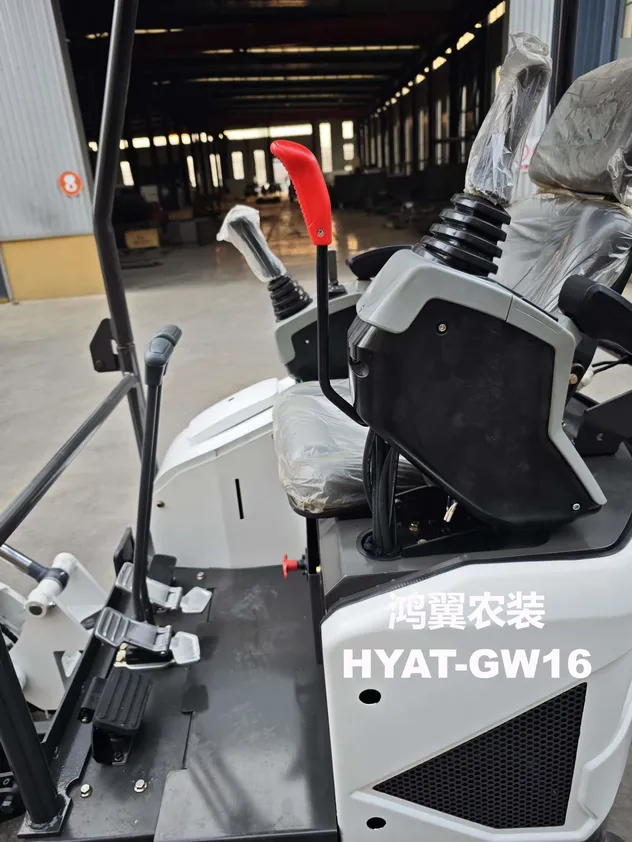

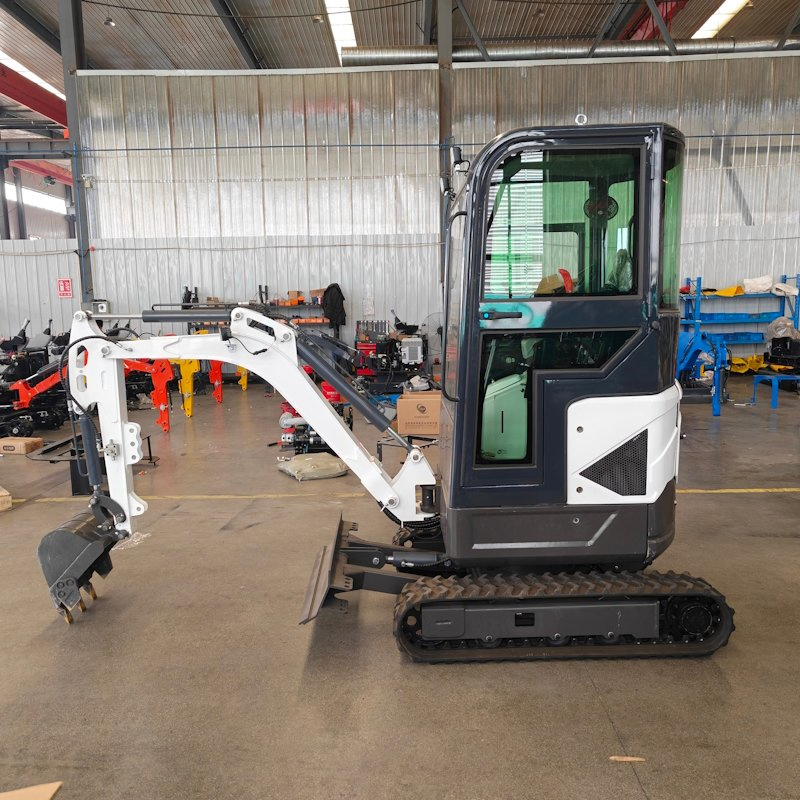

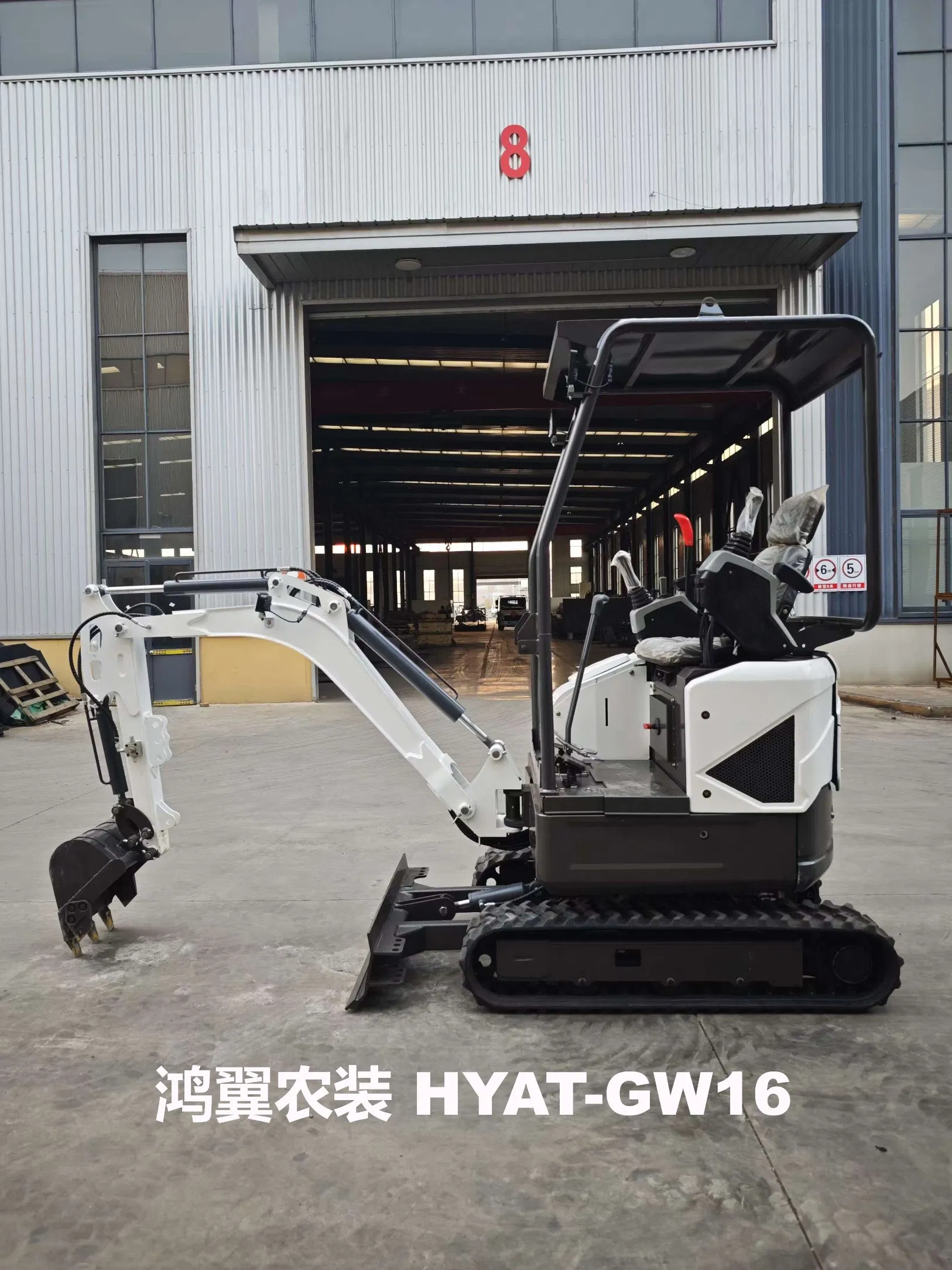

Side View

📊 Technical Specifications

Parameter	Details	Parameter	Details
Engine Type	Three-cylinder direct injection	Travel speed	2.2-4.3 km/h
Displacement	0.898 L	Traction force	18 kN
Rated Power	11.8 kw/2300 rpm	Gradability	30°
Hydraulic System	Gear/Variable Piston Pump	Max Digging Height	2900 mm
Working Flow	27.6/41.4 L/min	Max Dumping Height	1950 mm
Max Rotation Speed	9.5 r/min	Max Digging Depth	2200 mm
Bucket Capacity	0.04 m³	Max Digging Radius	3650 mm

🛠️ Excavator Spare Parts & Attachments

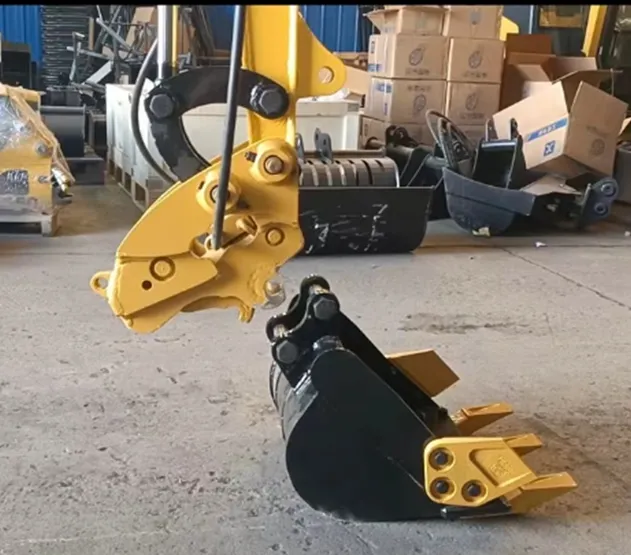

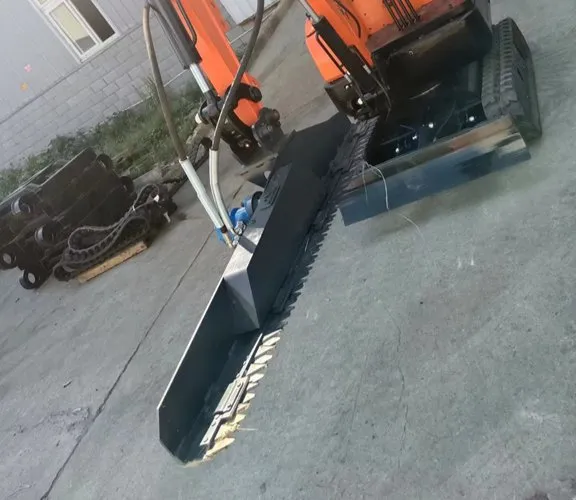

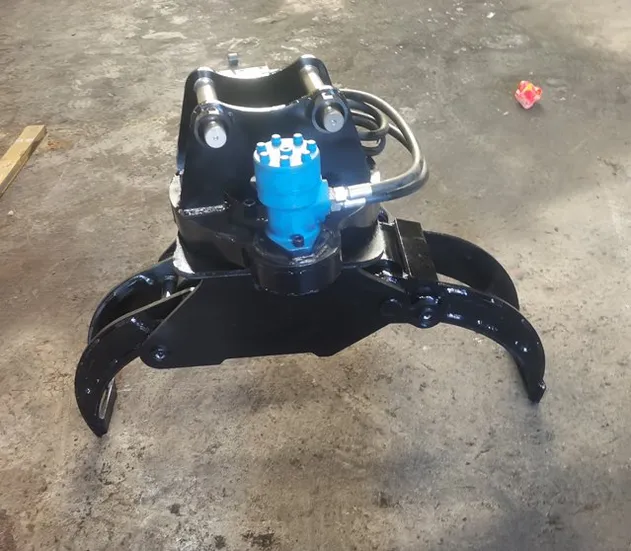

This excavator can be equipped with various attachments including: 360° log grabber, grass rake, screw drill, hedge trimmer, wood chipper, lawn mower, wood splitter, and vibratory tamper. Ideal for gardens, farms, and construction.

🛡️ After Sales Service

Standard Warranty: 12 months coverage.
Global Support: Technical assistance and reliable spare parts supply.
Training: On-site or remote operation and maintenance training programs.

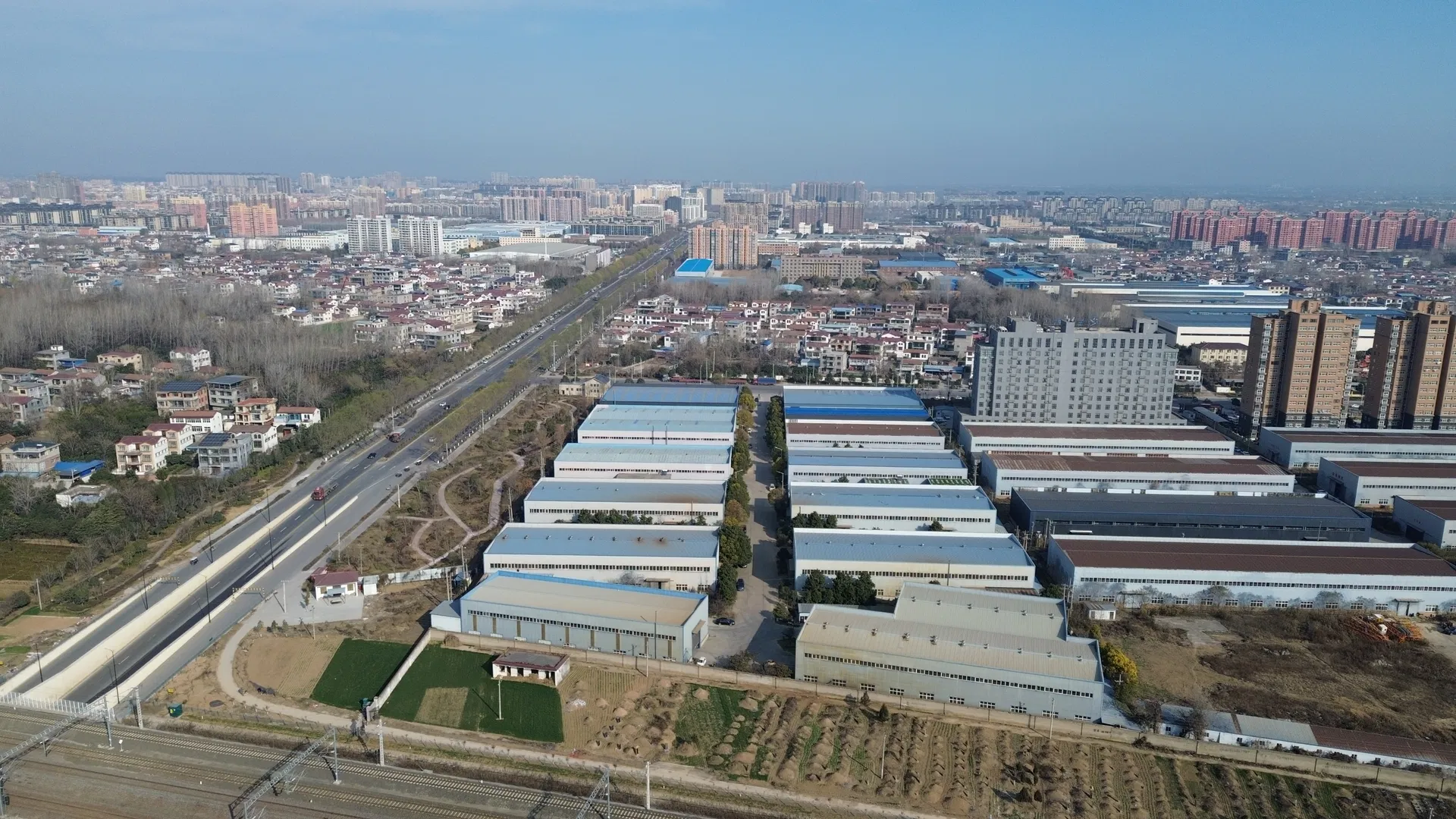

🏢 Production Capabilities

Dedicated to the research, development, and production of mechanical equipment for smart agriculture. Key product lines include water well drilling rigs, small excavators, and agricultural drones. We provide customized products including process, structure, and model adjustments based on client needs.

📦 Packing & Delivery

Packing: Internal iron frame and external wooden boards to prevent damage during long-distance shipping.
Coverage: Global transportation to virtually all countries and regions.
Terms: EXW, FOB, CIF, DAP, DDP options available.

❓ Frequently Asked Questions

Q1: What are your packaging conditions?

Answer: Usually, we package the goods in neutral white boxes and brown cardboard boxes. Custom branding is available with proper authorization.

Q2: What are your payment terms?

Answer: T/T 50% as deposit, and the remaining 50% before delivery. Product photos are provided before final payment.

Q3: What is the typical delivery time?

Answer: Generally, it takes 10 to 15 working days after receiving the advance payment, depending on order items and quantity.

Q4: Can you produce based on specific samples?

Answer: Yes, we can manufacture according to your physical samples or technical drawings.

Q5: Do you test all goods before delivery?

Answer: Yes, we perform 100% testing on all equipment before it leaves our facility to ensure quality.
