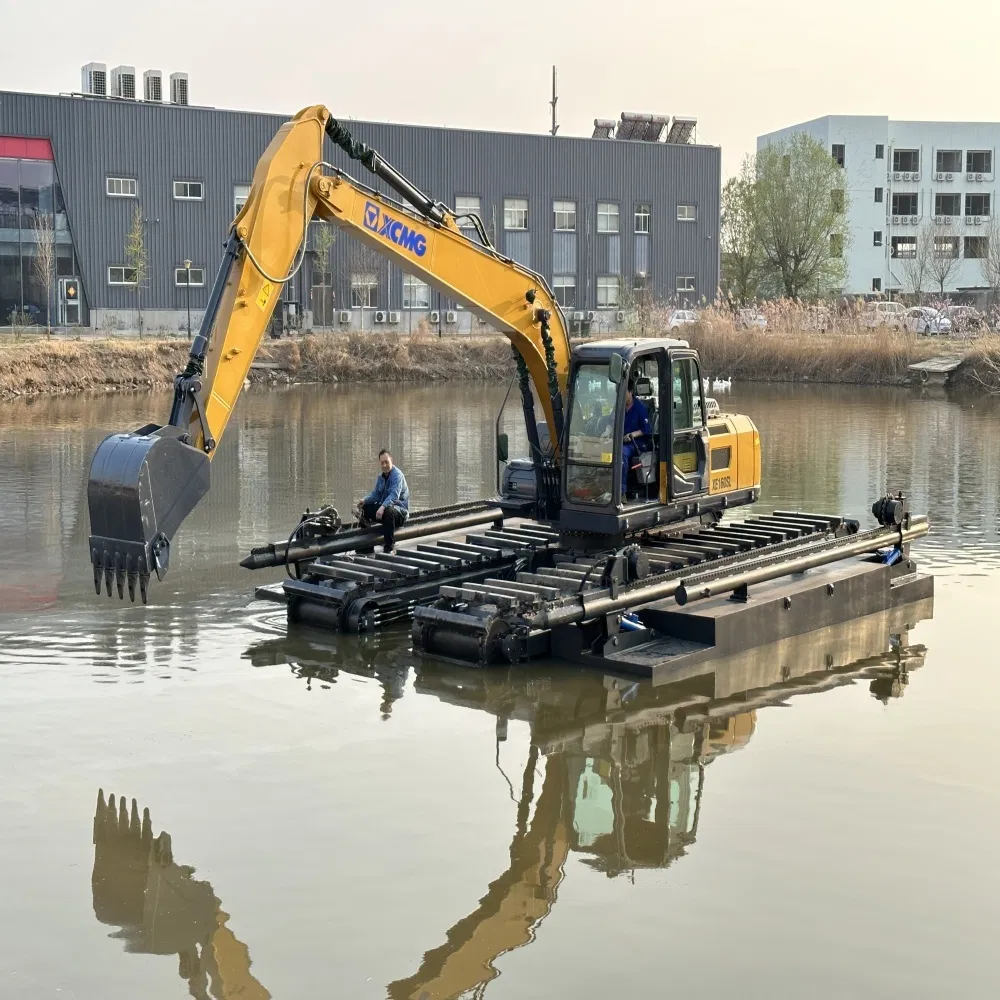

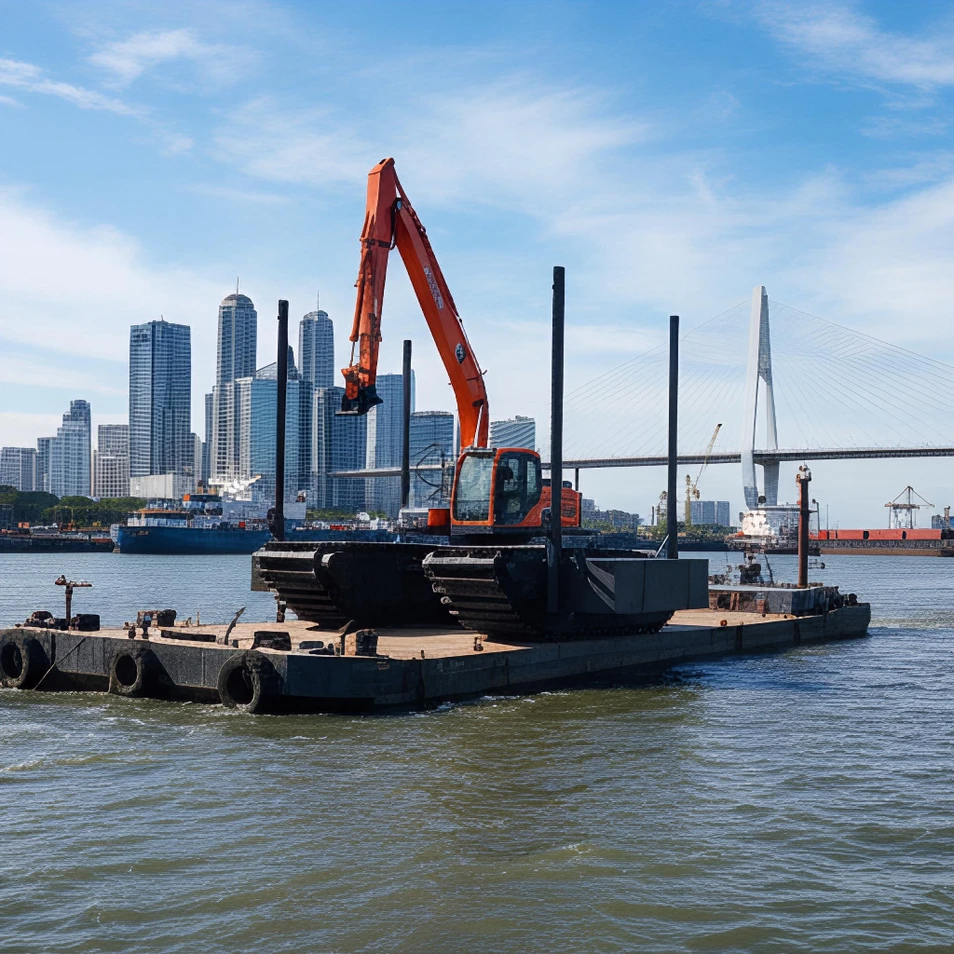

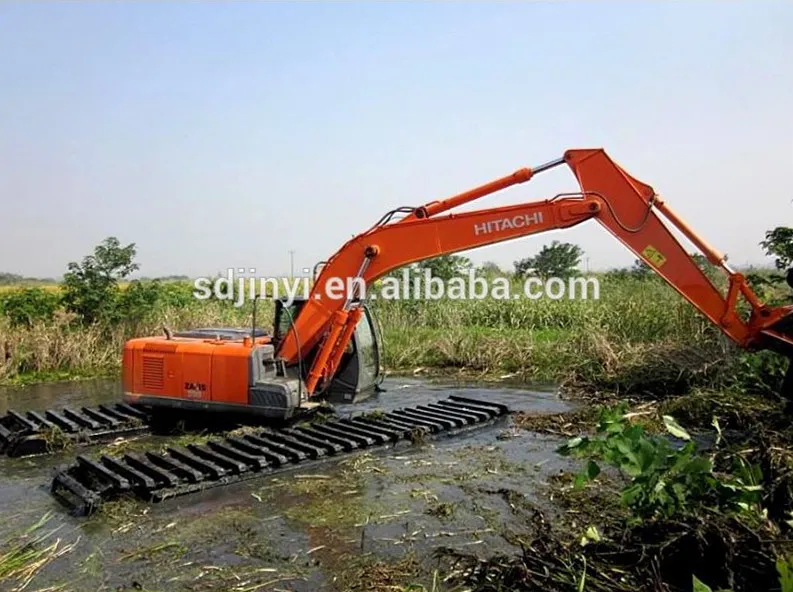

Amphibious excavator, also known as floating excavator, operates on rivers, swamps, canals, and ponds. Our team designs and customizes high-quality, versatile models. Our excavators suit all major brands, from 5 to 50 tons.
Equipped with imported engine and hydraulic system, it offers higher efficiency and reliability.

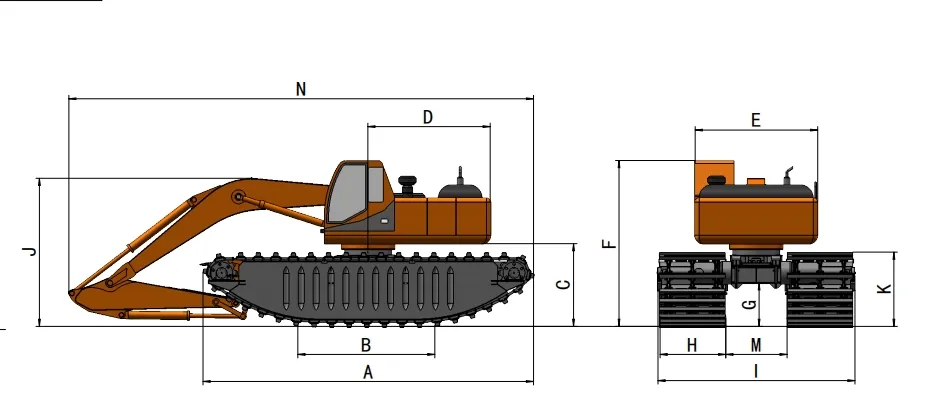

| Model number | - | 60-80 | 120-160 | 180-200 | 200-250 | 250-270 | 300-350 | 350-400 |
|---|---|---|---|---|---|---|---|---|
| Float length | A | 5700 | 7000 | 7500 | 8000 | 9500 | 10000 | 10500 |
| Ground specific pressure | B | 1000 | 2000 | 3500 | 4000 | 5500 | 6000 | 6500 |
| Counterweight clearance | C | 1500 | 1800 | 1900 | 2040 | 2140 | 2140 | 2140 |
| Pontoon height | H | 1340 | 1640 | 1740 | 1800 | 1900 | 1900 | 1900 |
| Total width | I | 3000 | 3600 | 4300 | 4300 | 4500 | 4800 | 5000 |

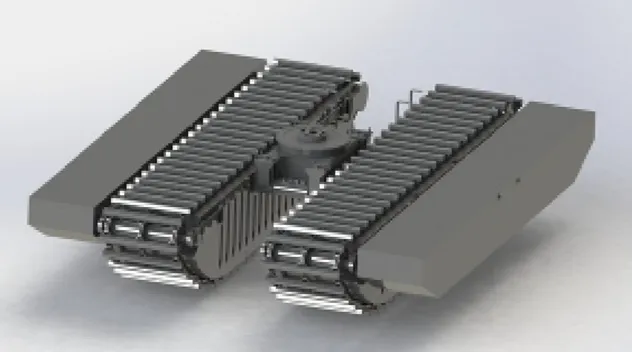

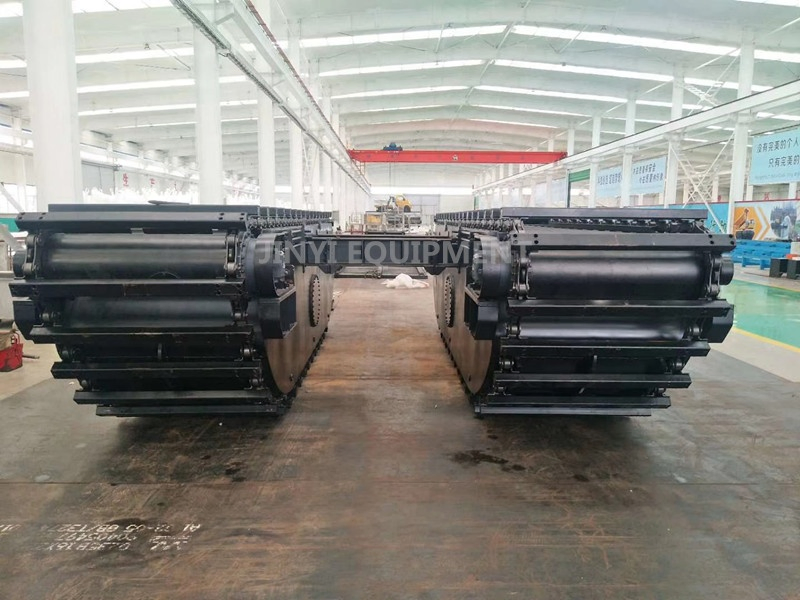

Customized based on excavator brand and model. Achieve 360° operation and optimal structural support.

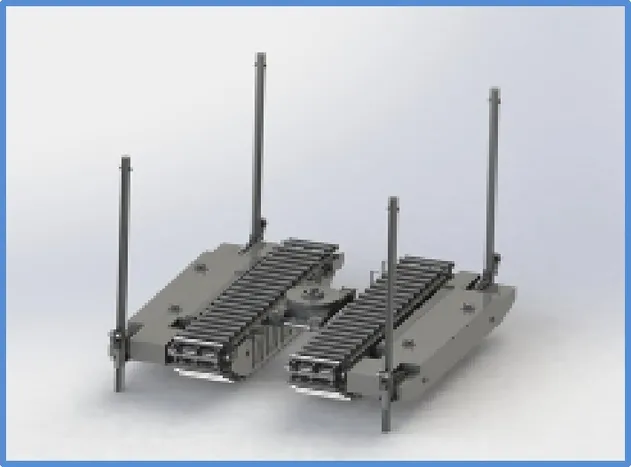

Pontoon distance adjusts to the environment, aiding operation. Strong chassis boosts overall efficiency.
Steel propellers increase speed in deep water, offering high corrosion resistance and impact endurance.
| Model | EX200 | EX300 | EX400 |
|---|---|---|---|
| Operating Weight (kg) | 20,000 | 30,500 | 45,000 |
| Engine Power (kW) | 110 | 165 | 220 |
| Bucket Capacity (m³) | 0.8–1.2 | 1.2–1.8 | 1.8–2.5 |
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply. On-site or remote training available.
We offer a range of amphibious machinery for excavators, dump trucks, and sand-suction boats. Widely used in flood control, dredging, and national green projects. Our reach extends globally to the USA, Germany, Russia, Brazil, India, and more.
