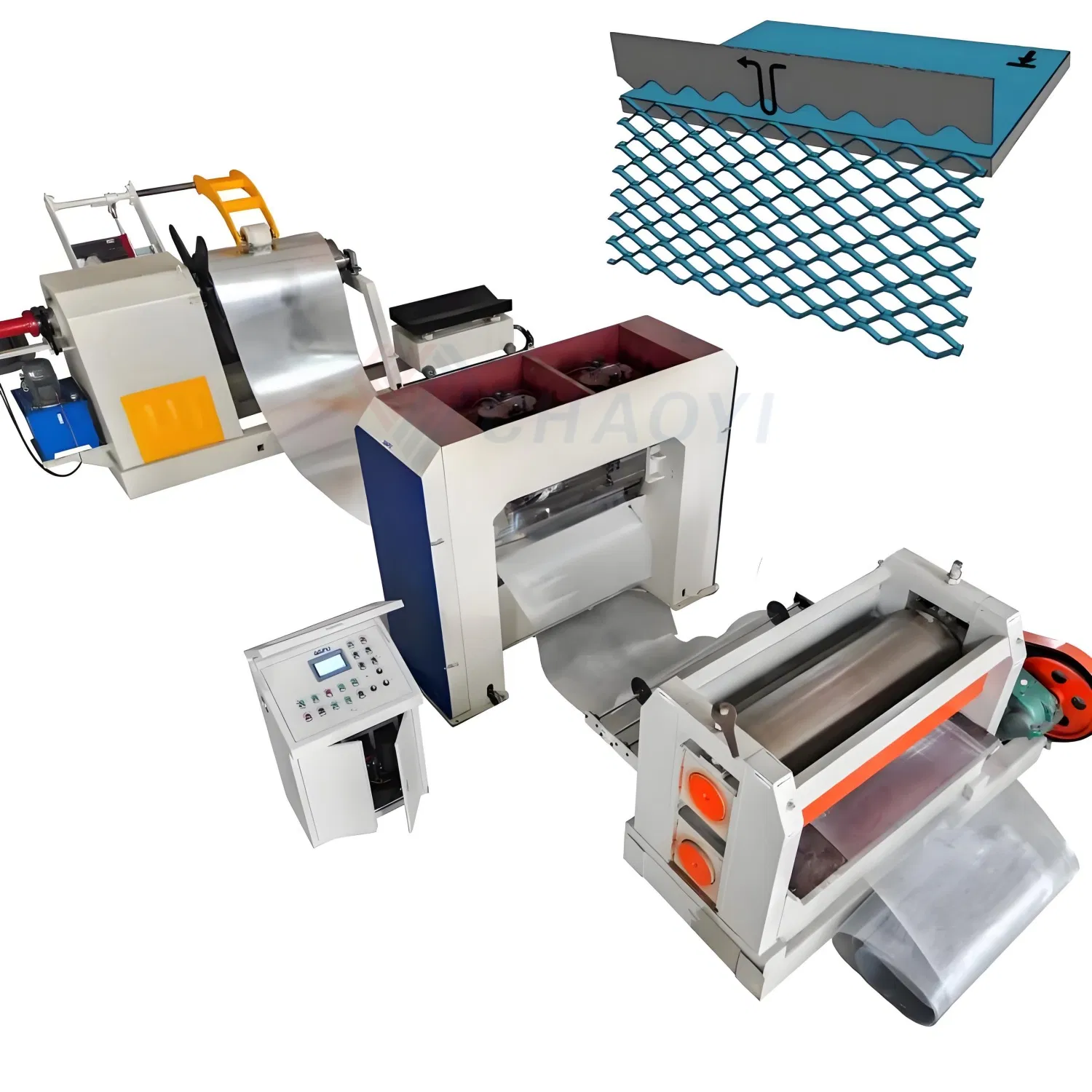

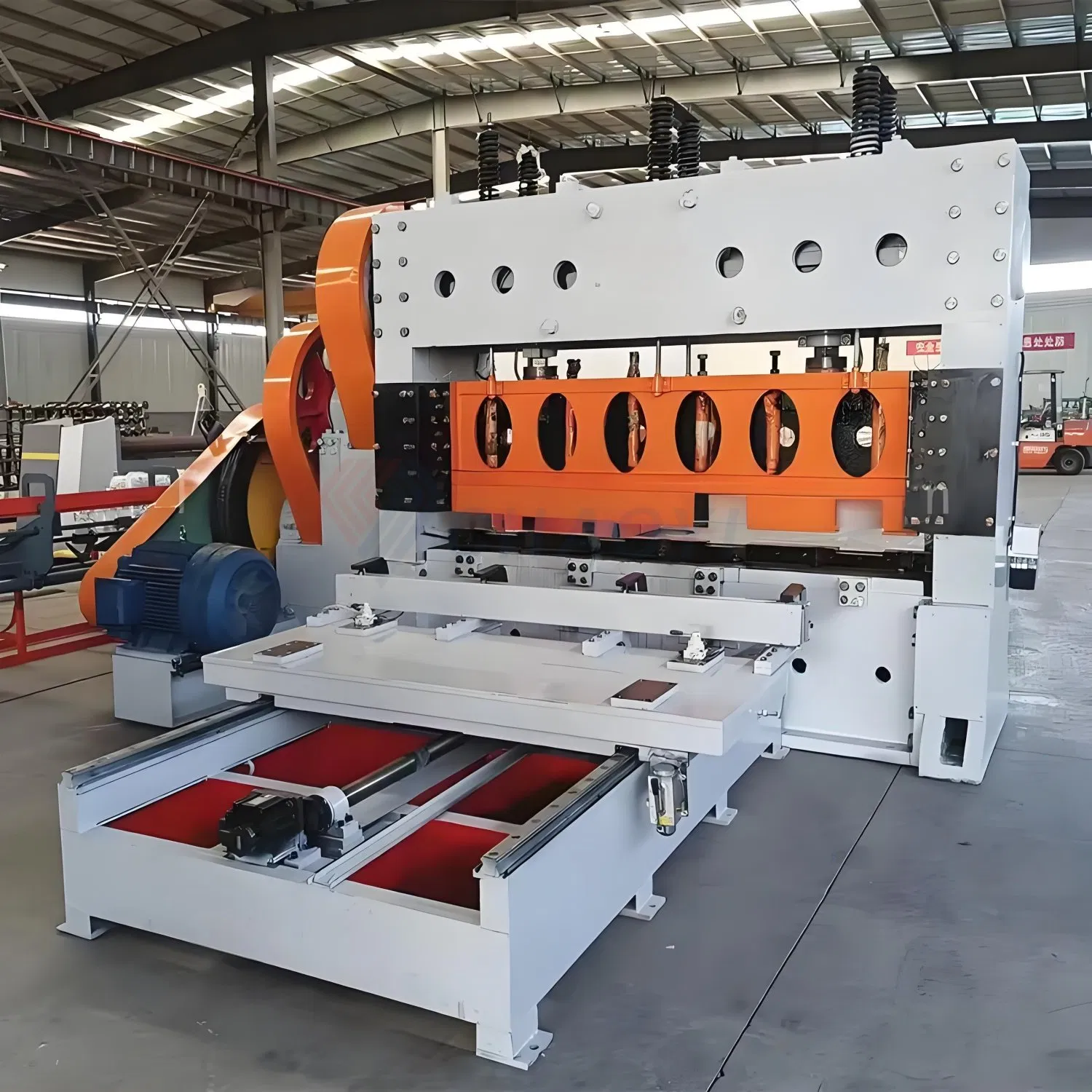

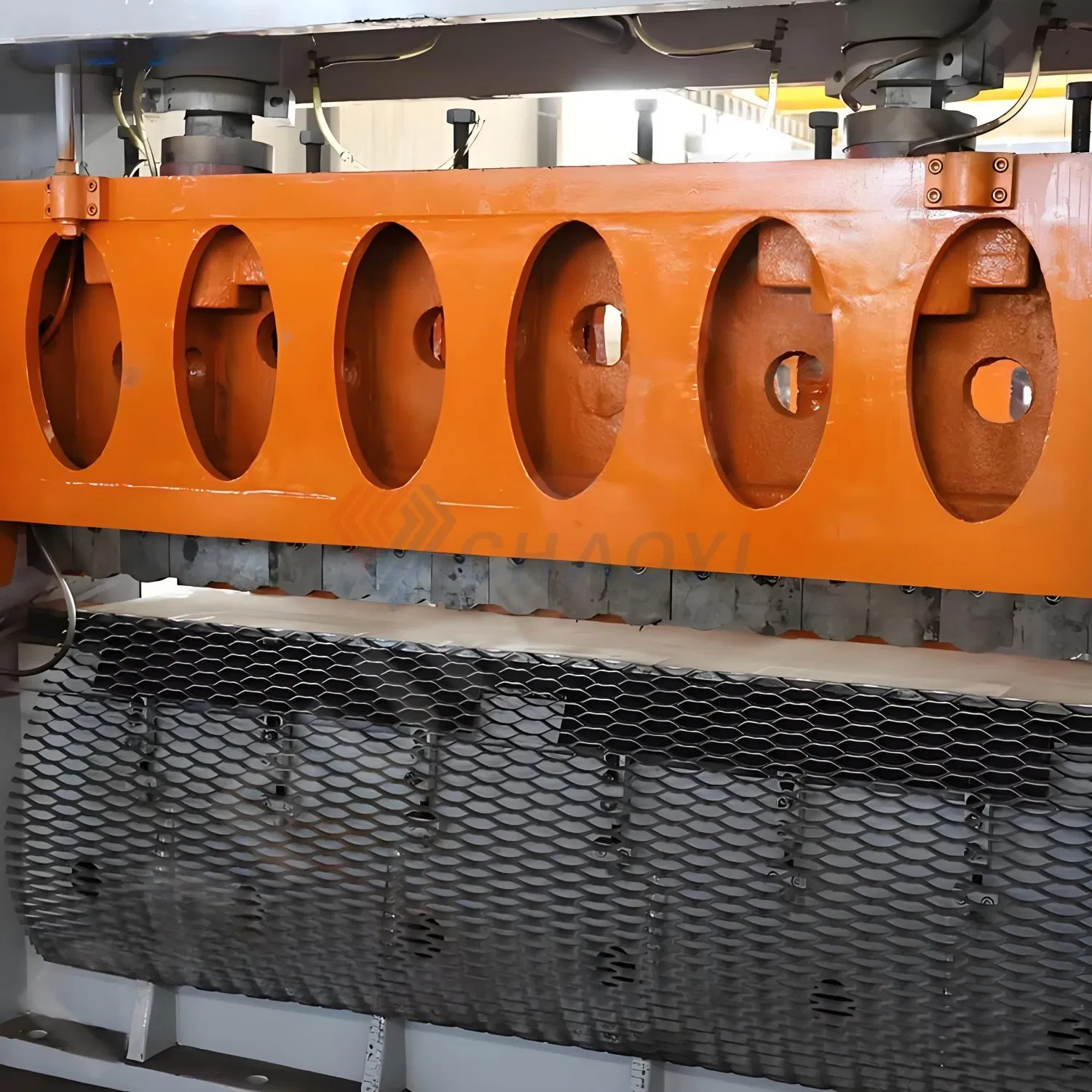

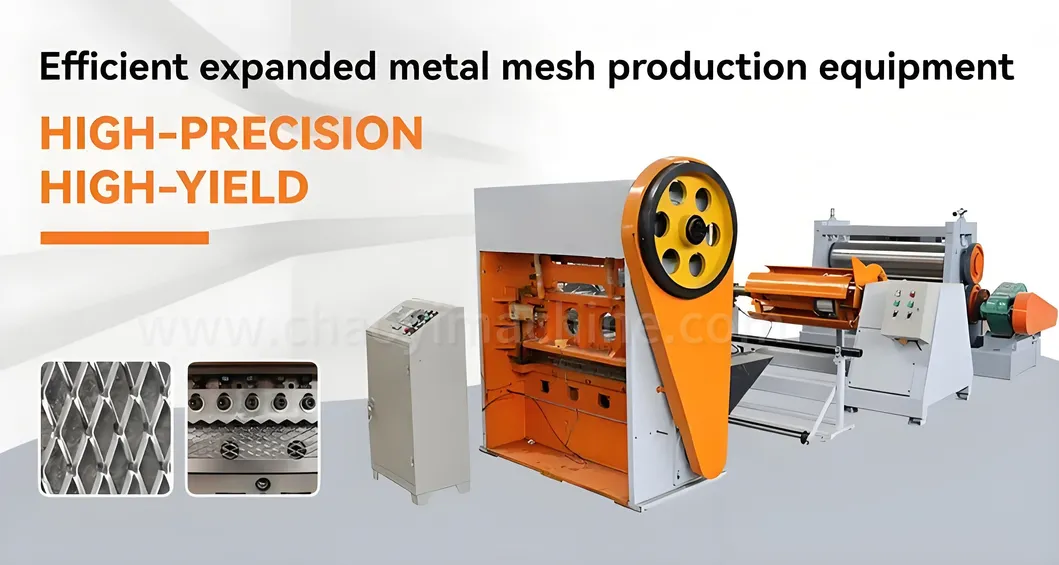

Smart-Servo Reliable-Performance Steel Plate Sheet Security Fence Steel Mesh Making Machine

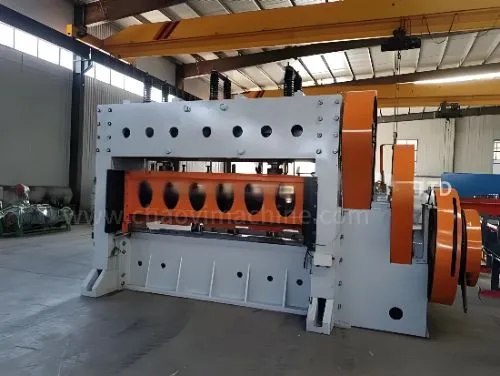

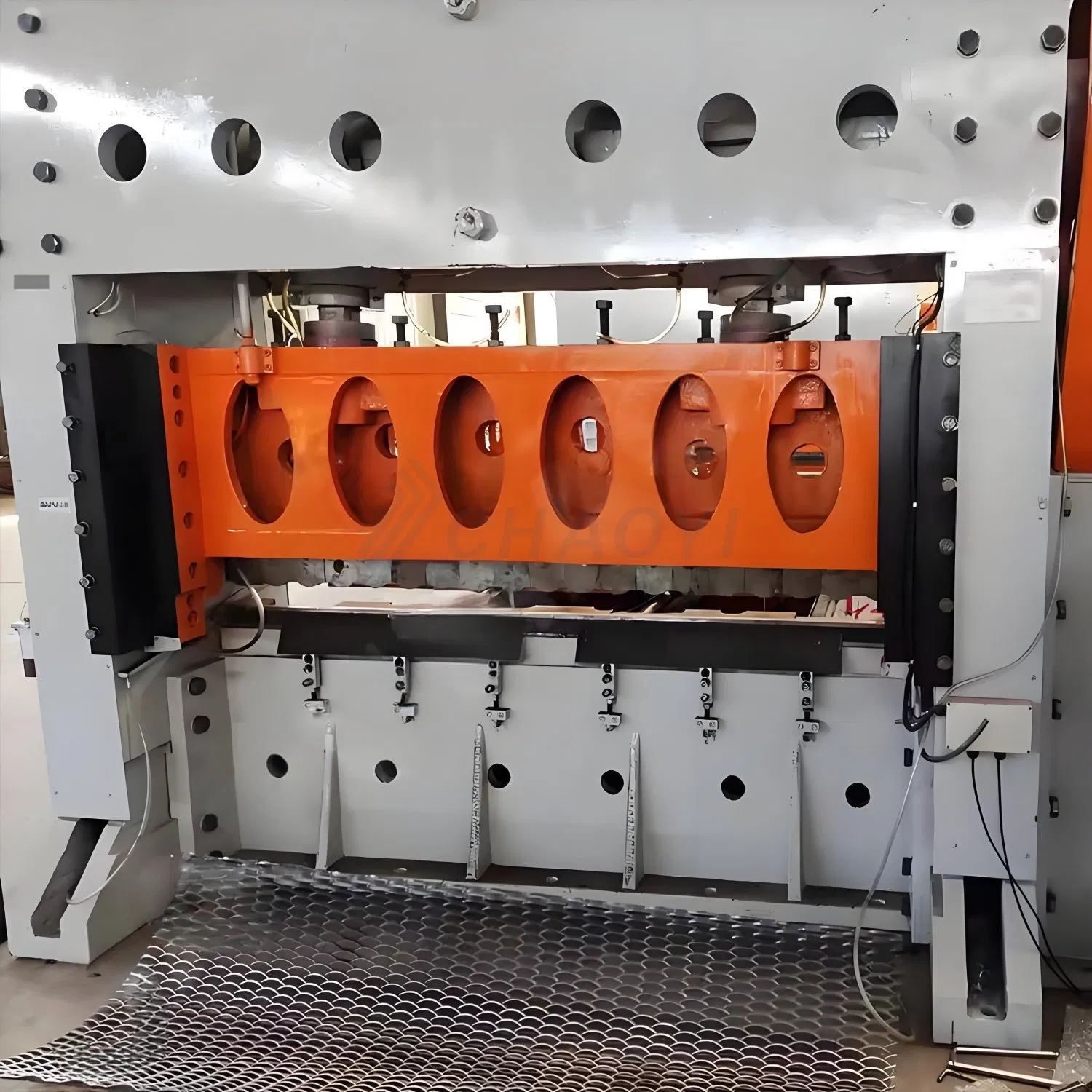

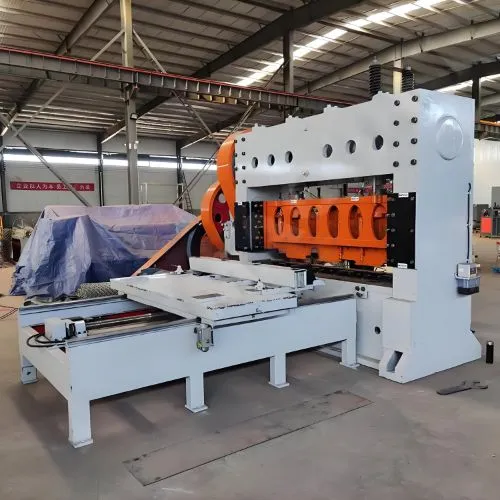

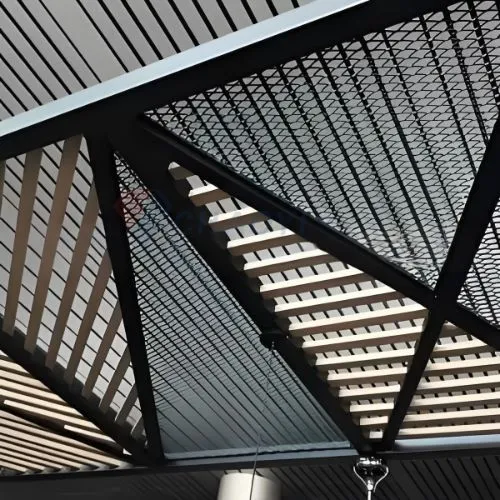

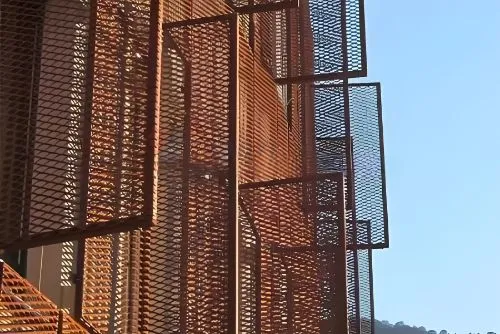

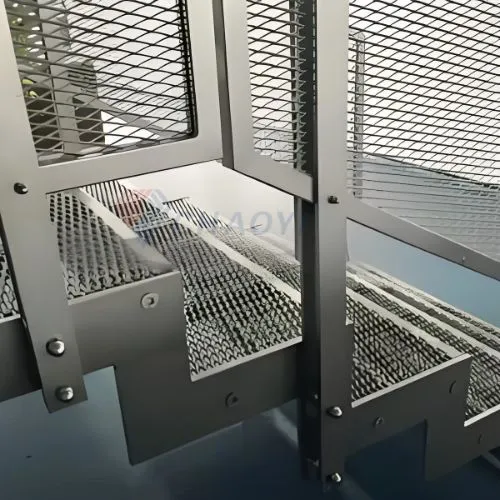

Our Steel Mesh Making Machines use advanced technology to efficiently and precisely produce expanded metals of various specifications, which are widely used in construction, mining, transportation and other industries. It works by processing metal sheets into mesh structures through processes such as punching and stretching.
| Model Specification | Thick (mm) | Width Max (mm) | Punch Speed | Feeding (mm) | LWD Max (mm) | Power (KW) | Weight (T) | Dimension (L*W*H) |
|---|---|---|---|---|---|---|---|---|
| 6.3T | 0.1-1.5 | 650 | 320/min | 0-5 | 20 | 4 | 1.2 | 800*1350*1550 |
| GT10T (High-speed) | 0.1-2.0 | 650 | 550/min | 0-10 | 20 | 5.5 | 3.5 | 1520*1150*1750 |
| 16T | 0.5-1.5 | 1000 | 280/min | 0-5 | 25 | 5.5 | 2 | 1000*1700*1800 |
| 25T | 0.2-1.5 | 1250 | 260/min | 0-5 | 30 | 5.5 | 3.2 | 1100*2070*2080 |
| GT35T (High-speed) | 0.2-2.0 | 1250 | 450/min | 0-5 | 20 | 8 | 6.7 | 1200*2300*1800 |
| 50T | 0.5-2.5 | 1600 | 110/min | 0-10 | 80 | 11 | 6 | 1830*3100*2030 |
| 63T | 0.5-3 | 2000 | 80/min | 0-10 | 120 | 15 | 8-9.5 | 2000*3950*2300 |

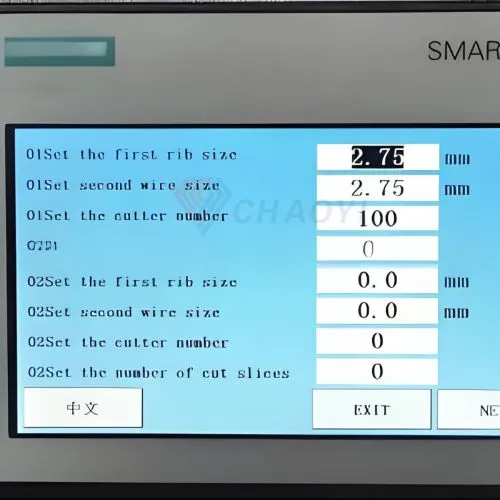

This Steel Mesh Making Machine adopts mature technologies such as full-automatic lubricating and NC stepping motor feeding. It is ideal for low carbon steel, aluminium, stainless steel, copper, and Nickel sheets.
