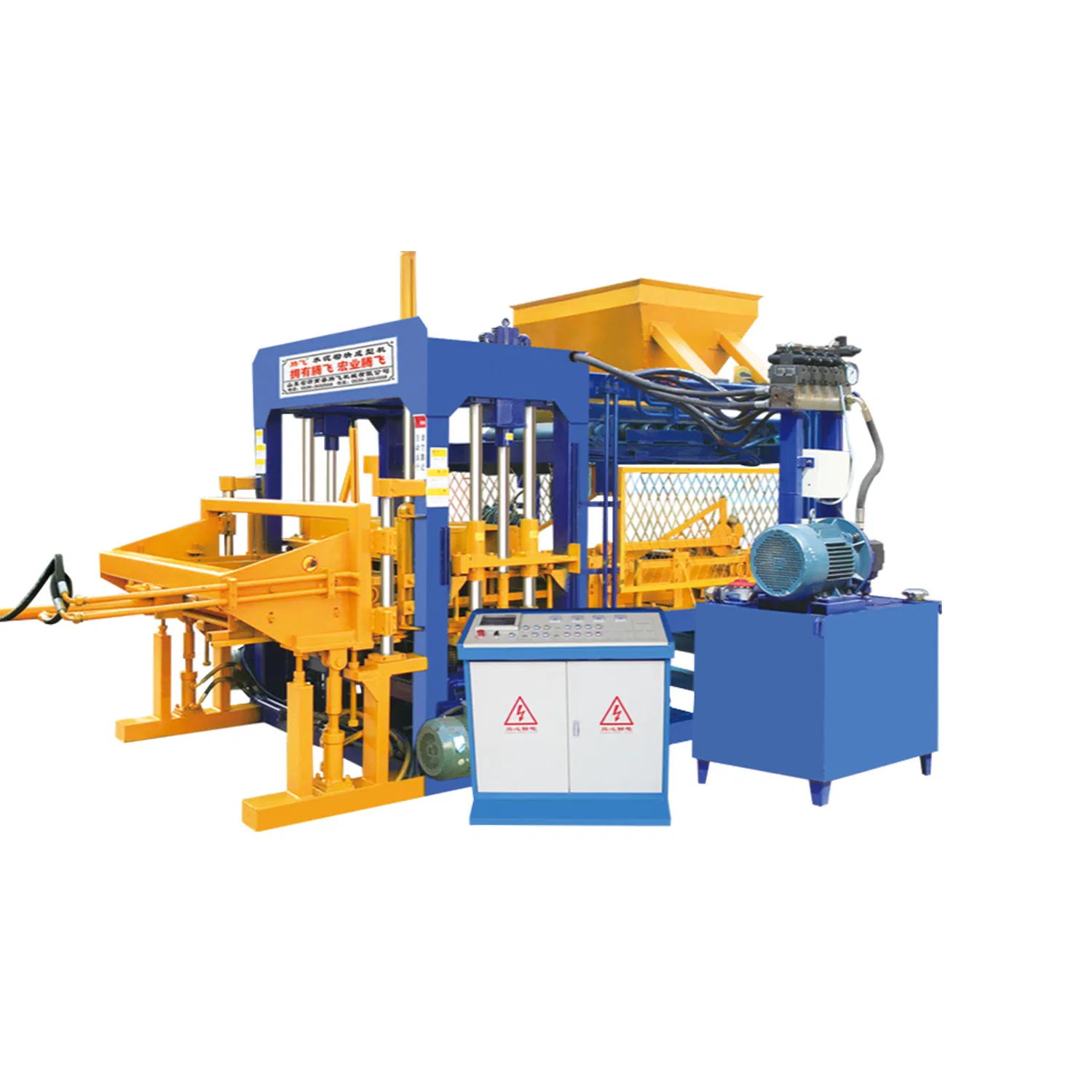

Efficient Concrete High-Tech Brick Machine for Smart Construction

1 / 5

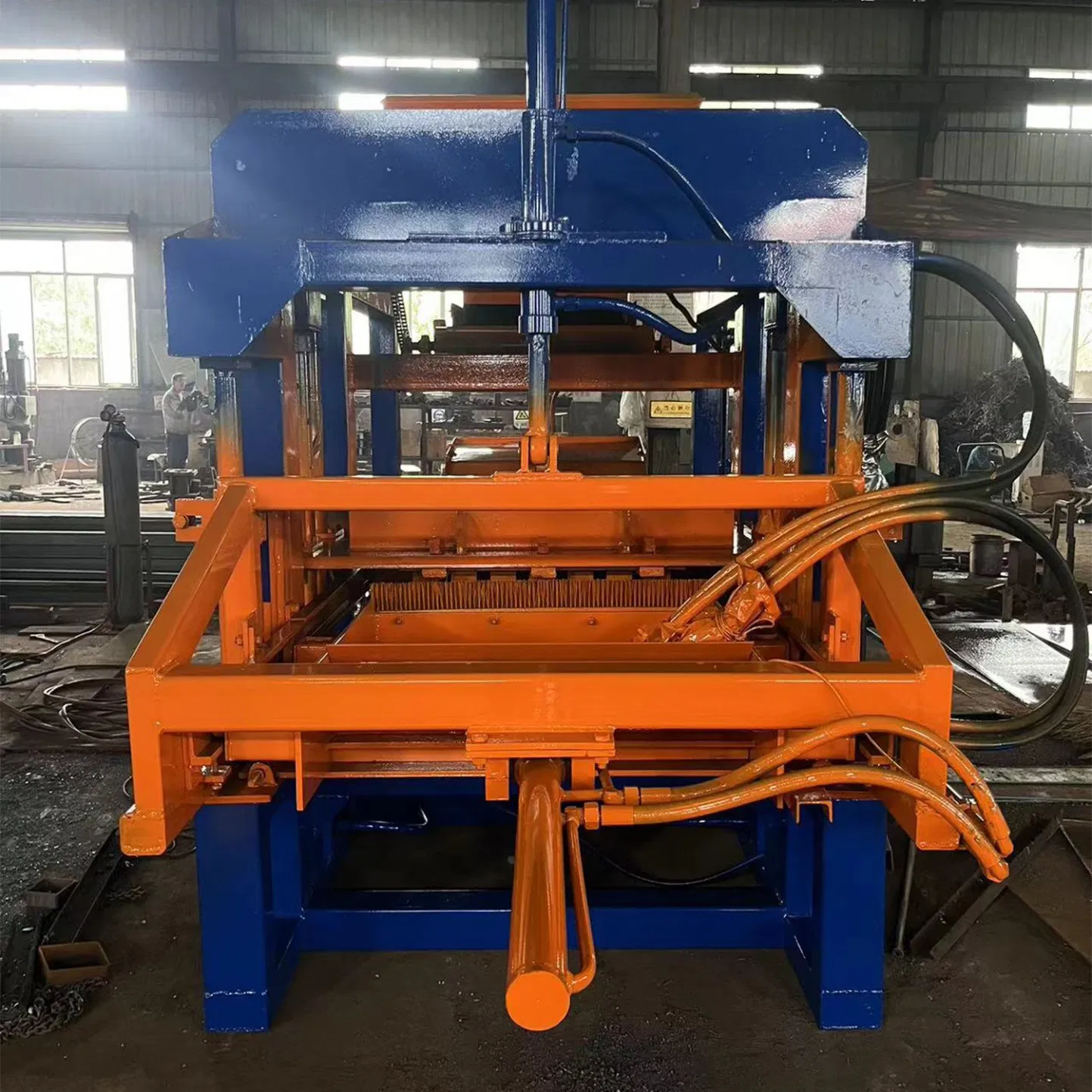

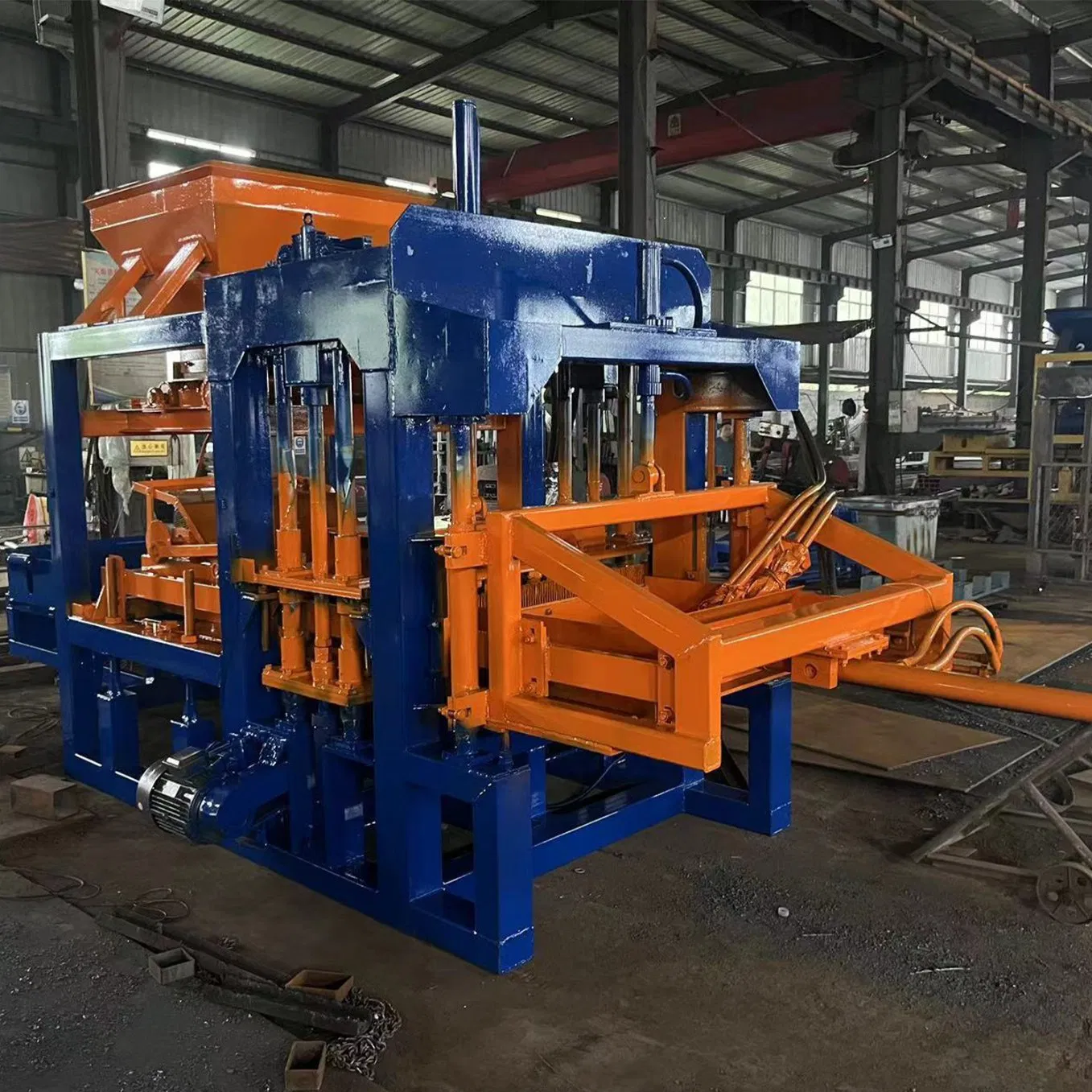

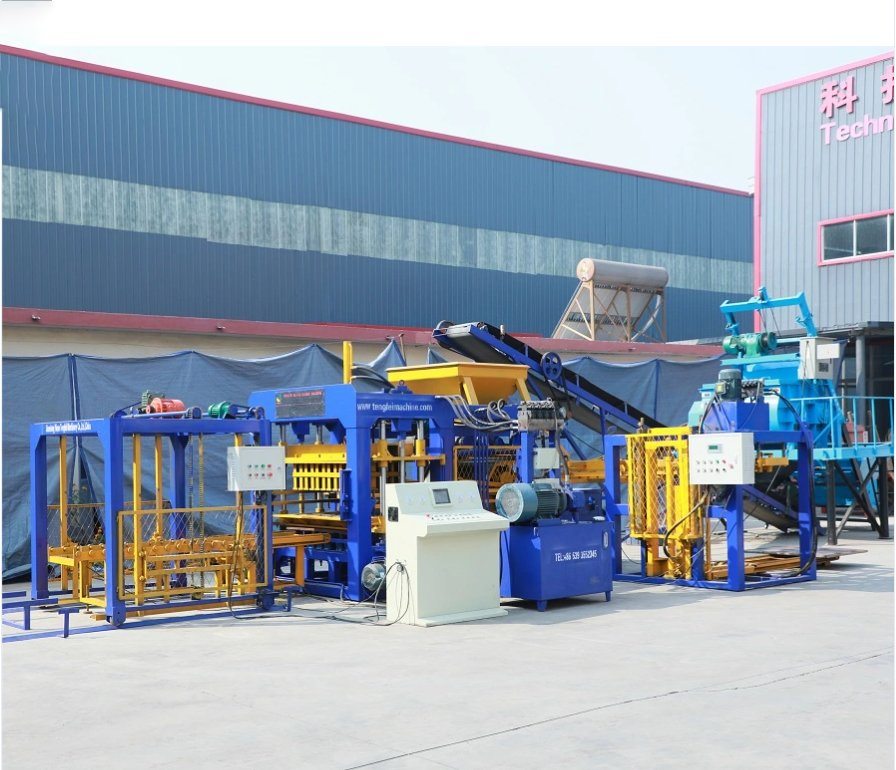

Efficient Concrete High-Tech Brick Machine for Smart Construction

Customization:	Available
After-sales Service:	Free Spare Parts and Manual for Installation
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.:QT5-15

Certification:CE, ISO

Automatic Grade:Automatic

Type:Vibration Molding

Power:26.5kw

Productivity:7200-9600 Pieces/8hour

Pallet Size:1150*550*22-30mm

Cycle Time:15s

Weight:5300.000kg

Dimensions:4500*2100*2170mm

★

Product Information

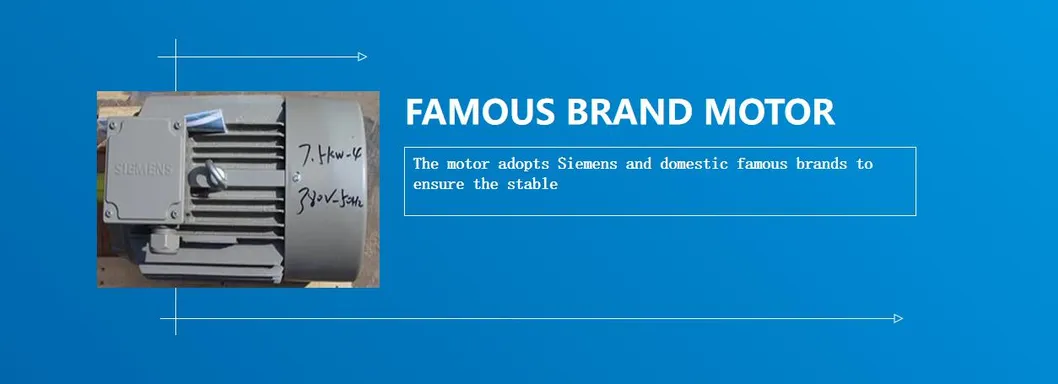

Premium Motors: Equipped with high-quality motors from renowned brands like SIEMENS or ABB, ensuring outstanding performance and reliability.

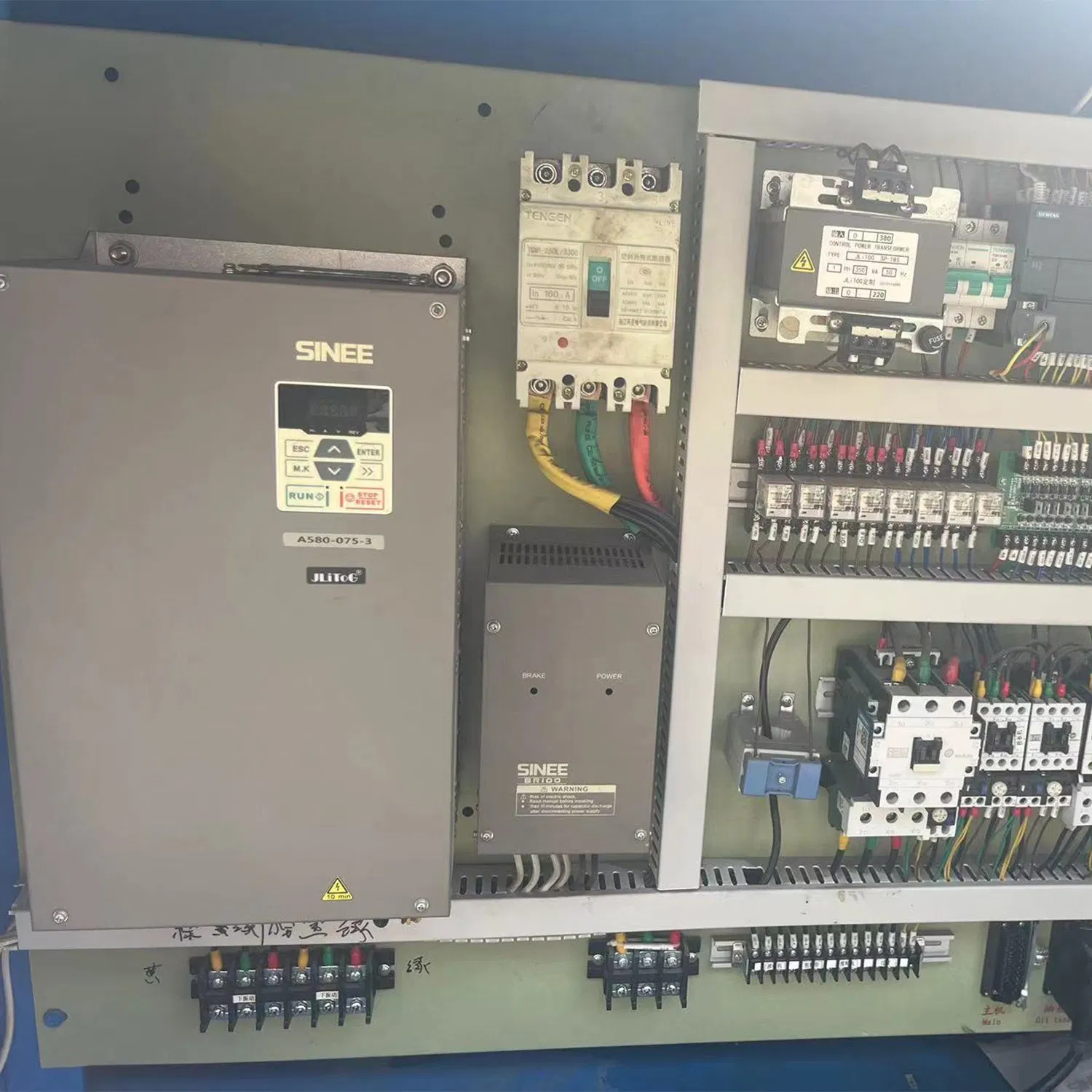

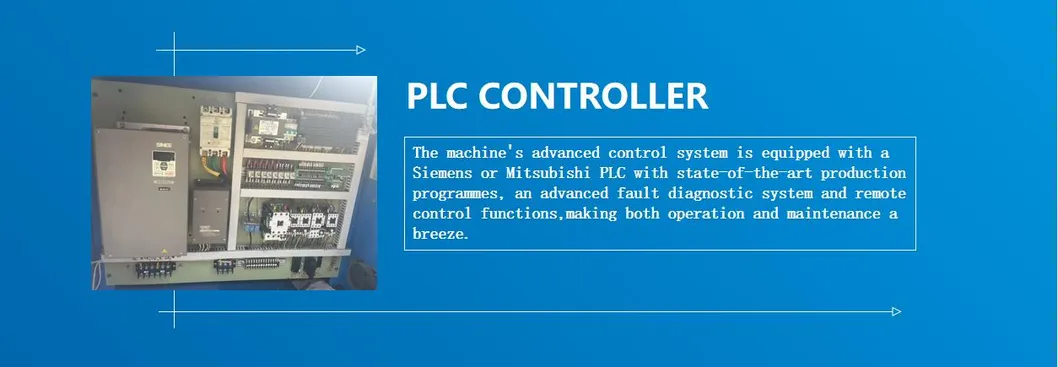

Advanced PLC Control: Features a Siemens PLC combined with a self-developed control program for stable and efficient operation.

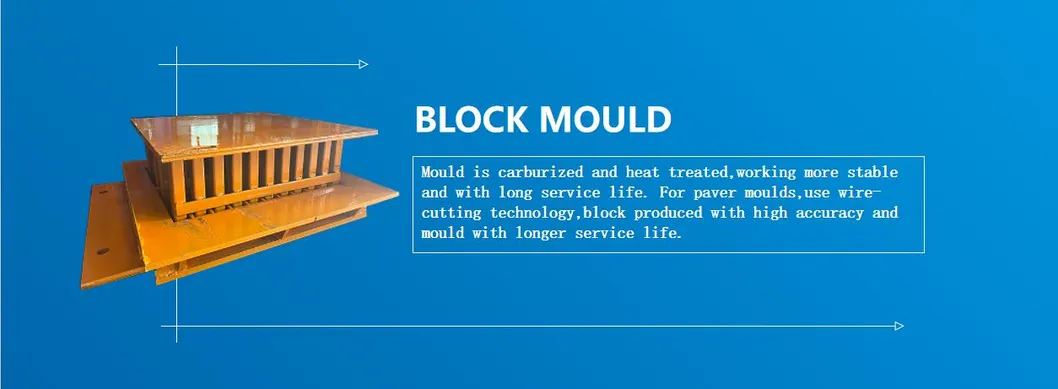

Durable Moulds: Utilizes the latest heat and carburisation treatments, achieving 54-58 HRC strength and exceeding 100,000 cycles.

Quality Materials: All components meet international CE standards, with carbon dioxide protection welding for seamless production.

⚙

Technical Parameters

Parameter	Details
Overall Dimension	450021002170mm
Weight	5300KG
Shaping Method	Hydraulic
Main Engine Power	28KW
Forming Cycle	15-25 Seconds/Time
Productivity (400200200mm)	9600 Block/8h
Pallet Size	115055022-30mm

✦

Product Details

📈

Production Capacity Output

Size	Pcs/mold	Pcs/hour	Pcs/8hour
400200200mm	5	1200	9600
400150200mm	6	1440	11500
400100200mm	7	1680	13400
24011553mm	20	4800	38400
1000250150mm	2	480	3840

🖼

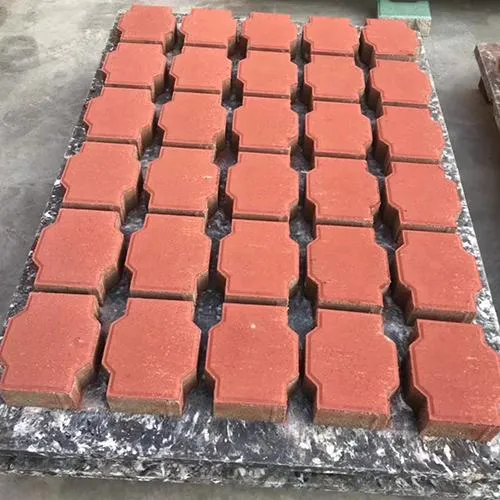

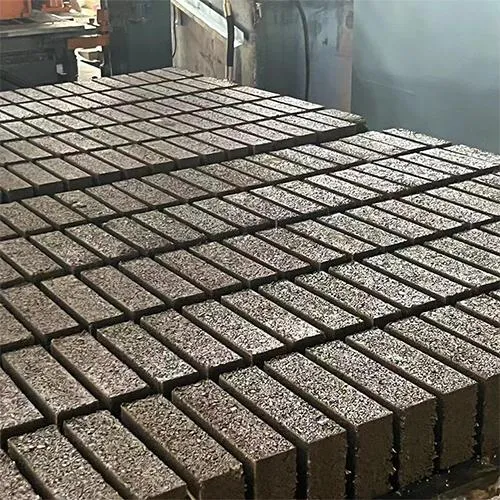

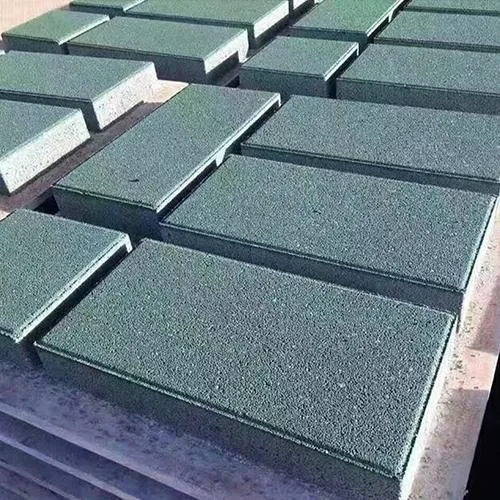

Real Product Samples

🏭

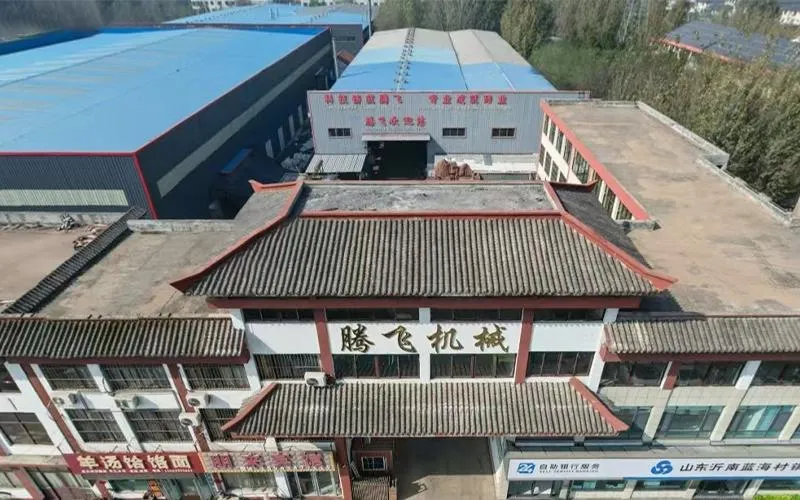

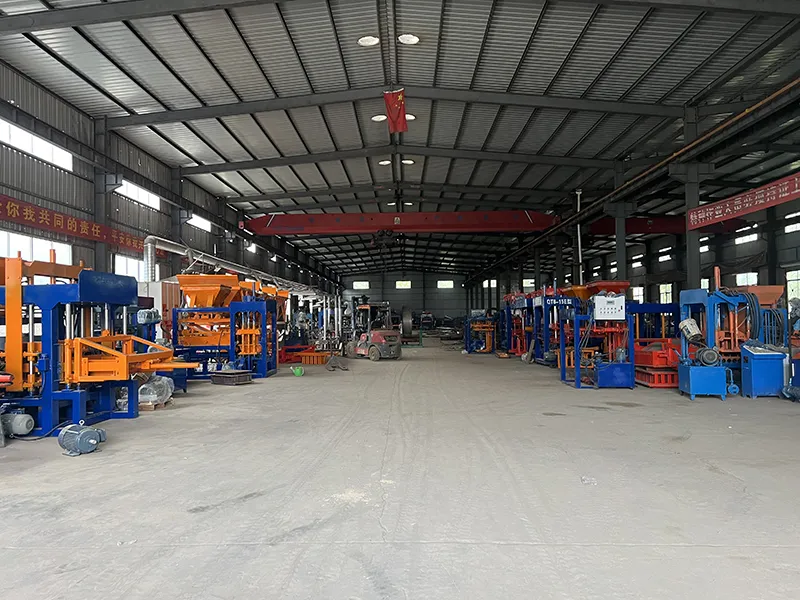

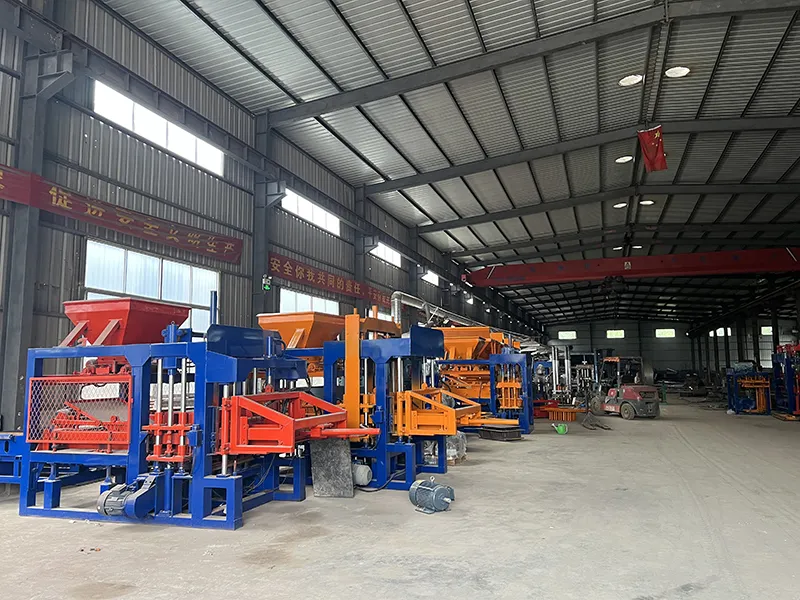

Factory & Logistics

🌍

Our Global Presence

Our machinery has been successfully exported to numerous countries including the Philippines, Vietnam, India, Ghana, South Africa, Ethiopia, Nigeria, USA, Mexico, and more, fostering a new era of smart construction worldwide.

🛠

Professional Services

After-Sales Service: Benefit from a one-year free warranty and lifelong technical support. We assist in crafting production formulas and maintain user data for follow-up services. Spare parts and molds are readily available, alongside an online troubleshooting platform.

Frequently Asked Questions

What is the daily production capacity of the QT5-15 machine?

The QT5-15 can produce between 7,200 and 9,600 standard blocks (400*200*200mm) in an 8-hour shift, depending on the cycle speed and material mix.

What brands of electrical components are used?

We use premium quality components, including Siemens PLC control systems and Siemens or ABB motors, to ensure maximum stability and reliability.

How long is the forming cycle for a single mold?

The forming cycle typically takes between 15 to 25 seconds per time, depending on the type of brick being manufactured.

What kind of maintenance is required for the molds?

Our molds are heat-treated to 54-58 HRC, giving them a lifespan of over 100,000 cycles. Standard cleaning and periodic checks are recommended for optimal longevity.

Do you provide a warranty for the machine?

Yes, we provide a comprehensive one-year free warranty and lifelong technical support, including access to spare parts and troubleshooting assistance.

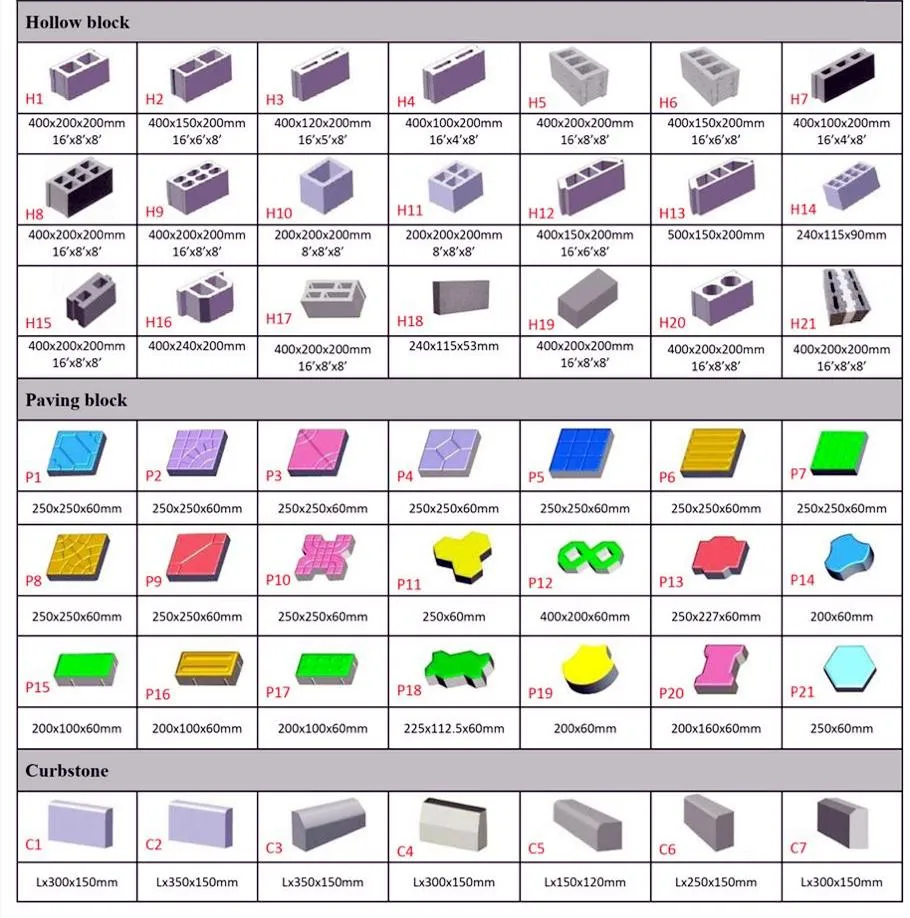

Is the machine capable of producing different types of bricks?

Yes, by simply changing the molds, the machine can produce hollow blocks, solid bricks, pavers, and curbstones of various dimensions.
