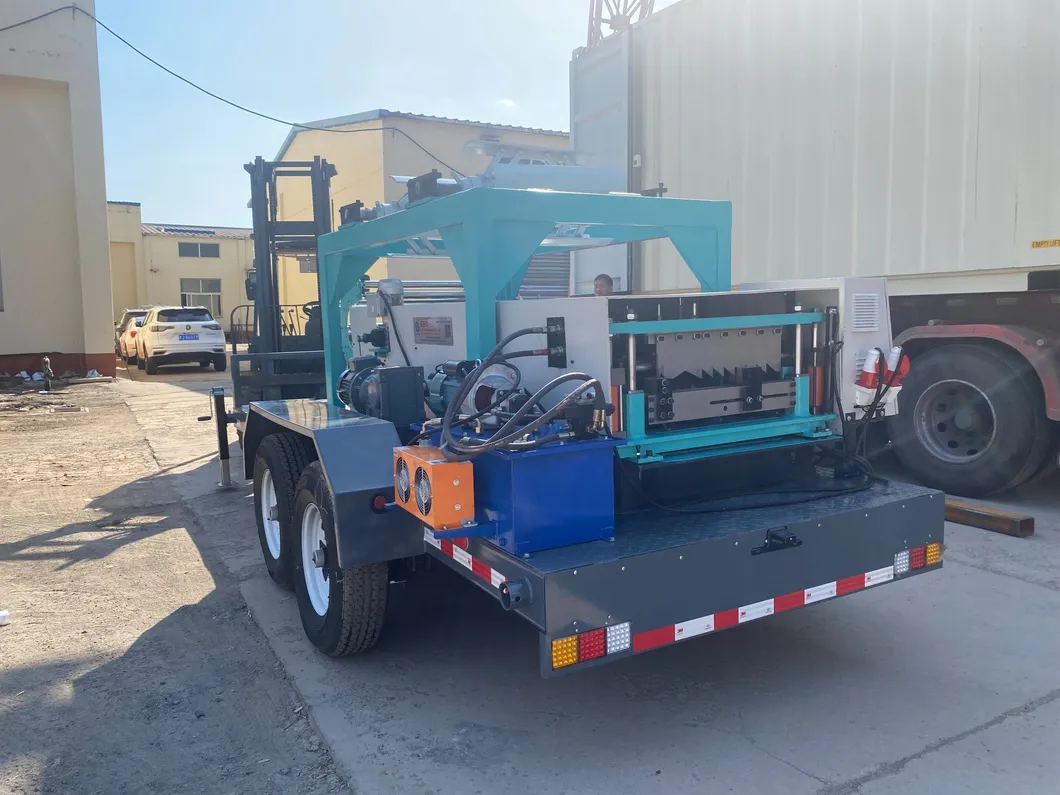

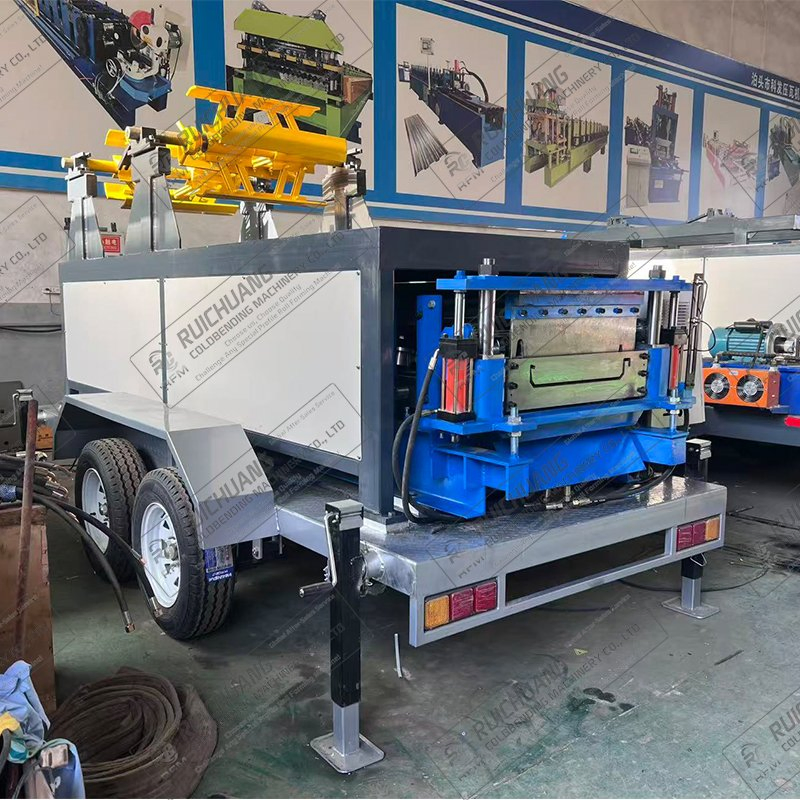

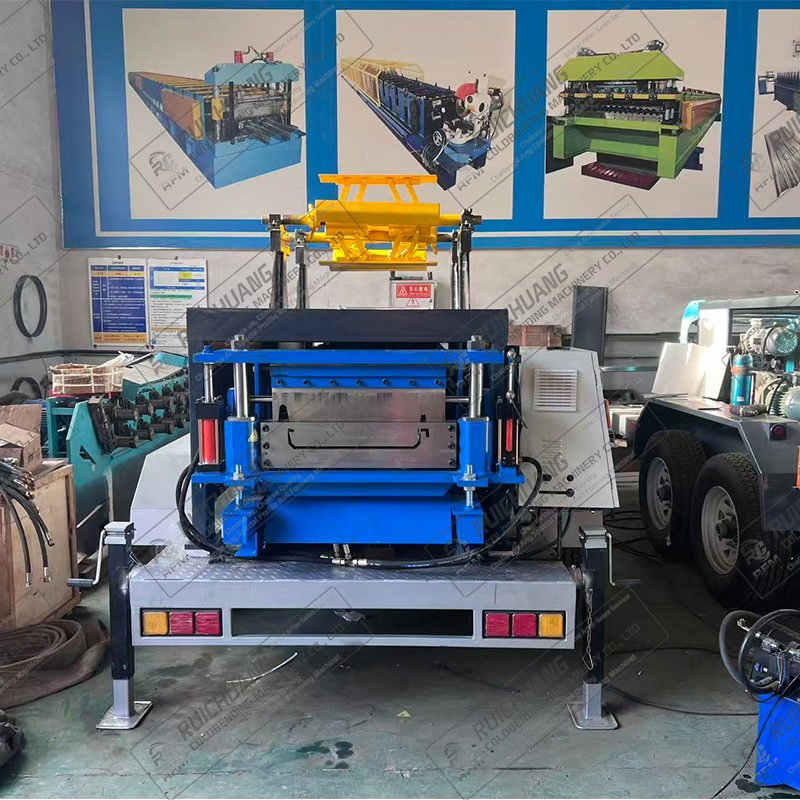

| Model NO. | Portable Roll Forming machine |
|---|---|
| Tile Type | Colored Steel |
| Certification | CE, ISO |
| Condition | New |
| Usage | Roof, Wall, Floor |
| Transmission | Electric |
| Shaft Material | High Grade No.45 Forged |
| Cutting Type | Hydraulic Cutting |
| Application | Roof Sheet Production |
| HS Code | 8455221000 |
| Capacity | 200 set/Year |
| Component | Standard Specification | |
|---|---|---|
| Decoiler | Manual decoiler (Hydraulic Optional) | |
| Forming Station | According to profile drawings | |
| Driving System | Chain drive or Gear drive | |
| Structure | Cantilever type | |
| Forming Speed | 10-20 M/MIN | |
| Rolling Shaft | 40Cr Steel (75mm diameter) | |
| Roller Material | CR12 Steel with Hard Chrome | |
| Control System | PLC with Touch Screen | |
| Power Supply | 380V 50Hz 3ph | |

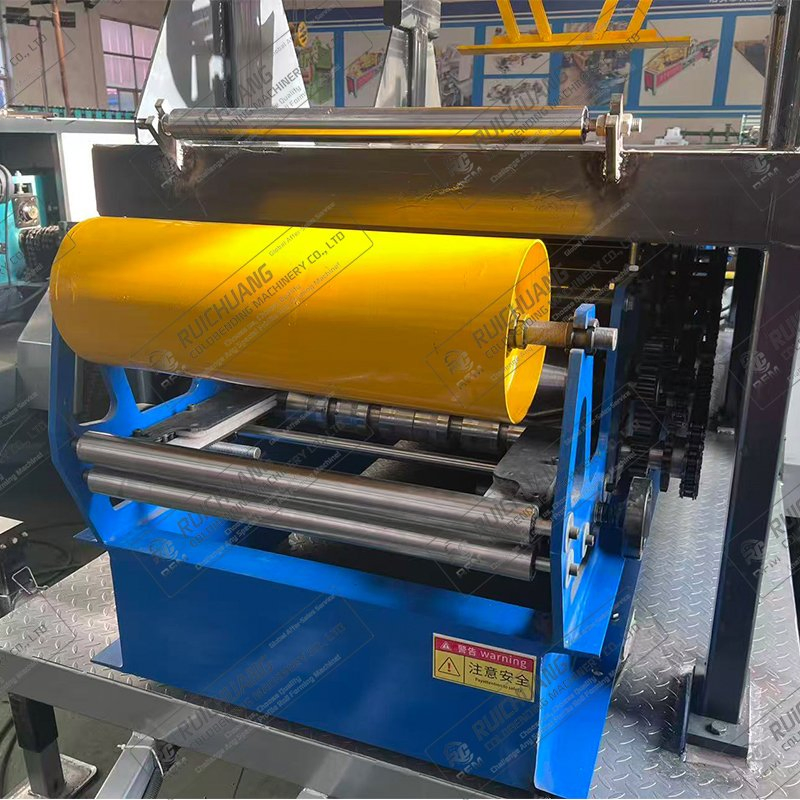

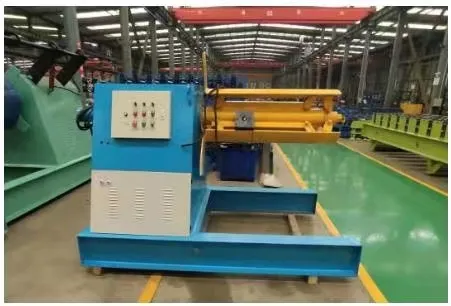

Provided to load raw material coils. It holds and tightens the sheet coil for smooth decoiling into the roofing line.

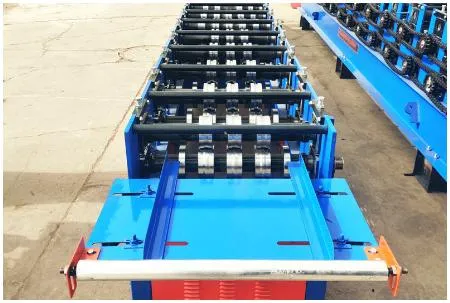

Equipped with support rollers and nylon wheels to prevent material surface damage and ensure smooth feeding.

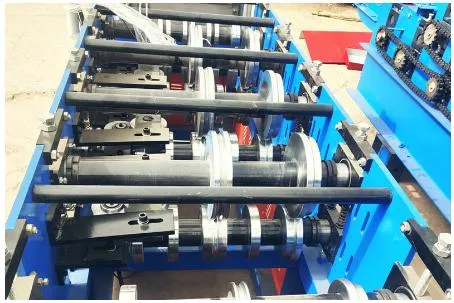

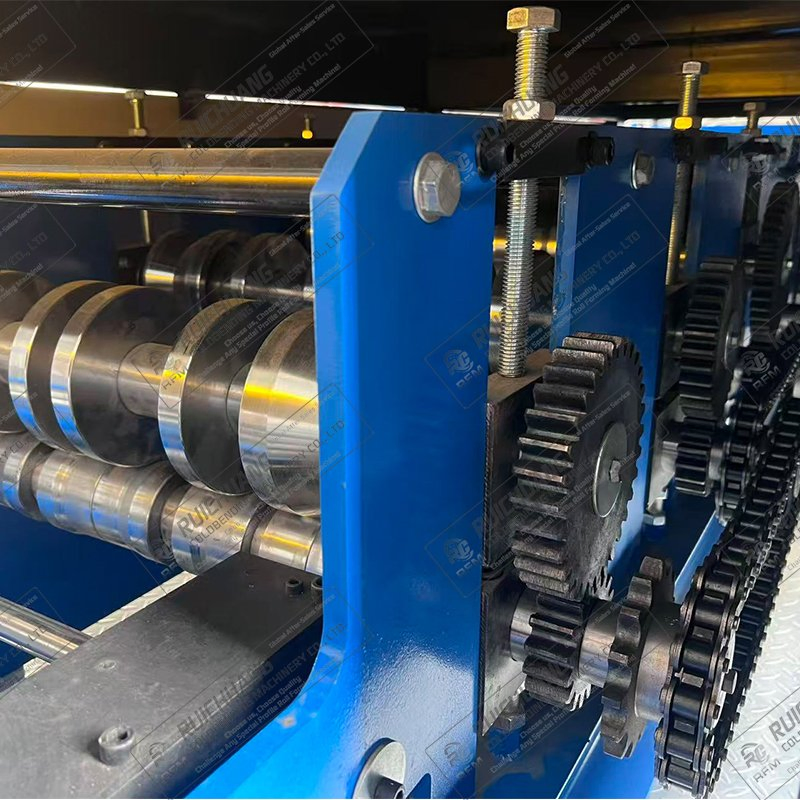

Consists of contoured roll tools made of Cr12 steel. Shafts are 40Cr steel with tempering treatment to prevent deformation.

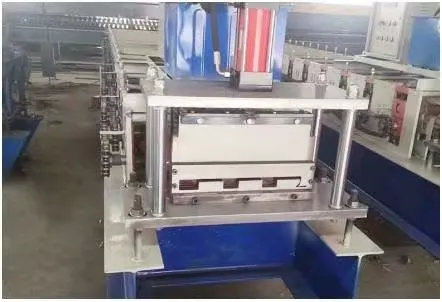

Guide pillar type structure using GB-Cr12 heat-treated blades. Features steady and safe working conditions with marked connections.
