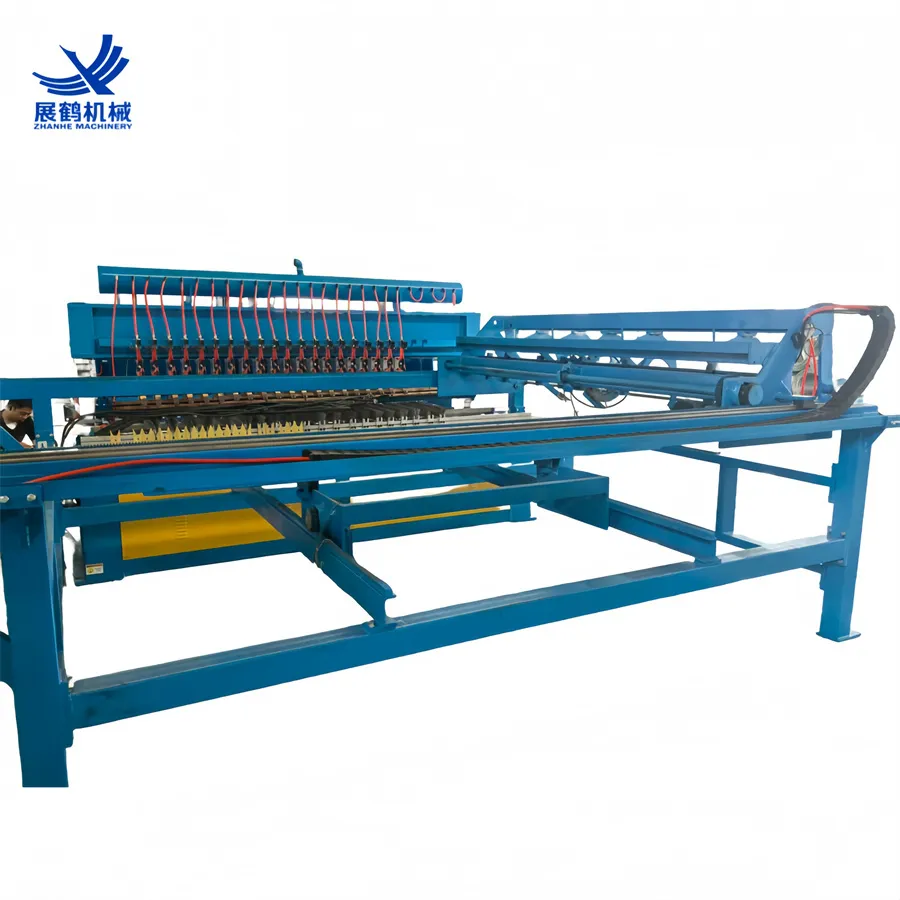

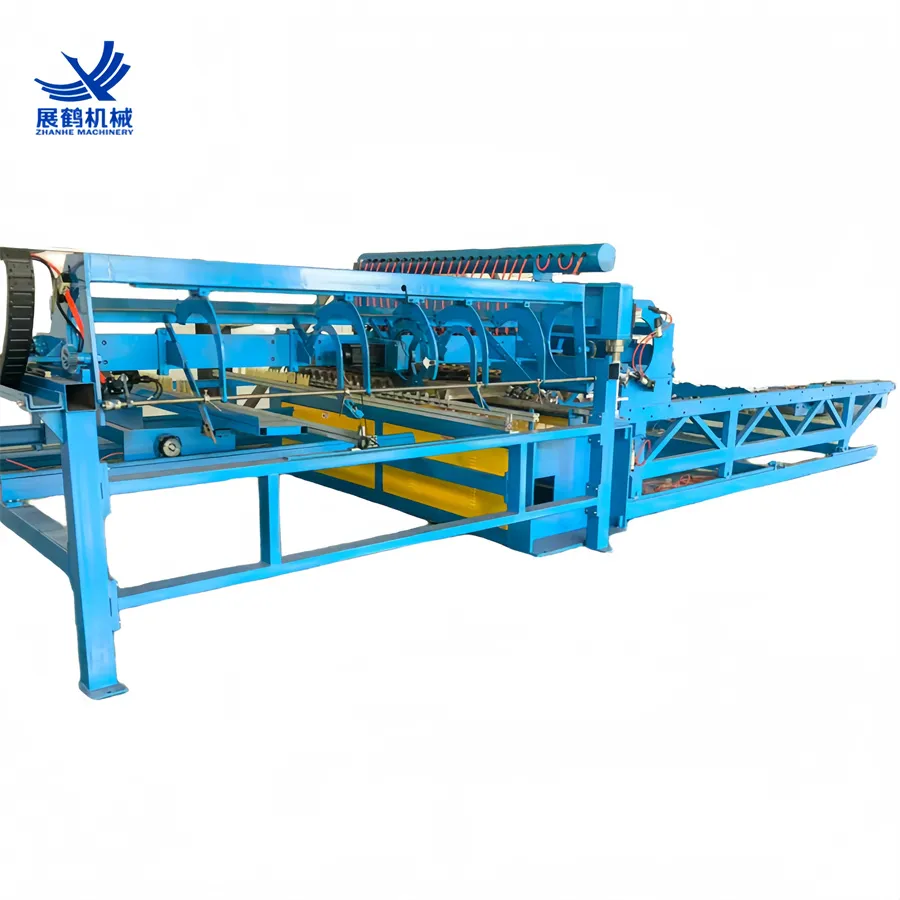

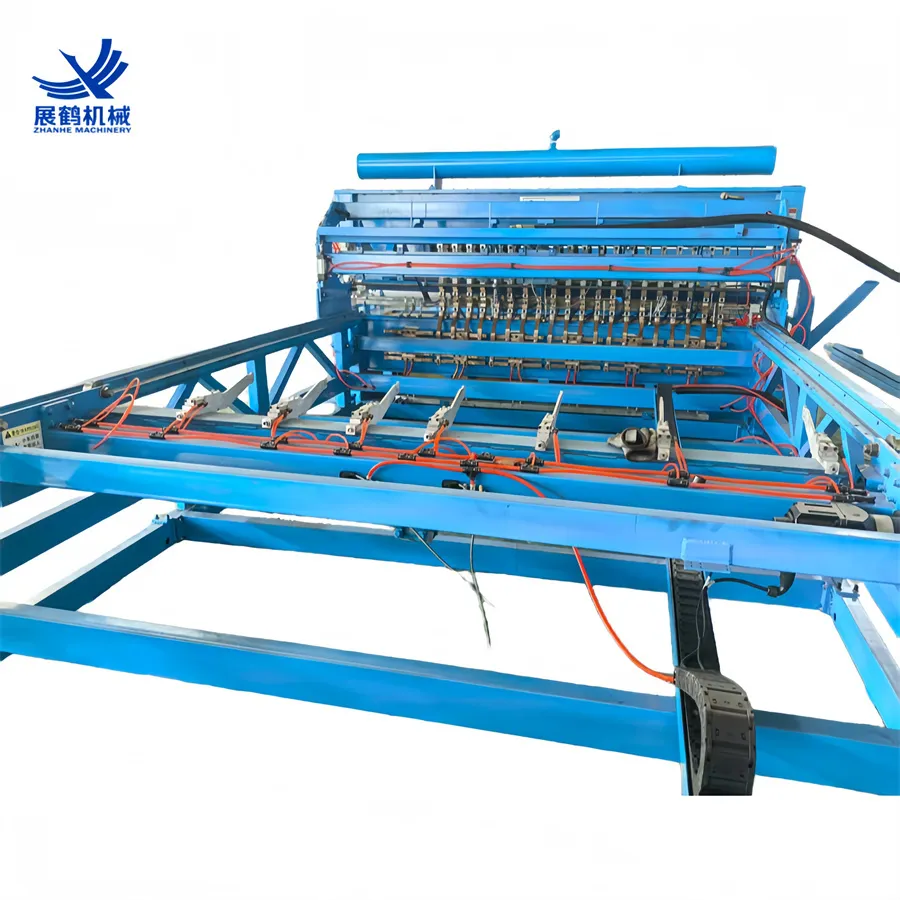

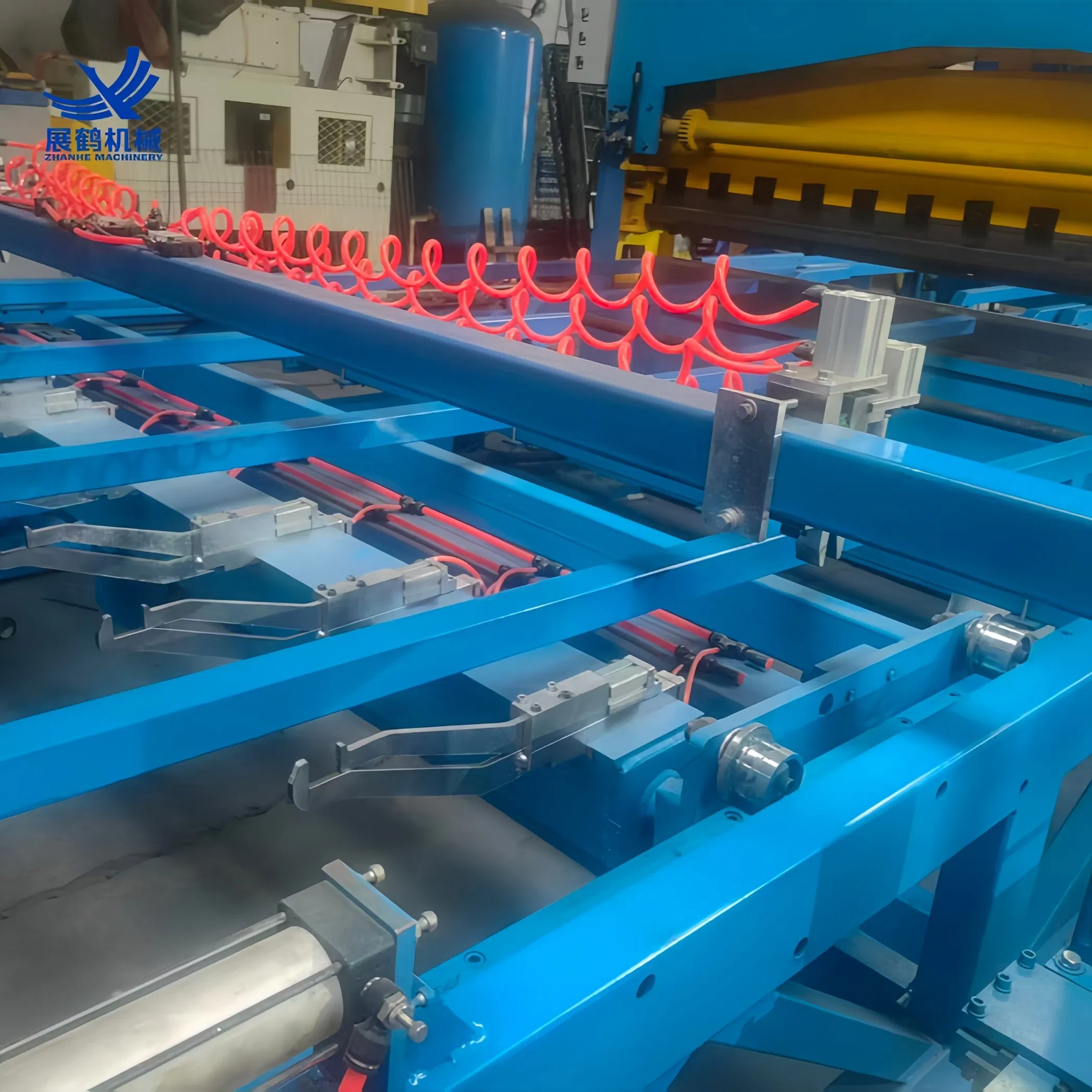

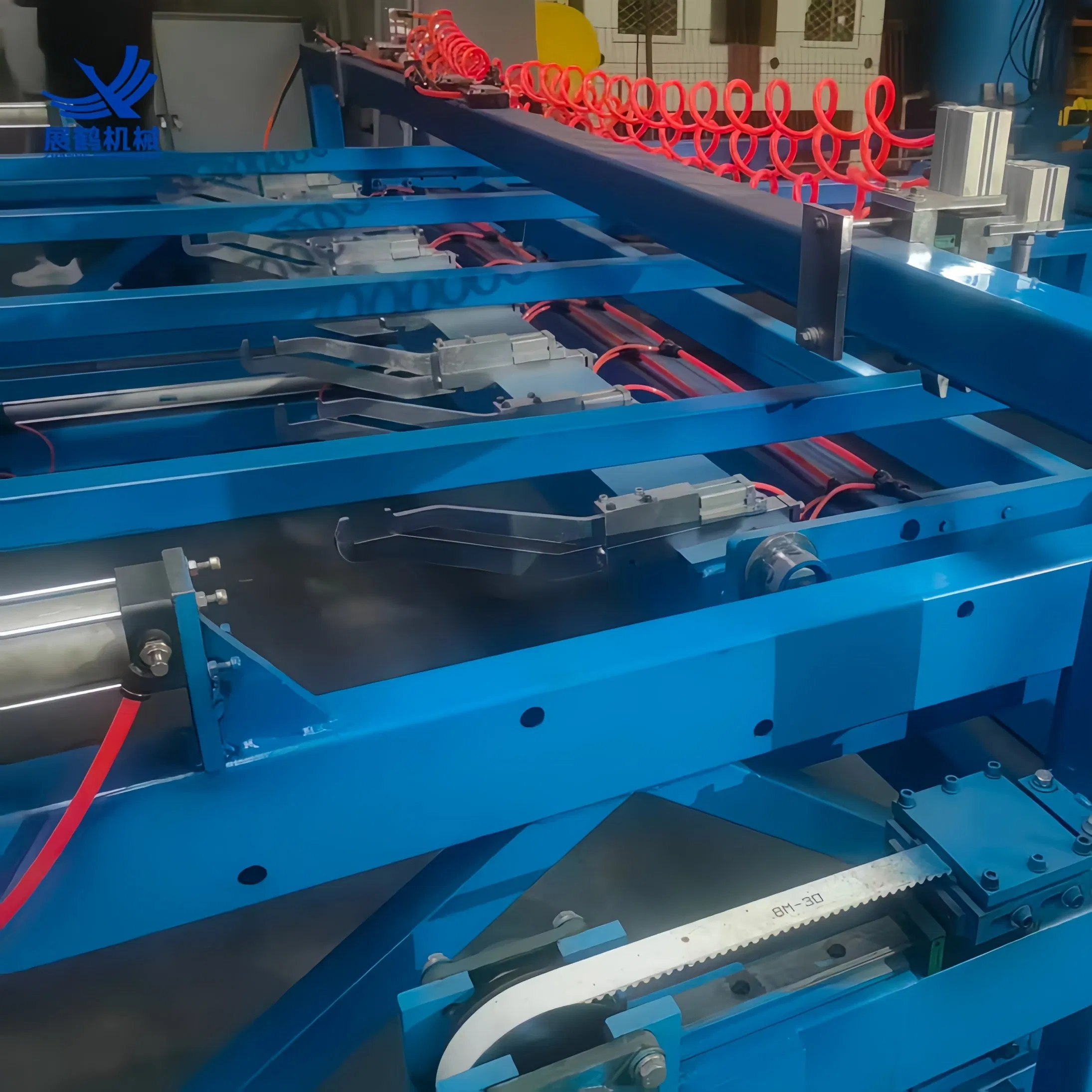

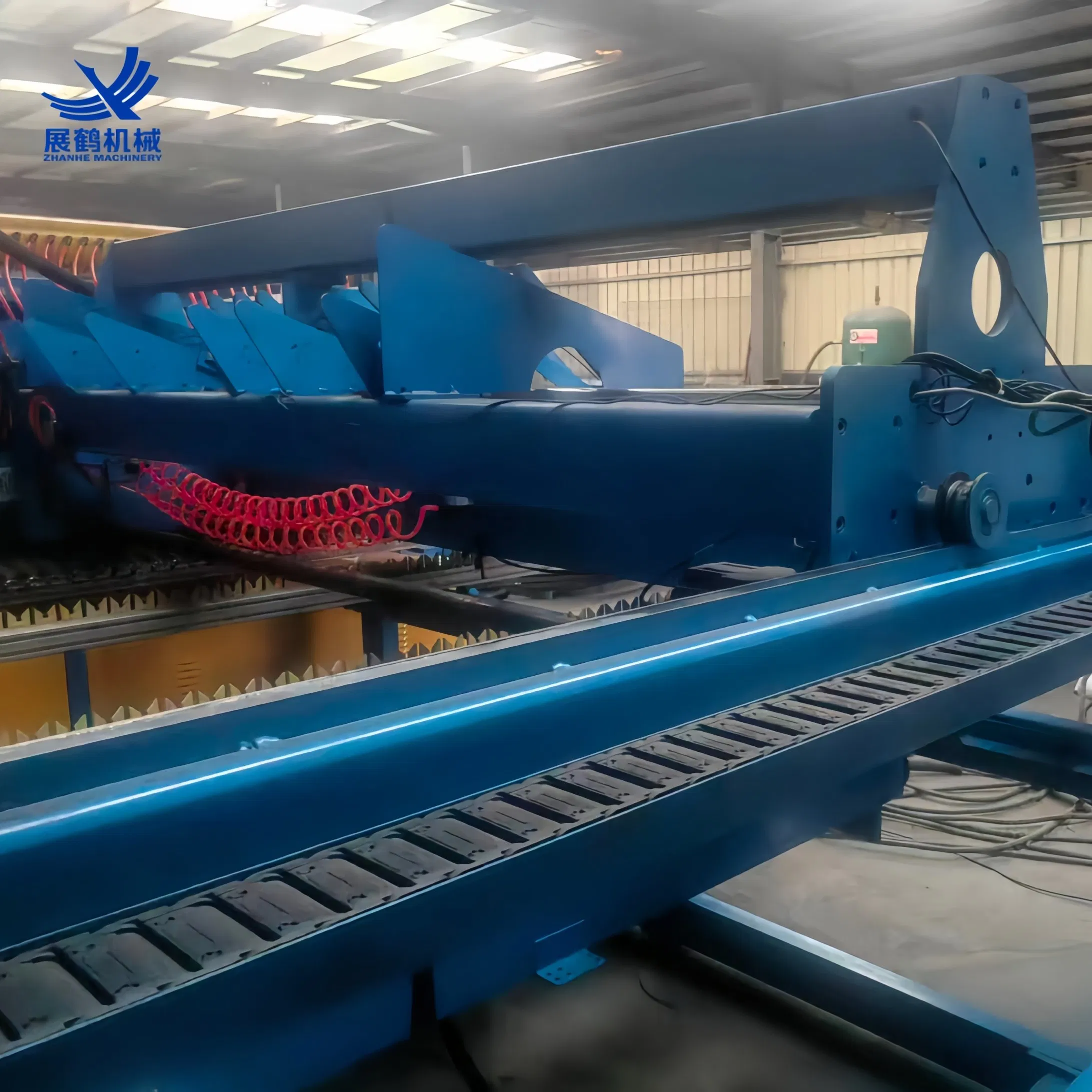

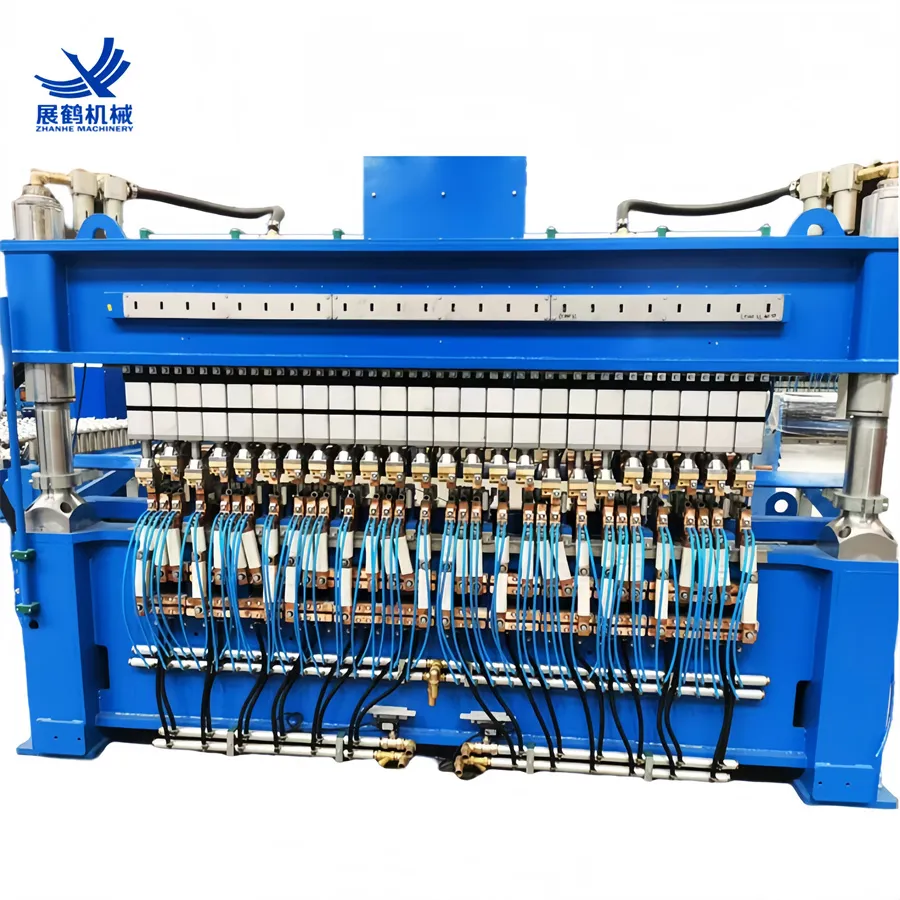

Adopts CNC system for synchronous welding of multiple points, automatic positioning, and continuous operation to maximize production capacity.

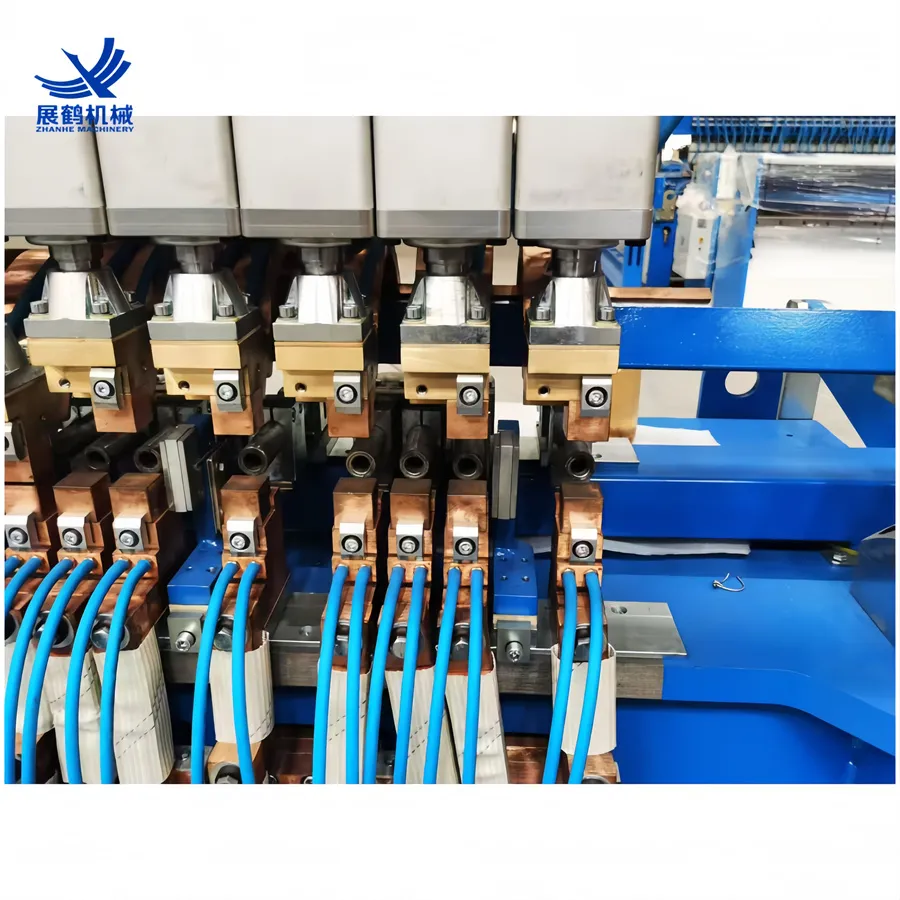

Accurate control of welding current, time, and pressure parameters ensures uniform and firm welding points with high product consistency.
Supports quick mold replacement and parameter adjustment for different mesh sizes, wire diameters, and materials.
| Item | Model 2000 | Model 2500 | Model 3000 |
|---|---|---|---|
| Number of Electrodes | 40/41 | 48/51 | 60/61 |
| Max.Mesh Width | 2000mm | 2500mm | 3000mm |
| Steel Wire Diameter | 3-6mm | 3-6mm | 3-6mm |
| Mesh Length | 500-3000mm | 500-3000mm | 500-3000mm |
| Cross wire space | 50-250mm | 50-250mm | 50-250mm |
| Line wire space | 50-250mm | 50-250mm | 50-250mm |
| Line feeding way | Manual | ||
| Cross feeding way | Special electric hopper | ||
| Pulling mesh way | Step motor | ||

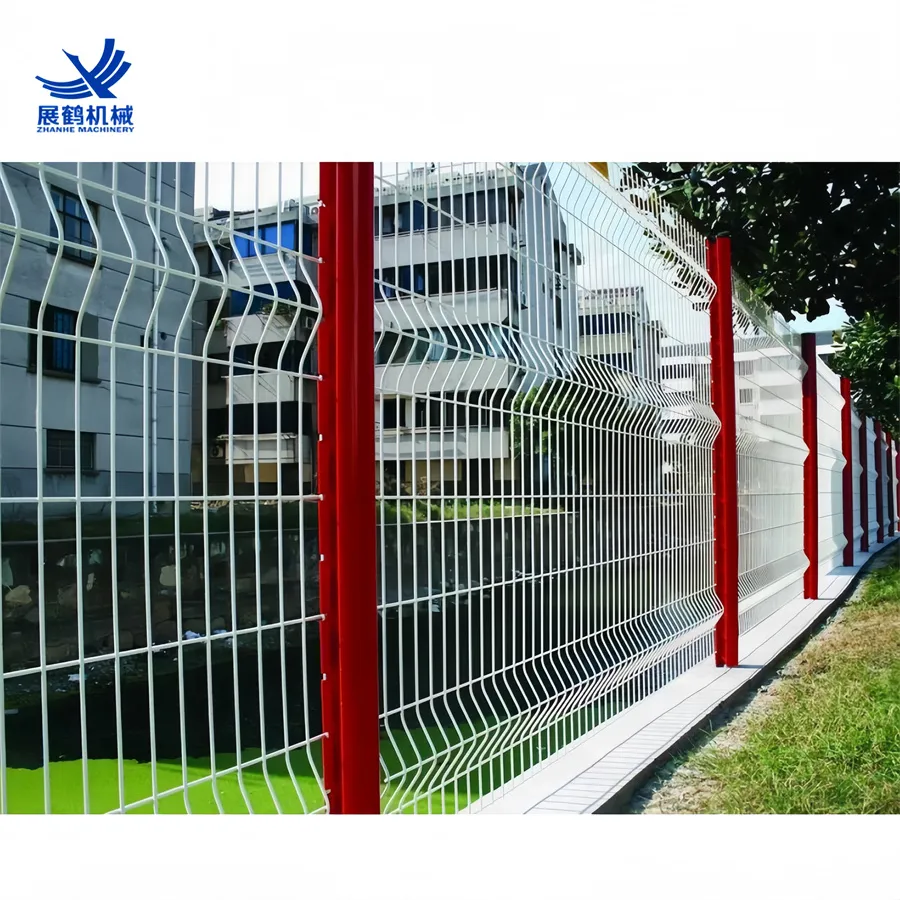

Ideal for highways, railways, safety isolation nets, industrial plants, and agricultural fences.
We consistently uphold the development tenet of "quality first, credit first" and provide every customer with high quality products and expert after-sales service.
Our after-sales service team provides comprehensive support worldwide, including installation, commissioning, and maintenance throughout the equipment's service life.
