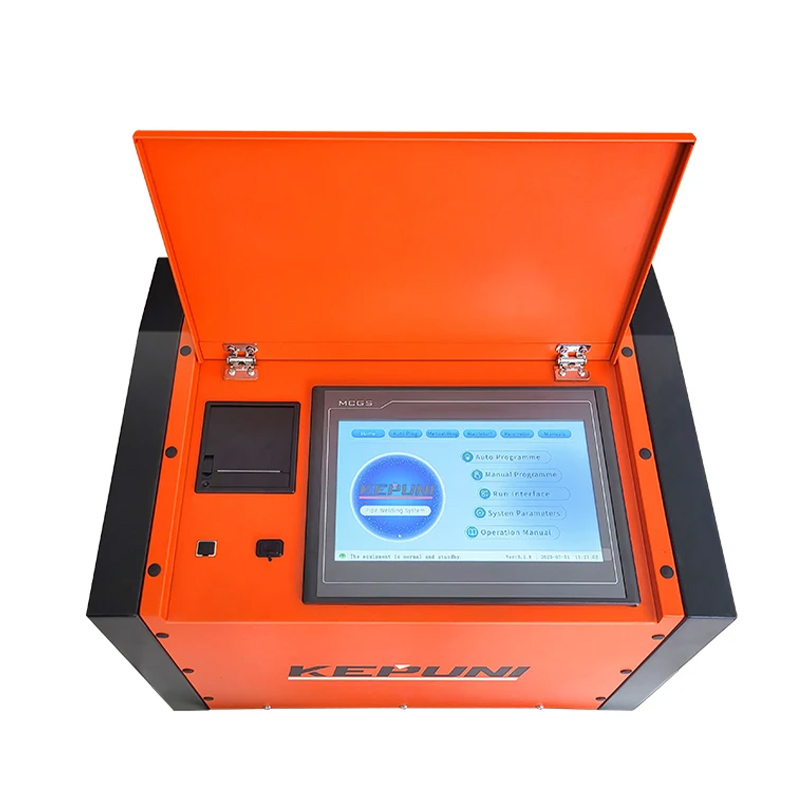

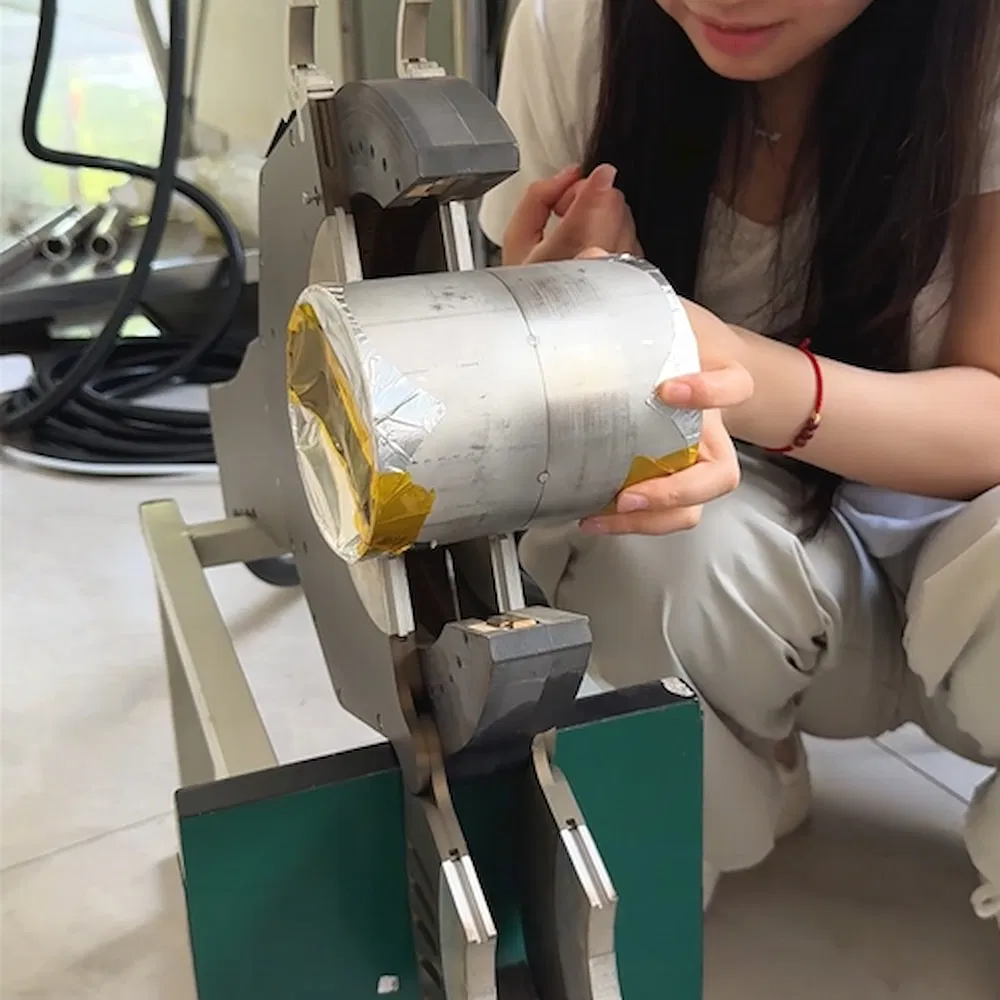

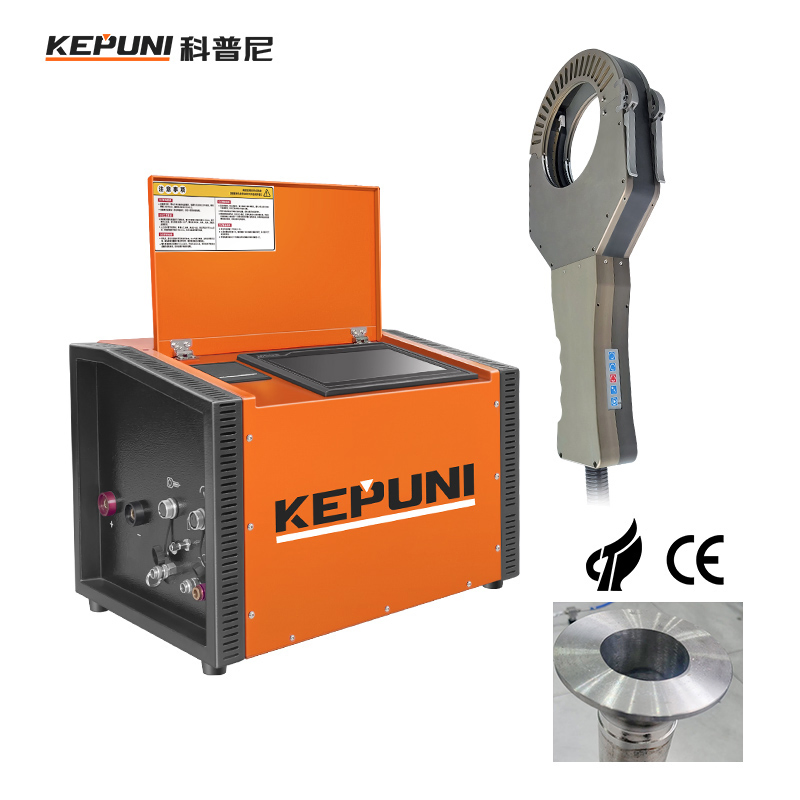

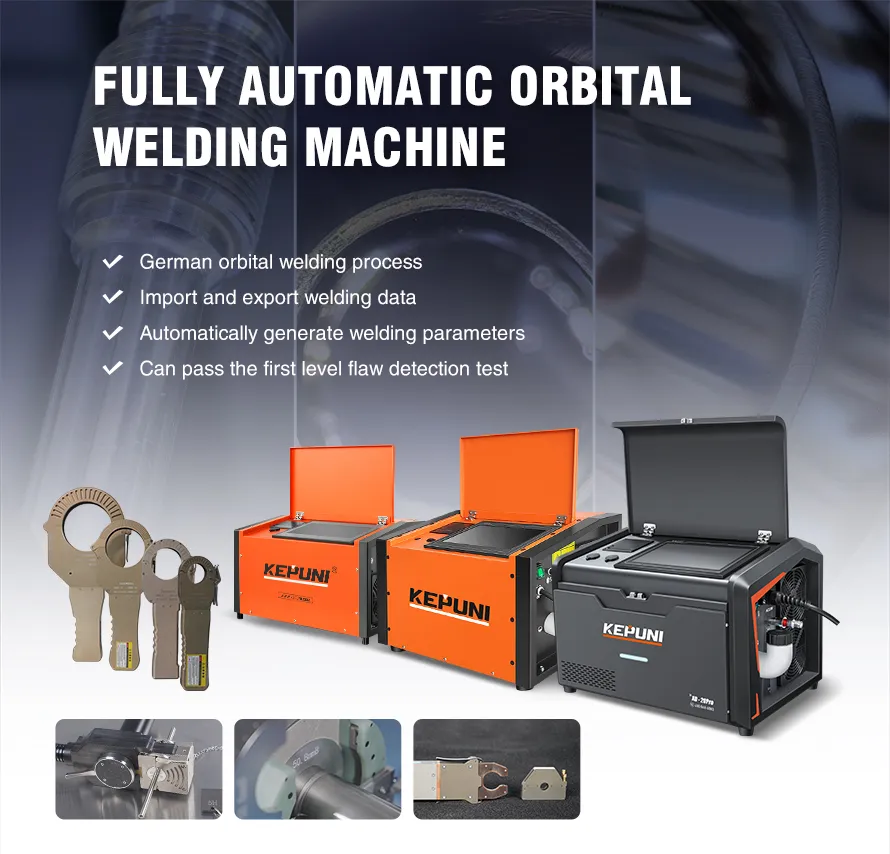

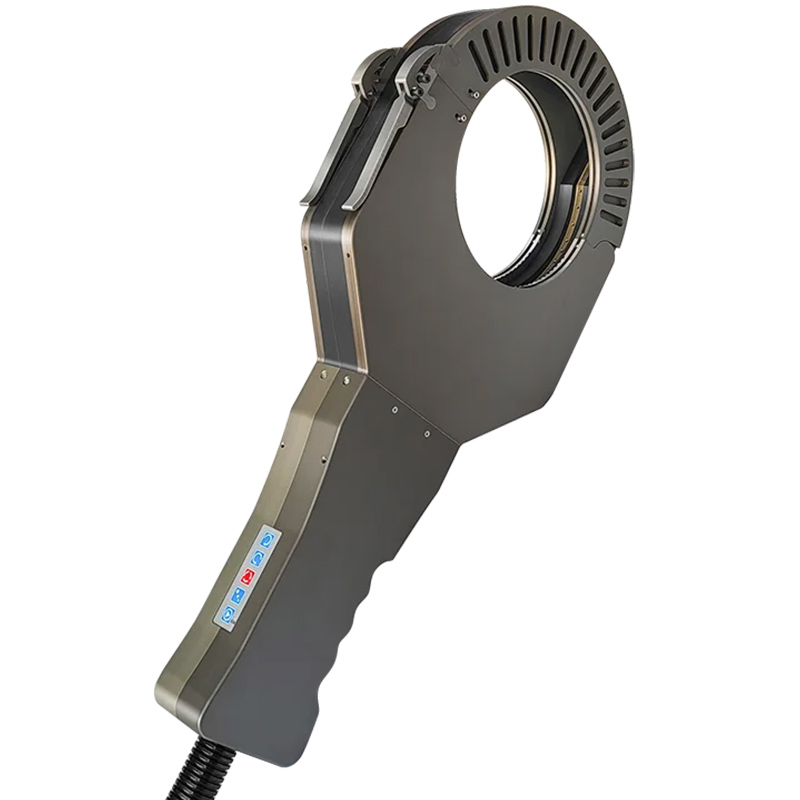

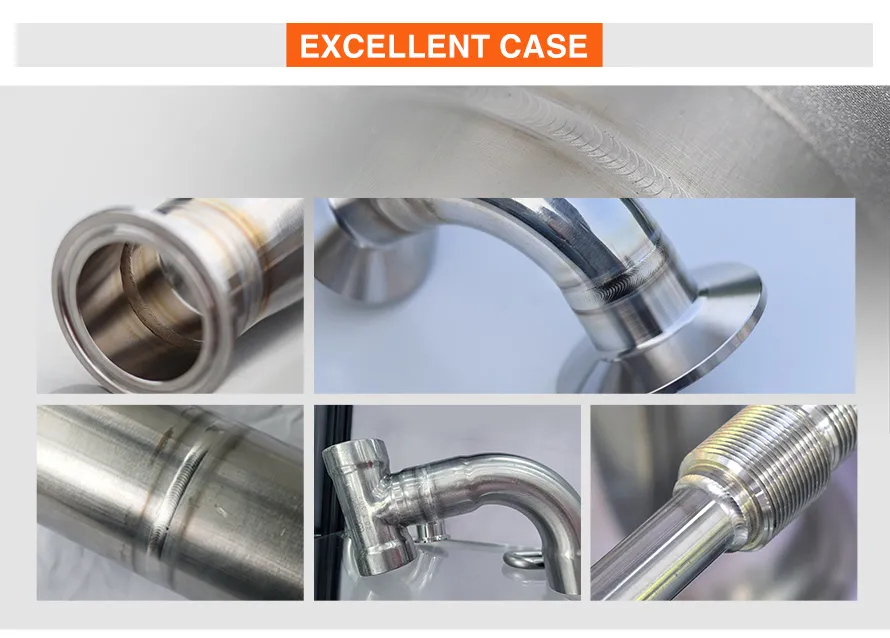

The fully automatic orbital welding machine is specially designed for welding the interfaces of pipe fittings and accessories. Utilizing German orbital welding technology, it achieves a high qualification rate. Ideal for industries such as food and medicine, semiconductors, laboratories, water treatment, heat exchangers, and petrochemicals. It supports butt joints and insertion welding for stainless steel, carbon steel, titanium alloy, and copper.

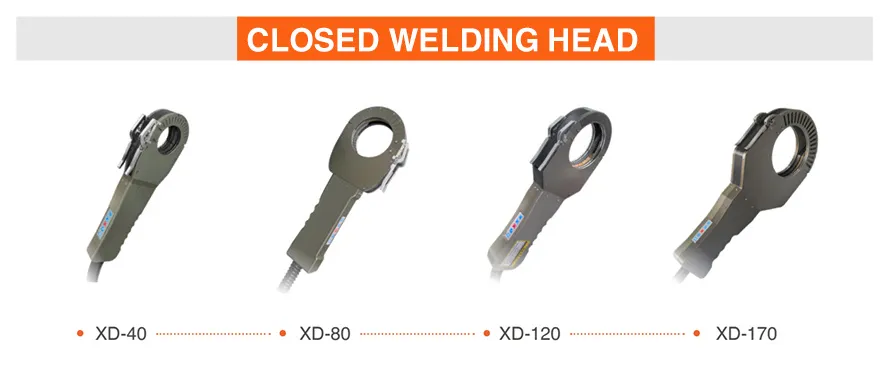

| Model | XD-40 | XD-80 | XD-120 | XD-170 |
|---|---|---|---|---|
| Weldable materials | Carbon steel / stainless steel / titanium alloy, etc. | |||
| Welding torch cooling | Water-cooling | |||
| Pipe diameter range (mm) | 6.35-38.1 | 10-76.2 | 19-114.3 | 38.1-168 |
| Wall thickness (mm) | 0.5-2.5 | 0.5-3 | 0.5-3 | 0.5-3 |
| Rotation speed (rpm) | 0.16-2.8 | 0.1-1.8 | 0.1-1.8 | 0.1-1.8 |
| Weight (kg) | 3.5 | 5 | 6.5 | 9.5 |

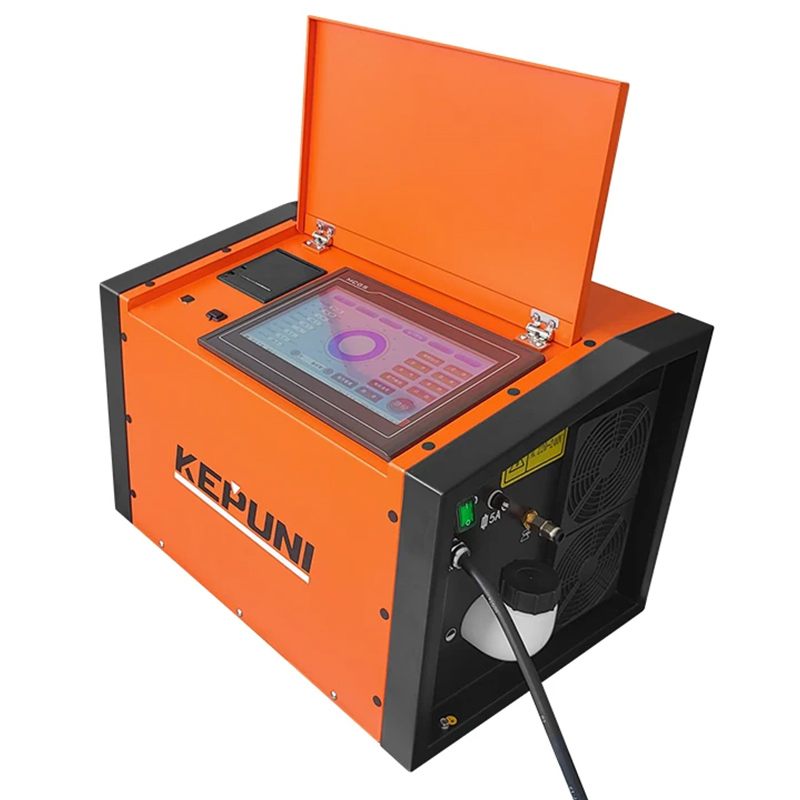

| Main Power Supply | XD-20PRO | XD-20W | XD-PD200 |
|---|---|---|---|
| Duty cycle | 200A 60% / 155A 100% | ||
| Welding current | 5-200A | ||
| Screen | 10 inch touch screen | ||
| Programmable memory | 600 PIECE | 200 PIECE | 200 PIECE |
| Machine size (mm) | 550*360*360 | 555*360*360 | 355*475*305 |

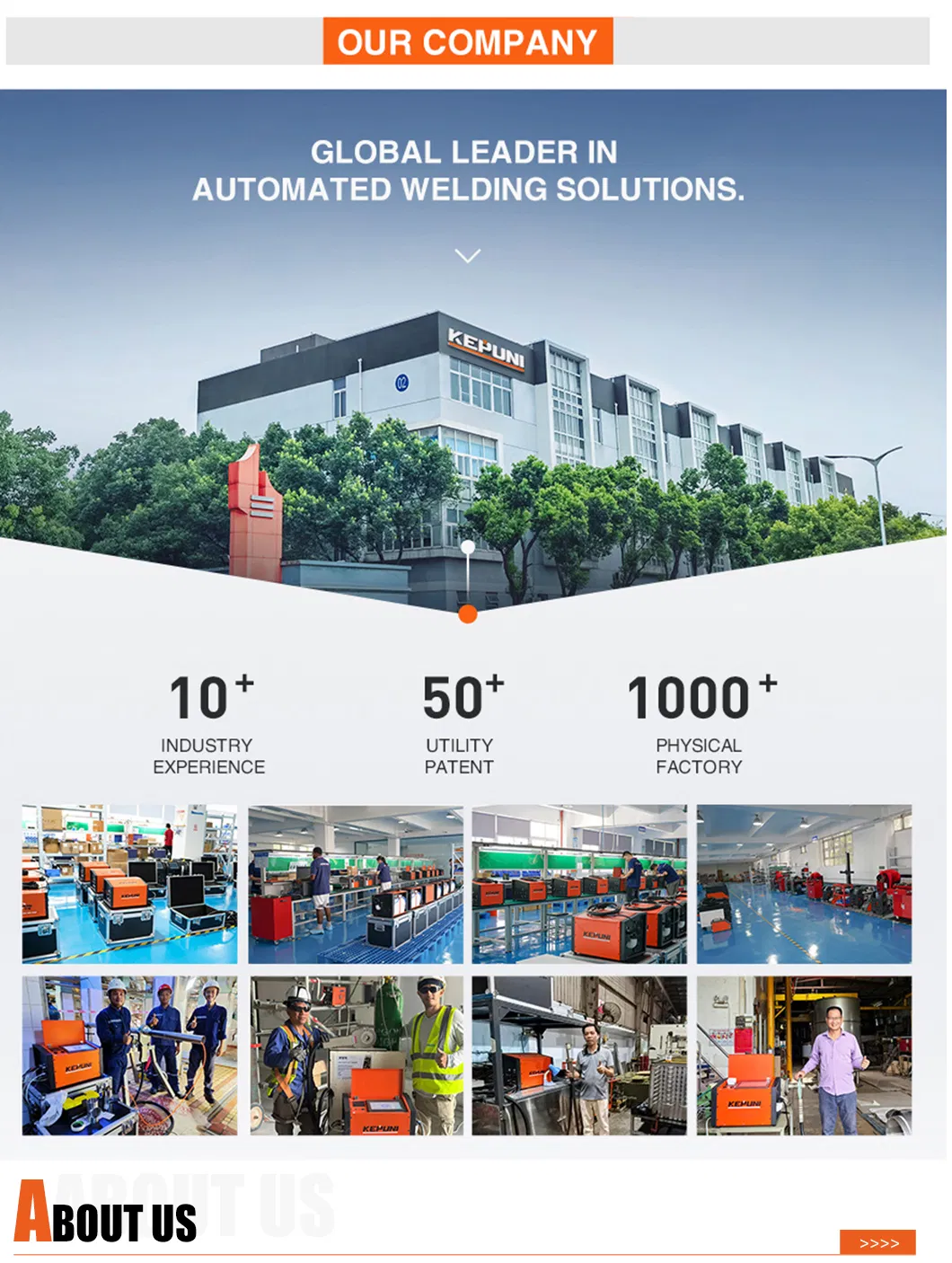

As a leading provider in the automated welding field, the company has been deeply engaged in the industry for over a decade. We have earned prestigious certifications such as "National High-tech Enterprise" and "Specialized and New Enterprise" for outstanding technological innovation.
The company has established an integrated industrial ecosystem encompassing R&D innovation, intelligent manufacturing, and technical services. We specialize in the research and manufacturing of welding equipment, including all-position orbital welders, tube-to-sheet welders, automatic girth welders, and precision cold welders, providing comprehensive welding solutions for global partners.
