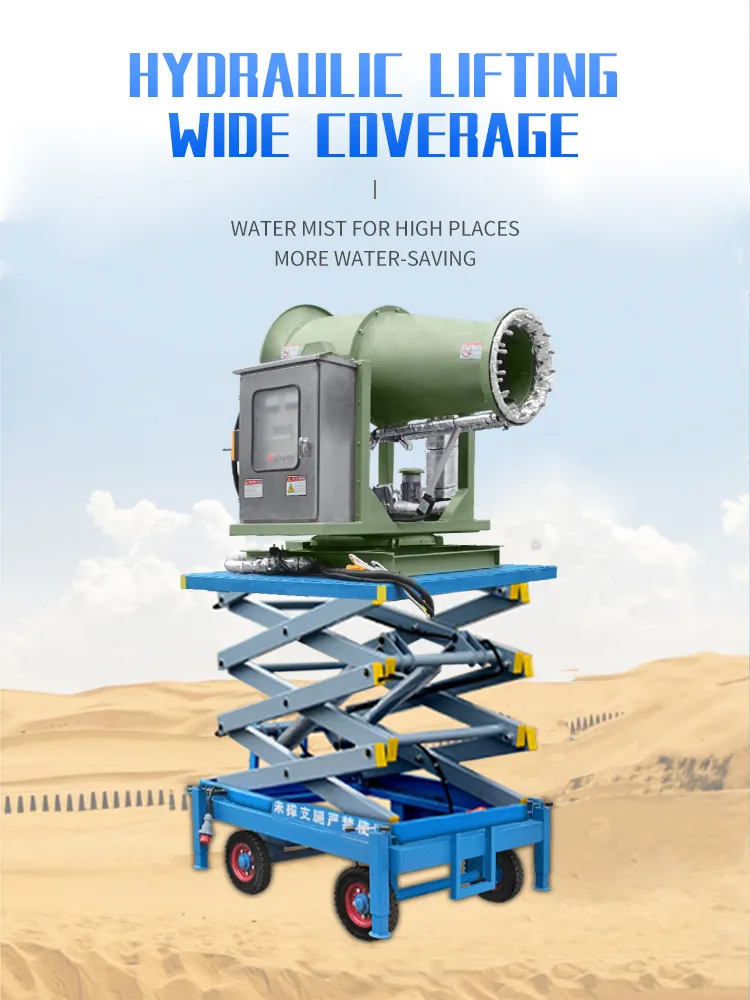

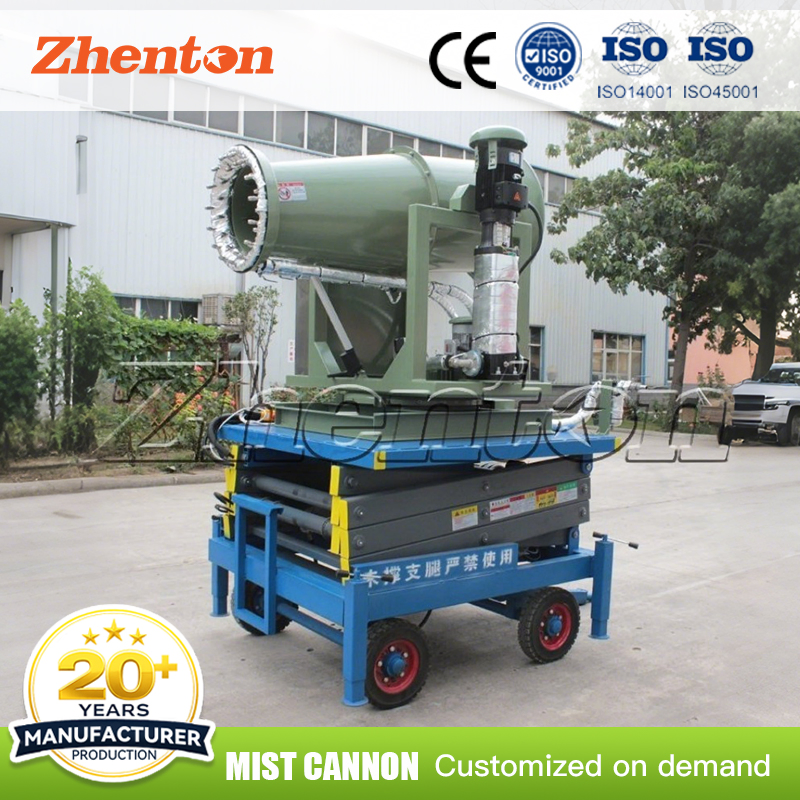

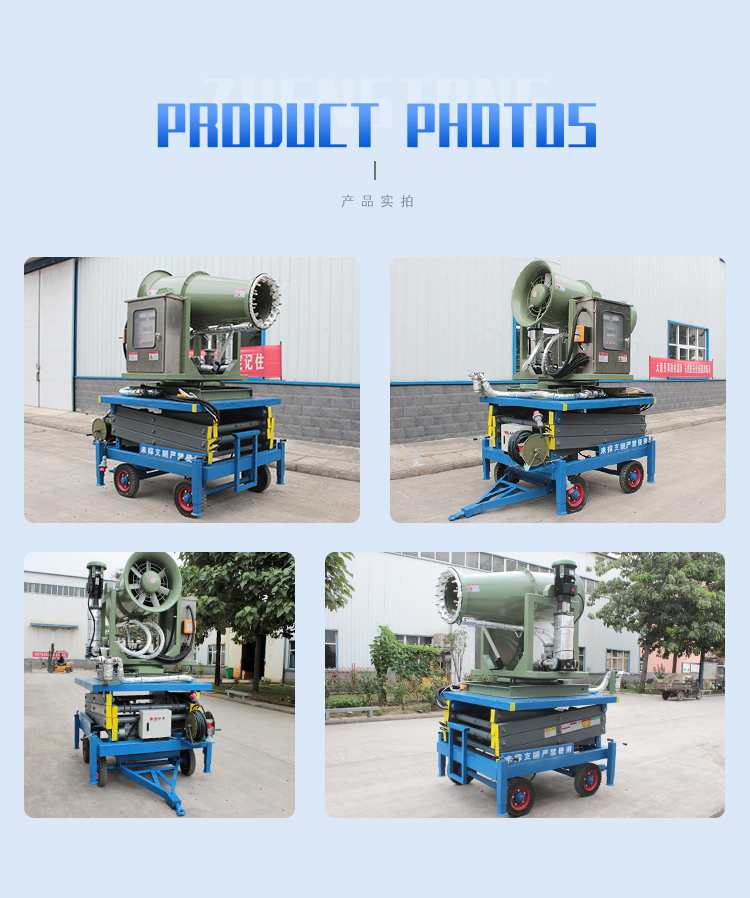

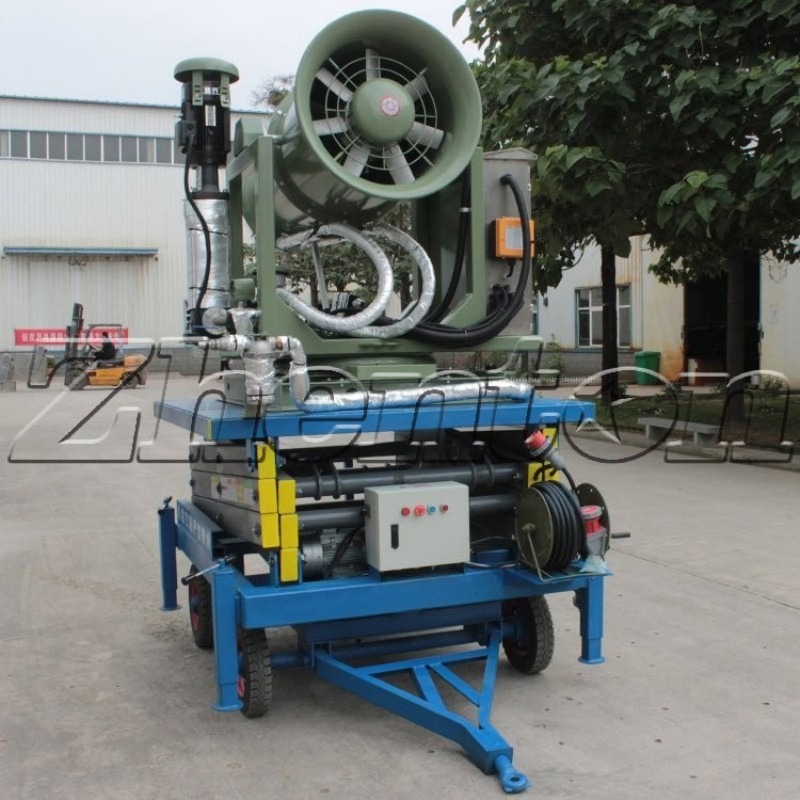

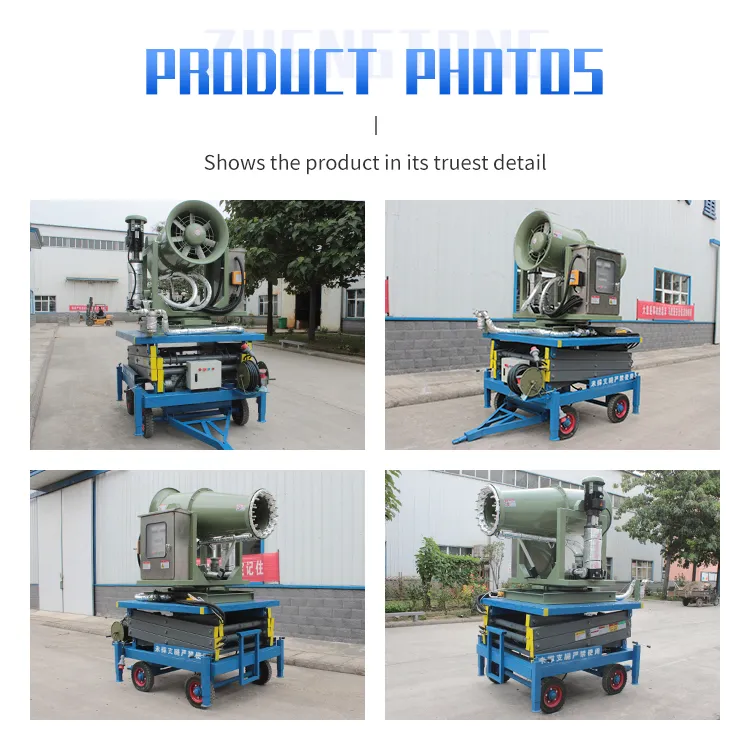

Smart Sensor Liftable Fog Cannon for Tunnel Maintenance & Road Construction Machine
Principle and Function: Mist cannon atomizes water into ultra-fine droplets (30-150 microns). When sprayed by high-power fan, droplets adhere to floating dust, forming aggregates that settle due to gravity, purifying ambient air.
Application Features: High dust suppression efficiency (PM2.5, PM10), water-saving, adjustable spray range, and environmentally friendly with no chemical additives.
Applicable Scenarios: Coal yards, mines, quarries, cement plants, demolition sites, port terminals, and urban road construction.
Comprehensive Specialized Certifications
One-year warranty, lifetime maintenance

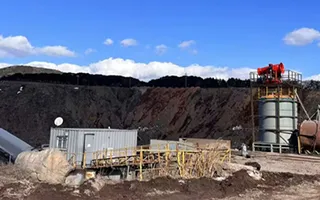

Dust Suppression: Efficiently control dust pollution in mines, sand plants, and construction sites by condensing airborne particles.

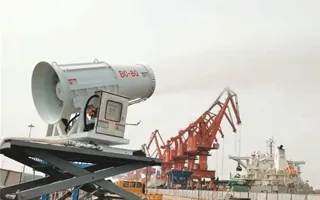

Odor Control: Neutralize odor molecules in garbage dumps and farms by adding deodorants to the atomized mist.

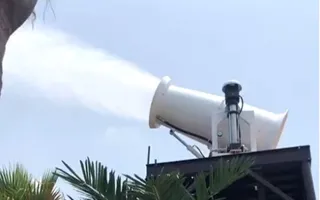

Cooling: Rapidly reduce ambient temperature in high-temp workshops and outdoor squares through physical evaporation.

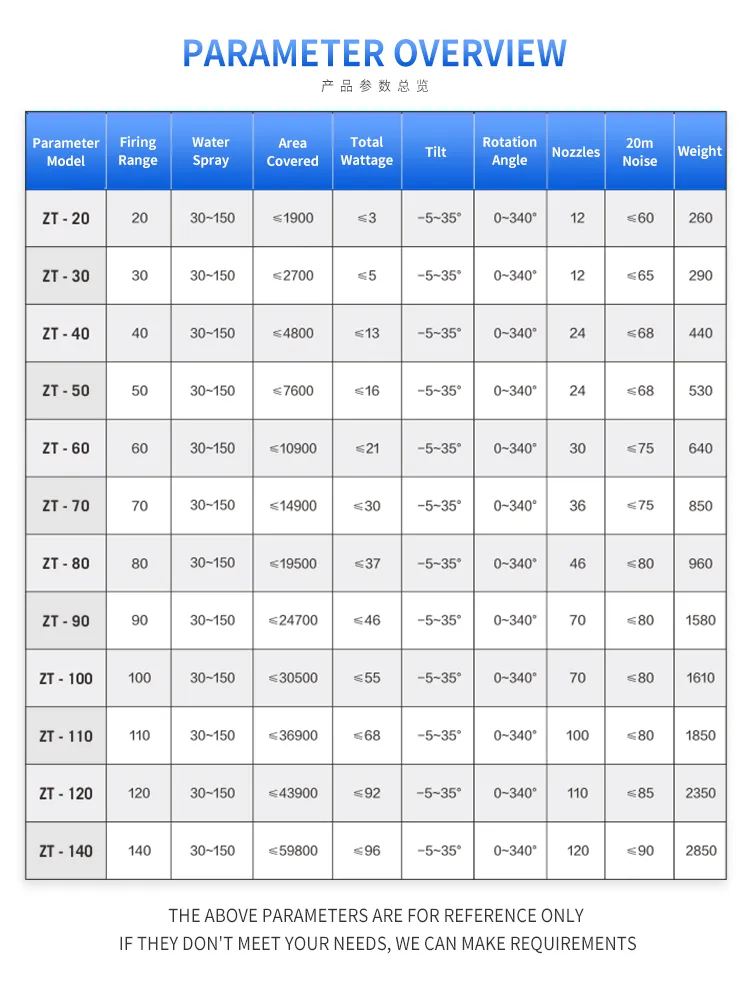

Model ZT-70 |
Range Meters(m) 65-70 |
Coverage Area(m²) 14900 |
Water Discharge(L/min) 80-130 |
Aerosol Particles(μm) 30-150 |
Number of nozzles 46-70 |
Noise at 20m (dB) 72 |
Power(kW) 36kw |
Fog Cannon System Components:
Machines are packed with reinforced export packaging. Includes waterproof/dust-proof film, shockproof bubble cotton, and sturdy multi-layer plywood cases. All wooden packages are fumigation-free, meeting international quarantine standards for smooth customs clearance and safe long-distance sea transport.
