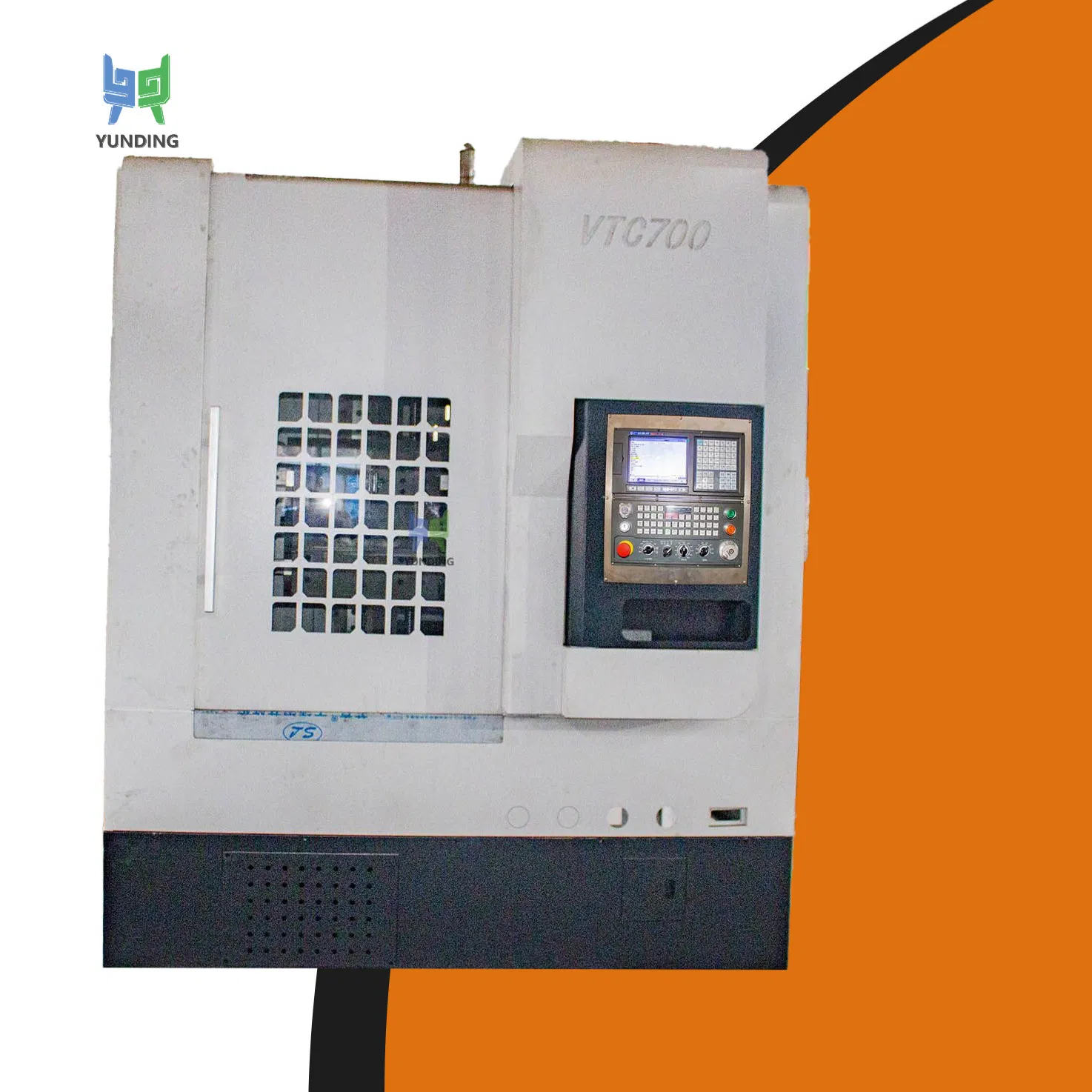

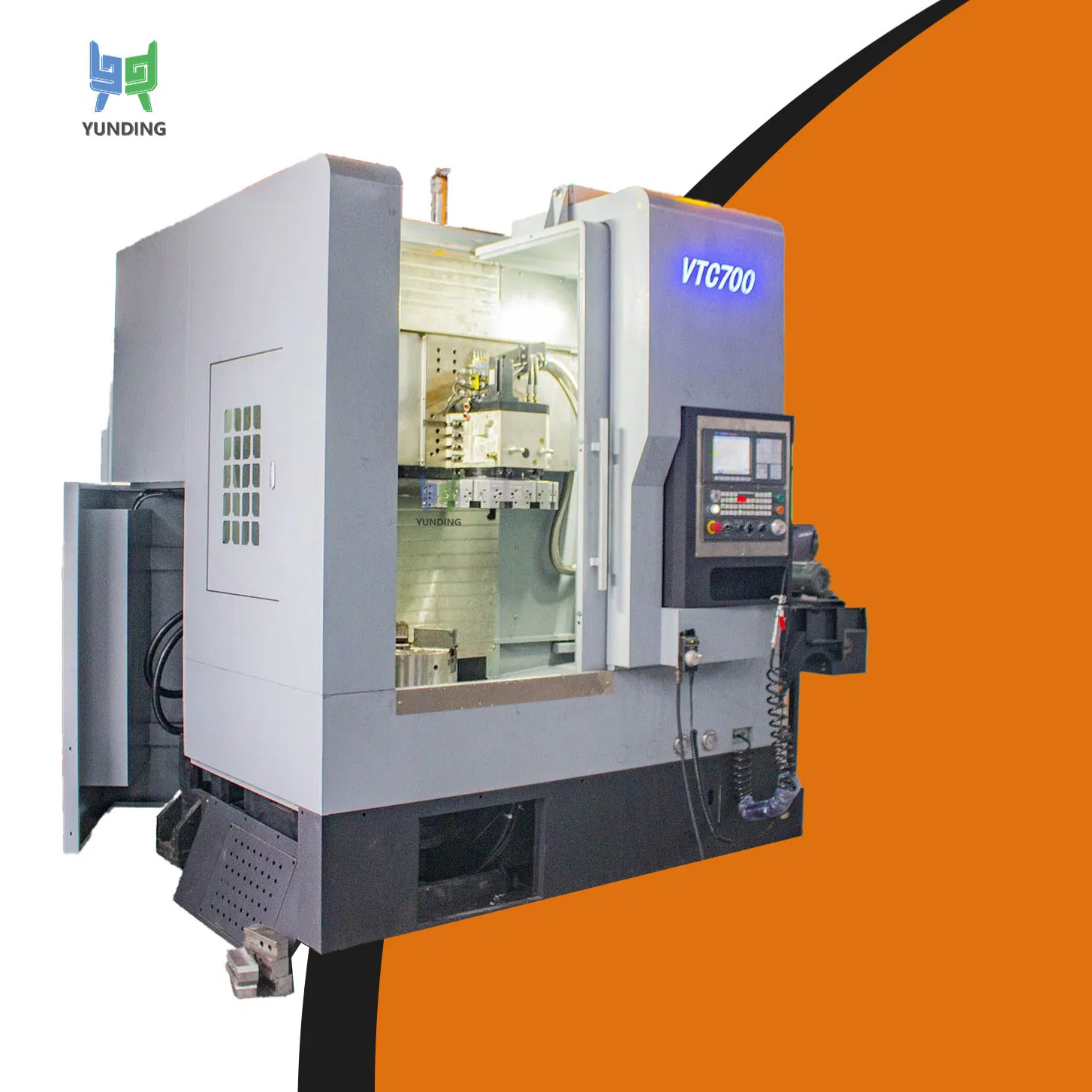

Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
1 / 5
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing
Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing

Smart Control Vtc700 CNC Vertical Lathe Machine for Construction Machinery Gear Processing

Customization: Available
After-sales Service: Online After-Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
VTC700
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, RoHS, ISO 9001
Max.Swing Diameter
700mm
Spindle Taper
A2-8
Weight
5800kg
HS Code
8457101000
⚙️ Product Overview

Professional Vertical CNC Lathe Manufacturer

Vertical CNC lathes are primarily designed for processing large and heavy workpieces with significant radial dimensions but relatively small axial dimensions. This machine is ideal for complex shapes such as cylindrical surfaces, end faces, conical surfaces, and holes for discs, wheels, and sleeve workpieces.

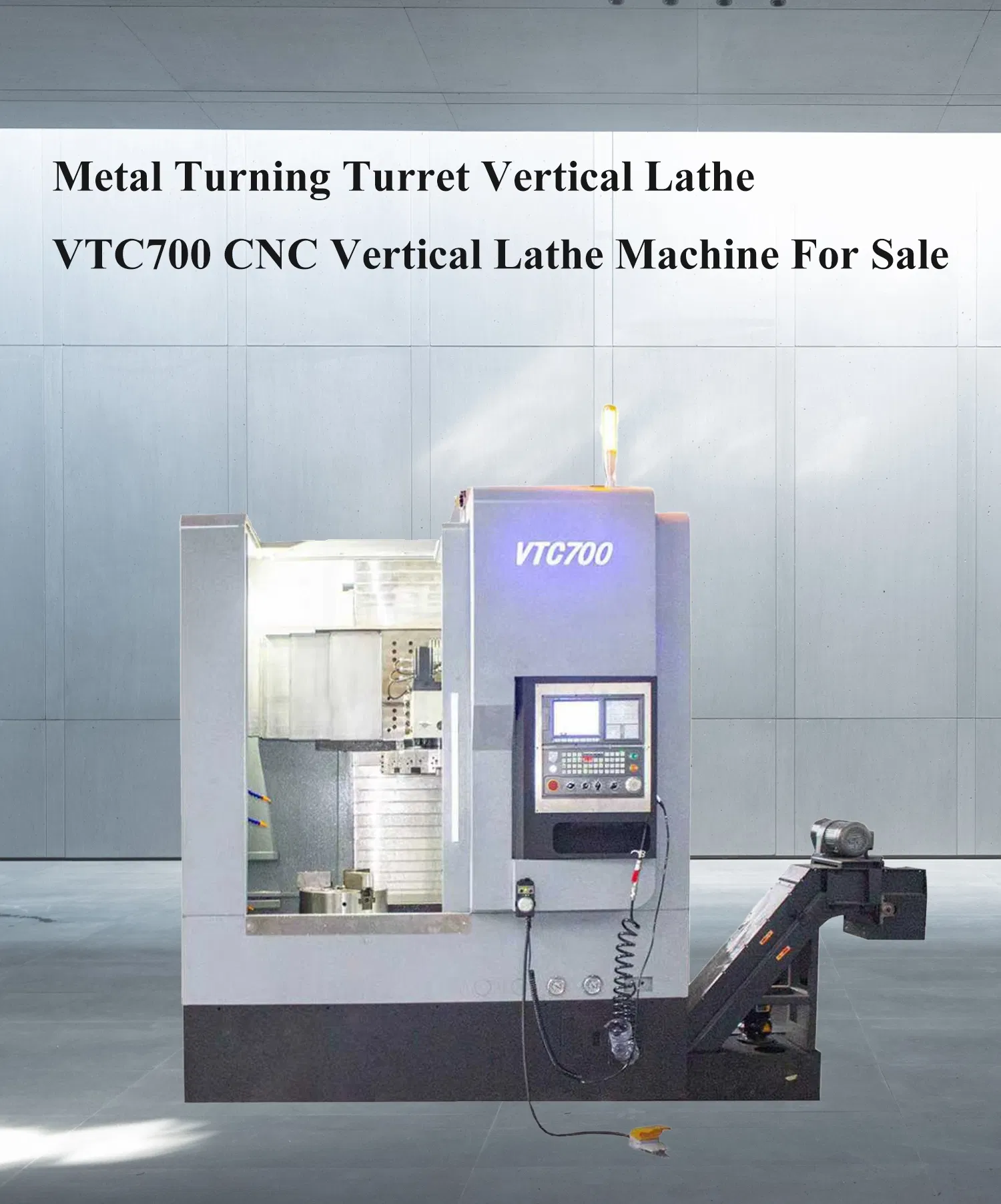

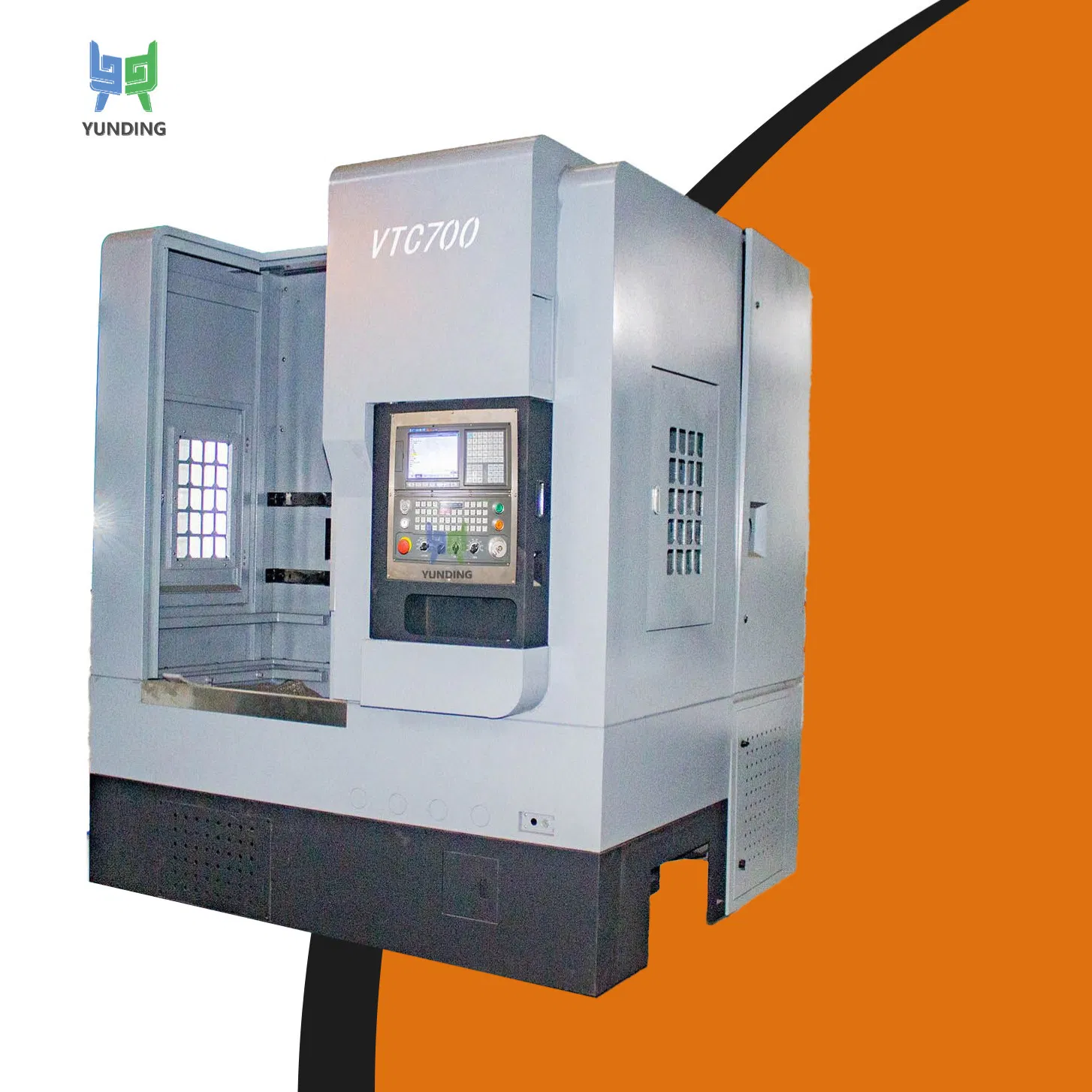

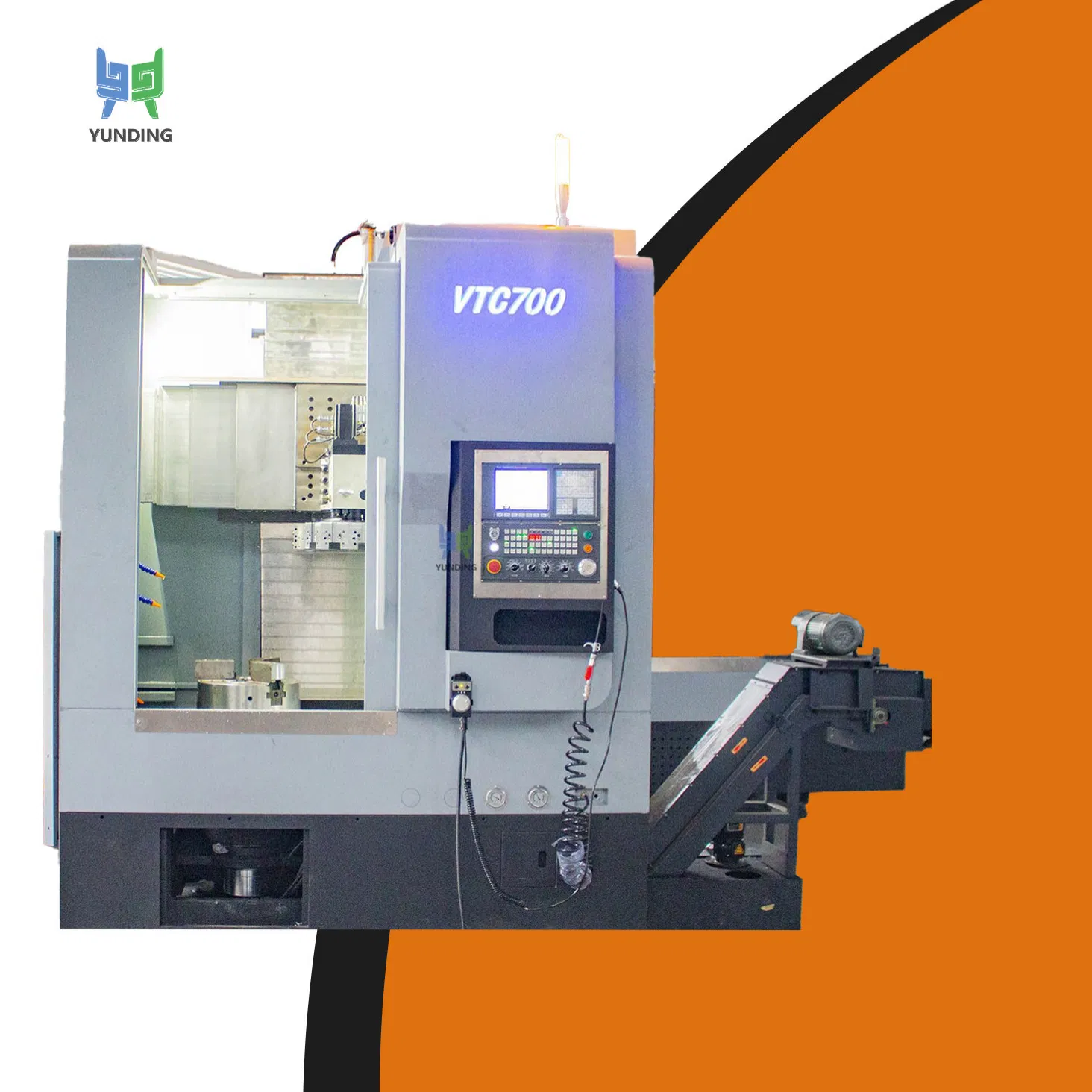

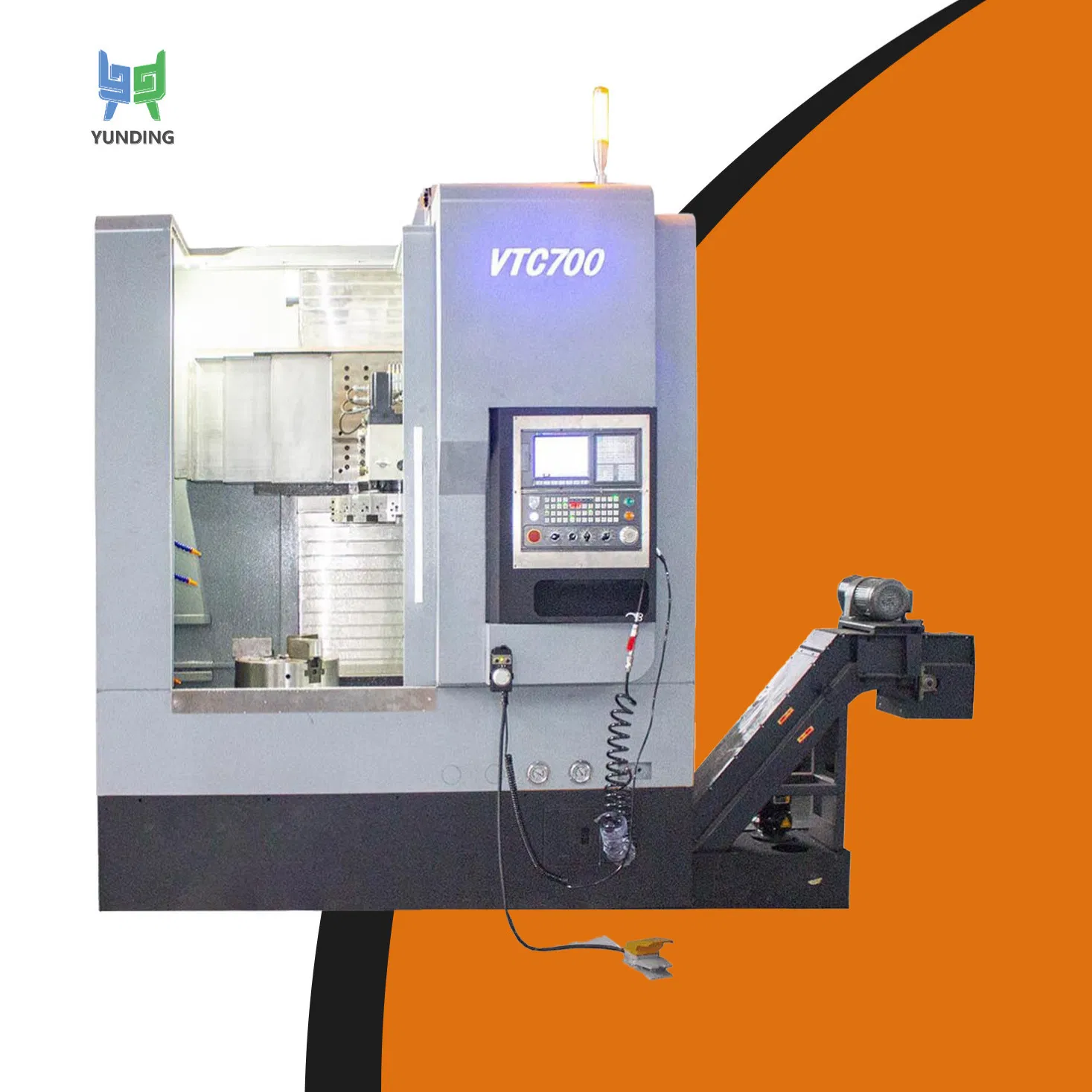

VTC700 CNC Vertical Lathe

Key Advantages:

  • ✓ High-precision and high stability machining results due to reduced gravitational inertia.
  • ✓ Easier processing for thin-walled, irregular, and heavy parts.
  • ✓ Efficient footprint: Occupies only 1/2 the floor area of a horizontal lathe of same specifications.
  • ✓ Automated assembly line compatibility for medium to large parts.
  • ✓ Robust spindle unit structure with low-speed, high-torque motor drive.
📊 Technical Specifications
Specifications Unit VTC700 Data
Max. turning diameter of workpiecemm700
Max. rotating diametermm650
Hydraulic chuck diametermm500
Spindle speedrpm500-1000
Cutting feed speedmm/min0.1-1000
Tool post vertical travelmm550
Tool post horizontal travelmm420
X / Z axis fast traverse speedmm/min15000 / 12000
Main motor powerkW11/15kW (210NM Output)
Positioning accuracymm0.03mm
Repeat positioning accuracymm0.015 mm
Dimensionsmm2250×1960×2650
🖼️ Product Details & Gallery

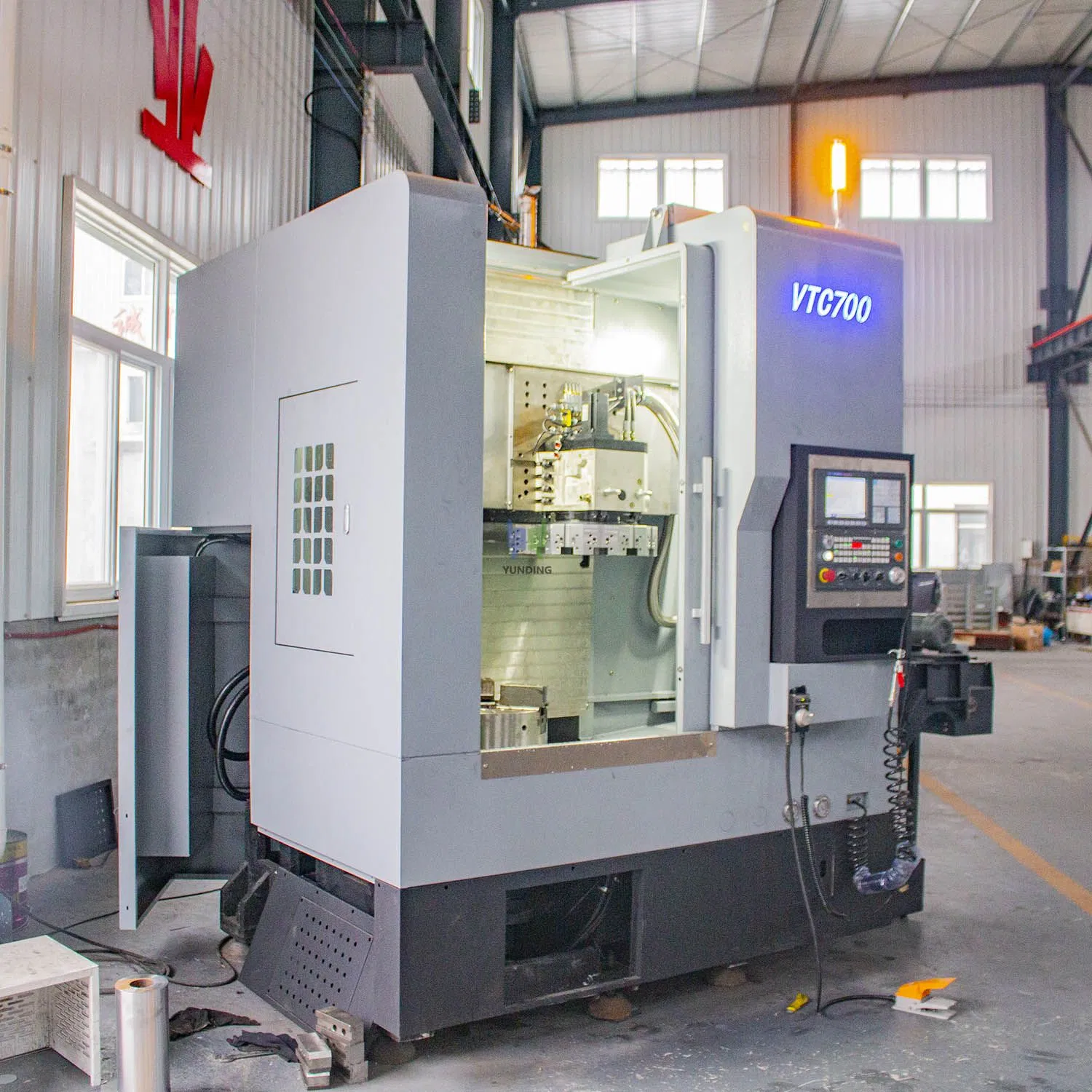

Detail 1

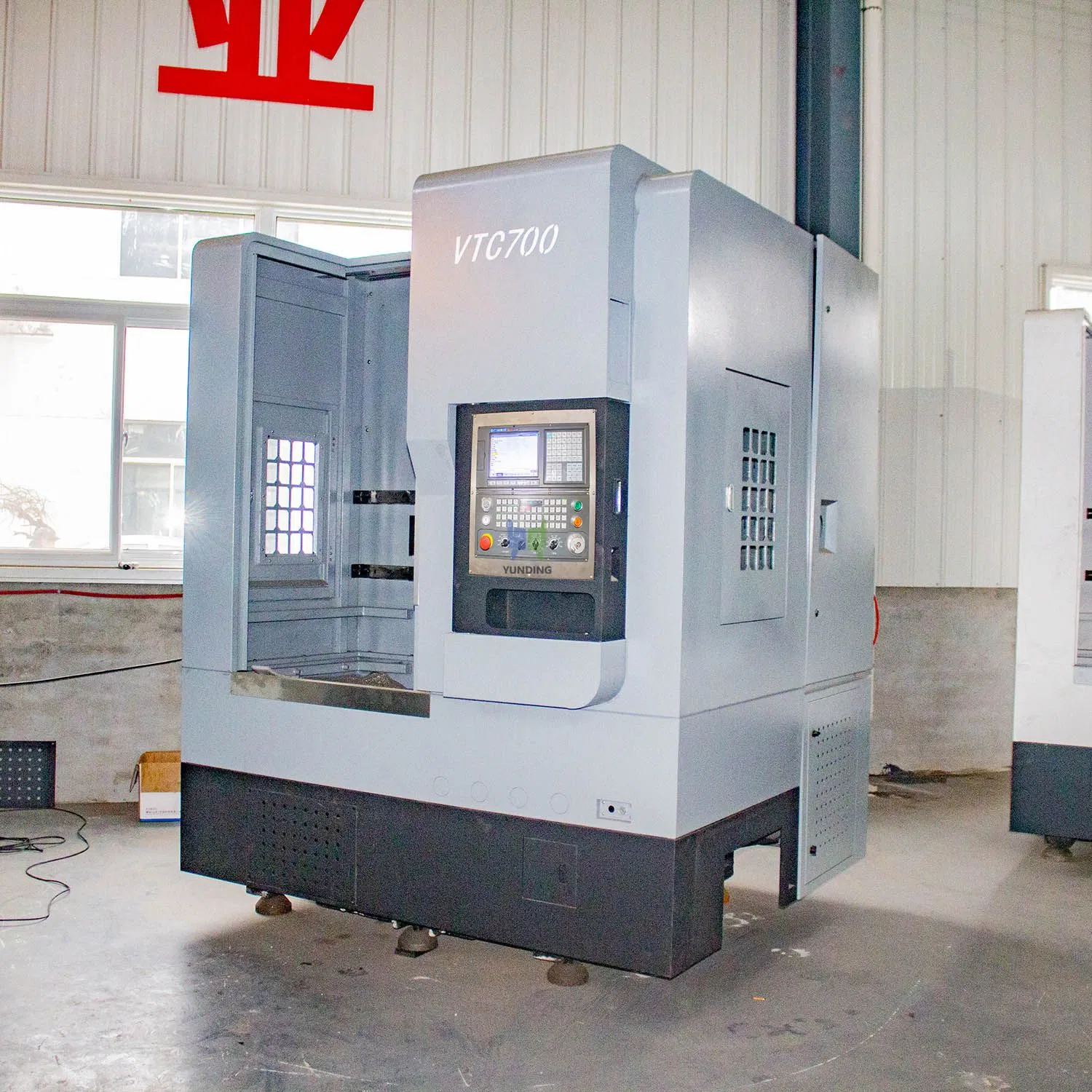

Detail 2

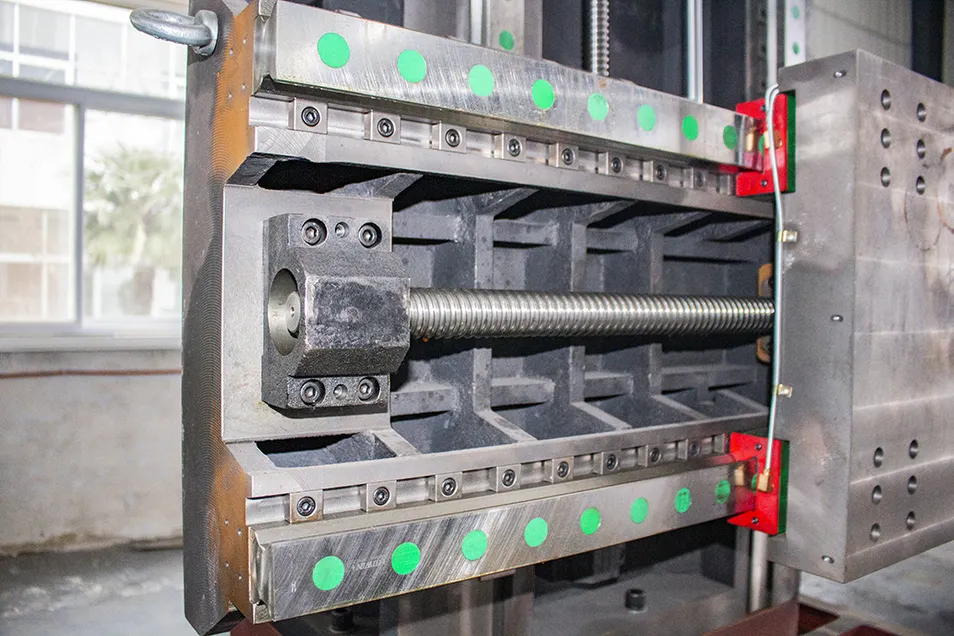

Detail 3

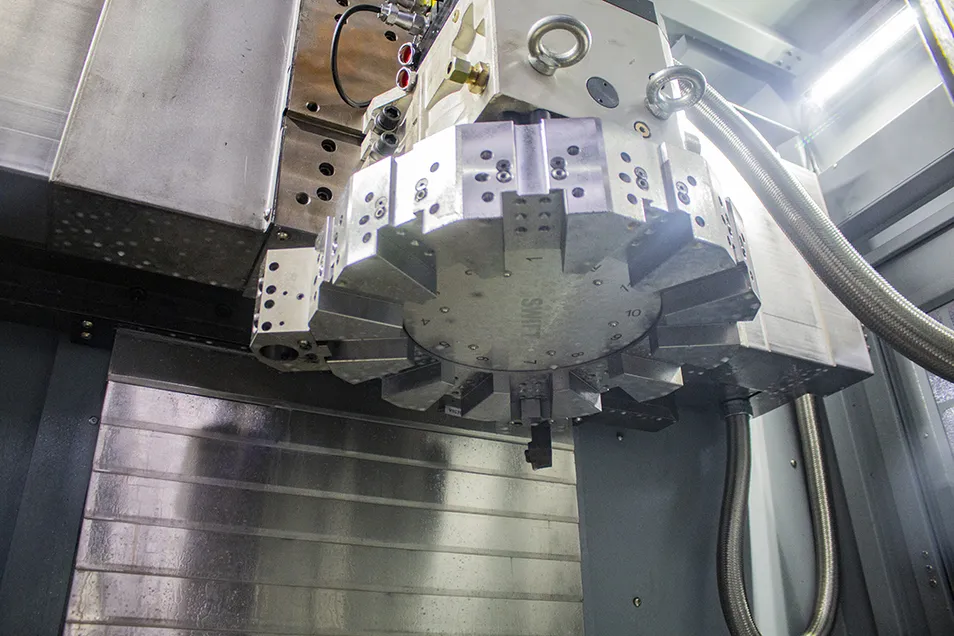

Detail 4

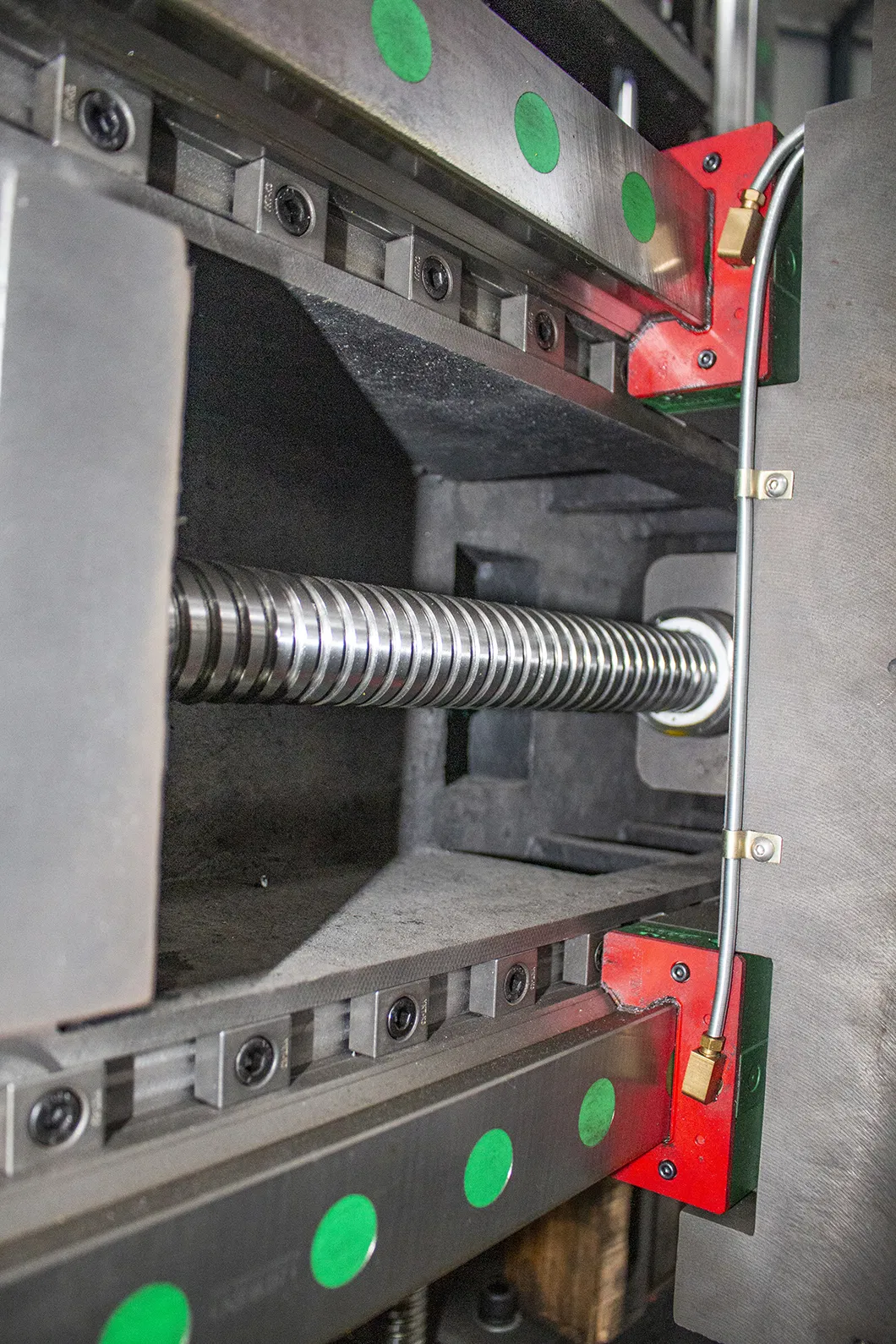

Full View
Structure Detail
❓ Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your technical specifications or product drawings. Our engineers will evaluate your requirements and recommend the best model for your specific needs.
2. What are the main machine types available?
We specialize in a wide range of CNC equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Radial Drilling Machines.
3. What are the accepted trade and payment terms?
We accept FOB, CFR, and CIF terms. Payment is typically handled via T/T (30% deposit, 70% balance before shipment) or Irrevocable LC at sight.
4. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our CNC machinery.
5. What information is needed for an accurate quote?
To provide the best recommendation, please inform us of your industrial voltage, the material and size of your workpiece, and your destination port if you require a CIF price.
6. Are the machines suitable for irregular parts?
Yes, vertical lathes are specifically designed to handle irregular and thin-walled parts more easily than horizontal lathes, with simpler fixture manufacturing requirements.
