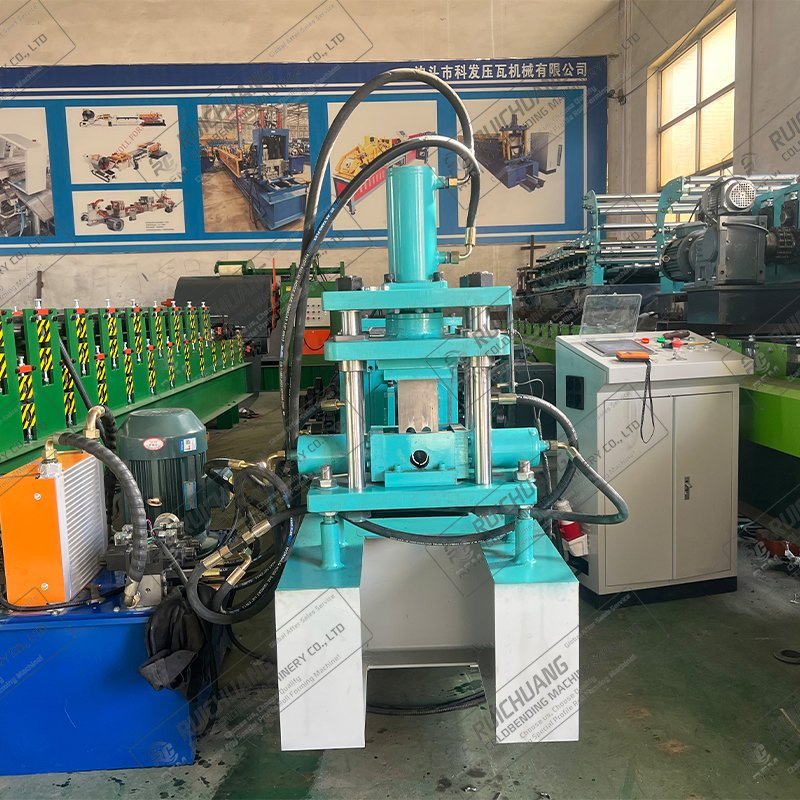

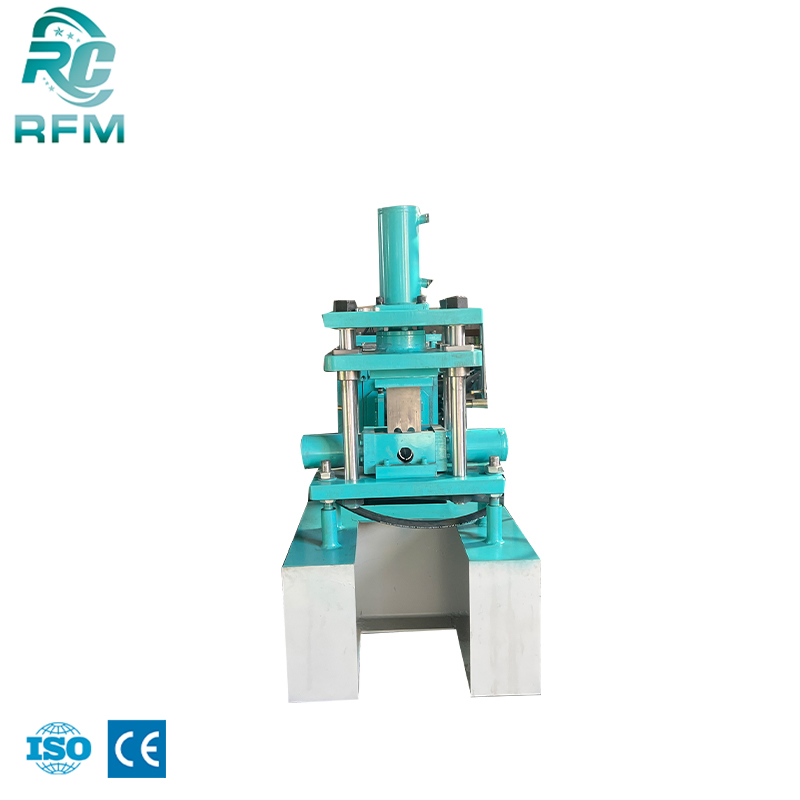

Smart Control Split Set Rock Bolt Machine for Mine Construction on Site Service

1 / 5

Smart Control Split Set Rock Bolt Machine for Mine Construction on Site Service

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Rock Bolt Machine Split Set

Rolling Shape

Plank, Tegular, Ribbon, Bar, Pipe, Wire

Product

Steel Ball, Profile, Rolling Beam, Steel Billet, Cogged Ingot

Roller Position

Diagonal

Type

Cold Rolling Mill

Production Thickness

1-3mm

Control System

PLC (Imported Brand)

Cutting Blade Material

Cr12 Mould Steel

📦 Packaging & Delivery

Package Size

700.00cm * 250.00cm * 170.00cm

Package Gross Weight

6666.000kg

⚙️ Product Overview & Machine Parts

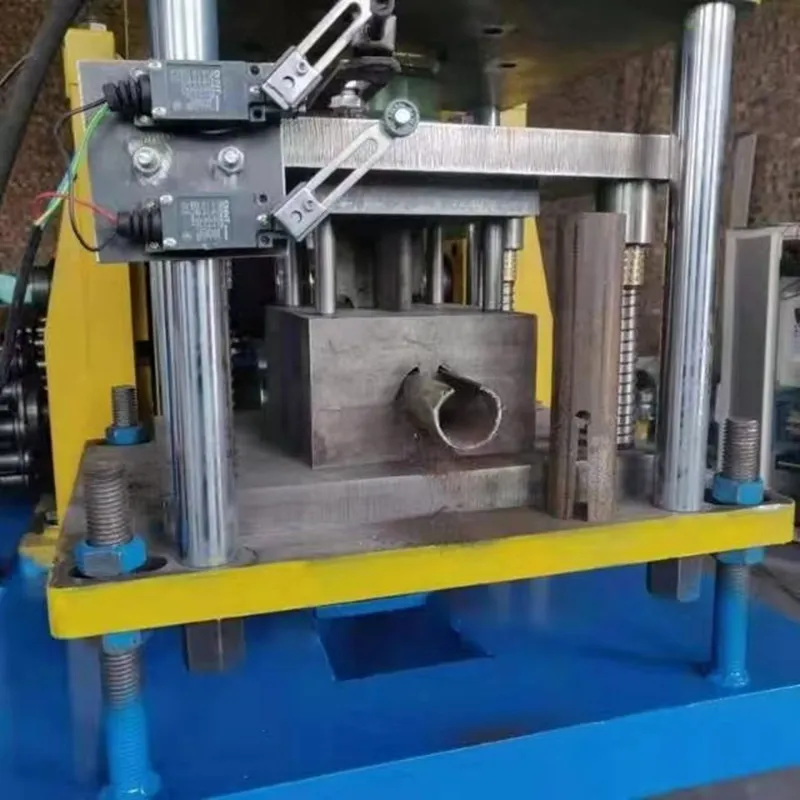

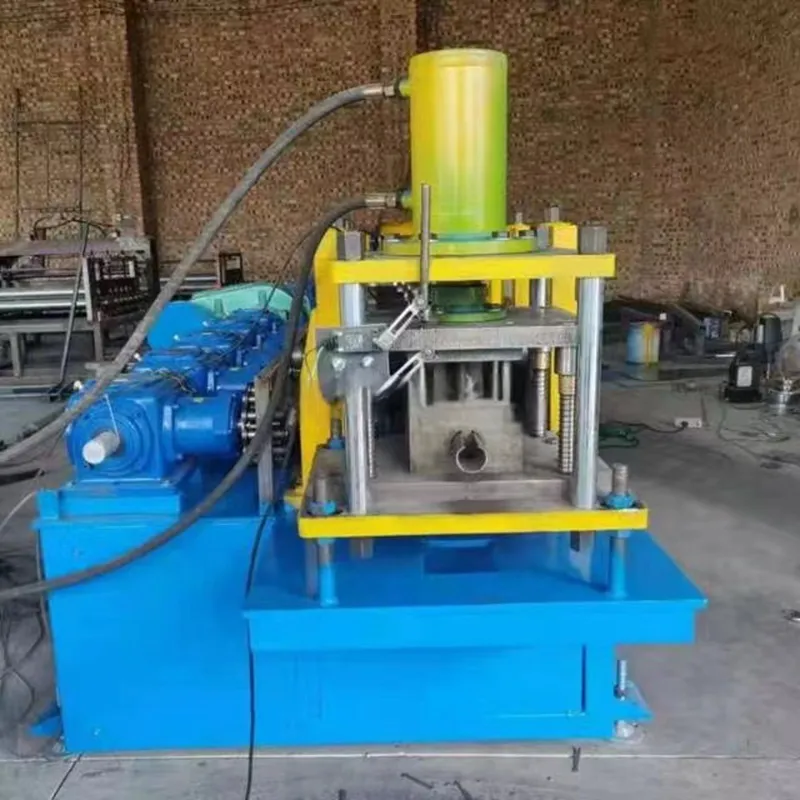

Post Hydraulic Cutting Device

Post to cut, stop to cutting, three pieces type of cutting blade design, no blanking.

Hydraulic motor: 5.5 KW
Cutting tool material: Cr12MoV
Cutting power provided by the main engine hydraulic station

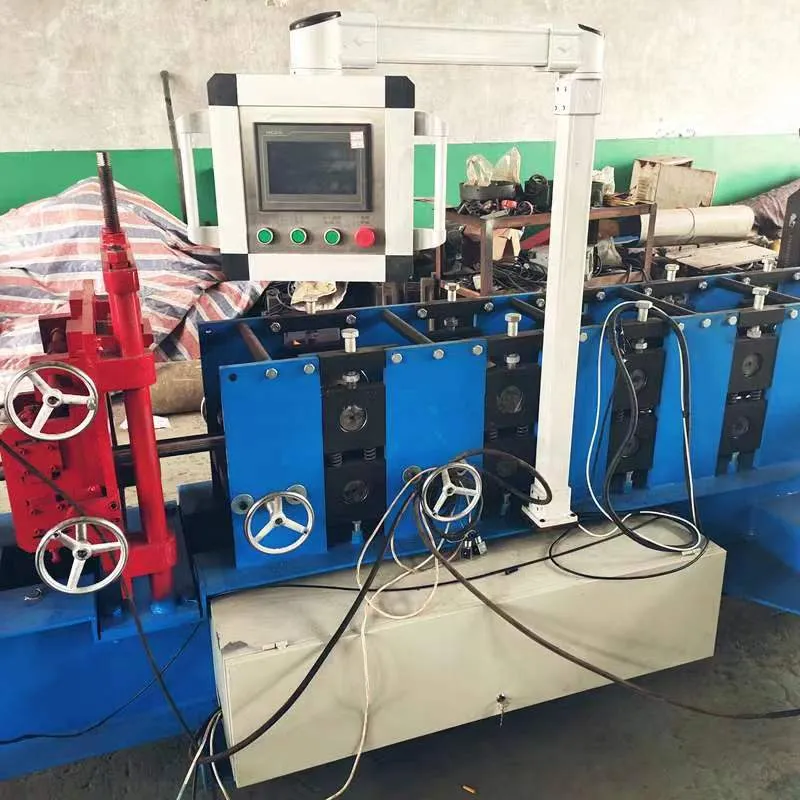

PLC Control System

Control the quantity and cutting length automatically. Simply input production data (batch, pcs, length, etc.) on the touch screen to finish production automatically.

Item	Name	Description
1	Decoiler	Capacity: 5 tons
2	Material	Steel Coil
3	Thickness	0.5-1.2mm
4	Transmission	Chain/Gear/Gearbox
5	Speed	10-15m/min
6	Roller	Steel with quenched treatment, chromed surface
7	Shaft	Steel with tempering treatment
8	Cutting type	Hydraulic cutting
9	Cutting material	Cr12 with quenched treatment (Hardness 58°-62°)
10	Welding	Automatic spot welding
11	Control system	PLC
12	Electric brand	Delta, Siemens, Schneider

💡 Main Features

The roll forming machine can produce metal profiles with a smooth, scratch-free surface.

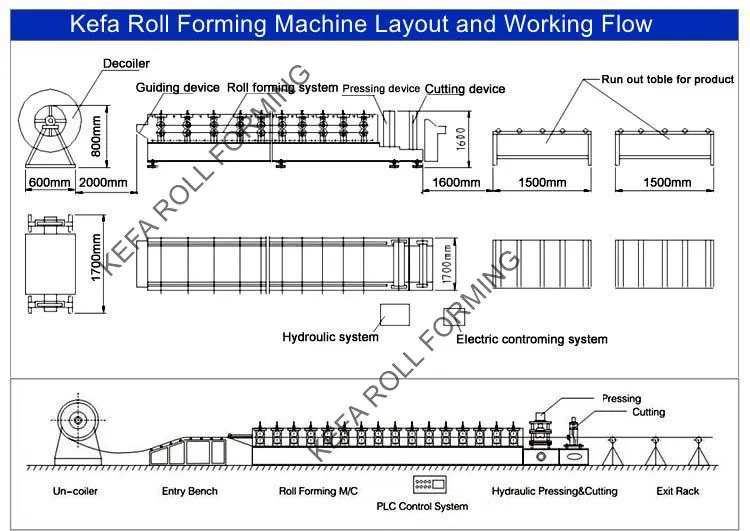

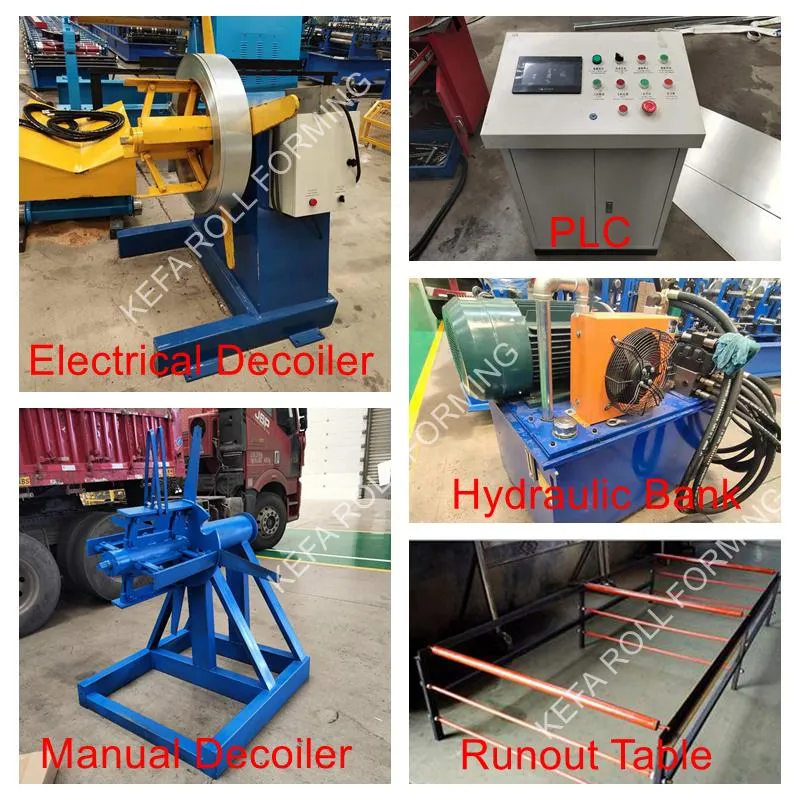

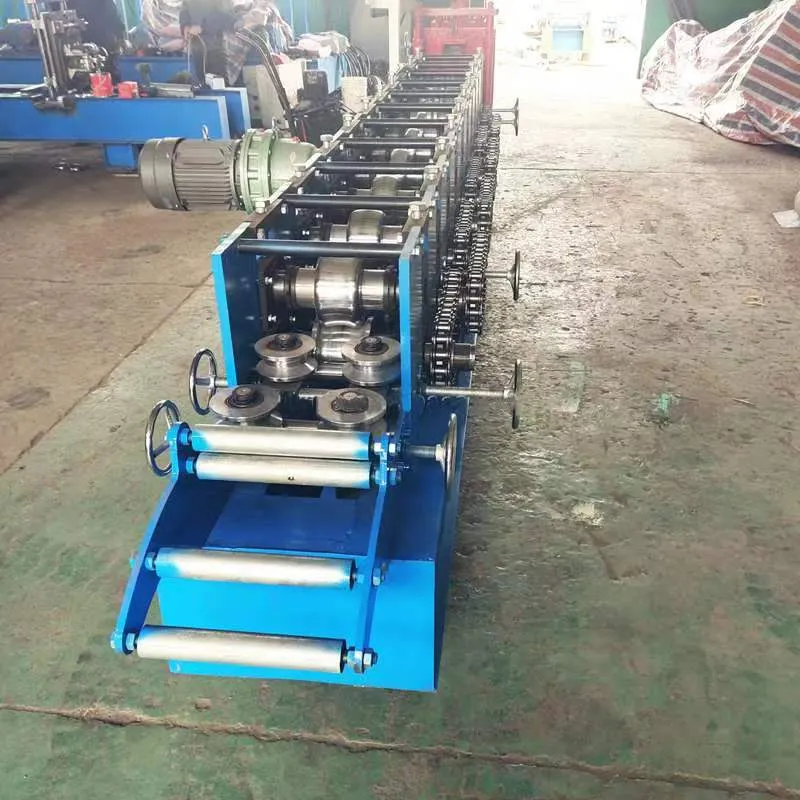

Complete process: uncoiler, straightening, roll forming, cut to length, and run-out table.
Fully automatic control system with PLC for easy operation.
Custom designs available based on customer specifications and profile drawings.
Engineers and technicians provide rich experience in manufacturing and development.

🛠️ Service & Support

Quality Control

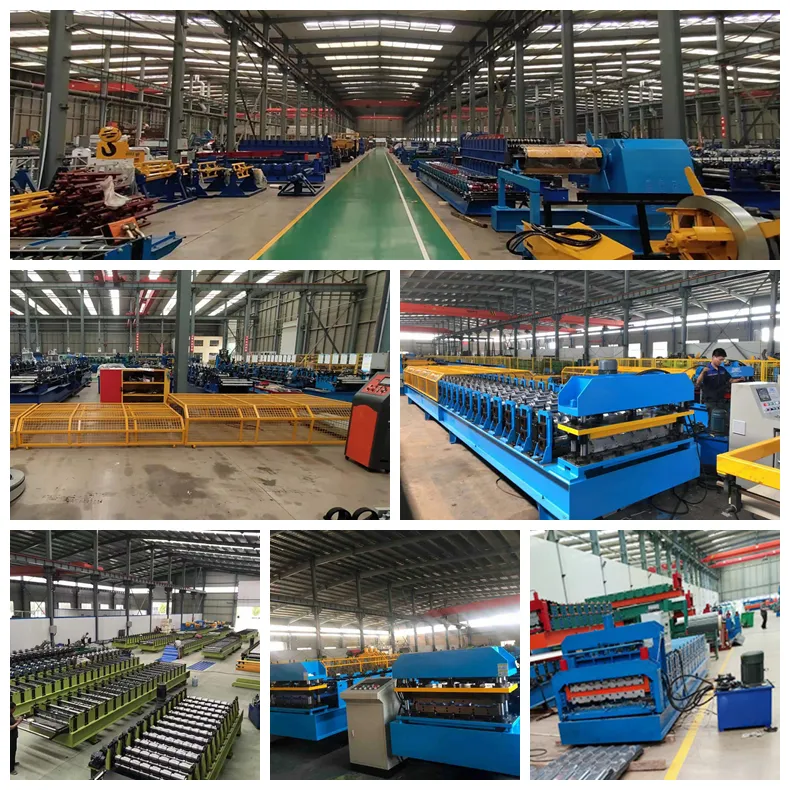

Every part of the machine is examined carefully. Customers are welcome to visit the facility to inspect machines.

Installation & Training

We supply video tutorials and on-site technician support for installation and operation training.

After-sale Service

One year warranty for parts. 24/7 technical support available online throughout the equipment's lifespan.

❓ FAQ

How to maintain the machine?

Add mechanical lubrication to the chain, bearing, and cutting slide every month. Add mechanical lubrication to the case every half year.

Do you sell only standard machines?

No, most machines are built according to specific customer requirements, utilizing top brand name components.

How many workers are needed to operate the machine?

The machine is highly automated and typically requires only 1-2 workers.

What happens if the machine breaks down?

The warranty period is 12 months. If parts cannot be repaired, new parts are sent for free (customer covers express costs). Lifetime technical support is provided for all equipment.

How can I trust that the machine is tested before shipping?

We record testing videos for your reference before dispatch. Alternatively, you are welcome to visit our facility to test the machine in person.

Can you customize machines for specific drawings?

Yes, we specialize in developing customized cold roll forming machines based on your specific profile drawings and technical requirements.
