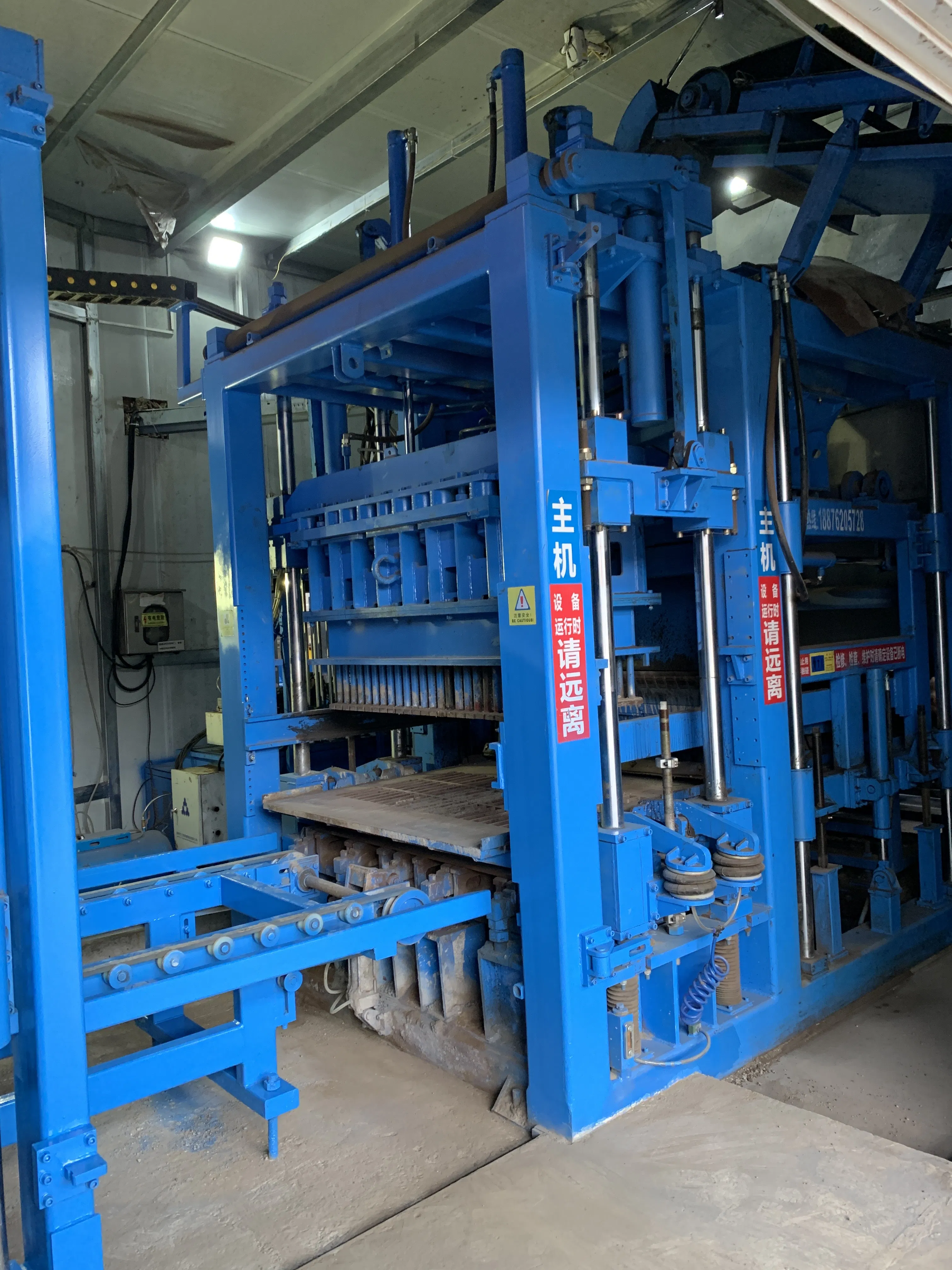

SLST1000 Fully Automatic Servo Vibration Block Making Machine
The fully automatic servo wall and floor brick production line is engineered with state-of-the-art servo vibration and servo hydraulic technology. It boasts a versatile array of functions including lateral shifting, core pulling, EPS board conveying, and rapid mould changing, meticulously designed to cater to diverse customer production requirements. This innovative system seamlessly supports the creation of a wide variety of premium concrete products, including but not limited to curbstones, hollow bricks, PC imitation stone bricks, solid bricks, and water slope protection bricks, ensuring unparalleled quality and efficiency in every project.
| Model | SLST2000 | SLST1500 | SLST1400 | SLST1300 | SLST1000 |
|---|---|---|---|---|---|
| Pallet Size (mm) | 1400x1350 | 1400x1200 | 1400x950 | 1400x750 | 1220x900 |
| Max.Molding Area (mm) | 1310x1300 | 1310x1150 | 1310x900 | 1310x700 | 1100x860 |
| Min.Product Height (mm) | 45 | 45 | 45 | 45 | 45 |
| Max.Product Height (mm) | 500 | 500 | 500 | 500 | 350 |
| Cycle Time (s) | Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
Solid Brick 12-15 Paver 12-25 |
* If the required pallet size or product heights are not listed here, we are happy to make special plans for you.
| Model | Brick Type & Size (mm) | Per Mould | 8h One Shift |
|---|---|---|---|
| SLST1000 | Hollow Brick (390x190x190) | 10 | ≈18,600pcs / 262m³ |
| Solid Brick (240x115x53) | 62 | ≈148,000pcs / 216m³ | |

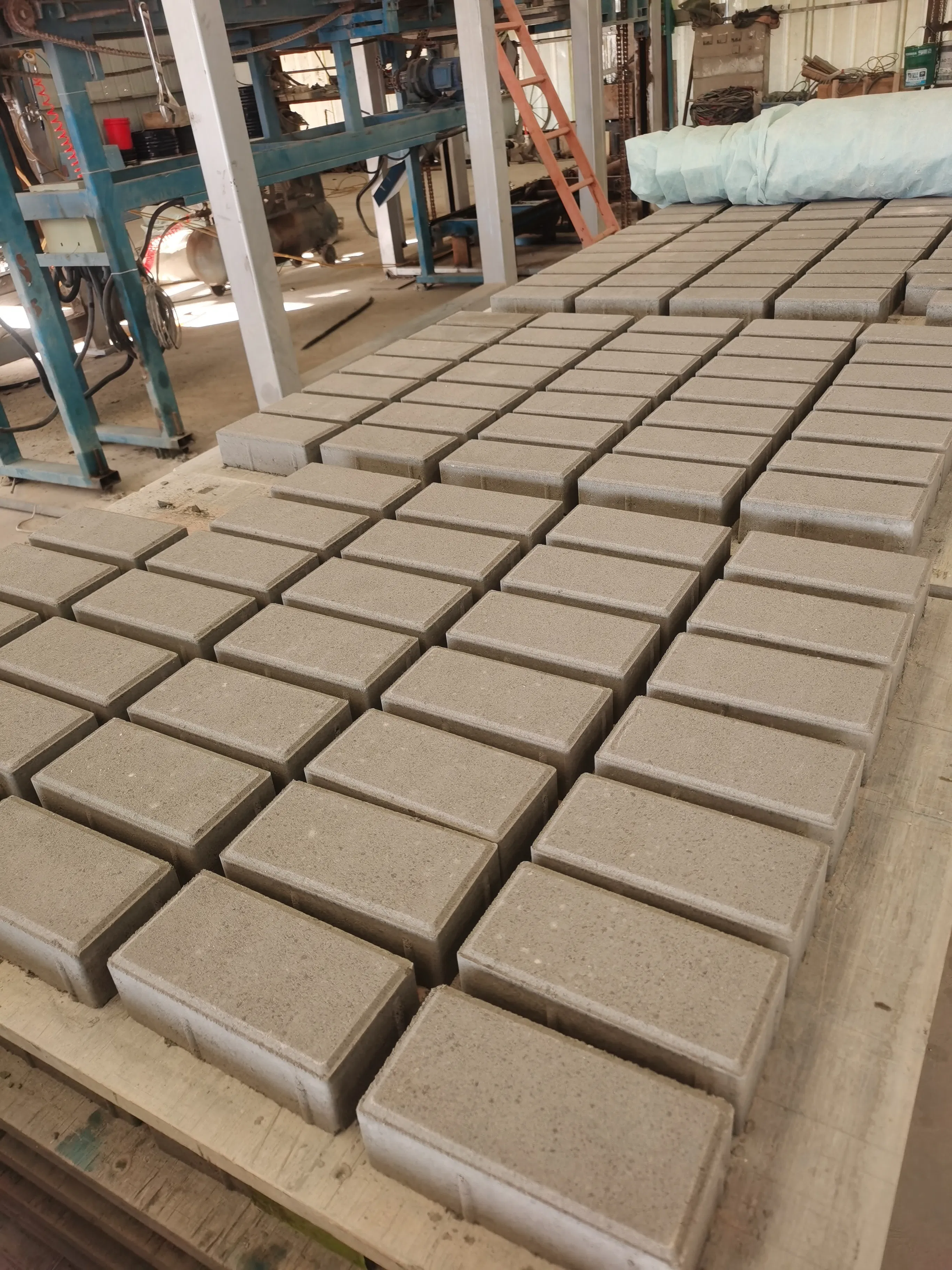

| Paver (200x100x60/80) | 40 | ≈57,300pcs / 1130m² |

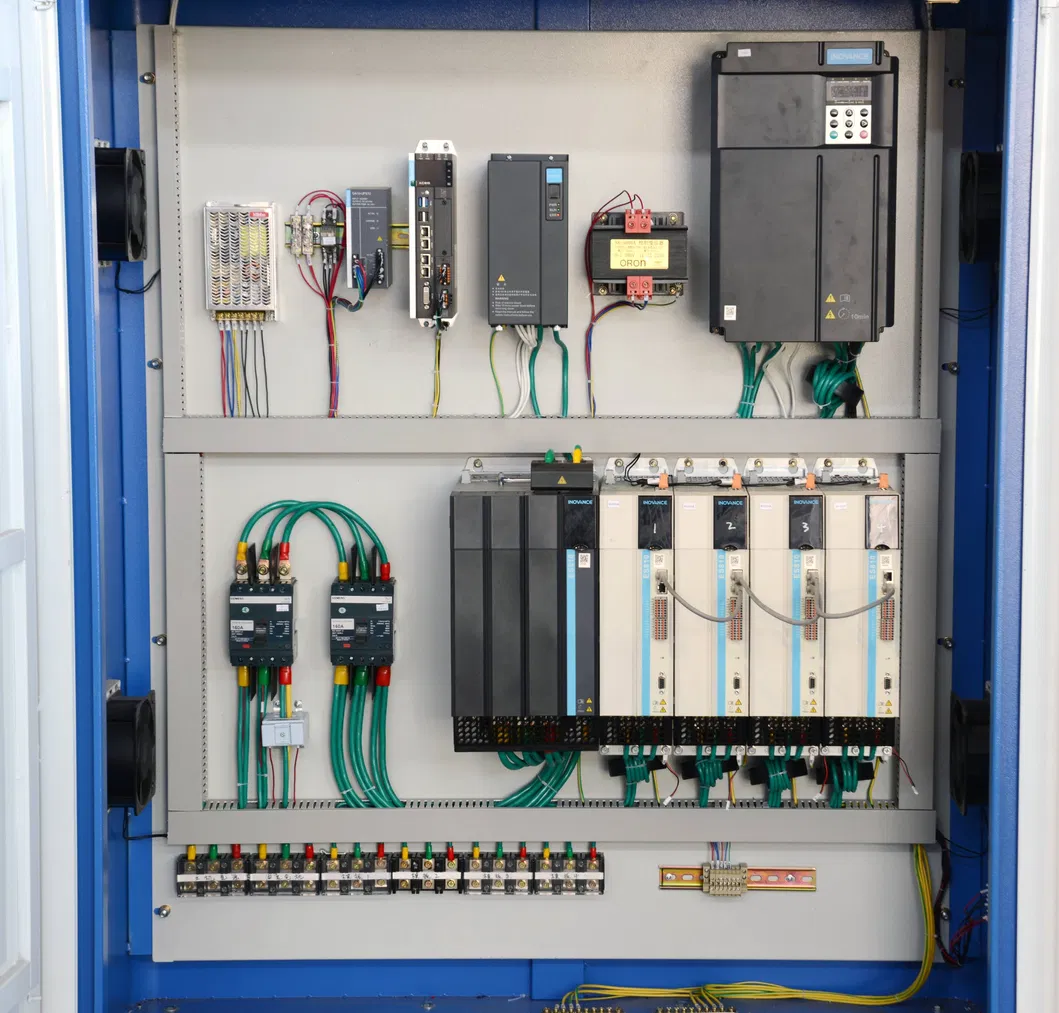

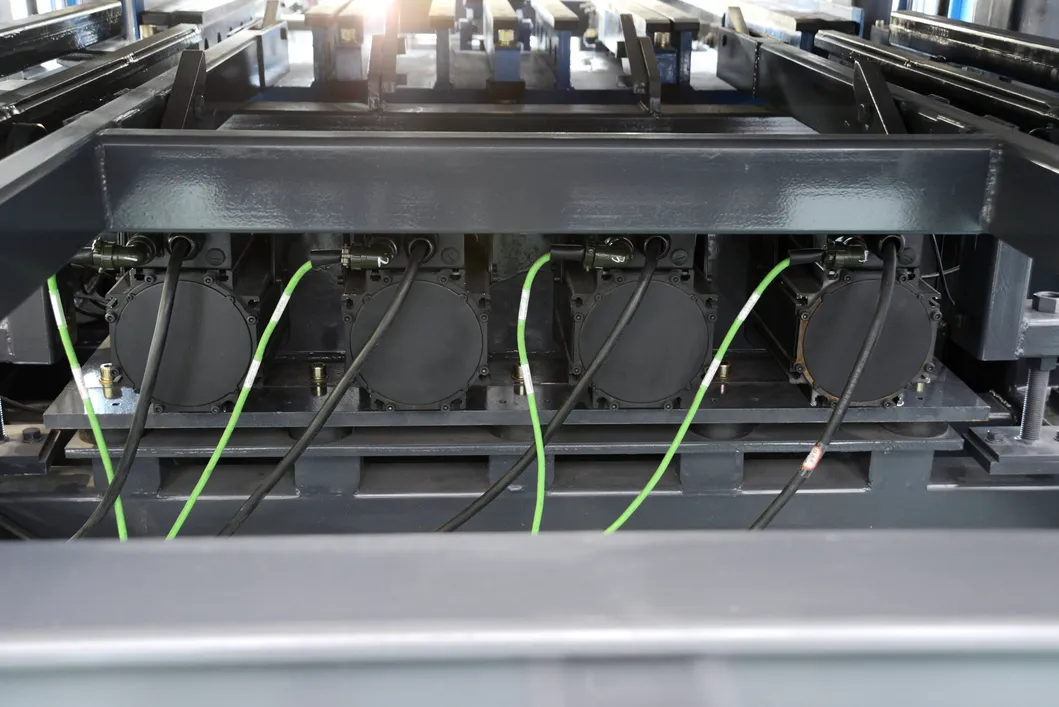

Advanced Servo Vibration & Control System

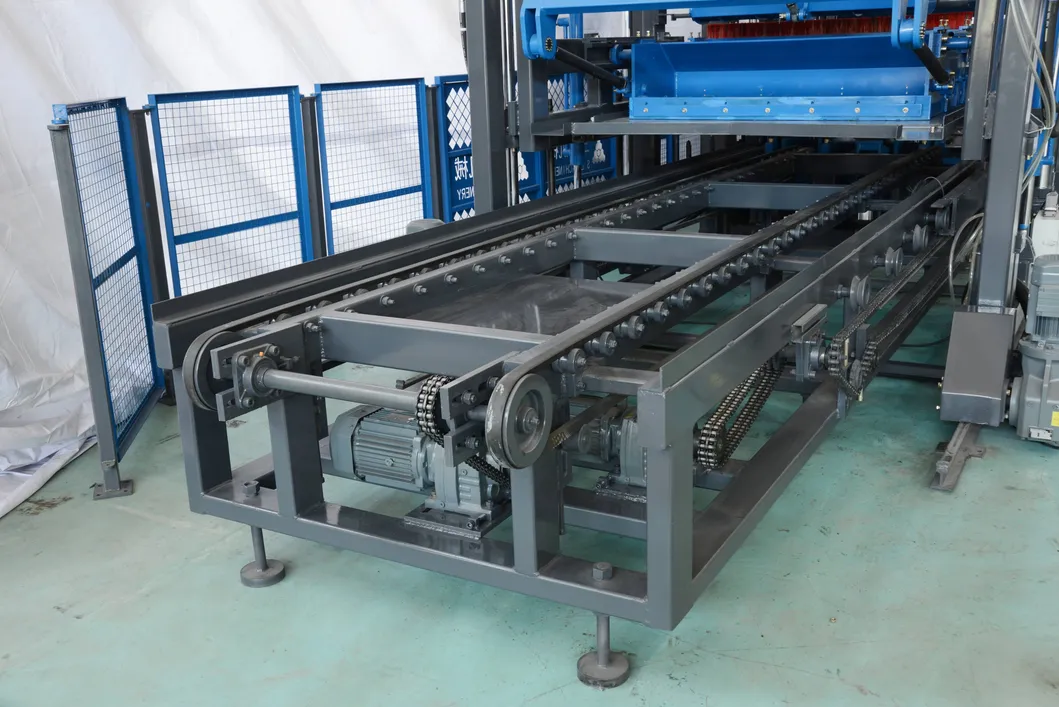

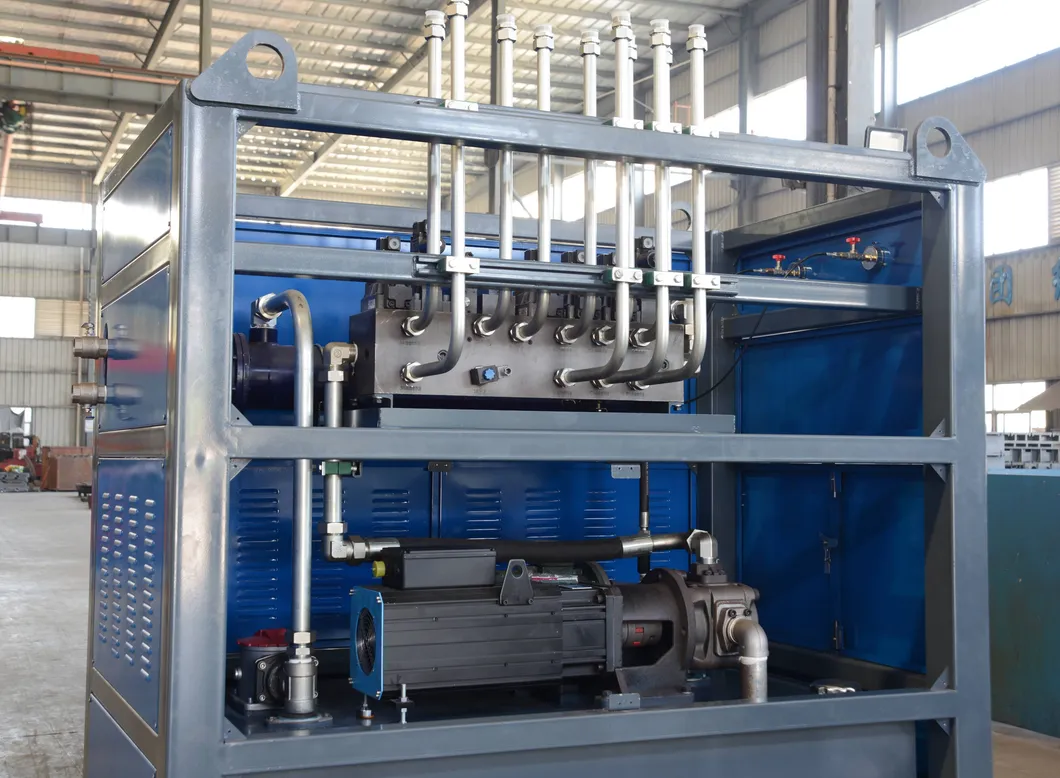

Efficient Hydraulic System & Rapid Mould Change

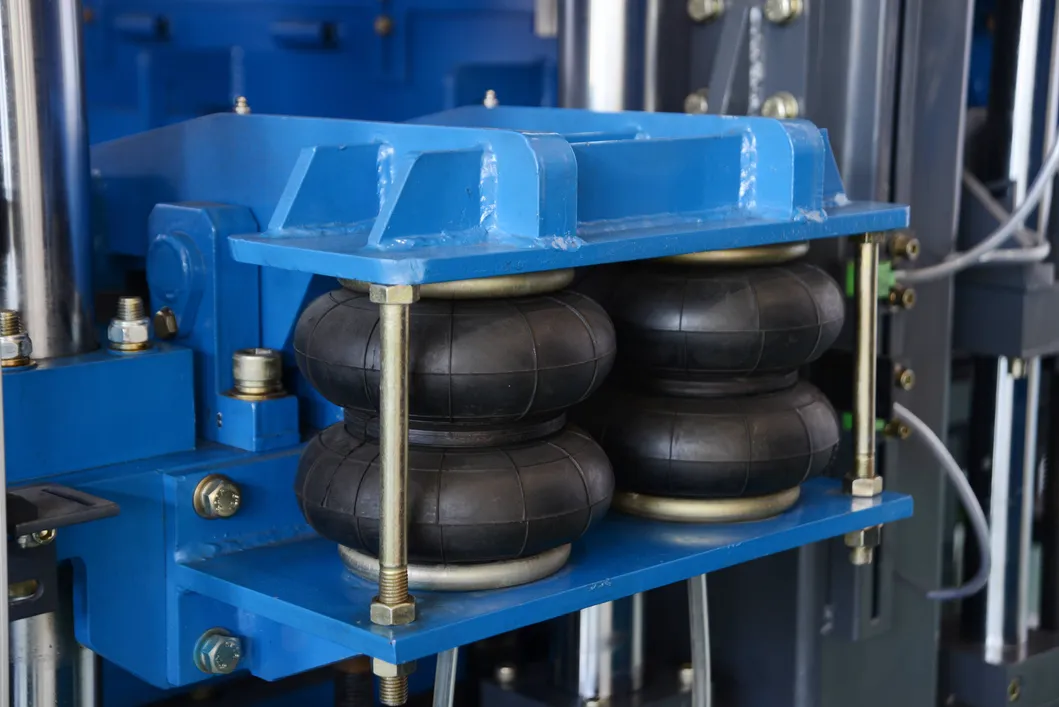

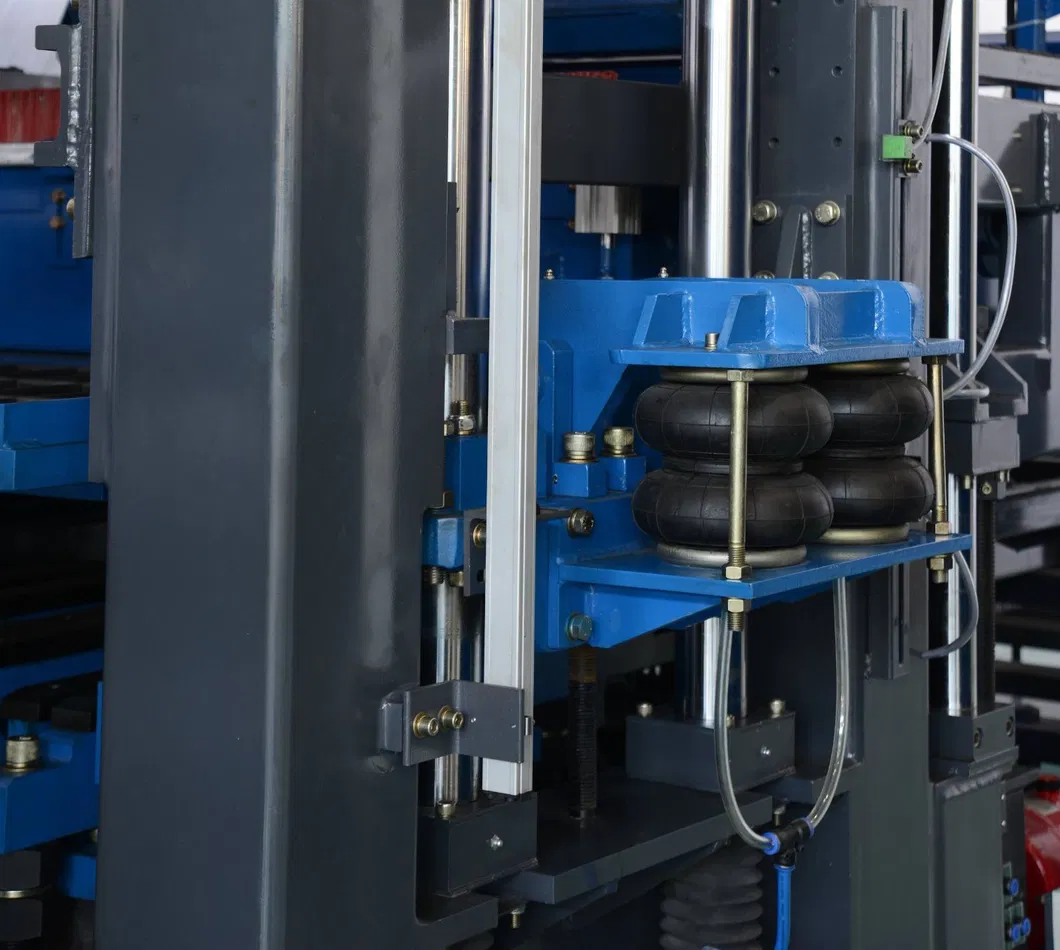

Mould Box Damping & Shifting Device
