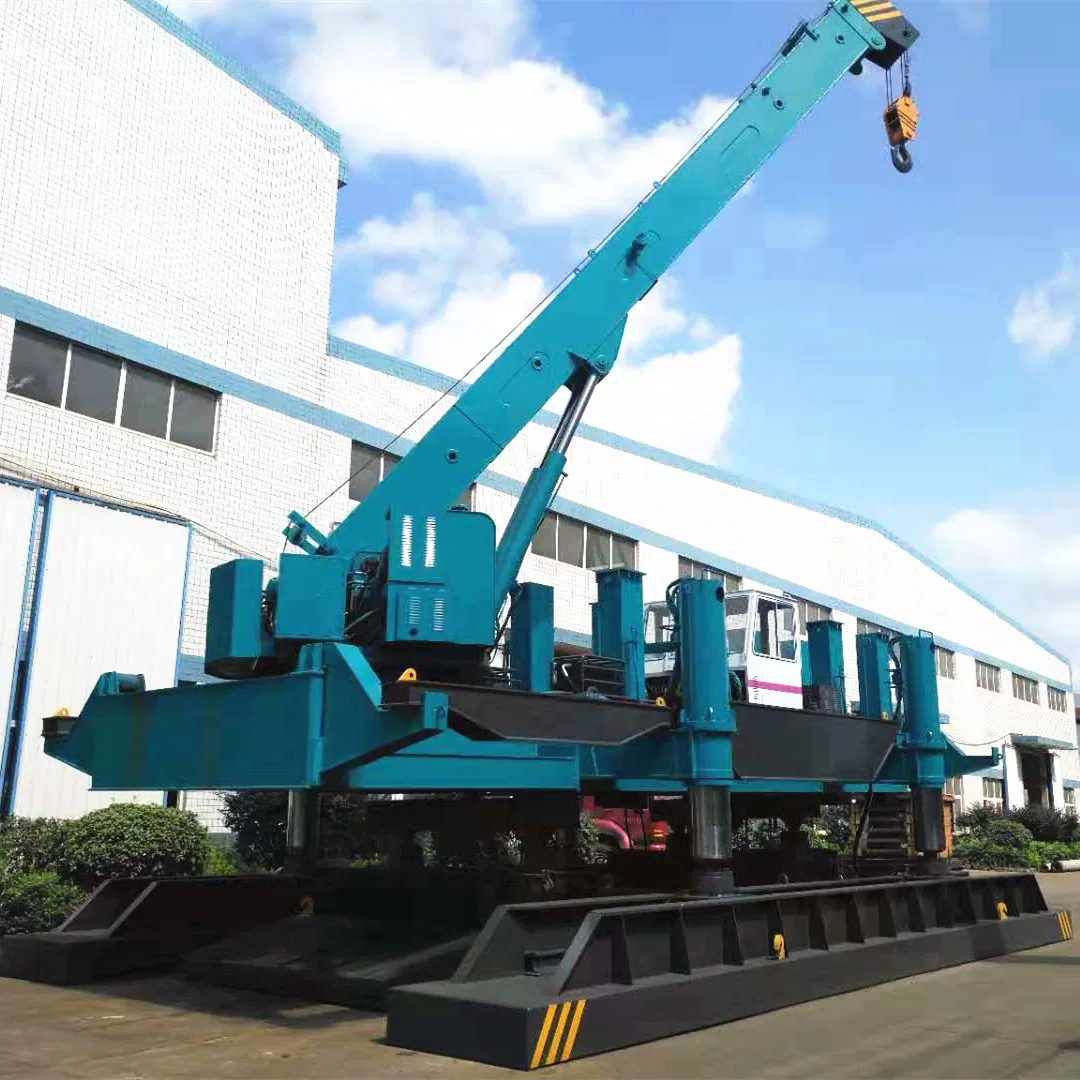

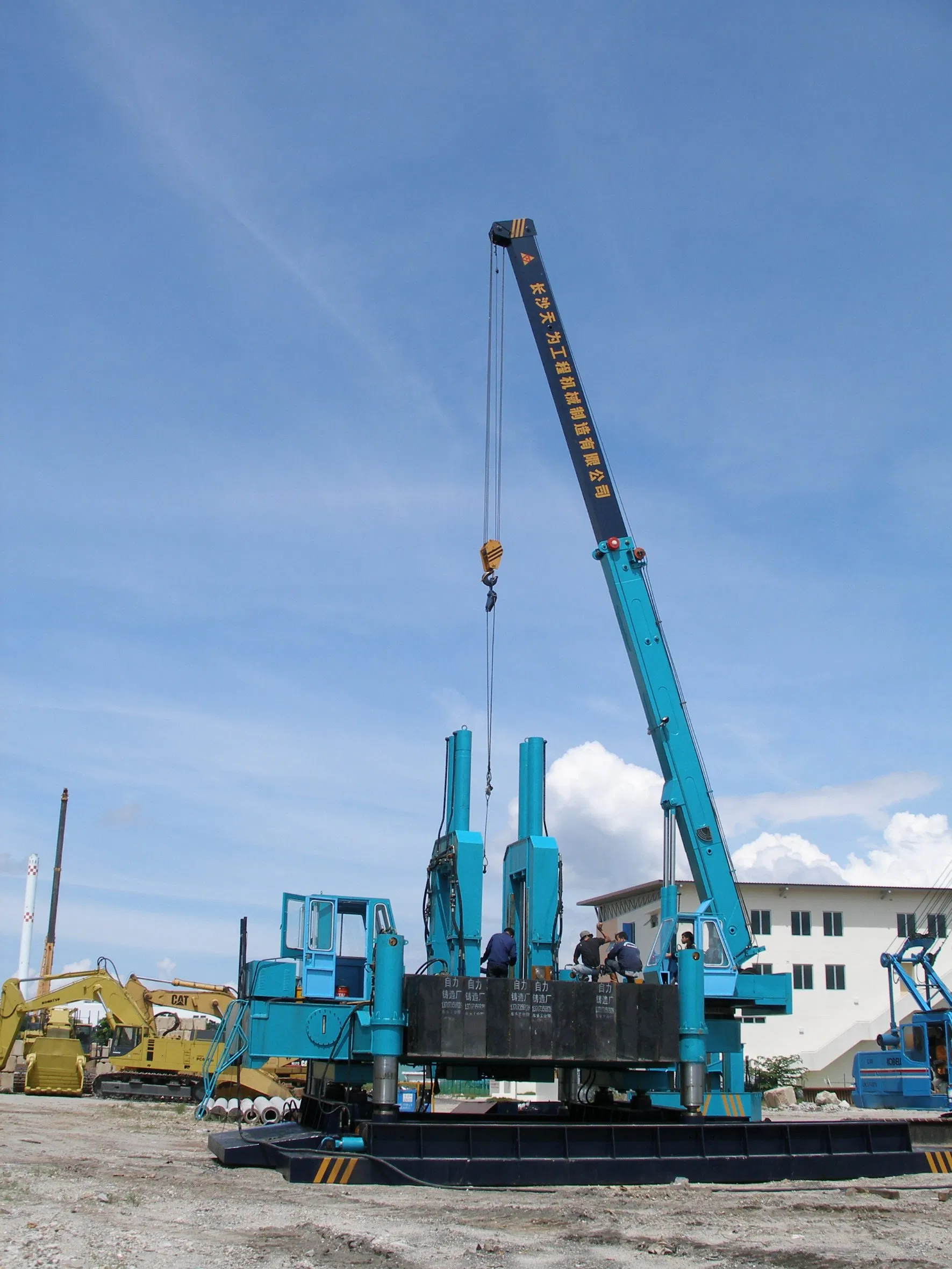

Premium High-Performance Zyc600 Concrete Pile Solution for Construction

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

ZYC600

Type

Pressure Pile Driver

Pile Driver Type

Hydraulic Pile Driver

Pile Hammer Type

Hydraulic Hammer

Power Source

Diesel

Motor Power

Diverse

Noise

Low Noise

Certification

CE, ISO 9001:2000

Condition

New

Piling Speed

7.0 M/Min

Dimensions

14*8.16*3.15m

Weight

600000kg

Core Components

Plcengine, Motor, Pump

Efficiency

98%

🏗️ Product Description

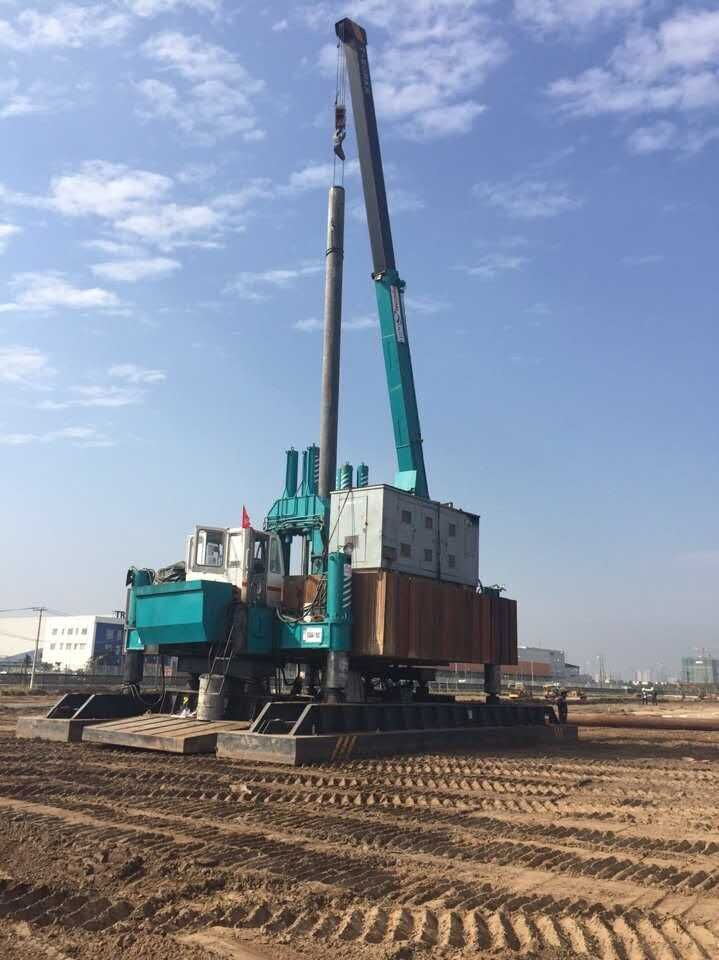

1. Machine Capability: Our static pile driver uses its own weight to jack in piles. For instance, the ZYC120 model with a 120-ton weight exerts 1200KN of force. It drives PHC piles, steel tubes, triangle piles, and sheet piles (150mm to 1000mm) without noise or vibration.

2. Ideal Environment: Perfect for coastline cities and urban construction jobsites. It solves problems related to government noise regulations, pollution, and vibration, utilizing a clean hydraulic system.

3. Operation & Mobility: The hydraulic clamping system ensures high speed, reaching up to 600 meters of piling per day. The movement mechanism (short and long boat "step walking") provides extreme stability on soft ground.

⭐ Key Advantages

✓ Over 10 years of R&D and manufacturing experience in static pile drivers.

✓ More than 20 patented design improvements.

✓ Over 600 units exported globally.

✓ Piling capacity ranging from 60ton to 1200ton.

✓ Suitable for clay, soft soil, and sand layers.

📸 Component Showcase

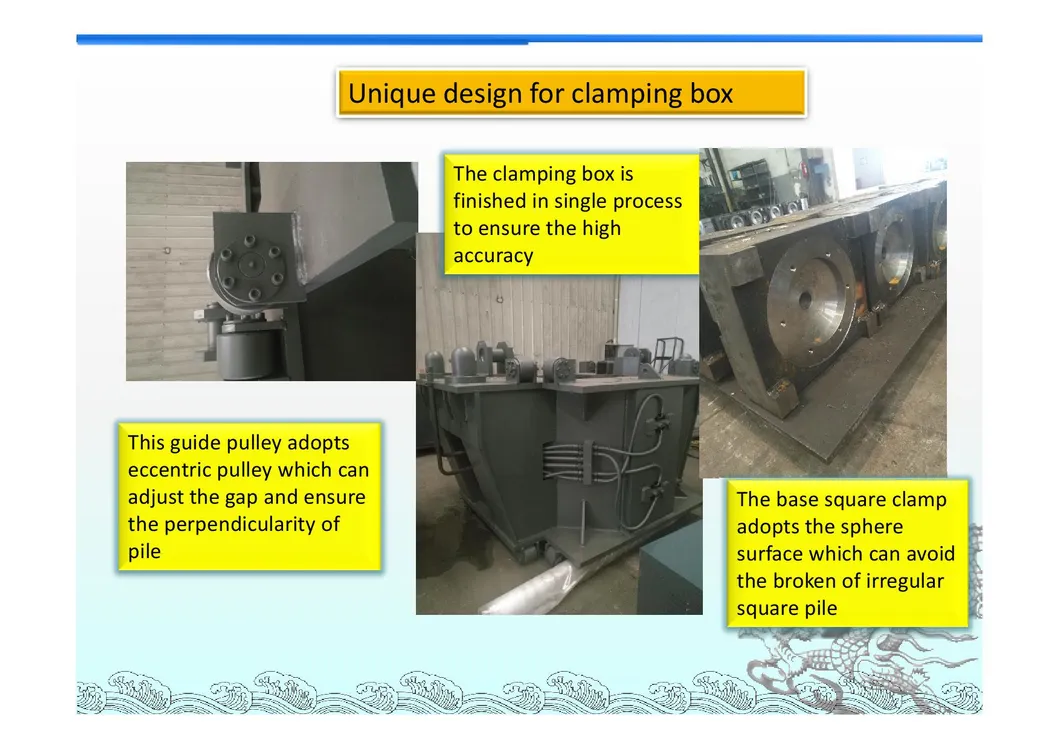

Clamping Box

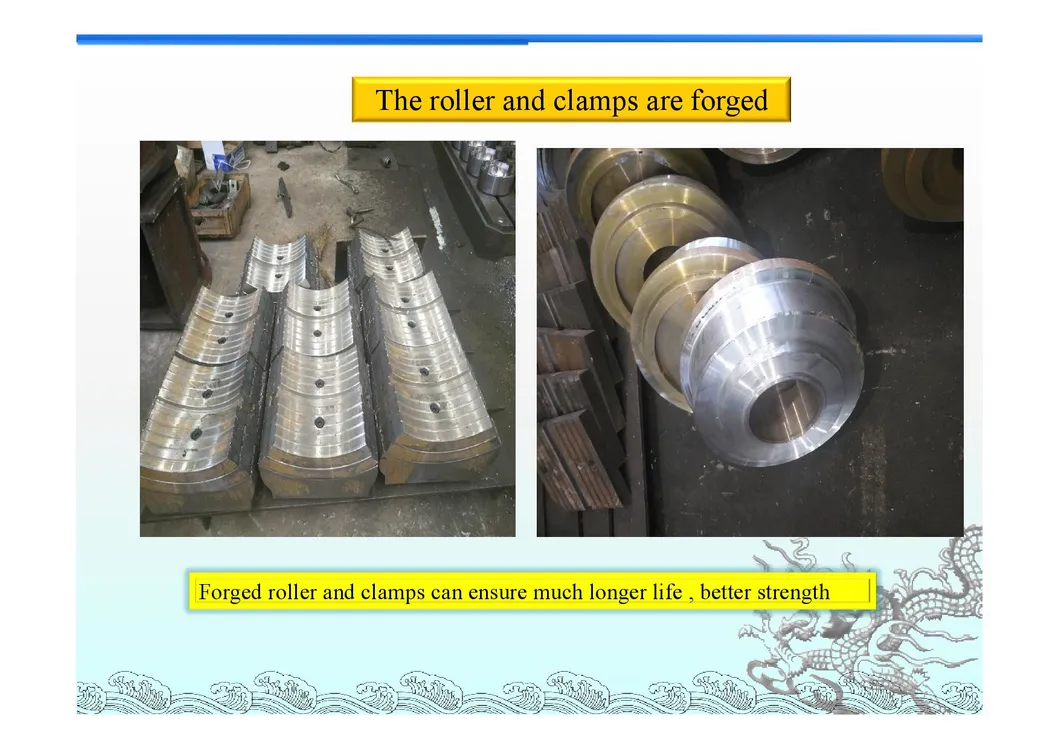

Roller and Clamps

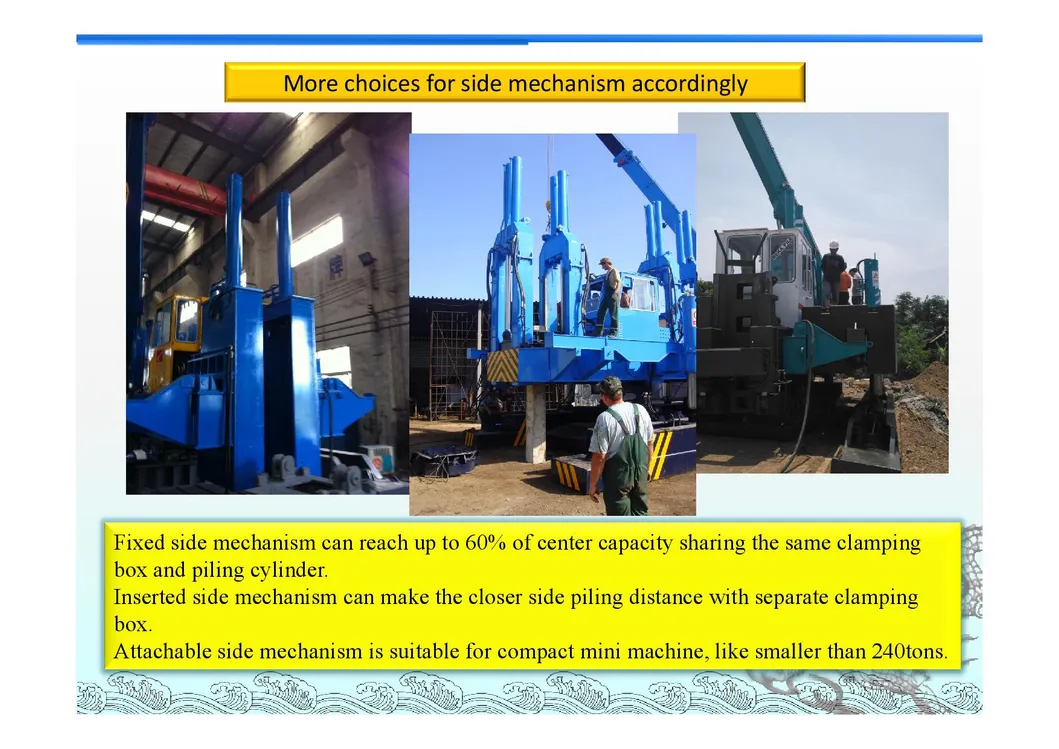

Side Mechanism

📦 Packaging & Logistics

Package Size

500.00cm * 300.00cm * 240.00cm

Gross Weight

50000.000kg

Minimum Order

1 Unit

Delivery Time

Approx. 20 Days

🛠️ Our Services

♣ Comprehensive training for operating and maintenance staff.

♣ On-site installation, adjustment, testing, and maintenance.

♣ 1-year warranty for the Main Machine and 6 months for accessories.

♣ Rapid response for technical questions and on-site troubleshooting.

❓ Frequently Asked Questions

What types of piles can the ZYC600 handle? The ZYC600 is versatile and can drive sheet piles, round piles, square piles, and triangle piles. It handles pile sizes ranging from 150mm to 1000mm.

Why is a static pile driver better for urban areas? Unlike traditional hammers, the static pile driver operates using hydraulic pressure and its own weight. This results in no noise and no vibration, making it ideal for construction near old buildings or noise-regulated city centers.

What is the daily efficiency of this machine? Thanks to its high operating efficiency and hydraulic clamping system, the machine can reach a piling speed of up to 600 meters per day.

Does the machine sink in soft soil during movement? No. The movement mechanism utilizes a "step walking" system with short and long boats, which provides a large surface area and stability, making it very hard to sink even in soft coastline soil.

What kind of after-sales support is provided? We provide field installation, commissioning, and training. There is a 1-year warranty on core components and a 6-month warranty on accessories, with technical support available on short notice.

What is the power source for the ZYC600? The machine is powered by a diesel engine which drives the high-efficiency hydraulic systems for both piling and movement.
