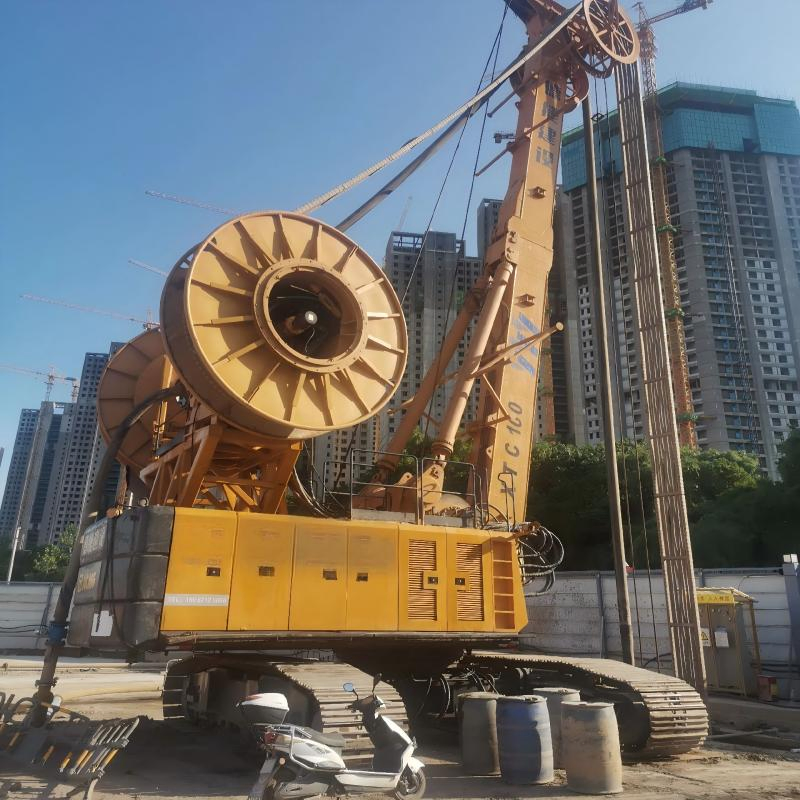

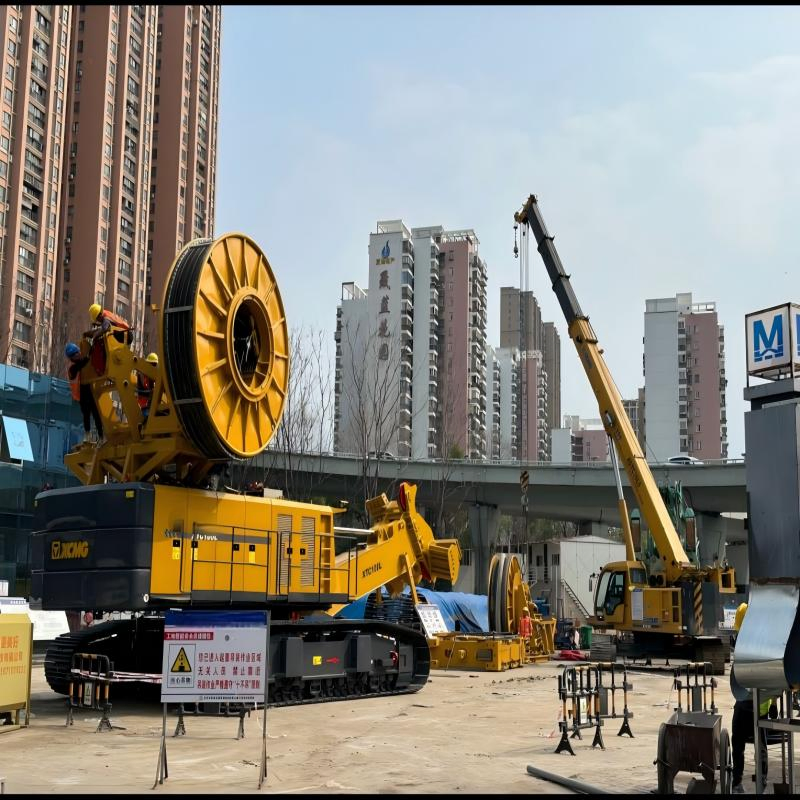

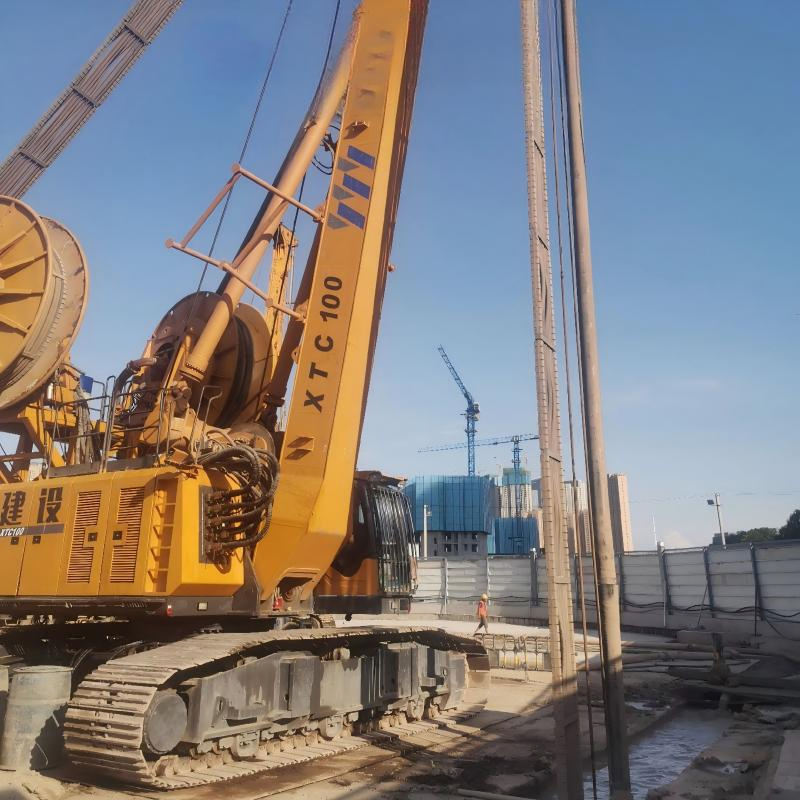

Imported Hydraulic System Xtc100 - Reliable Performance Guaranteed

After-sales Service: 24/7 Online Support & on-Site Maintenance Service
Warranty: 6 Months
Certification: CE, ISO 9001:2000

Product Description

📋

Basic Information

Model NO.
XTC100
Condition
New
Drill Hole Diameter
800-1500mm
Drill Hole Depth
Maximum 105m
Bit Type
Double-Wheel Milling Wheel
Operating Weight
170000-175000kg
Origin
Jiangsu, China
🏗️

Product Description

XTC100 Performance
XTC100E Horizontal Directional Drill

Trenchless Efficiency for Underground Projects: The equipment is a compact, high-performance solution engineered for trenchless underground utility installation—ideal for urban areas, road crossings, and environmentally sensitive sites where traditional excavation is impractical.

🚀 Core Strengths:

  • Power & Precision: Equipped with a 110kW (150HP) engine, it delivers 130kN max pullback force and 5,000 N·m drilling torque.
  • Trenchless Advantage: Eliminates surface disruption and reduces project time by up to 30%.
  • Compact & Maneuverable: Fits in narrow job sites with a 2.5m transport width.
  • Reliability: Built with heavy-duty hydraulic systems and high-strength steel.

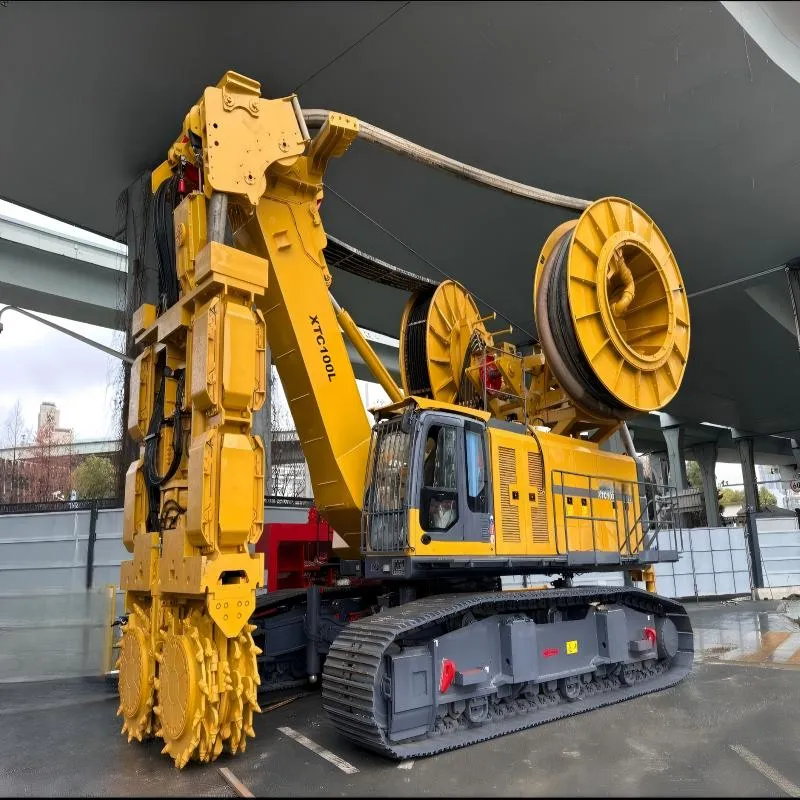

Component 1

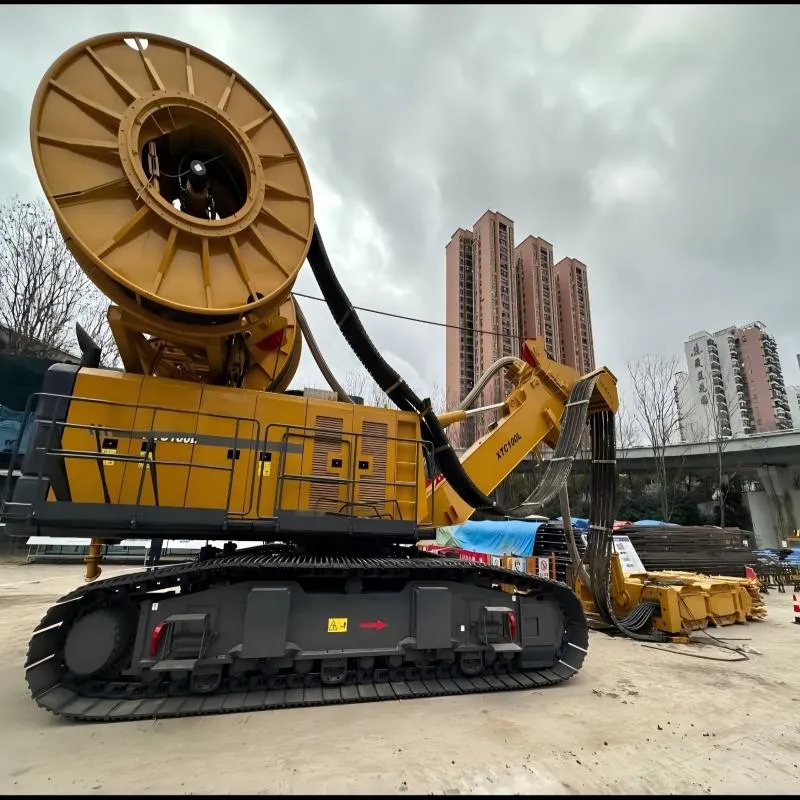

Component 2

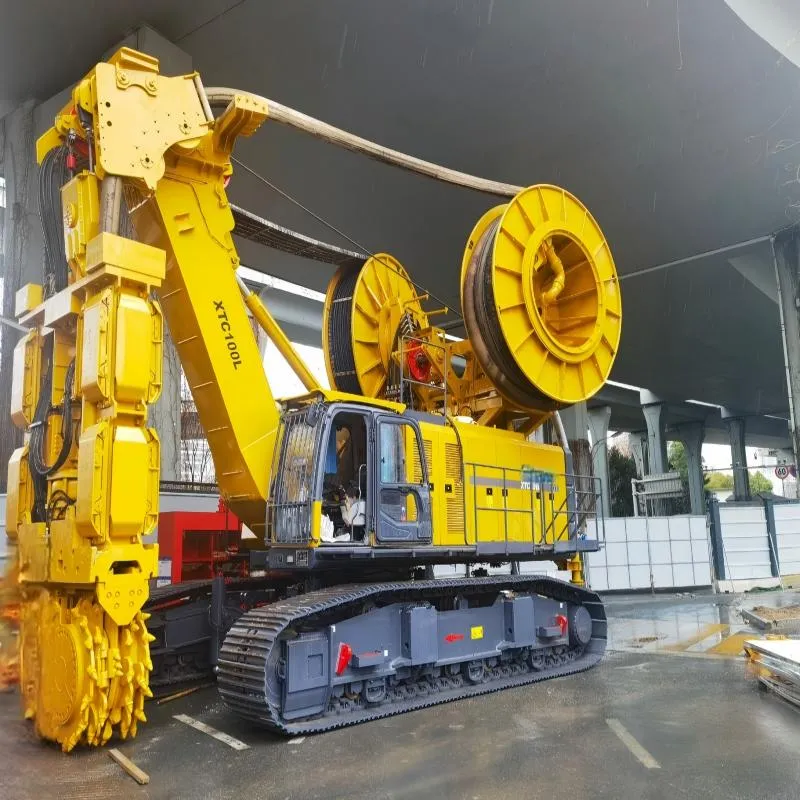

Component 3

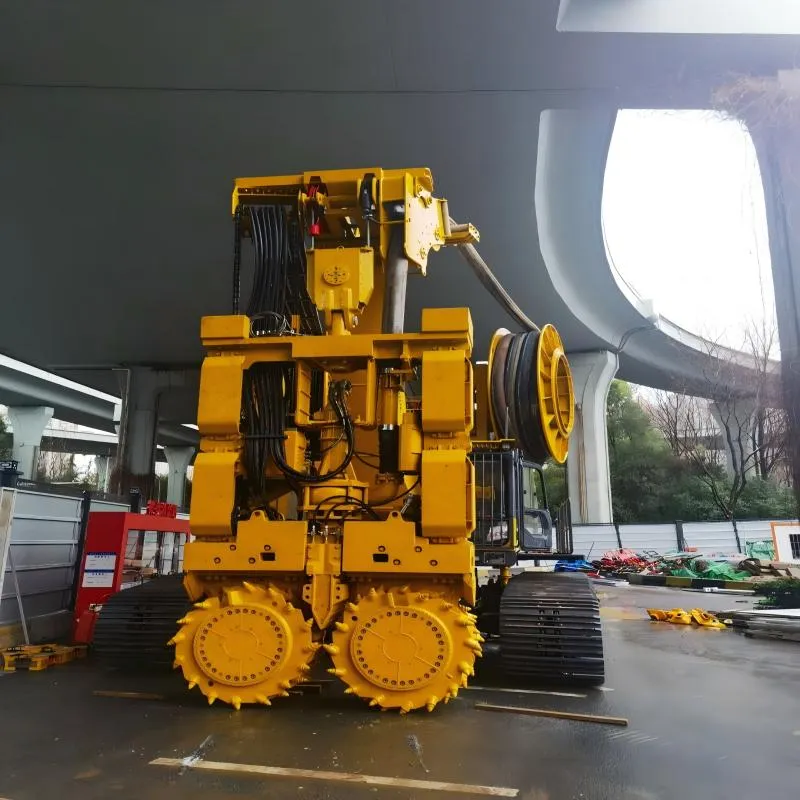

Component 4
📊

Technical Specifications

Parameter Unit Data
Trench Width (Adjustable)mm800 - 1500
Max Wall Depthm105
Single Trench Lengthmm2800
Max Milling Wheel TorquekN·m2×100
Milling Wheel Speedr/min0 - 25
Max Pull-Down ForcekN700
Engine Model-Cummins QSK19
Rated PowerkW/rpm567 / 2100
System PressureMPa32
Total Weightt170 - 175
🏢

Professional Manufacturing

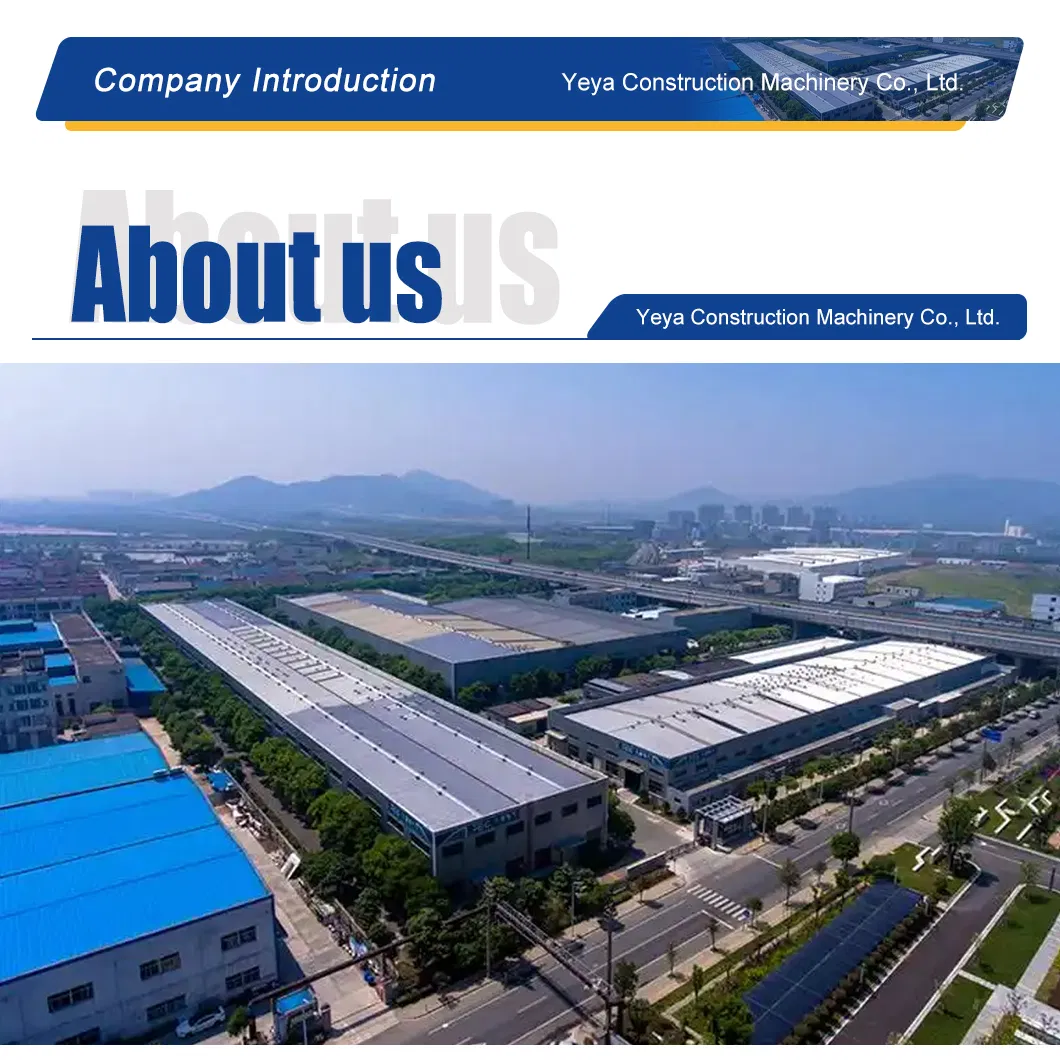

Factory Overview

Our enterprise is dedicated to the full industrial chain services of construction machinery, focusing on the sales of new and used machinery, as well as the renovation, remanufacturing, and supply of spare parts. We adhere to the business philosophy of "integrity-based, quality first".

Strategically located in a major industrial hub, we benefit from a complete and mature construction machinery industry chain. Our professional technical team consists of senior engineers with years of experience, ensuring every piece of equipment meets high industry standards through scientific disassembly, inspection, and testing processes.

🏭

Factory & Certifications

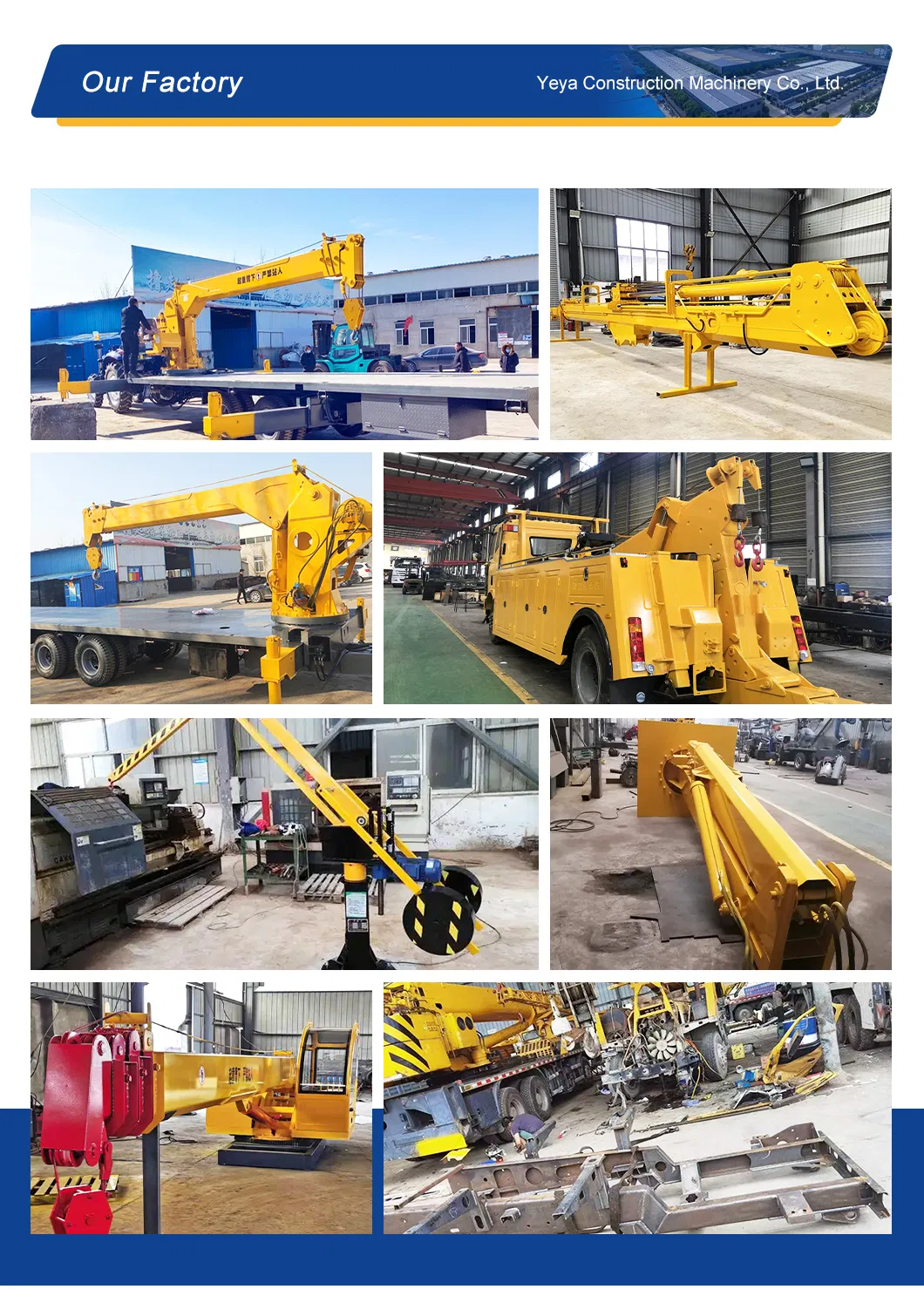

Factory
Certifications
📦

Packaging & Shipping

Shipping

Frequently Asked Questions

What kind of payment terms do you accept?
We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).
What is your minimum order quantity (MOQ)?
Our MOQ is 1 UNIT.
How will the goods be shipped?
We offer sea freight and land transportation options based on your location and requirements.
What trade terms do you support?
We generally accept FOB (Free On Board) and EXW (Ex Works).
How do you provide after-sales service?
We deliver real-time remote technical guidance via video calls to ensure your operations run smoothly.
Can you customize vehicles according to local requirements?
Yes, we can customize technical specifications to meet specific local regulatory or site requirements.
