Professional Construction Waste Crushing and Screening Plant Solution

Customization:	Available
After-sales Service:	Provide on-Site Planning
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

GX1000

Certification

ISO, CE

Automation

Automatic

Product Name

Construction Waste Sorting Recycling

Capacity

100-1000 tons Per Day

Suitable for

Mixed/Household/Construction Waste

★

Product Description

Municipal Solid Waste Sorting Machine: This complete municipal solid waste (MSW) utilization solution adheres to the principles of reduction, harmlessness, recycling and energy recovery. Through automatic sorting, MSW is classified into recyclable metals and high-calorific-value fuels applicable to industrial boilers and power stations.

⚙

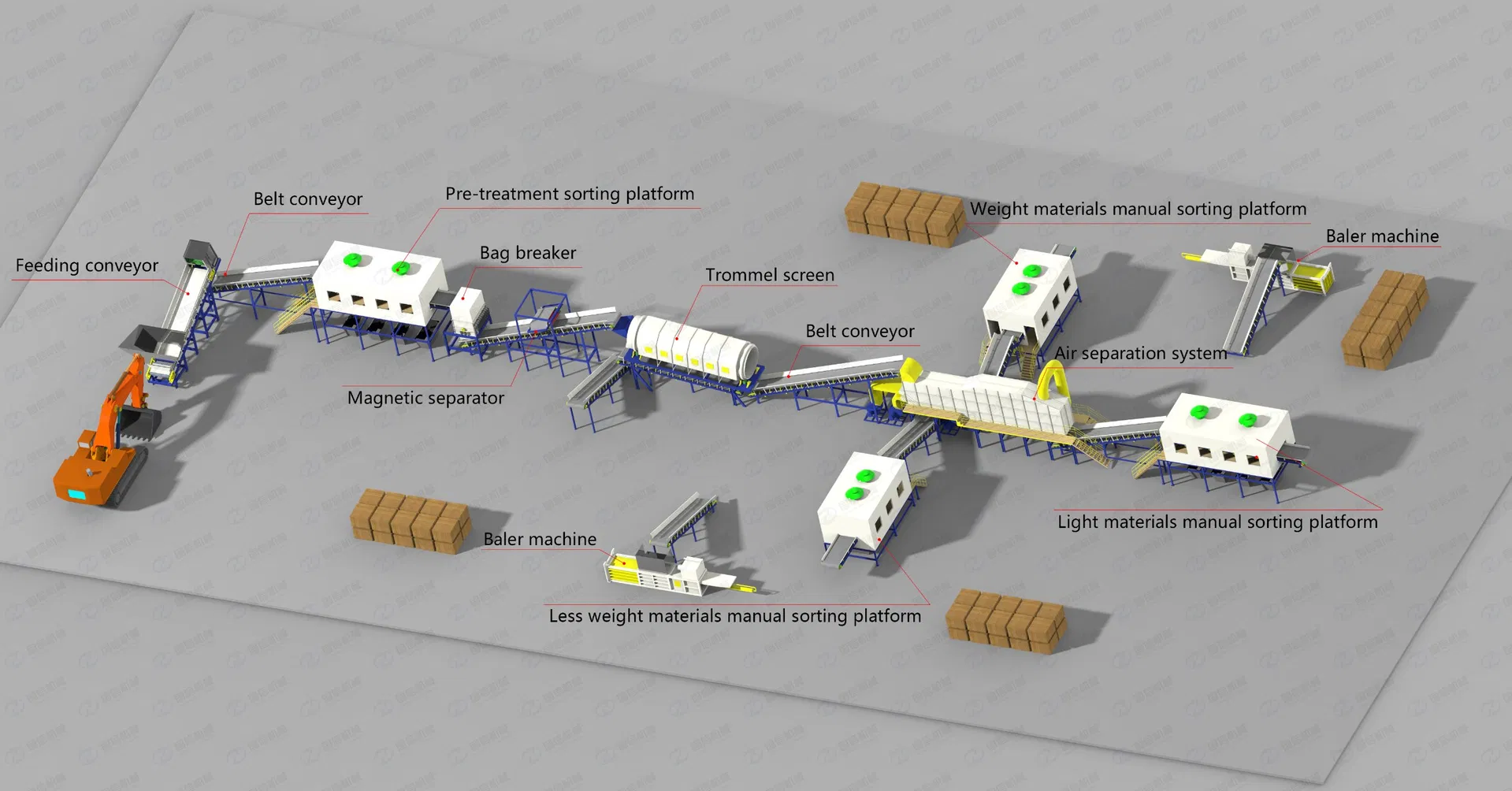

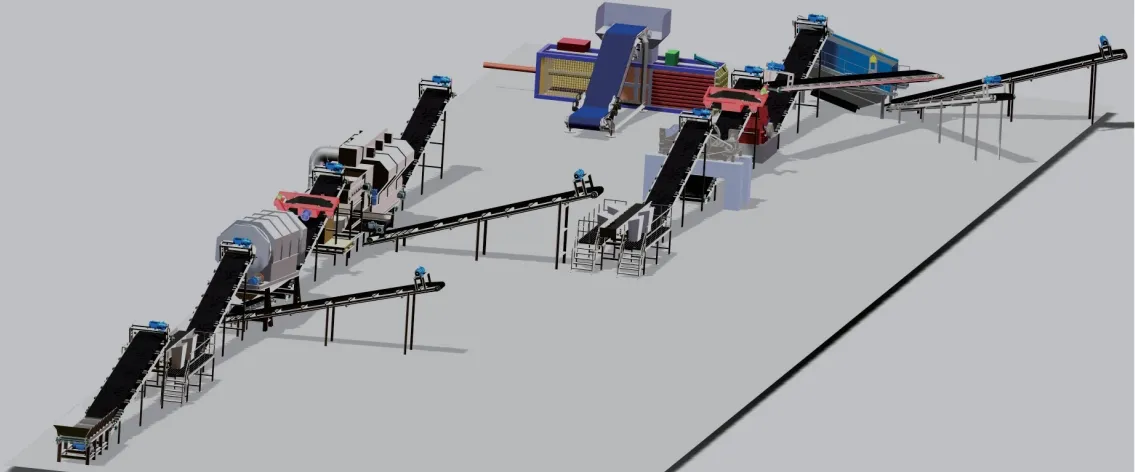

Core Components

Chain feeder: Feeds materials uniformly for smoother operation.
Bag breaking system: Efficiently opens bags without shredding the internal materials.

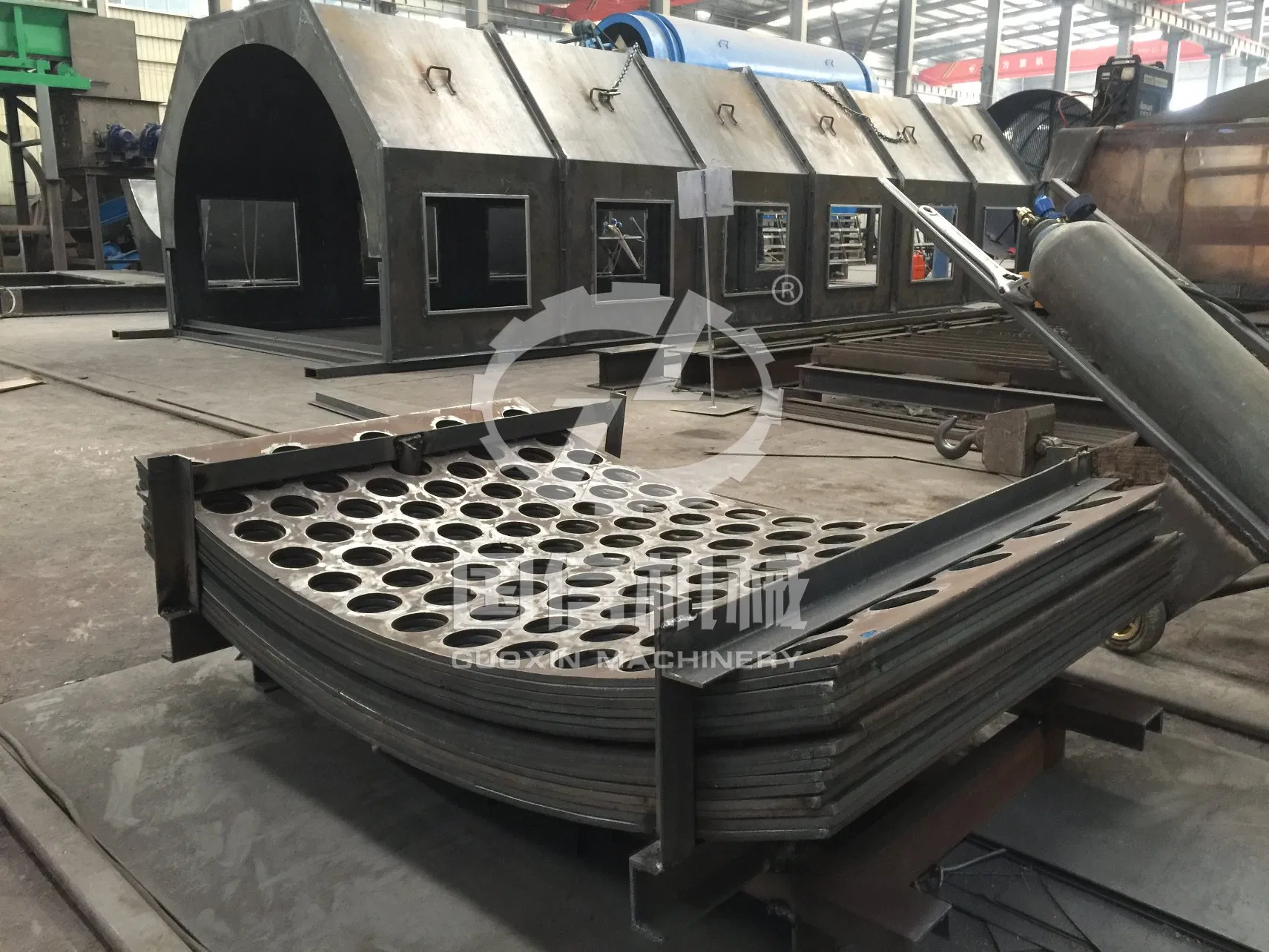

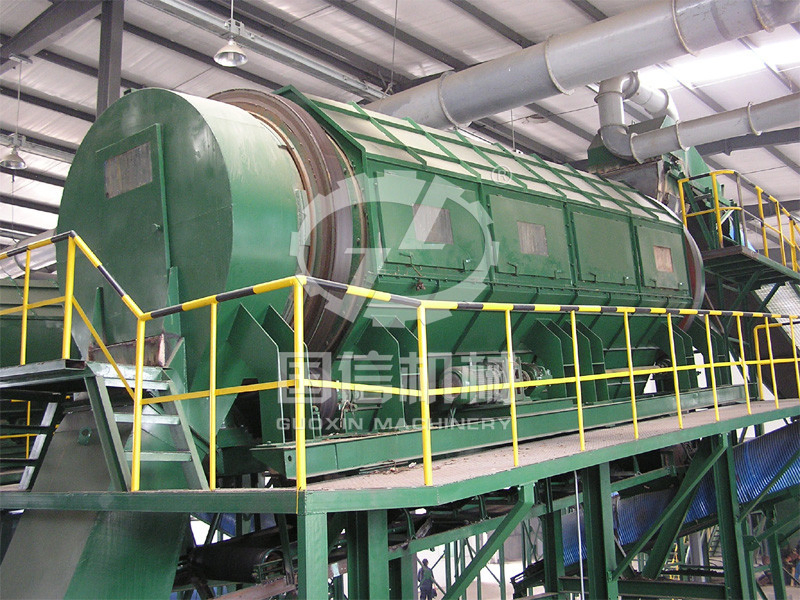

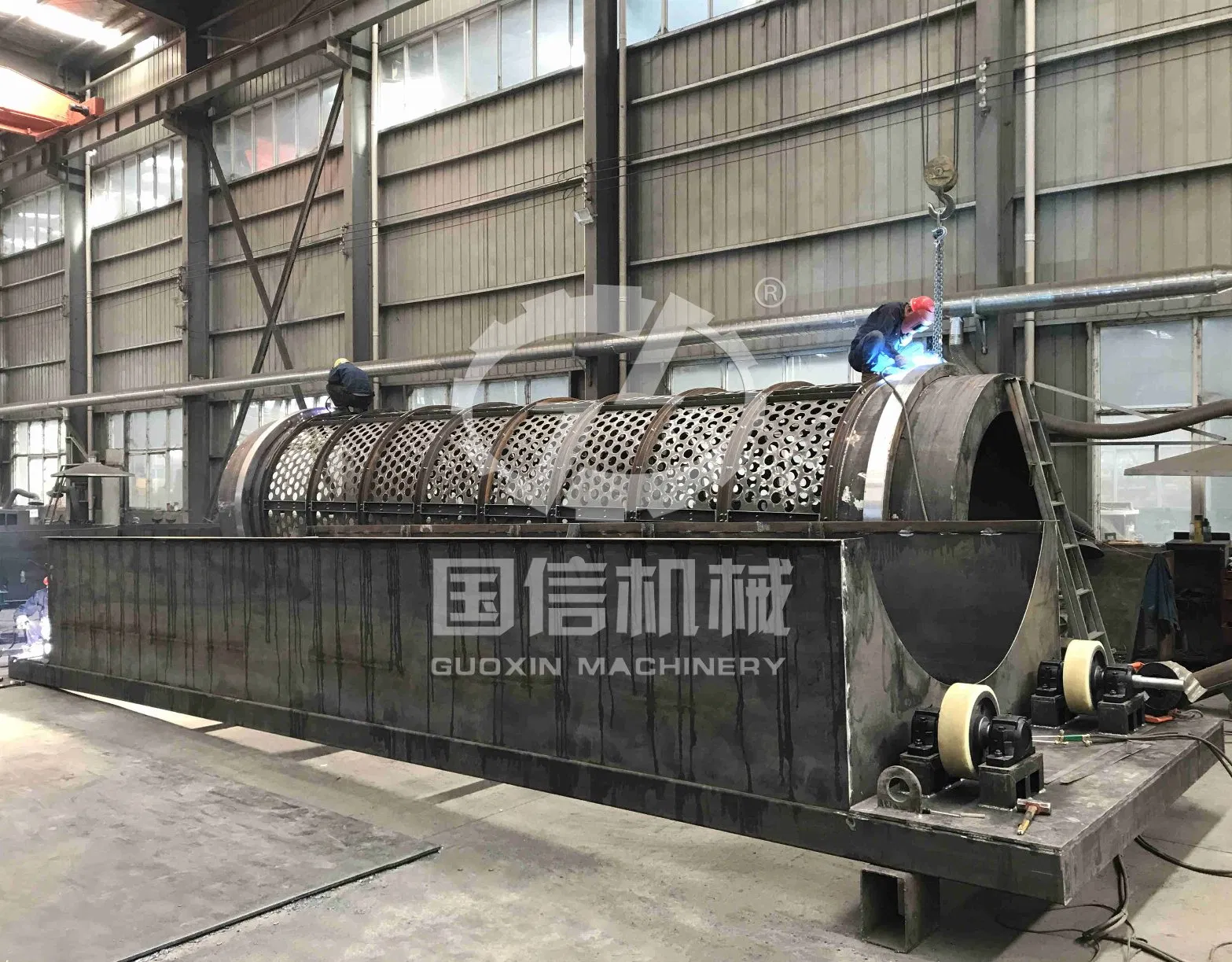

Trommel screen: Customized sizing (3-7cm) for precise material classification.
Iron separator: Extracts magnetic materials such as iron.

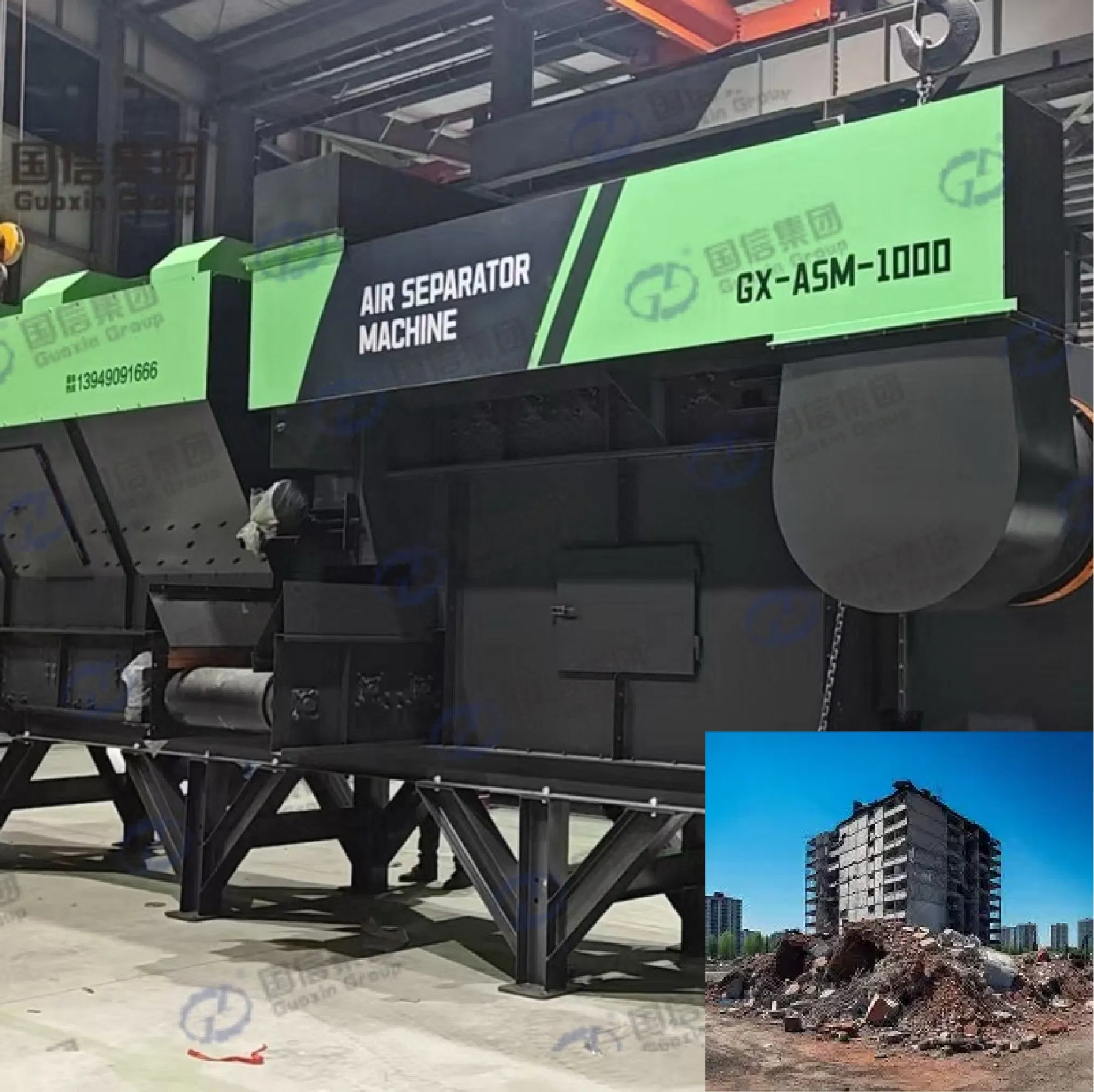

Air sorting machine: Uses air pressure with a sorting rate of up to 95%.
Baling machine: Compresses combustible materials into blocks for recovery.

♻

Waste Utilization Varieties

1. Organic Matter: Converted into organic fertilizer.

2. Plastics & Textiles: Processed into RDF fuel or compressed for reuse.

3. Metals: Recycled via magnetic separators.

4. Inorganic Materials: Bricks and concrete are crushed into building aggregates for road tiles.

📋

Technical Specifications

MODEL	GX-100	GX-200	GX-300
Raw Materials	Municipal solid waste, household waste, industrial waste, landfill waste, construction and demolition waste
Capacity	100T/DAY	200-300T/DAY	400-500T/DAY
Power	149KW	224.7KW	279KW
Area	2400 m²	2800 m²	3000 m²

🏭

Capabilities & Support

Customized R&D: Independent technical team providing tailor-made solutions.

Global Support: Professional service outlets covering multiple international regions.

Frequently Asked Questions

1. What types of waste can this sorting line handle?

The system is designed for Municipal Solid Waste (MSW), household waste, industrial waste, landfill waste, and construction/demolition waste.

2. What is the maximum daily capacity?

Depending on the model, the capacity ranges from 100 tons per day up to 1000 tons per day for customized large-scale installations.

3. How does the sorting rate perform for light materials?

Our air sorting machine utilizes positive and negative pressure to achieve a sorting rate of approximately 95% for light combustibles like plastics and paper.

4. Can the sorting size be adjusted?

Yes, the trommel screen aperture is customizable, typically ranging between 3cm and 7cm to meet specific recycling requirements.

5. What end-products are produced from the waste?

The system recovers metals for recycling, organic matter for fertilizer, combustibles for RDF fuel, and inorganic materials for building aggregates.

6. Is the equipment fully automatic?

Yes, the system is fully automatic, integrated with chain feeders, automated separators, and balers to minimize manual labor.
