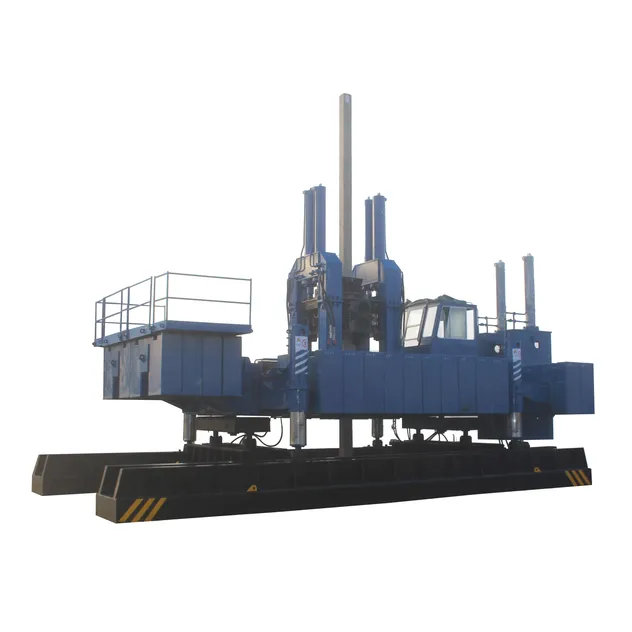

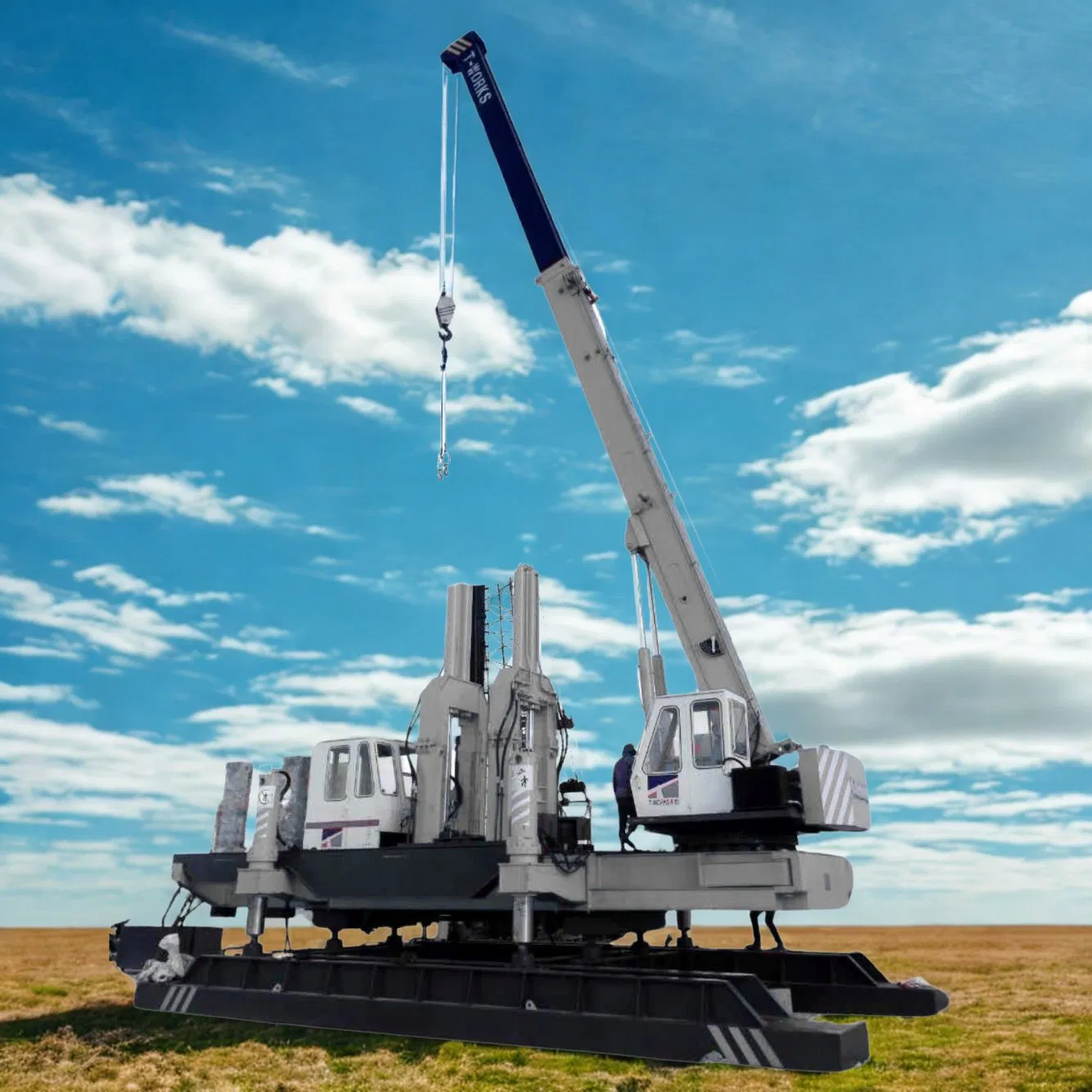

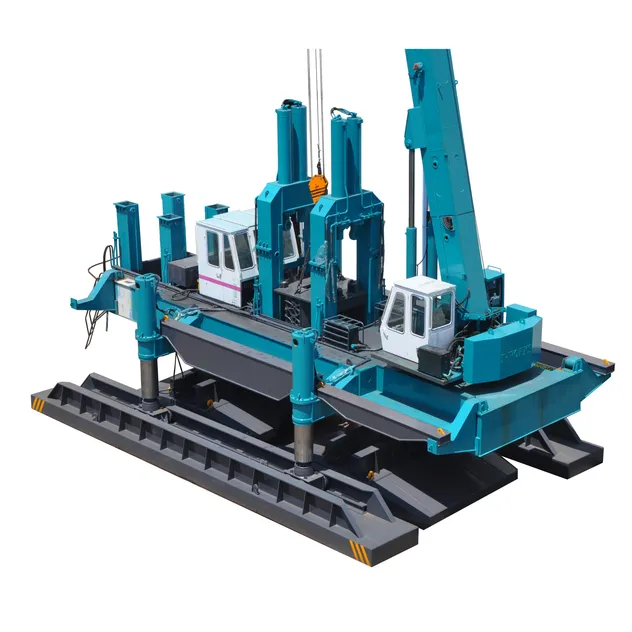

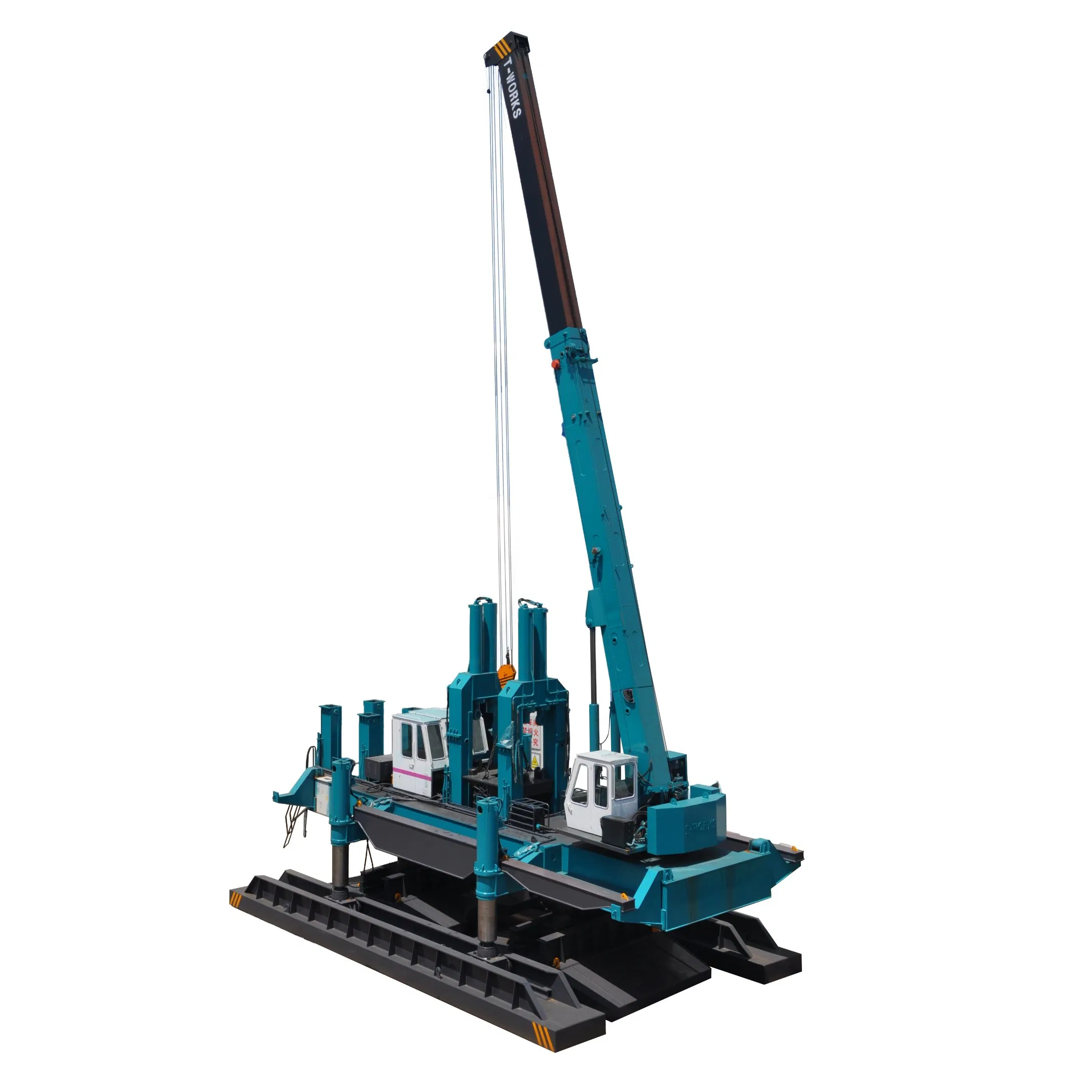

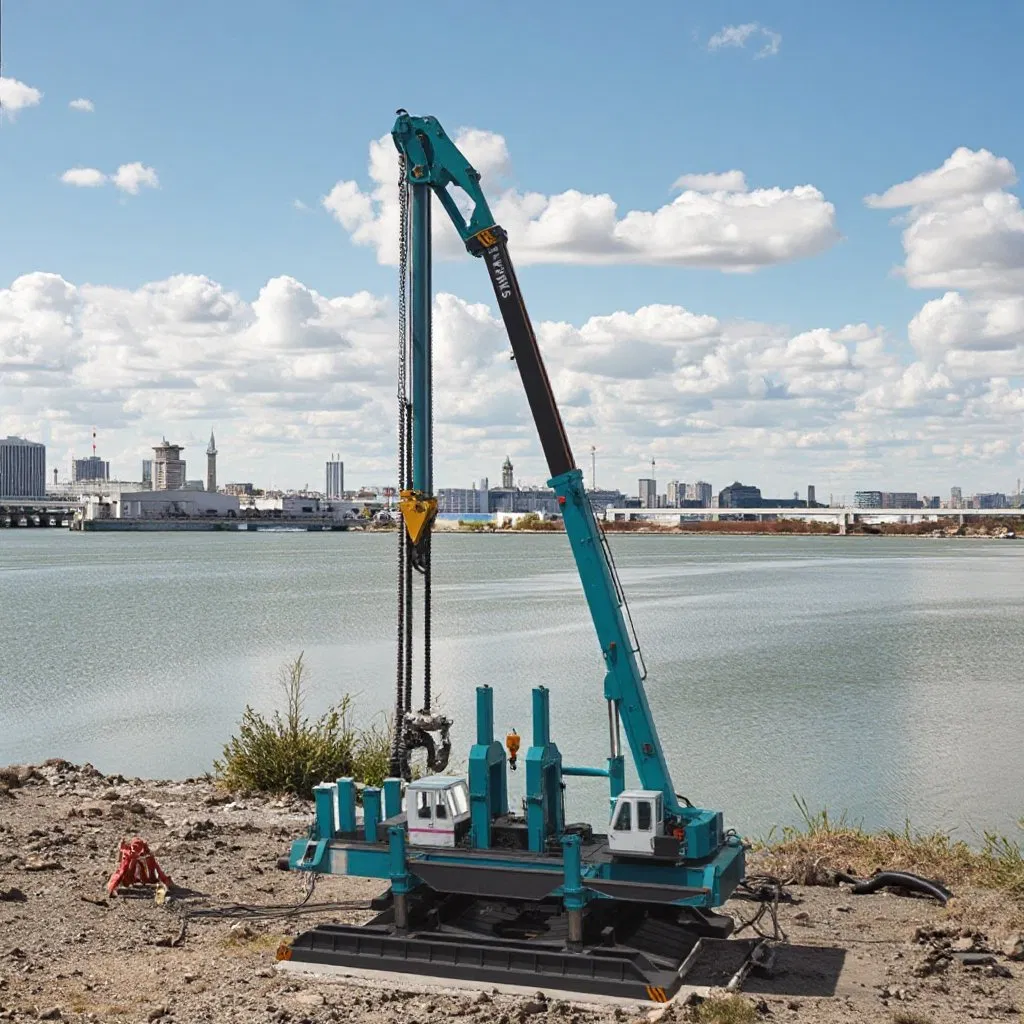

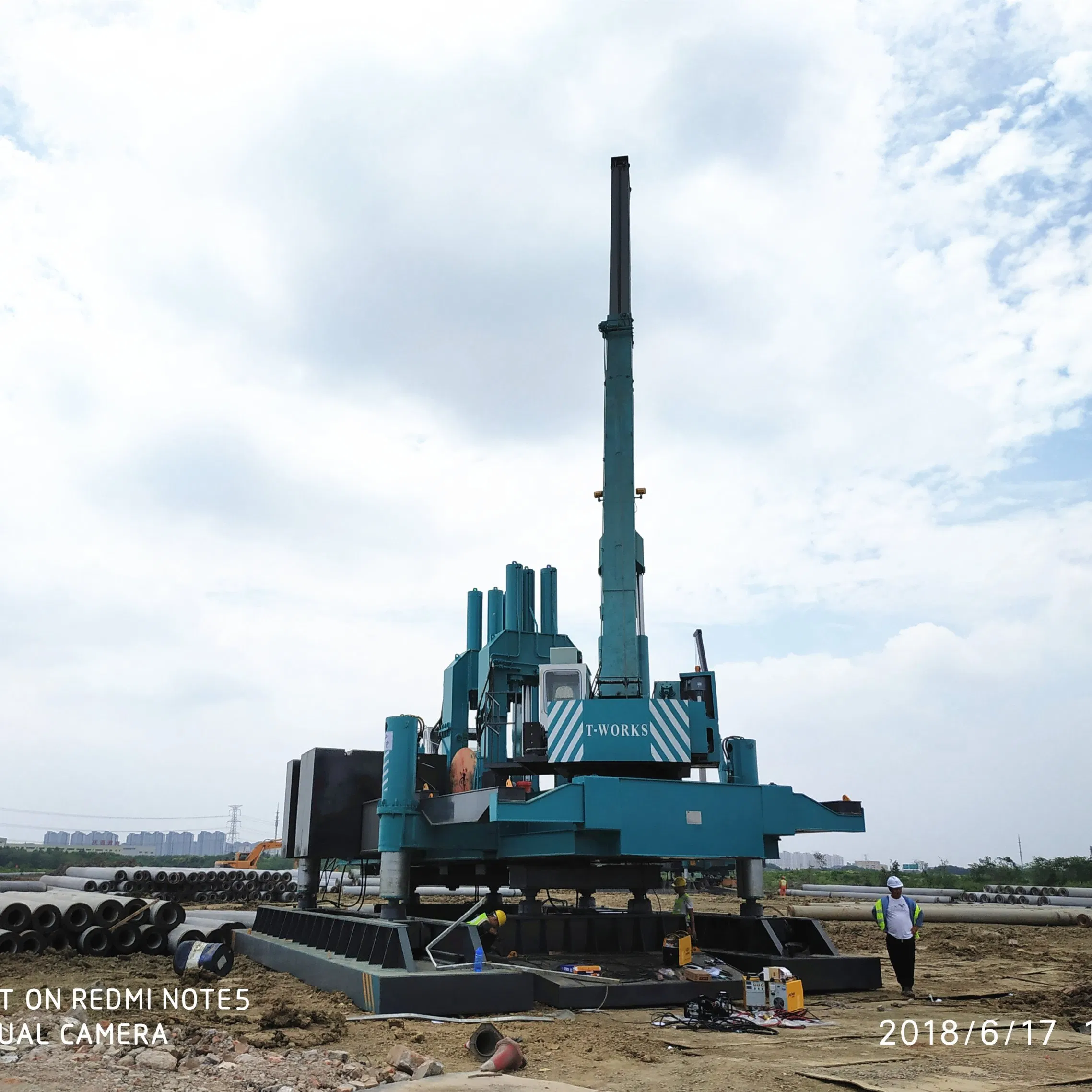

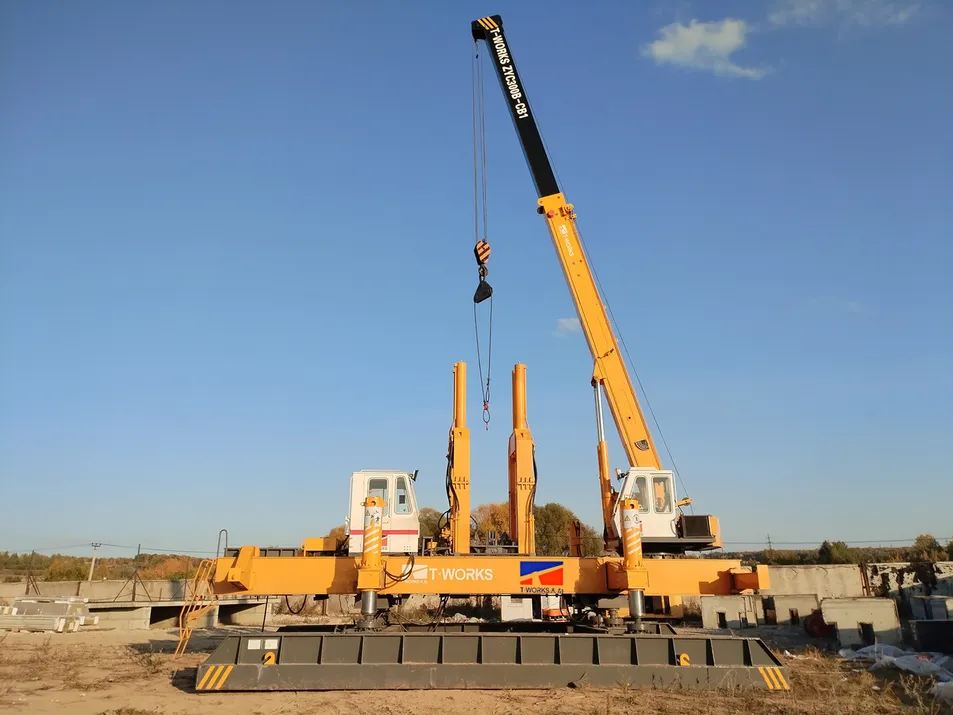

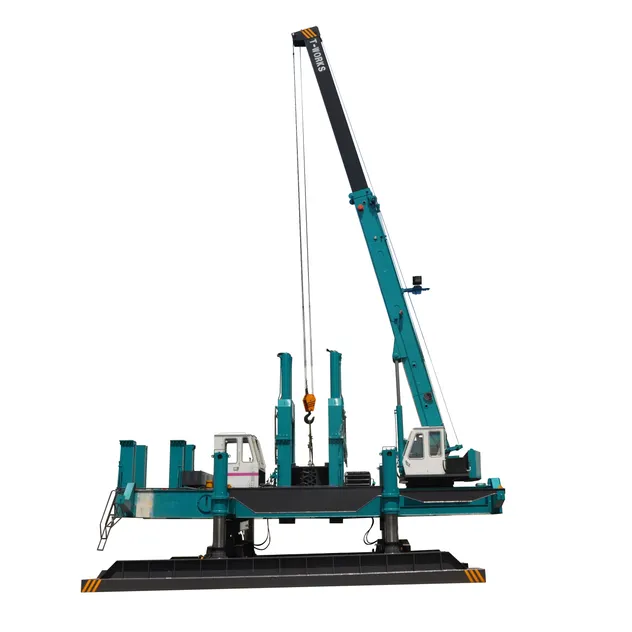

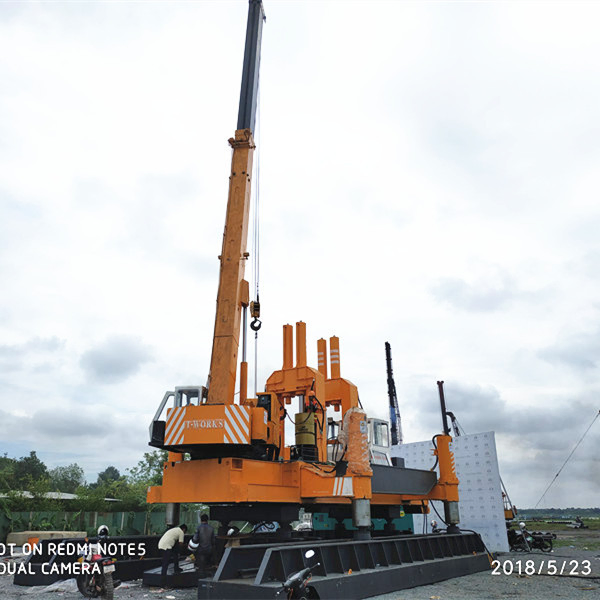

As a construction method different from the diesel hammer or hydraulic hammer, the hydraulic static pile driver is a new type of environmentally pile foundation equipment. No noise, no vibration, and no pollution, especially good for urban foundation construction. The hydraulic system is driven by the motor to realize the pile pressing. All kinds of cement piles are applicable such as pipe piles, square piles, triangle piles, sheet piles, H-pile, T-pile, etc. The pushing capacity ranges from 60 tons to 1200 tons.
All roller wheels and clamping jaws are forged, providing superior wear-resistance compared to casting steel.
The guide wheel of the clamping box ensures verticality of the pile by allowing precision gap adjustments.
Supporting legs use inverted cylinders to withstand greater radial forces and increase overall durability.
Large-tonnage models utilize six piling cylinders to accelerate construction speed and improve operational efficiency.
| Parameter / Model | ZYC 180 | ZYC 260 | ZYC 360 | ZYC 460 | ZYC 600 | ZYC 860 |
|---|---|---|---|---|---|---|
| Rated Pressure (KN) | 1800 | 2800 | 3600 | 4600 | 6000 | 8600 |
| Fast Speed (m/min) | 8.7 | 7.2 | 7.8 | 9 | 7.9 | 9 |
| Low Speed (m/min) | 2.7 | 1.8 | 1.9 | 1.6 | 1.4 | 1.4 |
| Piling Stroke (m) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 |
| Max Square Pile (mm) | 400 | 500 | 600 | 600 | 600 | 550 |
| Lifting Weight (t) | 8.0 | 12.0 | 16.0 | 16.0 | 20.0 | 20 |

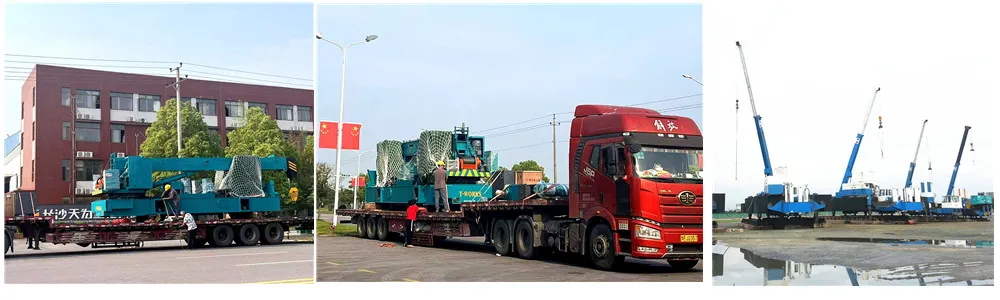

From packaging and transportation to meticulous quality inspection and debugging, we ensure excellence in every step.
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
