Advanced GPS Grade Control System for 30 Ton Excavation

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Type

Crawler Excavator

Usage

Special, Mining, GM Excavator

Bucket

Grab Shovel

Transmission

Hydraulic

Drive Type

Internal Combustion

Bucket Capacity

0.3

Certification

Weight

1500 kg

Chassis Width

1110 mm

Product Overview

Our high-performance compact hydraulic excavator is specially engineered for diverse operational needs, excelling in durability, efficiency, and versatility. It finds extensive use in construction, auxiliary mining operations, and light earthmoving tasks. Designed with advanced technology and robust materials, this excavator ensures sufficient digging force, smooth operation, and fuel efficiency.

Key Configurations

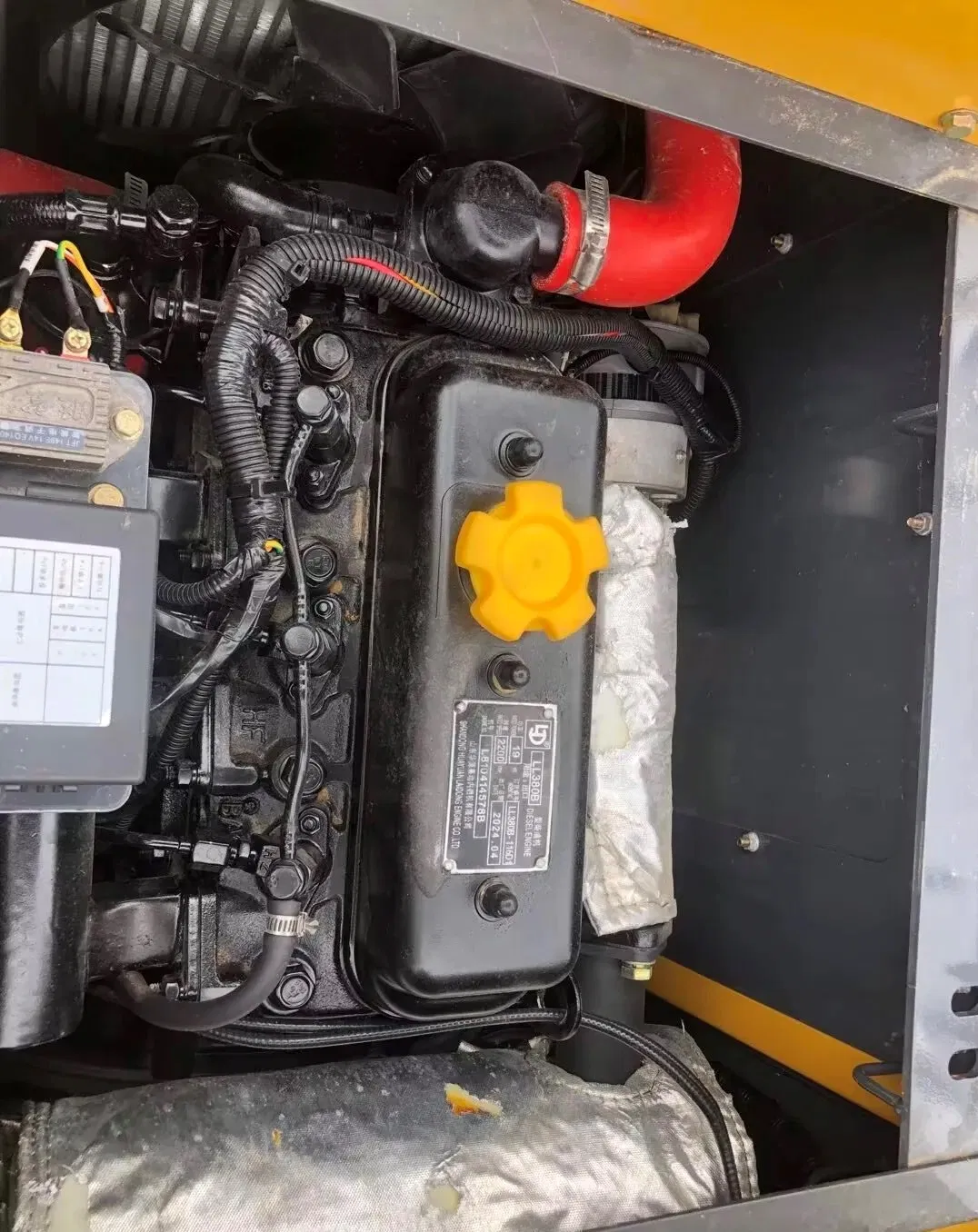

Engine: Low-emission diesel engine meeting relevant industry standards.

Hydraulic System: Precision-controlled mini pumps and valves for smooth operation.

Undercarriage: Durable rubber or small steel tracks with adjustable tension.

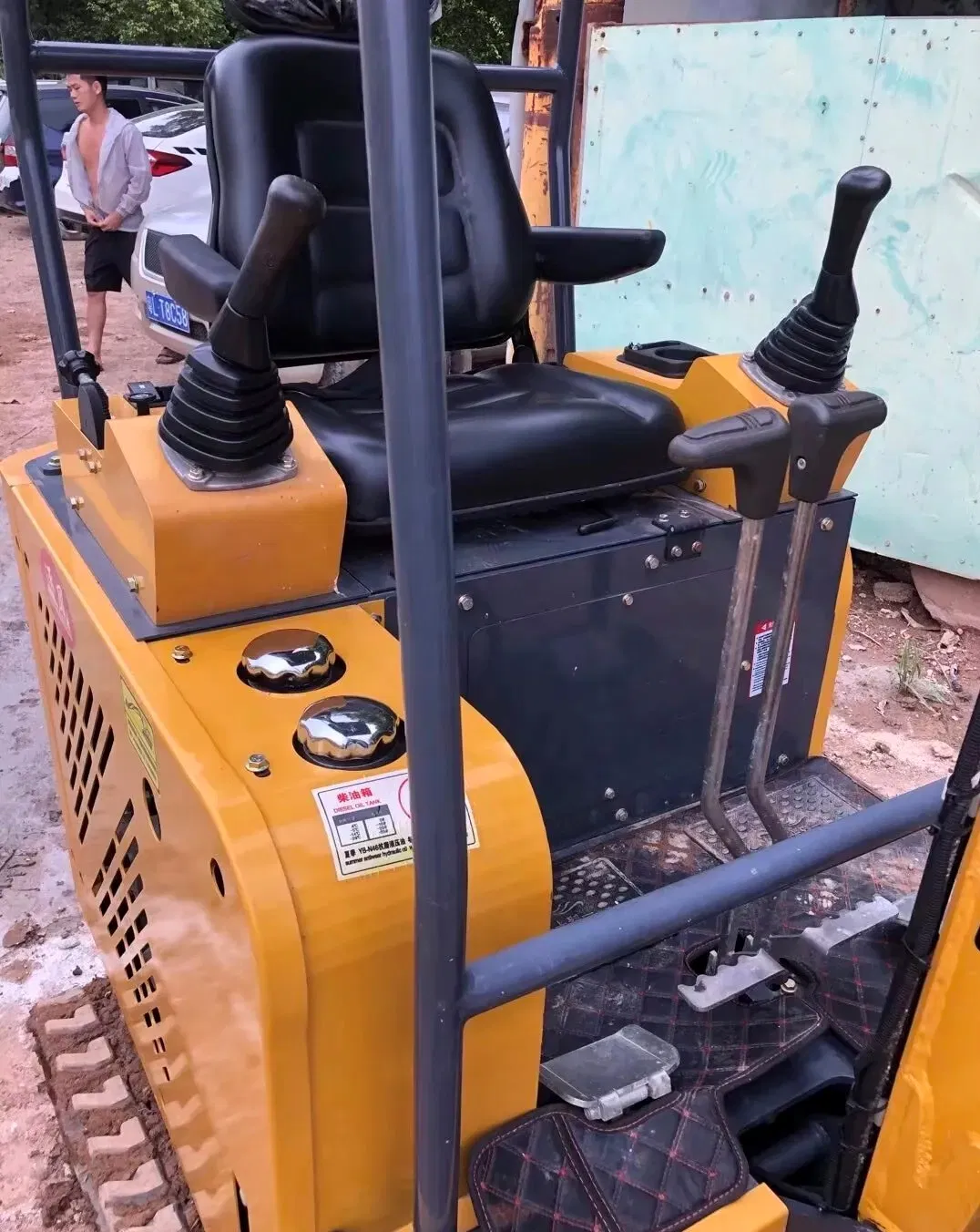

Cab: Ergonomic, ROPS/FOPS-certified cabin for operator safety.

Visual Presentation

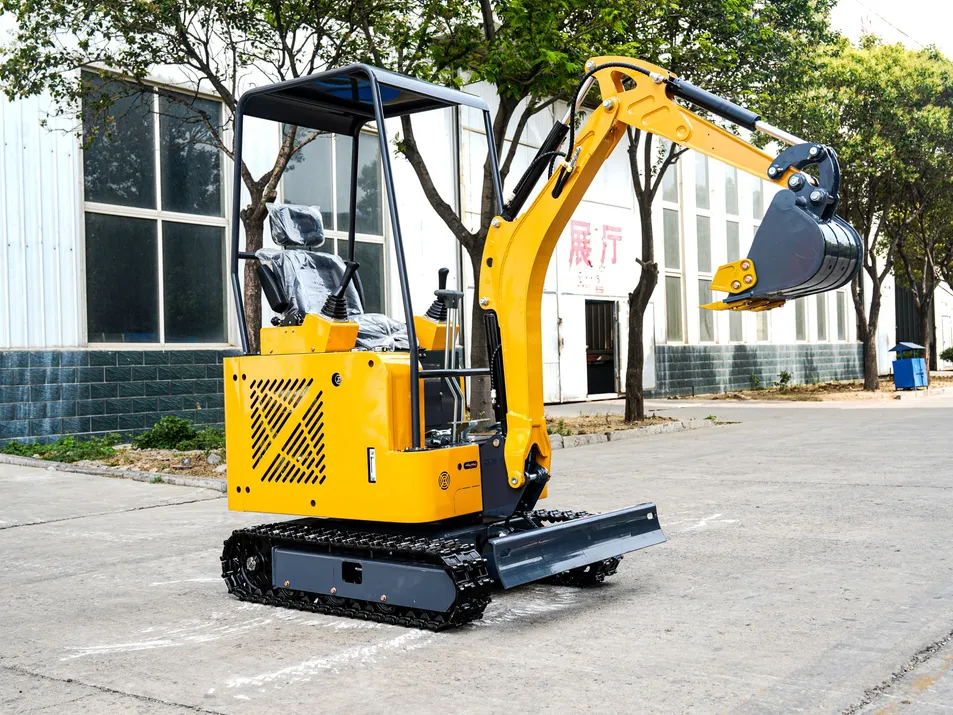

Right Elevation

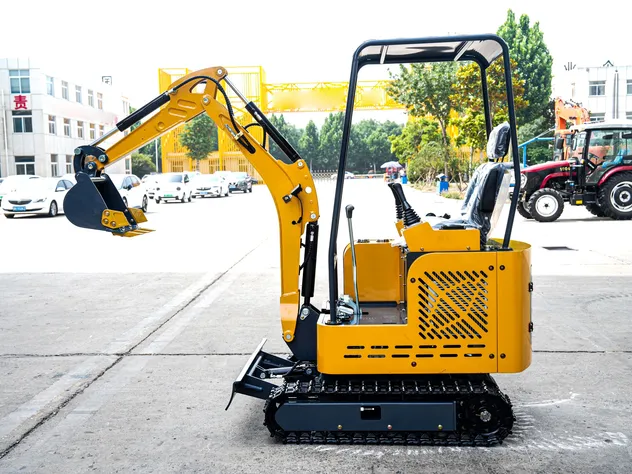

Left Elevation

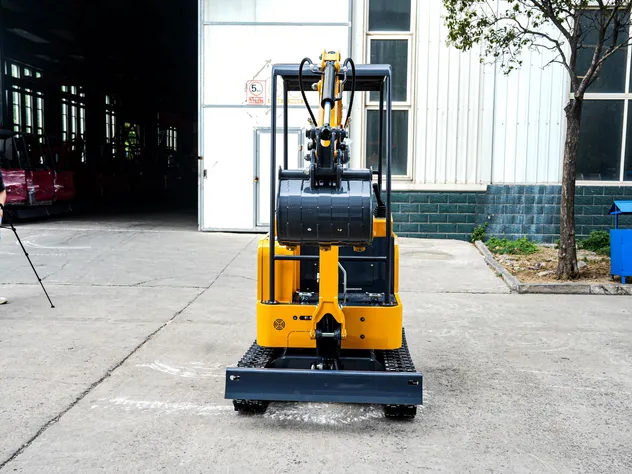

Front Elevation

Technical Specifications

Model	ZM17	ZM18	ZM20
Max Digging Depth (mm)	2100	2100	2200
Max Vertical Digging Depth (mm)	1600	1585	1760
Max Digging Radius (mm)	3215	3150	3330
Min Turning Radius (mm)	1495	1587	1555
Horsepower	19KW/2200RPM	10.2KW/2500RPM	20KW/2300RPM
Standard Bucket (mm)	400	400	400

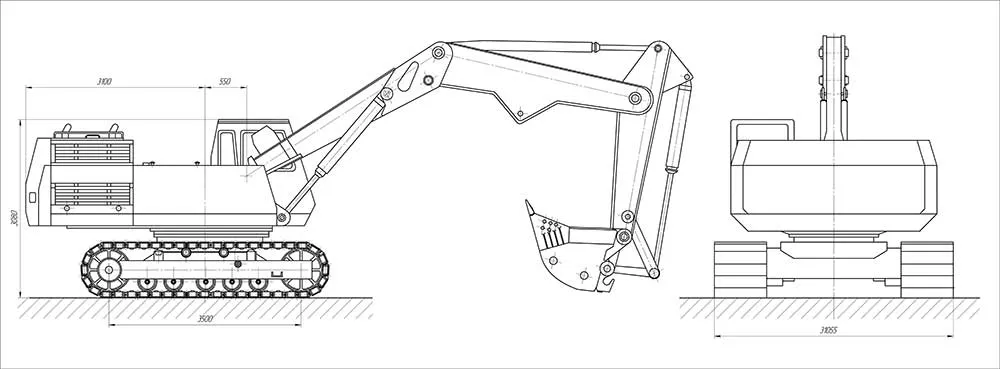

Dimensions & Drawings

After-Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

Frequently Asked Questions

Q: What is the typical lead time for orders?

A: Standard models are usually shipped within 15–30 days. Custom configurations may require 30–45 days depending on the specifications.

Q: Do you offer support for international customers?

A: Yes, we provide comprehensive 24/7 technical assistance and have partnered service centers in several key regions globally.

Q: Are the buckets customizable?

A: Absolutely. We offer various arm and bucket options, including standard, short-reach, and light-duty versions to suit different working conditions.

Q: What documents are provided for international shipping?

A: We provide a full export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: How can I request a technical drawing?

A: Detailed CAD drawings and dimensional diagrams can be provided upon inquiry by our engineering team to ensure the equipment meets your site requirements.

Q: Does the excavator meet safety standards?

A: Yes, our excavators are CE certified and feature ROPS/FOPS-certified cabins to ensure the highest safety standards for operators.
