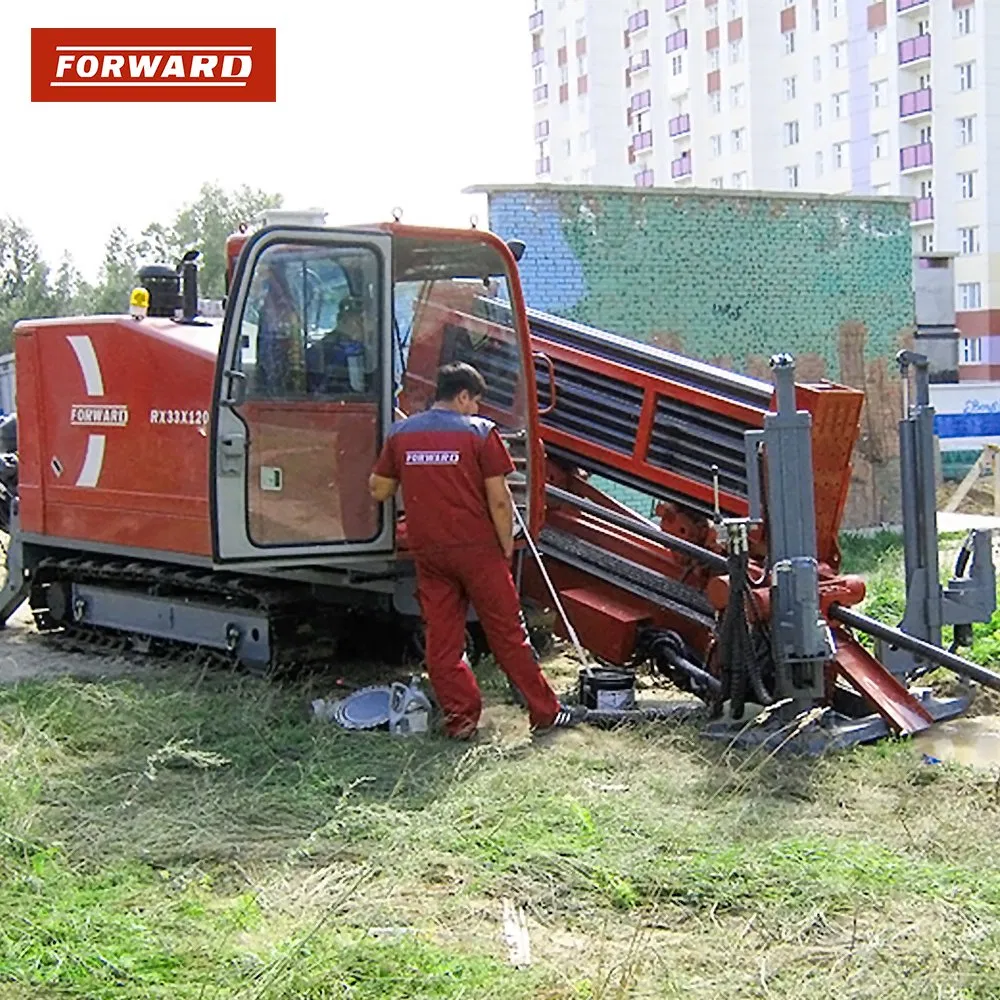

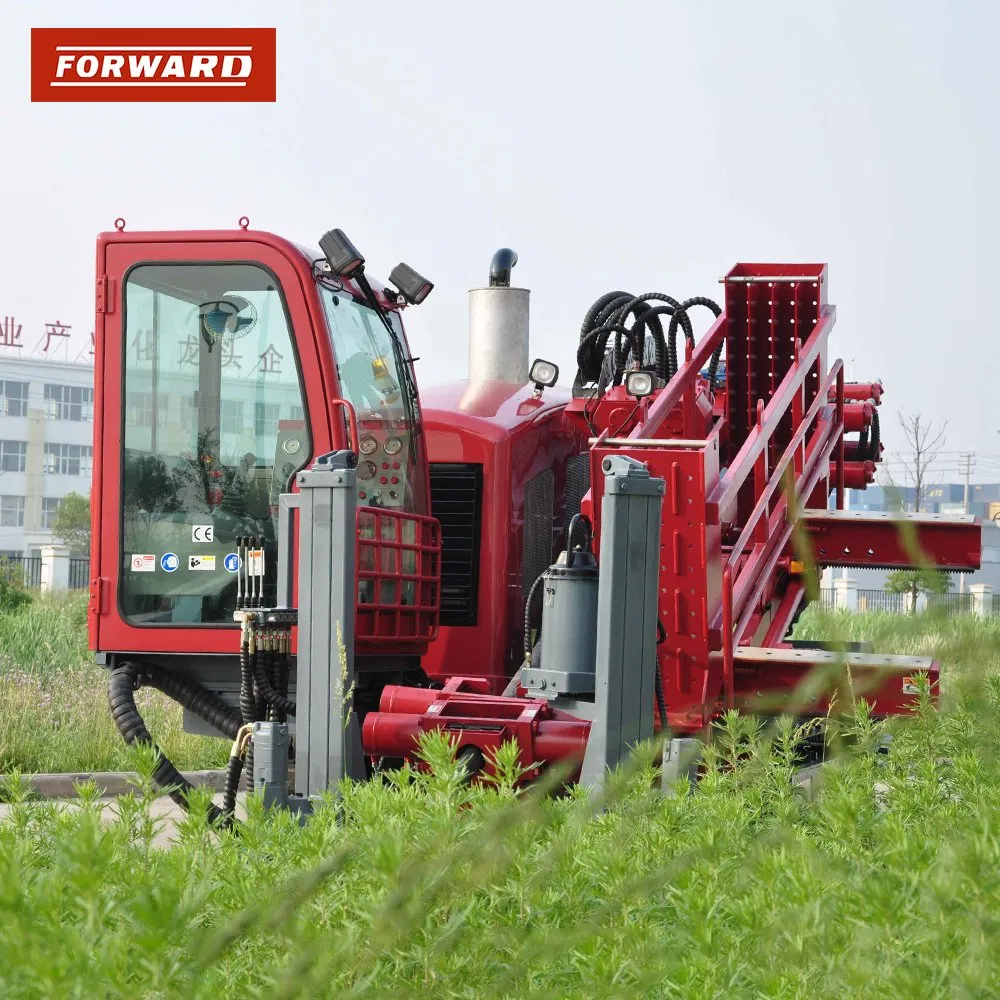

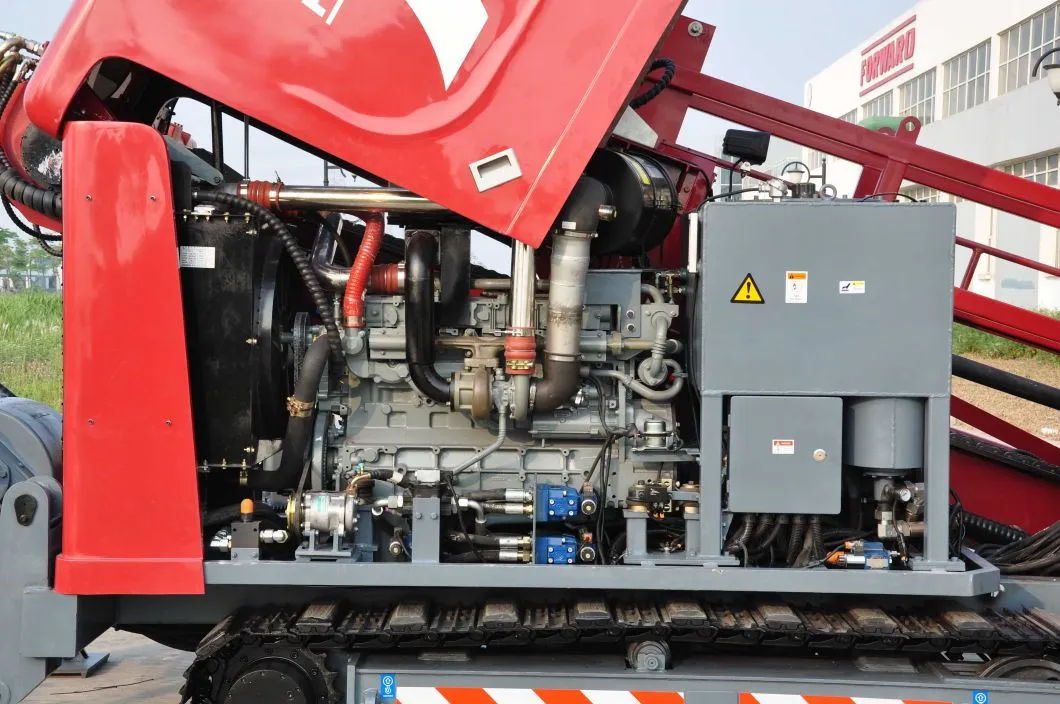

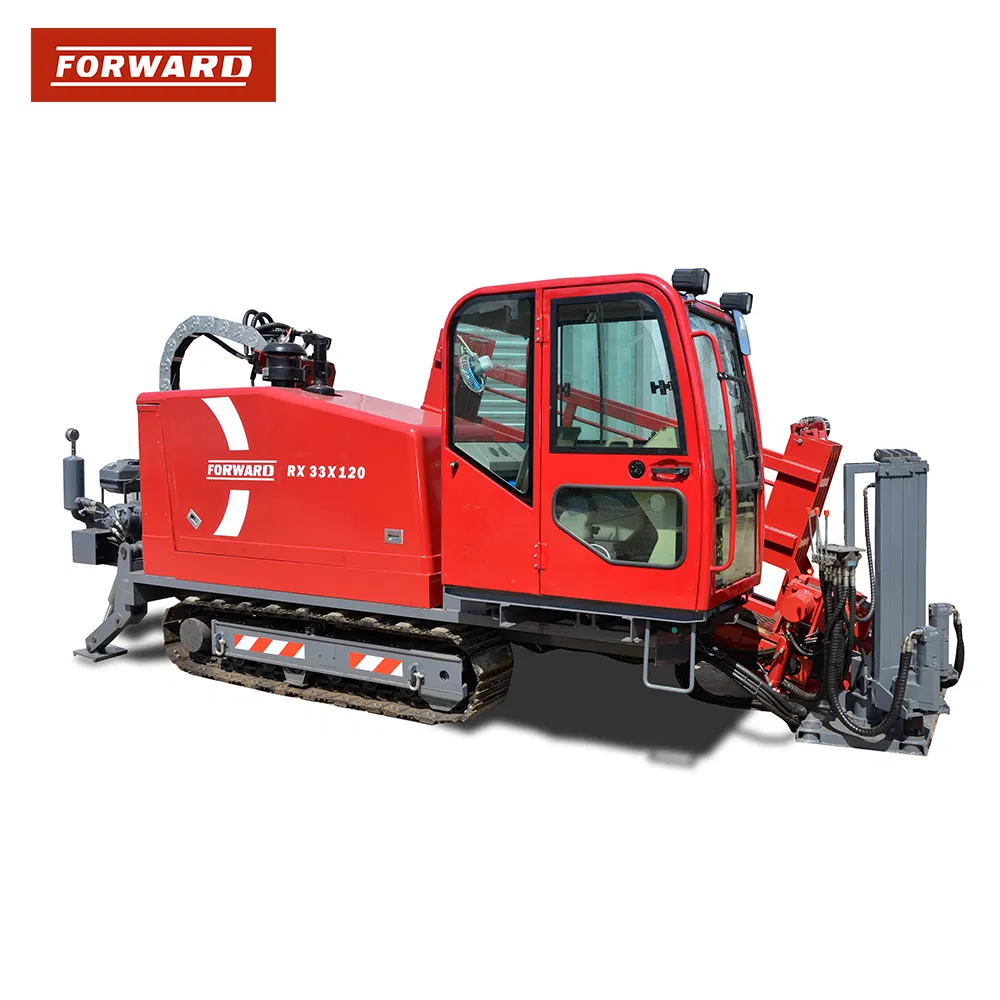

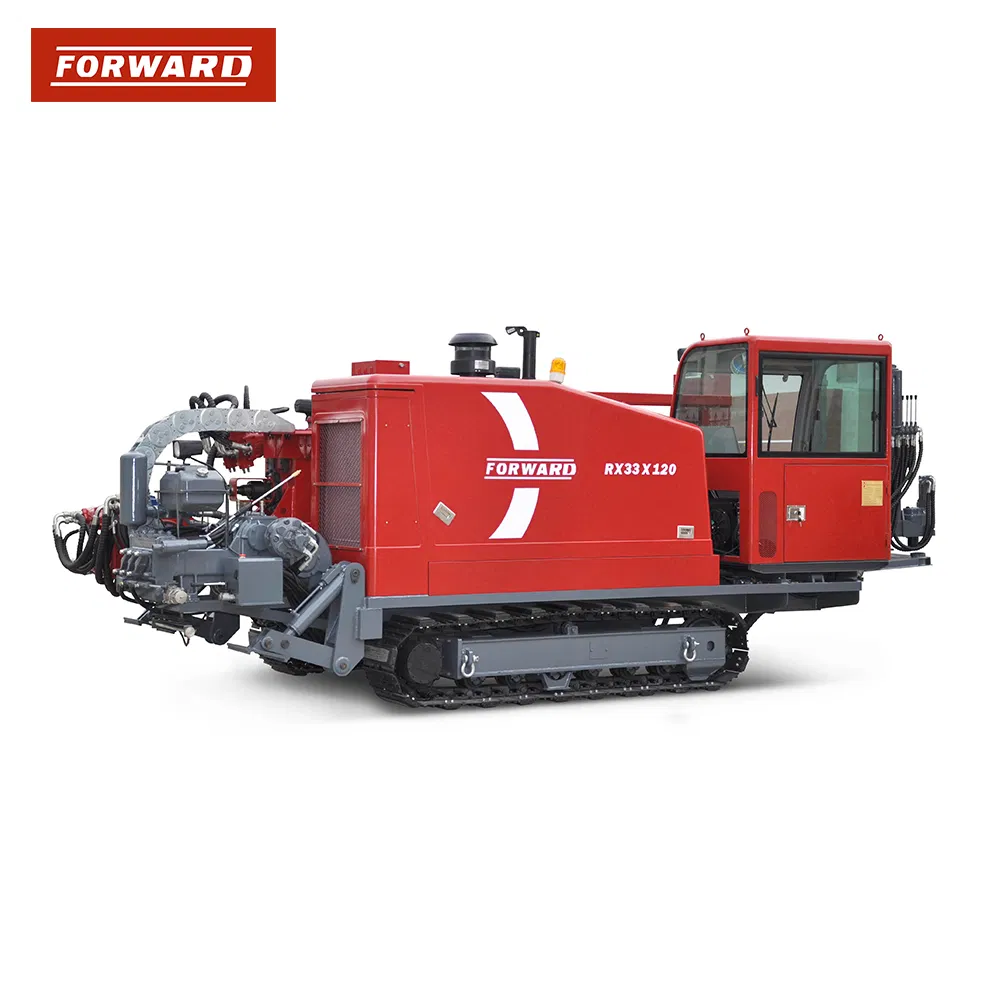

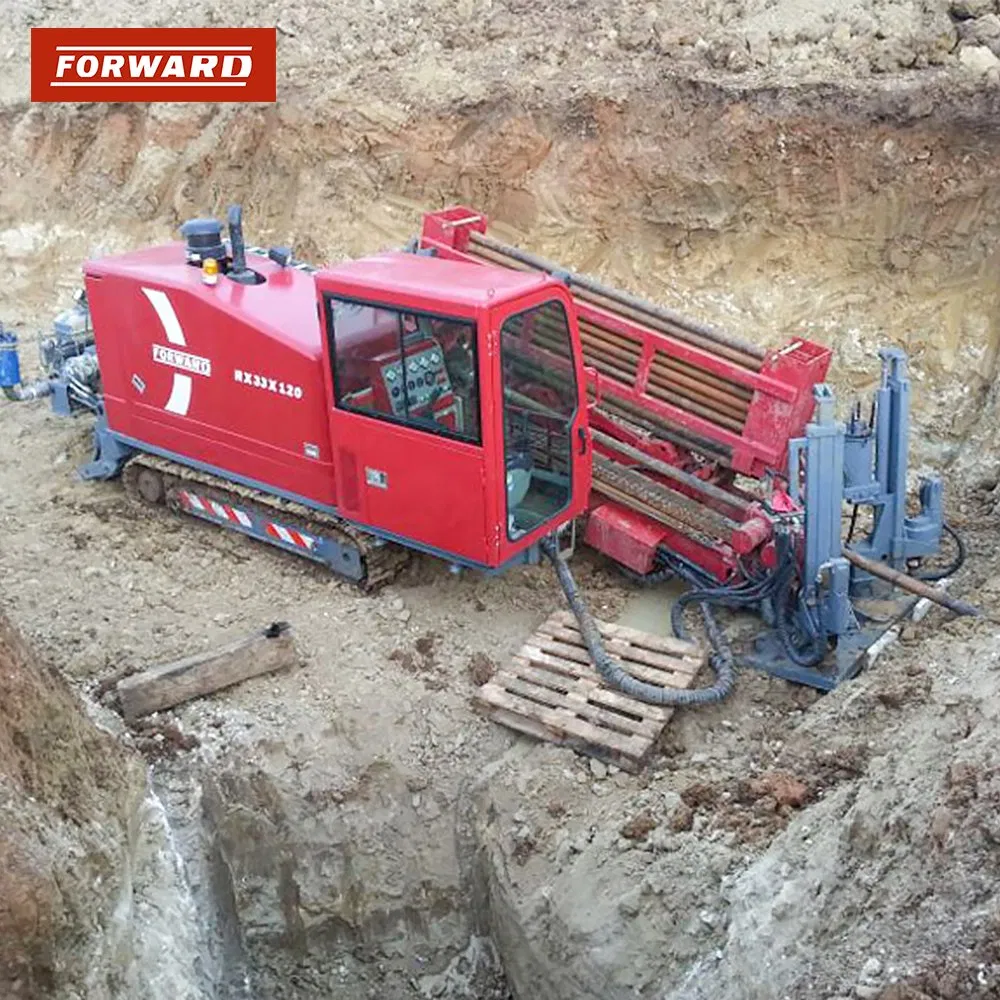

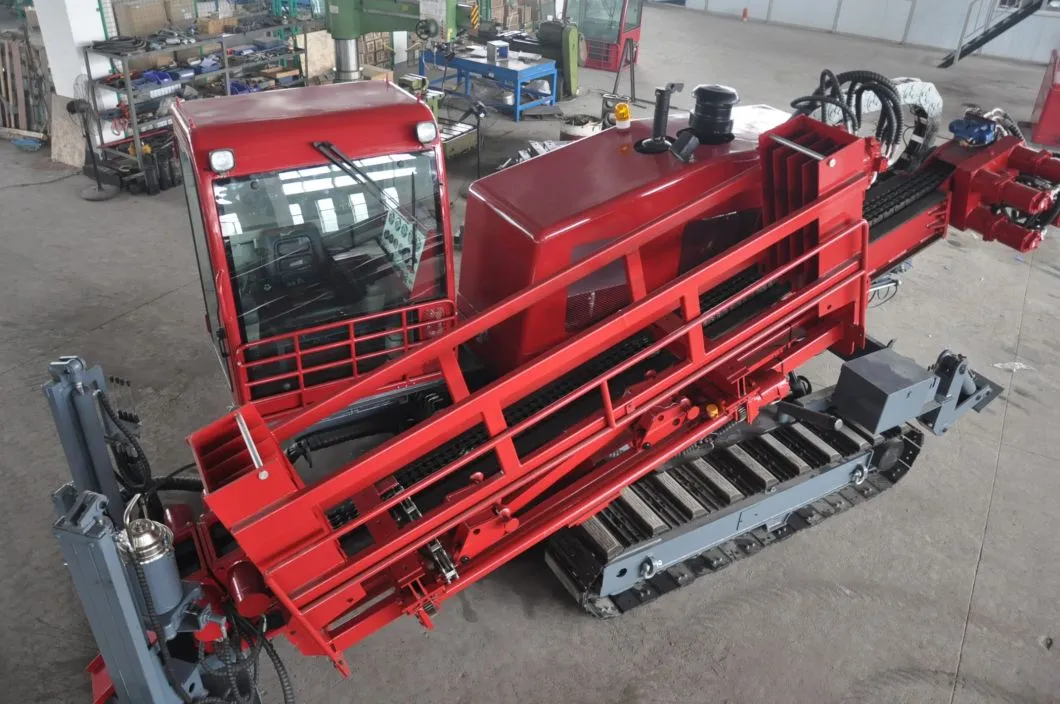

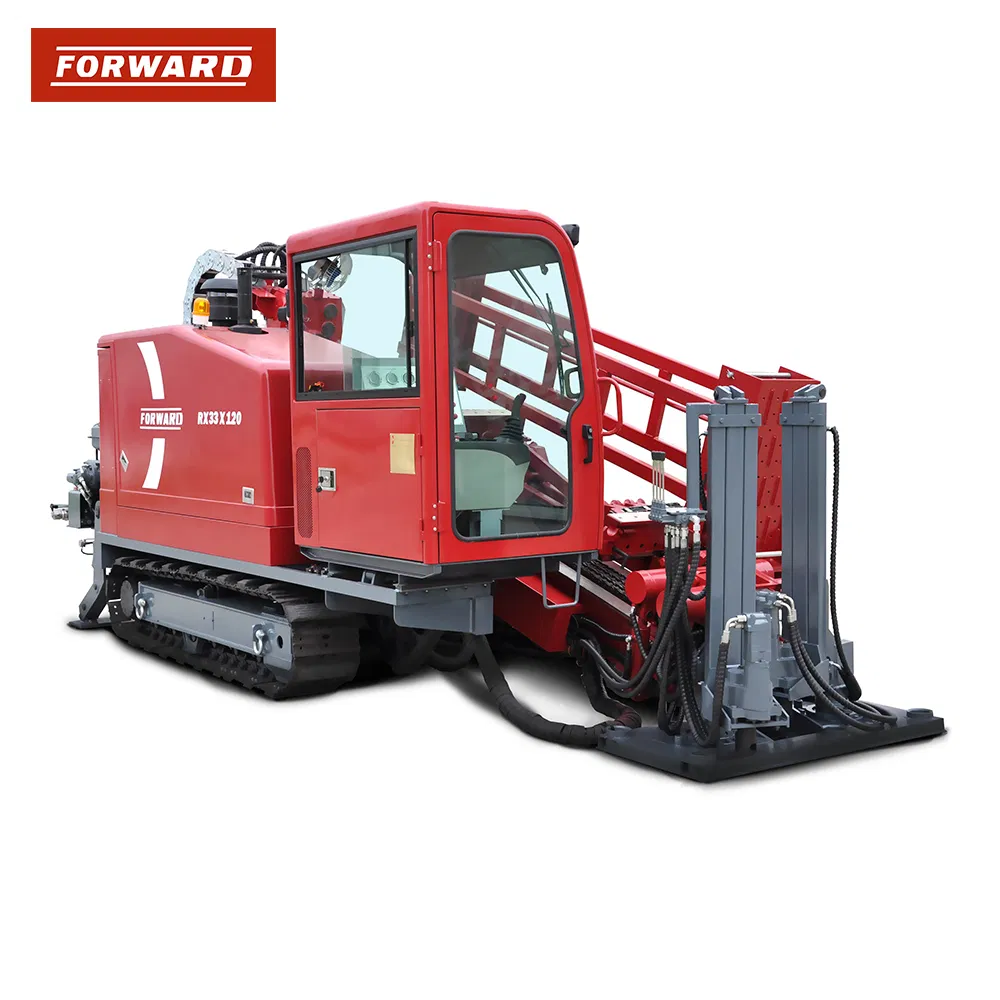

RX33x120 PLUS HDD Drilling Rig Features:
| MAIN TECHNICAL CHARACTERISTICS | ||||
|---|---|---|---|---|
| Engine | Model: De-utz | Power: 176 KW | 239 HP | |
| Rotation | Low Speed: 0-90 rpm | Max Torque: 15,000 Nm | High Speed: 0-180 rpm | Max Torque: 7,000 Nm |
| Gears: 2 Speed Stages | ||||
| Thrust & Pullback | Force: 330 kN | Low Speed: 9.5 m/min | Force: 165 kN | High Speed: 42 m/min |
| Drilling Angle: 10-18° | ||||
| Mud Pump | Max Capacity: 450 L/min | Max Pressure: 10 MPa (1450 psi) | ||
| Drill Rod | Length: 3000 mm | Rod Body: Ø 76 mm | Rod Lock: Ø 89 mm | Weight: 58 kg |

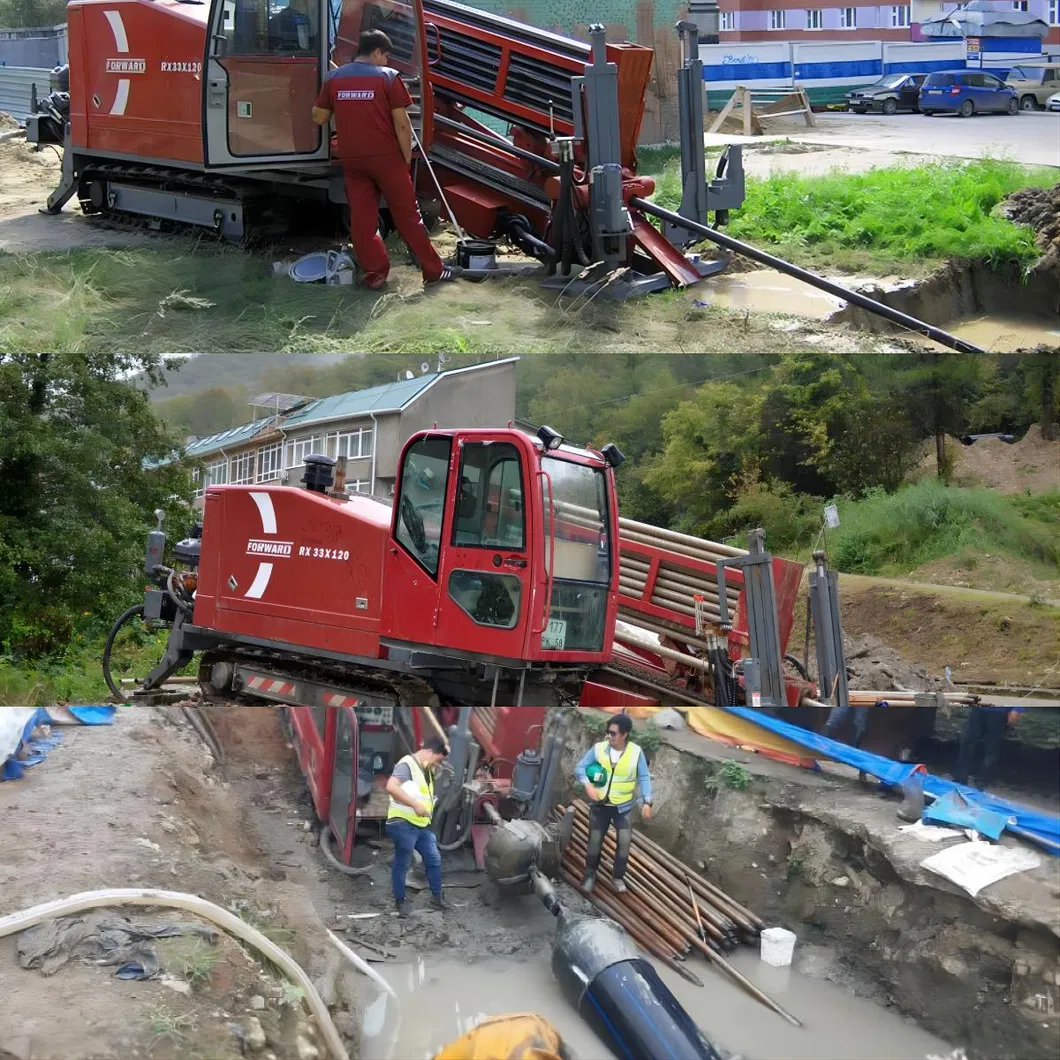

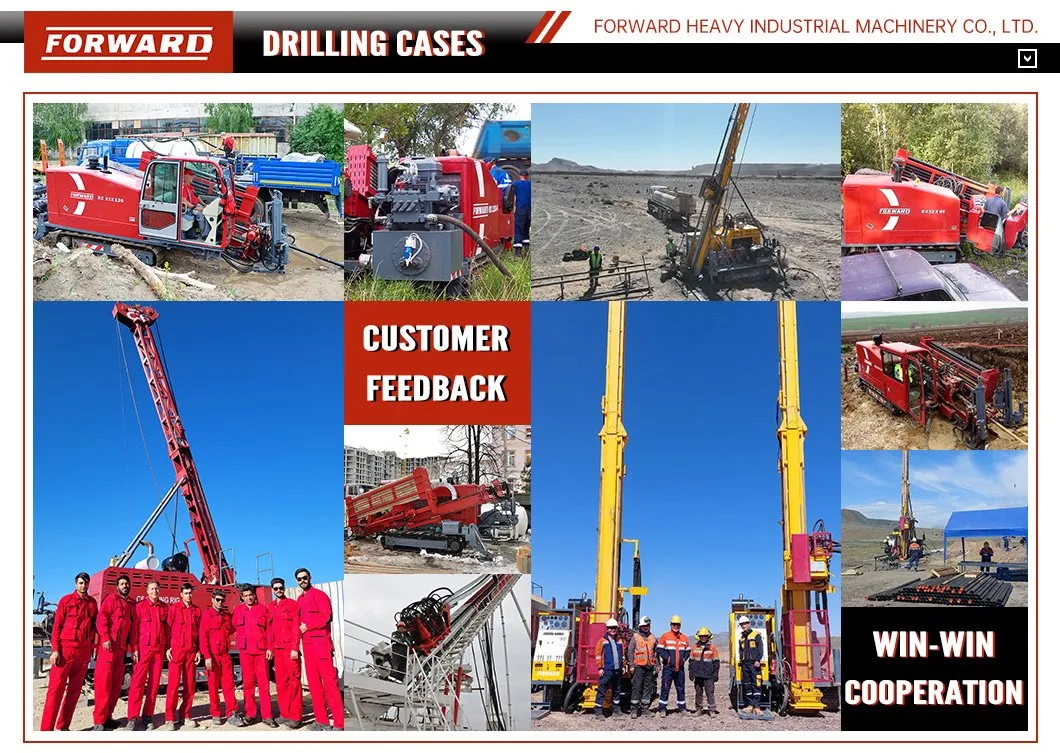

Construction Application Cases:
Focused on underground drilling equipment, we aim to maximize customer value by providing high-quality tools and exceptional technical support to ensure the best economic benefits for every project.
