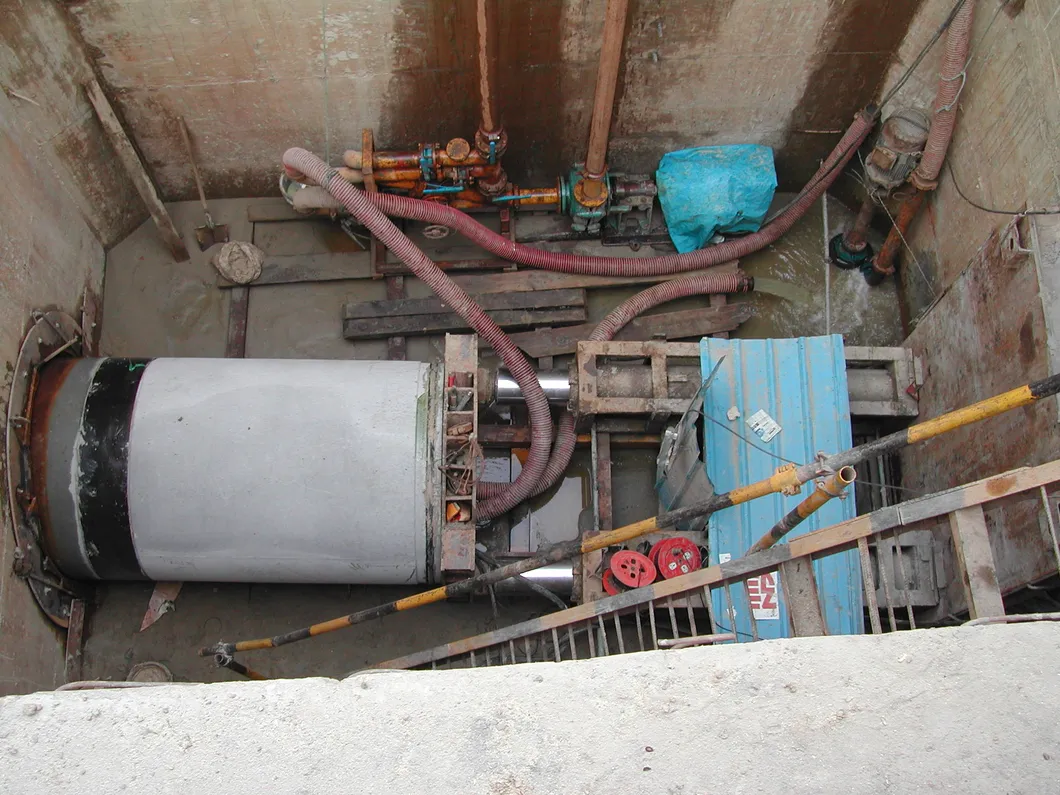

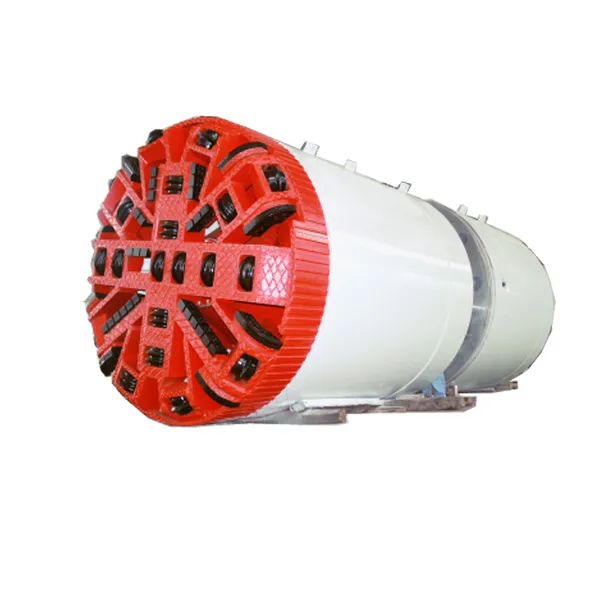

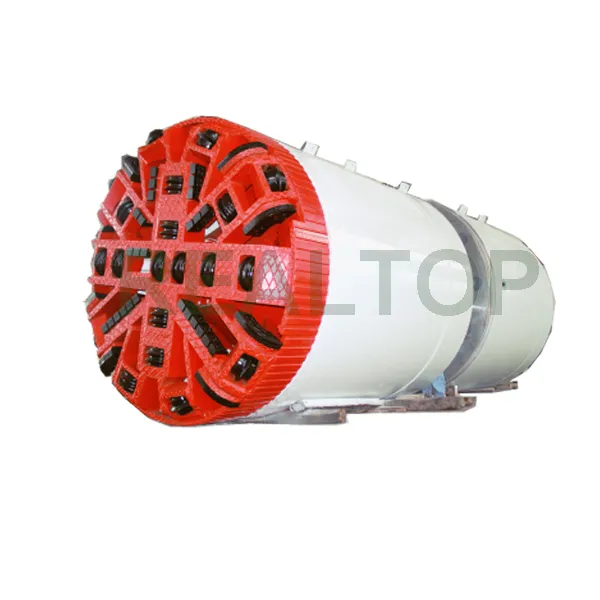

Introduction: This remote-controlled Slurry Balance Pipe-Jacking Machine represents the pinnacle of trenchless technology. It masterfully integrates mechanical units, sophisticated hydraulic systems, PLC electric controllers, innovative Laser systems, and precise measuring devices. It ensures high operational efficiency while minimizing disruptions to surface traffic, offering an eco-friendly solution for construction.
| Parameter Item | Specifications (Φ2440) |
|---|---|
| Machine Dimension (OD*L) | 3070 x 9000 mm |
| Cutterhead Power | 55 x 6 kW*set |
| Cutterhead Torque | 630 kN·M |
| Revolution | 0-7 r/min |
| Steering Jack | 1176 x 8 kN*st*set |
| Thrust Cylinder | 980x2100x12 kN*st*set |
| Advance Rate | 0-150 mm/min |
| Hydraulic Unit | 37.5 + 7.5 kW |
| Min. Curve Radius | 25 m |
| Power Source | 50/400, 10000 Hz/V |

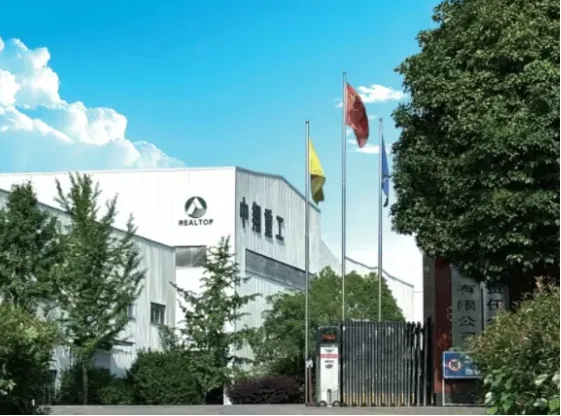

As a high-tech enterprise specializing in trenchless pipe jacking shields and TBM full-face tunneling systems, we integrate R&D, manufacturing, sales, and engineering construction services. Since 2009, the cumulative number of exported pipe jacking machines has ranked among the top globally, providing first-class system equipment for major underground engineering contractors.

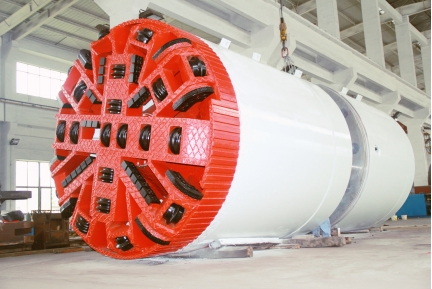

Our tunnel boring machines include slurry balance, earth pressure balance (EPB), and rock tunnel boring machines. These advanced systems integrate mechanical, hydraulic, electrical control, laser measurement, and transportation disciplines, contributing significantly to environmental protection and reducing impacts on urban traffic and economic activities.
