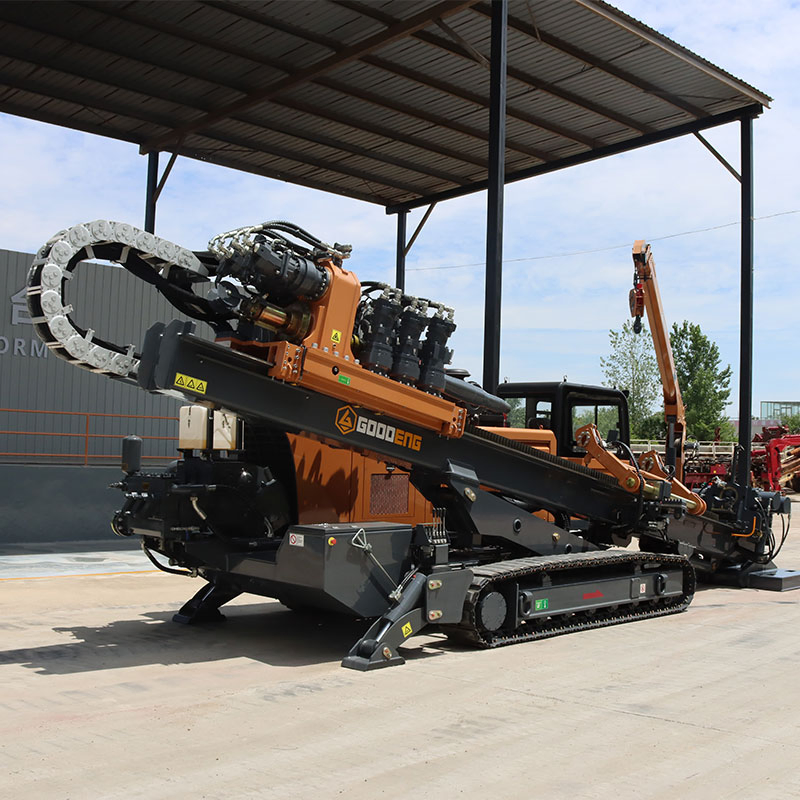

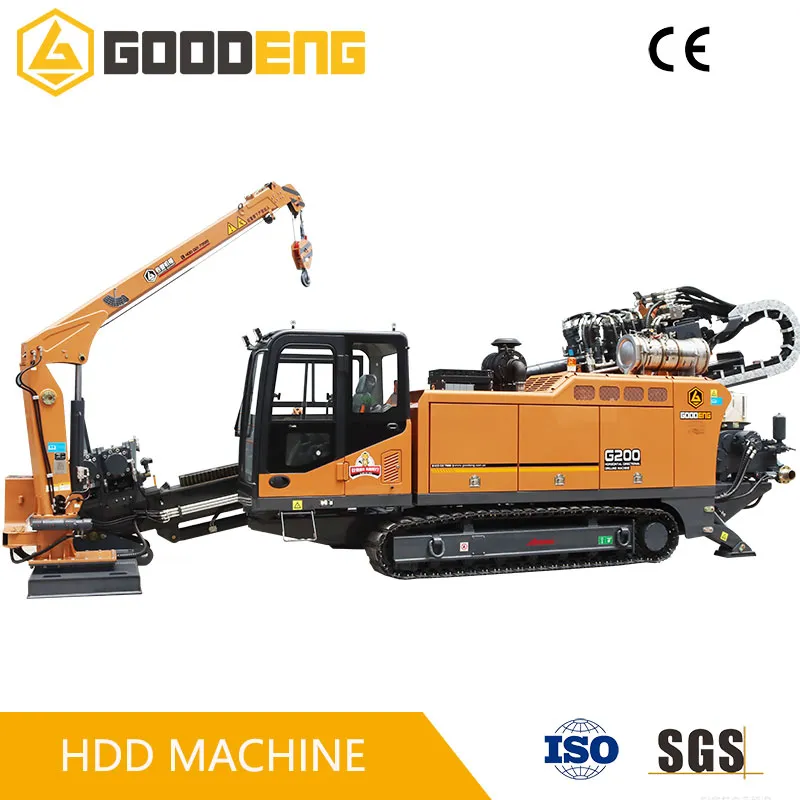

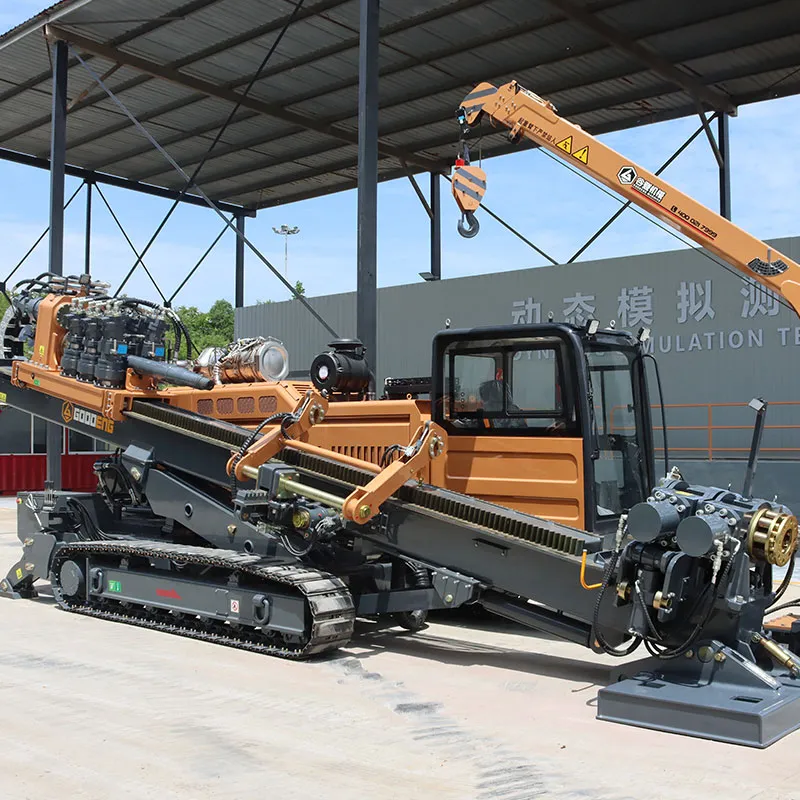

G200 HDD RIG drilling machine for urban construction

Customization:	Available
After-sales Service:	provided
Warranty:	provided

📋 Basic Information

Model NO.	G200	Certification	CE, ISO 9001:2000, ISO 9001:2008
Condition	New	Drill Hole Diameter	ϕ55 in
Drill Hole Depth	≤2952ft	Bit Type	Drag Bit
Drilling Way	Rotary	Type	Crawler
HS Code	84305090	Production Capacity	100/Year

🚜 Product Description

High-performance Horizontal Directional Drilling Machine

Horizontal directional drilling machine is mainly used for railways, highways, rivers, buildings, and other specific places for underground laying and repairment of cables and pipelines.

⚙

Engine: 5 stage Cummins diesel engine (Tier 4/EU 5)

💺

Cab: Rotatable cab with A/C, Broad Vision, large space and adjustable seat

📥

Auto Rod Loading: Rod can be loaded automatically for high efficiency

💻

Control System: Fully electronic control + PLC intelligent program control system

📈 Key Advantages

✔ Minimal Surface Disruption

✔ Reduced Environmental Impact

✔ Greater Installation Depths and Lengths

✔ Faster Installation in Specific Scenarios

✔ Lower Restoration Costs

✔ Enhanced Safety & Reduced Social Impact

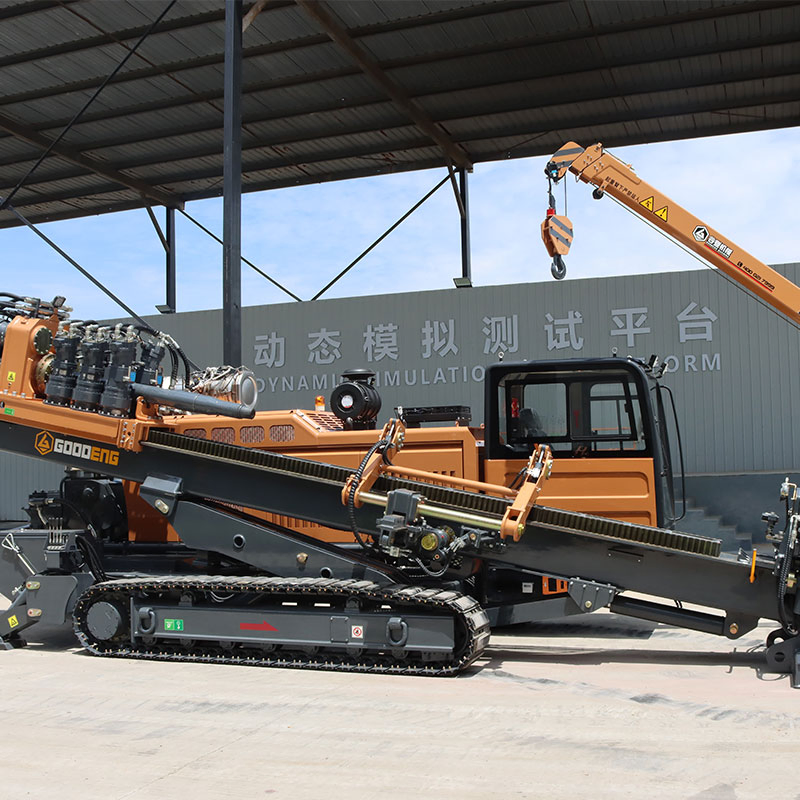

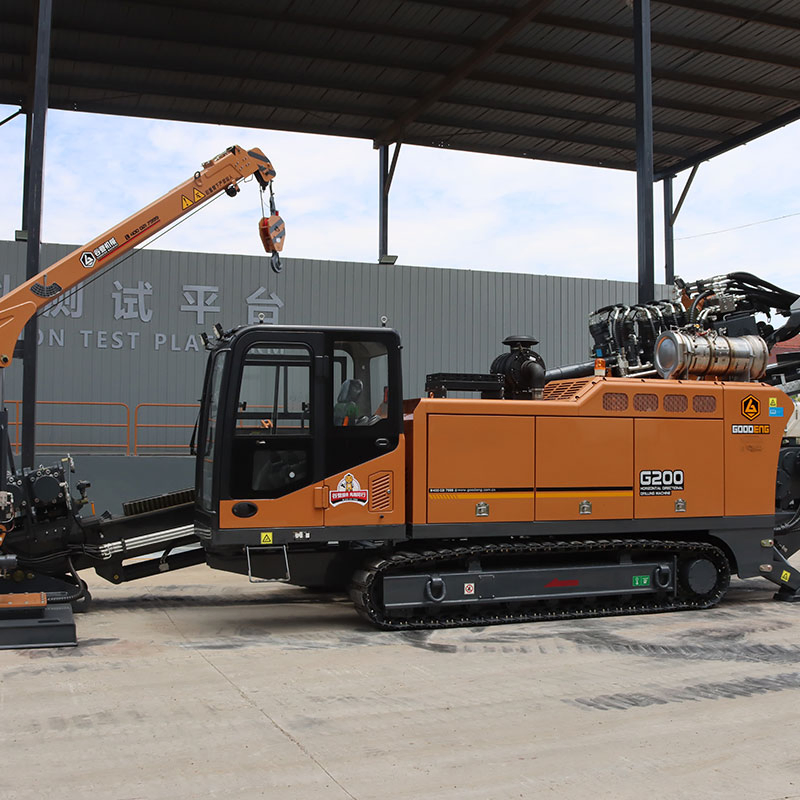

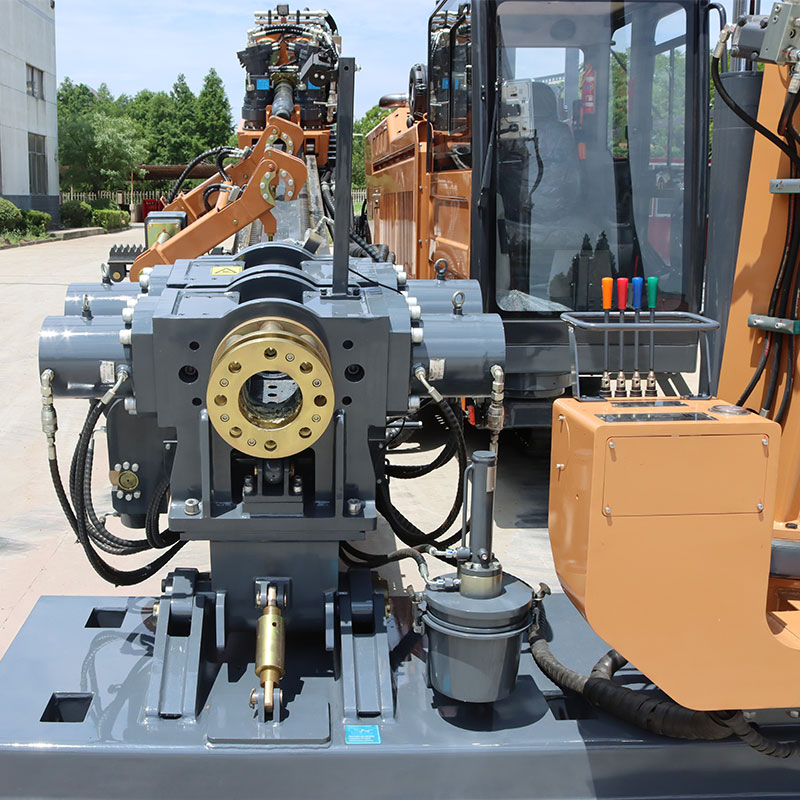

📷 Machine Details

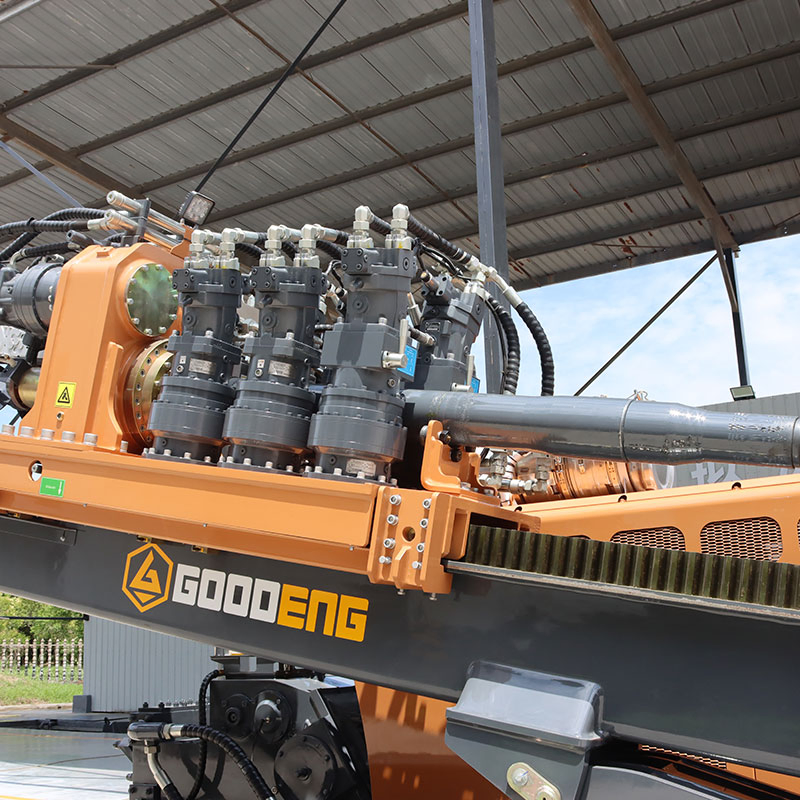

Precision Engineering

Robust Structure

Advanced Control

📖 Technical Specifications

Rig Weight	37478lb	Dimension (L×W×H)	420×104×96 in
Max. Thrust & Pullback	186591/281011 lbf	Max. Speed	177ft/min
Max. Torque	26035ft·lbf	Max. Rotation Speed	102 r/min
Engine Power	296hp	Max. Mud Pump Flow	175GPM
Entry Drill Angle	19°	Walking Speed	0-3.1 mile/h
Drill Rod Size	4×177.16in	Suggest Reaming Dia.	≤55in

🛠 Service & Support

Standard Warranty: 12 months or 2,000 operating hours.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

Customization: OEM/ODM capabilities and project-specific solutions.

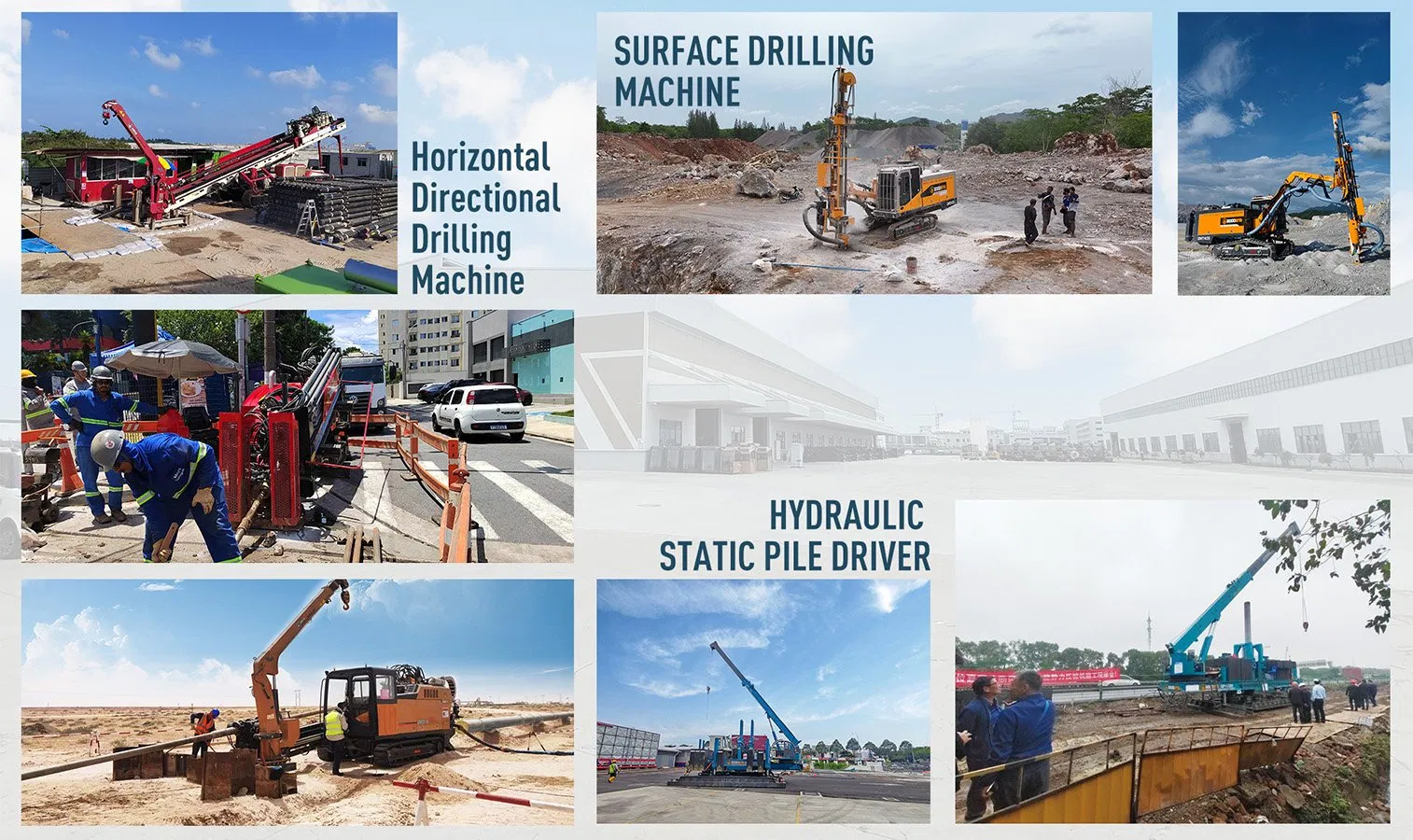

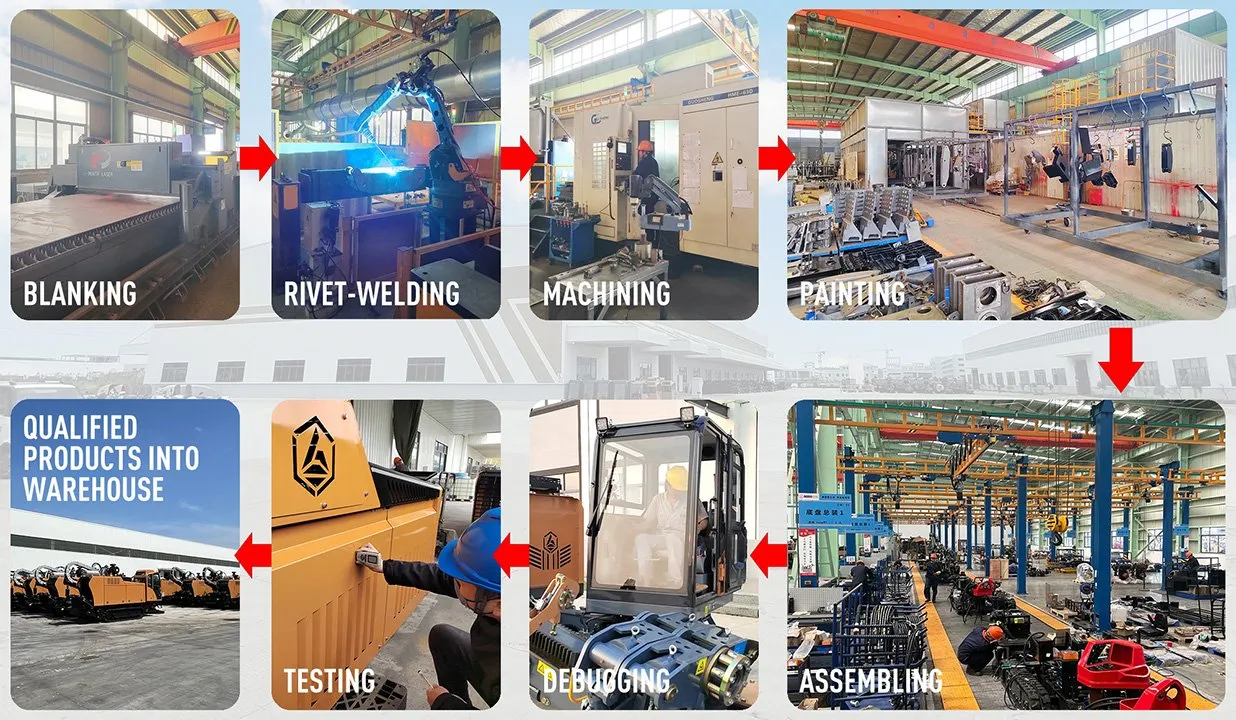

🌍 Global Presence & Exhibition

❓ Frequently Asked Questions

Q: What is the typical lead time for orders?

A: Standard models are usually shipped within 10–20 days, while customized units typically require 30–45 days depending on specifications.

Q: Is overseas after-sales service available?

A: Yes, we provide comprehensive global support through partnered service centers in key regions to ensure minimal downtime.

Q: Can technical parameters be customized?

A: Absolutely. We offer tailored attachments, different bucket sizes, and configuration adjustments to meet specific project requirements.

Q: What documentation is provided for international export?

A: We provide a full export documentation package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Origin (CO).

Q: What is the standard warranty period for the G200?

A: The standard warranty covers 12 months or 2,000 operating hours, with optional extended coverage available up to 36 months.

Q: How can I initiate a purchase or request a quote?

A: You can reach out via our official contact channels with your requirements, and our team will provide a detailed quotation and technical consultation.
