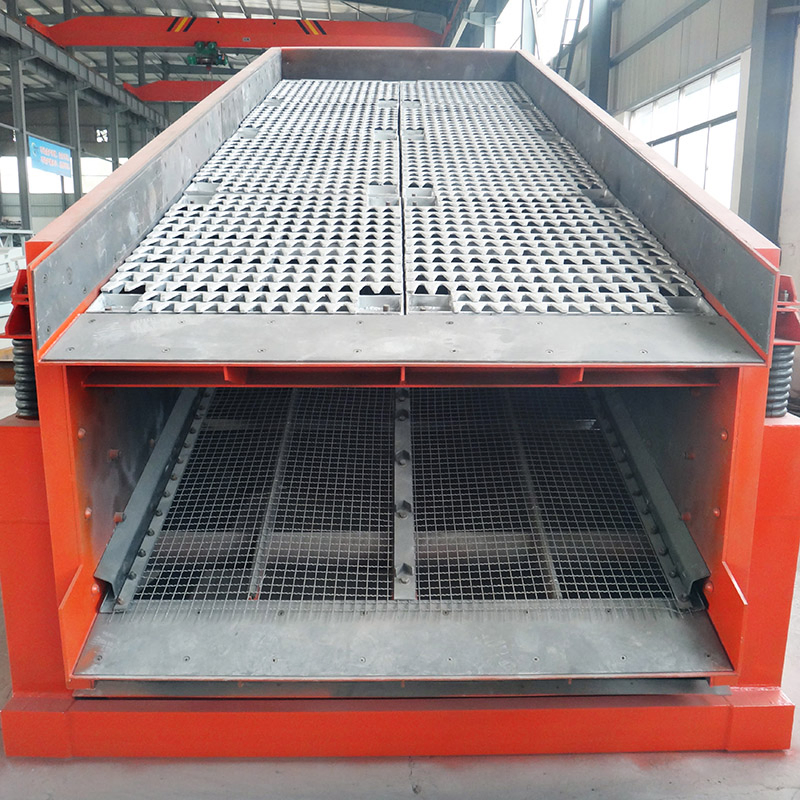

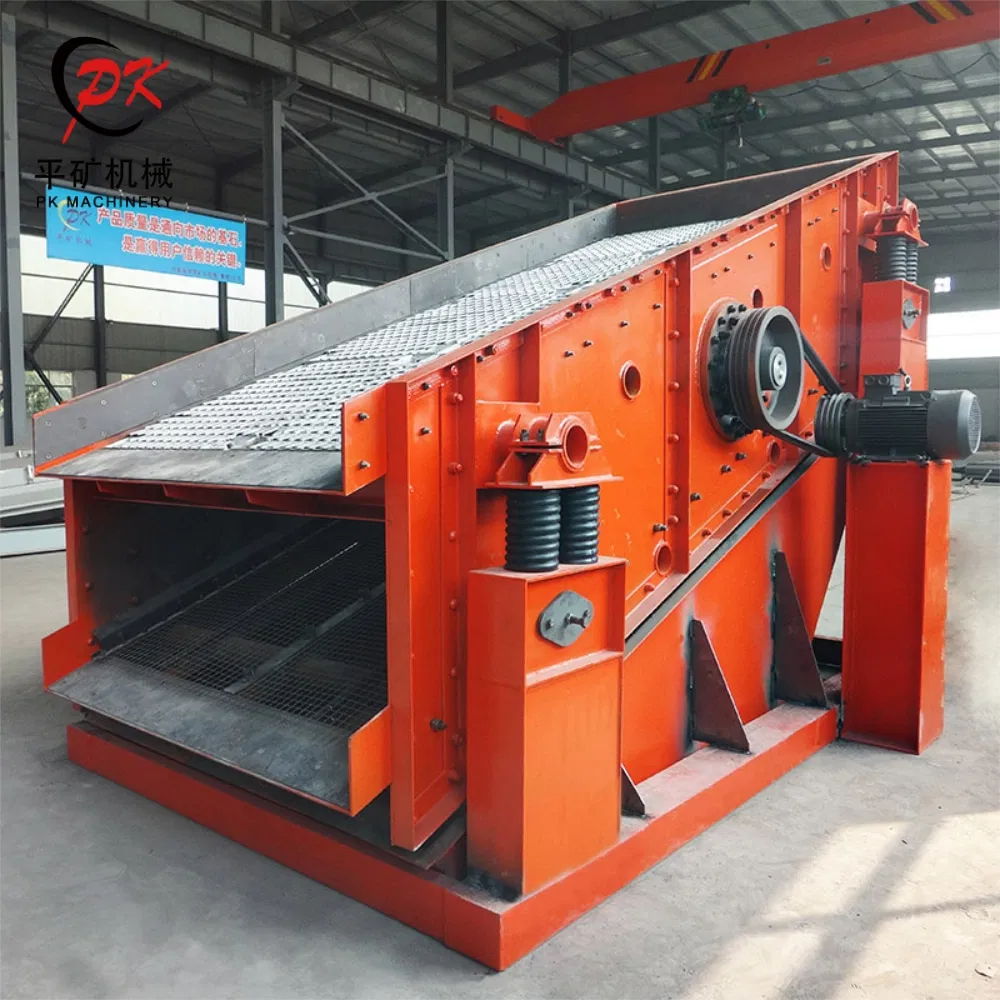

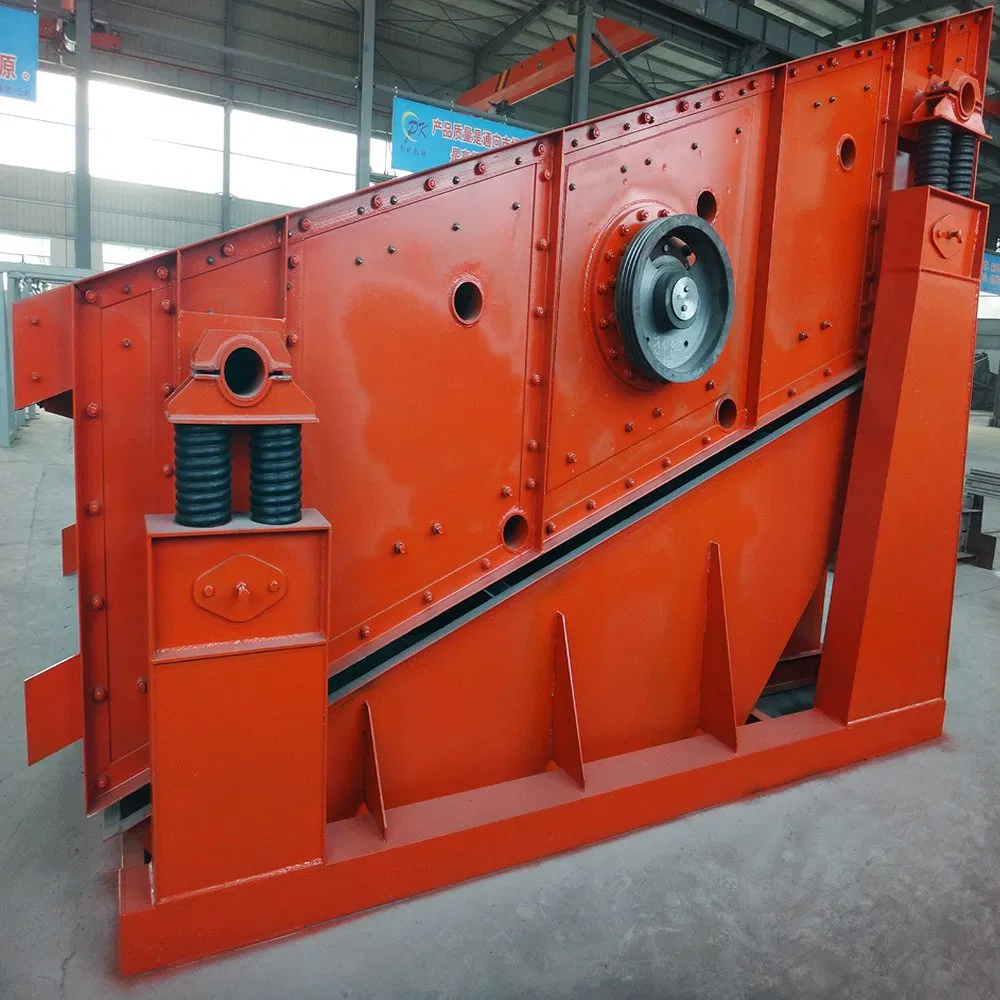

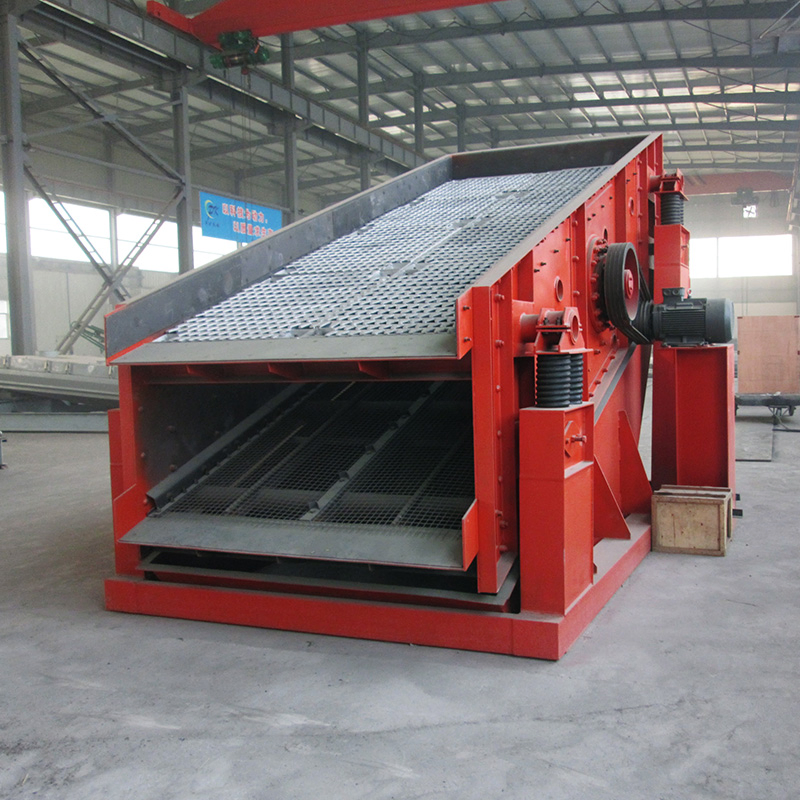

Mining Machine Equipment Vibrating Sieve Vibration Machine Screen Vibrating Screen

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
YA/YK
Structure
Vibrating Screen
Usage
Mine, Experiments, Lightweight Fine Shaker
Works
Rotary Vane Shaker
Running Track
Circular Vibrating Screen
Supporting Device
Rubber Spring
Warranty
1 Year
Condition
New
Certificate
ISO/CE
Lining Material
16mn, Wear/Heat Resistant Steel
Layer
Multi-Layer
Slope Angle
20°
Vibrating Screen 1

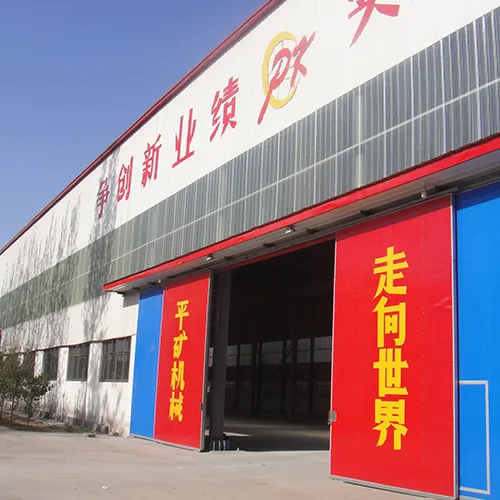

Vibrating Screen 2
🏭 About Our Manufacturing

As one of the professional bulk material handling equipment manufacturers, our philosophy is to manufacture cutting-edge products along with comprehensive and close-to-customer services. We are committed to researching, developing, engineering, manufacturing, and selling screening equipment, conveying equipment, lifting equipment, and feeding equipment.

These products are widely applied in mining, metallurgy, coal, chemical, thermal power, building materials, food, pharmaceuticals, and other industries. With a series of highly sophisticated production equipment, we have set up an international standard equipment production line, featuring modern workshops for screening, conveying, lifting, and machining.

🔍 Product Description
Introduction

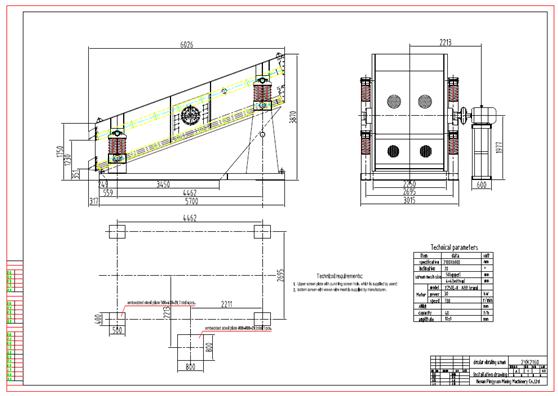

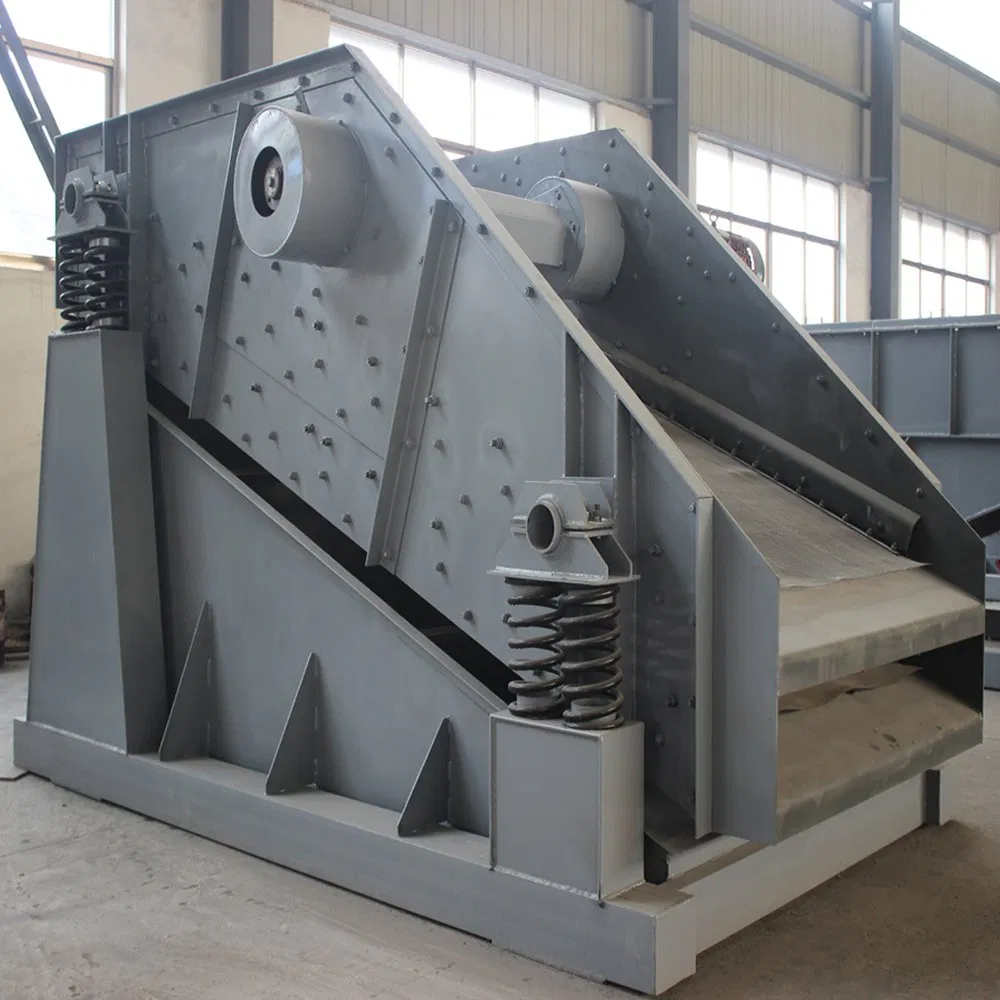

Introduction: Circular Vibrating Screen is a kind of new and highly effective vibrating screen which can be designed with multiple layers. It is composed of a screen box, screen mesh cloth, suspension (or support) device, bottom frame, and motor. Circular vibrating sieve is available for smelting, quarry, coal preparation, ore dressing, energy, power, chemical, and construction material industries.

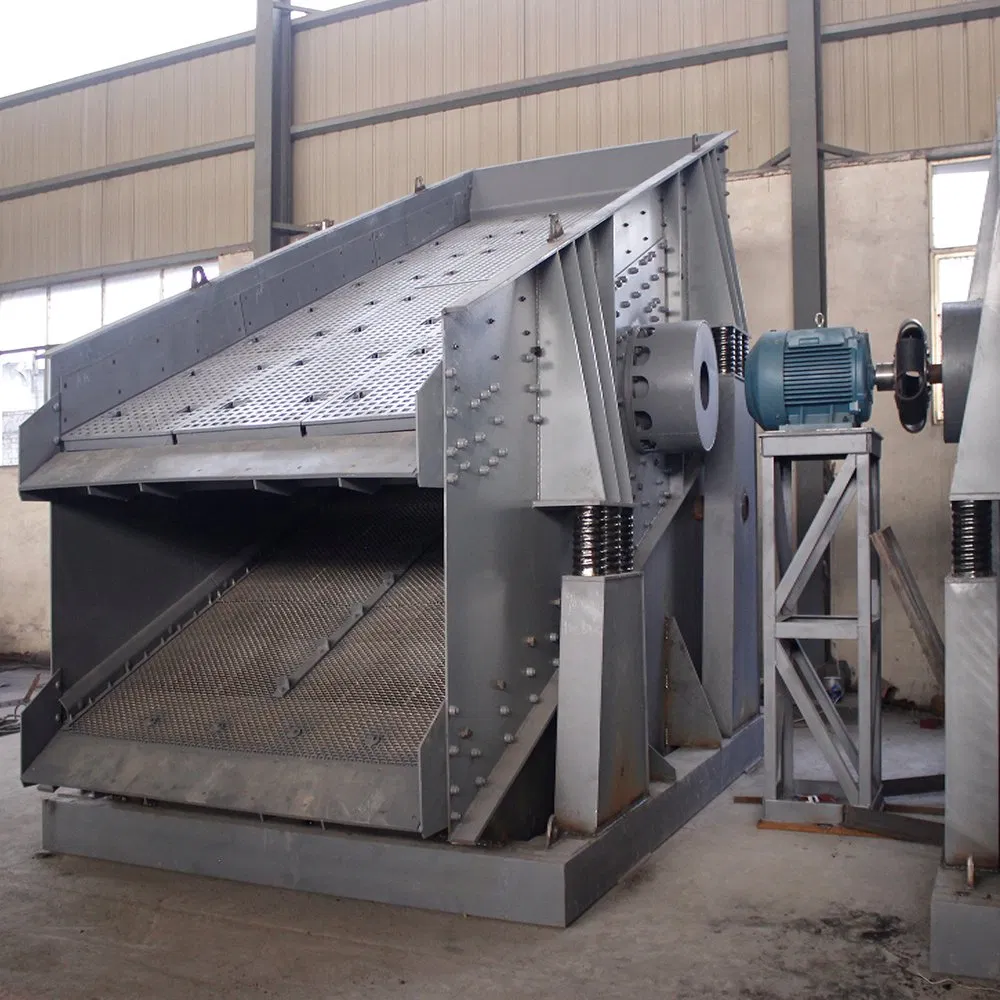

Detail 1
Detail 2

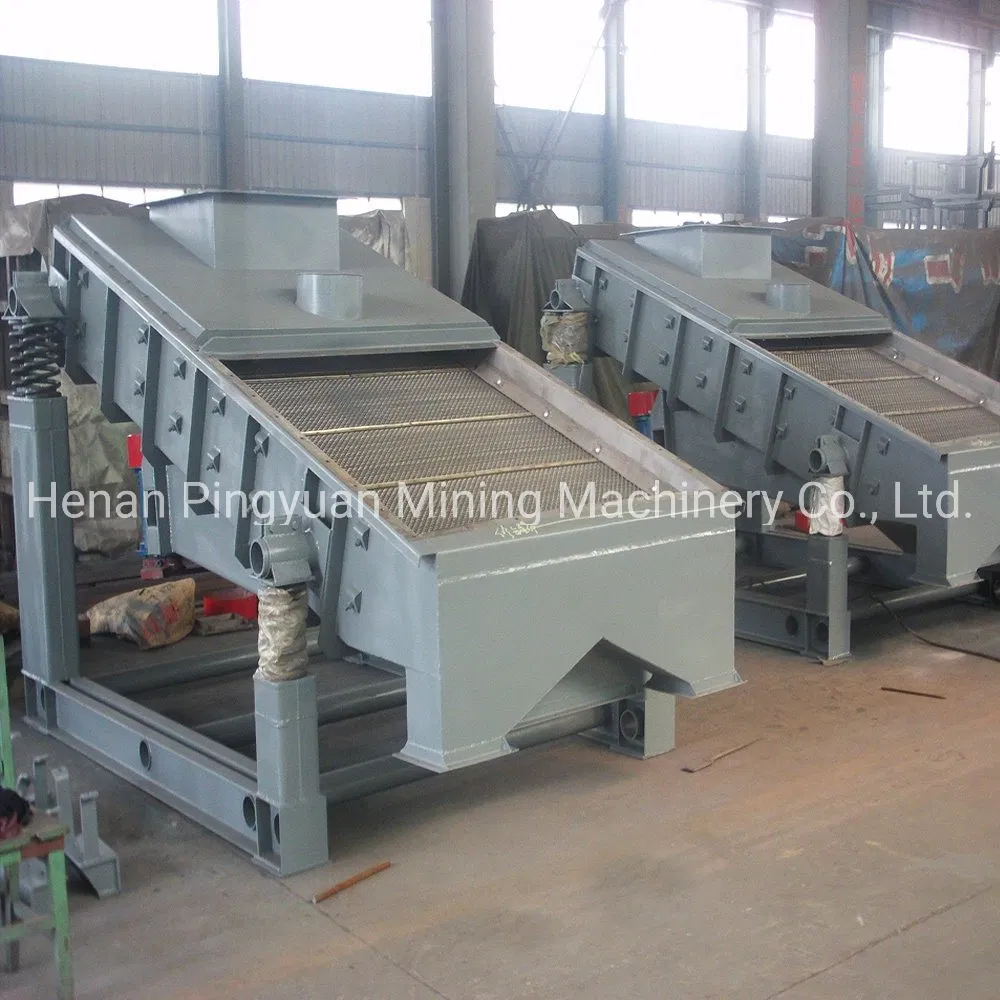

Detail 3
Product Superiority
Simple structure, easy maintenance, stable operation, high production yields.
Adopt punching sieve or steel sieve mesh in order to prevent blockage.
Sieve beam and screen box adopts high strength bolt connection, no welding processing.
Adopt perforated sieve plate to prolong mesh service life and prevent mesh blockage.

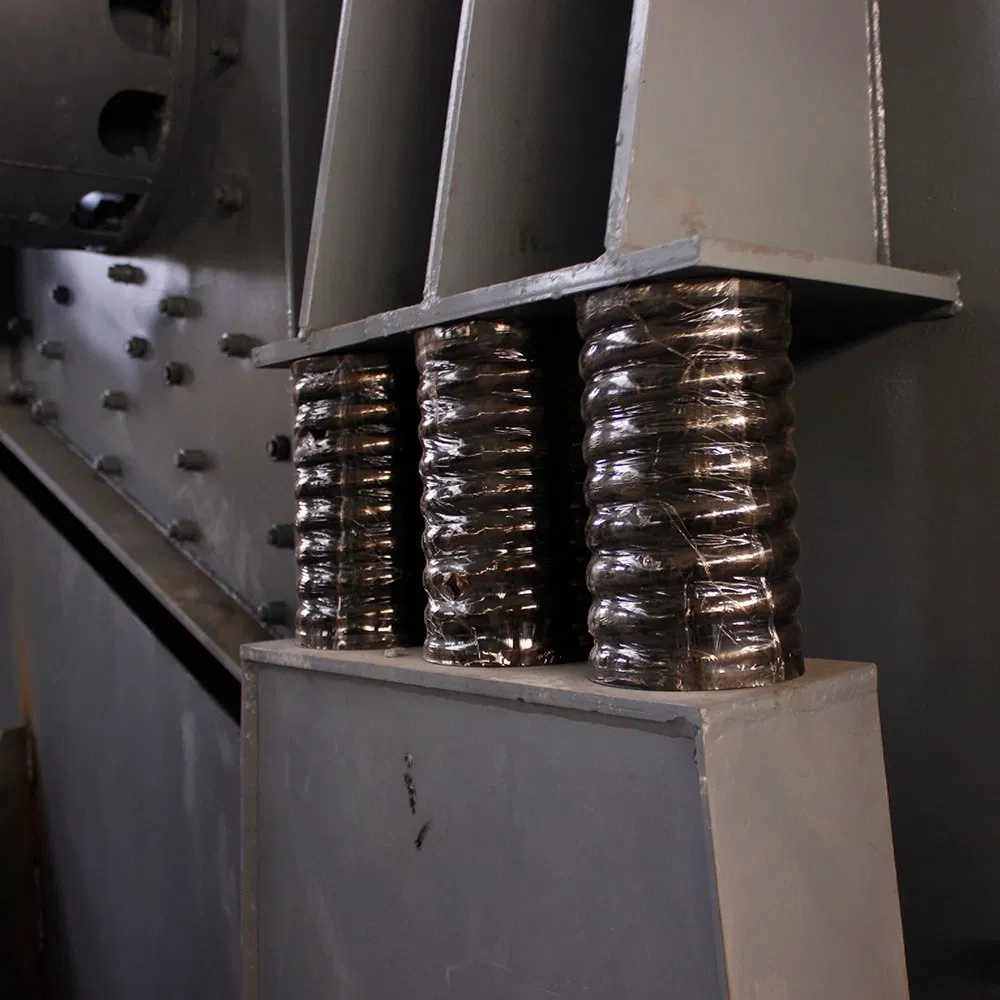

Rubber vibration spring to reduce noise pollution and provide smooth vibration operation.
Large dip angle structure enables high screening efficiency and handling capacity.
Hooked riveting with lock rivet, advanced structure; sturdy and durable.

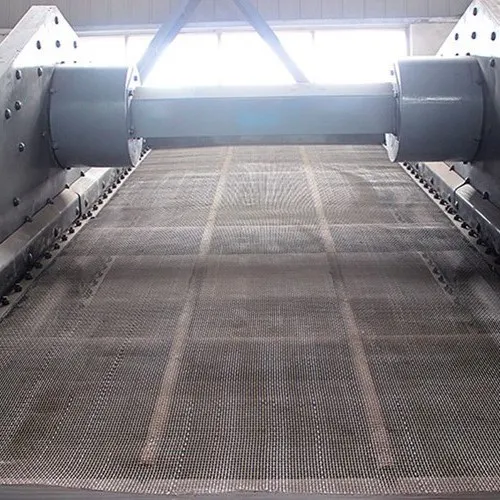

Superiority 1
Superiority 2
Get a price at once!
📊 Product Parameters
Model Layer Area (mm) Angle Aperture (mm) Max Size (mm) Capacity (t/h) Frequency (rpm) Amplitude Power (kW)
YA123611200*360020°6-50≤20080-2408459.511
2YA123621200*360020°6-50≤20080-2408459.511
YA153611500*360020°6-50≤200100-3508459.511
2YA154821500*480020°6-50≤200120-4208459.515
YA216012100*600020°3-80≤200230-8007489.518.5
🚀 Our Advantages
Experience
Established in 1995
Factory Area
88,400 m²
Global Reach
140+ Countries
Team
200+ Employees
Advantage 1
Advantage 2

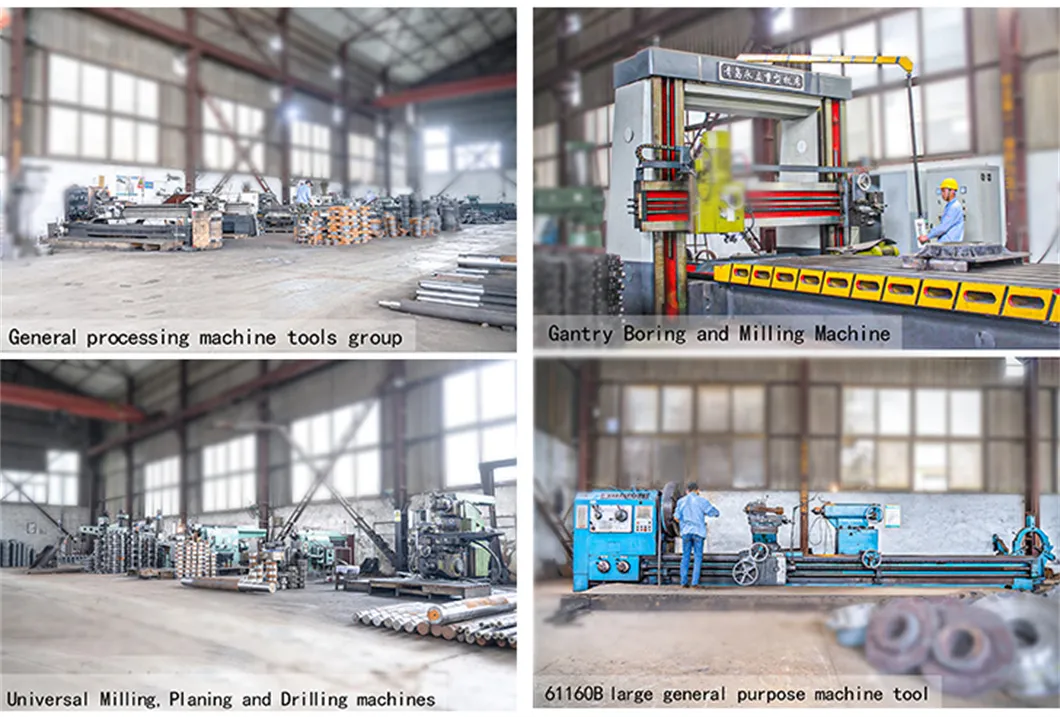

📸 Producing Spot
Spot 1

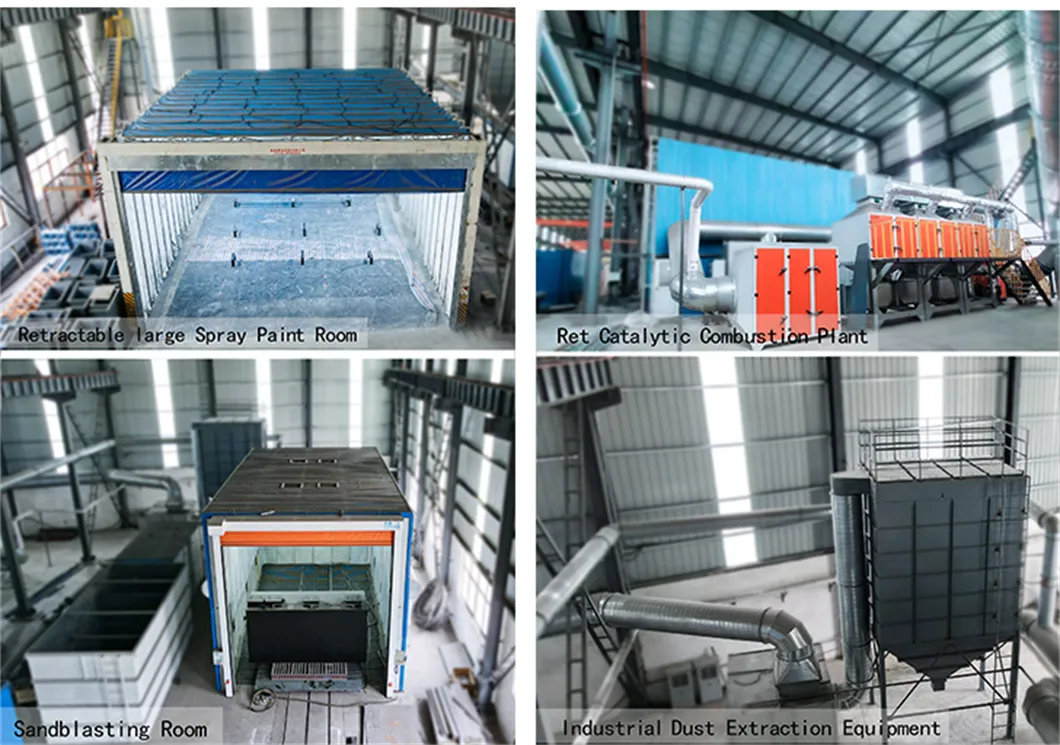

Spot 2

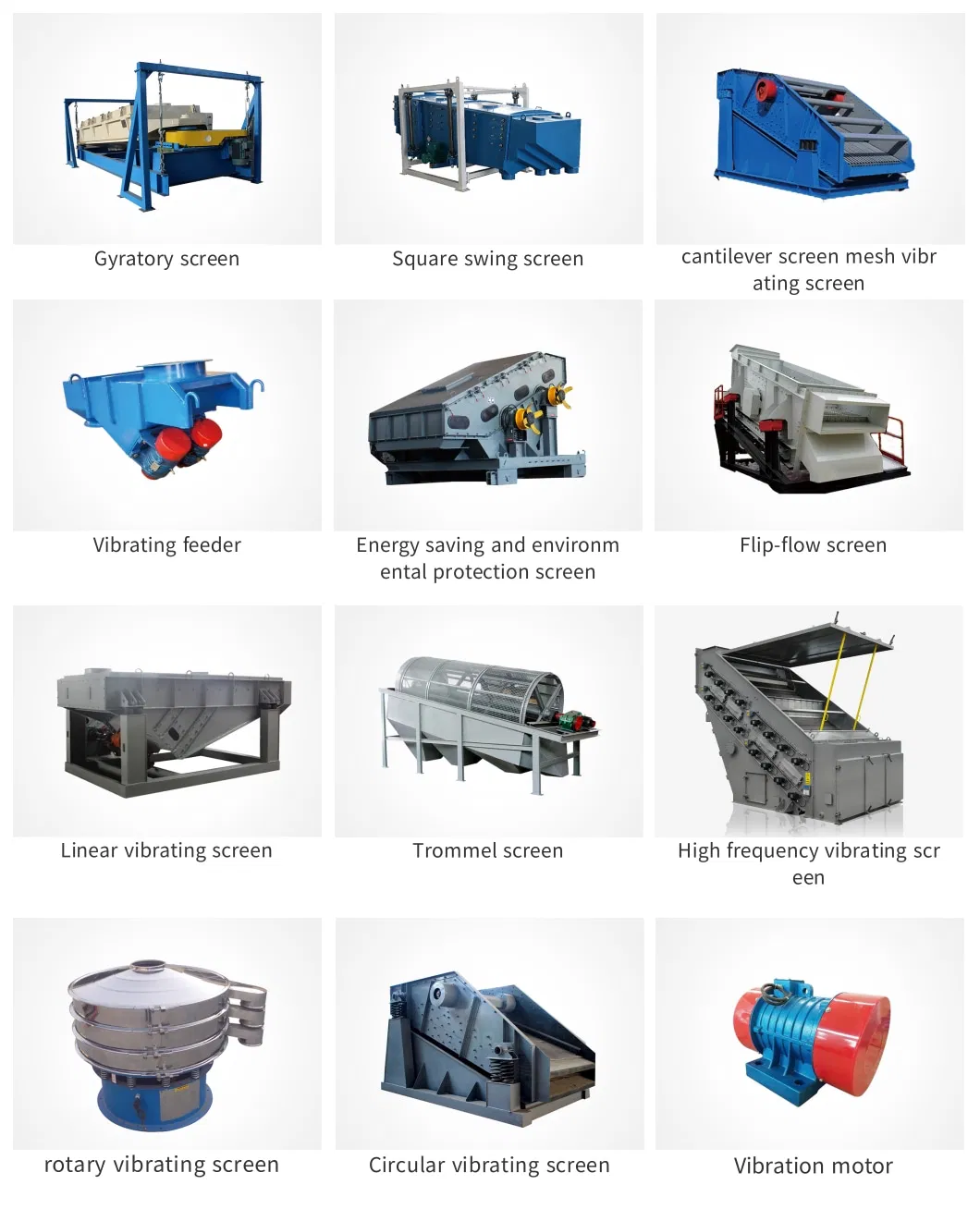

Equipment 1
Equipment 2
Frequently Asked Questions
1. What materials can the Circular Vibrating Screen process? It is widely used for screening metallic and non-metallic ores, coal, chemical materials, and construction aggregates.
2. How many layers can be configured for this equipment? The equipment supports multi-layer designs, allowing for simultaneous sorting of different particle sizes.
3. What kind of screen mesh is available? We offer both punching sieve plates and woven steel mesh to suit different material characteristics and prevent blockage.
4. How does the machine handle noise and vibration? We use high-quality rubber vibration springs which significantly reduce noise and ensure smooth, stable operation.
5. Is the equipment customizable for specific project needs? Yes, we provide personalized configurations including different slope angles, motor brands, and lining materials like heat-resistant steel.
6. What is the typical warranty and service provided? The product comes with a 1-year warranty and we provide a one-stop after-sales service to ensure continuous operation.
