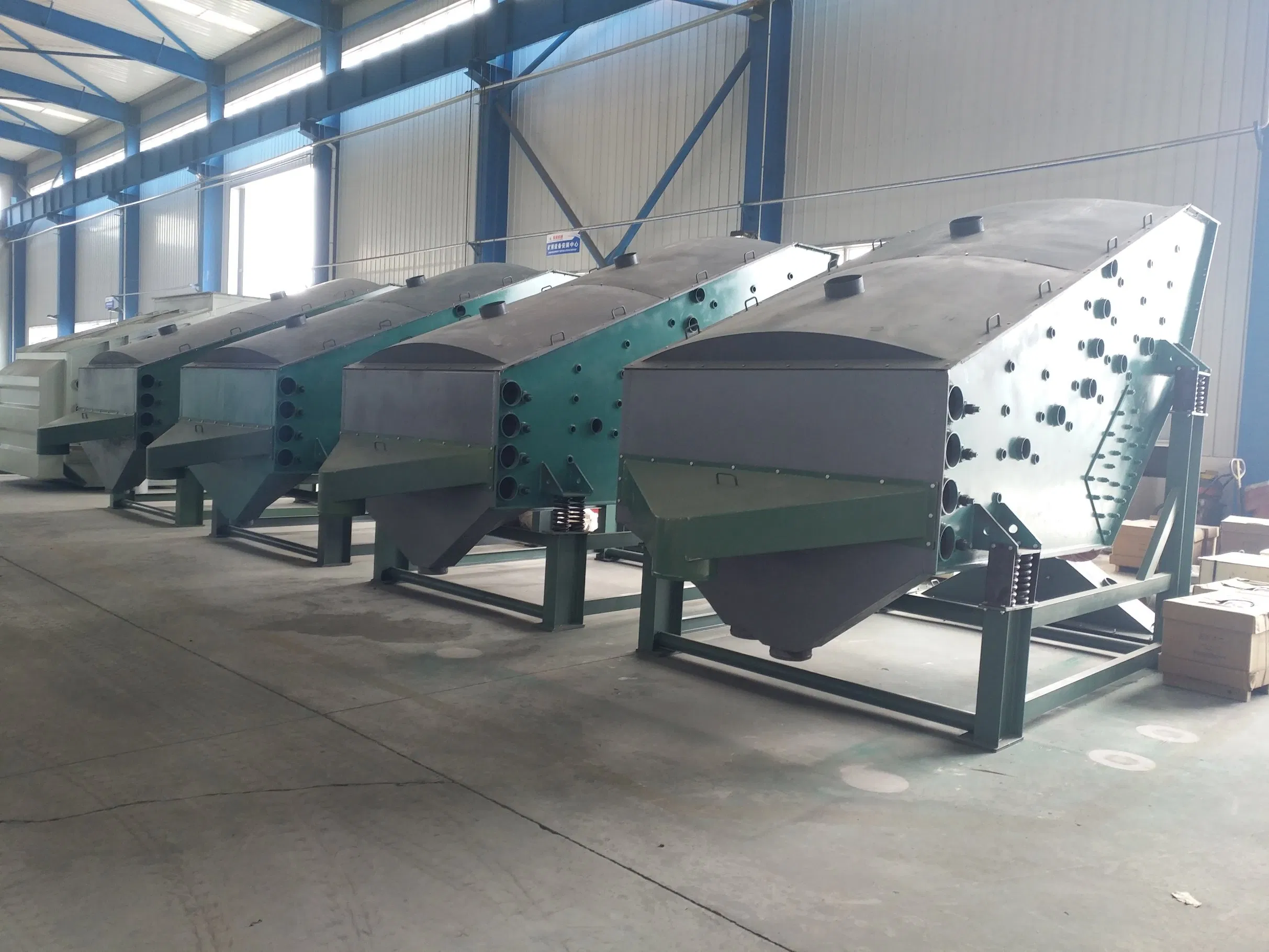

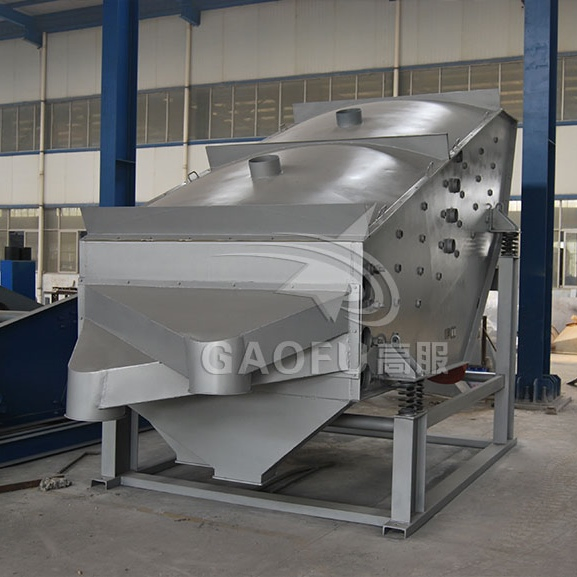

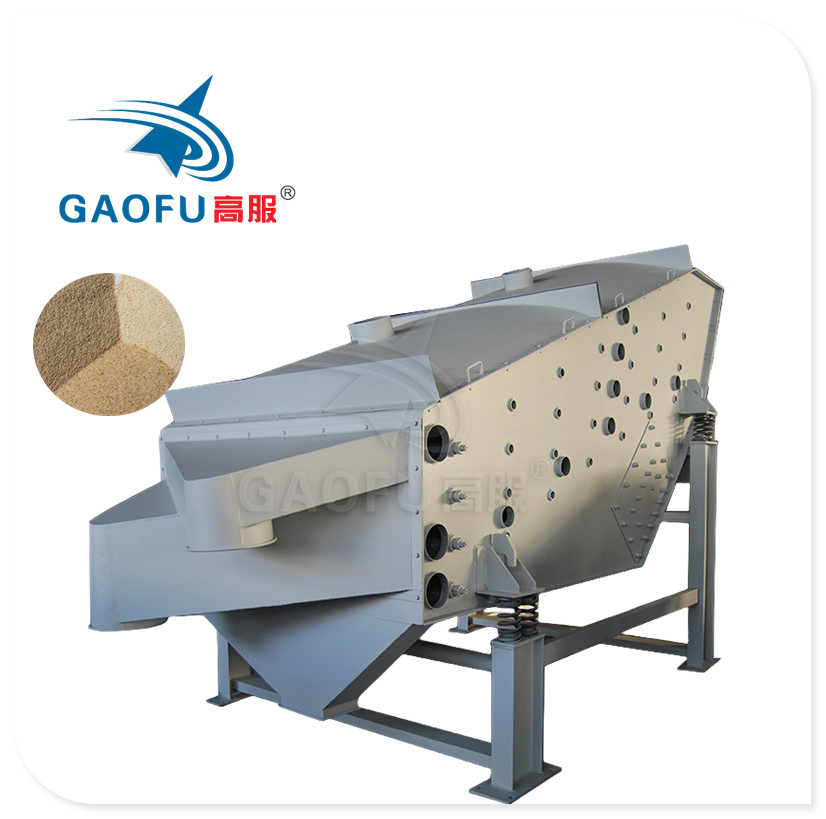

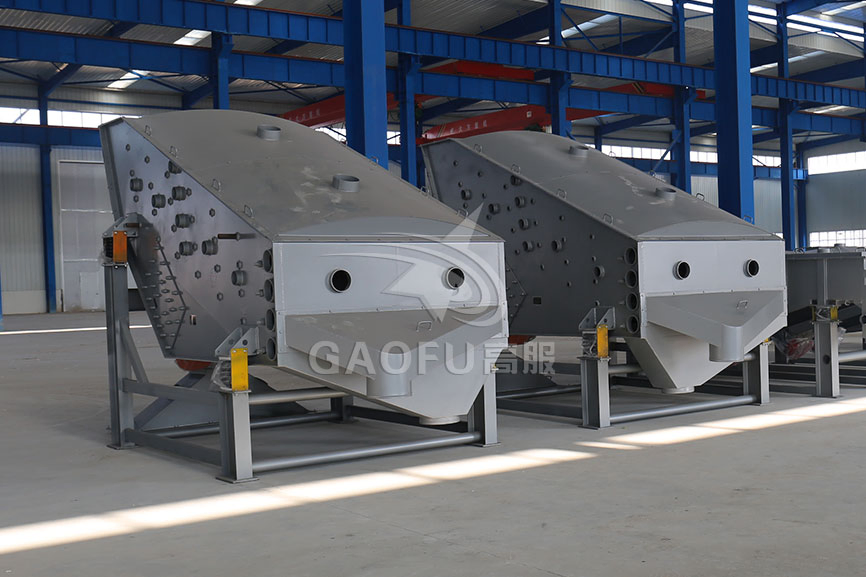

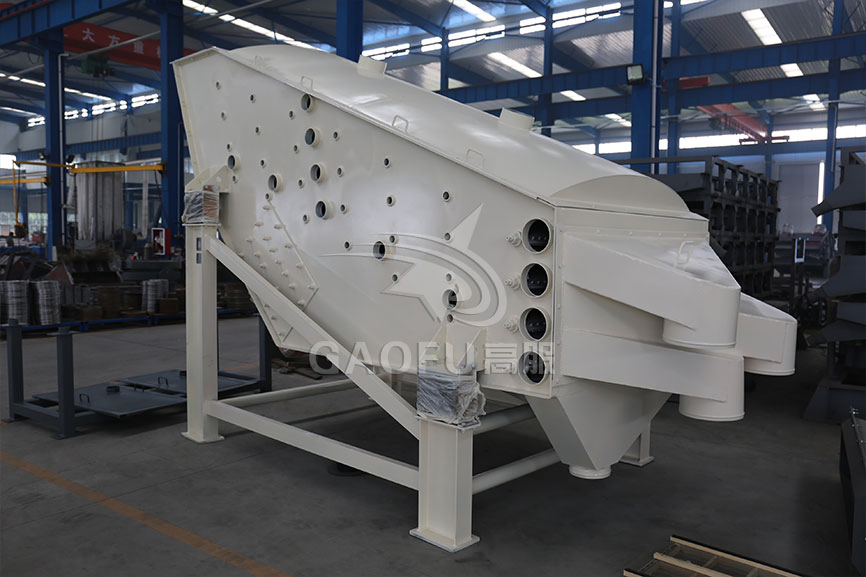

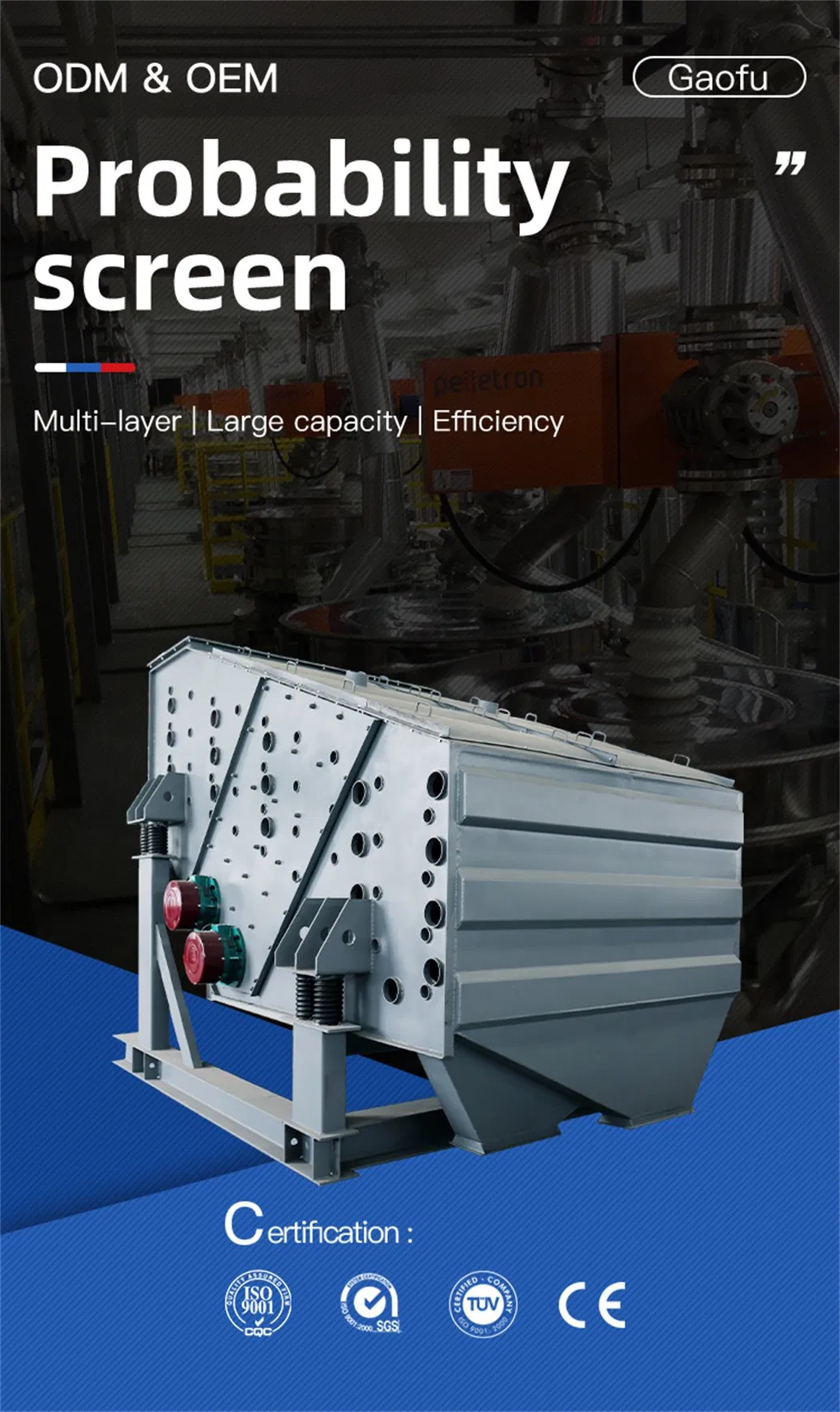

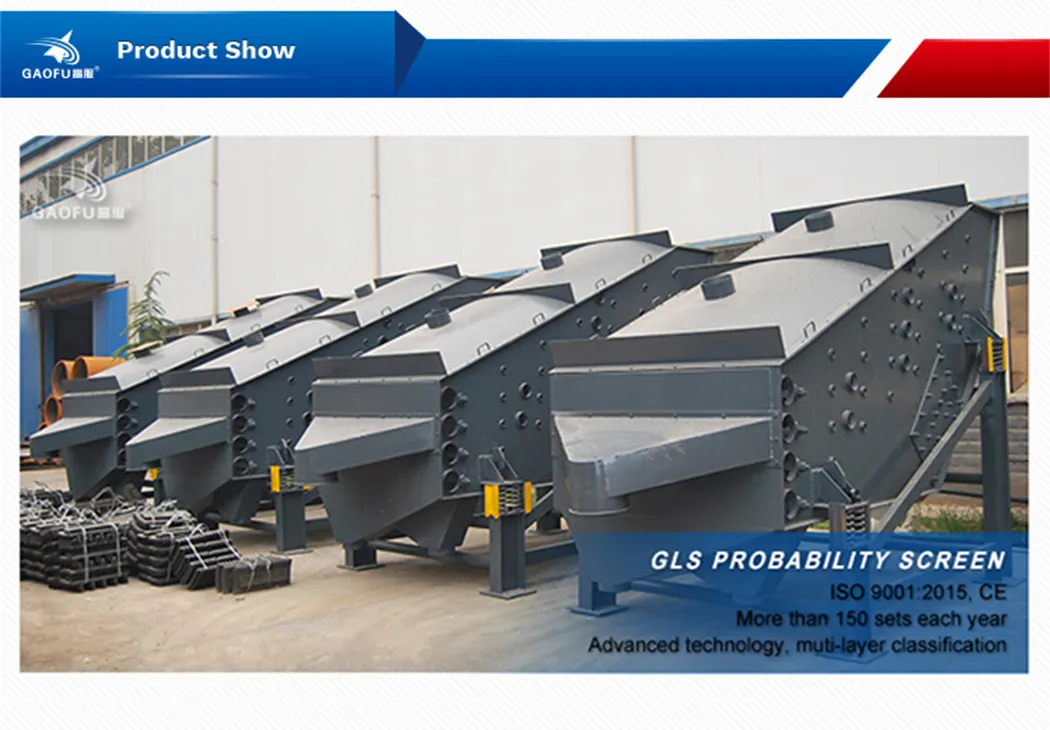

GLS SERIES PROBABILITY SCREEN
Probability sieve is a new type of high-efficiency screening equipment, featuring a linear running track for the screen box. This series successfully combines probability theory with engineering practice. Its brand-new design concept and screening principle achieve exceptional results across various applications.
Our GLS series probability sieve is optimized for high-efficiency classification in building materials, mineral processing, metallurgy, and chemical industries. Compared to ordinary sieves, this series offers significantly higher screening efficiency and a broader vision of application.
Working Principle:
The machine utilizes the principle of probability sieving, where the residence time of particles is inversely proportional to their size and weight. Particles much smaller than the cavity pass through quickly, while those closer to the cavity diameter stay longer. Two synchronized vibrating motors run in reverse to drive the screen box in a periodic directional motion, facilitating precise multi-layer separation.
| Model | Granularity (mm) | Power (KW) | Motor Model | Angle(°) | Amplitude(mm) | Layer(s) |
|---|---|---|---|---|---|---|
| GLS-1020 | 0.6~25 | 1.8*2 | YZO 25-6 | 22~38 | 6~8 | 2~5 |
| GLS-1225 | 0.6~25 | 2.2*2 | YZO 30-6 | 22~38 | 6~8 | 2~4 |
| GLS-1230 | 0.6~25 | 3.0*2 | YZO 40-6 | 22~38 | 6~8 | 2~4 |
| GLS-1536 | 0.6~25 | 3.7*2 | YZO 50-6 | 22~38 | 6~8 | 2~4 |
| GLS-2040 | 0.6~25 | 7.5*2 | VB 100756-W | 22~38 | 6~8 | 2~4 |

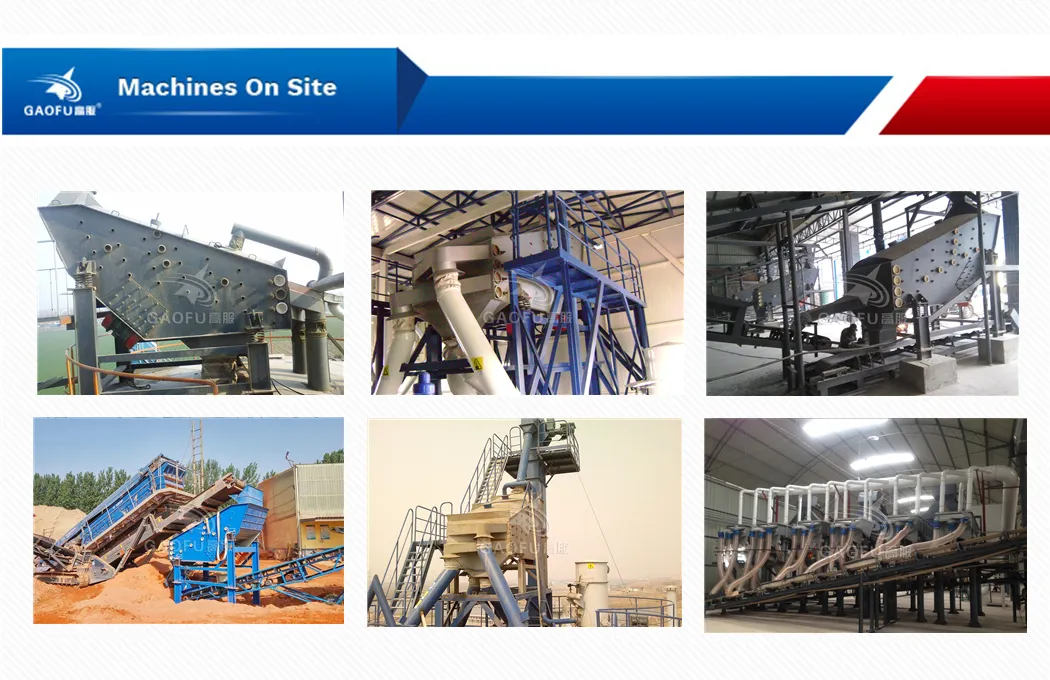

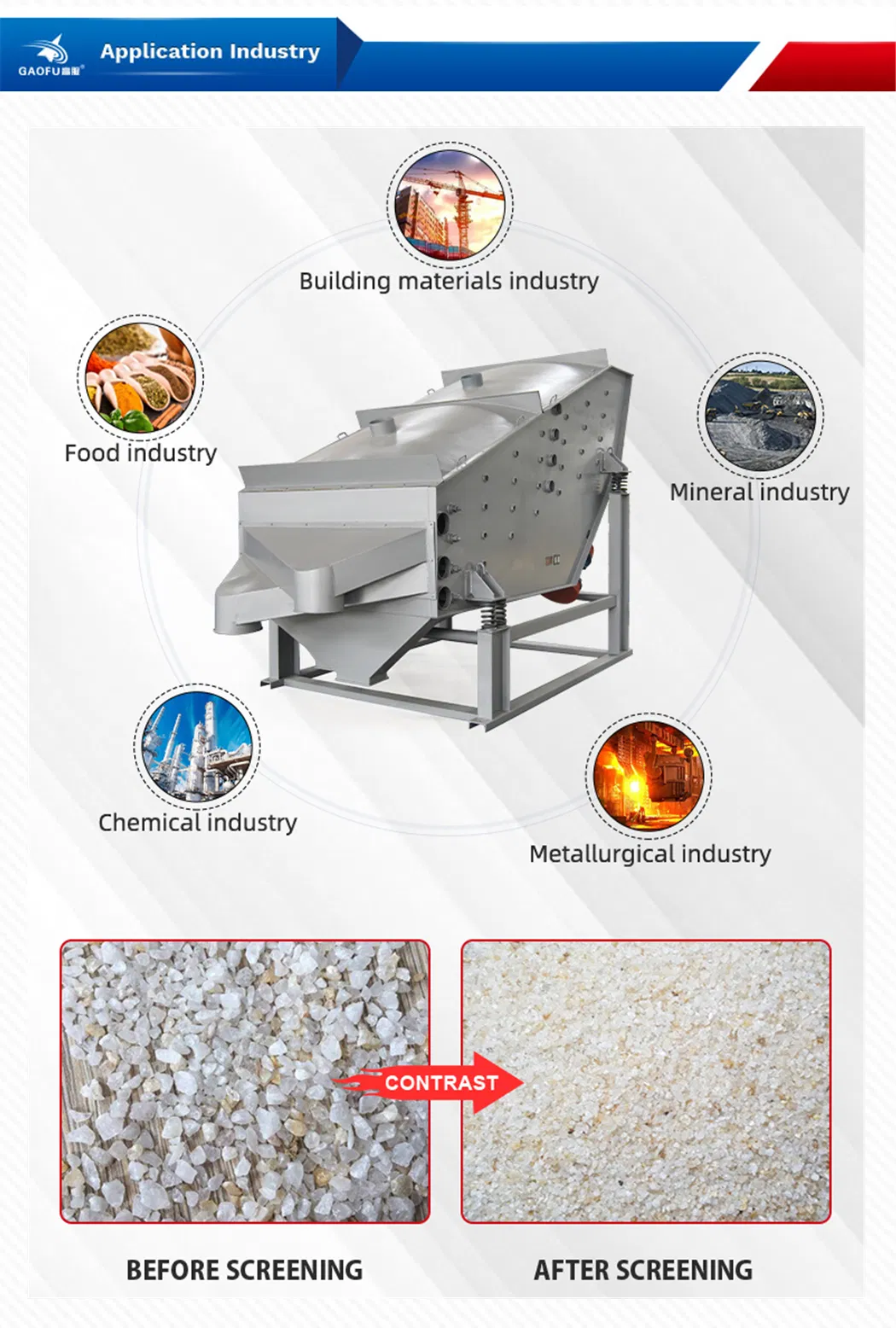

Scope of Application: Building materials, mineral processing, metallurgy, chemical industry, food processing.
Applied Materials: Dry powder mortar, machine-made sand, natural sand, quartz sand, perlite, dolomite, calcite, mineral powder, granular sugar, and crude salt.
Established in 1982, we have decades of expertise in screening technology. With a facility covering 60,000 square meters and over 400 employees, our solutions are exported to 128 countries and regions including Germany, Japan, and the USA. We hold ISO9001:2008, CE, and BV certifications.
