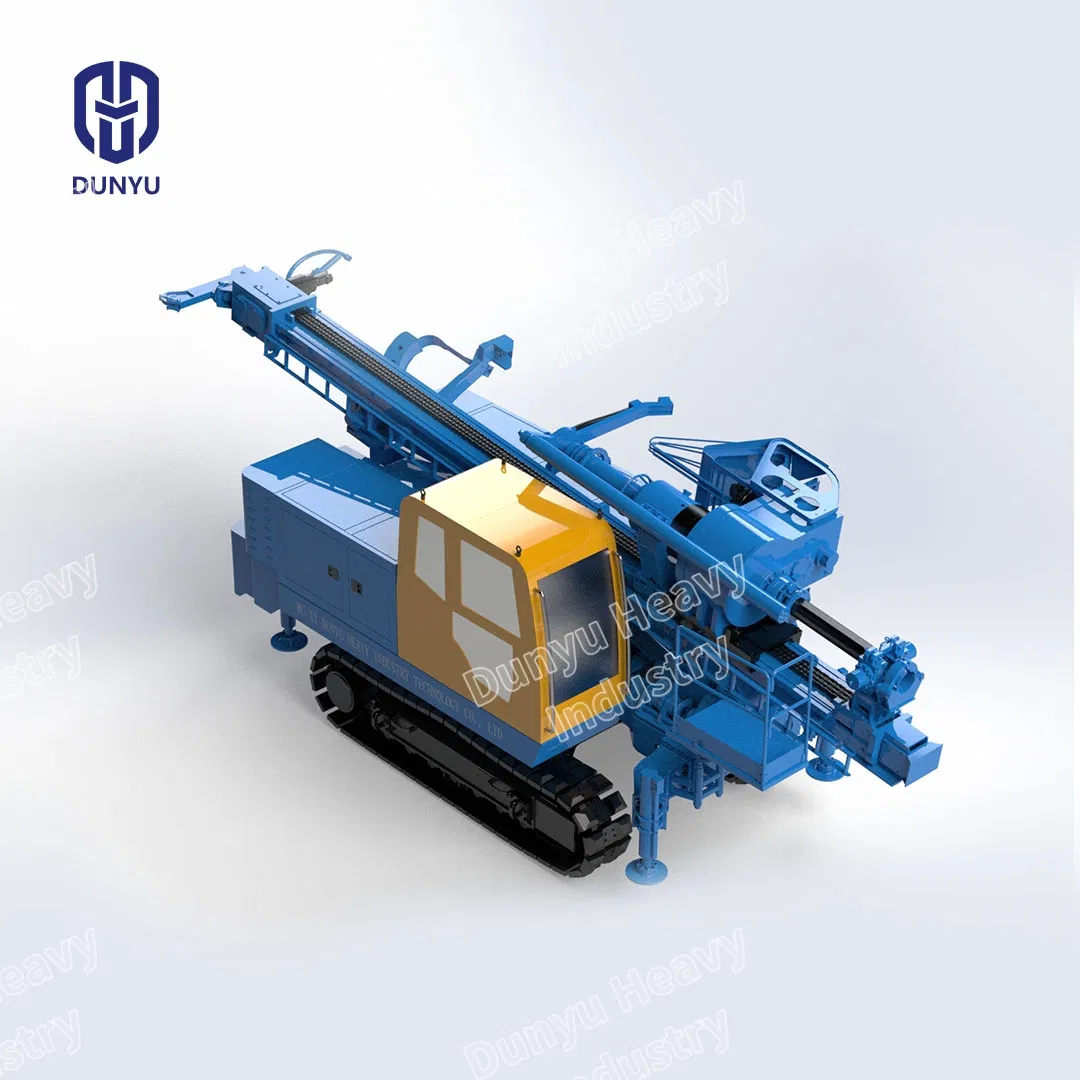

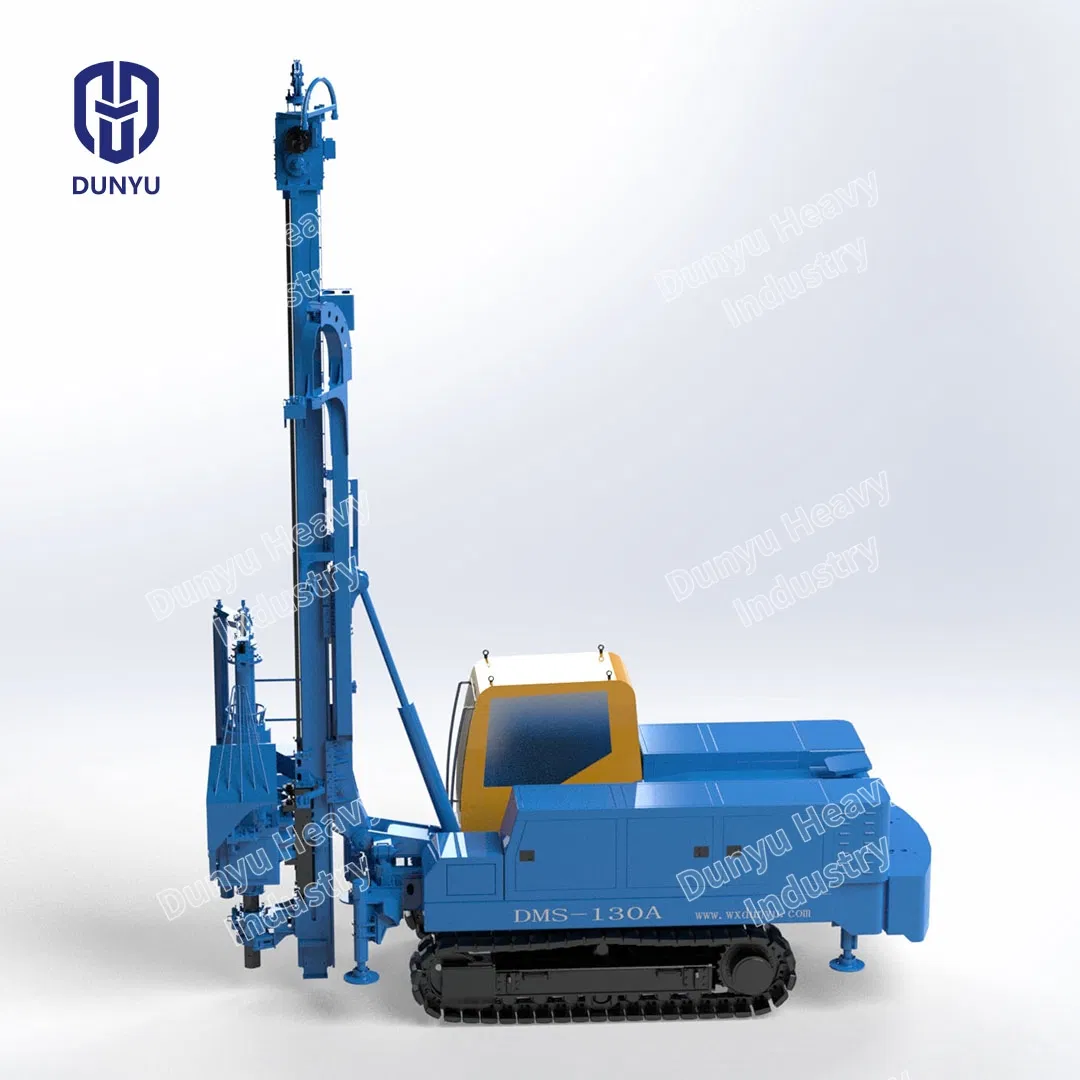

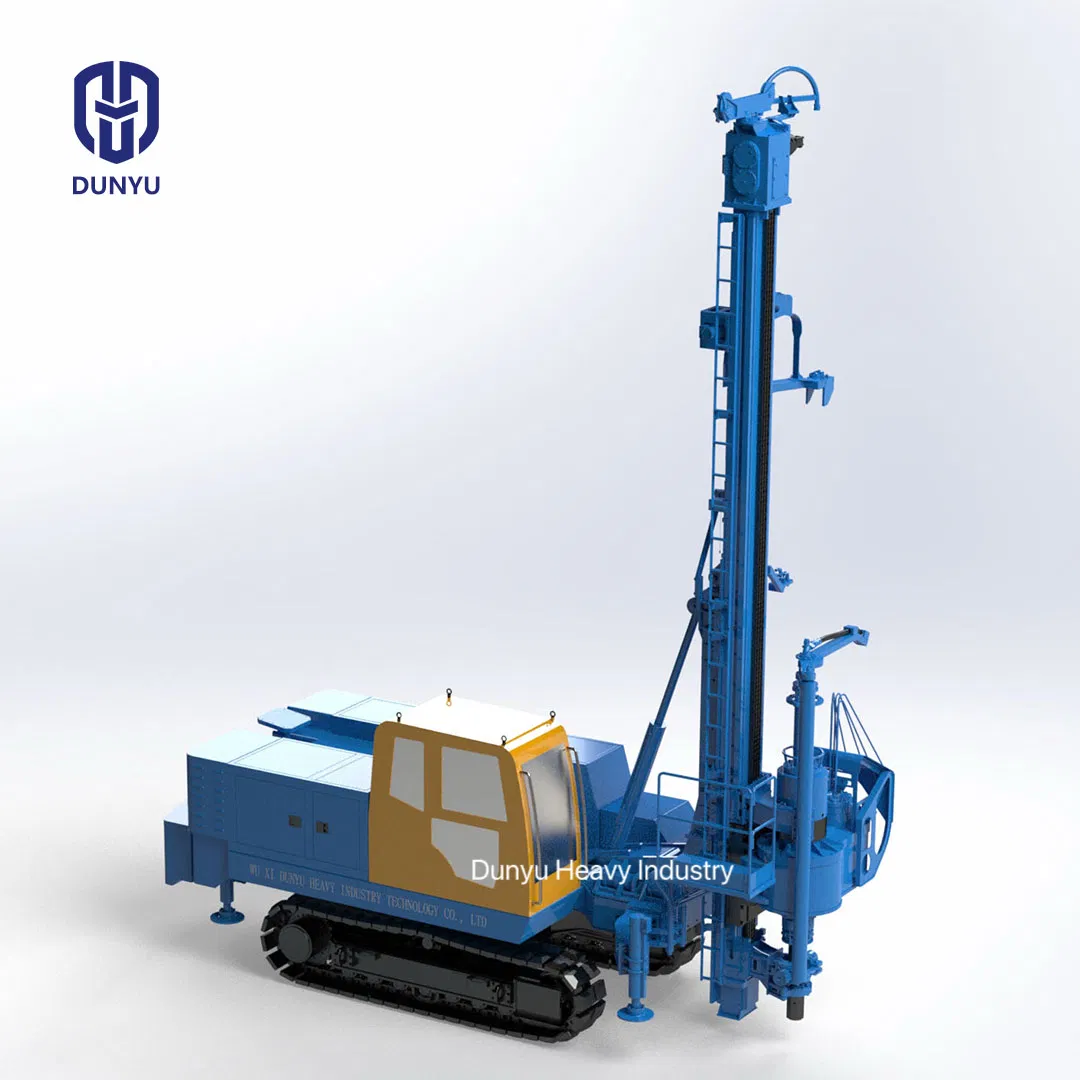

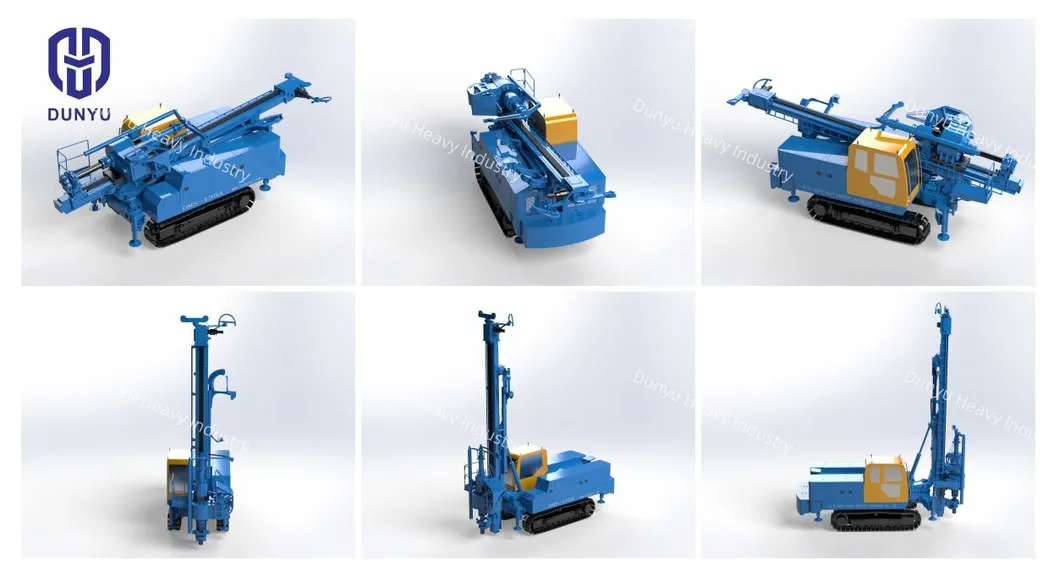

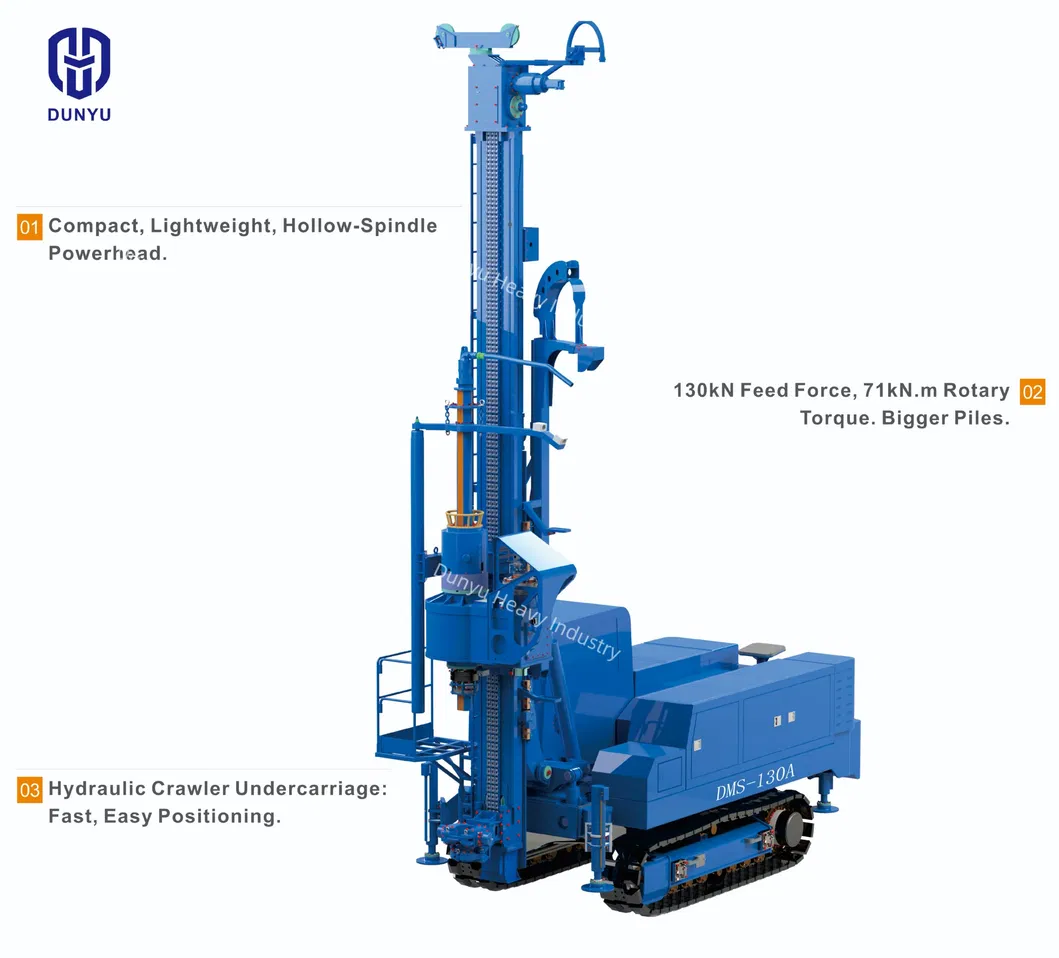

DMS-130A Multi-Functional Omni-Directional Micro-Disturbance Engineering Drilling Rig employs the IMS Method (In-situ Mixing System Method) - an innovative geotechnical technology specifically developed to address ground improvement challenges in complex urban environments.

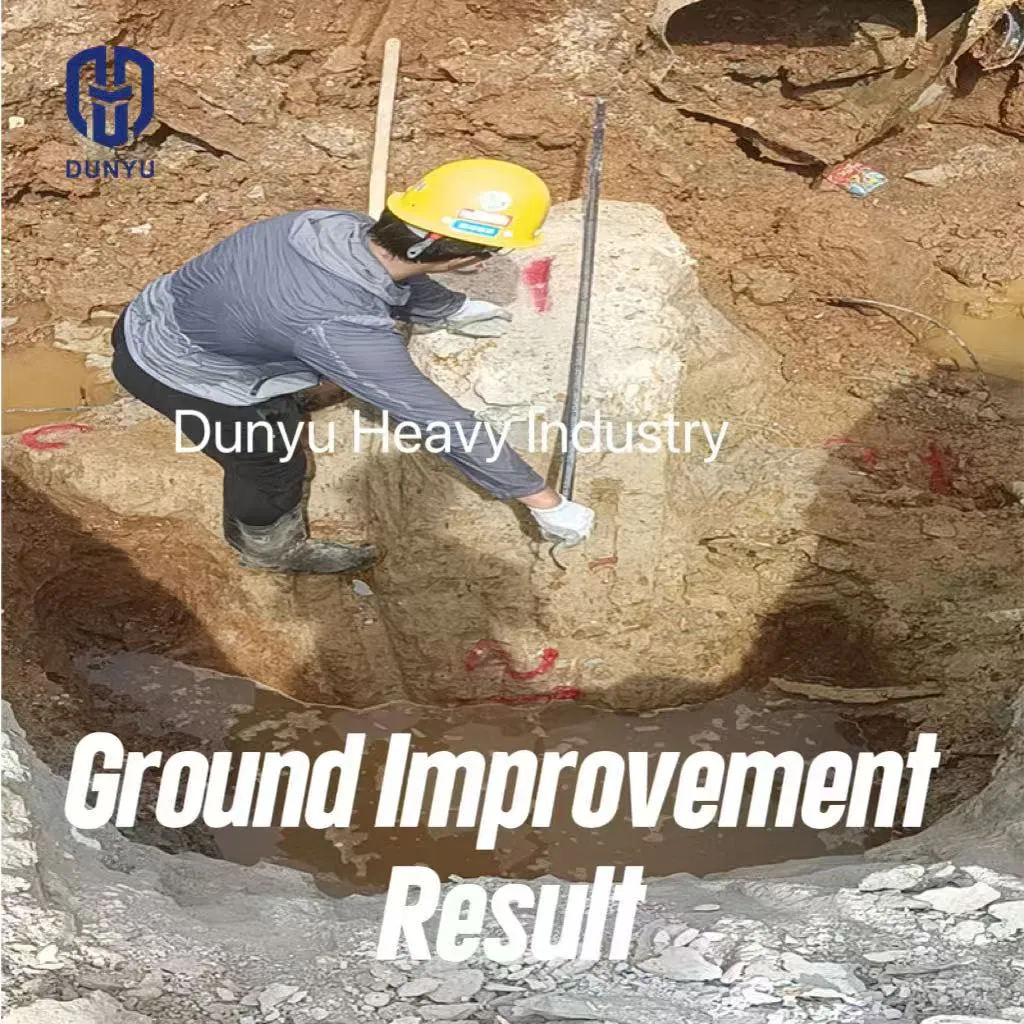

This method utilizes precision control and specialized equipment to achieve high-quality ground improvement while minimizing impact on surrounding structures. Capable of handling diverse ground conditions from soft soils to sand layers, it serves as an ideal solution for urban foundation improvement projects.
| Drilling Rig Specifications | Value | |
|---|---|---|
| General Info | Machine Weight (kg) | 27500 |
| Max. Drilling Diameter (mm) | φ1600 | |
| Drilling Depth (m) | 0~100 | |
| Transport Dimension (mm) | 8900*2725*3260 | |
| Power Head | Spindle Inner Diameter (mm) | φ175 |
| Max Operating Speed (r/min) | 0~50 / 0~14 | |
| High-speed Rotary Torque (n.M) | 20,500 | |
| Feeding Device | Max. Feeding/Pulling Force (kN) | 130 |
| Sliding Stroke (mm) | 2,000 | |
| Running Gear | Max. Gradeability (°) | 25 |
| Travel Speed (m/h) | 1000/1600 | |
The company, located in Wuxi City, covers an area of 25,000 square meters. It is a leading construction machinery manufacturing company integrating R&D, production and sales of drilling rigs. Boasting a professional technical team focused on innovation, it was recognized as a National High-Tech Enterprise in 2022.

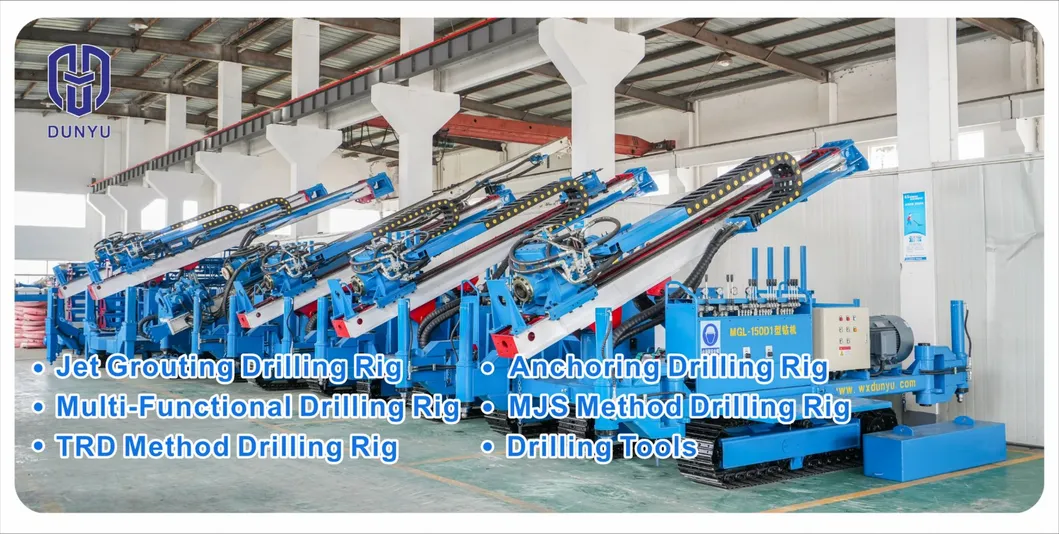

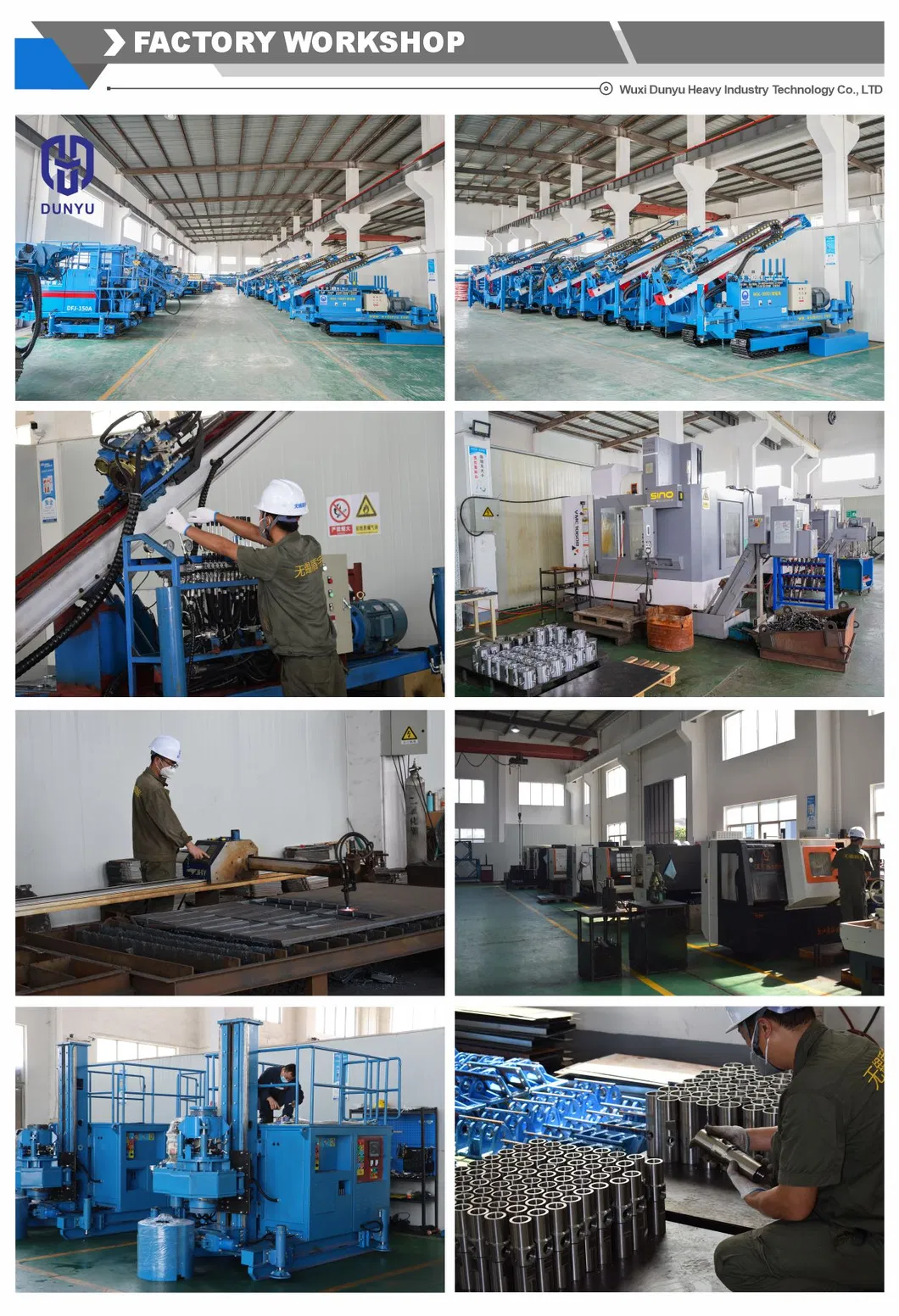

The company operates specialized R&D centers including TRD Method Machine Engineering Technology Research Center and MJS Ultra-High Pressure Jet Grouting Rig Engineering Technology Research Center. As of late 2024, the company holds nearly 50 patents. Facilities include sheet metal, metalworking, cutting, welding, CNC machining centers and assembly workshops.
