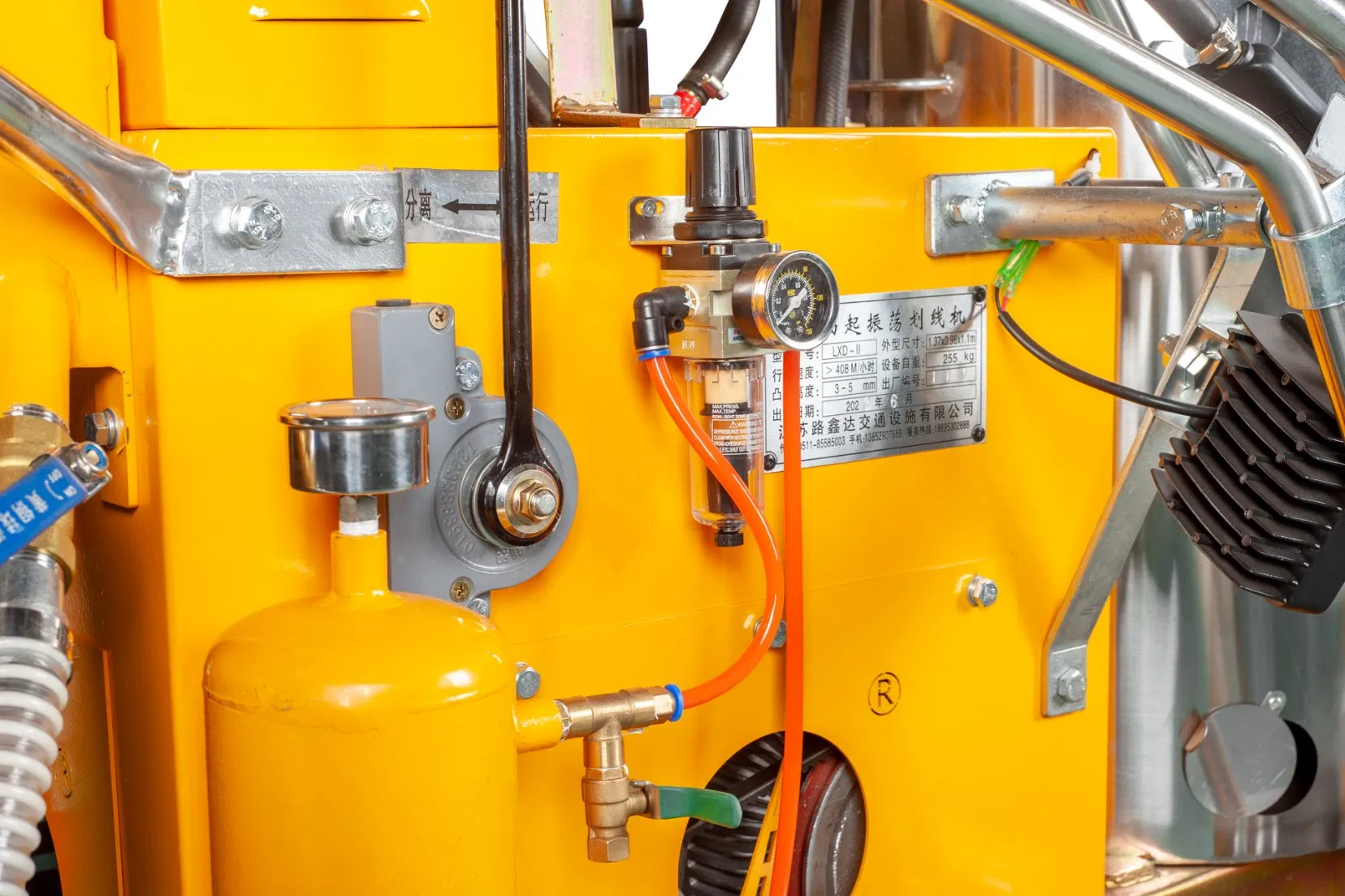

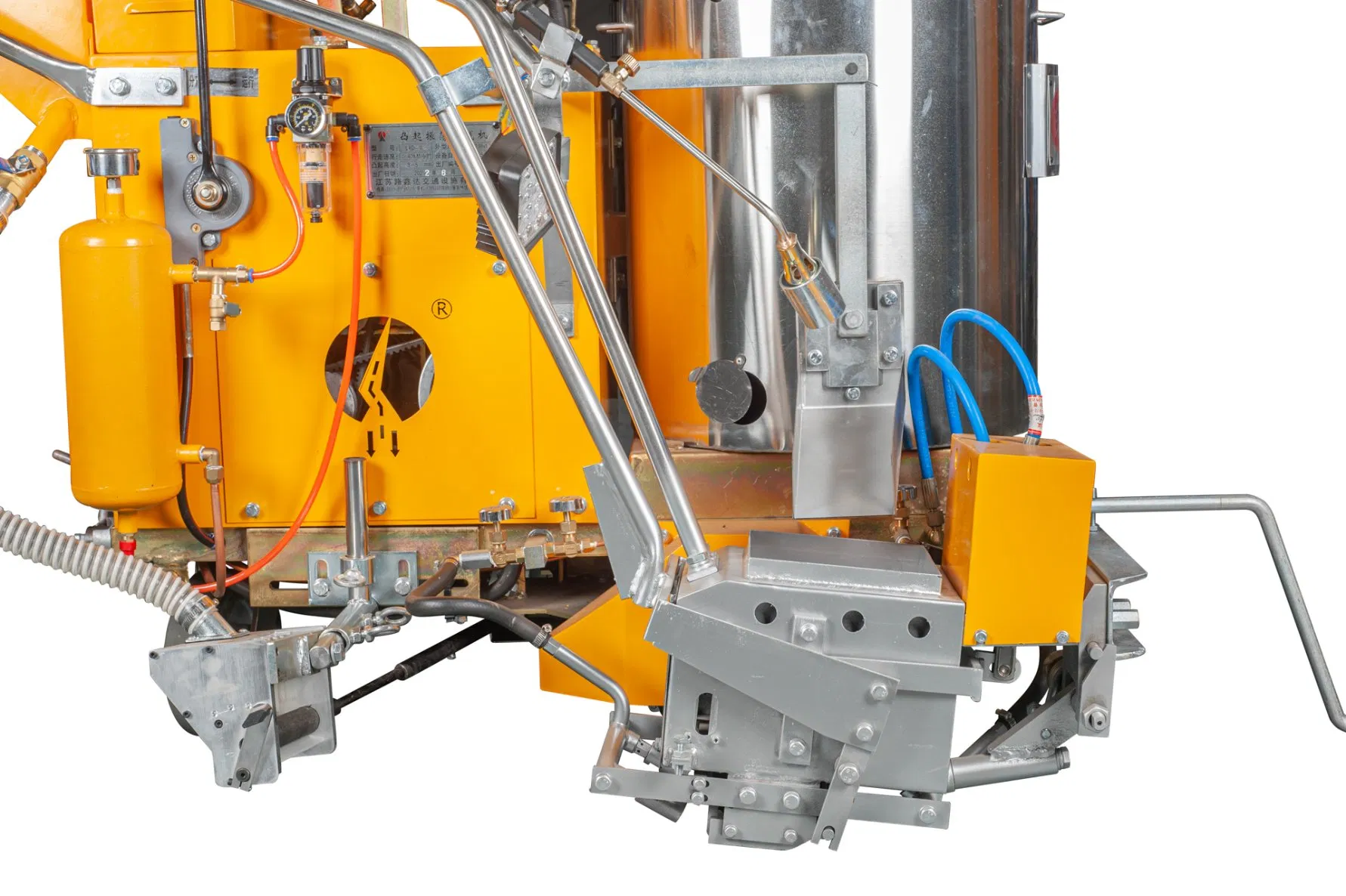

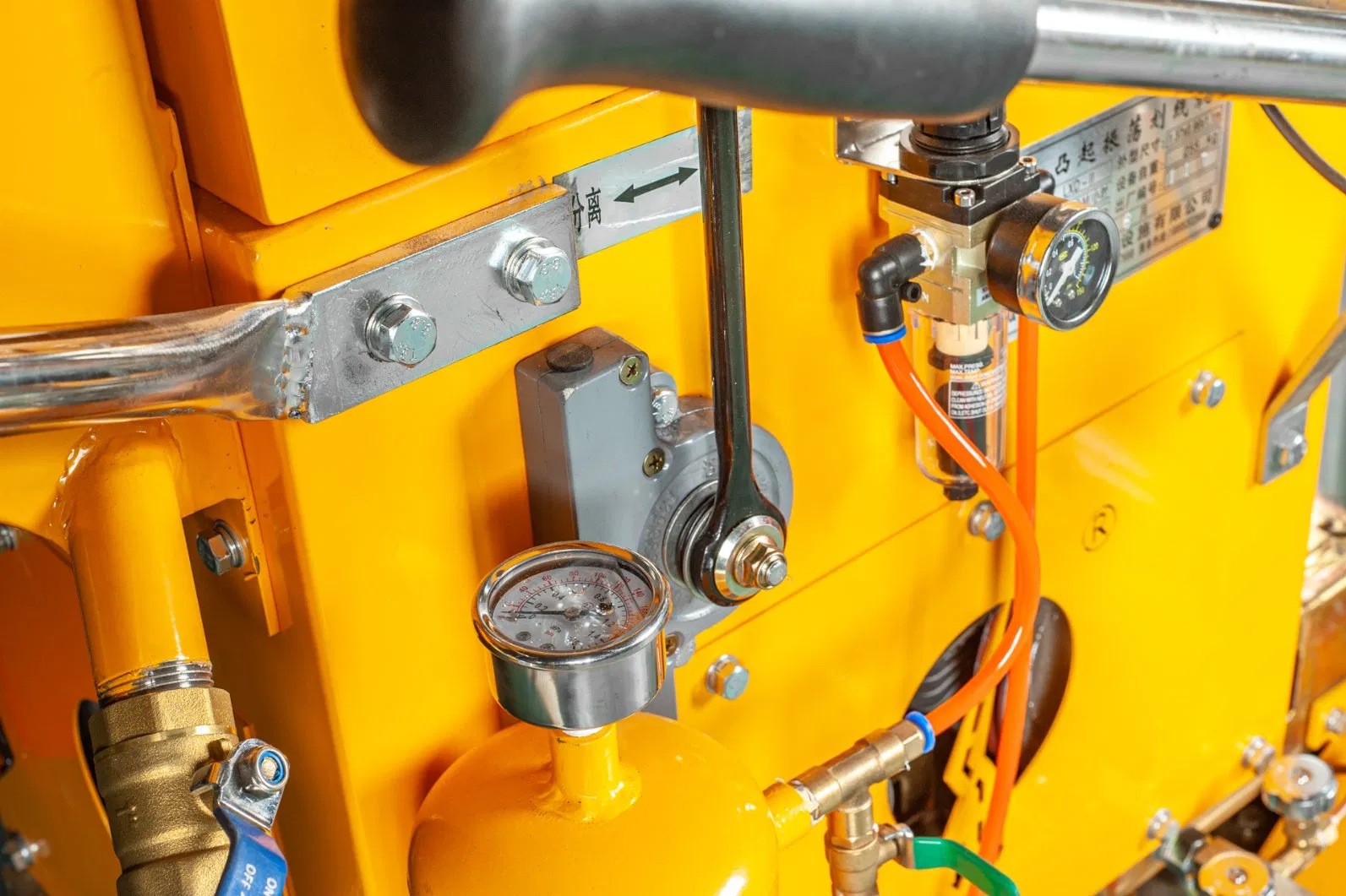

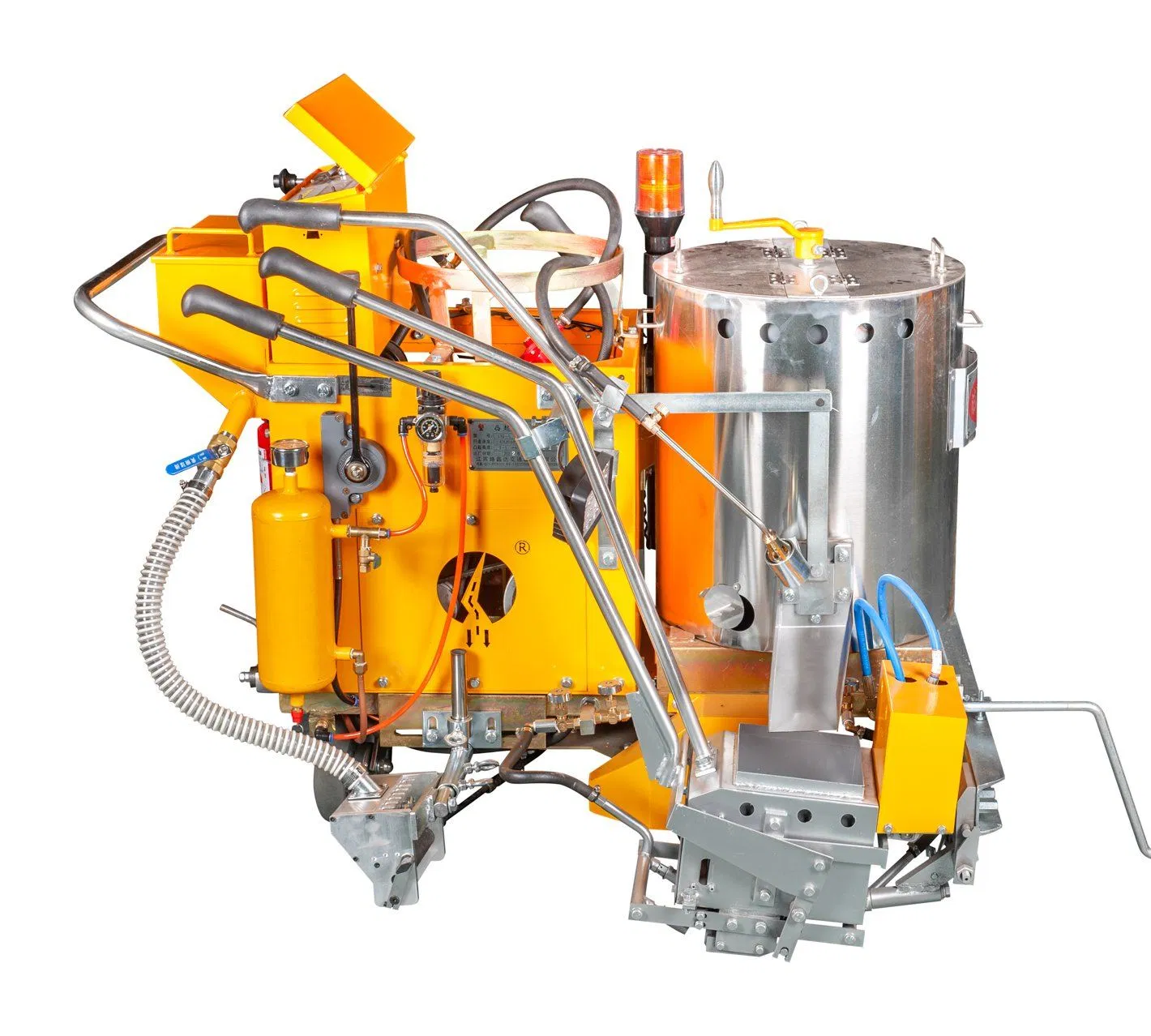

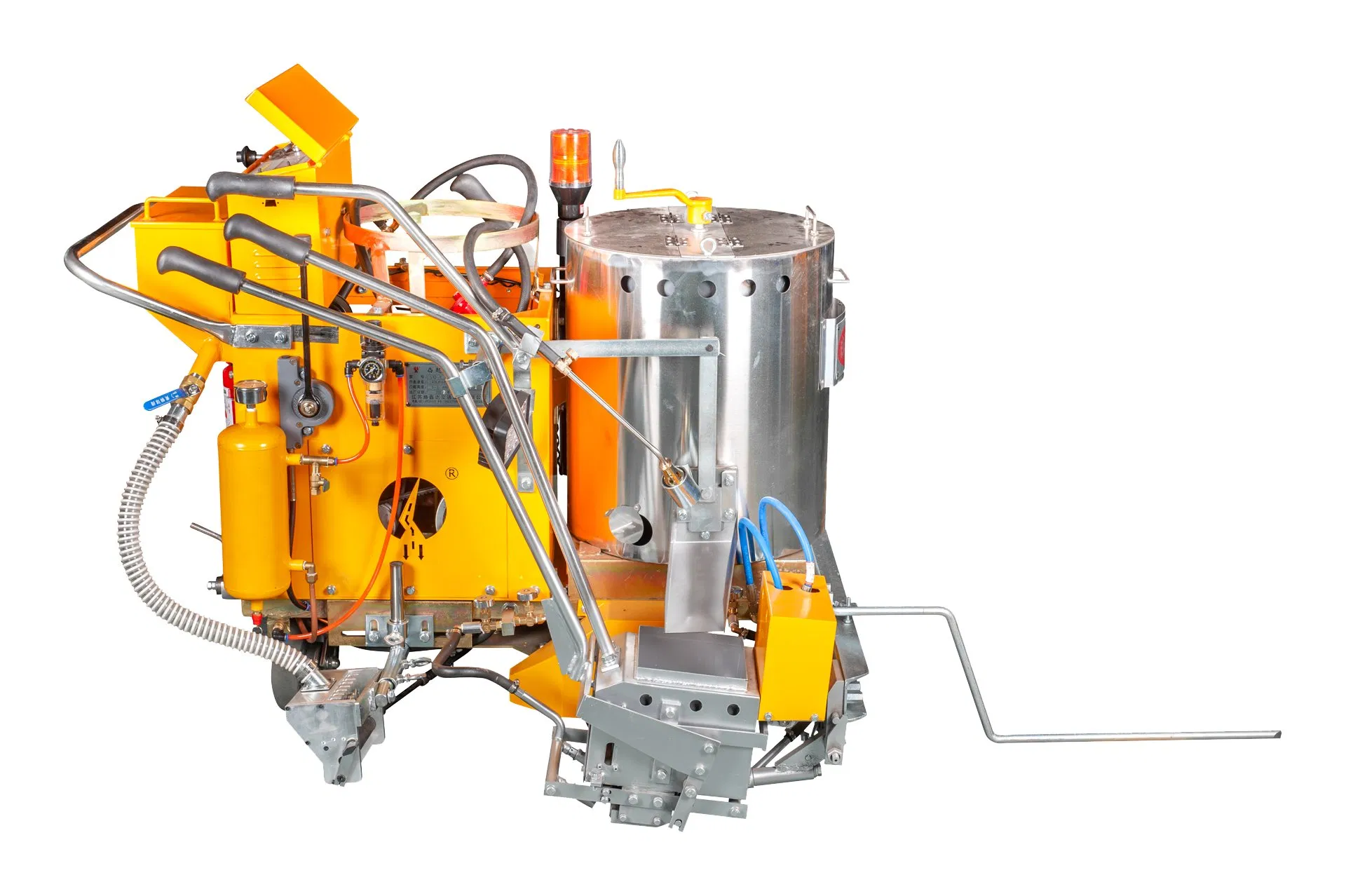

The HW-Raised Oscillating Marking Machine (Electric) is a state-of-the-art device specifically engineered for creating raised thermoplastic markings on various surfaces. This machine combines advanced technology with user-friendly features, making it an ideal choice for both experienced professionals and new entrants to the road marking industry. With its powerful electric motor, precise oscillating marking head, and adjustable settings, the HW-Raised Oscillating Marking Machine (Electric) ensures that every marking job is completed with the highest level of accuracy and efficiency.
| Model NO. | HW-Raised Oscillating Marking Machine |
| Power Source | Electric |
| Type | Self-propelled |
| Working Speed | ≤1000m/H |
| Weight | 235kg (Including Battery) |
| Capacity | 100kg |
| Height of Projection | 0-10mm |
| Air Compressor | 48DVC 550W Oil-Free and Silent |
| Parameter | Details |
|---|---|
| Cell | 48VDC 30A |
| Computer | Siemens synthetic liquid crystal display, integrated control panel |
| Drive System | 48VDC 550W Dual-wheel drive, with differential and electronic brake |
| Maximum Gradability | 15° |
| Tires | Heat-resistant rubber with rear wheel locator for straight-line movement |
| Width of Markings | 150/200/300/400/450mm optional |
| Jewellery Box Capacity | 15kg |
| Dimensions | 1.4*1.05*1.05m |

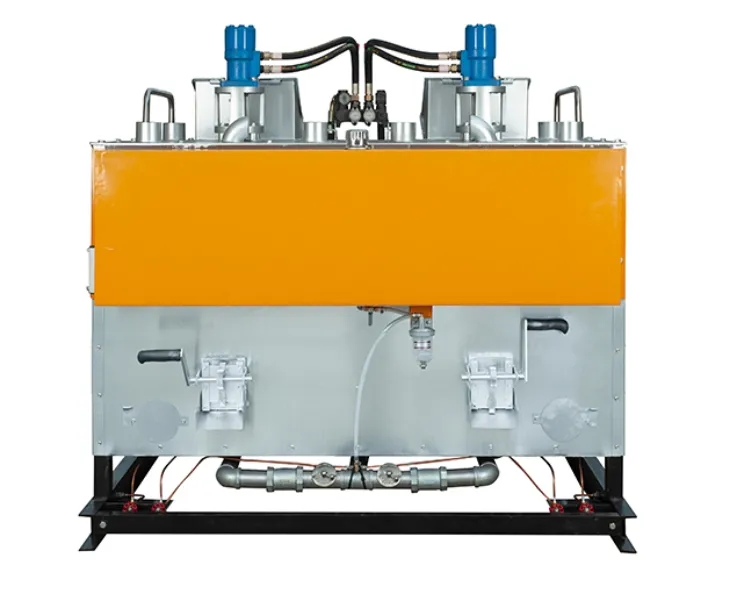

Relies on diesel high caloric value to achieve efficient and rapid heating. Accurate temperature control system ensures stability. 2 tons large capacity to adapt to a variety of scenarios, greatly improving work efficiency.

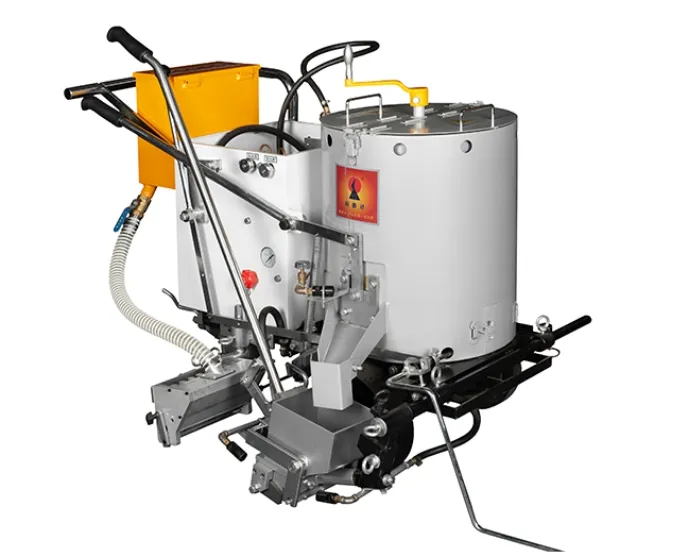

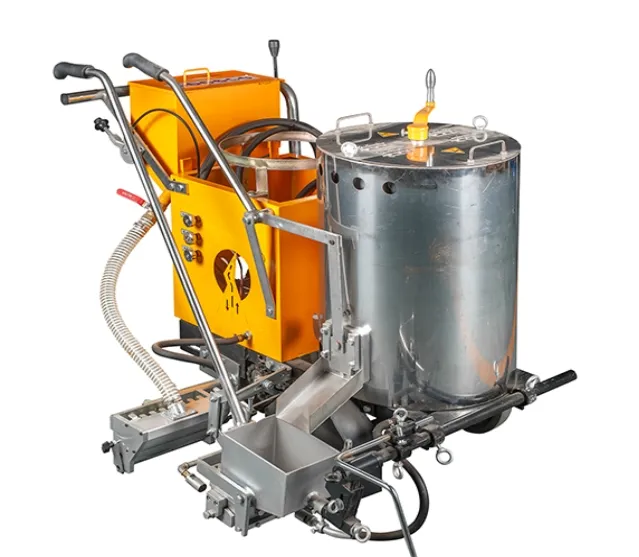

Equipped with a stepless variable speed walking system. Suitable for pavement with slopes. Features high precision cast iron marking bucket and glass bead diffuser with speed buffer for neat edges and smooth lines.
The preferred solution for hot melt marking. Features an exclusive deep die, all-steel structure, and tool-free replacement design for enhanced durability and performance.

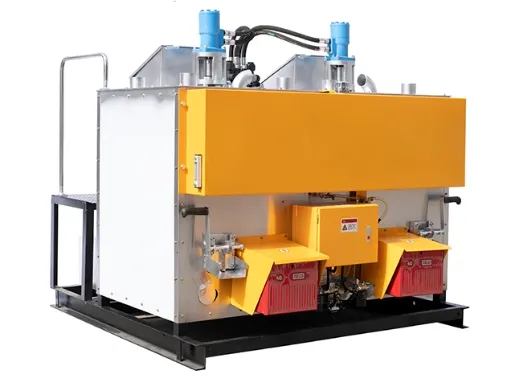

Improved for low-temperature areas. Employs advanced oil-gas dual-purpose stoves (liquefied gas and diesel), ensuring economy and resistance to strong winds. Enhances melting speed significantly.

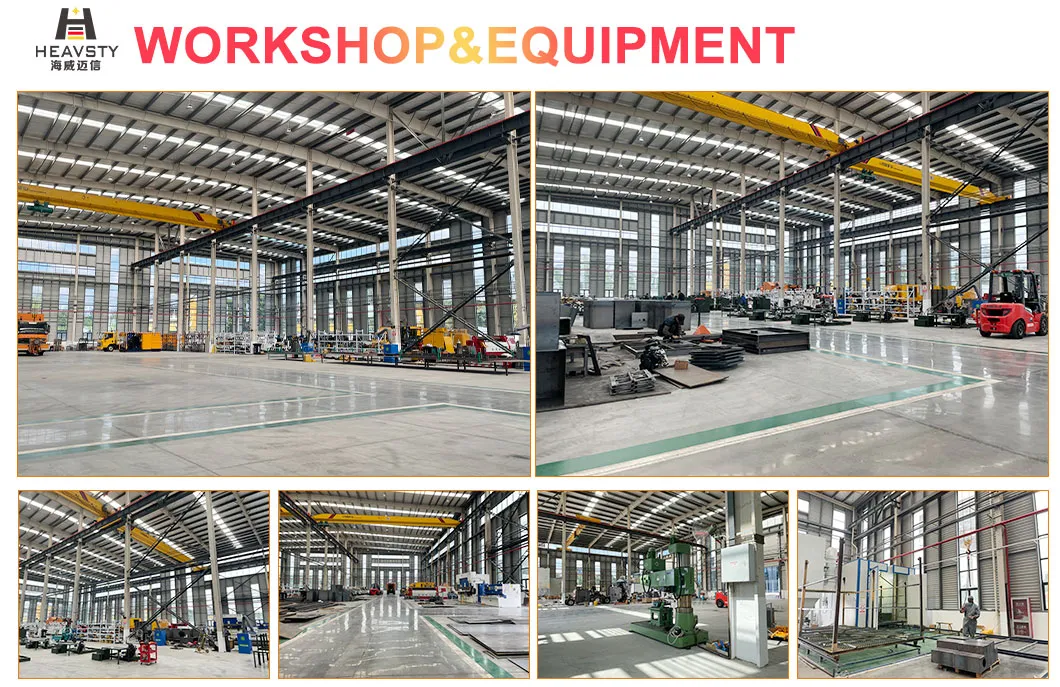

Our company is a modern enterprise integrating high-pressure water cleaning, road line and glue removal, automated road unmanned construction, and road marking. We specialize in simplifying the human construction process, enhancing safety coefficients, and completing engineering projects in a more efficient and energy-saving way.

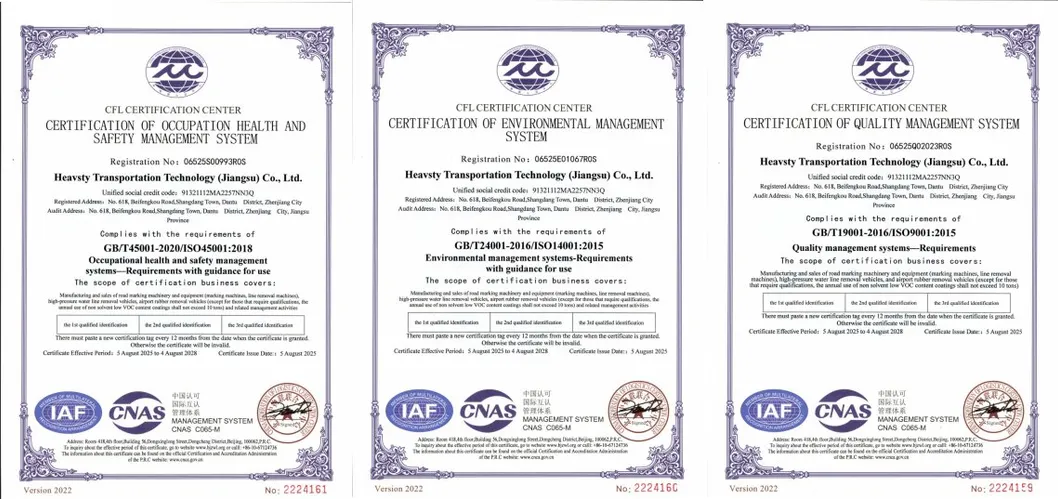

Our production officially passed ISO triple system certification (ISO9001, ISO14001, ISO45001) and obtained CE product certification. Every certification is our commitment to standardized control, environmental responsibility, and personnel safety.
