High Quality DTH Button Drill Bits for Mining Machine DHD Mission, Numa, SD Shank DTH Bit, DTH Hammer Bit, DTH Button Bit, DTH Drill Bit, Button Bit

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years

Product Description

Basic Specifications

Model NO.
DHD3.5, DHD380, DHD360, Mission50, Sd6, Numa120
Certification
CE, API
Material
Tungsten Carbide, High Manganese Steel
Diameter
76-1000mm
Surface
Galvanized
Process
Forging
Usage
Well Drilling, Coal Mining, Quarry Drilling
Capacity
2000 Pieces / Week
Face Design
Flat; Convex; Concave
Inserts Design
Spherical; Ballistic; Parabolic

Product Description

Professional manufacturer and supplier of high performance rock drilling tools like DTH Hammers and Bits, PC Hammers and Bits, DTH drilling pipes and Top Hammer Drilling Tools.

These tools are widely used in different drilling applications including mining, quarrying, water well drilling, and geotechnical industries. In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

Competitive Advantages

  • High grade tungsten carbide inserts
  • Bit bodies manufactured from high grade steel
  • Processed using state-of-the-art CNC machinery and heat treatment

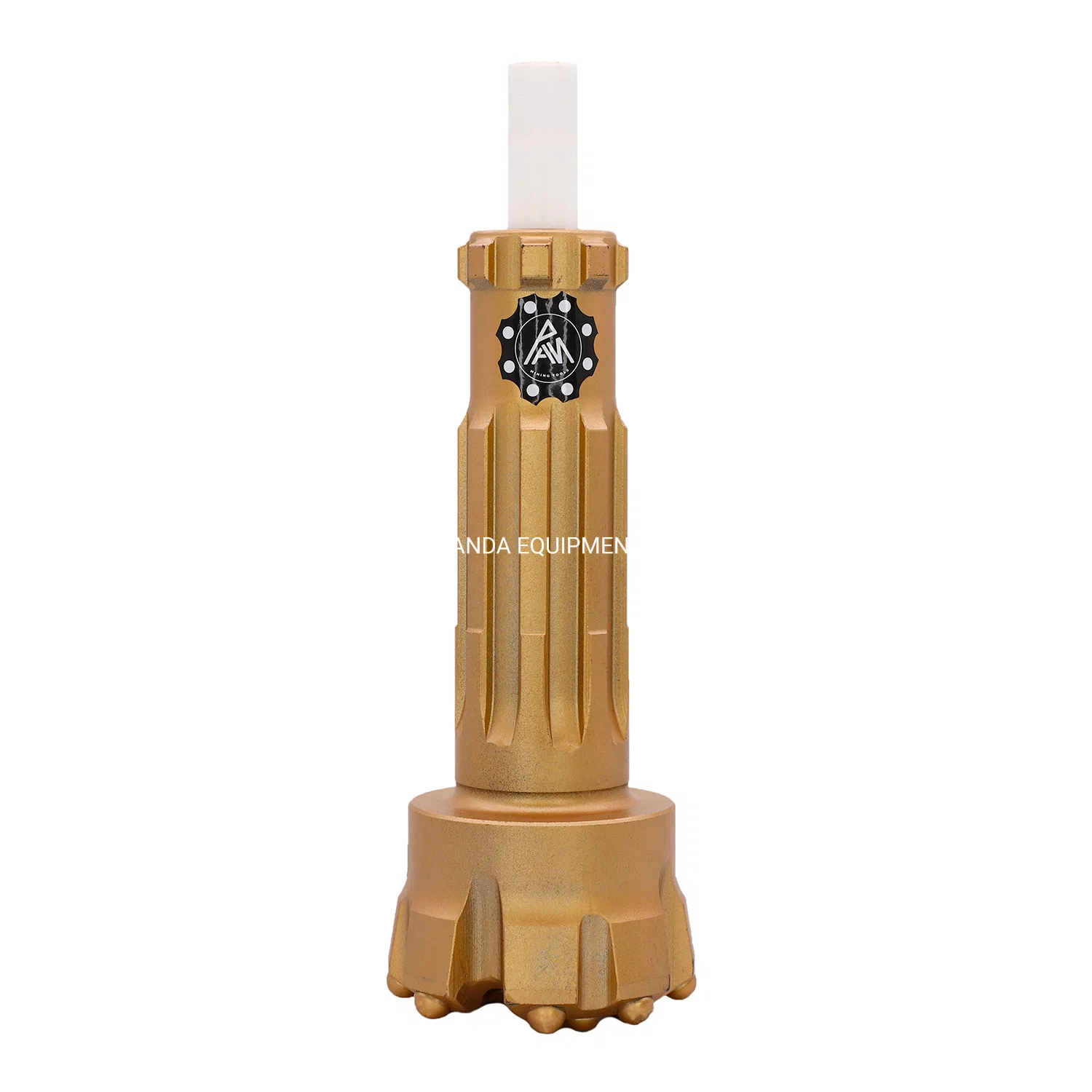

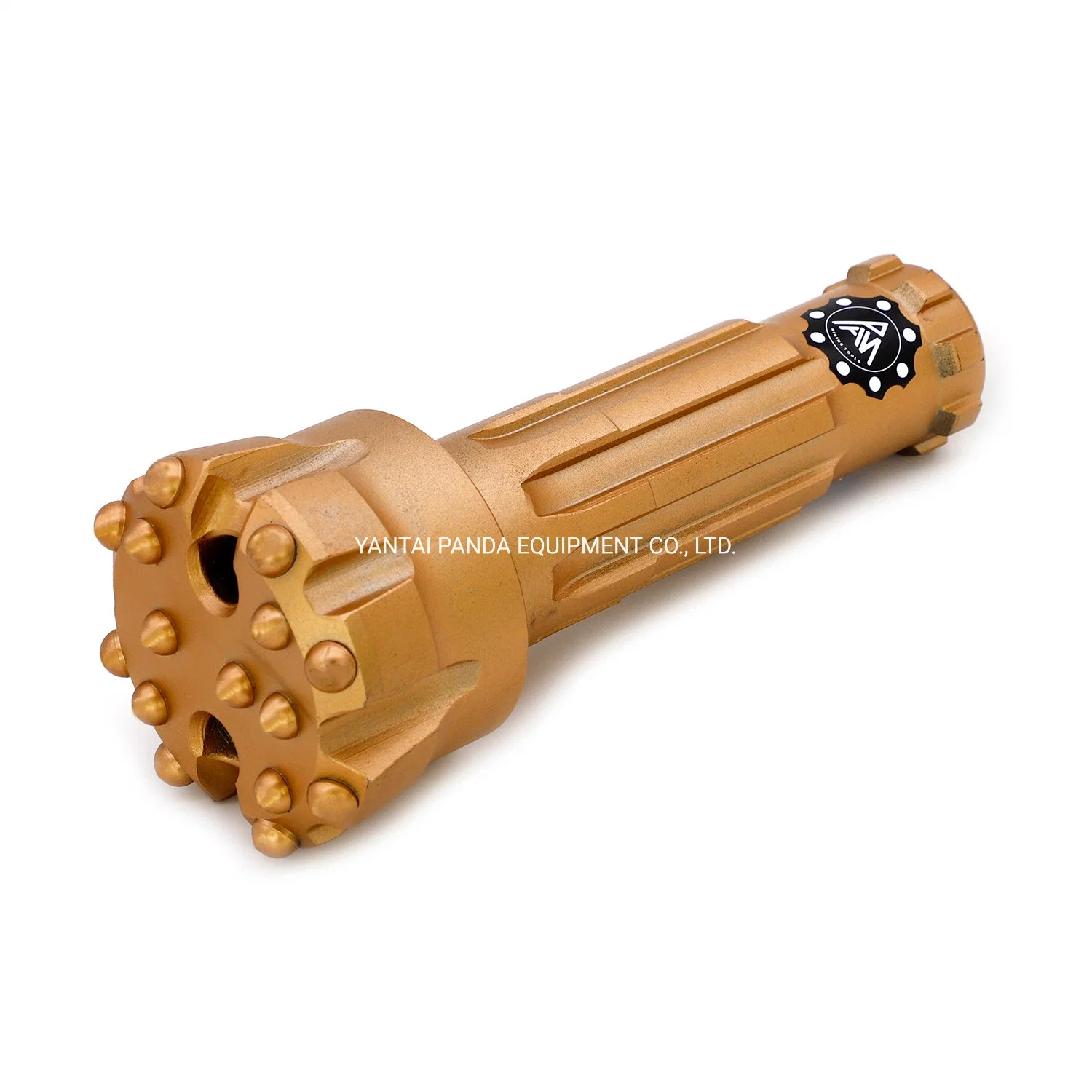

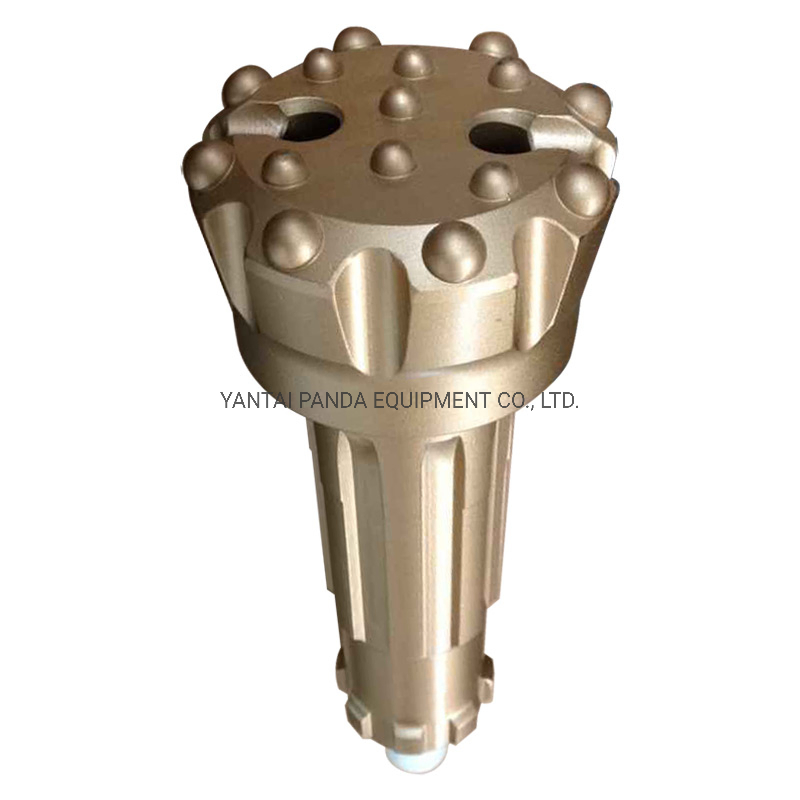

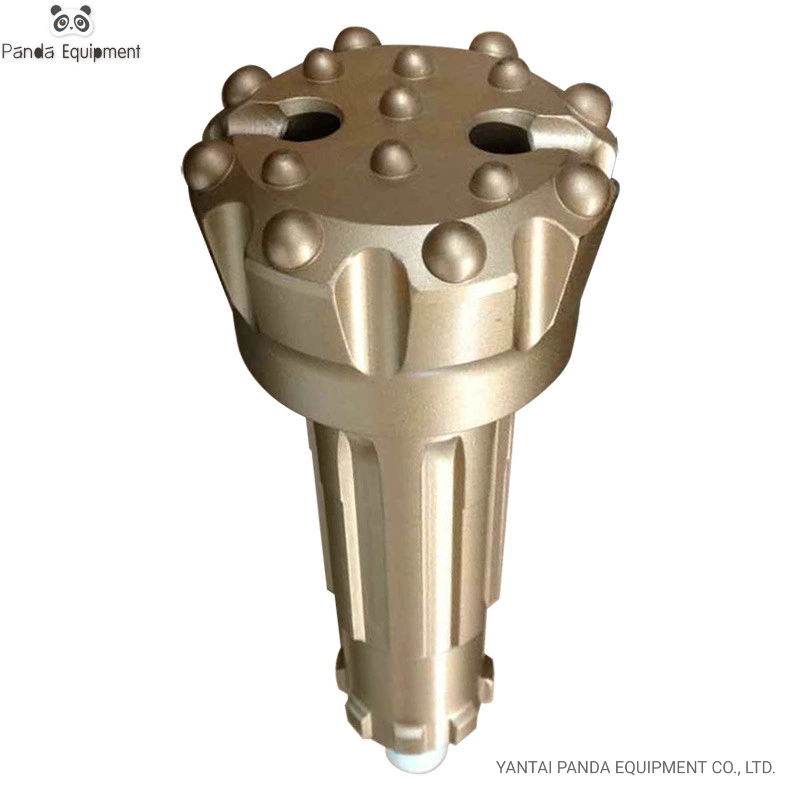

DTH Button Drill Bit

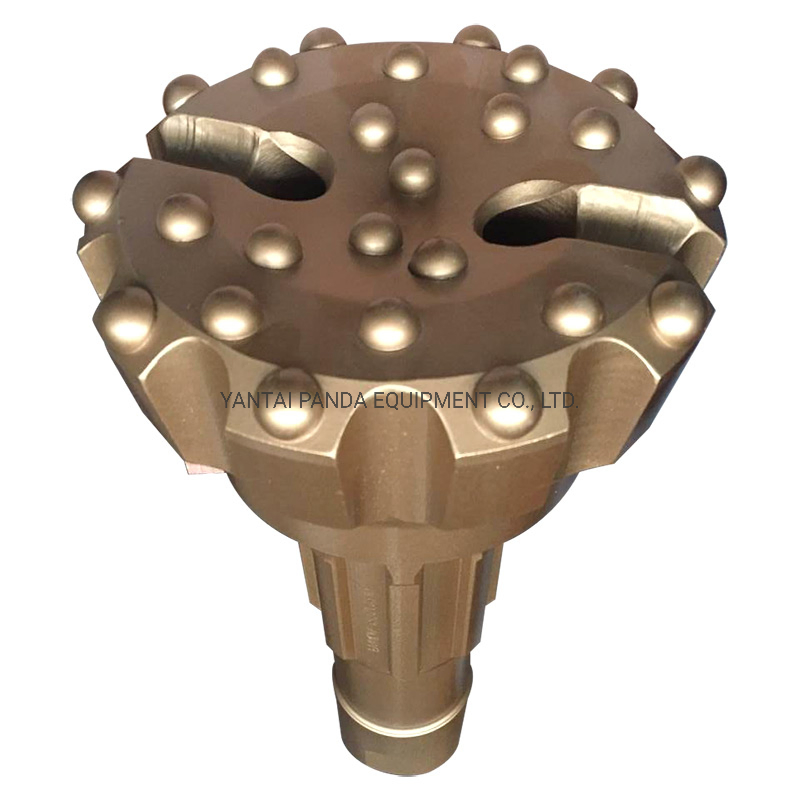

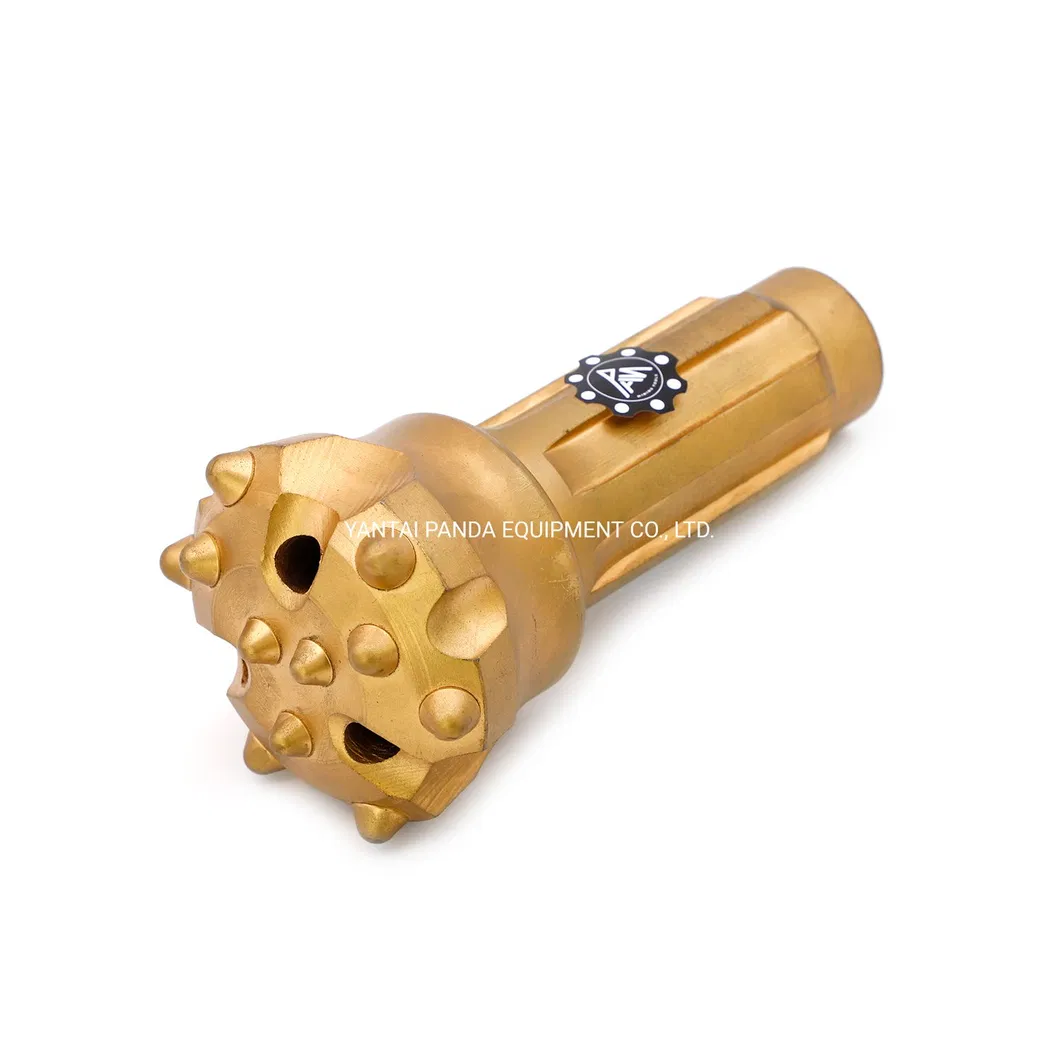

Mining Machine Bit

Technical Specifications

HAMMER INCH BIT DIA (MM) BIT DIA (INCH) SHANK TYPE
164MM-76MM2 1/2"-3"BR1
276MM-90MM3"-3 1/2"BR2/PAD320
385MM-105MM3 2/5"-4"BR3/DHD330/COP32/PAD330
3.585MM-110MM3 2/5"-4 1/3"DHD3.5/IR3.5/COP34/QL30/PAD3.5
4105MM-140MM4"-5 1/2"DHD340/COP44/QL40/SD4/MISSION40/PAD340
5127MM-200MM5"-8"DHD350/COP54/QL50/SD5/MISSION50/PAD350
6152MM-254MM6"-10"DHD360/COP64/QL60/SD6/MISSION60/PAD360
8195MM-350MM7.2/3"-13 4/5"DHD380/COP84/QL80/SD8/MISSION80/PAD380
10254MM-380MM10"-15"SD10/NUMA100/DHD1100/PAD1100
12305MM-457MM12"-18"SD12/NUMA120/DHD1120/PAD1120

Product Design & Variations

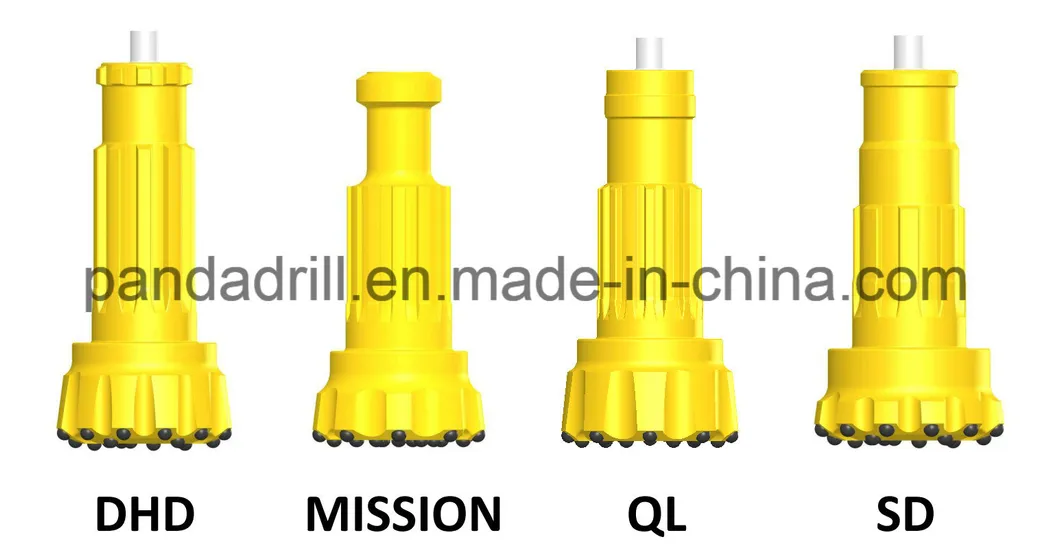

Shank Variations:

Shank Variations

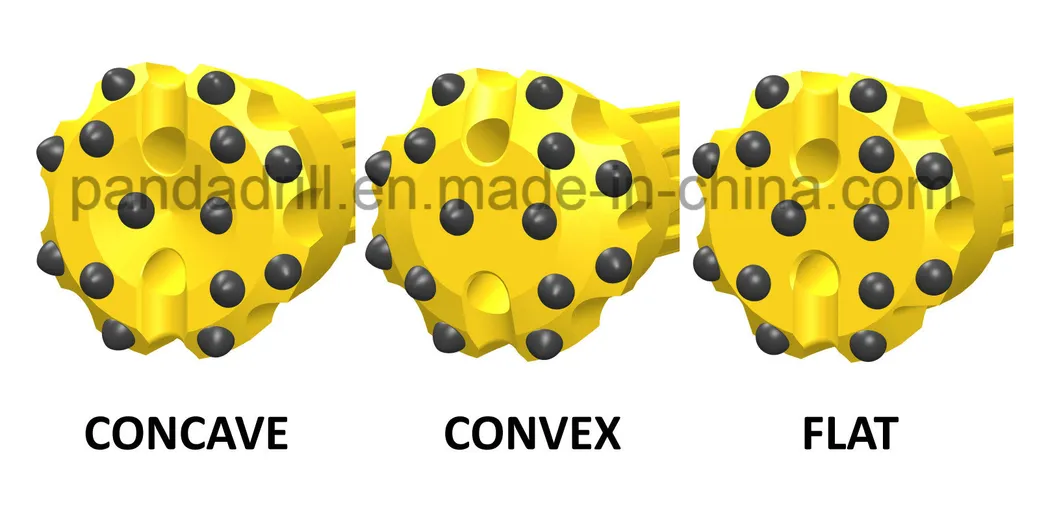

Face Shapes:

Face Shapes

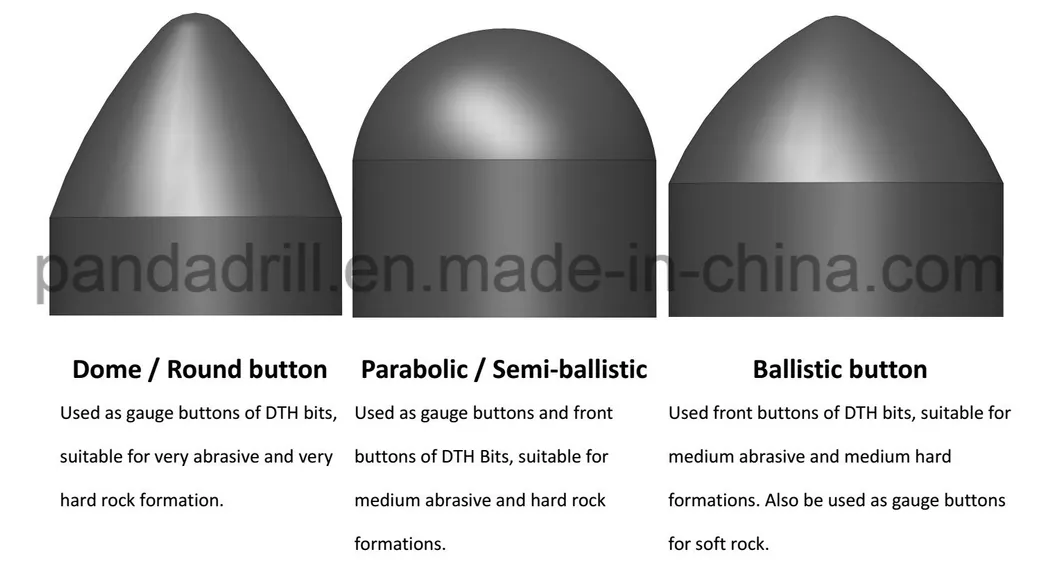

Button Shapes & Layouts:

Button Shapes 1
Button Shapes 2
Button Shapes 3

Frequently Asked Questions

Q1: Can I request samples for quality testing?
Yes, samples can be provided for testing. While they are paid, we offer a discounted price for sample orders.
Q2: What inspection procedures do you follow?
We implement 100% strict inspection and comprehensive testing for every order before packing to ensure top-tier performance.
Q3: How do you handle after-sales service?
We offer free replacements for any problems caused by product quality issues identified after delivery.
Q4: What materials are used in the drill bits?
Our bits are manufactured using high-grade tungsten carbide inserts and premium steel processed through CNC machinery.
Q5: Which industries are these tools suitable for?
They are ideal for mining, quarrying, water well drilling, and various geotechnical applications.
Q6: Why is DTH drilling energy-efficient?
In DTH drilling, the piston strikes the bit directly, minimizing energy loss and maintaining a constant penetration rate regardless of depth.
