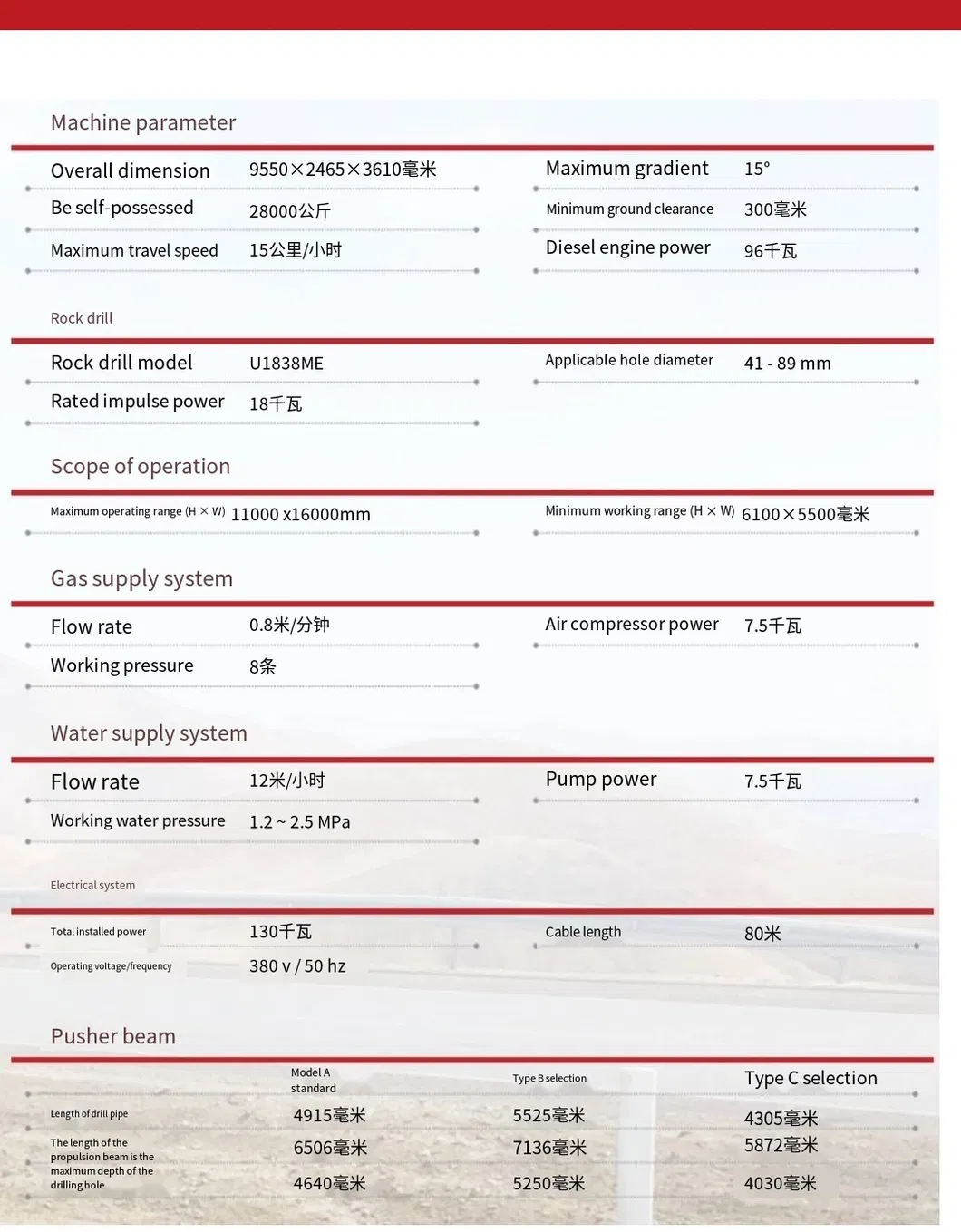

Technical Specifications
Material Feature
Oil Resistant
Energy Saving
Not Energy Saving
After-sales Service
24 Hours Online Support
Overall Dimension
(9550*2465*3610)mm
Max Operating Range
11000*16000mm
Min Working Range
6100*5500mm
Production Capacity
5000 Unit/Year
Product Overview

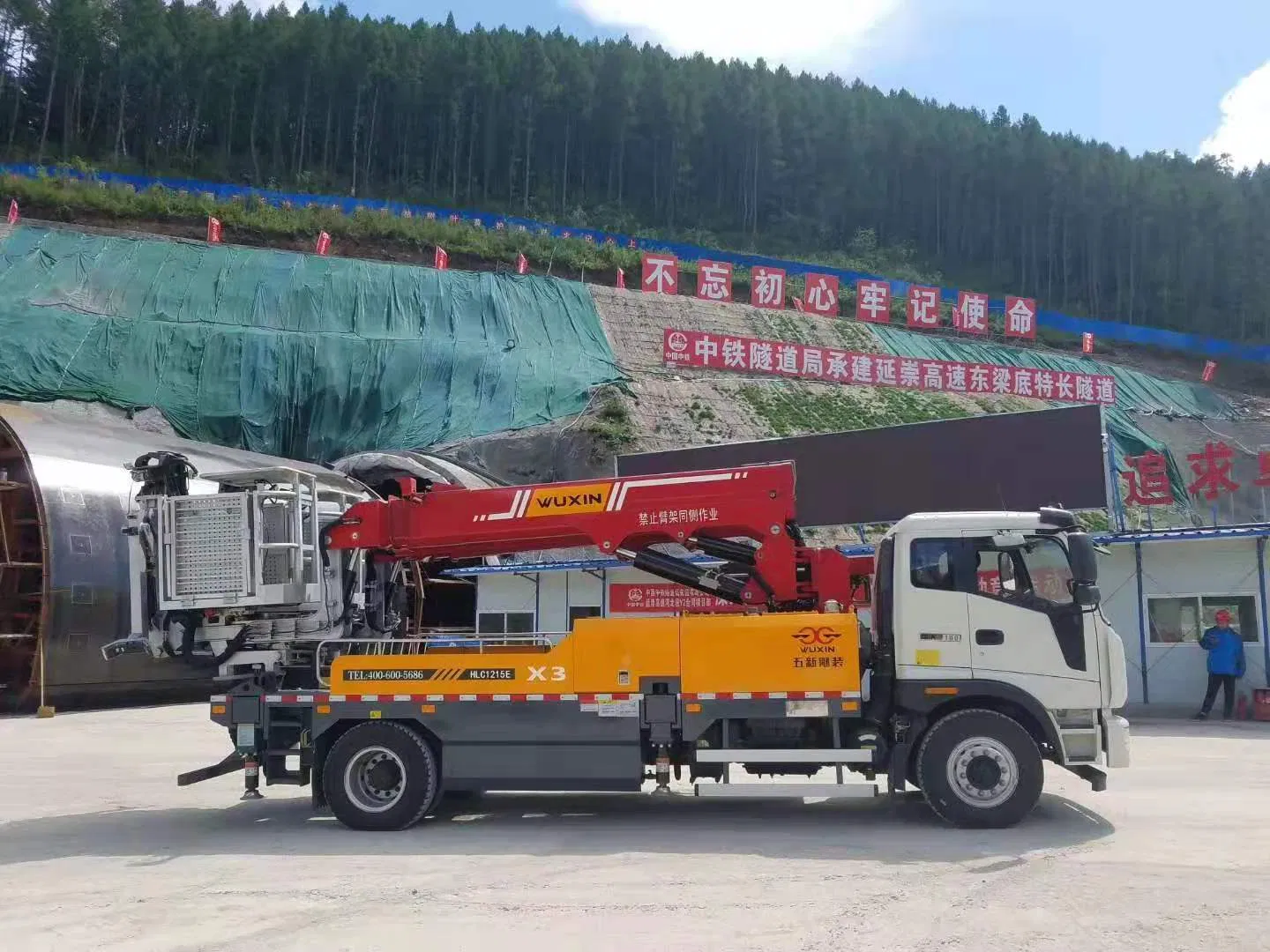

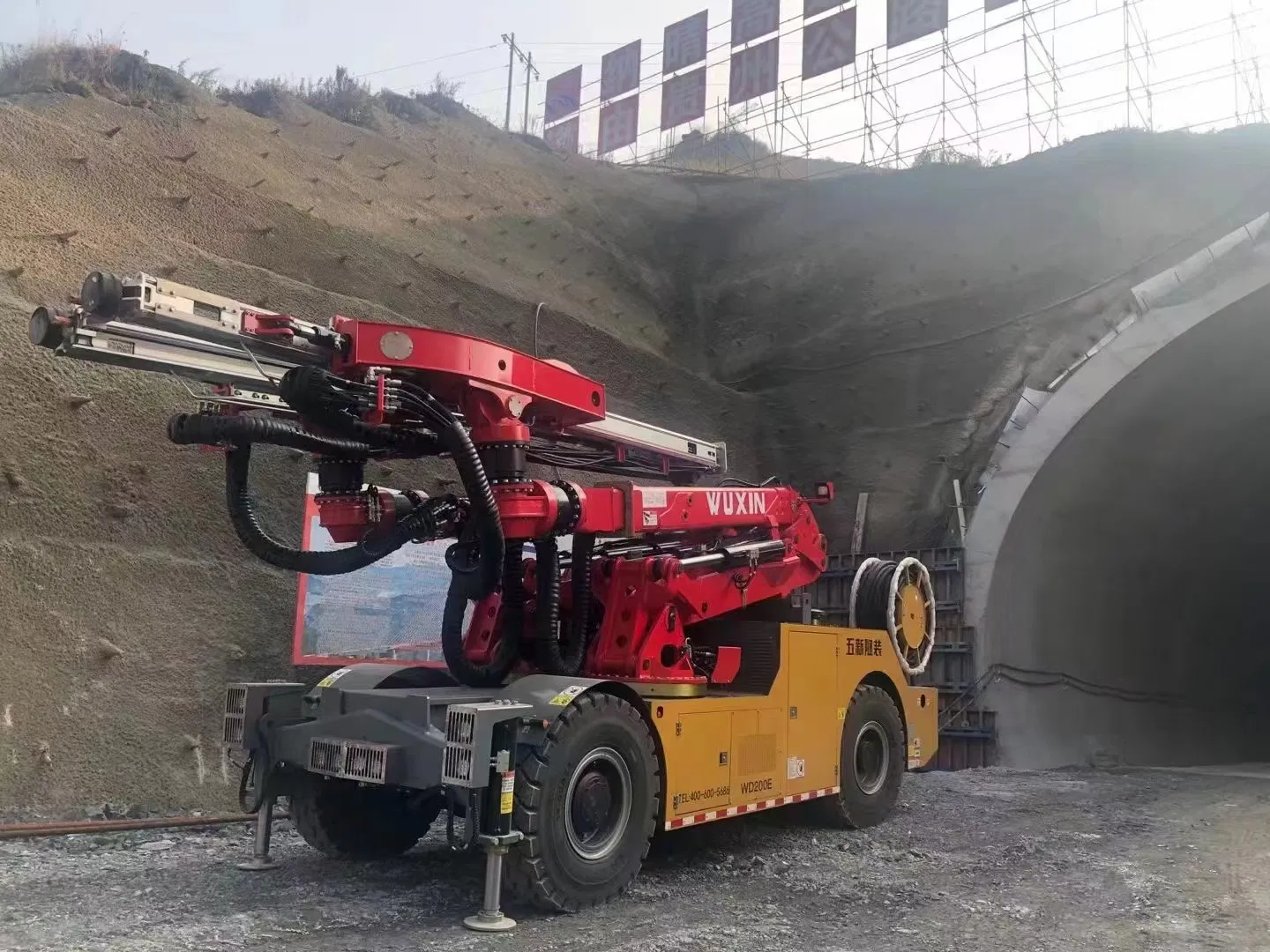

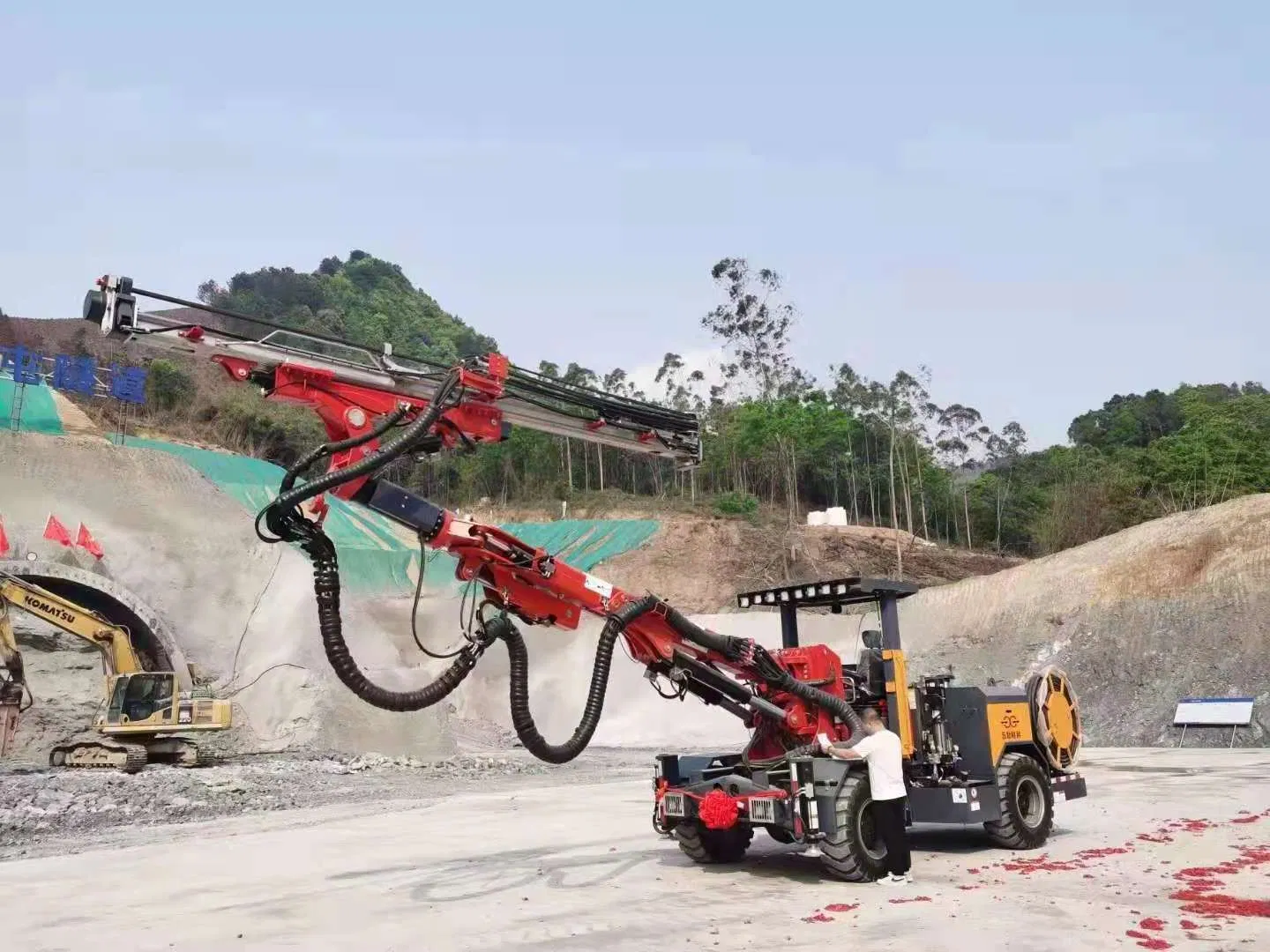

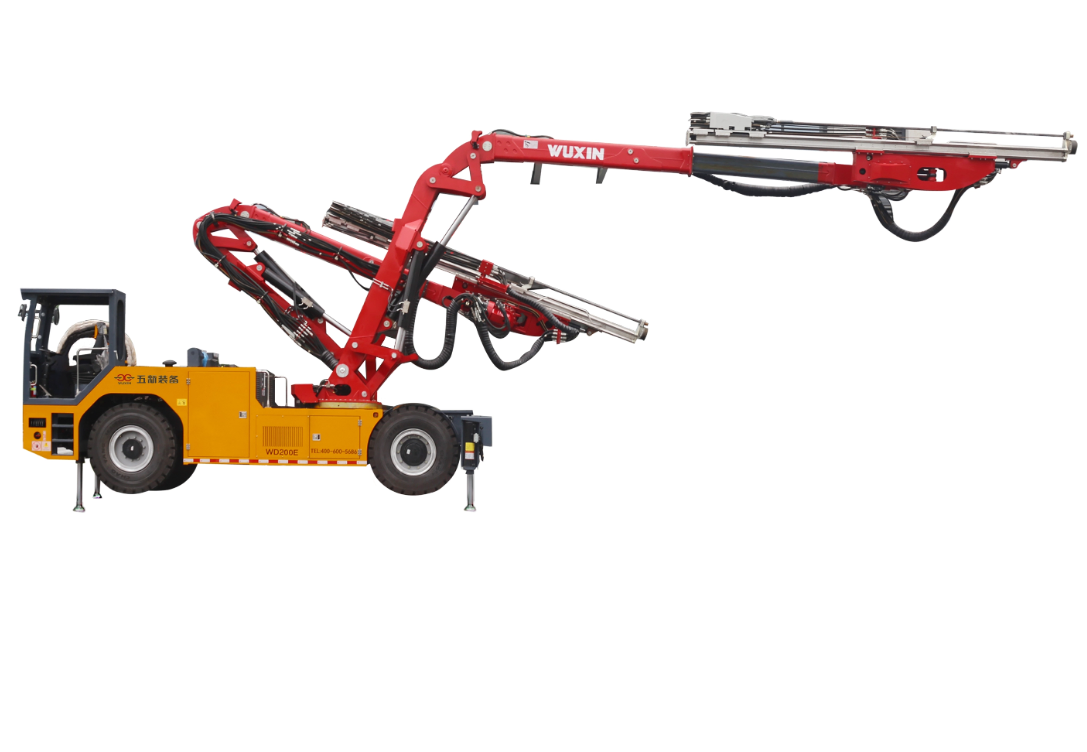

Efficient Hyperbolic Arm Rock Drilling Rig WD200E
Ideal for a multitude of applications including 30m²-154m² road and railway tunnels, pumped storage power stations, hydropower stations, reservoir irrigation holes, underground cave excavations, and bolt hole operations.
Versatile Application: Perfectly suited for sectional sizes ranging from 30m² to 154m² in highway and railway construction.
Innovative Boom Structure: Pioneering the first curved arm boom structure for a large operational range and adaptable multi-section constructions.
High Efficiency: Equipped with Uniroc U1838ME rock drills, achieving speeds 5-6 times faster than traditional air drills.
Advanced Safety: Remote control operation allows for close observation and effective control over excavation lengths.
Precision Control: Advanced computer control for self-balancing operations and angle display to minimize overcuts.
Frequently Asked Questions
1. What is the primary application of the WD200E drilling rig?
The WD200E is designed for large-scale projects including road and railway tunnels (30m²-154m²), hydropower stations, and underground cavern excavations.
2. How does the drilling speed compare to traditional methods?
Equipped with the Uniroc U1838ME drill, it can achieve single-hole drilling speeds that are 5-6 times faster than conventional air drills.
3. Can the WD200E be operated remotely?
Yes, the vehicle supports remote control operation, which enhances safety by allowing operators to monitor drilling activity from a safe and clear vantage point.
4. What are the benefits of the hyperbolic arm structure?
The curved arm boom structure provides a massive operational range and high adaptability, allowing the boom to move below the horizontal line for multi-step excavation methods.
5. Does it include automated precision controls?
Yes, it features an advanced computer control system with self-balancing capabilities and angle displays to ensure high precision and minimize over-excavation.
6. What is the production capacity and warranty for this equipment?

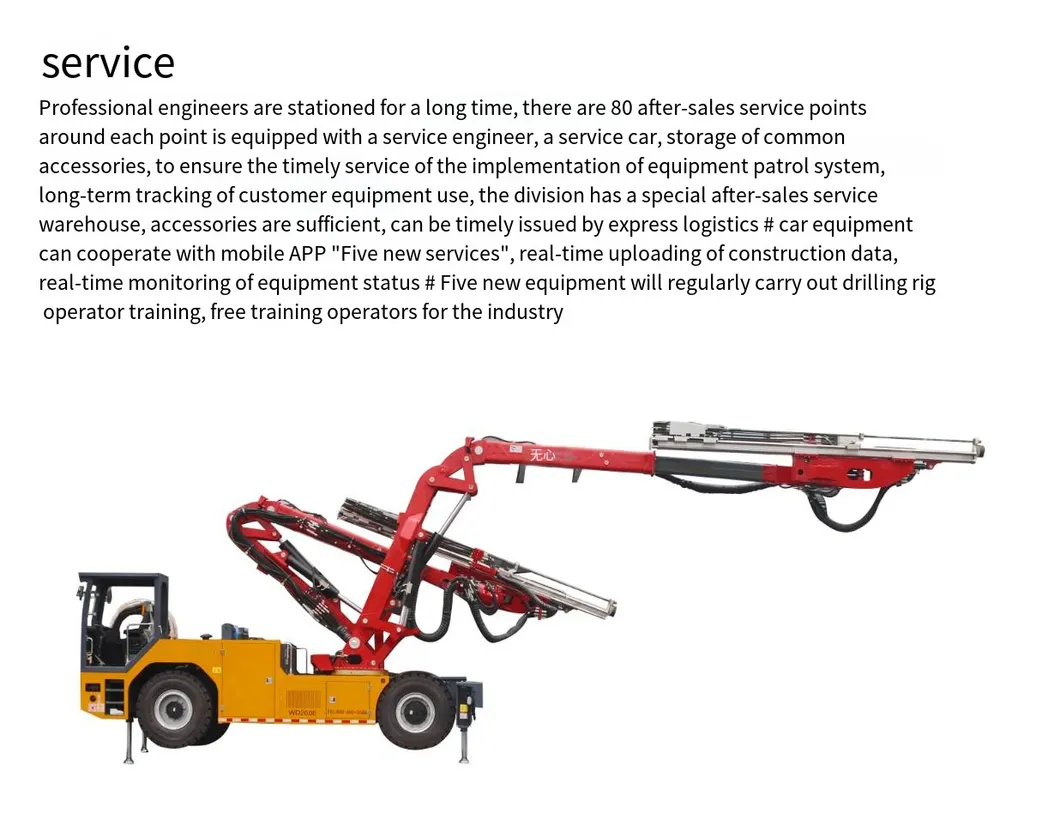

The production capacity is 5000 units per year, and the product comes with a 1-year warranty along with 24-hour online technical support.
