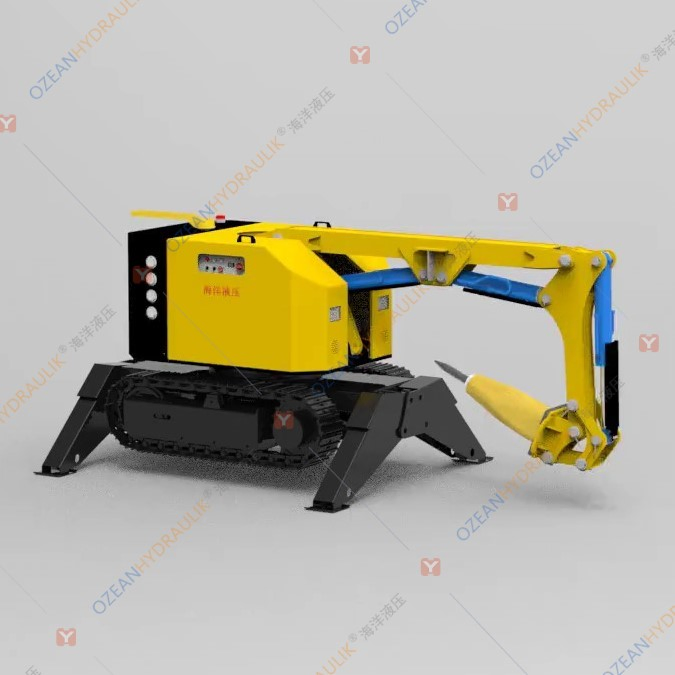

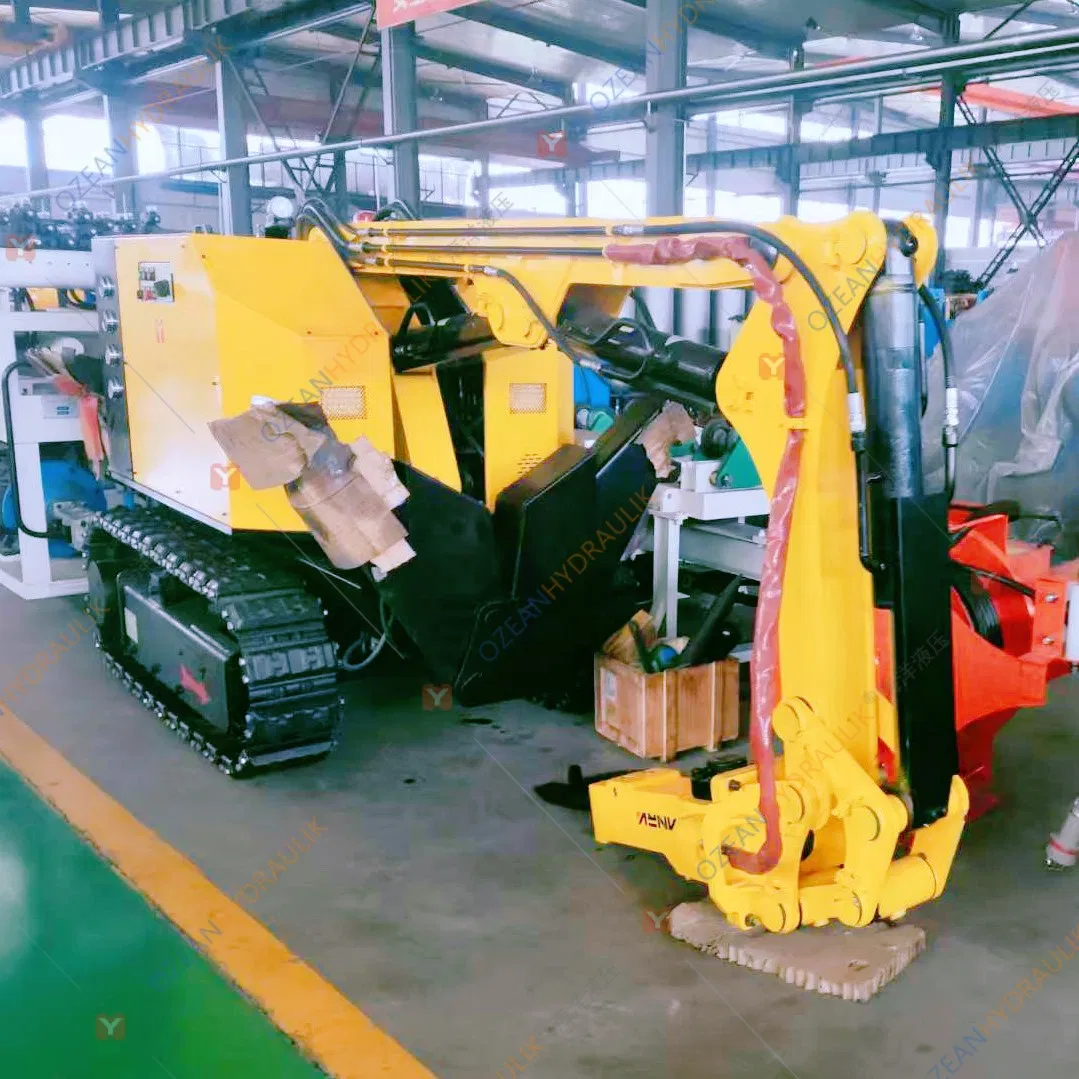

Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
1 / 5
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle
Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle

Telescopic Arm Ladle Slaging Equipment for Slag Skimming From Ladle

Customization: Available
Standard: GB, China GB Code, ISO9001
Surface Treatment: Spray Paint
Send Inquiry

Product Description

📋 Product Overview
Model NO.
Customized
Energy Source
Hydraulic
Material
Fealloy
Weight
About 3.5t
Remote Control
Yes, 1~100m
Equipment Width
2150mm
Equipment Length
4100mm
Working Height
6030mm
Working Distance
5750mm
HS Code
8429521200
Production Capacity
100/Year
🤖 Slag Cleaning Robot Function

The Slag cleaning robot is a fully hydraulic, wirelessly remote-controlled crawler-based autonomous machine. Its flexible mechanical arm, when equipped with various attachments such as hydraulic hammers, slag-removal hammers, digging buckets, hydraulic shears, or hydraulic claws, can perform multiple construction tasks. Powered by a diesel internal combustion engine, the compact design ensures easy mobility and smooth operation in confined spaces.

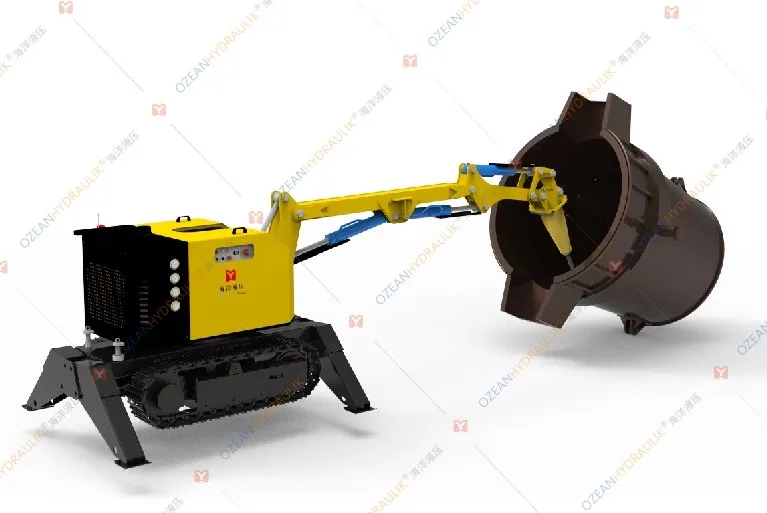

Slag Cleaning Robot Operation
🏗️ Applications

Specialized industries including steel, metallurgy, furnace demolition, ladle cleaning, slag removal, runner cleaning, construction, mining, excavation, scaling, etc. Equipped with imaging systems for remote-controlled operations in high-risk environments.

⚙️ Key Configurations
  • Hydraulic System: Tank capacity 120L; motor power 30kw; maximum system flow rate 92L/min; system pressure 18MPa; hydraulic medium: No. 46 hydraulic oil.
  • Electrical Control System: Power supply 380V, 50HZ/three-phase four-wire system, control voltage 24V.
  • Outrigger: Equipped with 4 outriggers, which are deployed during operation to enhance the overall stability of the machine.
  • Cylinder: One each for the boom cylinder, second arm cylinder, third arm cylinder, and attachment cylinder.
📊 Technical Parameters

(Custom configurations available upon request.)

Parameter Specification (HY-QBR-350)
Weight3.5 t
Engine Power33 KW
Bucket Capacity0.05 m³
Hydraulic Impact Power120 J
Chassis Rotation Angle360°
Chassis Rotation Speed8.6 r/min
Hydraulic System Pressure18 MPa
Moving Speed4.3 Km/h (Adjustable)
Remote Control Range0-100 m
📐 Product Structure & Outline Drawings

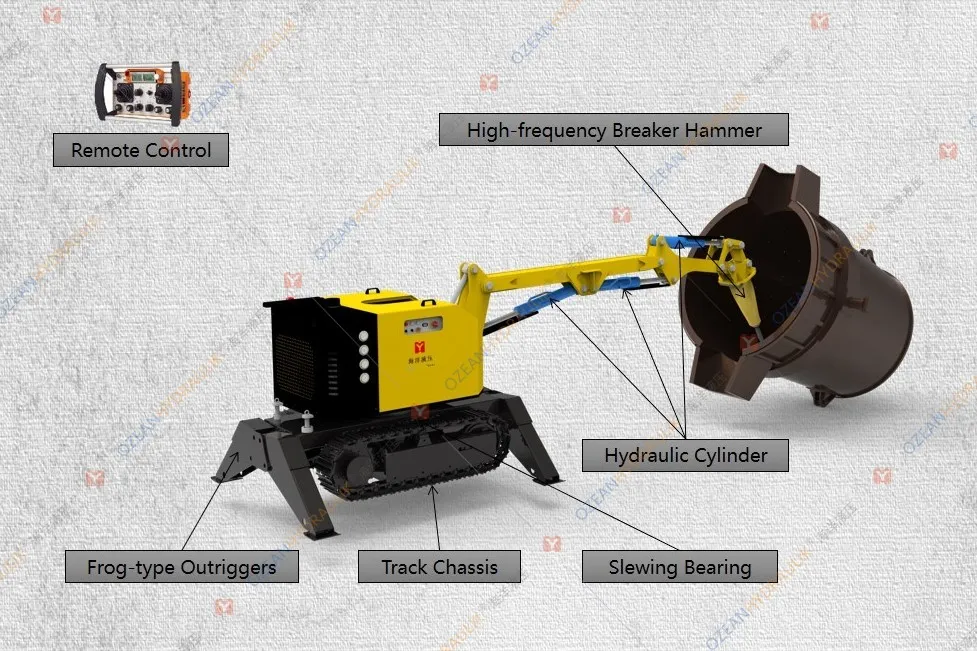

Product Structure Diagram

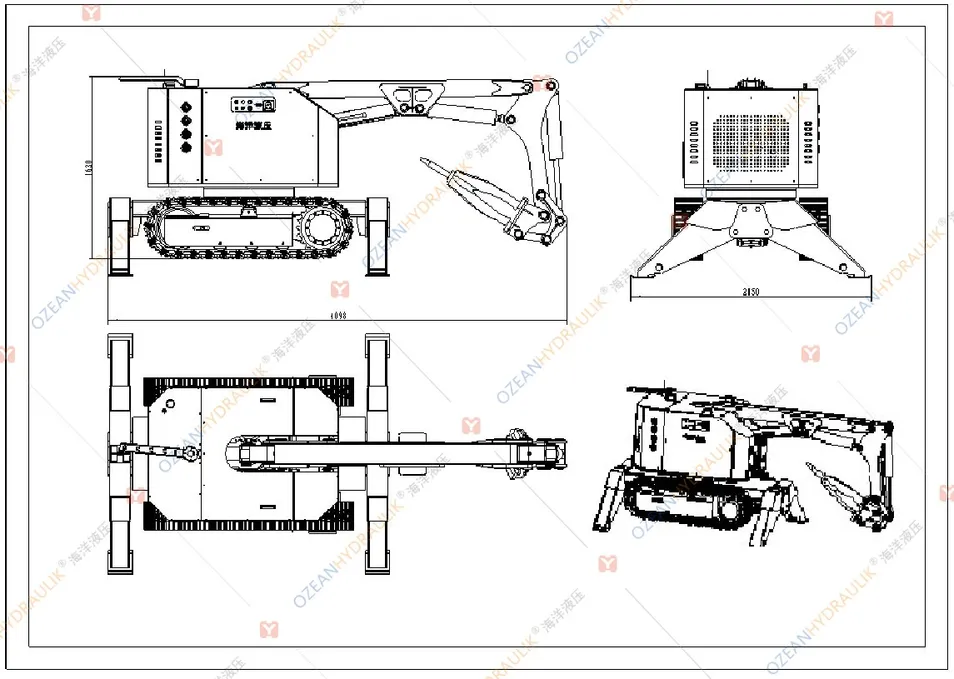

Outline Drawing 1

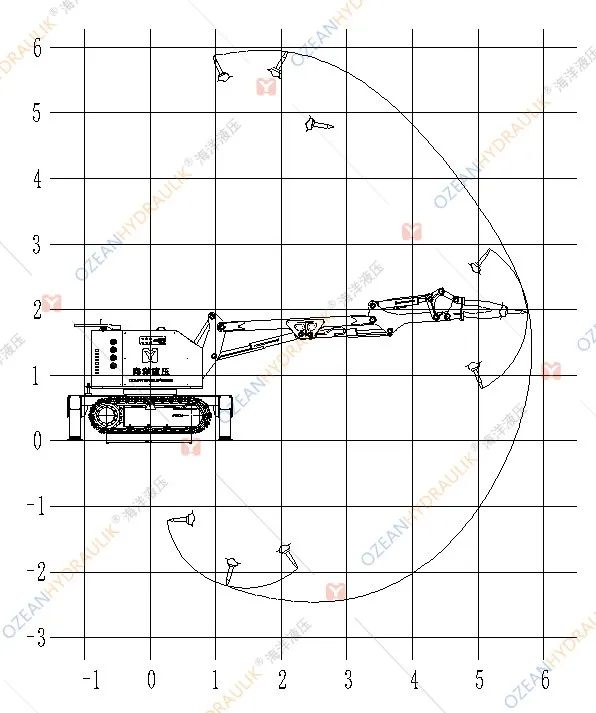

Outline Drawing 2
📦 Packaging & Shipping
Package Size
4500.00cm * 2100.00cm * 1900.00cm
Package Gross Weight
5500.000kg
Transport Package
Container/Steel Frame/Wooden Case

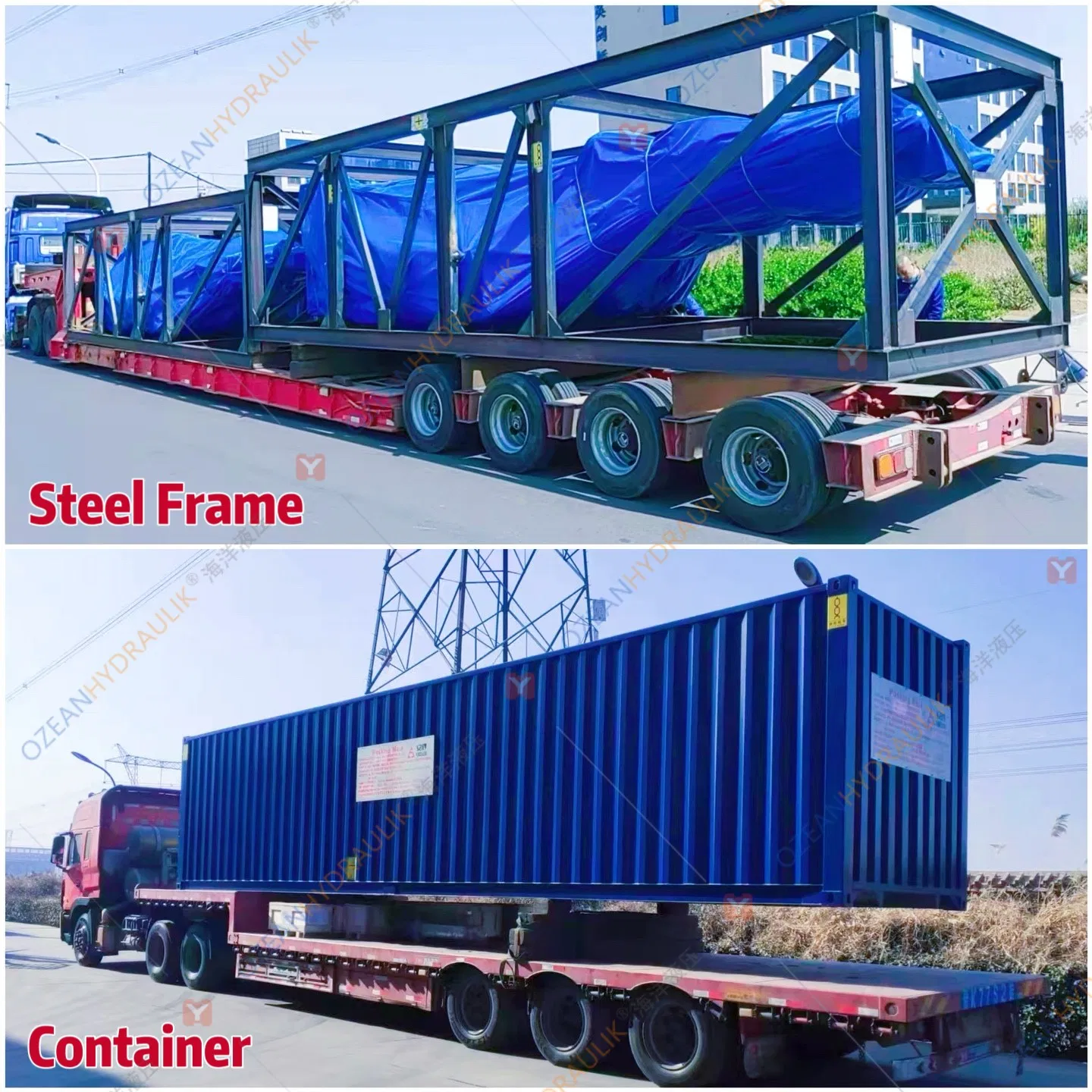

Packaging Detail
🏭 Production Facility
Factory Overview

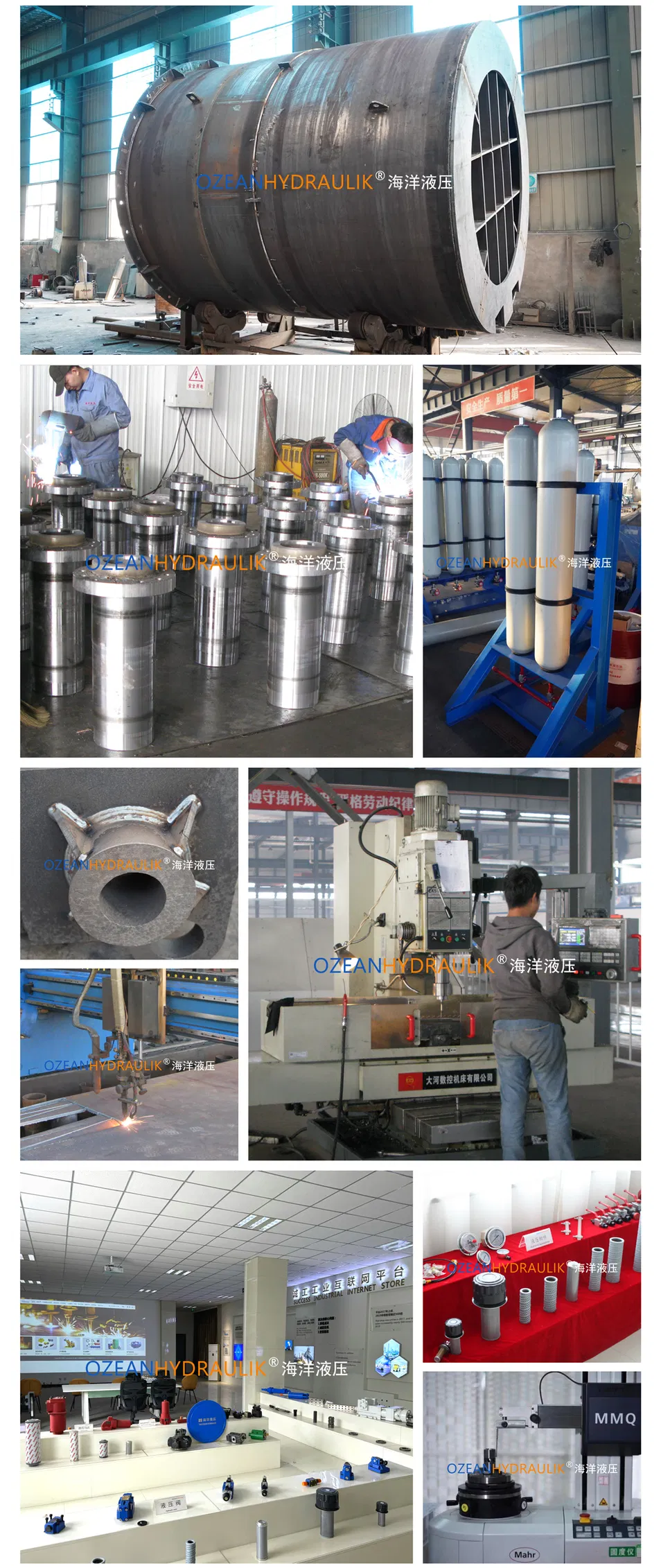

Production Line 1
Production Line 2
❓ Frequently Asked Questions
What are the primary applications of the slag cleaning robot?
It is primarily used in steel and metallurgy for furnace demolition, ladle cleaning, slag removal, and runner cleaning, as well as in mining and excavation tasks.
How is the machine controlled?
The robot is operated via a wireless remote control system with a range of up to 100 meters, allowing operators to remain at a safe distance in high-risk environments.
What types of attachments can be used with the mechanical arm?
The flexible arm can be equipped with hydraulic hammers, slag-removal hammers, digging buckets, hydraulic shears, or hydraulic claws.
Does the equipment remain stable during heavy-duty operations?
Yes, the machine is equipped with 4 outriggers that are deployed during operation to significantly enhance overall stability.
Can the technical specifications be customized?
Yes, we offer custom configurations to meet specific industrial requirements and construction environments.
What power source does the robot use?
The robot is powered by a high-efficiency diesel internal combustion engine combined with a 30kw hydraulic motor system.
