Mintrix Excavator
1 / 5
| Model NO. | MAIPRO-07 |
|---|---|
| Type | Cylinder |
| Application | Excavator |
| Certification | CE, ISO9001: 2000 |
| Suitable | 5-8 (Ton) Excavator |
| Material | Q355 |
| Maximum Swing Angle | ±45° |
| Working Pressure | 180-210bar |
| Required Flow Range | 30-50 L/Min |
| Thumb Clamp Opening | 425mm |
| Weight | 275 Kg |
| Mechanical Components | Castings |
| HS Code | 8431499900 |

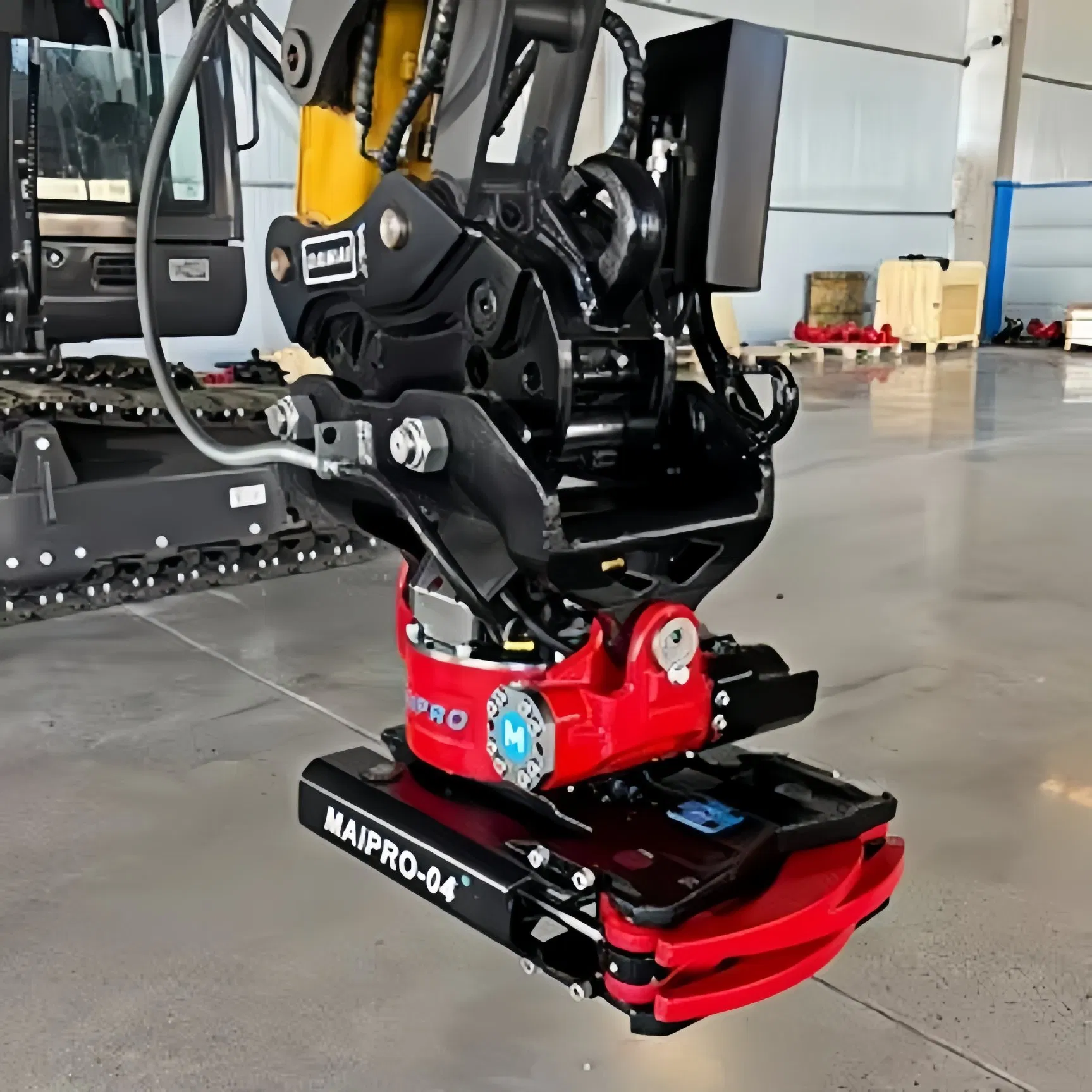

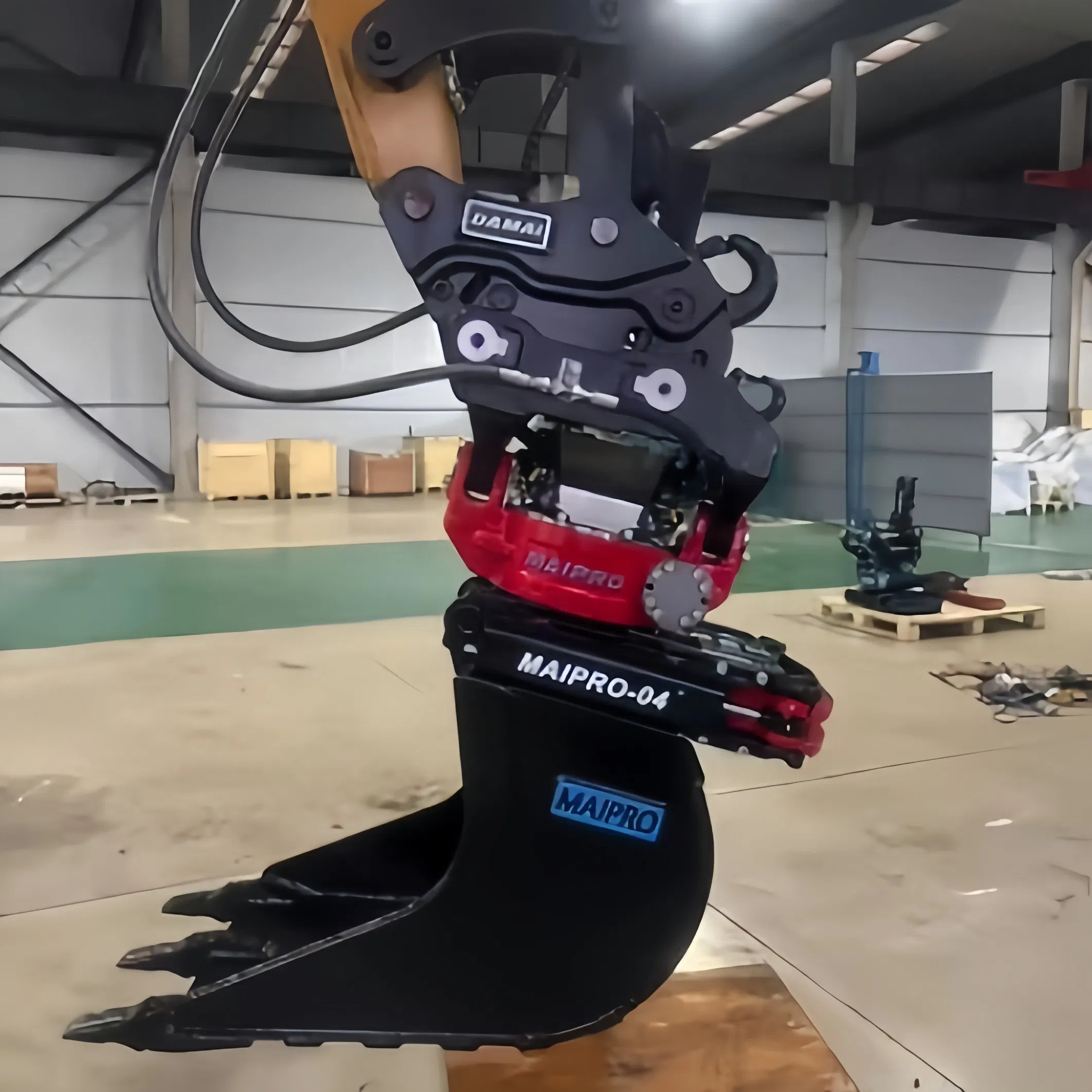

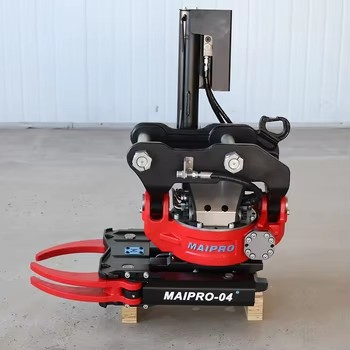

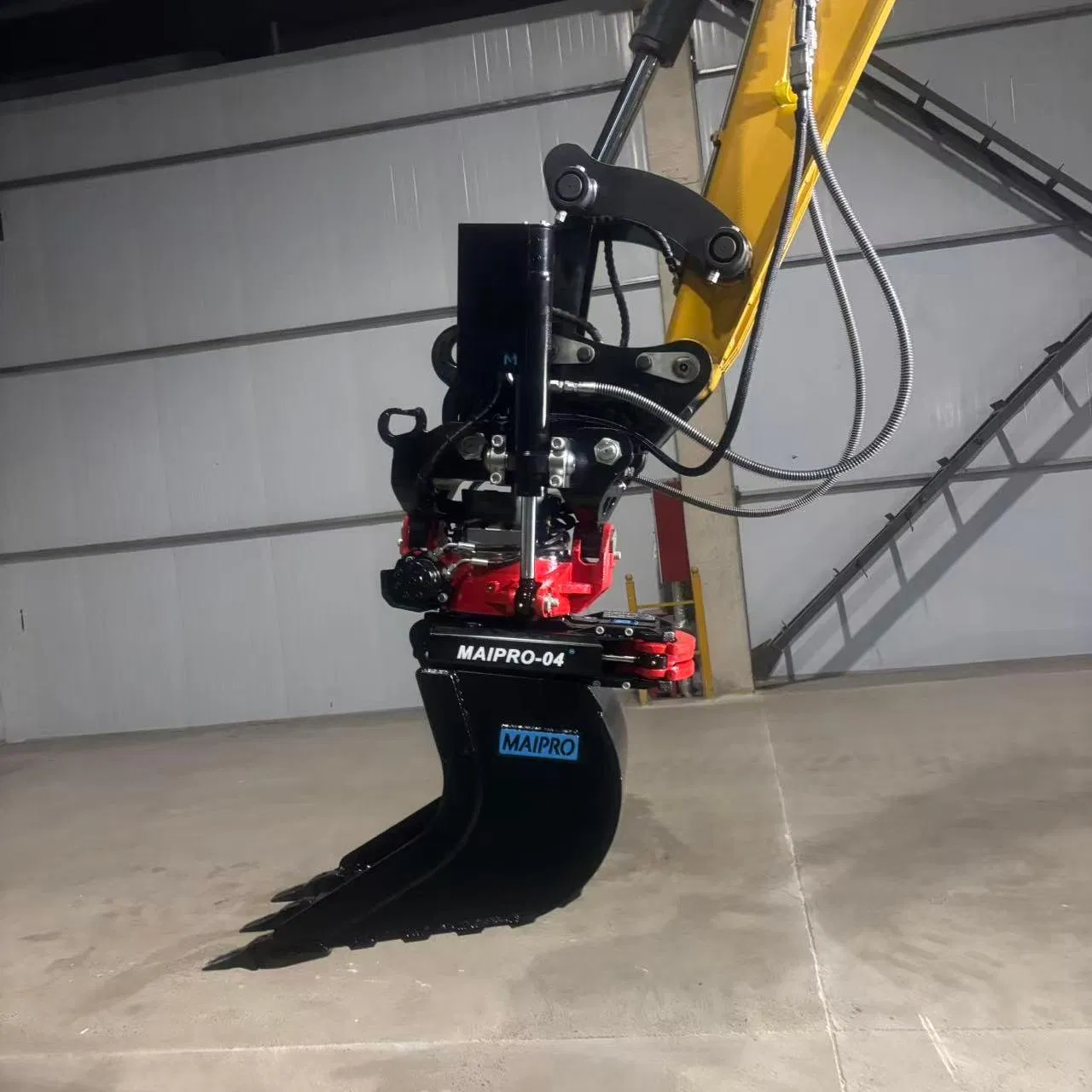

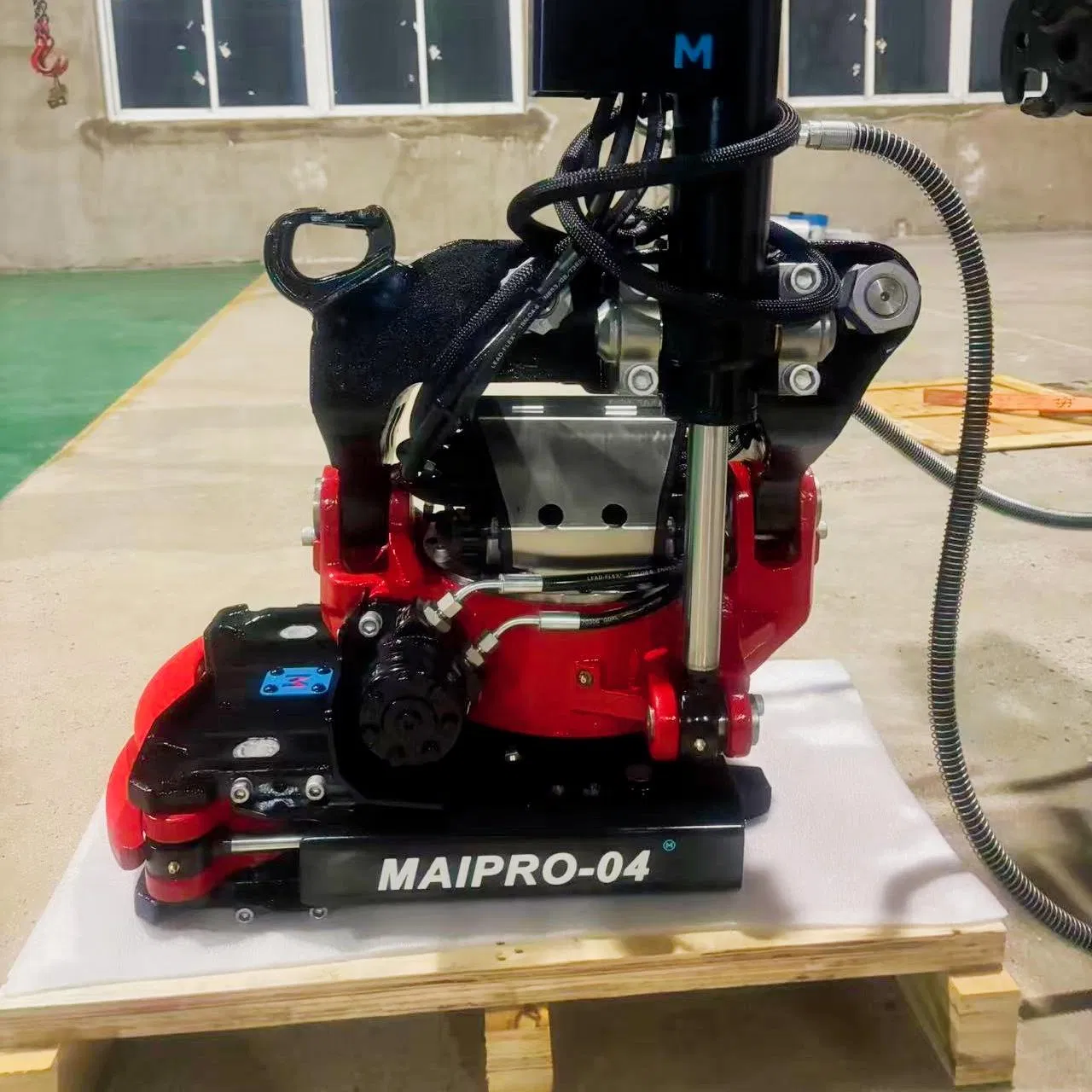

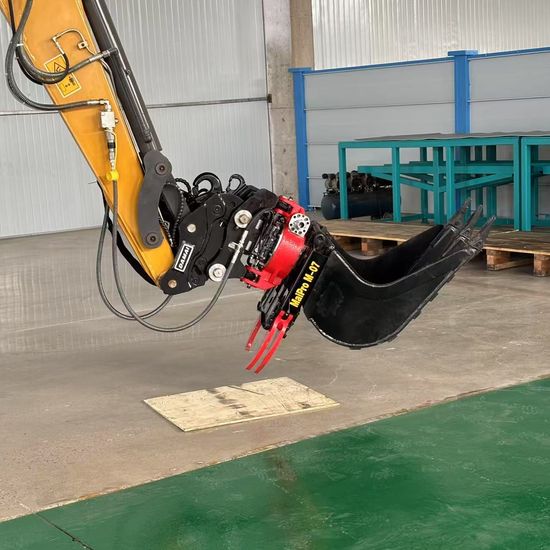

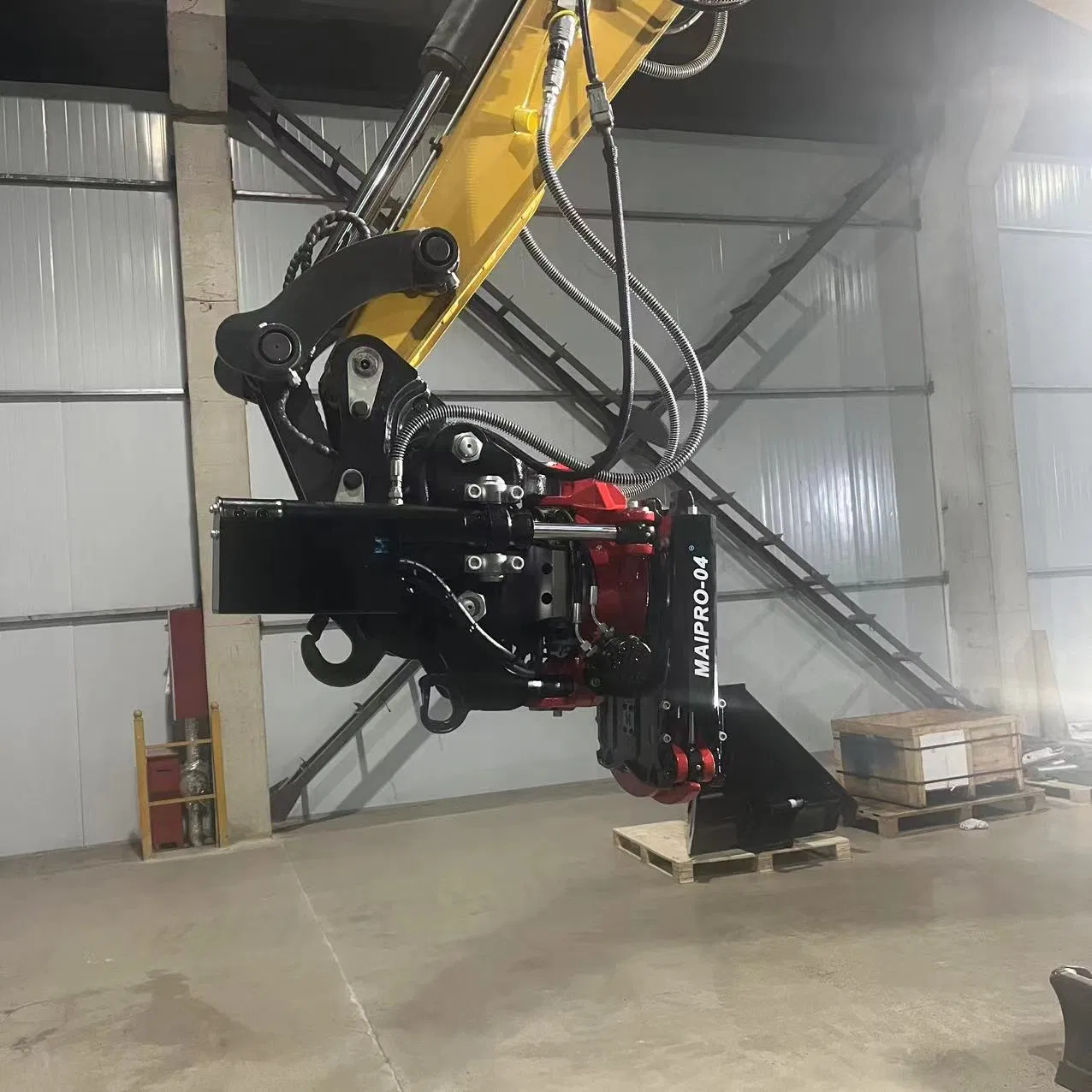

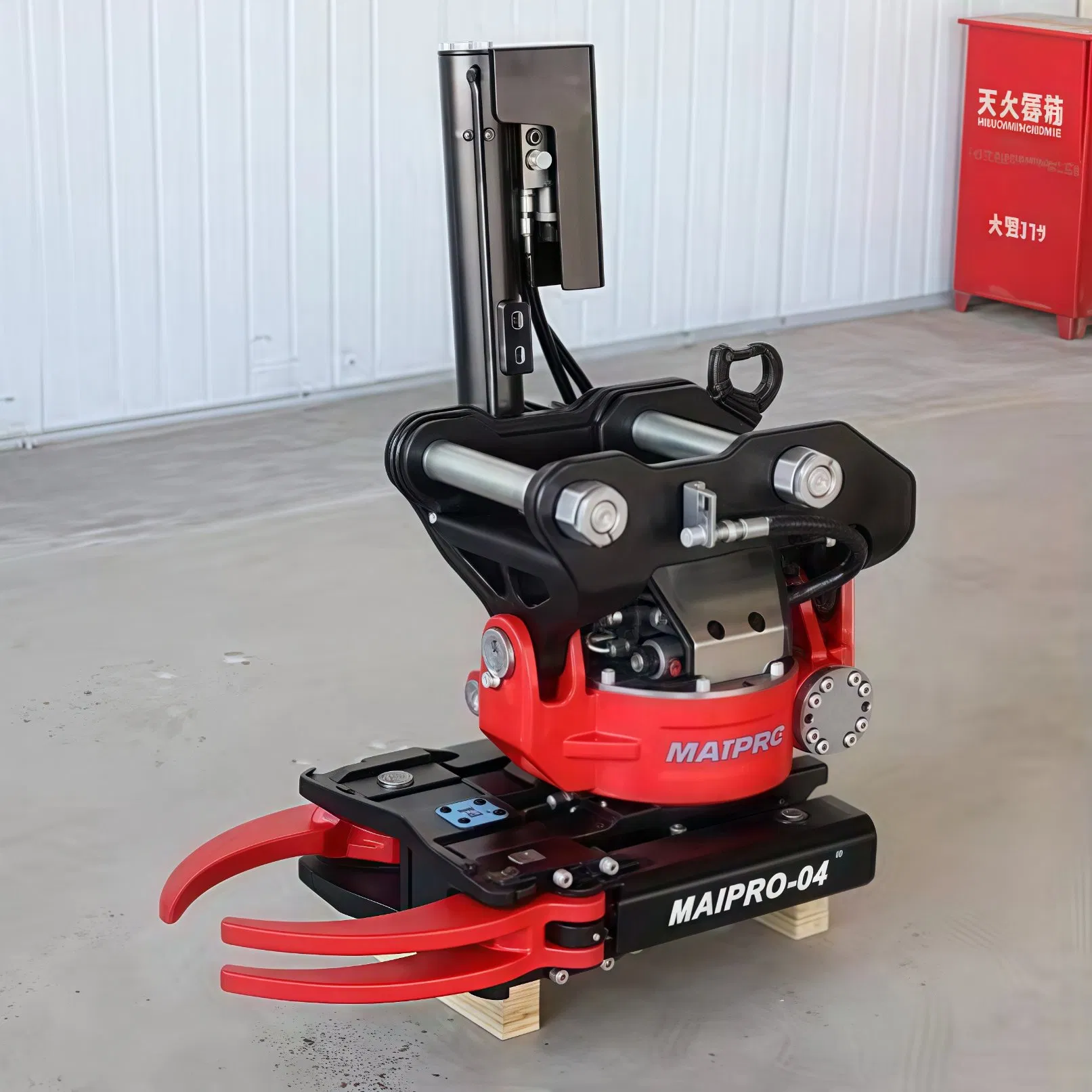

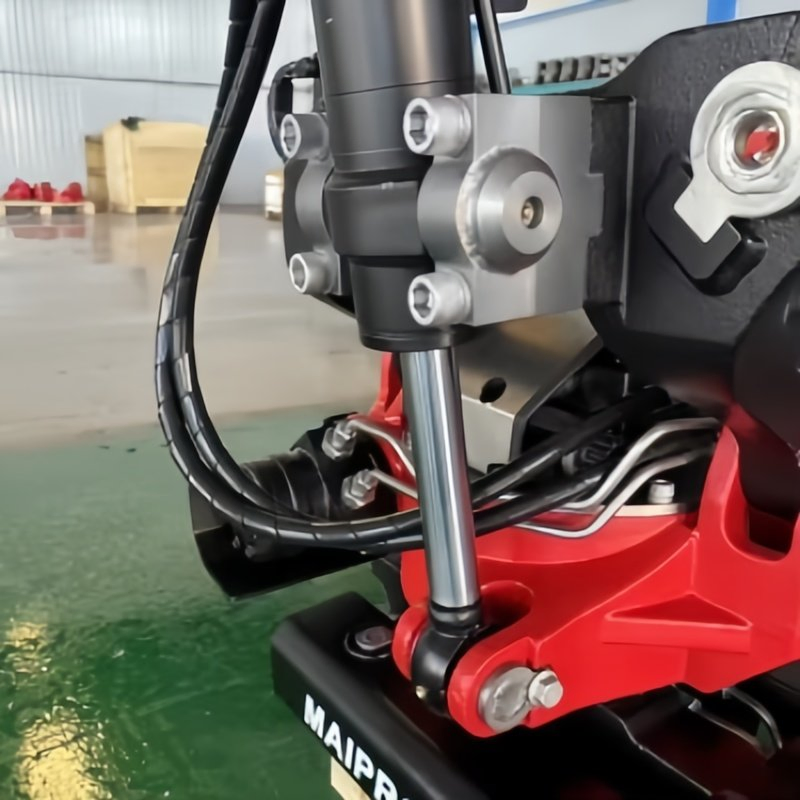

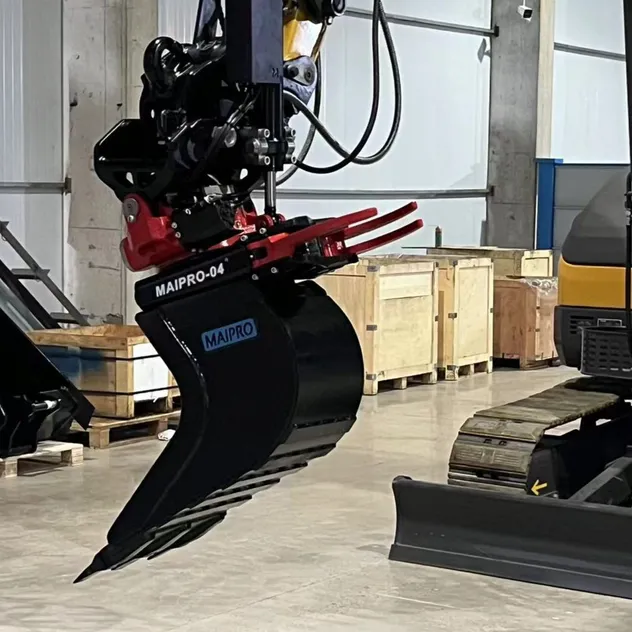

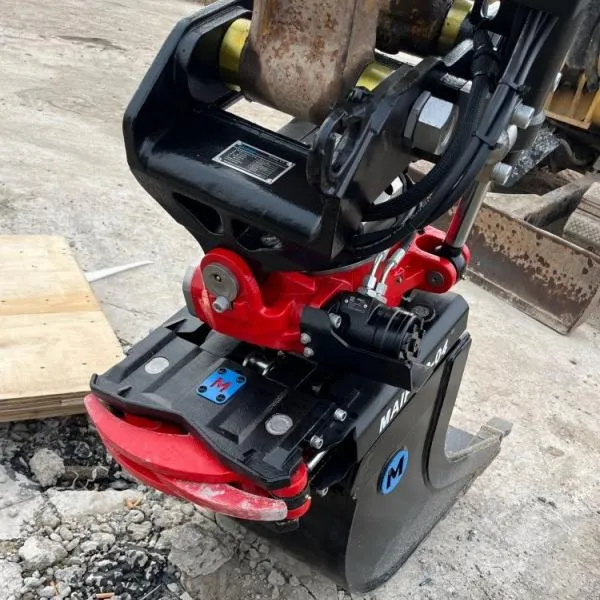

The Hydraulic TiltRotator, also known as a Hydraulic Wrist, is a revolutionary attachment engineered for 1 to 25-ton compact and mini excavators. It acts as a highly flexible and robust "wrist" installed between the excavator's arm and the bucket.
This innovative attachment grants the bucket unprecedented 360-degree continuous rotation and ±45 degrees of tilt. It transforms a single-purpose excavator into a multi-tasking workhorse, ideal for landscaping, precise trenching, and urban construction.
| Model and Parameter | M-04 | M-07 | M-15 | M-20 |
|---|---|---|---|---|
| Adapted Excavator (Ton) | 2-4 | 5-8 | 12-18 | 20-25 |
| Maximum Swing Angle | ±45° | ±45° | ±45° | ±45° |
| Max Working Pressure (Bar) | 210 | 210 | 210 | 210 |
| Required Flow Range (L/Min) | 20-40 | 30-50 | 60-100 | 80-120 |
| Weight (Kg) | 145 | 275 | 595 | 680 |
| Thumb Clamp Opening (mm) | 330 | 425 | 820 | 820 |
| Quick Coupler Type | S30 | S40 | S60 | S60/S70 |

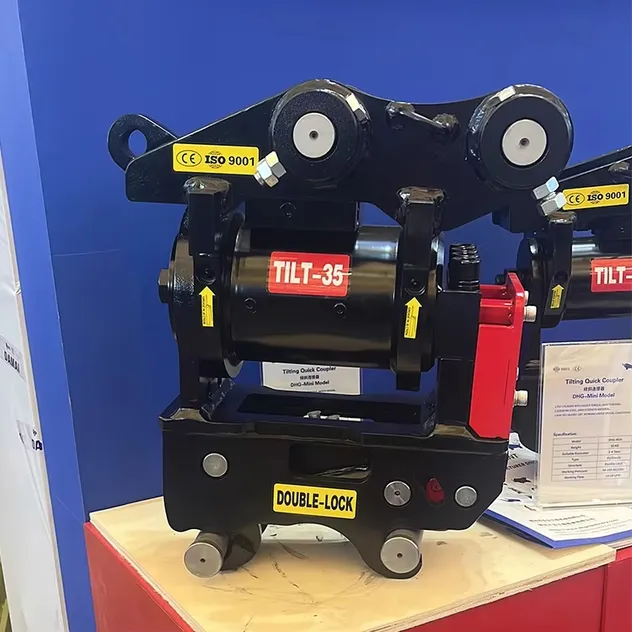

Tilt Quick Coupler

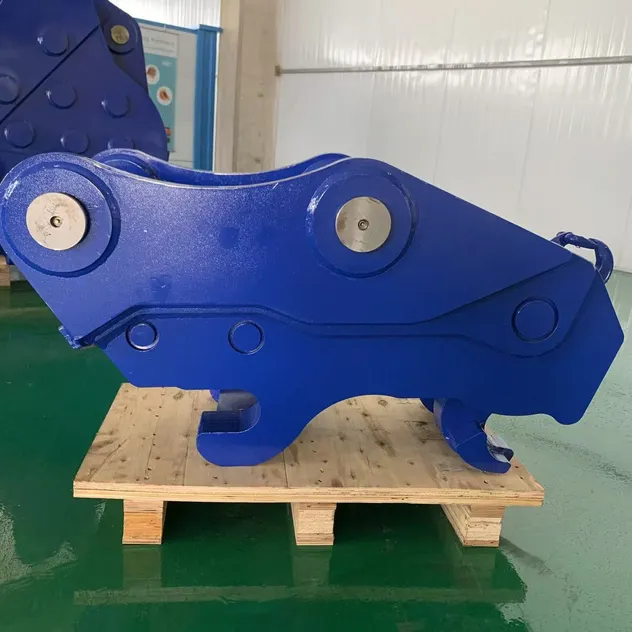

Double Lock Coupler

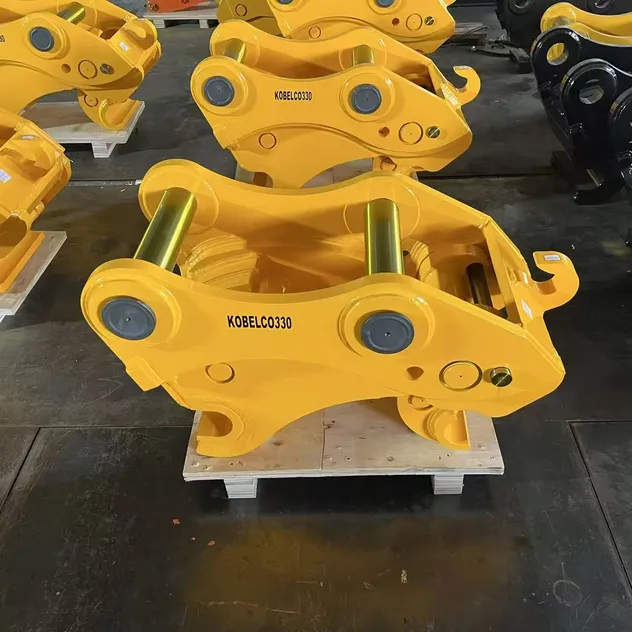

Hydraulic Quick Coupler
We are a professional manufacturing enterprise specializing in excavator attachments, integrating R&D, production, and after-sales service. With 18+ years of expertise, we provide high-quality accessories including Quick Couplers, Hydraulic Breakers, and Grapples.
Our 5,000m² advanced production facility is equipped with precision manufacturing equipment and adheres to ISO 9001 and CE certifications. We offer cost-effective products and customized solutions to meet specific requirements worldwide.
