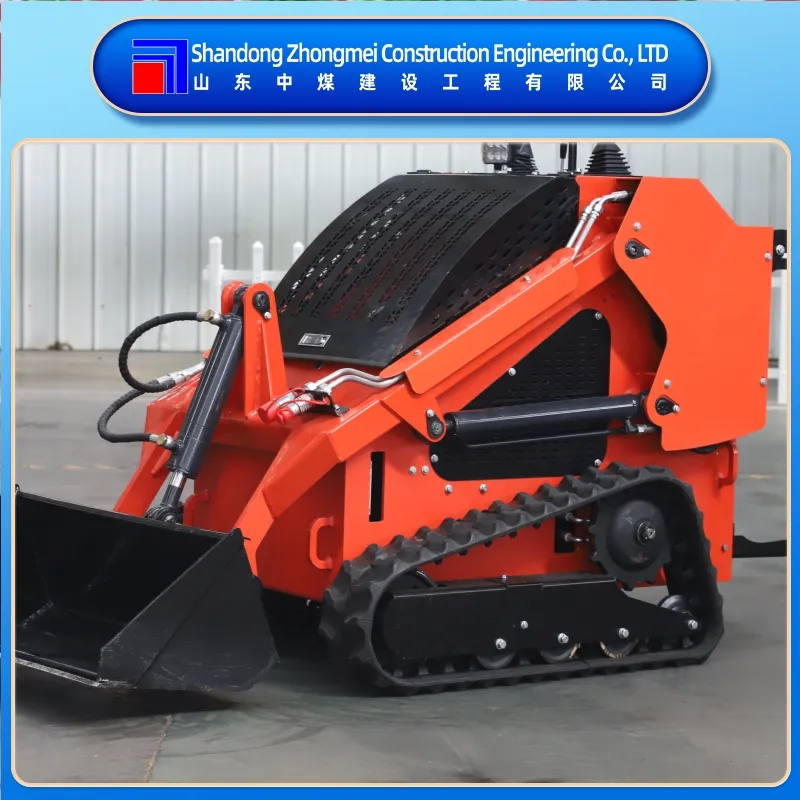

Skid Steer Loader
Our skid steer loader is a compact, flexible, and highly efficient multi-functional machine designed for various construction, landscaping, agricultural, and industrial applications. With its small turning radius and powerful operating capability, it easily handles tasks in narrow spaces, uneven terrains, and frequently changing work environments.
Built with high-strength thickened steel and advanced welding technology, the machine offers outstanding durability, structural stability, and long service life. The 360° free-rotating body and quick-attach system enable seamless switching between a wide range of attachments such as buckets, forks, augers, breakers, sweepers, and more—making it a true all-in-one solution for professional users.
Equipped with a high-performance engine, the skid steer loader ensures strong power output, low fuel consumption, and stable operation. The intuitive control system allows easy operation for both beginners and experienced operators.
Engine: High-efficiency, high-torque diesel engine (EPA Tier III / Euro V compliant), ensuring strong power.
Hydraulic System: Advanced high-flow system with precision-controlled pumps and valves.
Cabin: Ergonomic ROPS/FOPS-certified cabin, wide-view windows, and noise-reduction design.

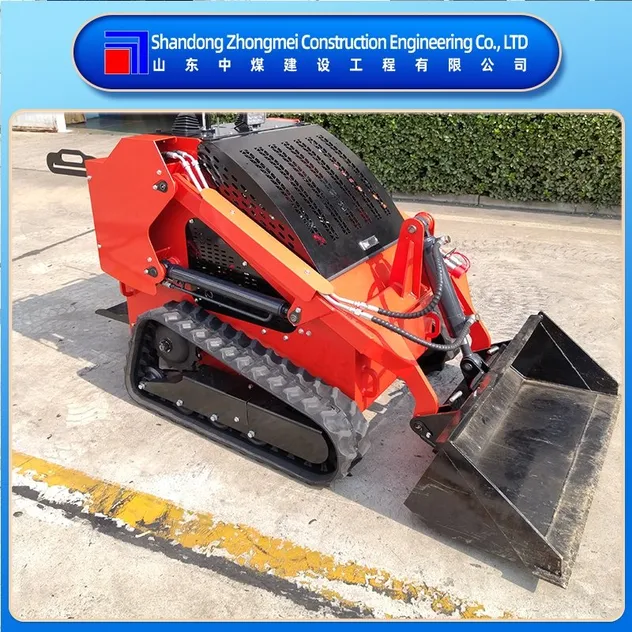

Right Elevation

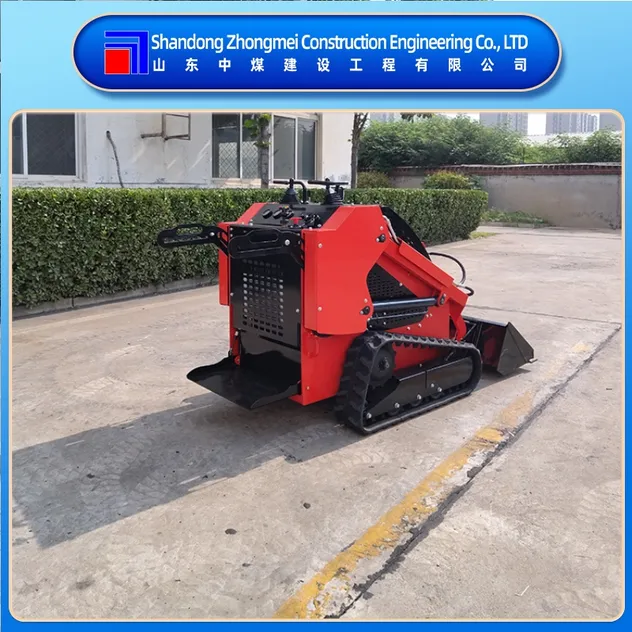

Left Elevation

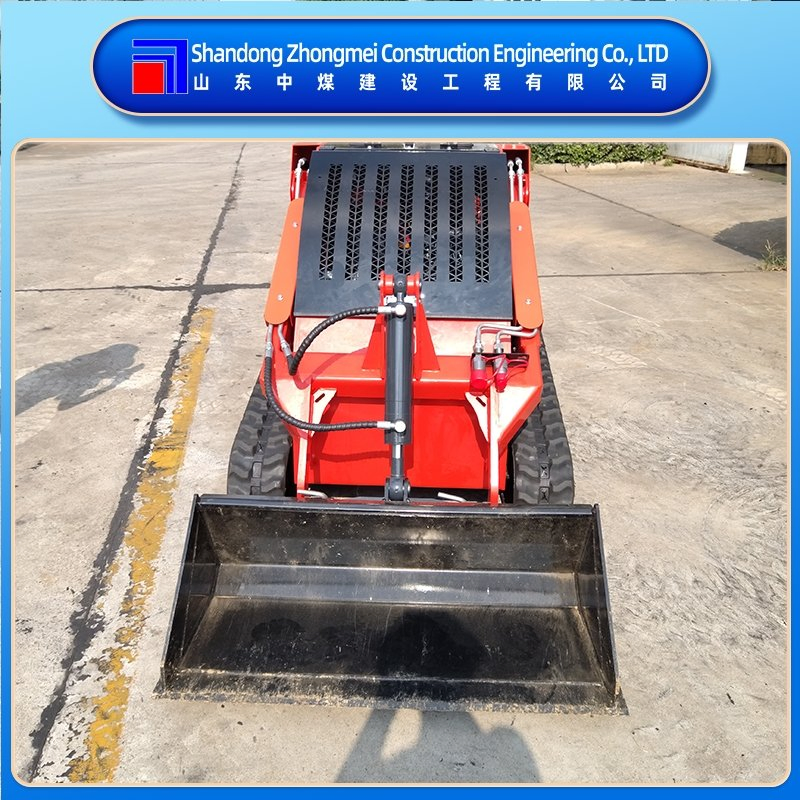

Front Elevation
| Item | Parameter | Item | Parameter |
| Engine Brand | Yanmar 380 | Maximum Load (kg) | 480 |
| Rated Power (HP) | 20–25 HP | Max Breakout Force (kN) | 450 |
| Rated Speed (rpm) | 2500–3000 | Bucket Capacity (m³) | 0.12 |
| Number of Cylinders | 3 | Travel Speed (km/h) | 0-6 |
| Intake Method | Natural aspiration | Working Cycle Time (s) | 9 |
| Displacement (cc) | 639 | System Pressure (bar) | 17-21 |
| Emission Standard | EPA | Fuel Tank Capacity (L) | 13 |
| Rated Load (kg) | 350 | Operating Weight (kg) | 1200 |
| Item | Parameter | Item | Parameter |
| Max Operating Height | 2450mm | Height to Bucket Hinge | 1870mm |
| Overall Height | 1350mm | Max Bucket Level Height | 1810mm |
| Overall Length (w/o) | 1680mm | Overall Length (standard) | 2206mm |
| Max Dump Angle | 34° | Dump Height | 1510mm |
| Ground Clearance | 150mm | Machine Width | 1000mm |
With over 20 years of experience in the construction industry, we are a leading manufacturer and provider of engineering machinery and construction solutions. We combine advanced engineering machinery with professional expertise, ensuring every project meets the highest standards of efficiency, durability, and safety.
