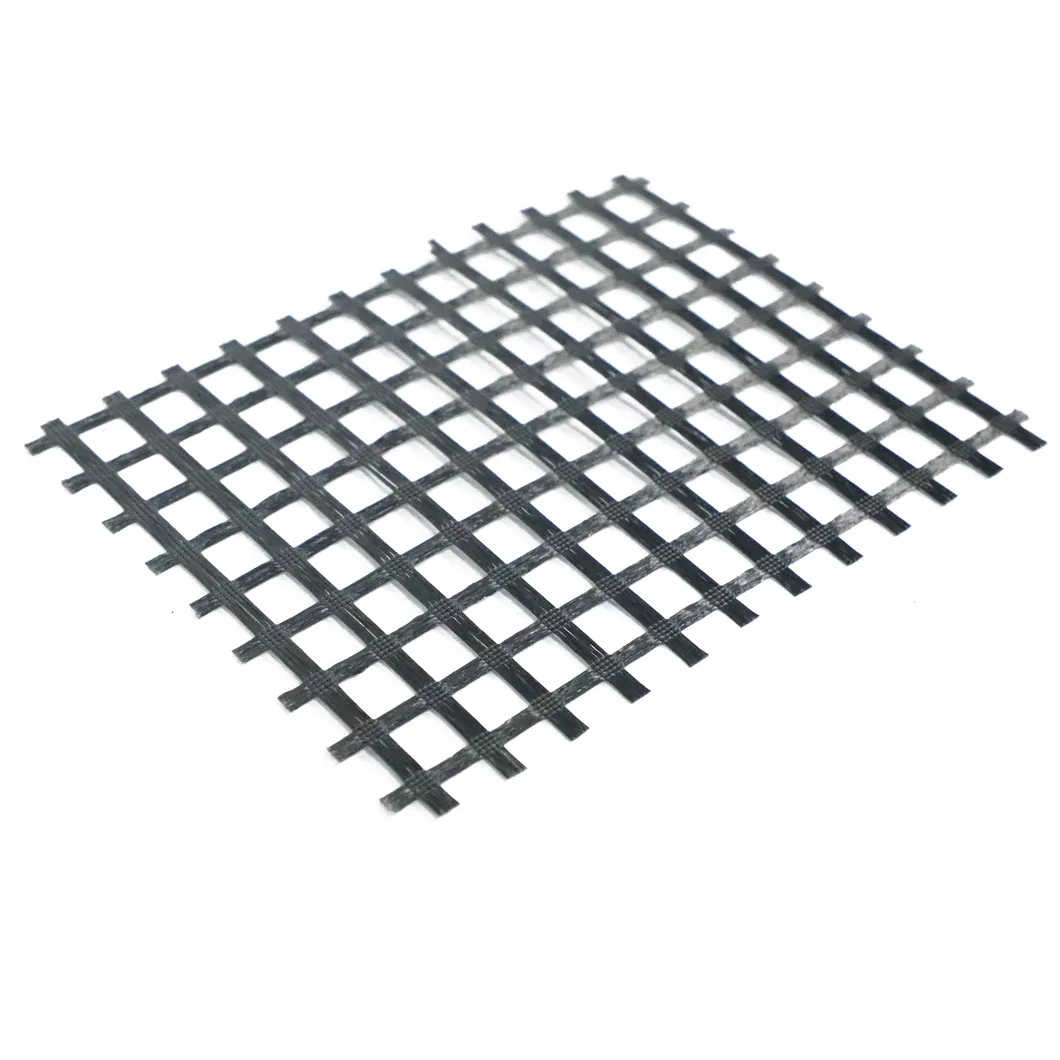

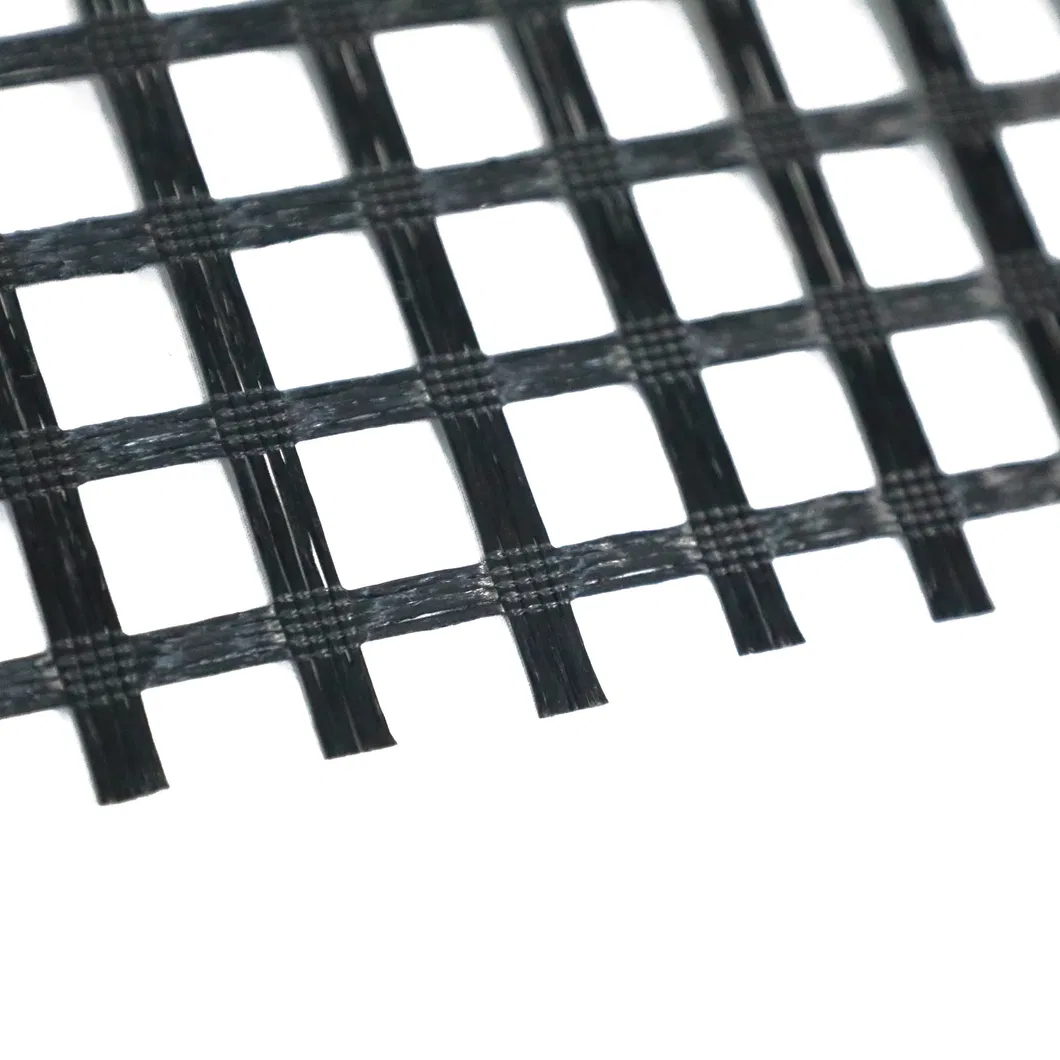

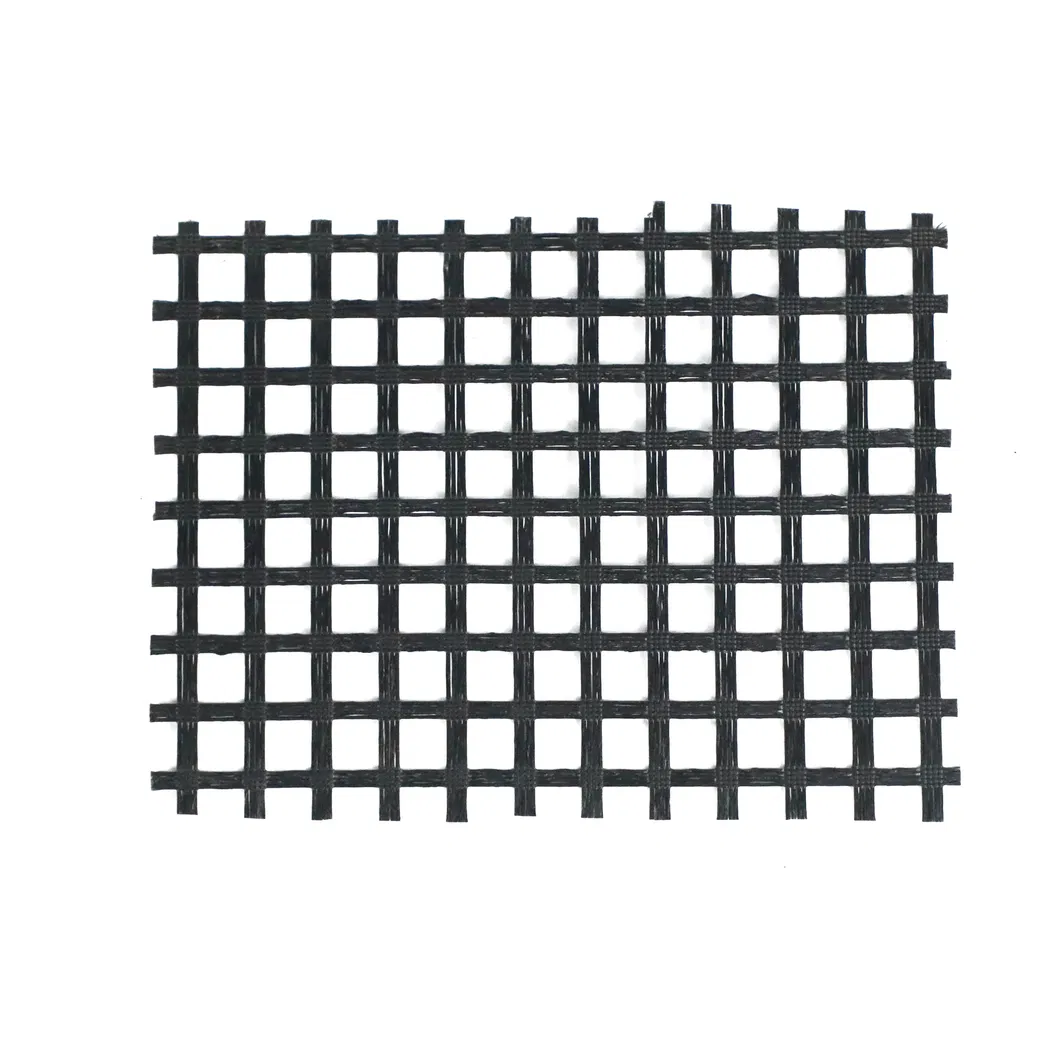

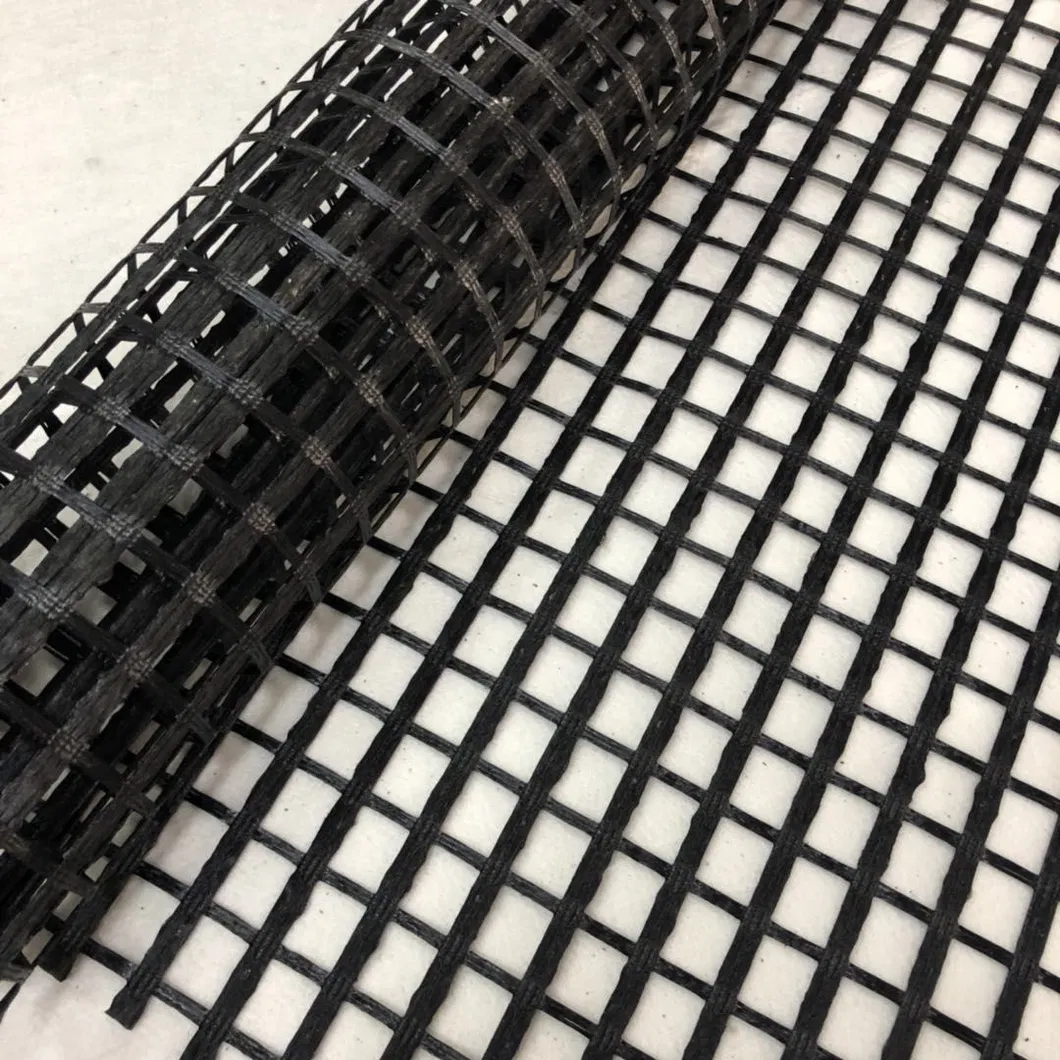

Biaxial Geogrid Fiber Glass Premium Solution for Roadworks, Highways and Driveways
In a major provincial highway project (85km total length), frequent heavy truck traffic caused severe cracking and rutting. Fiberglass geogrid was introduced to solve these issues.

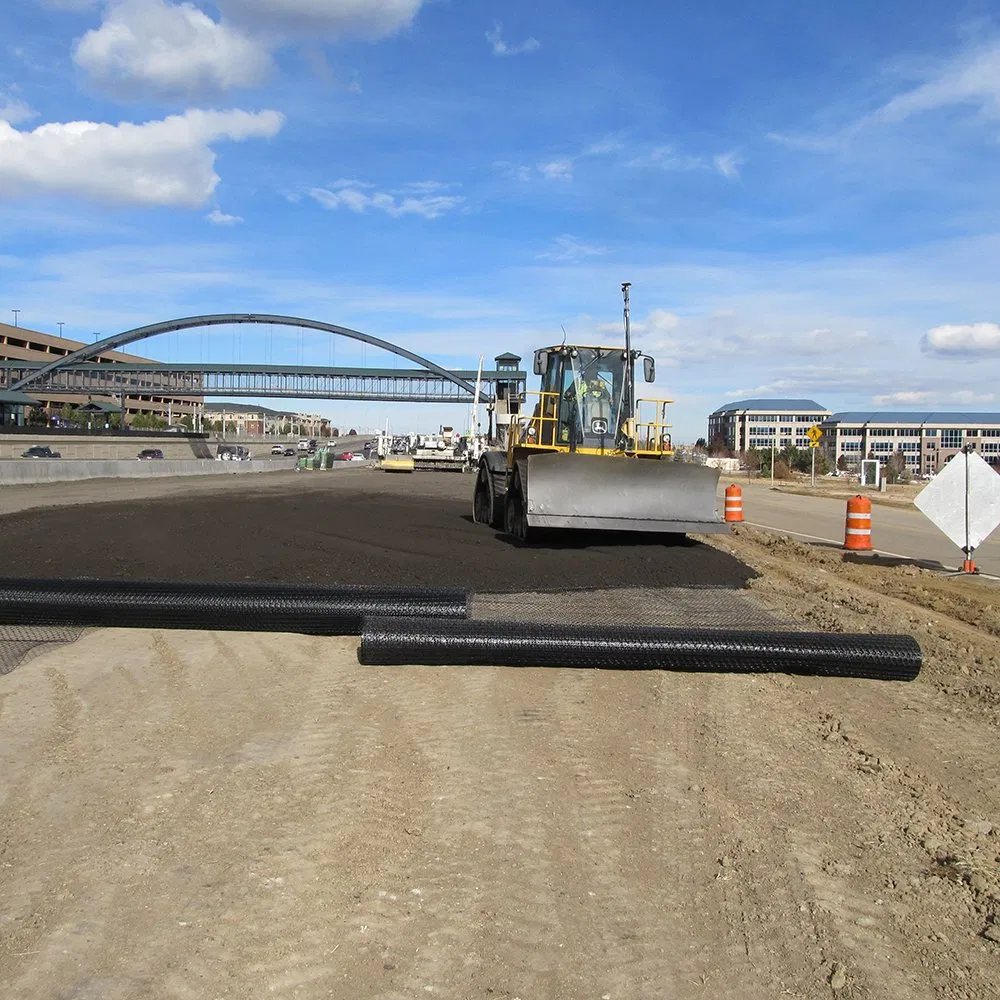

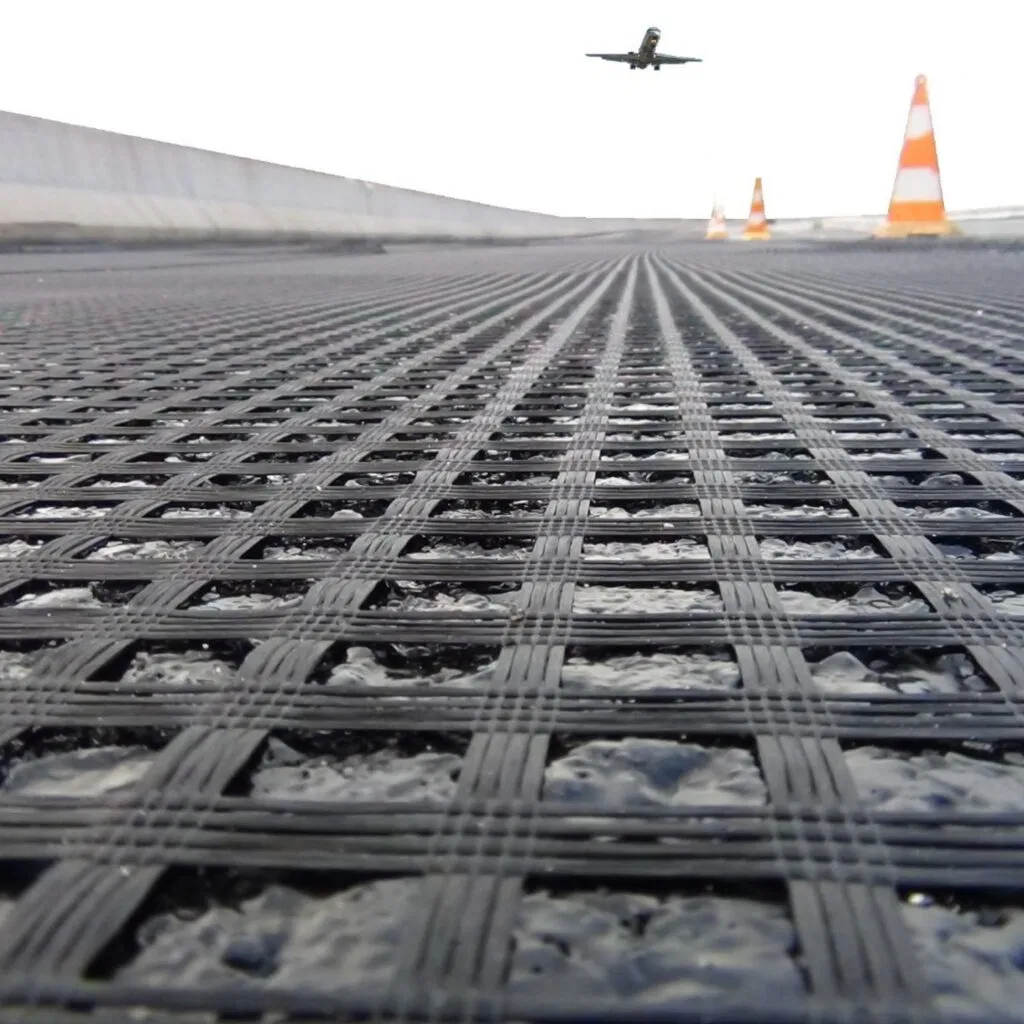

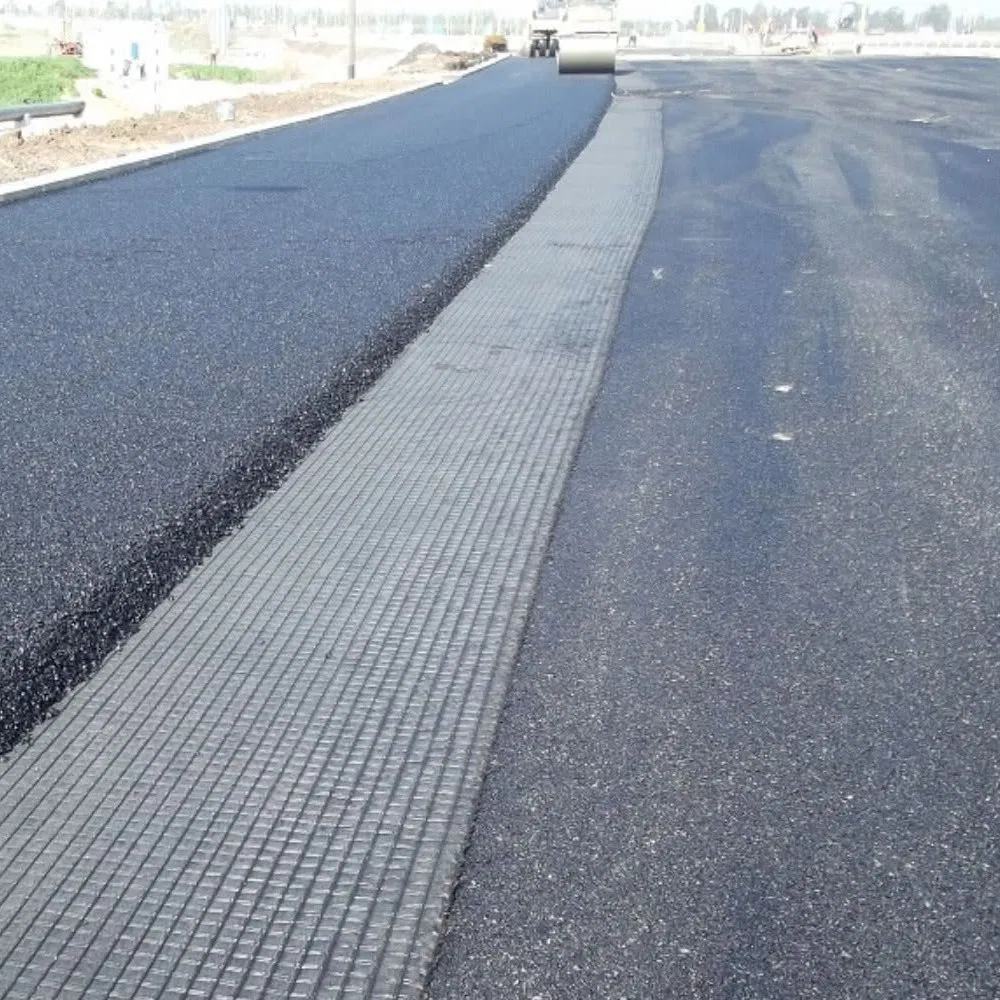

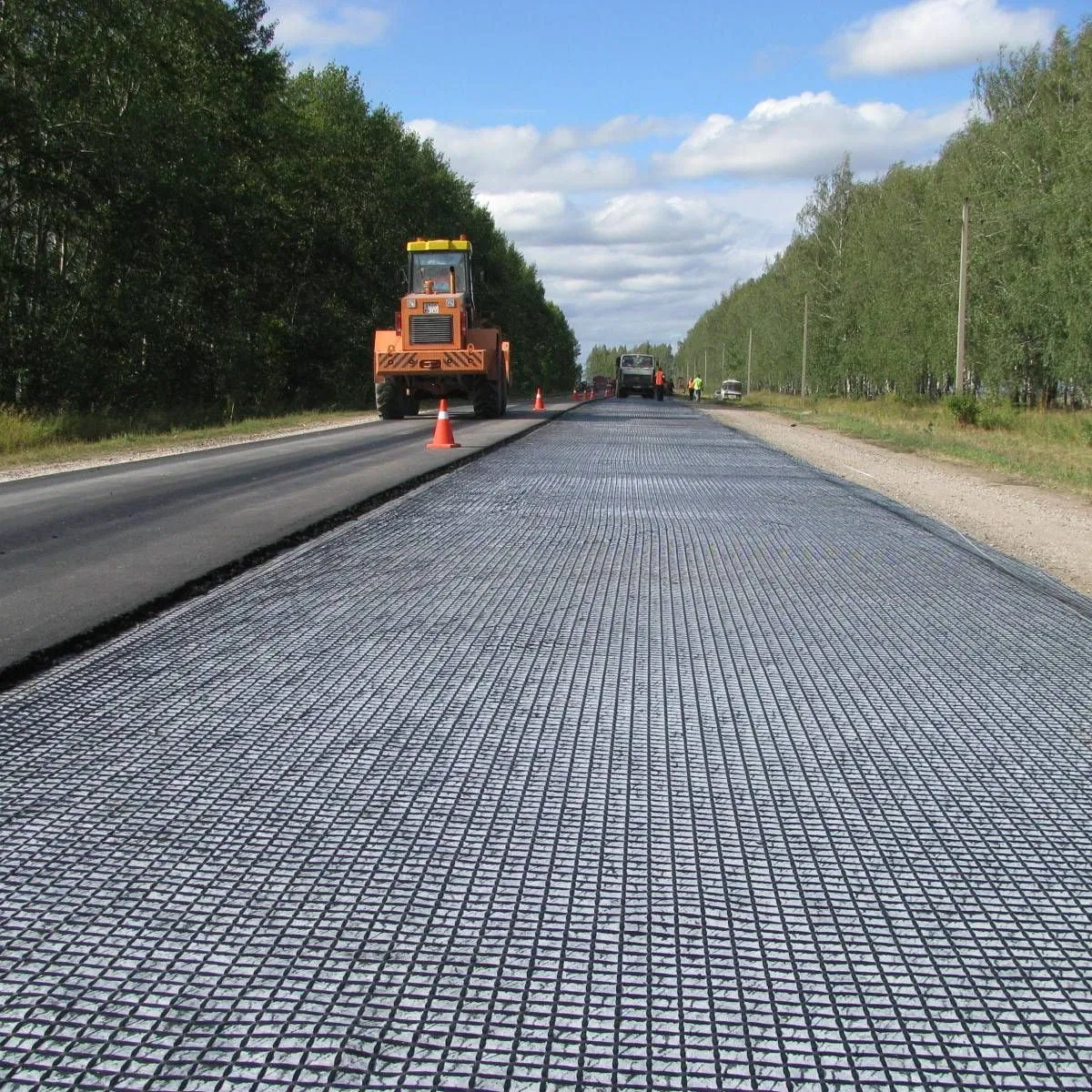

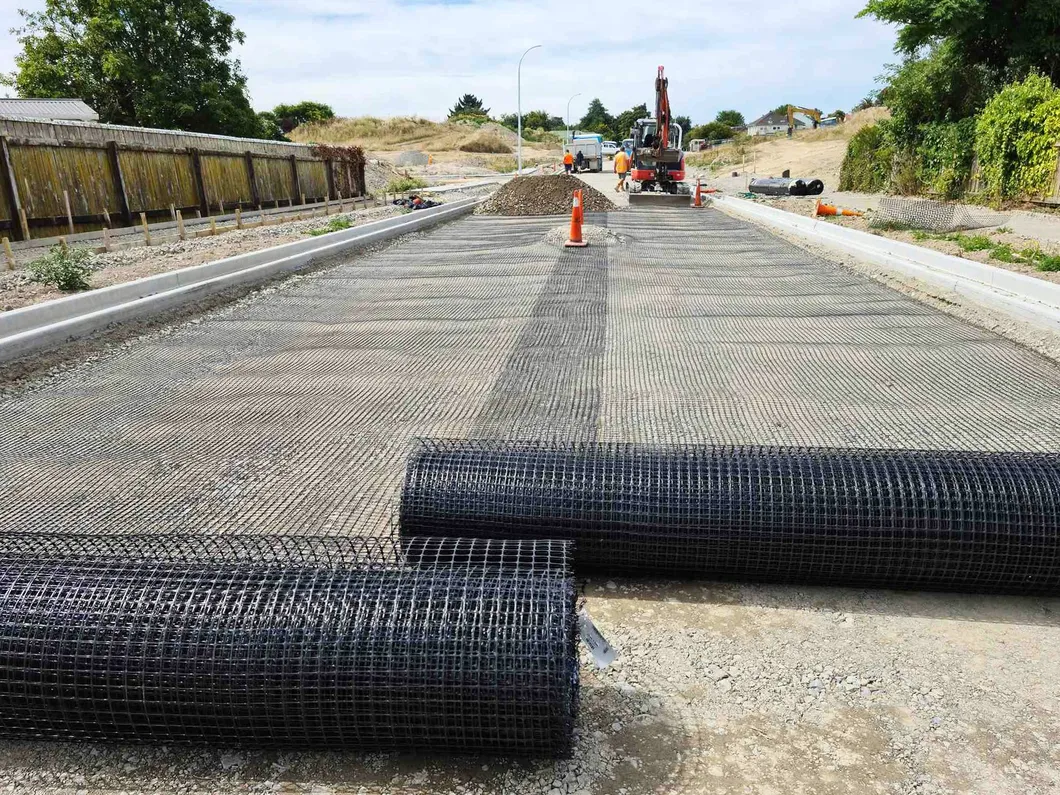

The Process: After milling the old asphalt and cleaning the base, the geogrid was unrolled with a 10-15cm overlap and fixed with special nails. Hot asphalt mixture was then paved directly over the grid.
Results: The grid effectively dispersed vehicle loads and inhibited reflection cracks. After one year, the pavement remained in excellent condition, with an expected service life extension of 5-8 years compared to traditional methods.
| Item / Specification | TGSG1515 | TGSG2020 | TGSG3030 | TGSG4040 | TGSG5050 |
|---|---|---|---|---|---|
| Tensile strength ≥(KN/M) | 15 | 20 | 30 | 40 | 50 |
| Strength @ 2% elongation ≥(KN/M) | 5 | 7 | 10.5 | 14 | 17.5 |
| Strength @ 5% elongation ≥(KN/M) | 7 | 14 | 21 | 28 | 35 |
Highway & Railway: Disperses loads and prevents subgrade deformation.

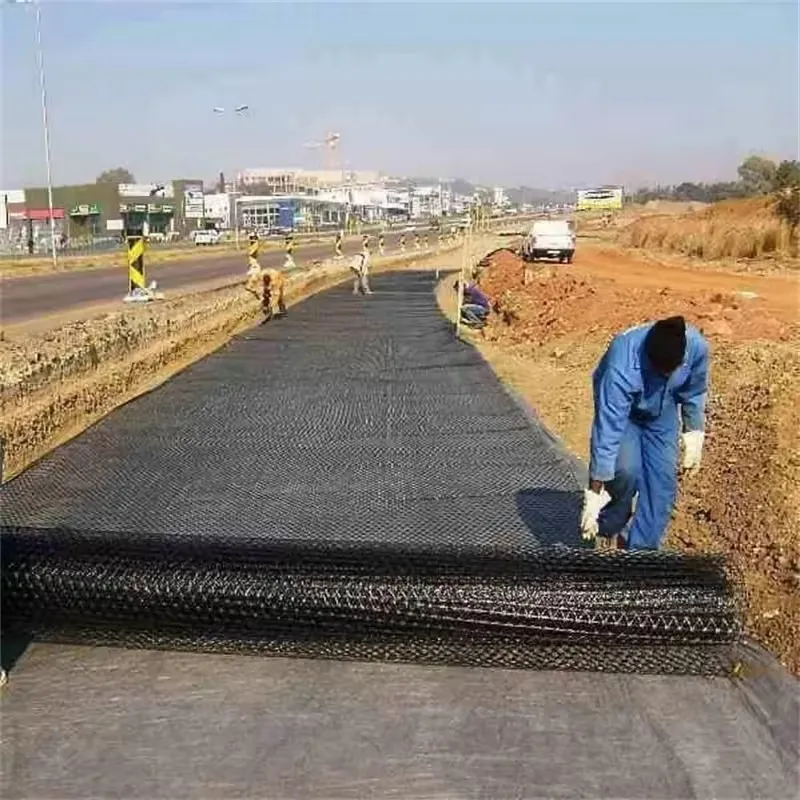

Pavement Renovation: Resists reflection cracks on old asphalt surfaces.

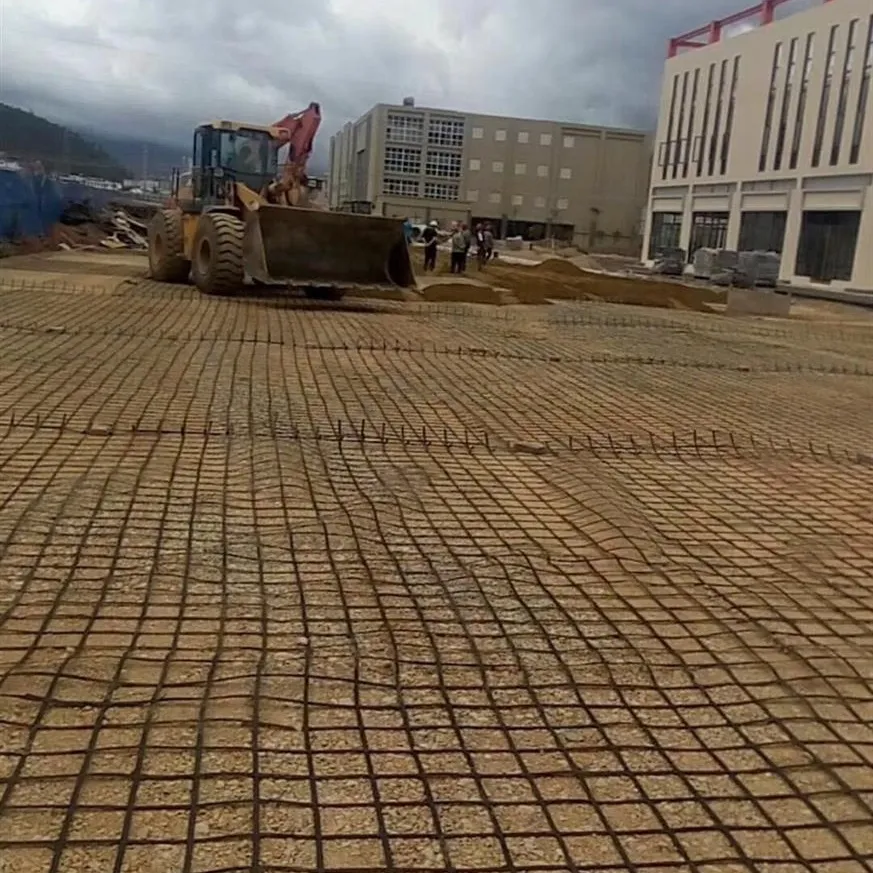

Landfill Systems: Enhances liner strength and prevents punctures.

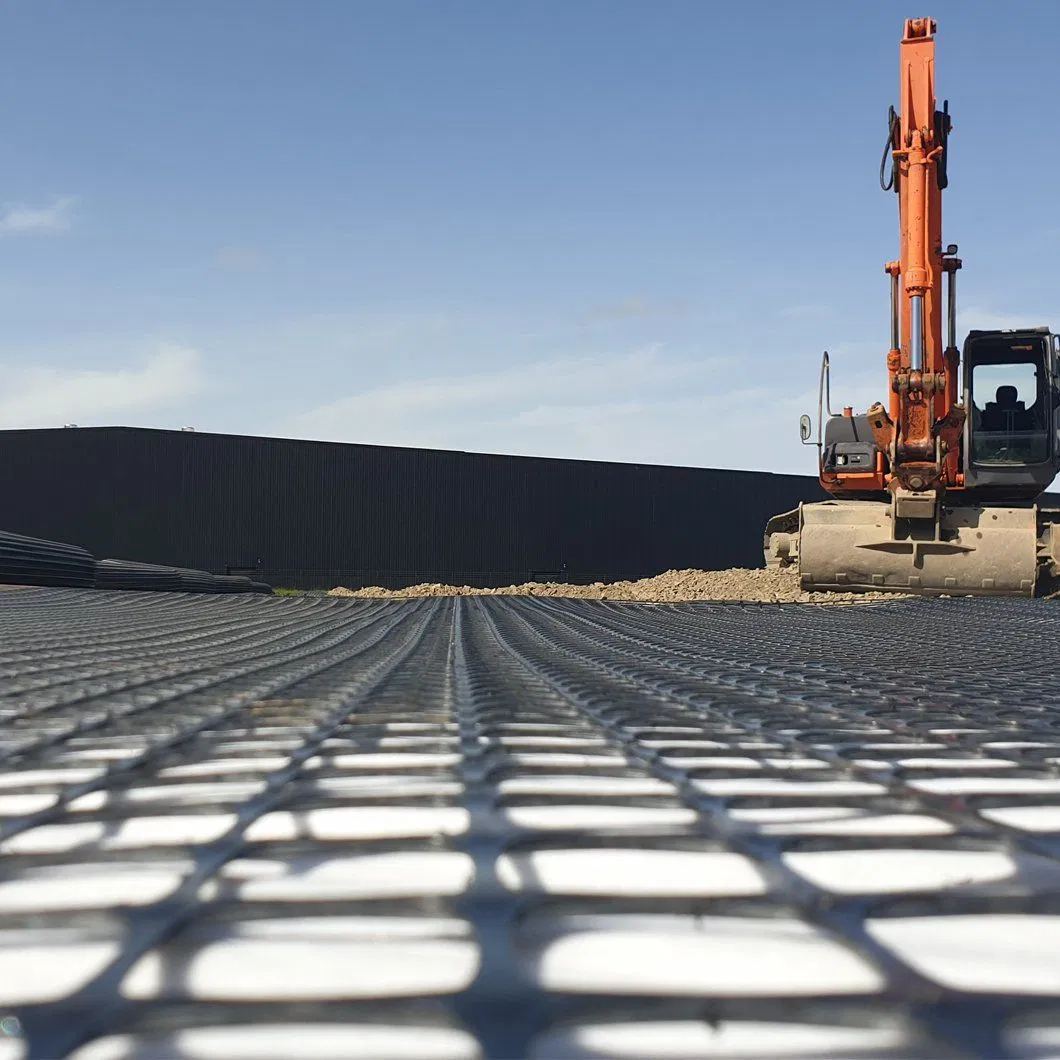

Bank Protection: Enhances soil shear strength in rivers and canals.

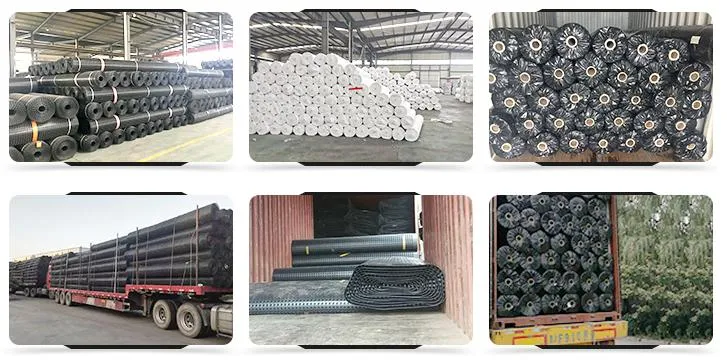

Standard export rolls. Efficient logistics ensure stable supply and timely delivery worldwide.
