Storm Sewer Water No Dig Trenchless Pipe Rehabilitation Cipp UV LED Full Lining Light Train System

Customization:	Available
Diameter:	200-1800
Material:	PVC Pipe

Send Inquiry

Product Description

Technical Specifications

Model

X120-Cipp

Waterproof

IP68 Grade

Cable Length

150m (Standard)

Repair Length

Adjustable Lengths

Dimensions

1700mm*750mm*1270mm

Power Supply

380V (52kw Generator Recommended)

MPa Class

High Pressure Piping

Shape

Round Cross-Section

Capacity

100 Sets Per Year

HS Code

8525803100

Product Description

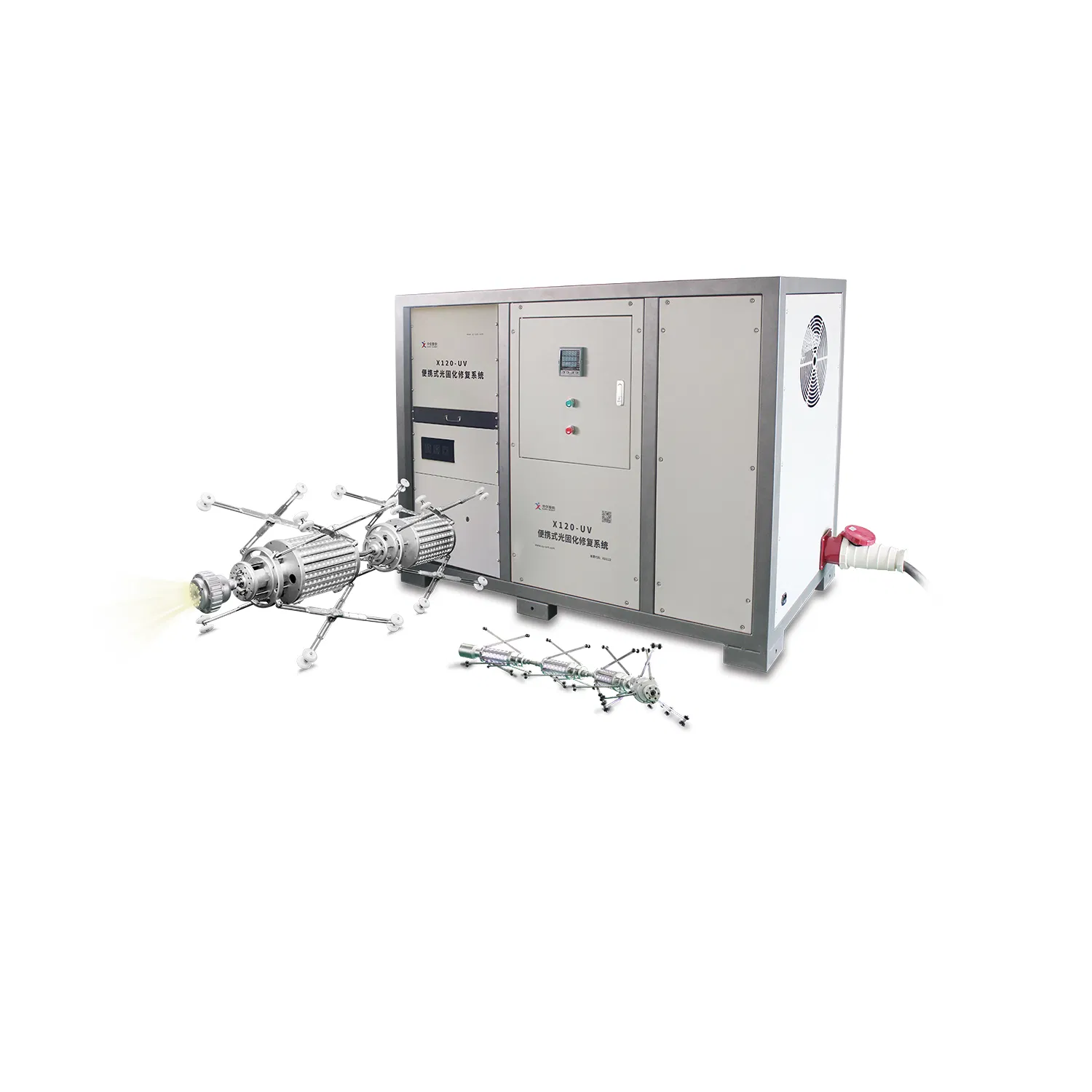

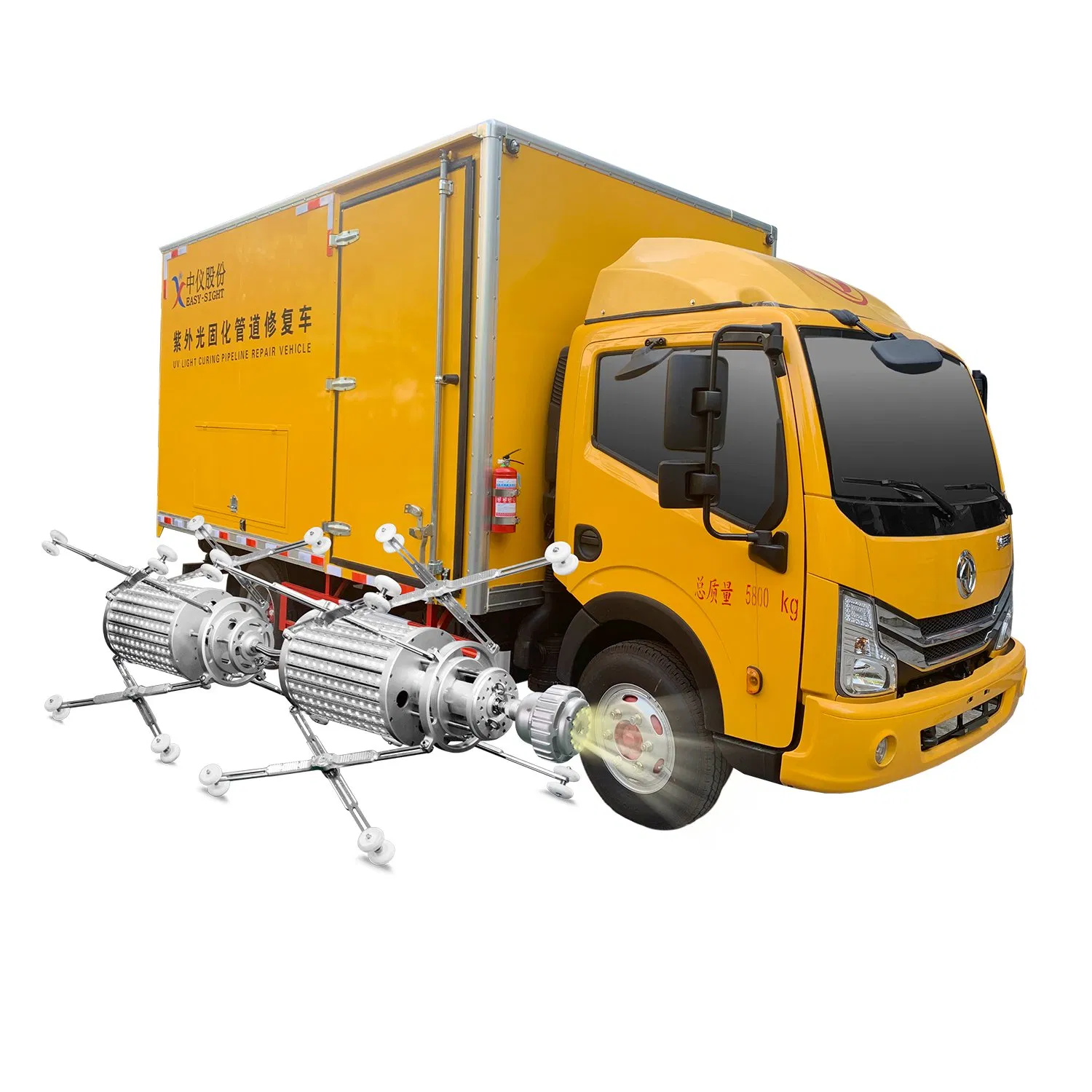

The X120-CIPP UV Light Curing Repair System is an advanced trenchless solution designed for municipal pipe network rehabilitation. It integrates a mobile control system, transmission cables, UV lamp holders, and high-definition monitoring tools. Specifically engineered for DN200-DN1600 pipe diameters, this system offers a compact and lightweight design suitable for narrow urban streets and external generator operations.

🚀 Key Advantages

Portability: Highly integrated design, requiring only a generator for full field operation.
High Efficiency: Significantly reduced curing times with high-speed processing capabilities.
Energy Saving: Utilizes LED curing technology for low energy consumption and zero environmental pollution.
Stability: Full digital transmission with real-time status monitoring and automatic stabilization.

Component Parameters

Component	Qty	Technical Parameters & Instructions
Mobile Control System	1 unit	15.1" touch screen, 380V input, automatic pressure/curing control, 1920*1080P image acquisition, 150m Kevlar reinforced cable, automatic take-up system.

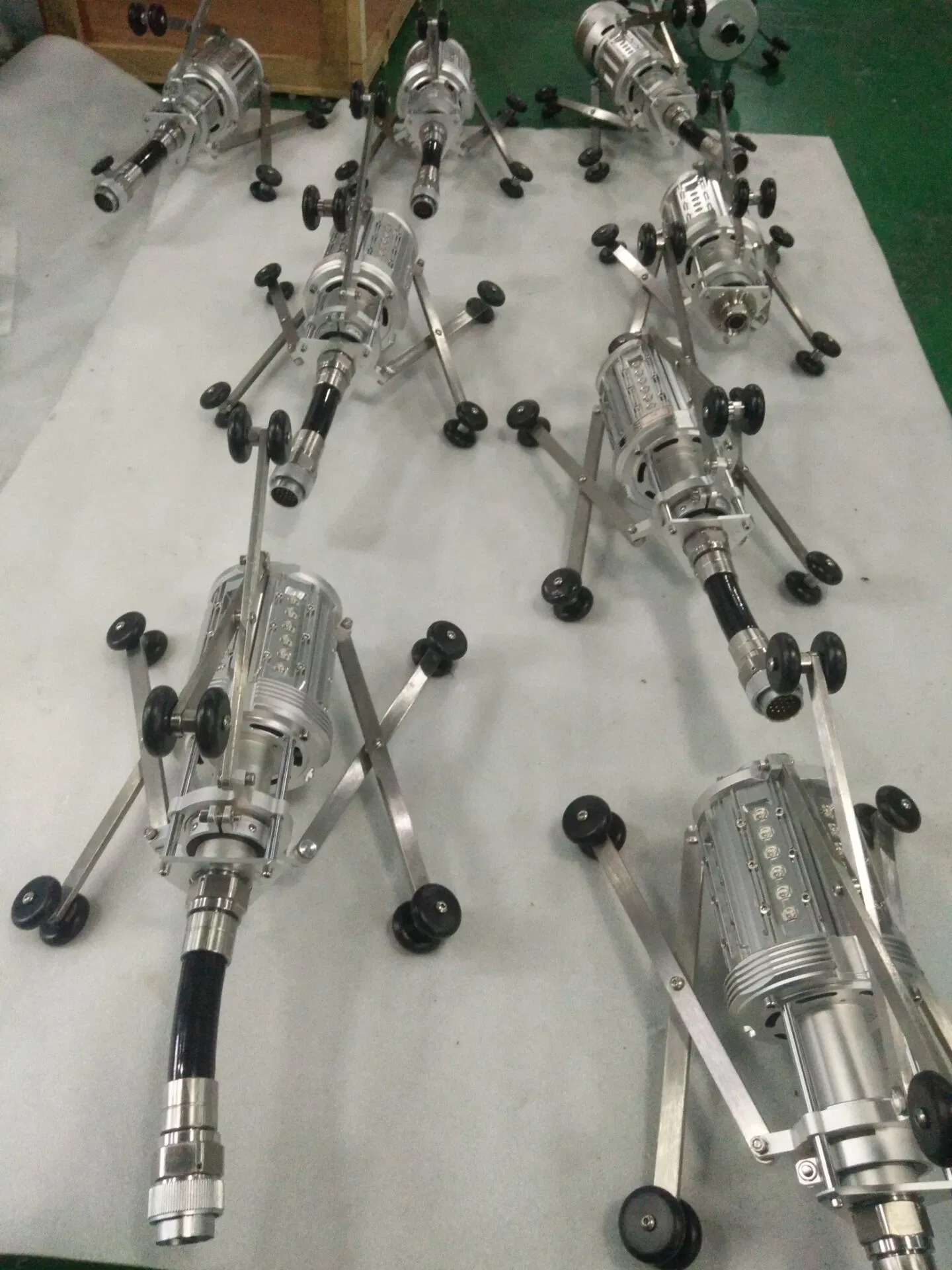

Small Lamp Holder	4 Sections	Adaptive for DN200-DN600; LED source with 50,000h life; includes temperature, pressure, and laser ranging sensors.
Large Lamp Holder	2 Sections	Adaptive for DN600-DN1600; Electric adjustment for pipe diameter; Real-time monitoring of curing process.
Direct View Lens	1 unit	IP68 rating; 4 million pixel CMOS; 0.1Lux sensitivity; Four 3W LED floodlights for clear pipeline monitoring.
Rotating Lens (Opt)	1 unit	360° unlimited rotation; 10x optical zoom; Auto-focusing; Tilt rotation of 2*135 degrees.

International Presence & Service

🛠️ Comprehensive Support

We provide a 12-month warranty from the date of arrival and lifelong maintenance support. Our services include detailed operational manuals, training videos, and professional technical assistance to ensure zero communication barriers and efficient equipment operation.

Frequently Asked Questions

What kind of packaging is used for shipping?

We use standard export plywood cases. The machine is protected with foam to prevent shaking and wrapped in a thick plastic bag for waterproofing during transit.

How difficult is the installation and operation?

The main system is pre-installed before shipping. We provide detailed training videos and English manuals. Most users can master the operation through our provided materials.

What is the range of pipe diameters this system can repair?

The system is versatile, with lamp holders that can be adjusted to handle pipe diameters ranging from DN200 up to DN1600.

What happens if the machine encounters a technical issue?

Our technical team provides a 24-hour response. We recommend contacting us immediately rather than attempting unauthorized repairs to maintain warranty validity.

Can the equipment be used in narrow or restricted areas?

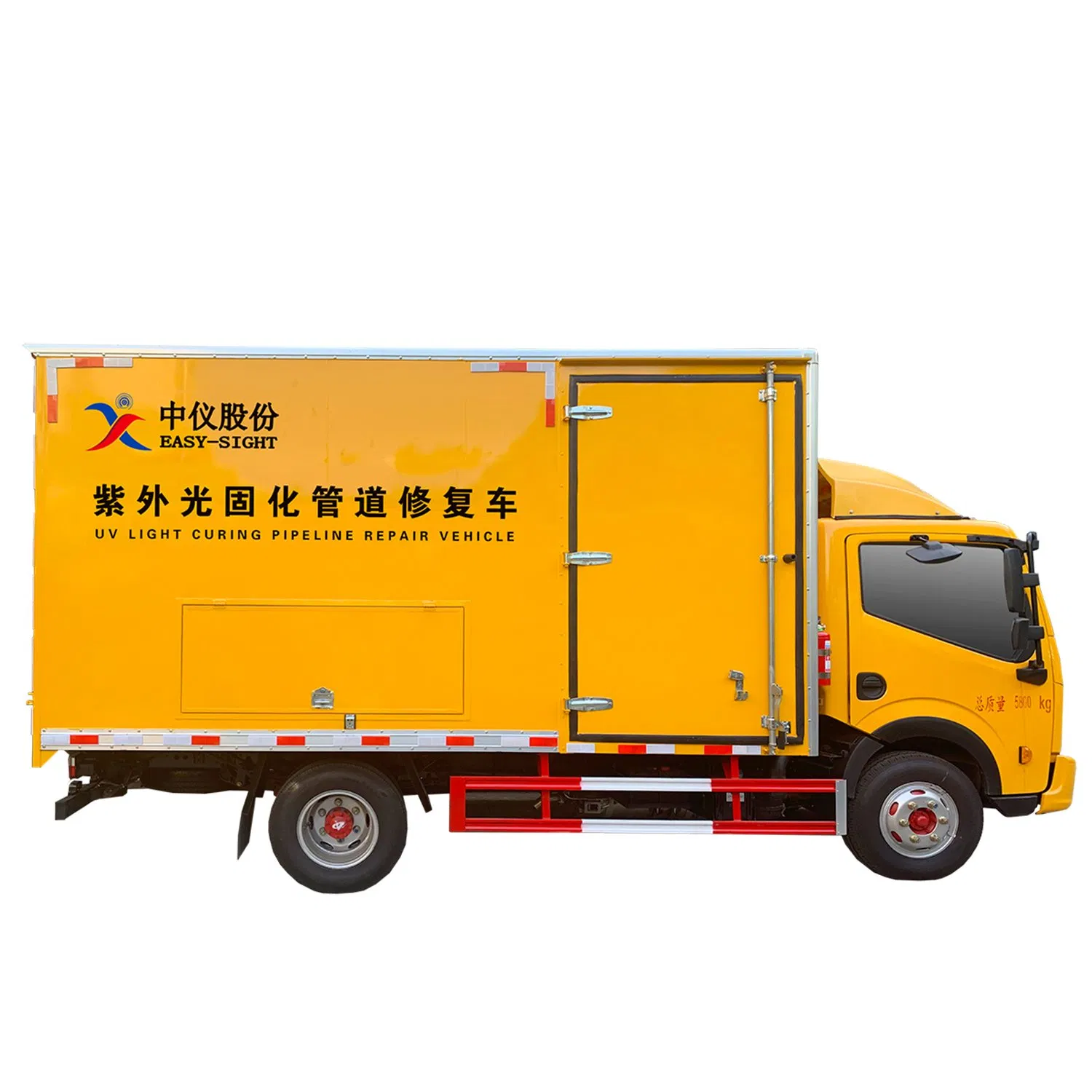

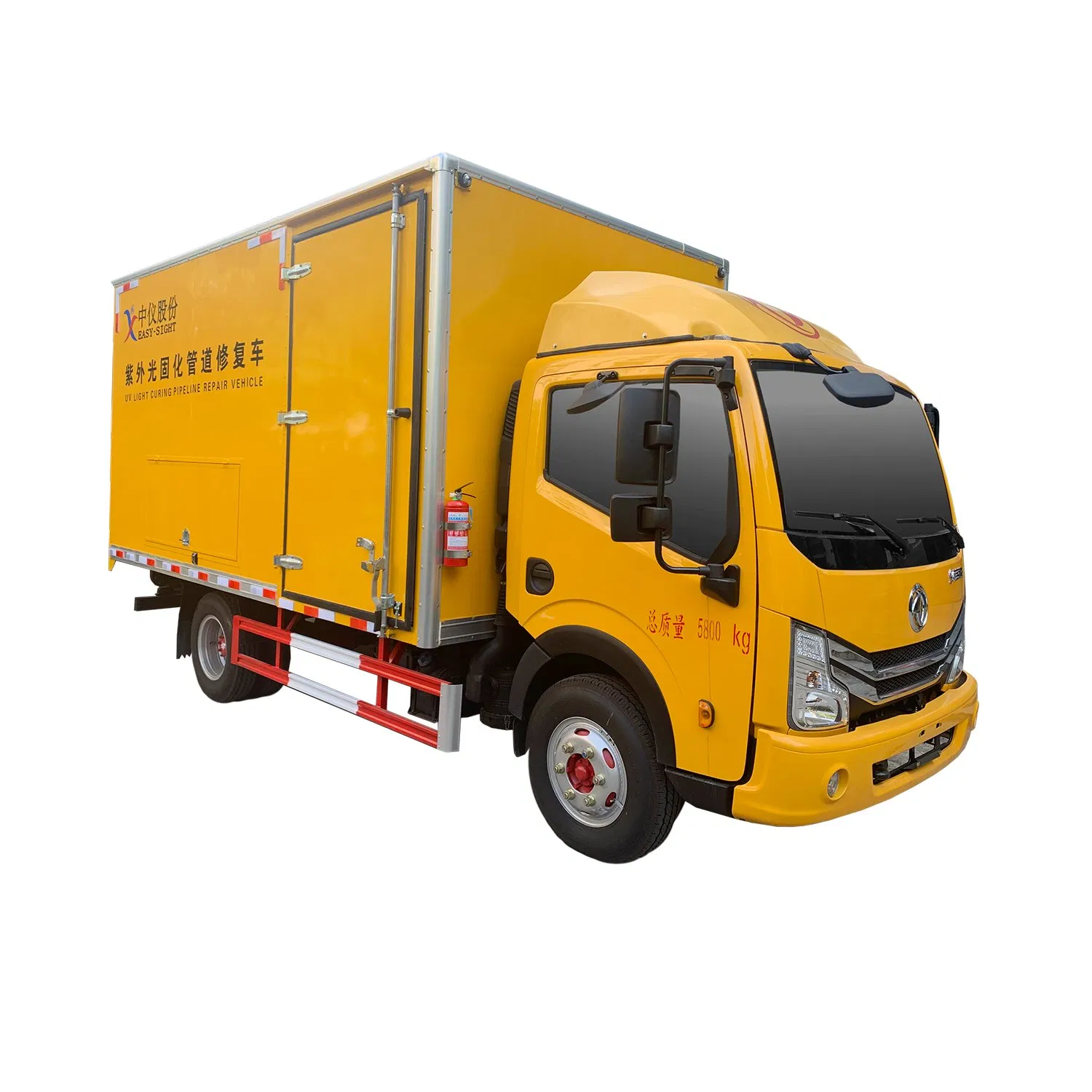

Yes, the system is designed to be separated from the transport vehicle, allowing it to be operated in narrow streets and confined municipal areas.

Is training available for new operators?

We offer comprehensive training CDs in English and free factory-based training for customers who wish to learn correct operational procedures from our technicians.
