LED DOT Matrix Light Source Portable Photocuring Repair System

1 / 5

LED DOT Matrix Light Source Portable Photocuring Repair System

Customization:	Available
Technology:	Wireless
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Info.

Model NO.

X120-CIPP

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

650tvl

Certification

CE, FCC, RoHS, ISO9001: 2000

Waterproof Grade

IP68

Cable Length

150m

Effective Distance

1000m

Production Capacity

100 Sets Per Month

X120-CIPP UV Light Curing Repair System

The X120-CIPP UV Light Curing Repair System is composed of a mobile control system, a transmission cable, a UV lamp holder, a high-definition lens and auxiliary tools. It is mainly suitable for non-excavation repair projects of municipal pipe network, repair pipe diameter DN200-DN1600. Small size, light weight, can work with external generator; at the same time, it can be separated from the vehicle for operation in narrow streets.

Product Advantages

Portability: Integrated design, high integration, power supply by generator only.
High Efficiency: Short curing time and high speed.
Energy Saving: LED curing, low energy consumption and no pollution.
Stability: Digital transmission, real-time monitoring of repair status, automatic stabilization.
Comparison: Precise, efficient, and controllable repair results.

Technical Parameters

Component Name	Quantity	Technical Parameters and Instructions

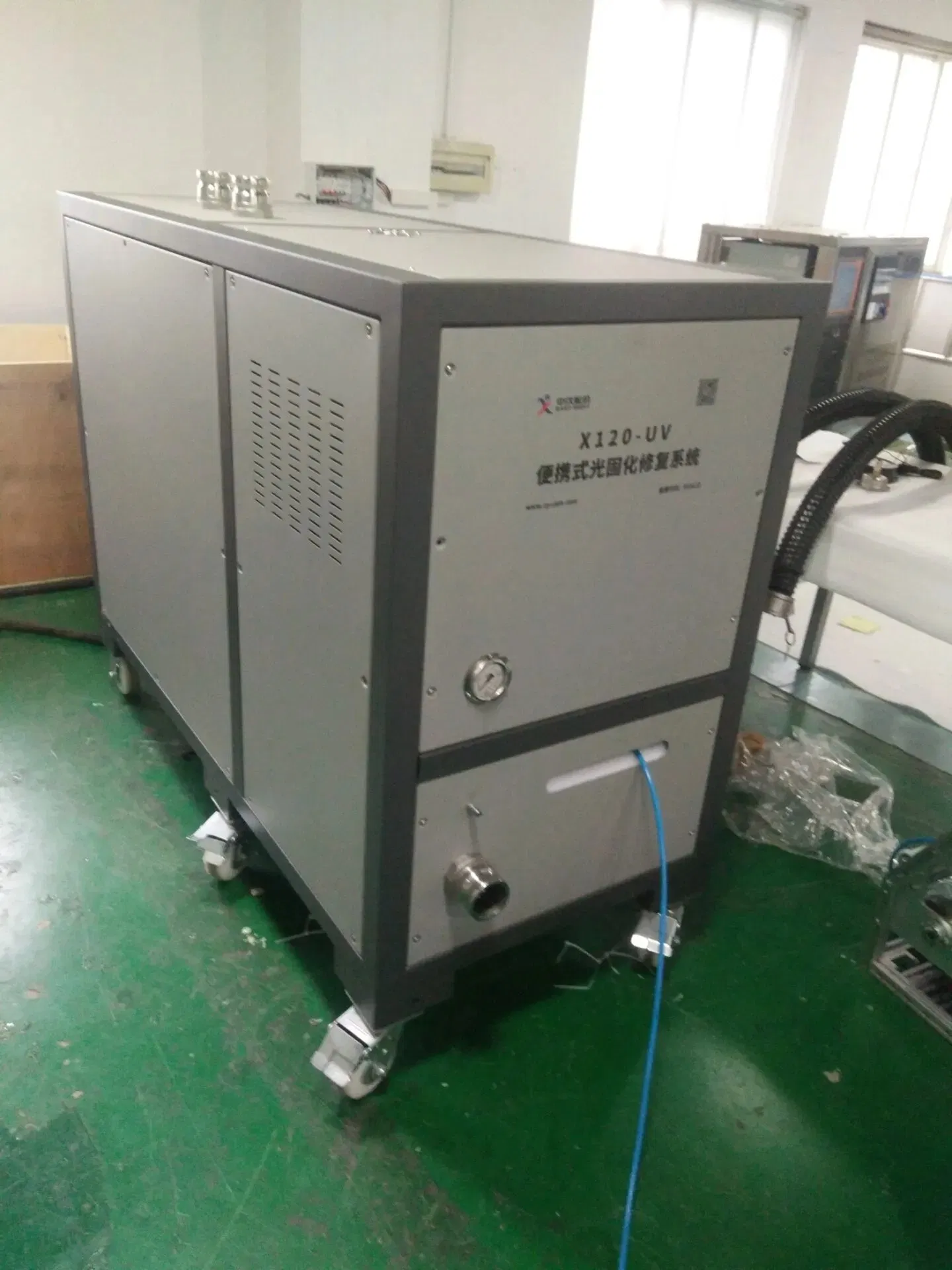

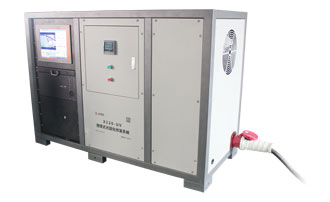

Mobile Control System	1 piece	Integrated control system, lamp rack, power supply, and cable tray; 380V input; 15.1 inch touch screen; High-definition image (1920*1080P); 150m standard cable.

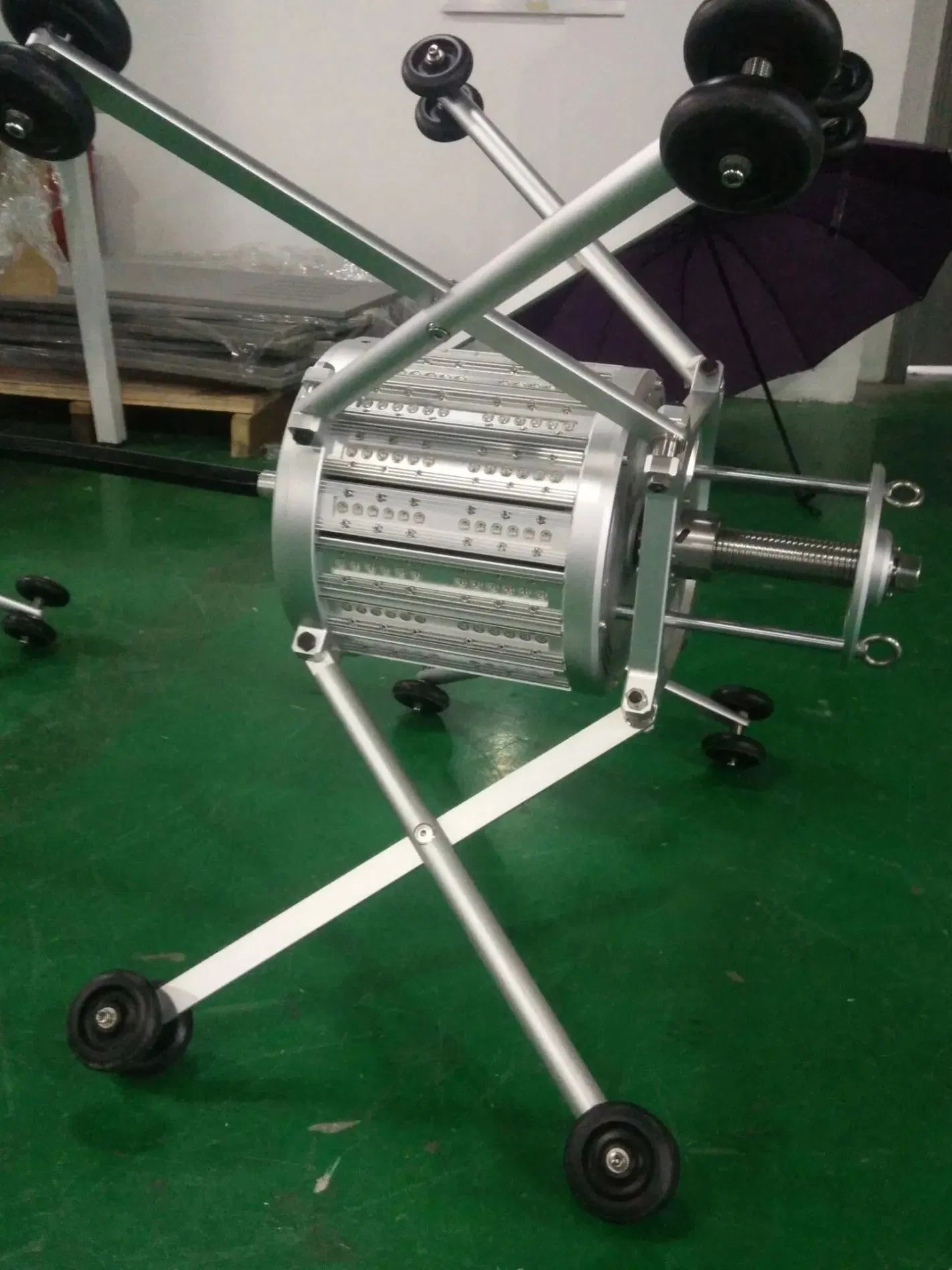

Small Lamp Holder	Section 4	Adaptive pipe diameter: DN200-DN600; LED light source (50000h life); Real-time temperature/pressure monitoring.

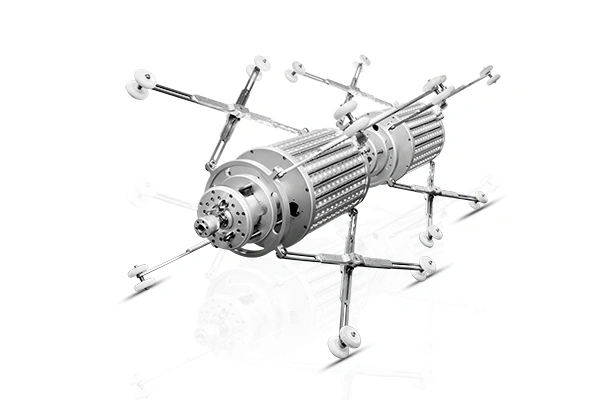

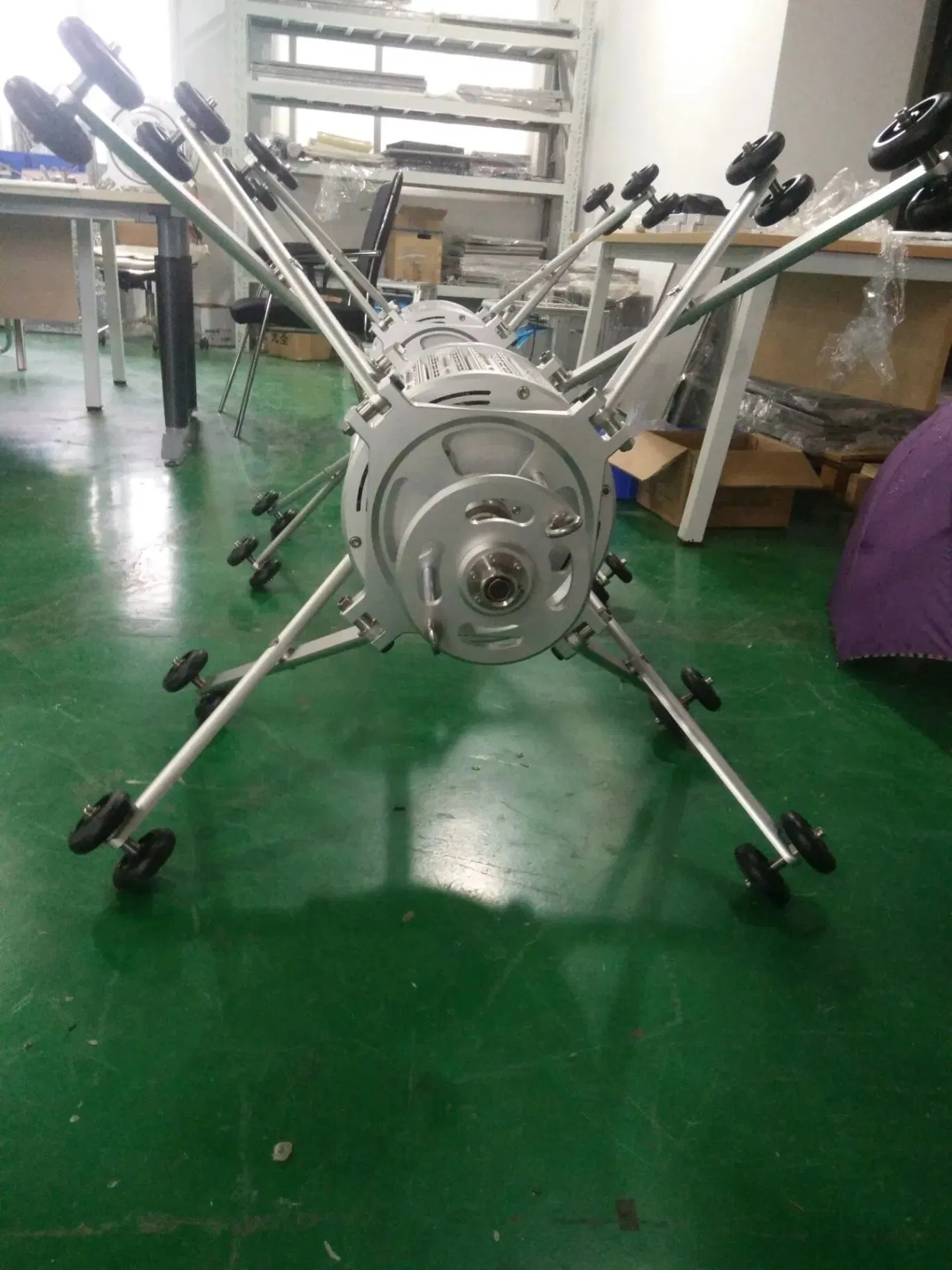

Large Lamp Holder	Section 2	Adaptive pipe diameter: DN600-DN1600; LED light source; Electric adjustment for pipe diameter.
Direct View Lens	1 piece	IP68 waterproof; 4 million pixels CMOS; Four 3W floodlight LEDs; Built-in pressure sensor.

System Overview & Exhibition

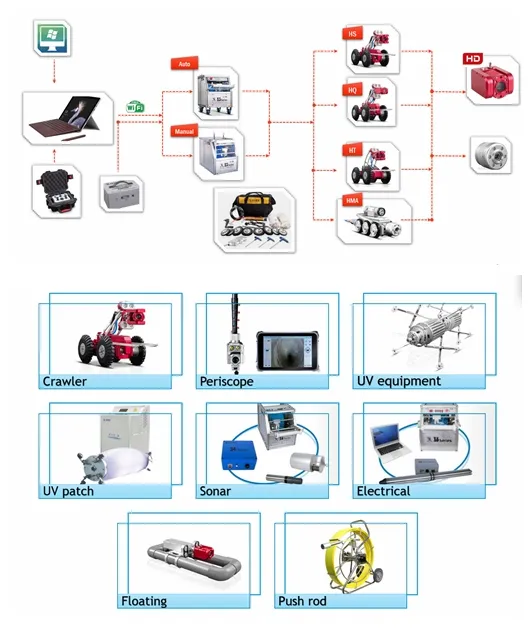

Product Line Details

Professional Service & Support

Warranty Policy

12 months warranty from the date of arrival at the destination port with lifelong maintenance support.

Quality Assurance

Every machine undergoes strict testing to ensure optimal performance before packaging.

Training & Manuals

Detailed English operational manuals and training videos provided. Free on-site factory training available.

OEM Services

Custom branding and logo printing available on products free of charge.

Frequently Asked Questions

What pipe diameters can the X120-CIPP repair?

The system is designed for municipal pipe networks with diameters ranging from DN200 to DN1600.

How is the machine packaged for international shipping?

We use standard plywood cases. The interior is protected with foam to prevent shaking and a thickened plastic bag for waterproofing.

What is the curing speed and efficiency of this system?

The LED-based curing process offers short curing times and high speeds compared to traditional methods, significantly improving project efficiency.

Is the system difficult to install and operate?

Most of the system is pre-installed before shipping. We provide detailed training videos and English manuals so customers can easily learn the operation.

What should I do if the machine encounters a technical problem?

Please contact our technical support immediately. We respond within 24 hours to provide solutions and lifelong maintenance services.

Does the system provide real-time monitoring during repair?

Yes, it features high-definition cameras (1080P) and integrated sensors to monitor temperature, pressure, and curing status in real-time.
