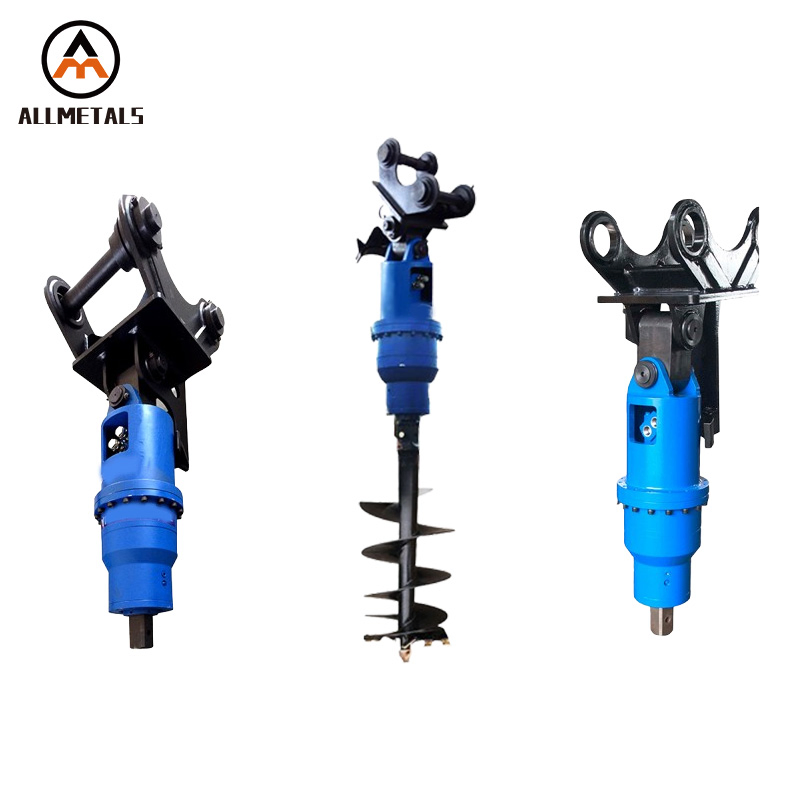

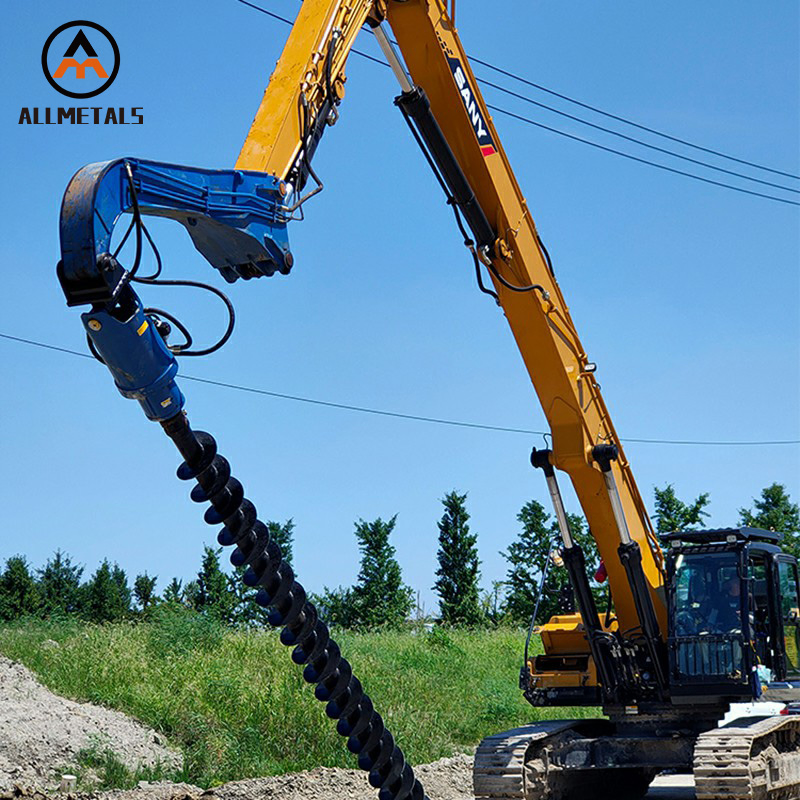

High-Performance Attachment for 2-40 Ton Excavators & Digger Track Crawlers

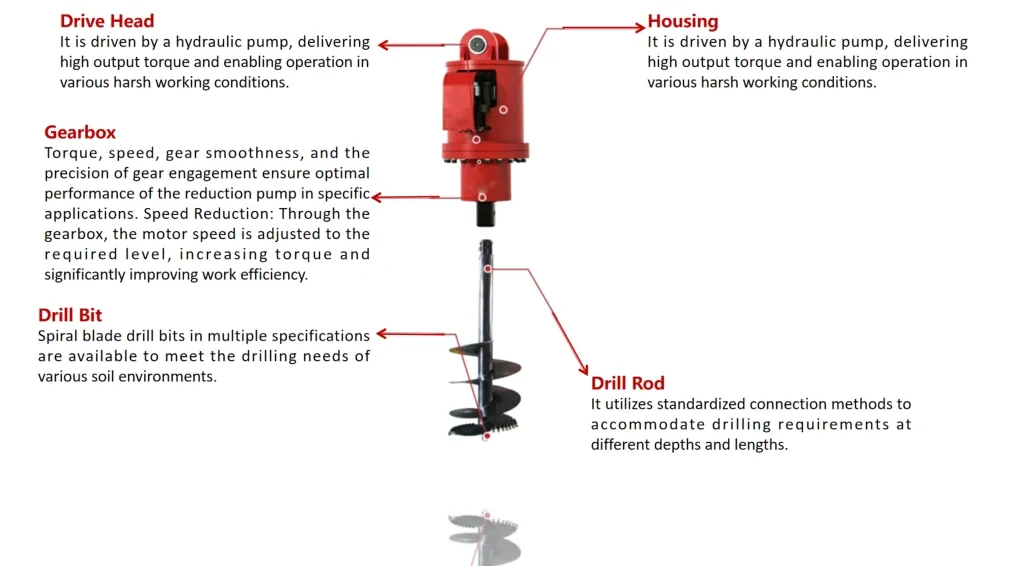

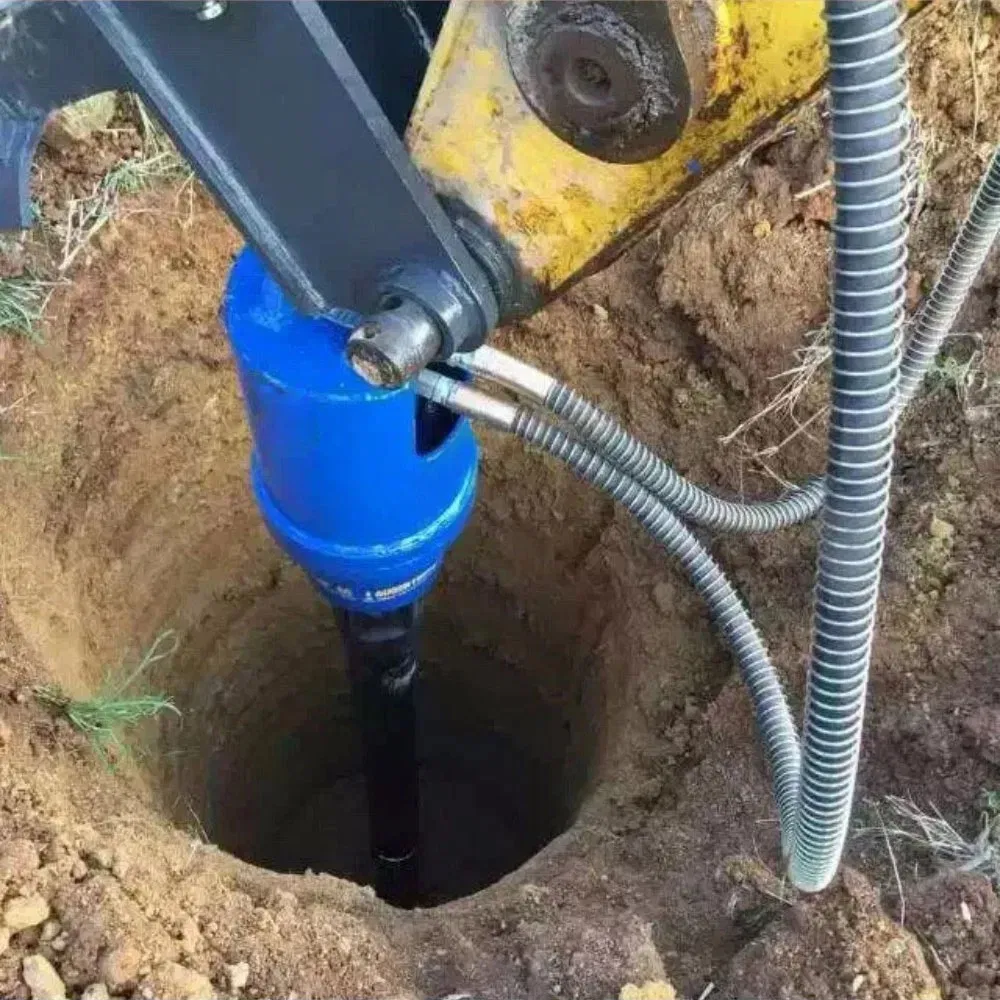

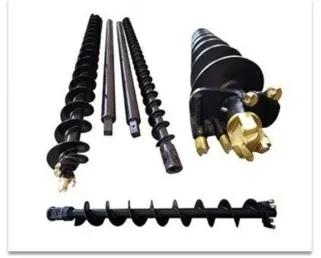

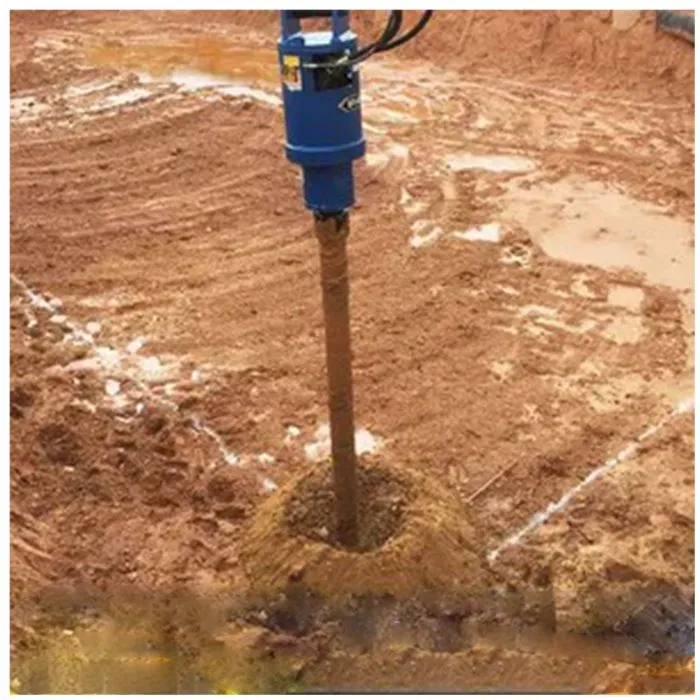

The Auger Drill is primarily composed of a power head and an auger, which are fixed together for maximum stability. The auger features a screw blade and a specialized bit with teeth at the end. Designed for simple construction and powerful drilling capability, it offers low production costs and high flexibility for various soil conditions.
| Model | WAD4000 | WAD10000 | WAD20000 | WAD25000 | WAD35000 | WAD65000 |
|---|---|---|---|---|---|---|
| Application (ton) | 2-6T | 6-15T | 15-20T | 20-25T | 25-30T | 25-40T |
| Torque (nm) | 1094-4117 | 2570-9961 | 5307-20998 | 8314-25768 | 15669-35393 | 27198-65550 |
| Pressure (bar) | 80-240 | 80-240 | 80-260 | 80-260 | 120-240 | 160-350 |
| Flow (lpm) | 25-92 | 40-150 | 80-170 | 80-170 | 100-170 | 100-250 |
| Weight (kg) | 100 | 215 | 240 | 406 | 420 | 610 |
| Max Dia Clay (mm) | 300 | 800 | 1100 | 1200 | 1300 | 1500 |
* Totally customisable to fit your host machine and specific drilling needs.
Constructed from high-grade manganese steel for extreme strength and stiffness, ensuring no displacement or shaking during heavy-duty operation.

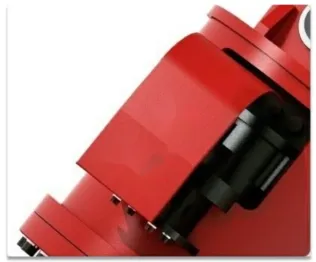

The manganese steel housing protects internal components effectively while enhancing the drill's overall stability and long-term service life.

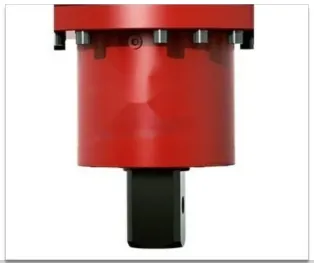

Powered by a robust hydraulic pump, the drive head delivers high torque output to penetrate various challenging strata and working conditions.

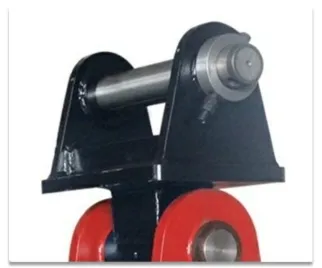

Uses standardized connections to easily adapt to drilling requirements at various depths and lengths for maximum versatility.
Our attachments are compatible with major global brands including Caterpillar (CAT), Komatsu, Volvo, Hitachi, Hyundai, Doosan, Kobelco, Case, and Sumitomo.

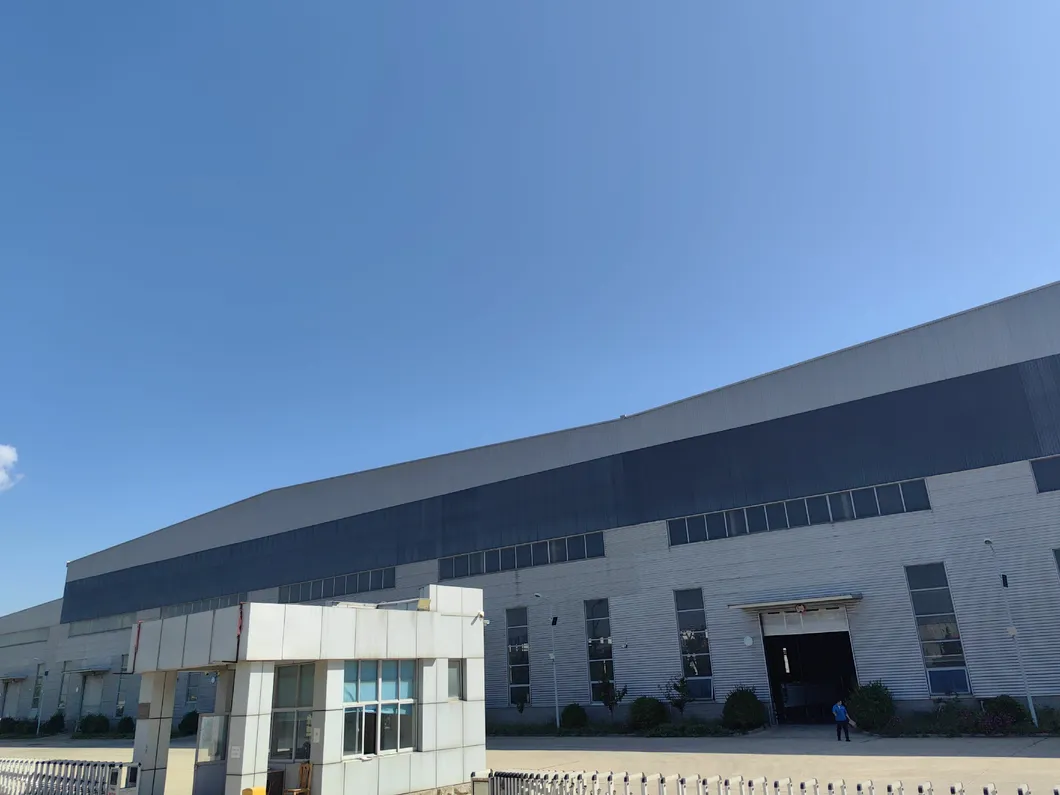

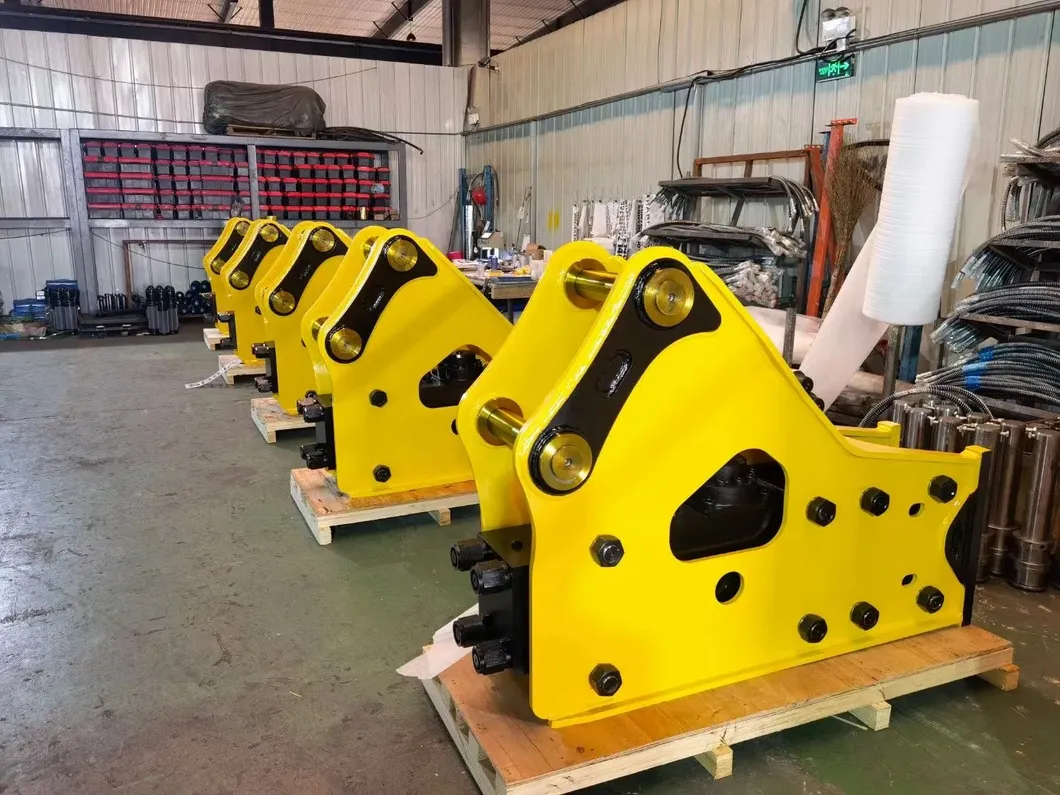

With a 20,000 square meter manufacturing facility and over 60 professional machines including CNC milling and heat treatment systems, we ensure precision and quality in every unit produced since 1998.
We use professional-grade packaging to ensure safe delivery: multiple layers of high-strength stretch film to prevent moisture and dust, followed by a custom-built wooden box with internal cushioning for maximum vibration resistance during cross-border transport.
