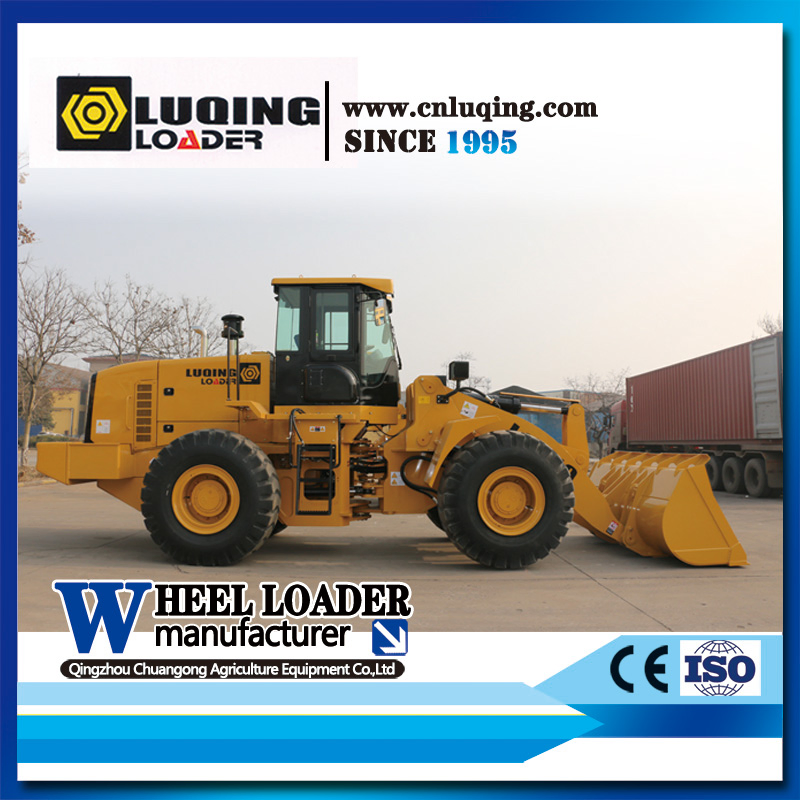

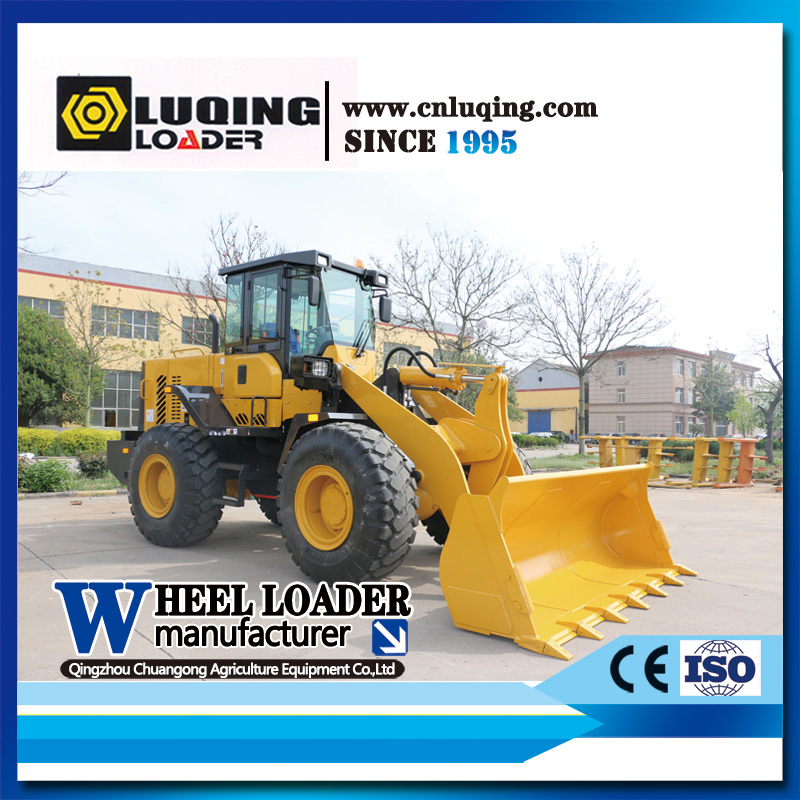

Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
1 / 5
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery
Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery

Chinese Brand Luqing Lq956 L50 5ton Wheel Loader Earth-Moving Heavy Duty Construction Machinery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Type
Construction Machine
Transmission
Hydraulic Transmission
Walking Mode
Wheeled
Load method
Front Discharge
Engine Power
162kw
Certification
CE, ISO9001: 2000
Condition
New
Engine Brand
Weichai/Yuchai/Cummins
HS Code
84295100
Production Capacity
1000 Units/Year
★

Wheel Loader - LQ956

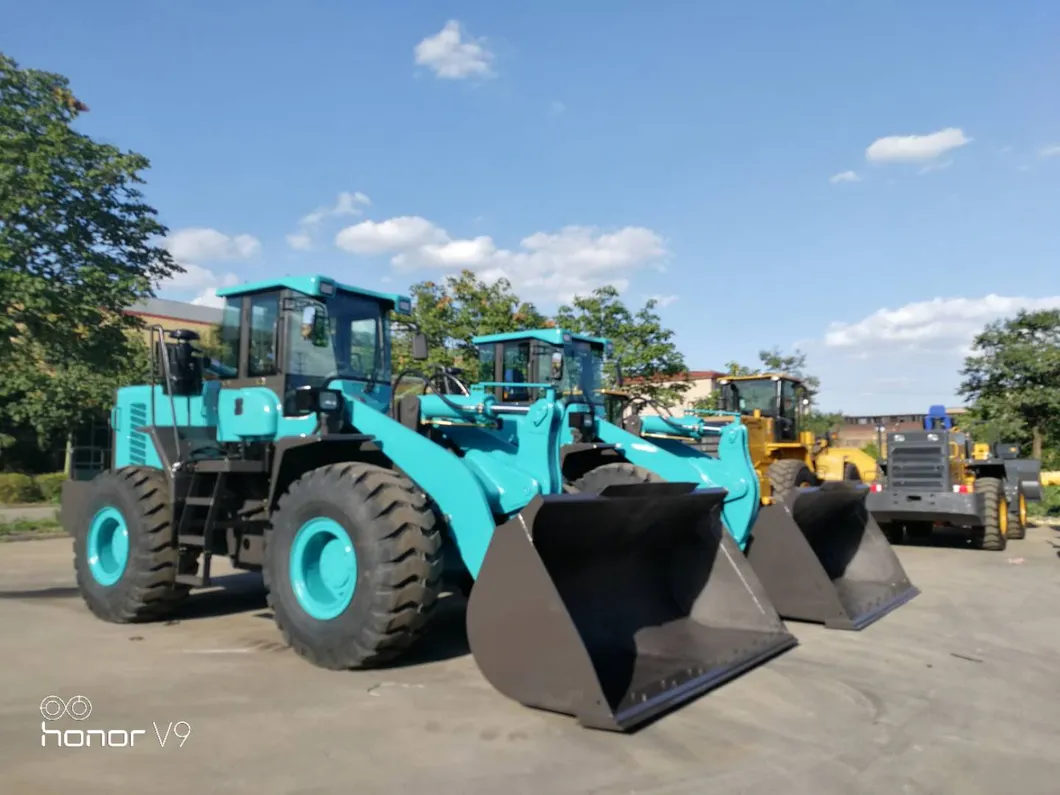

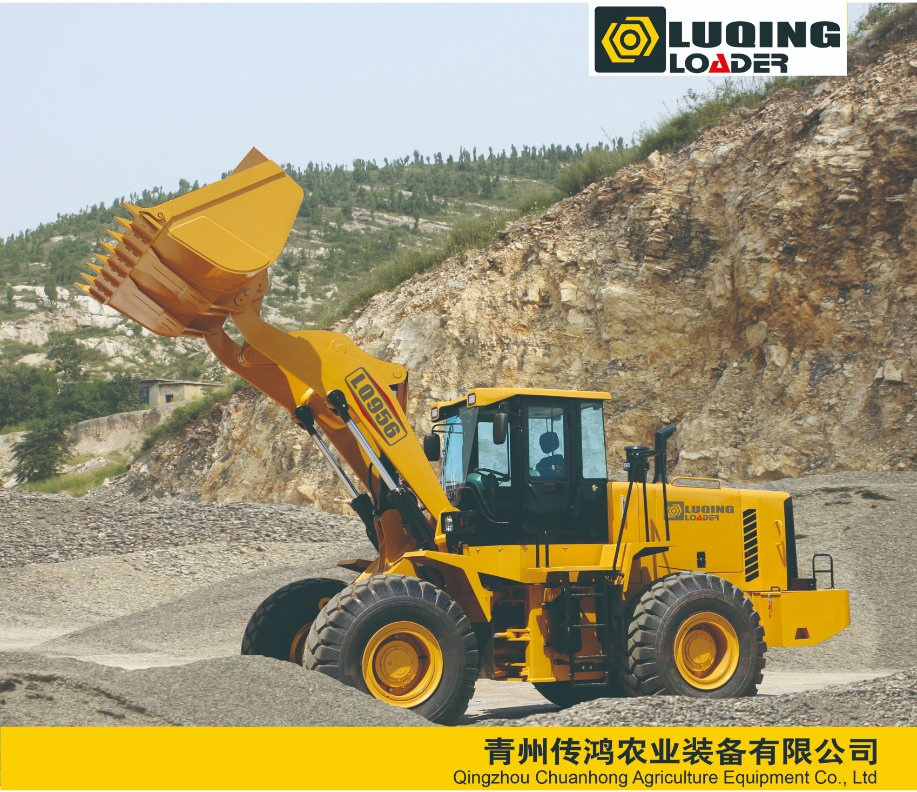

LQ956 Wheel Loader
Main Features
  • Streamlined appearance, beautiful and elegant design.
  • Equipped with STEYR WD10G220E22 engine, rated power 162kw/2200rmp.
  • Torque converter and counter-shaft transmission gearbox using Komatsu technology, assembled separately for higher reliability and easier maintenance.
  • Pilot controlled, fully hydraulic steering system with power shift transmission for easier operation.
  • Automatic bucket leveling and optimized working device for higher productivity.
  • Comfortable operation environment with a new design cabin and Grammar seat (Air-conditioner optional).

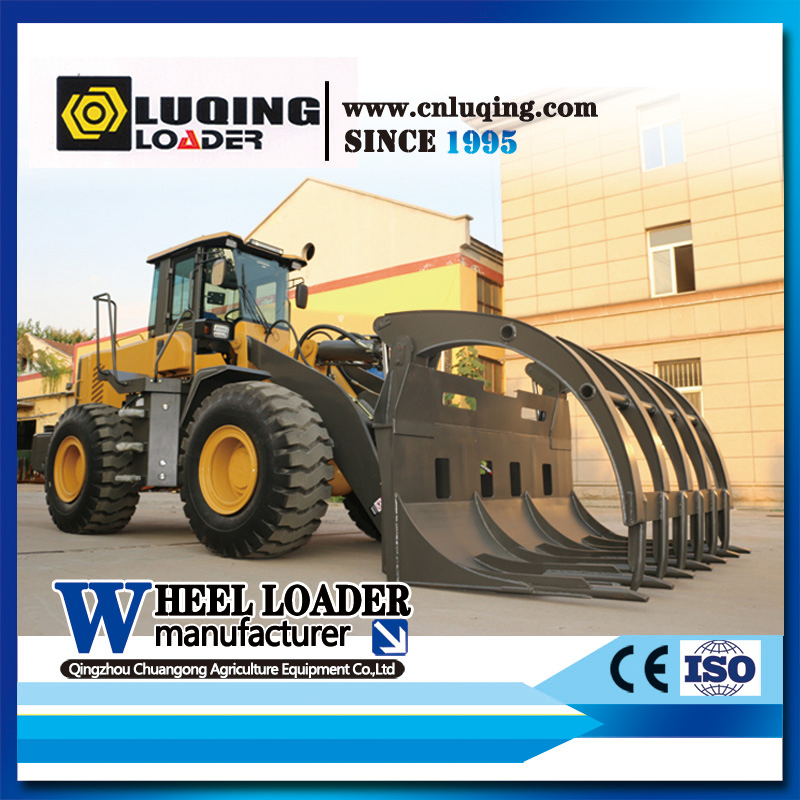

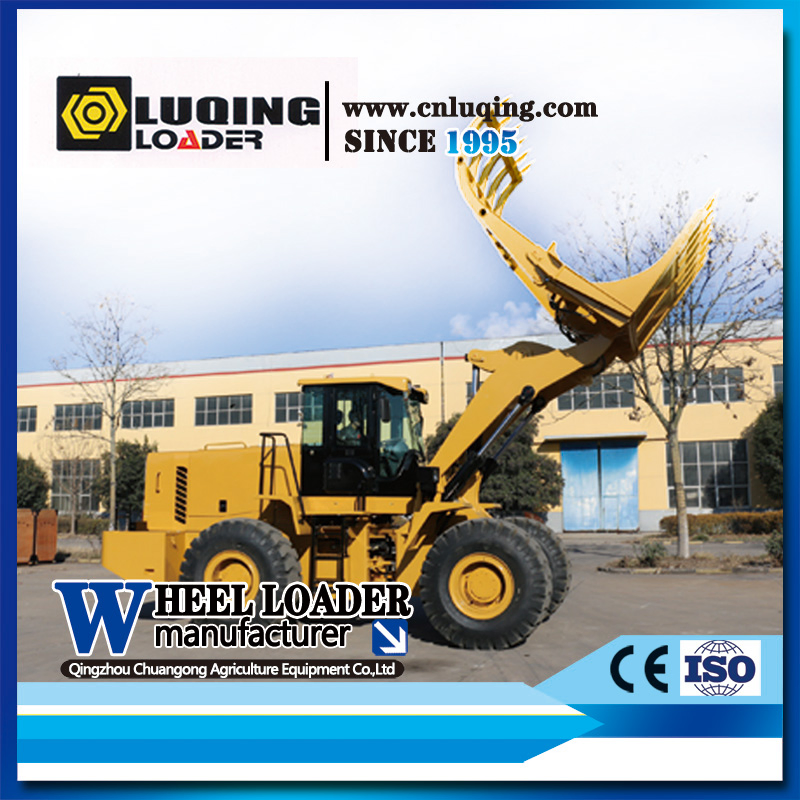

  • Versatile attachments available: log clamp, pipe clamp, grass fork, snow plow, ore bucket, fork, etc.
Technical Parameters
Rated Capacity3CBM
Rated Weight5000Kg
Operating Weight17000Kg
Bucket Leveling PerformanceYes
Max. Breakout Force172.6KN
Max. Drawbar Pull151.9KN
Max. Grade Ability30°
Cycle Time (Lift/Dump/Lower)11.3s
Max. Dump Height3098mm
Overall Dimensions7836*3010*3300mm
Engine ModelSTEYR WD10G220E22
Rated Power162KW
Max. Travel Speed38km/h
Tire Size23.5-25
Brake SystemAir assisted oil type four wheel brake
Fuel Capacity320L
☀

Global Market & Applications

Global Market 1

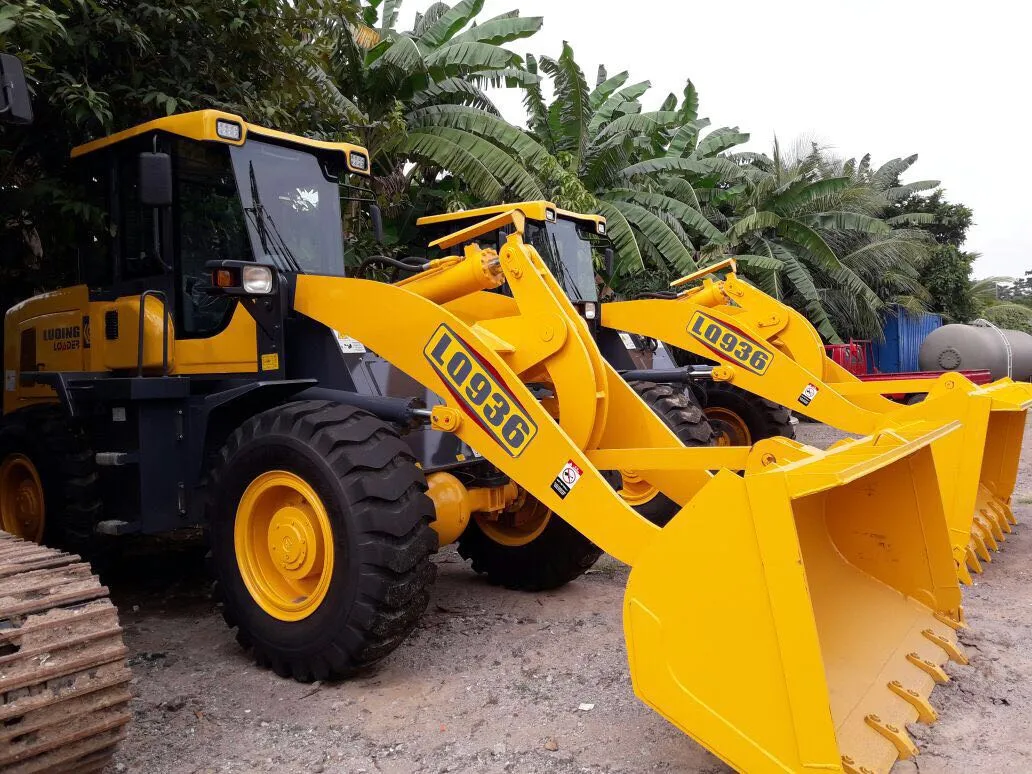

Global Market 2
Global Market 3
✈

Exhibitions & Visiting

Exhibition 1
Exhibition 2
Exhibition 3
Visit 1
Visit 2
Visit 3
?

Frequently Asked Questions

What is the rated load capacity of the LQ956?
The LQ956 is a heavy-duty wheel loader with a rated weight capacity of 5000kg and a standard 3CBM bucket capacity.
Which engine is used in this machinery?
The machine is powered by a STEYR WD10G220E22 engine, providing a rated power of 162KW at 2200r/min.
Can the loader handle different types of materials?
Yes, it supports various attachments including log clamps, pipe clamps, grass forks, snow plows, and ore buckets to meet diverse operational needs.
What are the transmission and steering features?
It features a hydraulic torque converter with Komatsu technology and a pilot-controlled, fully hydraulic steering system for smooth and precise operation.
Is the operator cabin comfortable for long hours?
The LQ956 is designed with a new comfortable cabin, Grammar seats, and an optional air-conditioning system to ensure a productive working environment.
What is the maximum travel speed and gradeability?
The loader can reach a maximum travel speed of 38km/h and has a maximum gradeability of 30°.
