⚙ Basic Specifications
Drill Hole Diameter
100mm - 1200mm

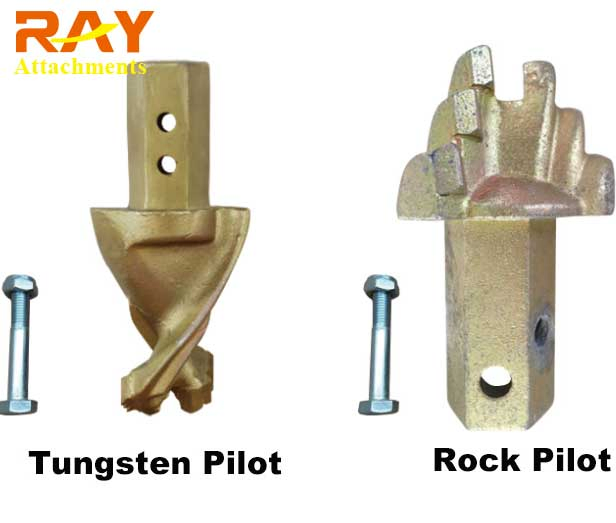

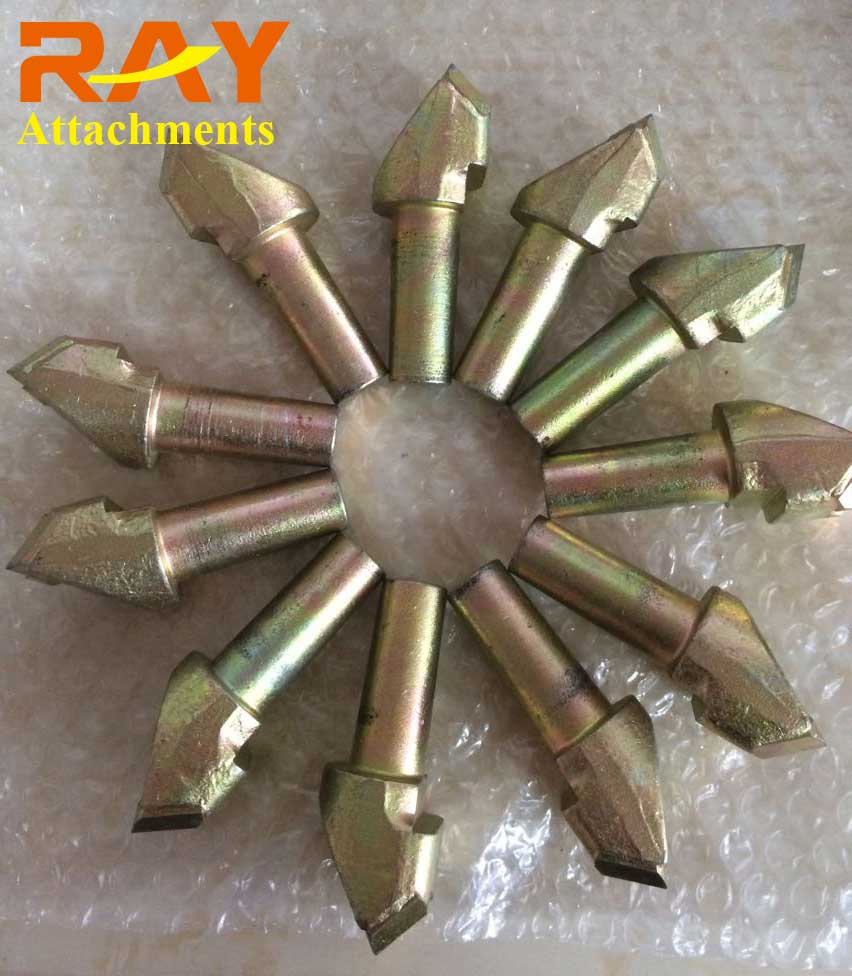

Bit Type
Tunsten/Rock/Sharp Teeth
Output Shaft
75mm Square/Round 65mm/2'' Hex
Transport Package
Wooden Box
Specification
370mm*380mm*800mm
Production Capacity
500 Set/Sets Per Month
🛠 Product Description

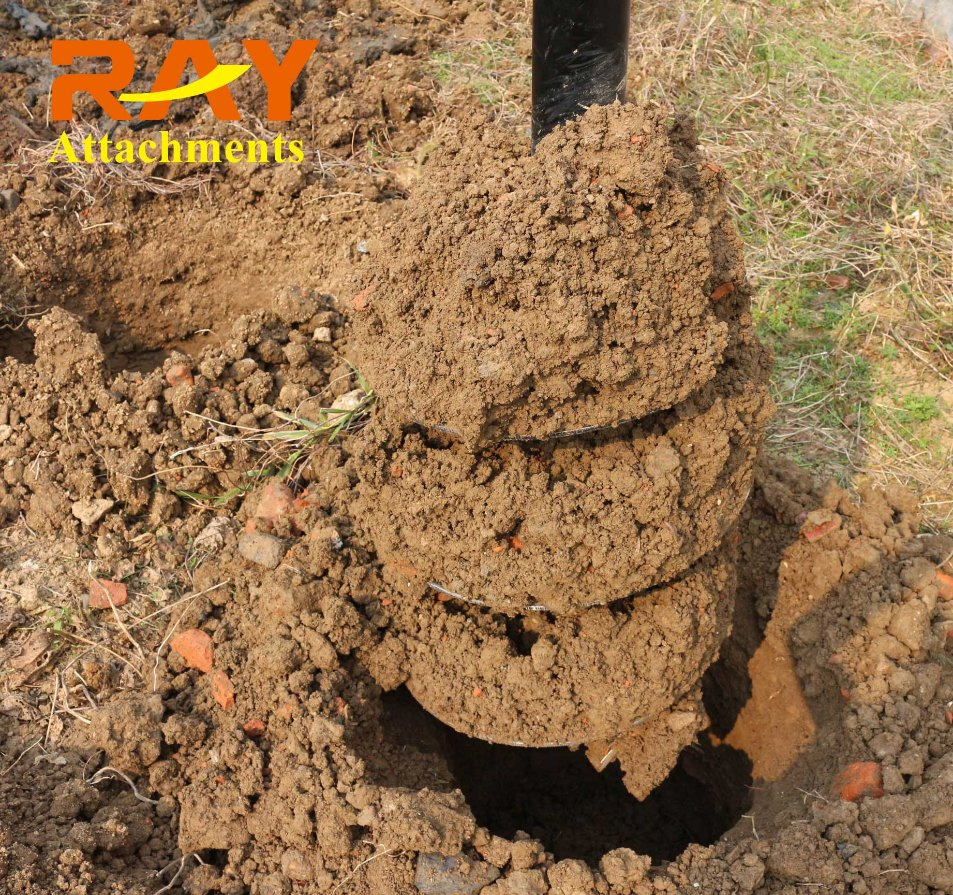

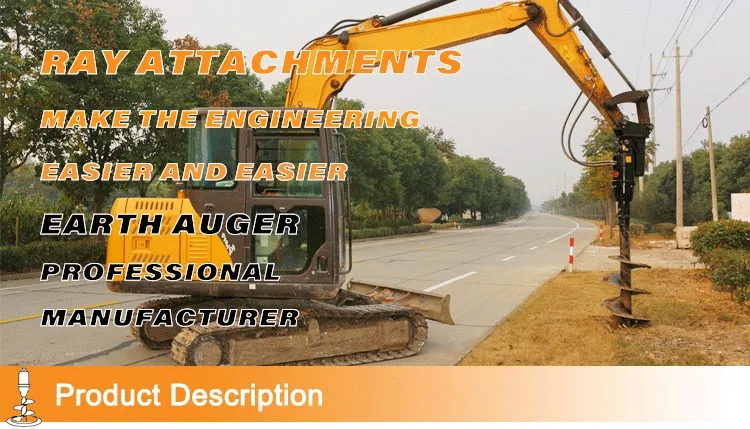

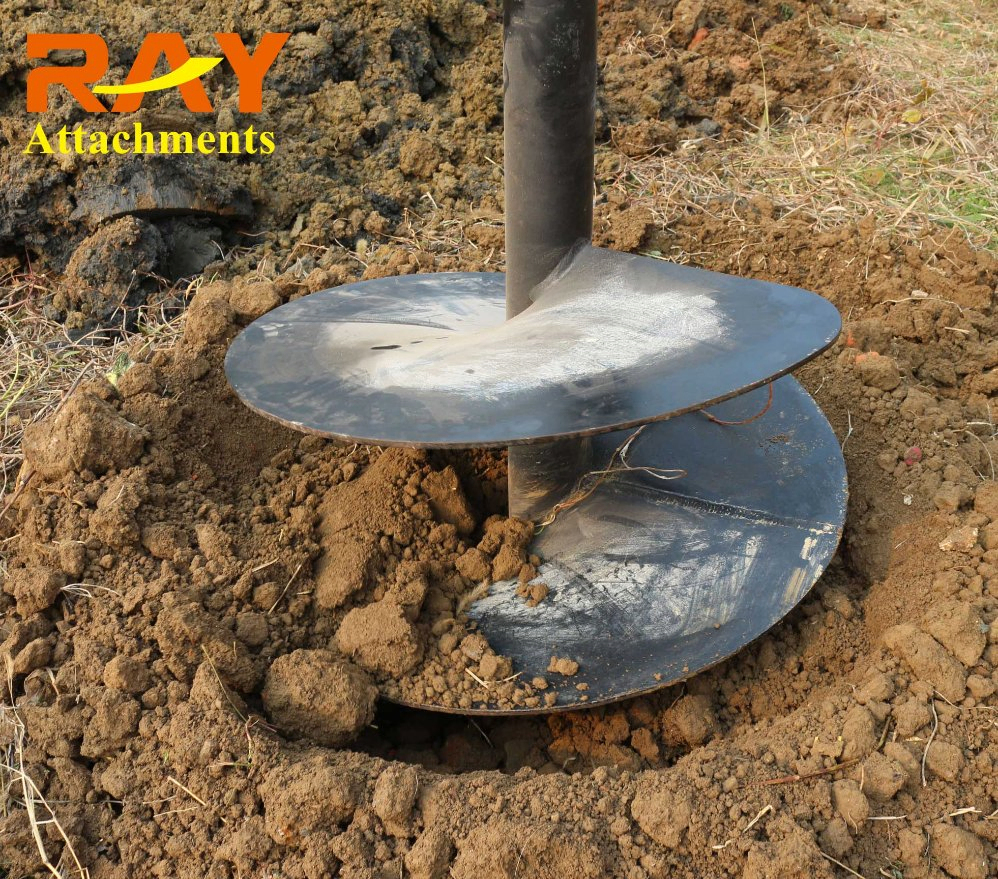

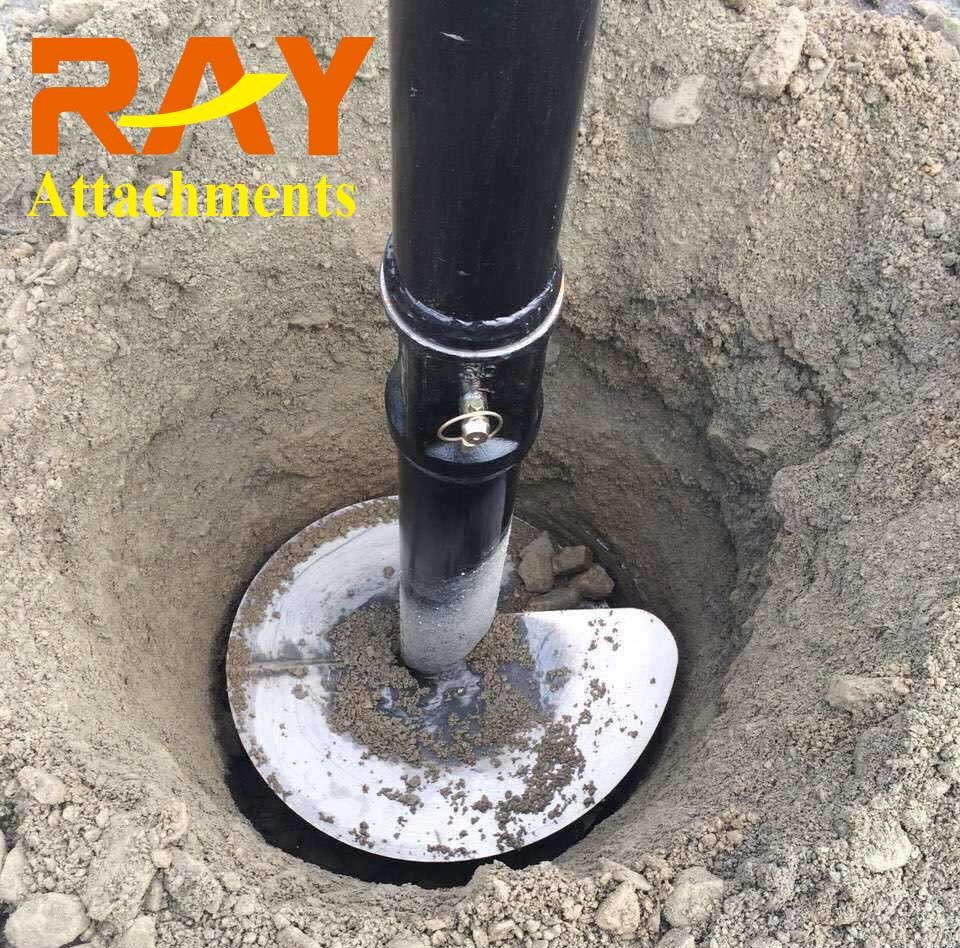

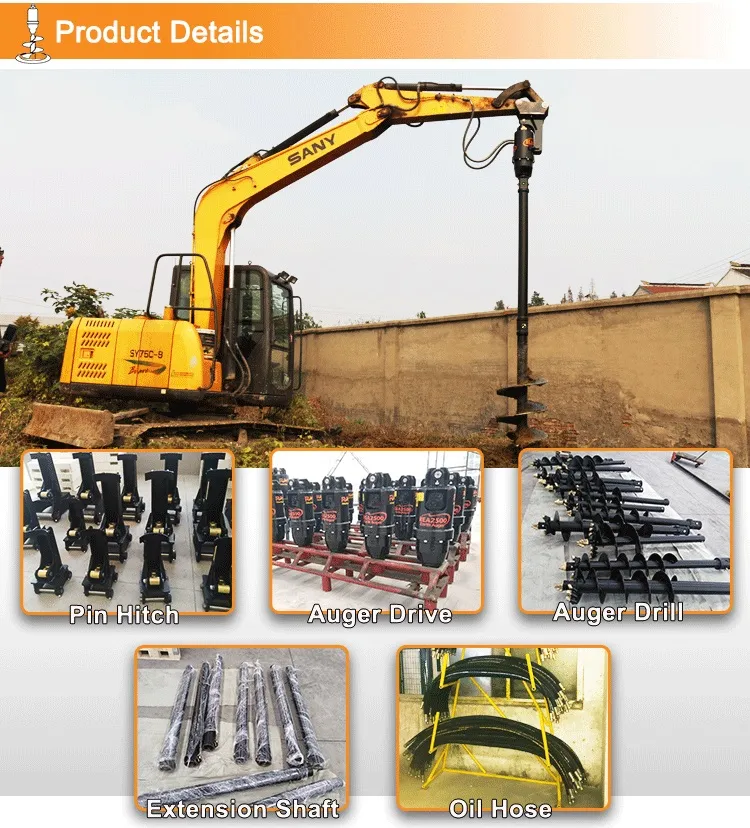

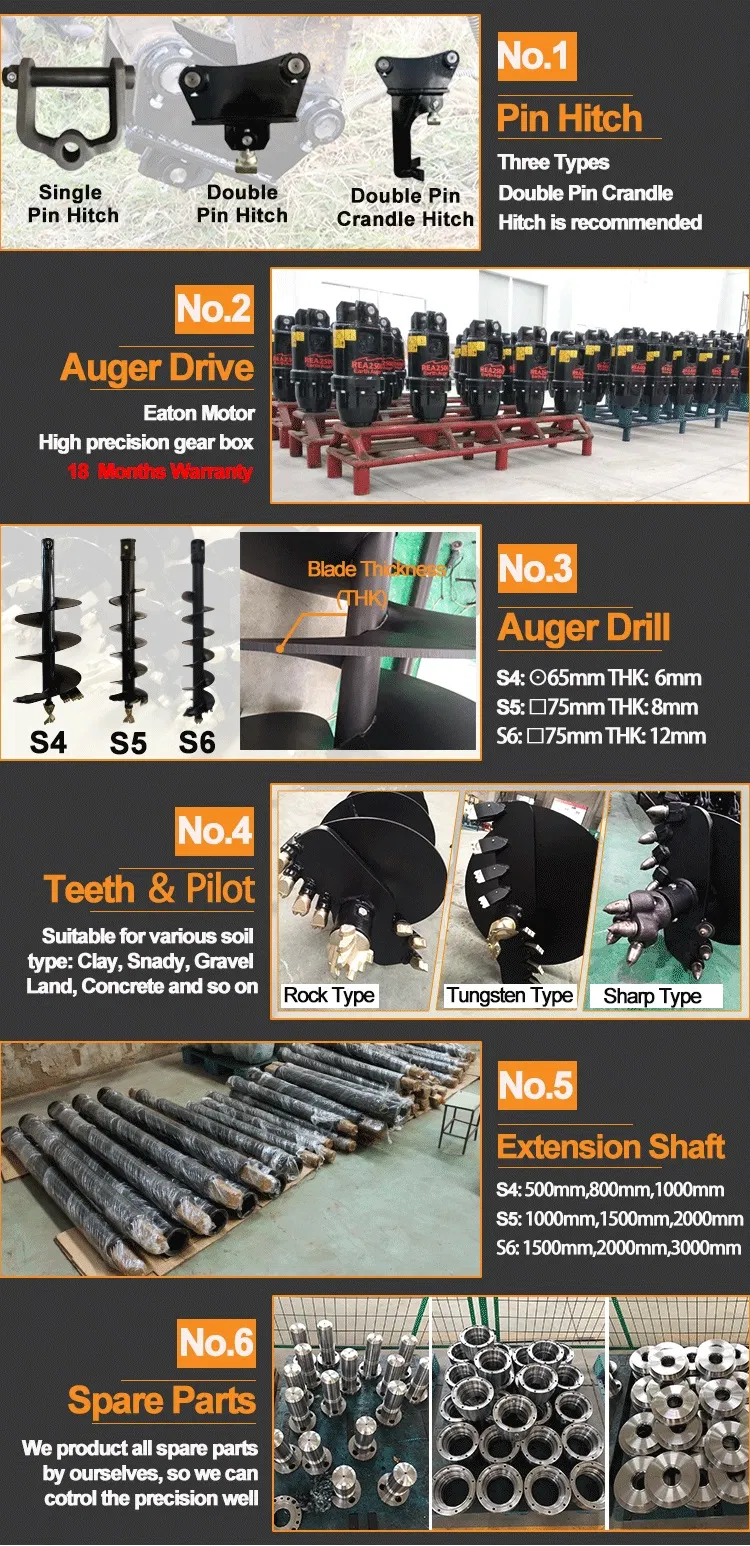

The Earth Auger is a high-performance digging hole machine. It is designed to be compatible with all common hydraulic excavators, mini excavators, and various carriers including skid steer loaders, backhoe loaders, telescopic handlers, and wheel loaders. The auger drive is versatile and can be equipped with earth drills, stump planners, or mixer bowls for diverse applications.
📊 Technical Data Sheet
| Model |
Oil Flow |
Max Torque |
Pressure |
Rotary Speed |
Carrier |
Oil Hose |
Drill Dia. |
| gal./min |
I/min |
Lbf·Ft |
N·M |
Psi |
Bar |
Rpm |
T |
Inch |
mm |
| REA2000 | 6-14 | 23-53 | 2537 | 1871 | 3000 | 205 | 40-92 | 1-2.5 | 1/2 | 100-400 |
| REA2500 | 8-16 | 30-61 | 3297 | 2432 | 3000 | 205 | 40-82 | 1.5-3 | 1/2 | 100-500 |
| REA3000 | 8-16 | 30-61 | 3900 | 2877 | 3500 | 240 | 40-81 | 2-3.5 | 1/2 | 100-600 |
| REA3500 | 8-18 | 30-68 | 4900 | 3614 | 3500 | 240 | 32-72 | 2.5-4.5 | 1/2 | 100-750 |
| REA4500 | 10-20 | 38-76 | 5719 | 4218 | 3500 | 240 | 32-64 | 3-5 | 1/2 | 100-900 |
| REA5000 | 10-20 | 38-76 | 6855 | 5056 | 3500 | 240 | 29-58 | 4.5-7 | 1/2 | 150-600 |
| REA6000 | 12-28 | 45-106 | 8338 | 6150 | 3500 | 240 | 34-80 | 6-8 | 3/4 | 150-900 |
| REA10000 | 18-36 | 70-136 | 14612 | 10778 | 3500 | 240 | 26-45 | 10-13 | 3/4 | 150-900 |
| REA20000 | 21-45 | 80-170 | 25812 | 19039 | 3500 | 240 | 17-34 | 13-20 | 1 | 150-1200 |
| REA50000 | 26-74 | 100-280 | 68052 | 50195 | 4000 | 280 | 11-30 | 21-50 | 1 | 300-2400 |
📦 Packaging & OEM Service

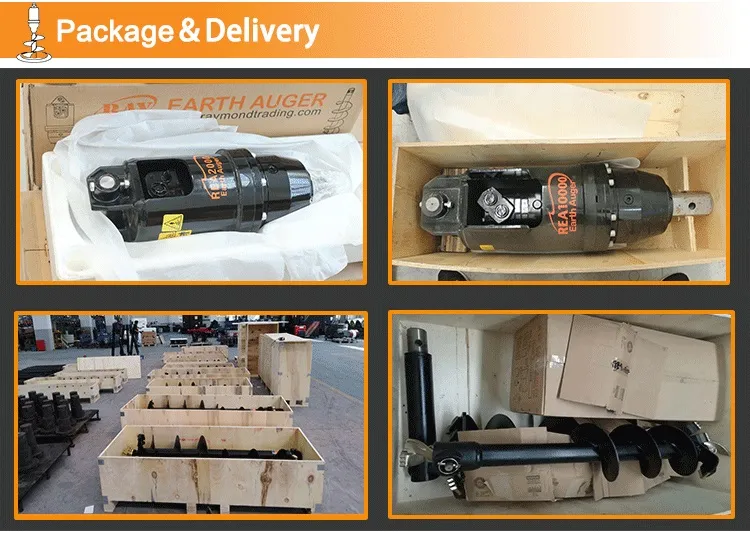

Heavy-Duty Protection: All units are packed in strong wooden boxes to ensure no damage occurs during international transportation.

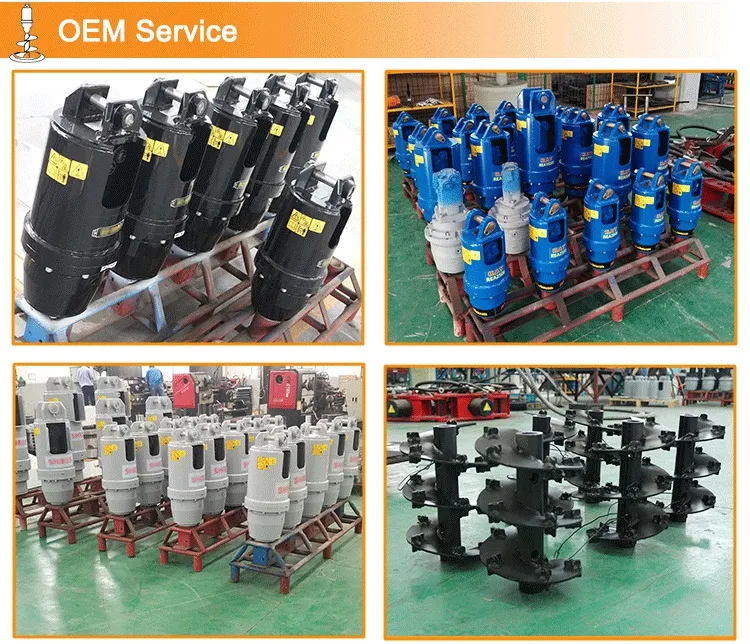

Customization: We offer comprehensive OEM services, allowing you to customize the brand, color, and shape to meet your specific market requirements.
❓ Frequently Asked Questions
Q Are you a professional manufacturer?

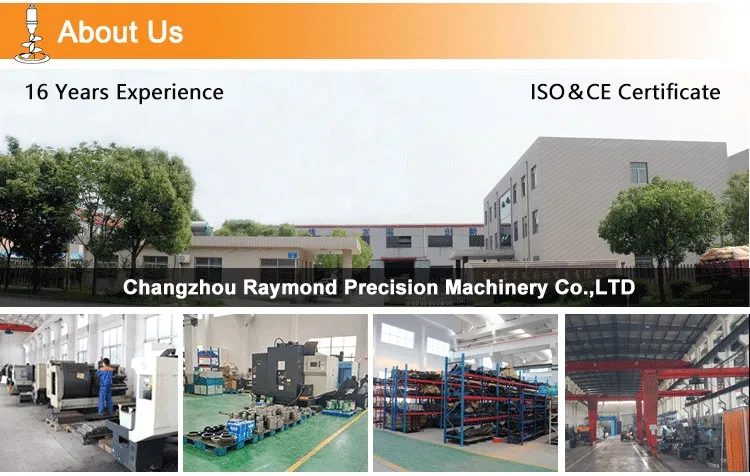

Yes, our facility was established in 2002 and we have extensive experience in manufacturing construction machinery attachments.
Q How do I know if the auger fits my excavator?
Our augers are designed for high compatibility. Simply provide your excavator model, and our technical team will verify the fitment for you.
Q Do you offer OEM or custom designs?
Yes, we provide both OEM and ODM services. We can customize the brand, color, and specifications according to your needs.
Q What are the payment terms and MOQ?
The Minimum Order Quantity (MOQ) is 1 set. We accept various payment methods including T/T, L/C, and Western Union.
Q What is the estimated delivery time?
Standard delivery ranges from 5 to 25 working days after payment, depending on the order quantity and customization requirements.
Q Which regions do you export to?
We export globally to countries including the USA, Canada, Australia, New Zealand, Thailand, Vietnam, Brazil, Mexico, South Africa, and many others.
