1) Reliable hydraulic system with self-protection, high efficiency and low cost.
2) Simple, rapid assembly and dismantling, a good underwater dredging machine.
3) Custom production from 4" to 24" dredgers with max. dredging depth 25m.
4) Passed ISO9001, CE, CCS certificate & The Certification of the Survey.
5) Adapt submerged arc welding technology for strong stability and beautiful design.
6) Special marine steel plate, strong & durable.

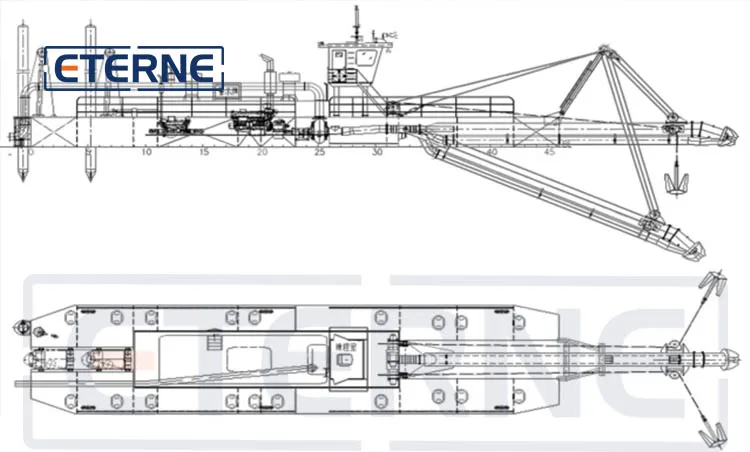

| Model | CSD200 | CSD250 | CSD300 | CSD400 | CSD450 | CSD600 | CSD650 |
|---|---|---|---|---|---|---|---|
| Total Length | 26m | 27m | 29m | 33m | 36m | 40m | 43m |
| Water Flow (m3/h) | 600 | 1000 | 1500 | 2200 | 3000 | 5500 | 7000 |
| Max Dredging Depth | 8m | 10m | 12m | 15m | 15m | 20m | 30m |
| Discharge Dia. (mm) | 200 | 250 | 300 | 400 | 450 | 600 | 650 |
| Cutter Head Power (kw) | 190 | 300 | 450 | 760 | 1007 | 2300 | 2800 |

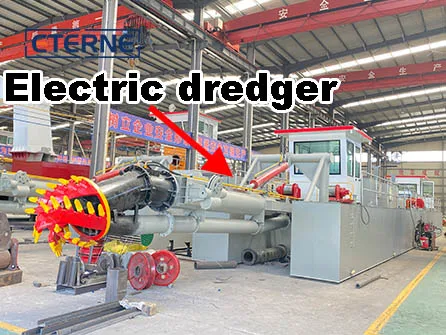

Environmental friendliness as they do not use fuel to burn, reducing emissions. Reduced noise and flexible operation make it suitable for reservoirs and small rivers.

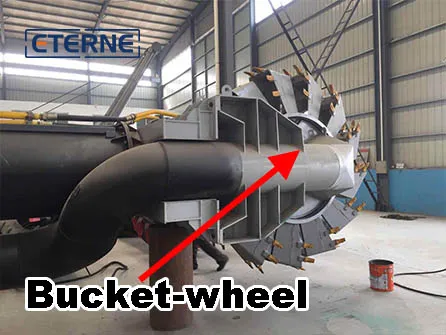

Suitable for hard terrain. The torque of the bucket wheel is twice that of the same power cutter head. Bolt design allows interchangeability between cutter head and bucket wheel.

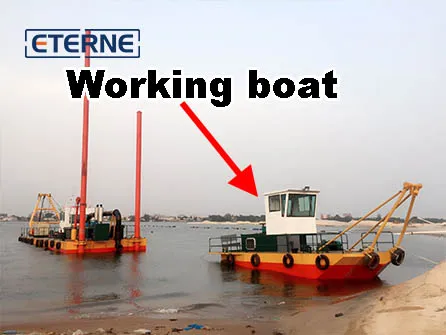

Equipped with auxiliary boats for anchoring and transporting materials. Disassembled design allows for easy transport by container.

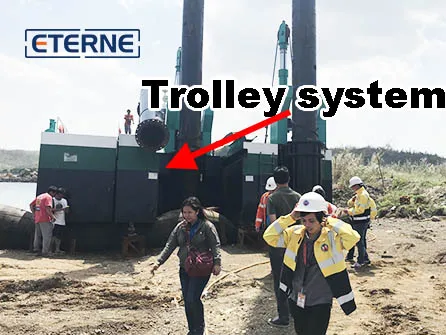

Increases working efficiency by 5% to 50% by reducing time for replacing piles, allowing for more cleaning of the target area in the same time.

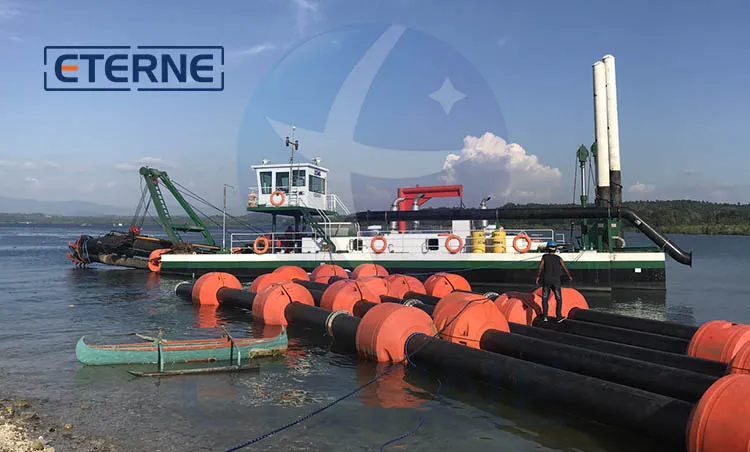

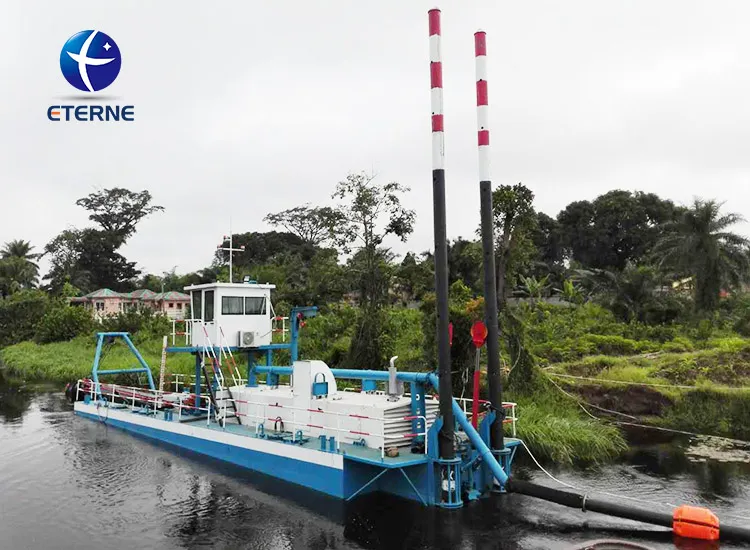

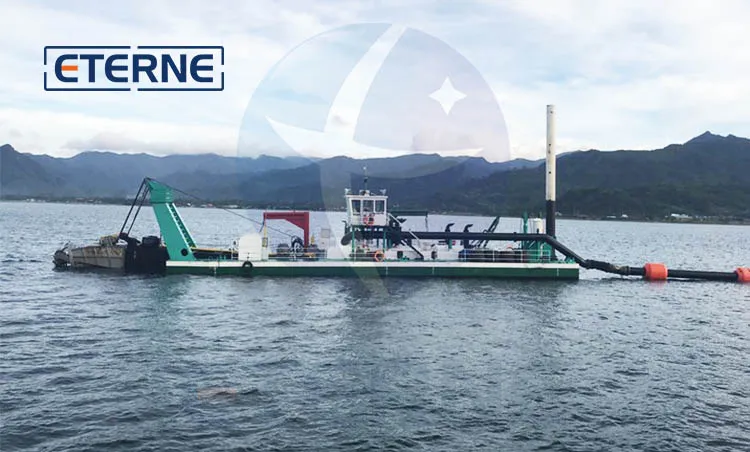

Projects exported to Congo and the Philippines

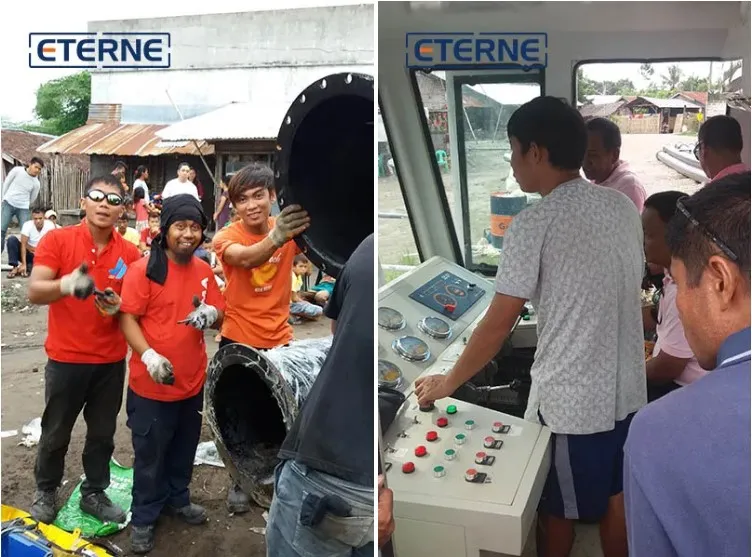

• After-sales technical support and machine installation by specialist engineers.
• Online support, phone calls, and on-site support available for technical resolution.
• Specialized technical staff for spare parts delivery and labor warranty.
Delivery Time: 7-30 days, depend on orders.

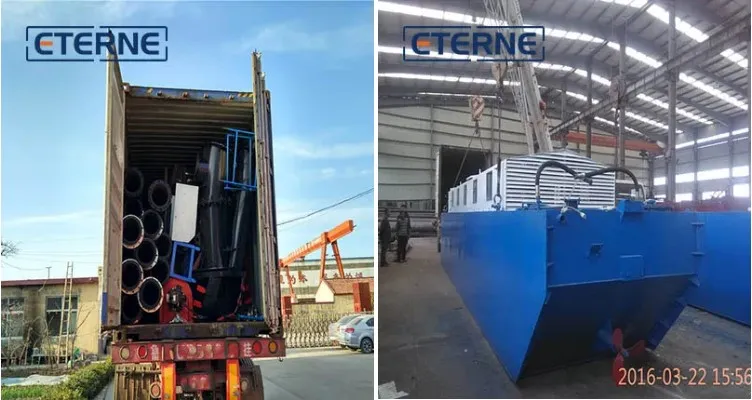

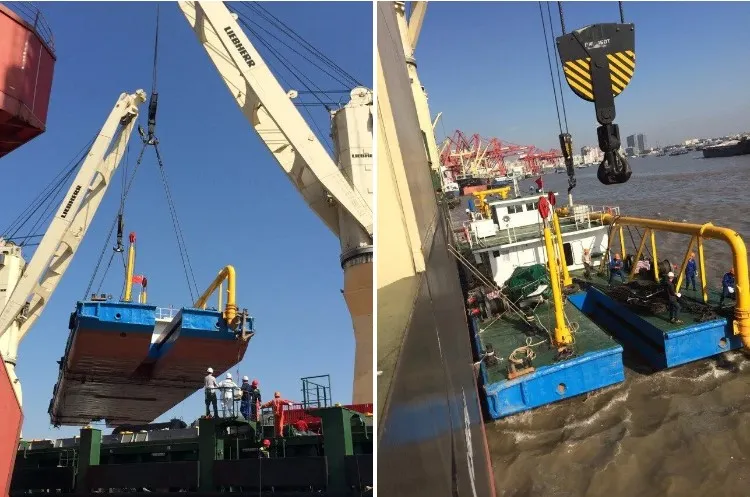

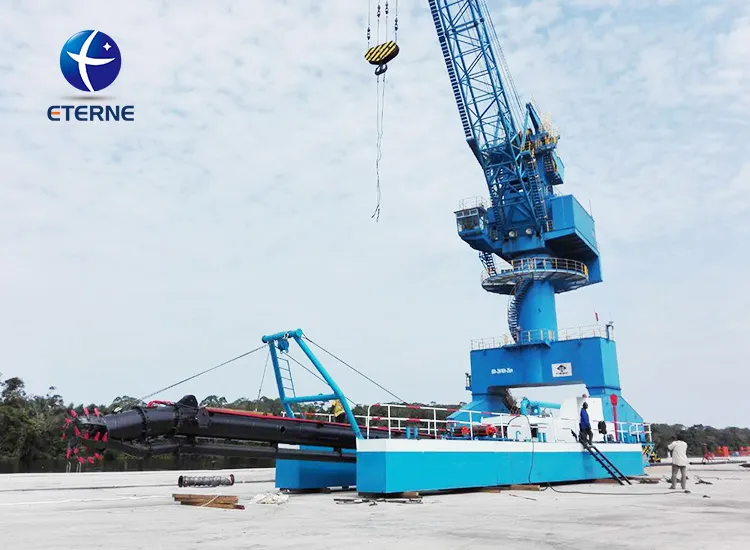

LCL: Wood case or channel steel frame with iron piece.
FCL: Nude and firmed in container (20GP, 40GP, 40HQ).
We are a modern enterprise integrating R & D, production, and service including dredgers, gold mining equipment, aquatic weed harvesters, and sand washing equipment. Our products have been exported to more than 50 countries, such as Bangladesh, Philippines, Indonesia, Malaysia, Nigeria, and South Africa. We design feasible product plans according to customer requirements and special geographical environments.
