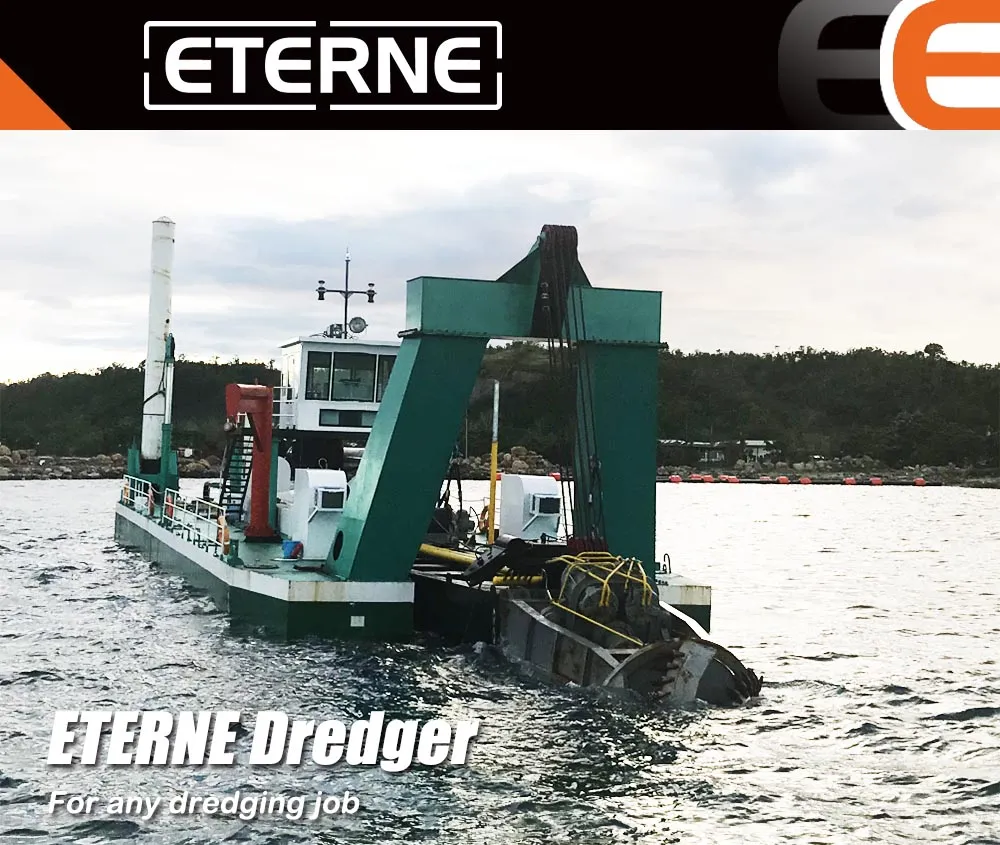

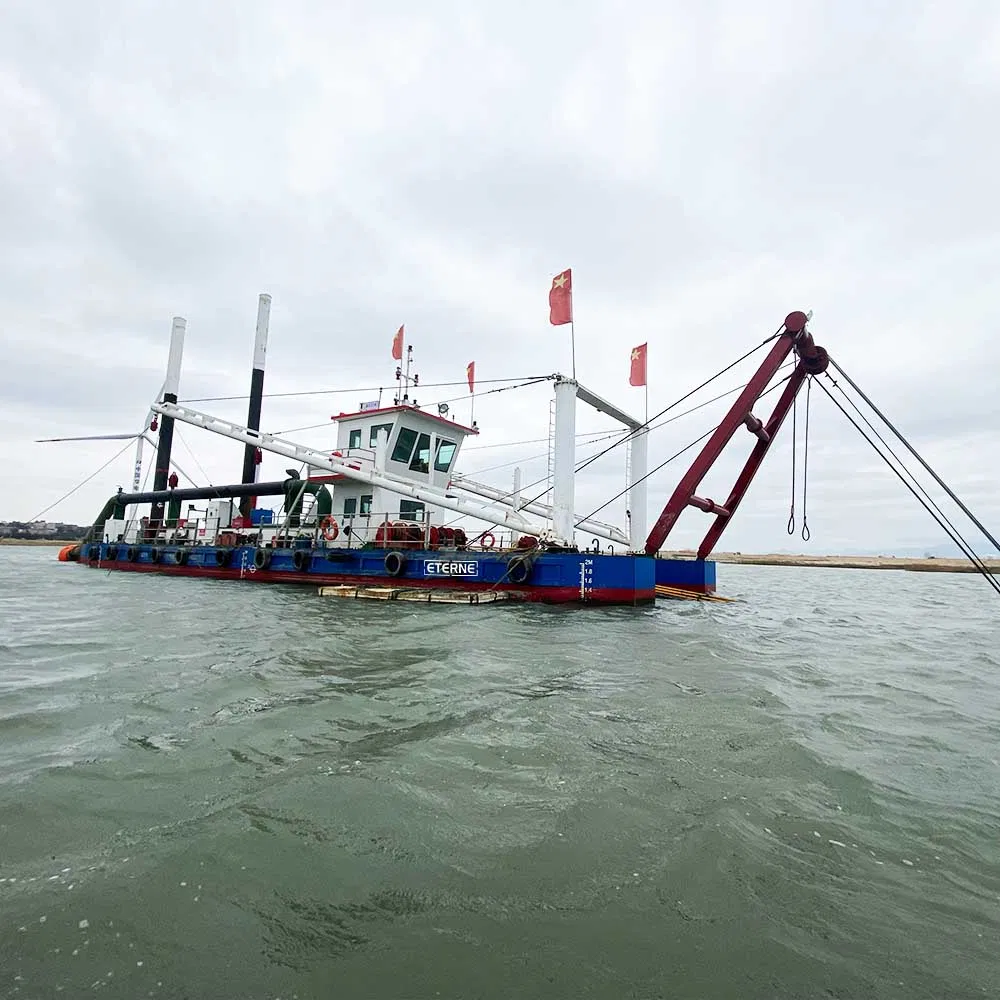

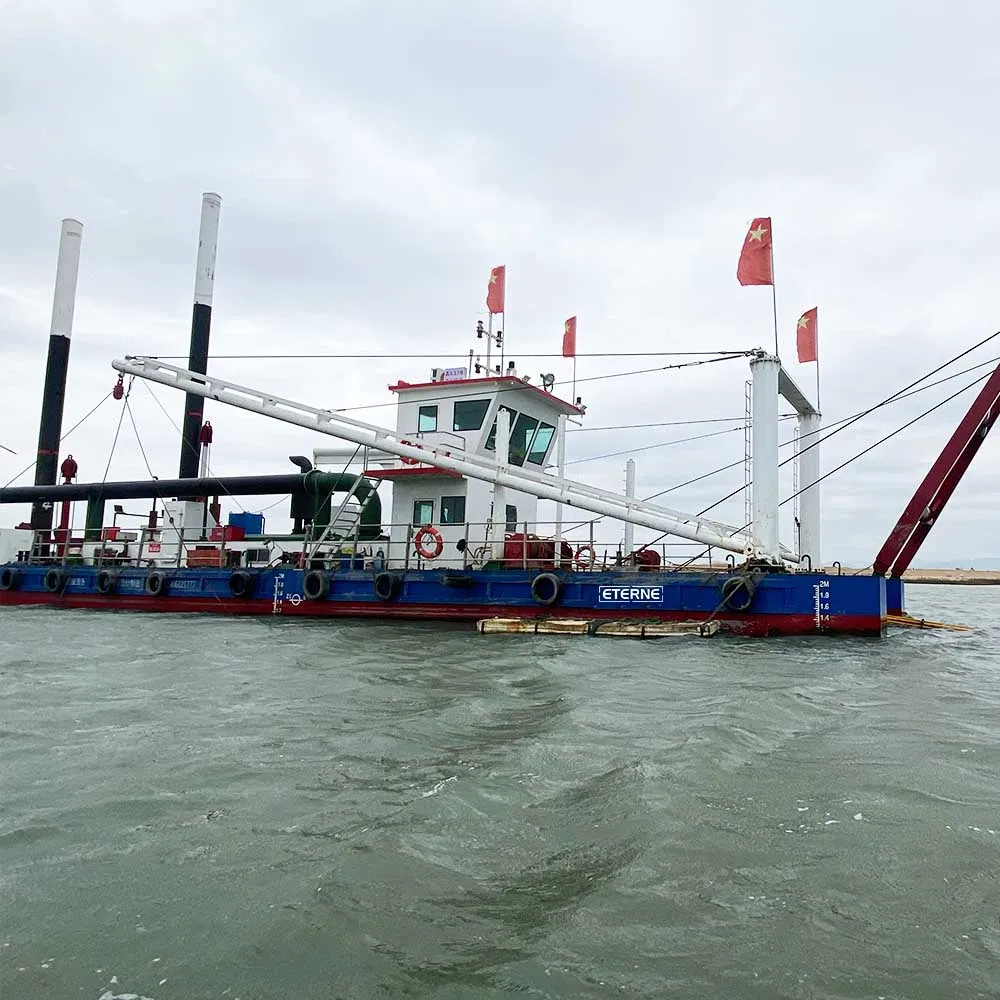

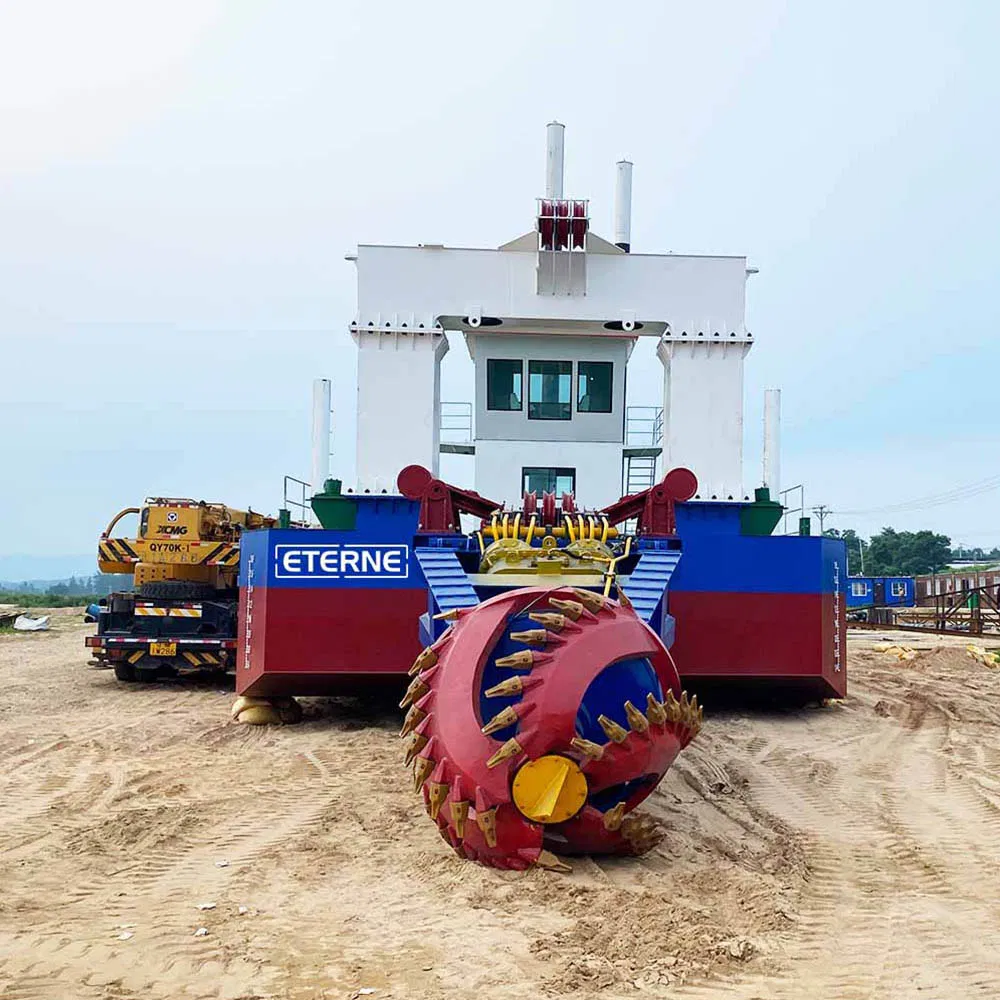

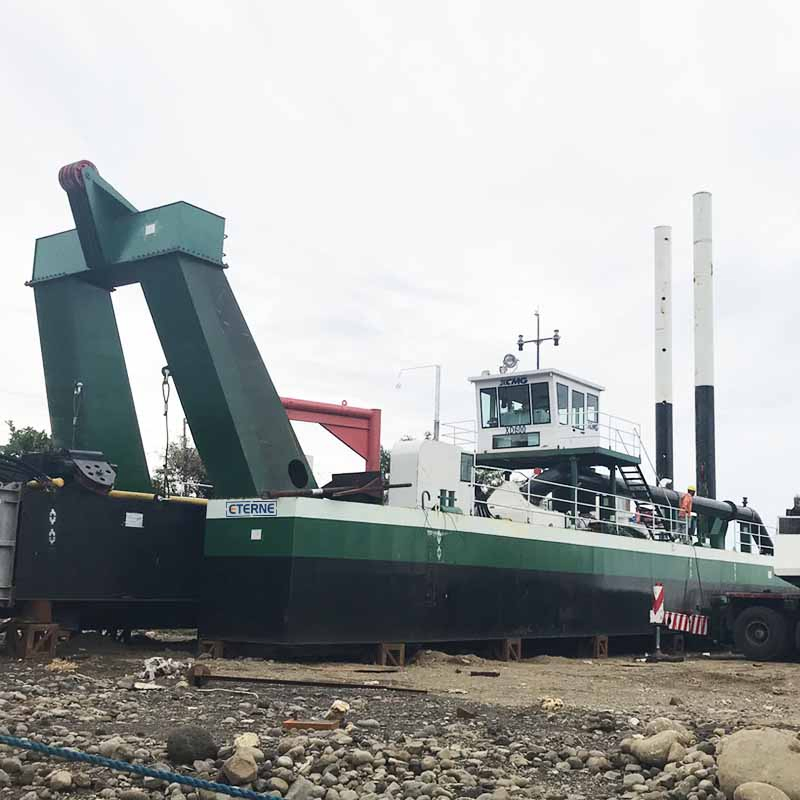

Pump hydraulic pipeline cutter head suction dredger machine river sand ship vessel boat equipment for sale
Reliable hydraulic system with self-protection, high efficiency and low cost.
Simple, rapid assembly and dismantling, a good underwater dredging machine.
Production range from 4 inch to 24 inch dredgers with max. dredging depth 25m. Customizable designs available.
Passed ISO9001, CE, CCS certificate & The Certification of the Survey.
Submerged arc welding technology for strong stability and professional design.
Special marine steel plate construction for extreme durability.

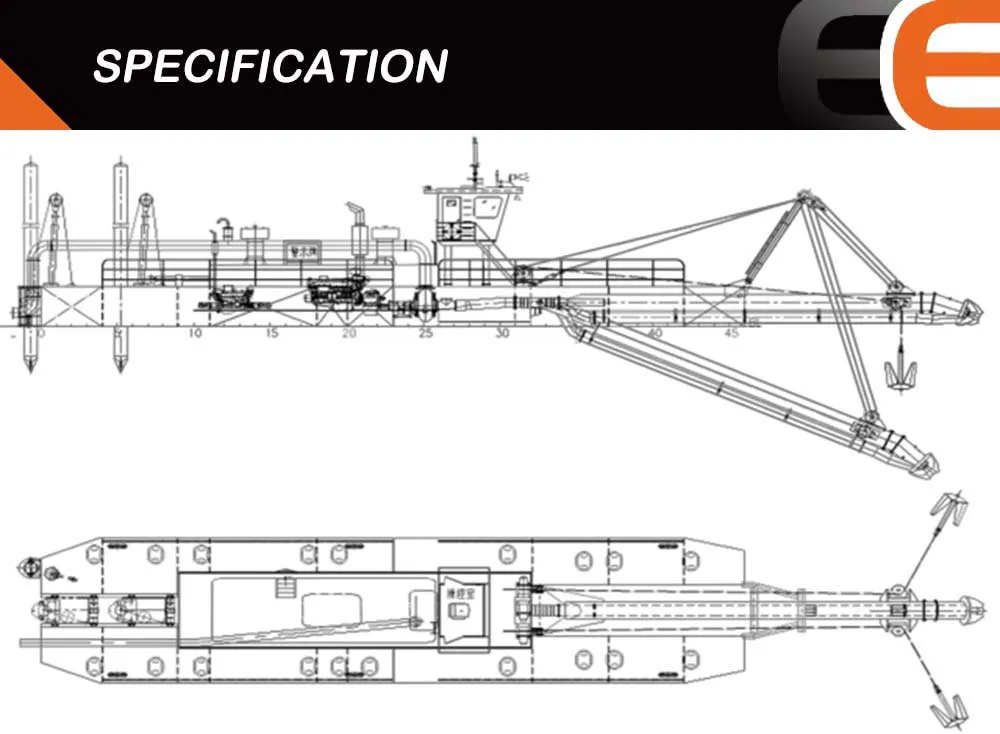

| Model | CSD200 | CSD250 | CSD300 | CSD400 | CSD450 | CSD600 | CSD650 |
|---|---|---|---|---|---|---|---|
| Total Length | 26m | 27m | 29m | 33m | 36m | 40m | 43m |
| Water Flow (m3/h) | 600 | 1000 | 1500 | 2200 | 3000 | 5500 | 7000 |
| Max. Dredging Depth | 8m | 10m | 12m | 15m | 15m | 20m | 30m |
| Discharge Pipe Dia. | 200mm | 250mm | 300mm | 400mm | 450mm | 600mm | 650mm |
| Cutter Head Power | 190kw | 300kw | 450kw | 760kw | 1007kw | 2300kw | 2800kw |

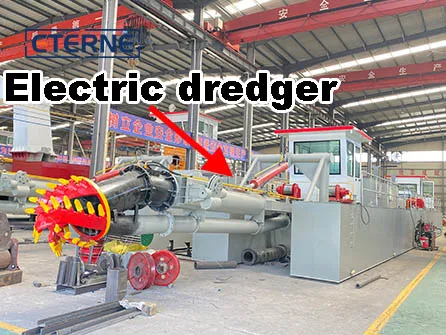

1. Electric Cutter Suction Dredger: Environmentally friendly, zero emissions, reduced noise. Suitable for reservoirs and rivers with power access.

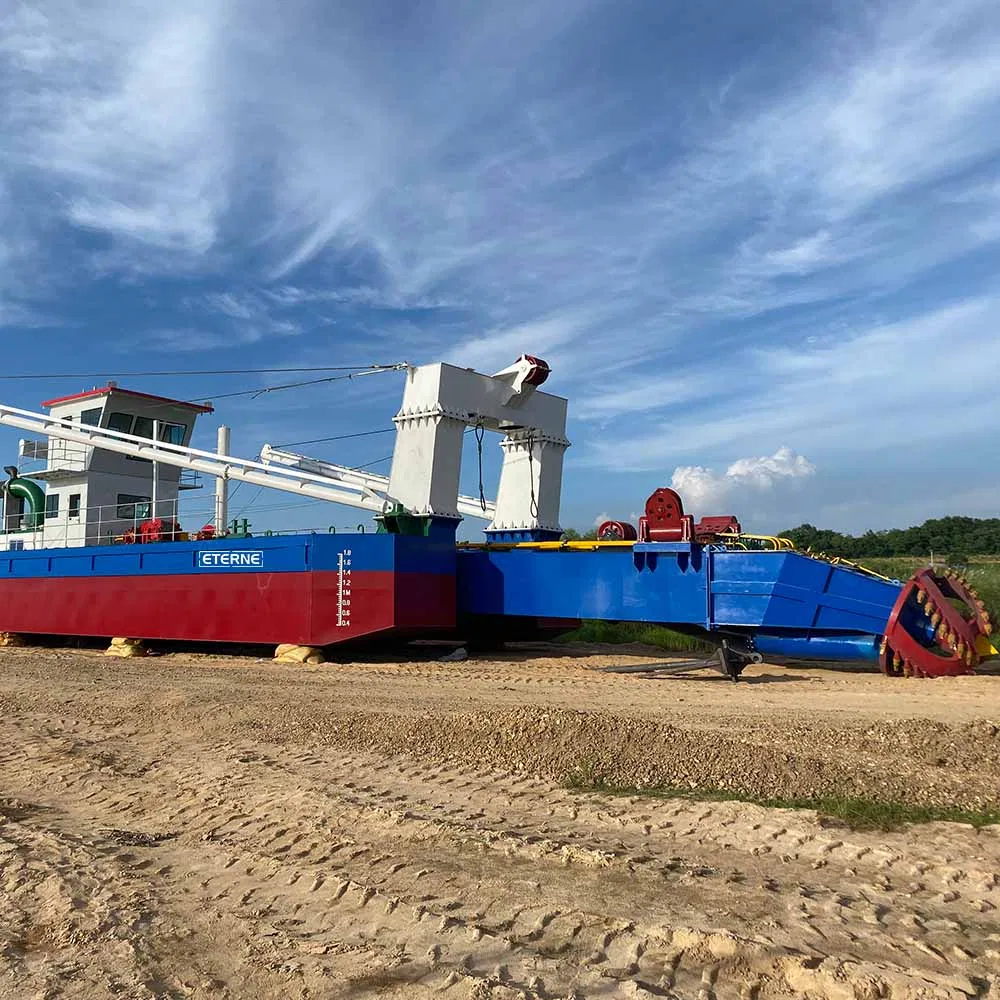

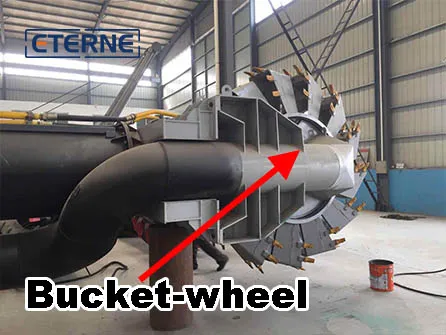

2. Bucket-wheel System: High torque for hard mud layers and tough terrain. Interchangeable with standard cutter heads.

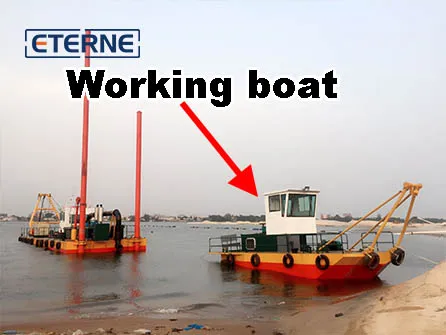

3. Auxiliary Working Boats: Support functions including anchoring and material transport. Modular design for easy container transport.

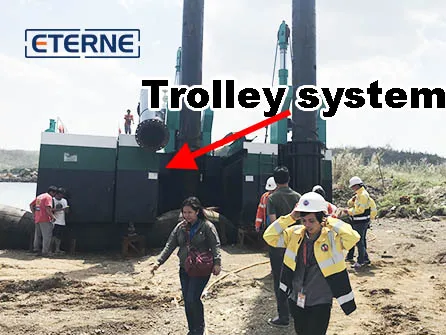

4. Dredger with Trolley: Increases work efficiency by 5% to 50% by reducing time spent on pile replacement.

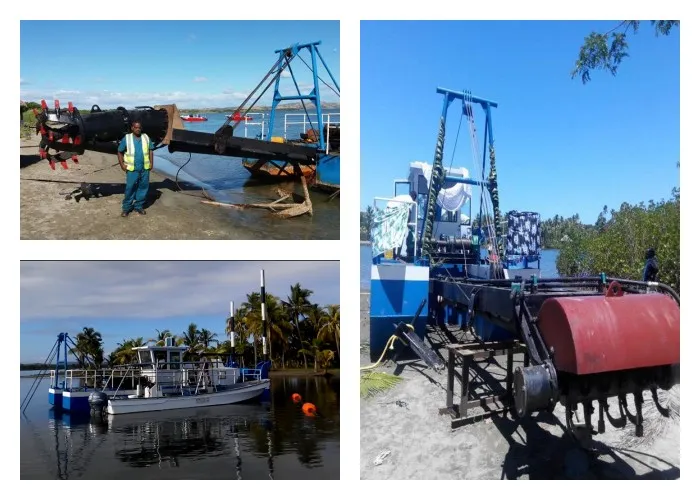

Fiji: 6 inch CSD used for river desilting to support yacht navigation for the tourism industry.

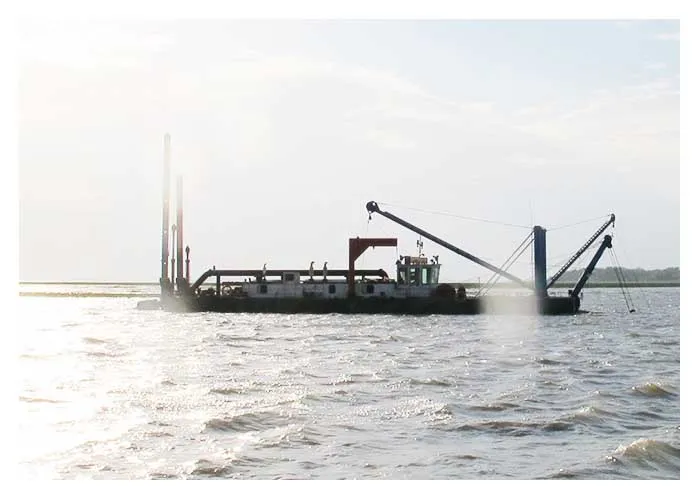

Nigeria: 14 inch CSD for infrastructure sand mining, equipped with high-performance hydraulic systems.

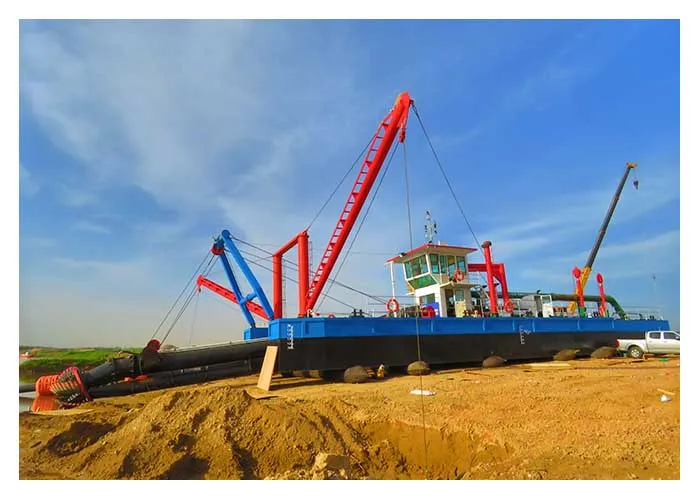

Bangladesh: 18 inch CSD for port deepening, allowing large container ships to access maritime facilities.

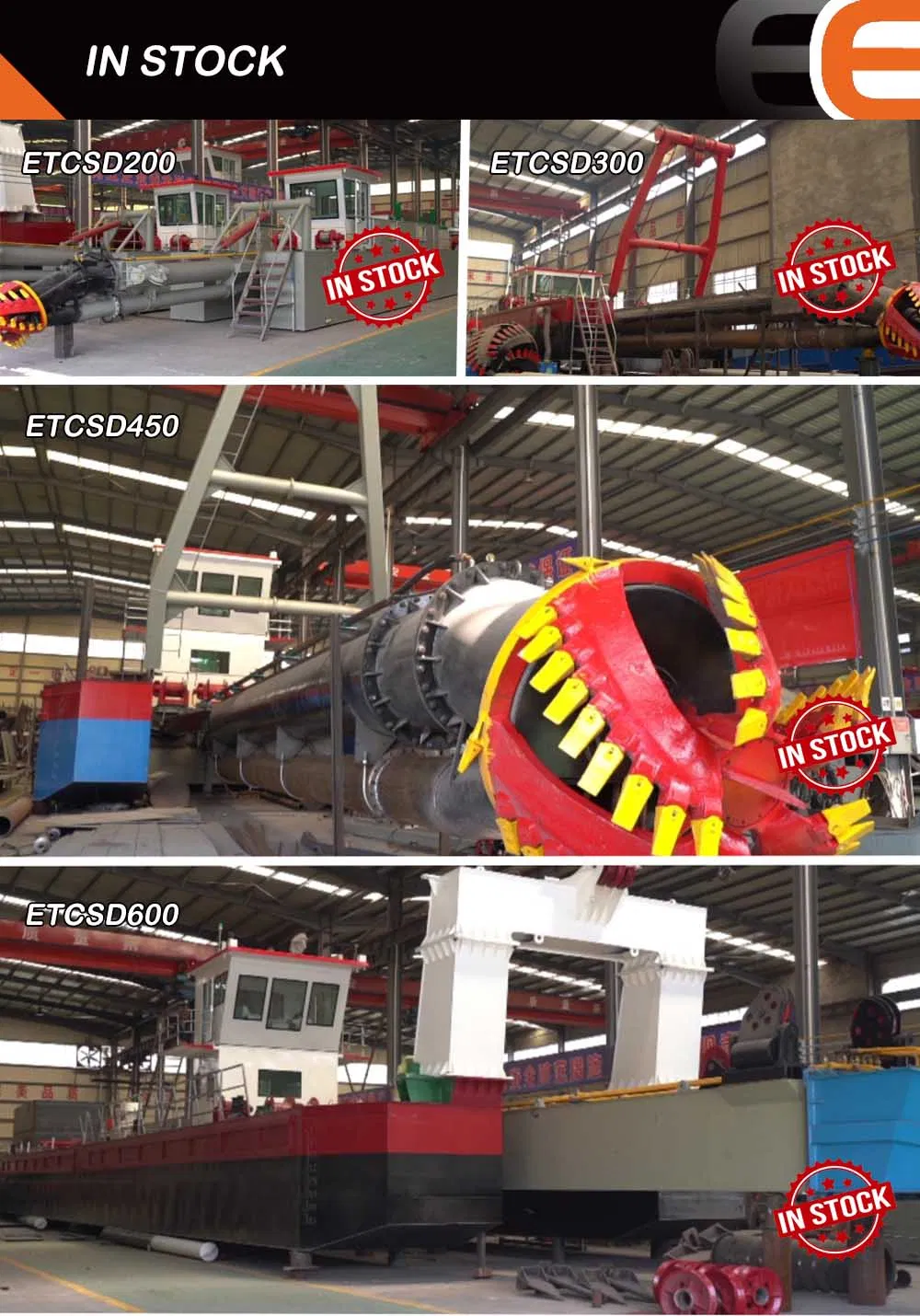

Delivery Time: 7-30 days depending on order specifications.
LCL: Wood case or channel steel frame with iron protection.
FCL: Nude and secured in standard containers (20GP, 40GP, 40HQ).
