Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
1 / 5
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction
Innovative Curb Paving Machine for Efficient Road Construction

Innovative Curb Paving Machine for Efficient Road Construction

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Info

Model NO.
RWHM41
Type
Paver
Object
Soil Surface
Automatic Grade
Semi-Automatic
Certification
ISO9001: 2000, CE
Condition
New
Power
104kw/2200r/Min
Unique Selling Point
Low Fuel Consumption
Weight
11700kg
Dimension(L*W*H)
6975X2500X3420mm
Warranty
1 Year
✓

Product Description

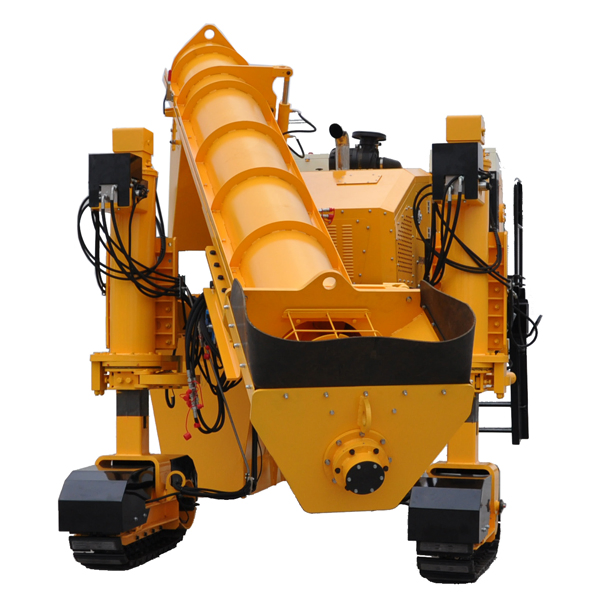

Automatic Curb Paver RWHM41

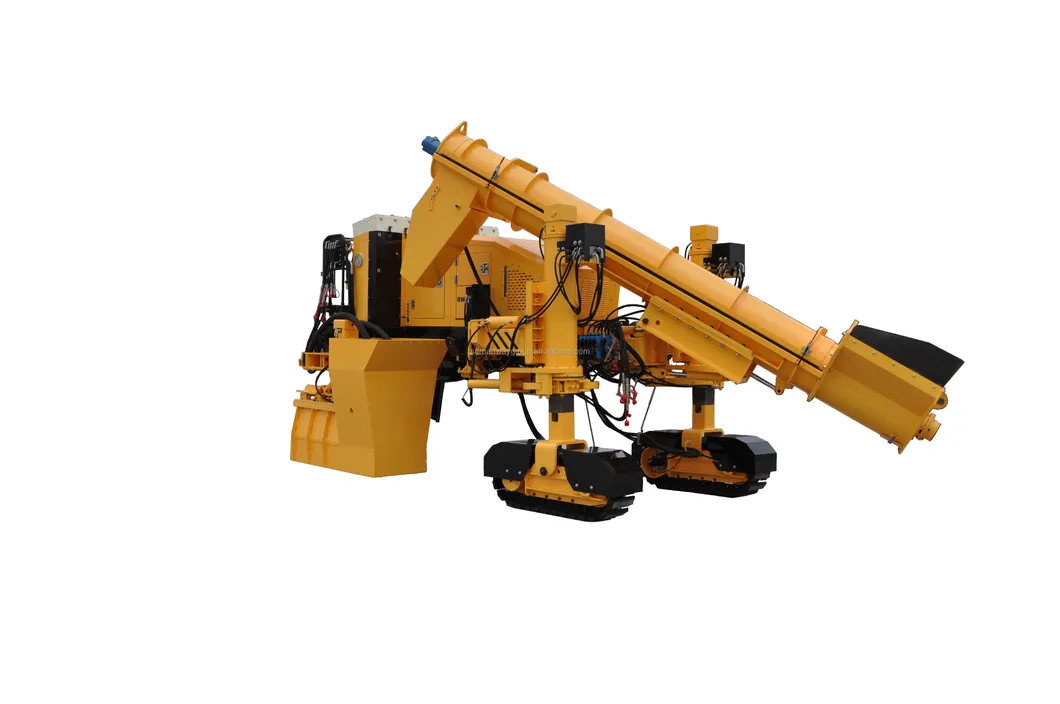

Automatic Curb Paver

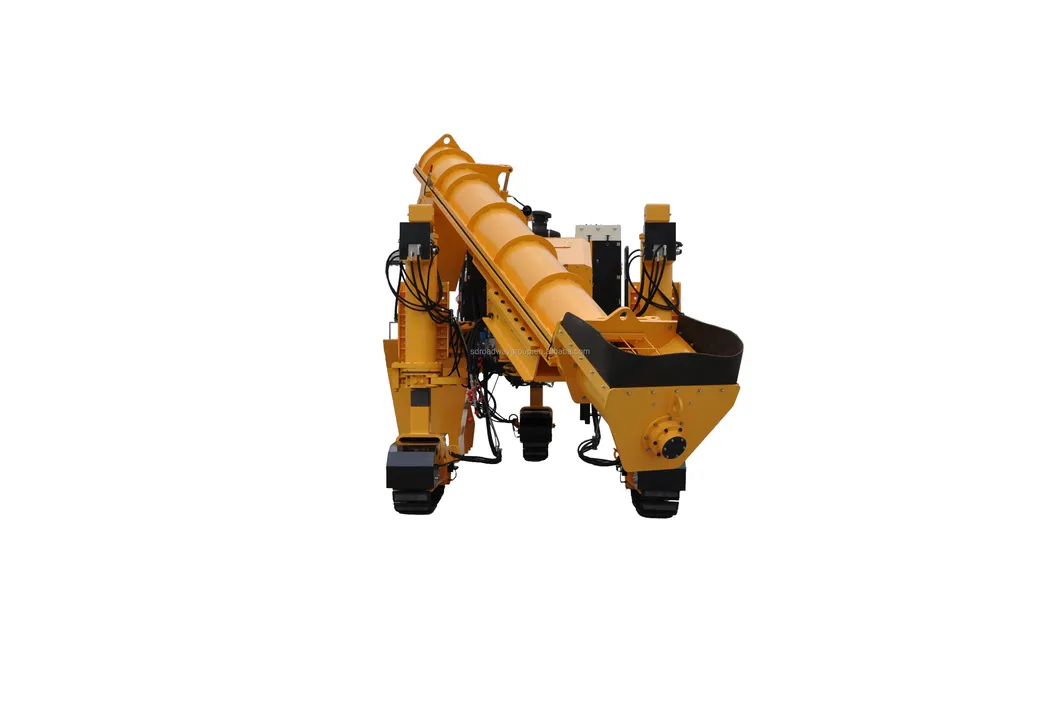

Curb Paving Machine Detail 1

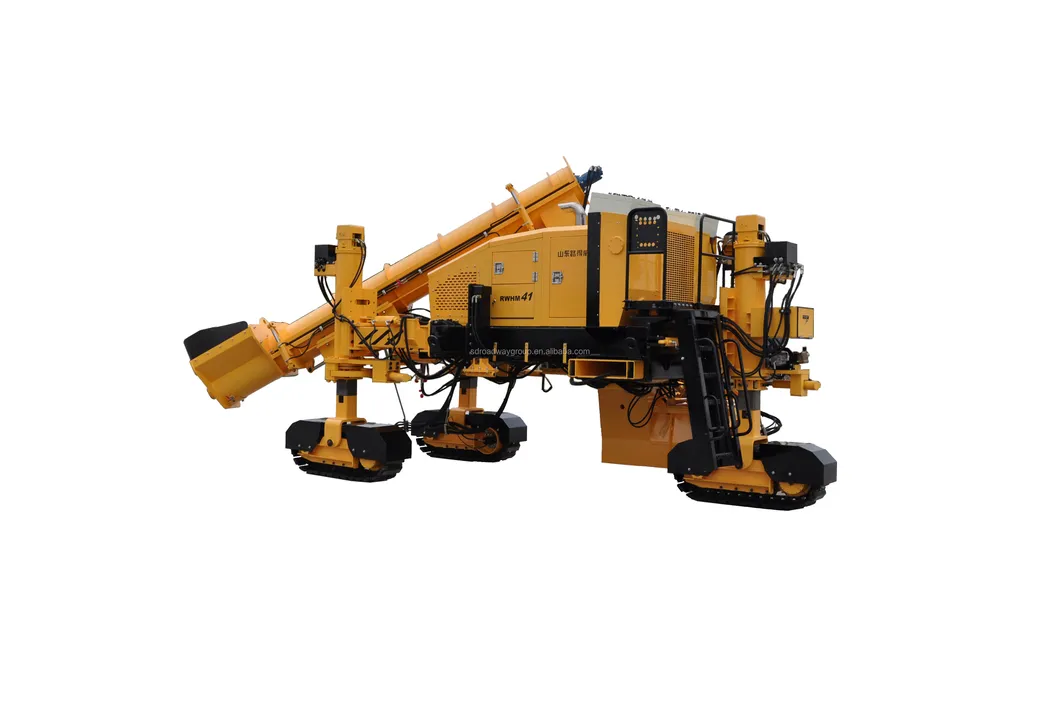

Curb Paving Machine Detail 2

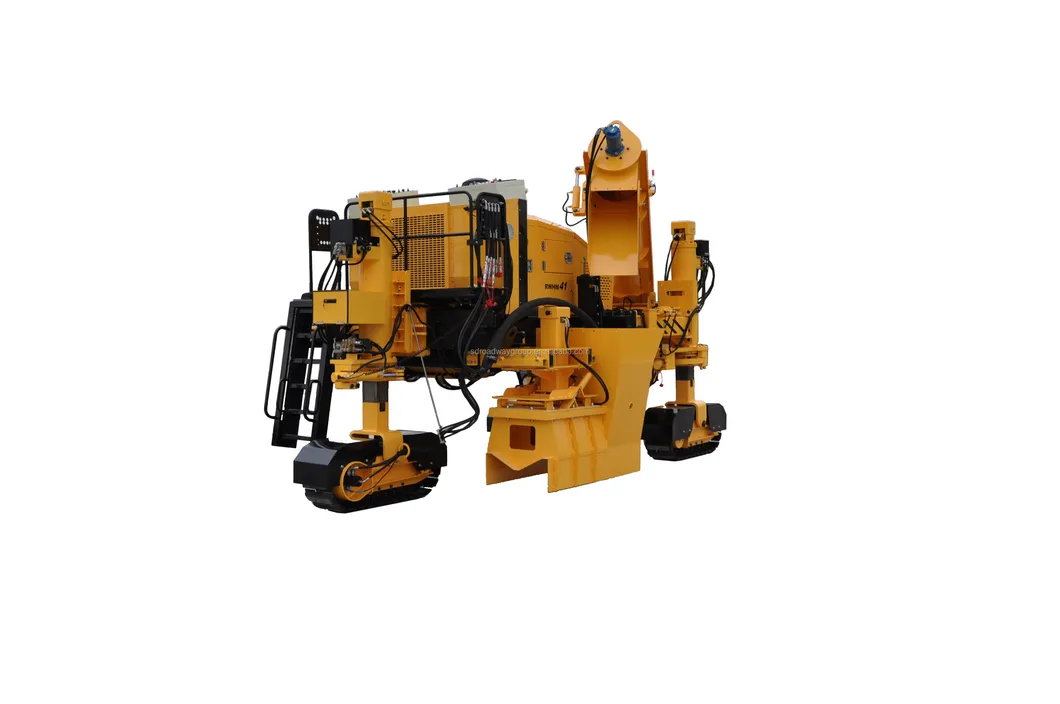

Curb Paving Machine Detail 3

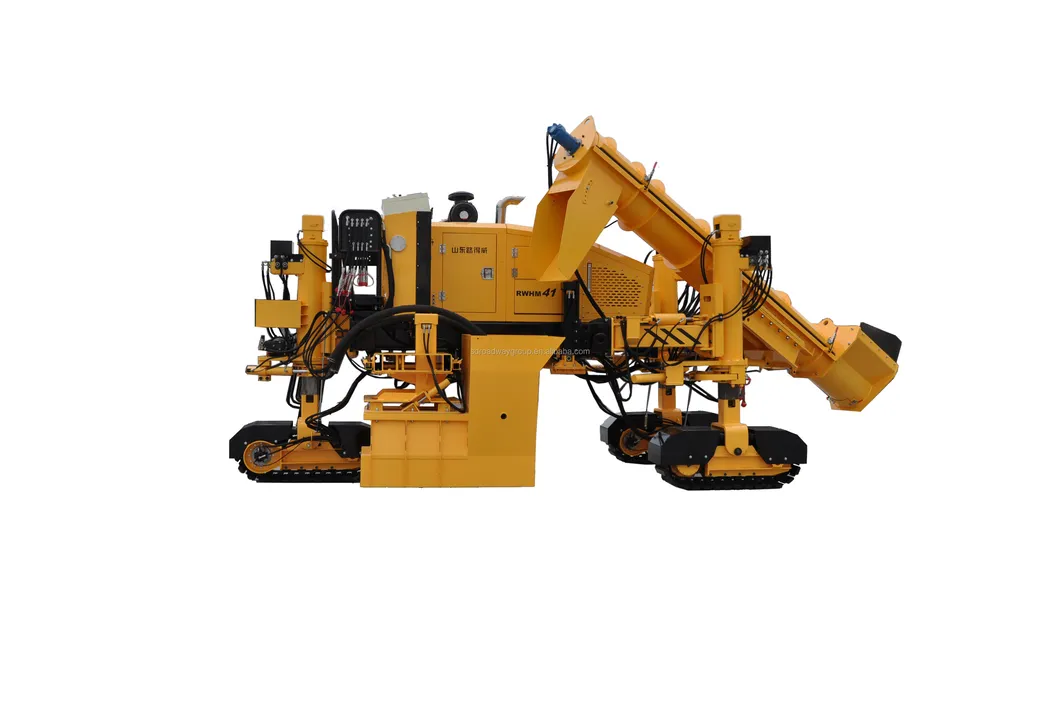

Curb Paving Machine Detail 4

Key Performance Features

01Great function controller with automatic calculation, suitable for various projects.
02Equipped with an imported brand diesel engine for reliable performance.
03Imported hydraulic variable plunger pump for precise speed control.
04U.S.A. brand hydraulic control valve for intelligent function management.
05High frequency and strong power hydraulic rod.
06Crawler walking mechanism with automatic tension cylinder for extended life.
07Patented steering system that is flexible and convenient.
08Multiple walking modes with quick switchover capabilities.
09Real-time pressure monitors for each working mechanism.
10Hydraulic mold dismantle for labor-saving operation.
11Hydraulic high-pressure washing pump for easy on-site cleaning.
12Italy quick plugs for smooth hydraulic power connection without oil leaks.

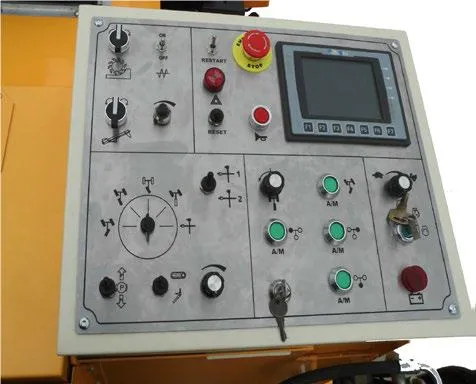

Component detail 1

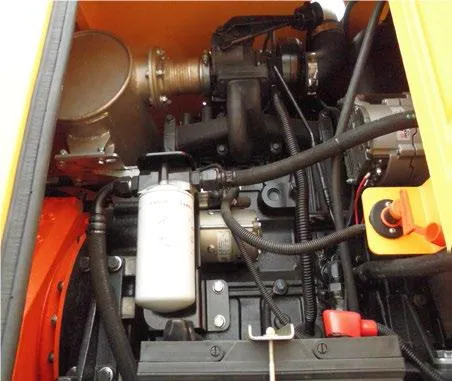

Component detail 2

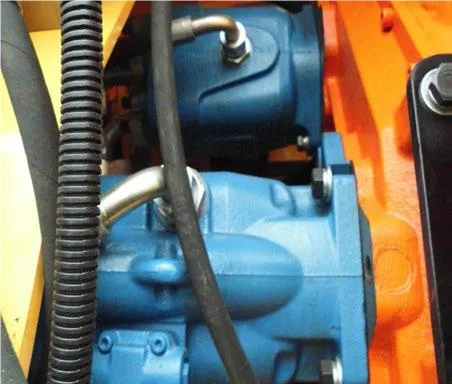

Component detail 3

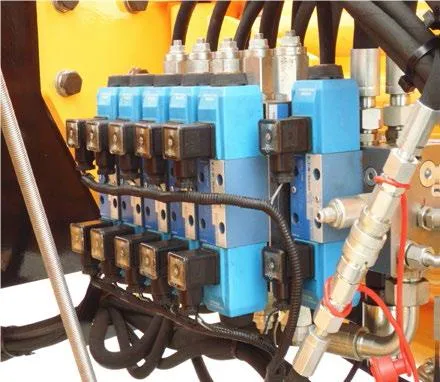

Component detail 4

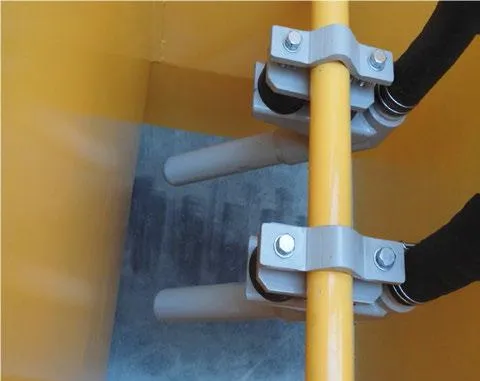

Component detail 5

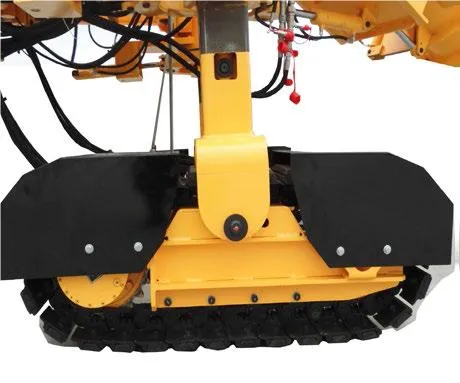

Component detail 6
⚙

Technical Specifications

TypeRWHM41
Engine ModelQSF3.8
Engine TypeDiesel engine, liquid cooled, 4-stroke, 4 cylinder
Power Output104kW/2200r/min
Fuel Consumption215g/kWh
Traveling System
Traveling ModeBy Crawler
Driving ModeBy Hydraulic
Steering ModesCollaborative / Yaw / Front wheel / Rear wheel / Automatic
Traveling Speed0-30m/min
Working Speed0-15m/min
Mold Adjustment
Traverse Adjustment1000mm
Height Adjustment400mm
Max. Mold Width1300mm
Tank Volumes
Fuel Tank195L
Hydraulic Tank230L
Water Tank600L
Dimensions & Weight
Transport Size5700 x 2400 x 2500 mm
Total Weight11700 kg

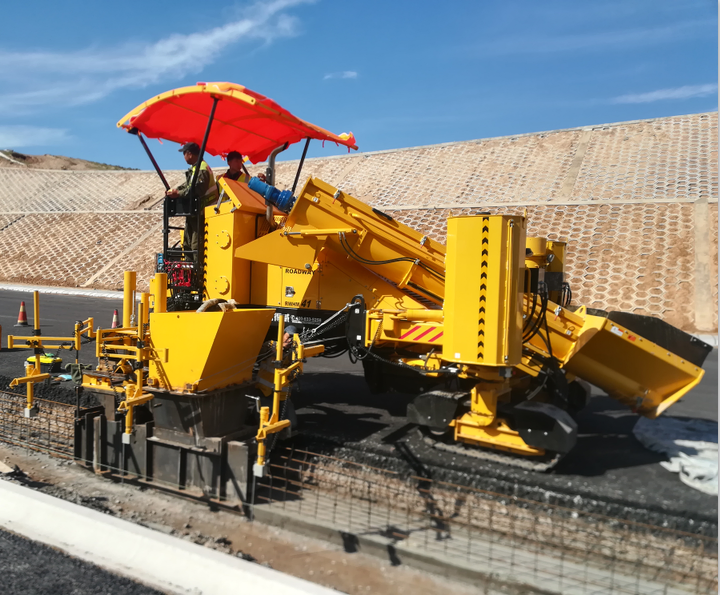

Machine Dimensions

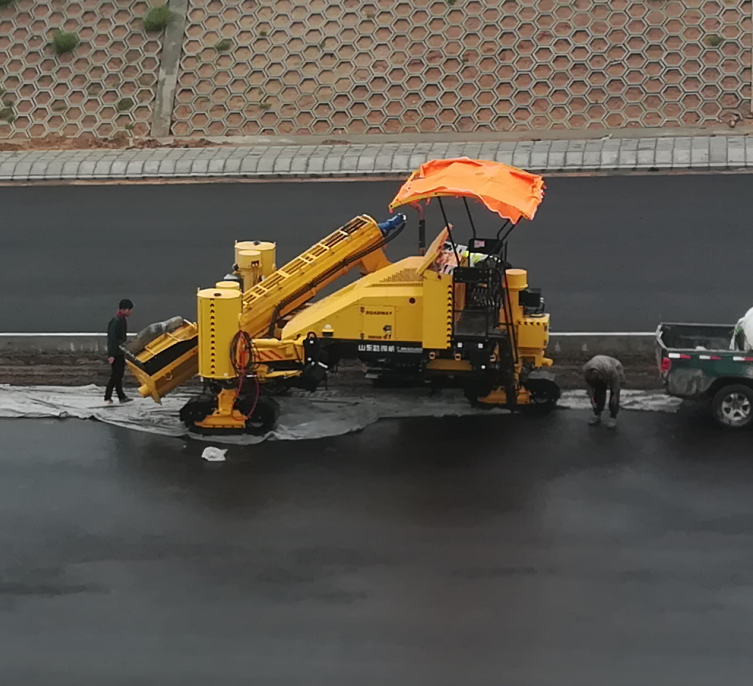

Machine Working View
Curb Result
Site Operation
Machine Overview
?

Frequently Asked Questions

What is the primary function of the RWHM41?
The RWHM41 is an automatic curb paver designed for efficient road construction, specifically for creating concrete curbs on soil surfaces.
What type of engine powers this machine?
It is powered by a QSF3.8 liquid-cooled, 4-stroke, 4-cylinder diesel engine with a power output of 104kW.
How does the steering system work?
The machine features a patented steering system with multiple modes, including Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering.
What is the maximum width for curb molding?
The maximum width capacity for the mold on the RWHM41 is 1300mm.
Does the machine support easy cleaning after work?
Yes, it is equipped with a hydraulic high-pressure washing pump, allowing operators to clean the machine at any time on the job site.
What is the working speed of the paver?
The working speed ranges from 0 to 15 meters per minute, providing high efficiency for paving projects.
