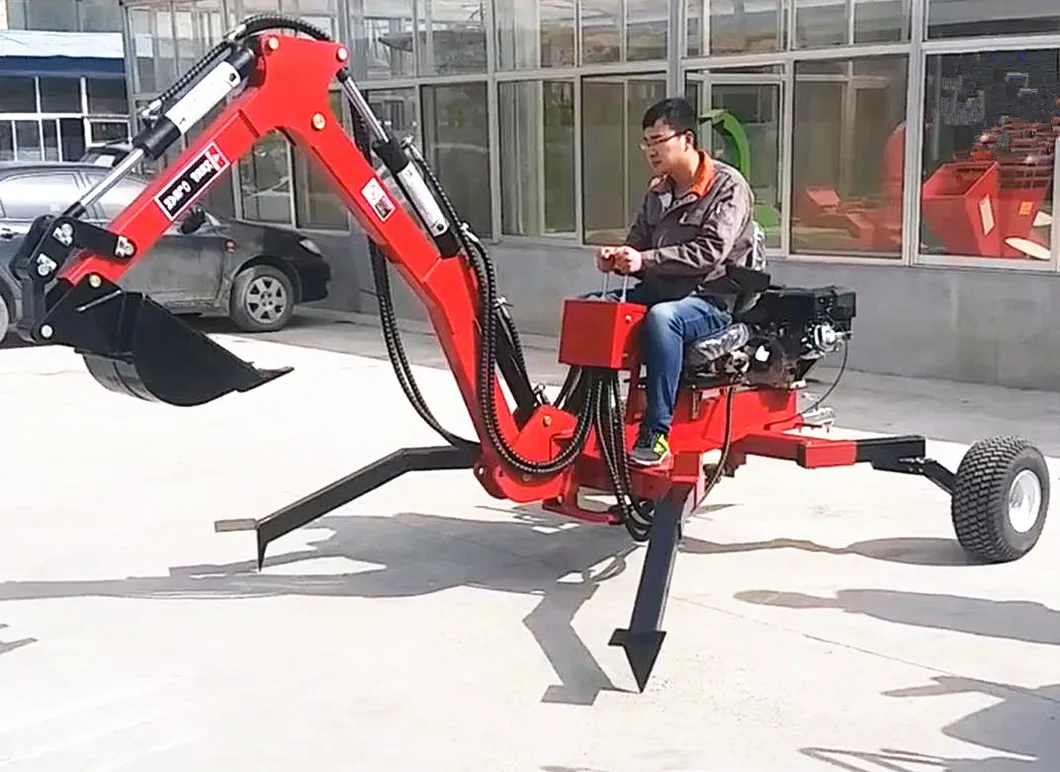

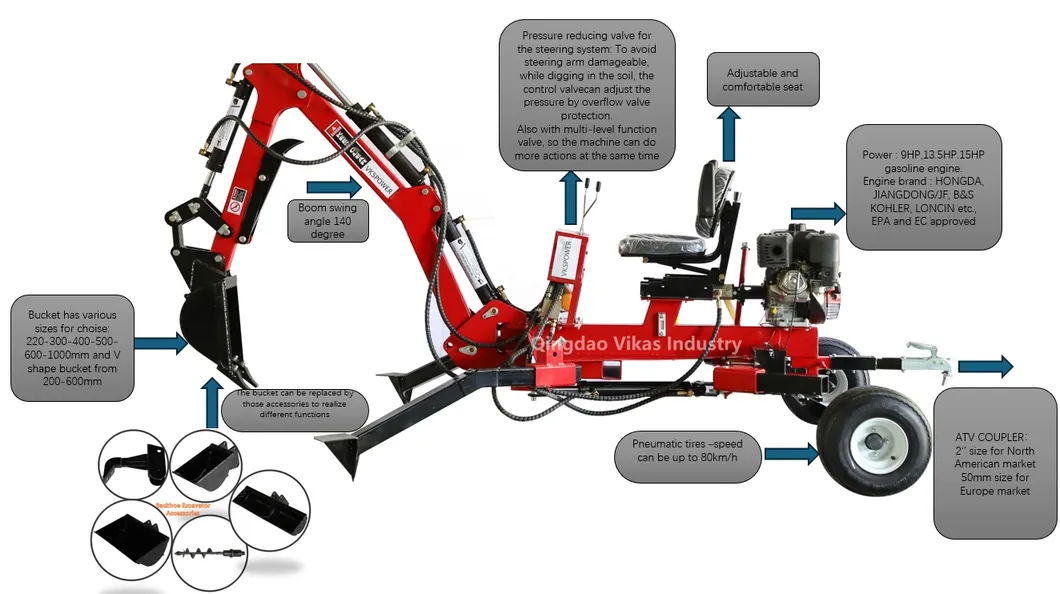

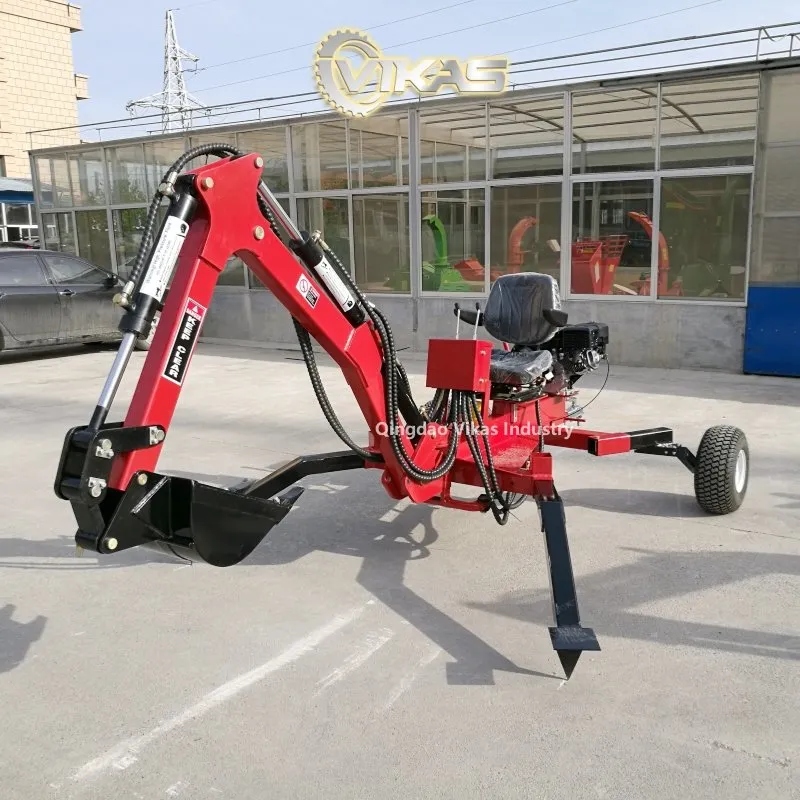

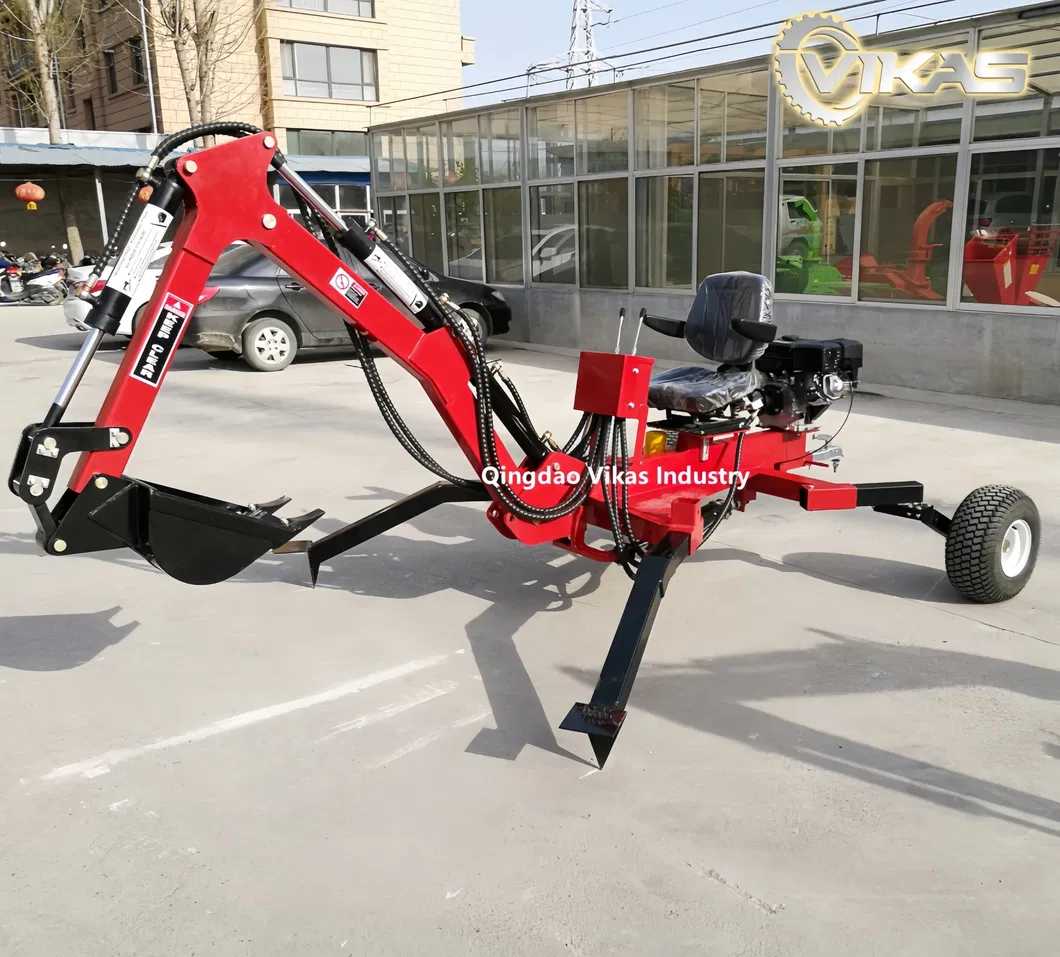

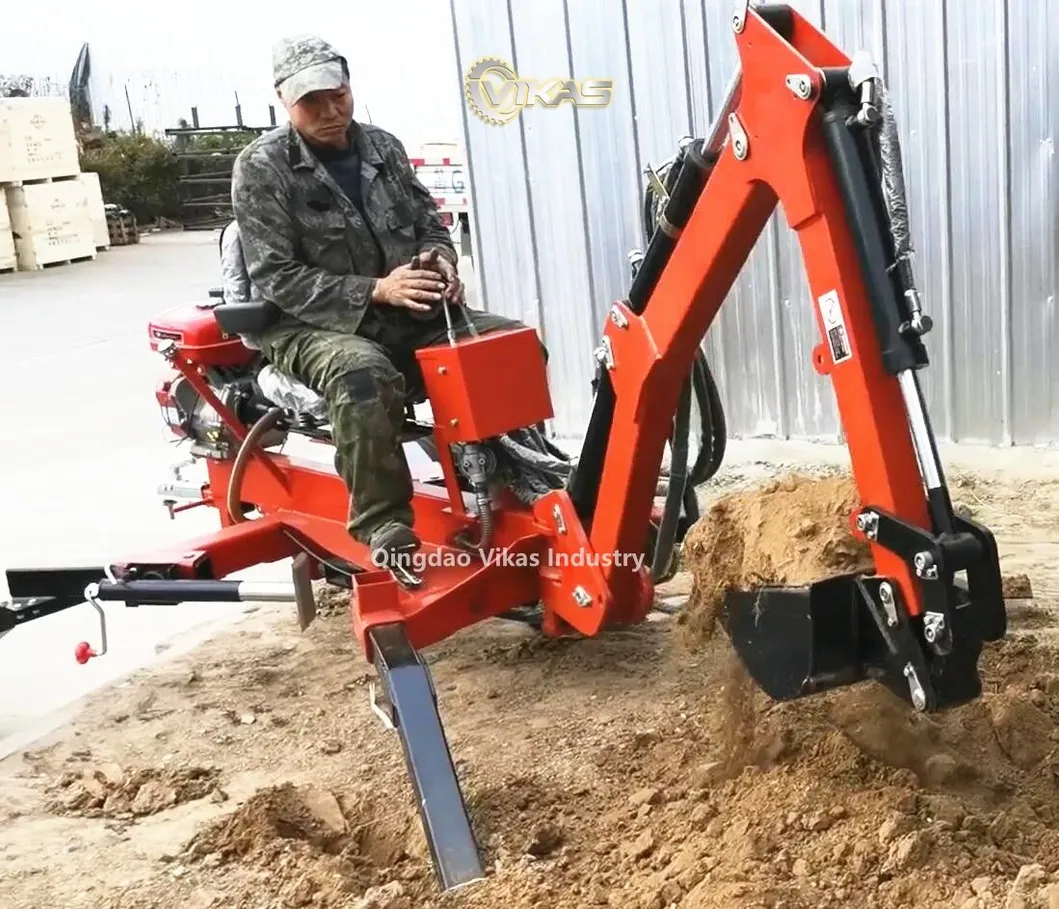

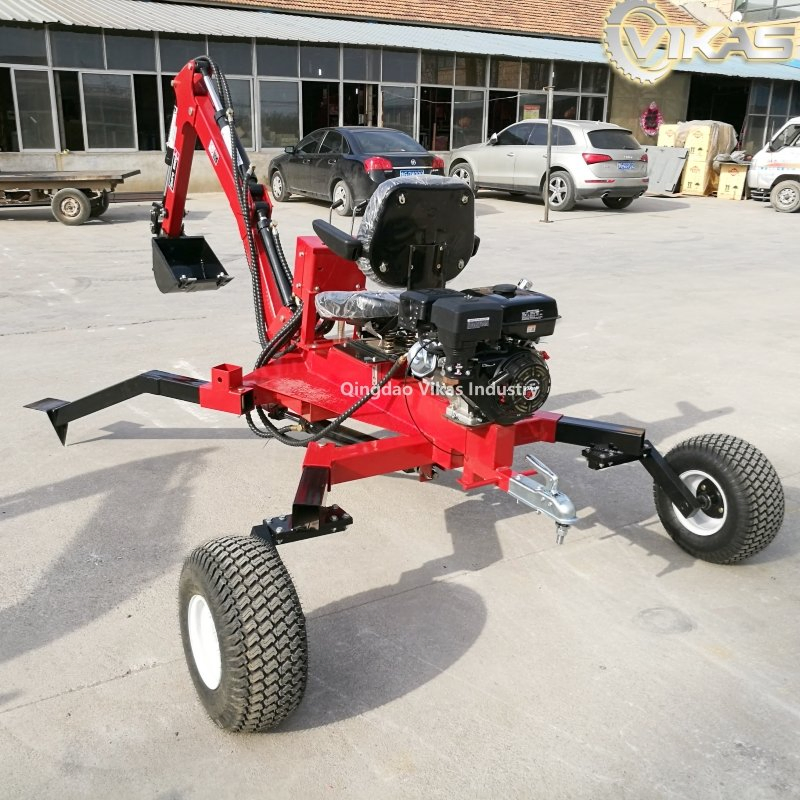

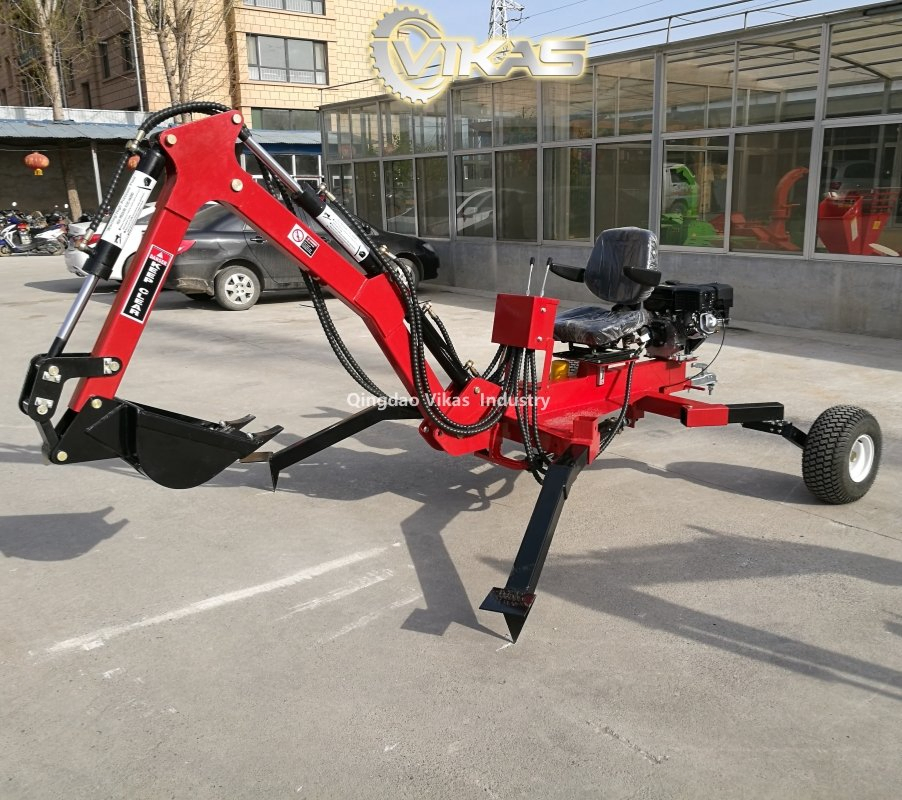

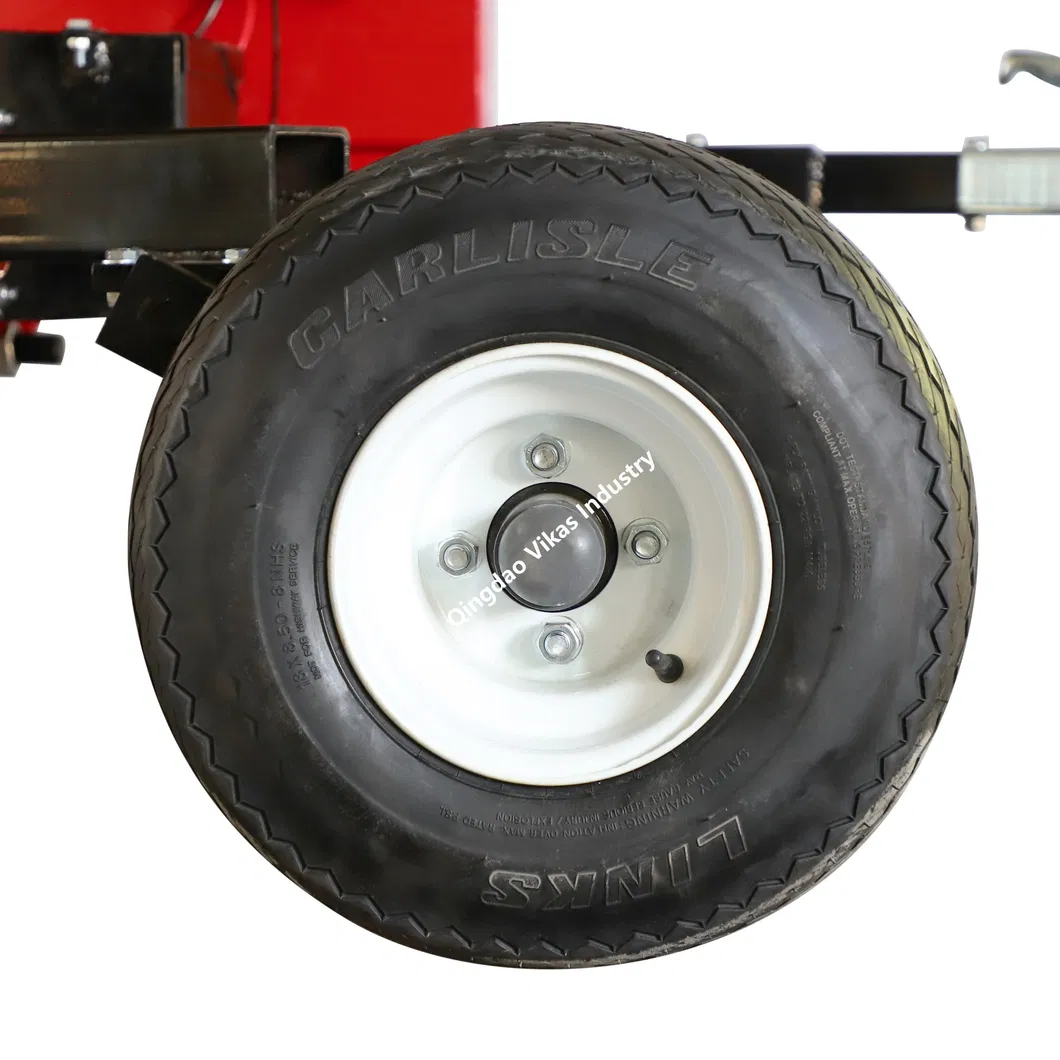

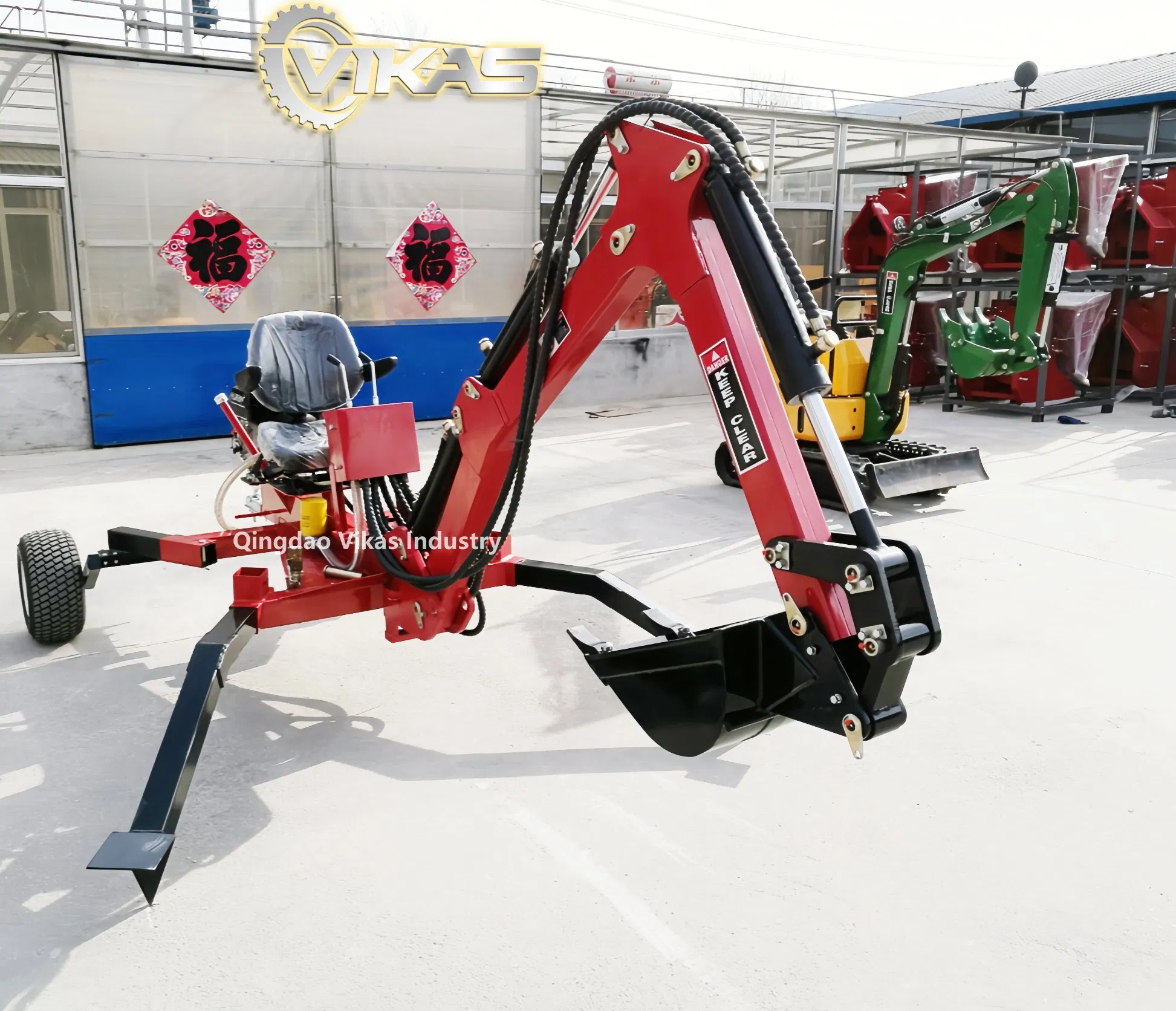

This portable towable backhoe excavator is a specialized piece of equipment designed for high-efficiency earthmoving tasks. Unlike conventional wheel-drive excavators, this mini walking excavator features four independent stride legs equipped with both wheels and outriggers.
This unique construction allows the operator to perform complex operations in difficult terrains, such as steep slopes, forests, or even riverbeds. It is widely utilized in landscape conservation, forestry, and general earthworks.
| Parameter | Specification Details |
|---|---|

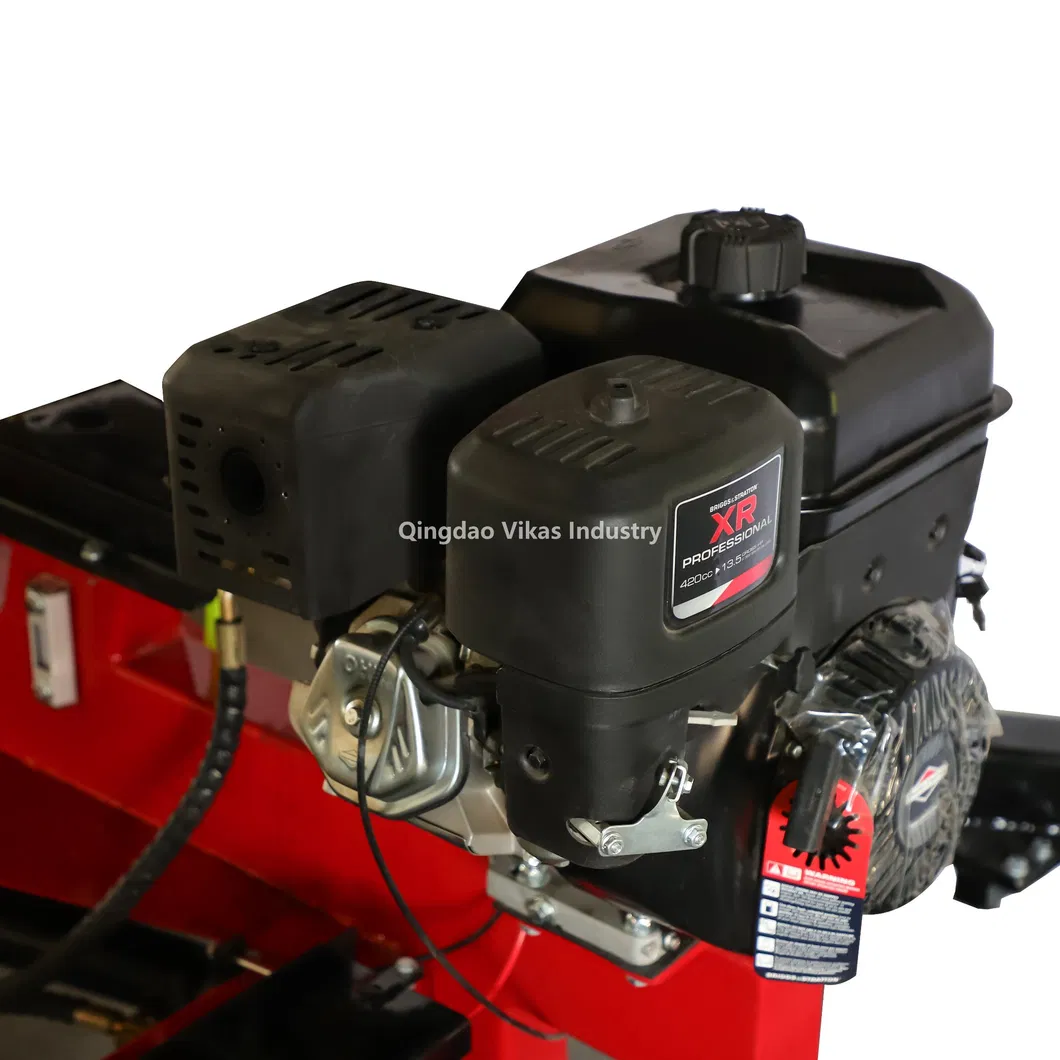

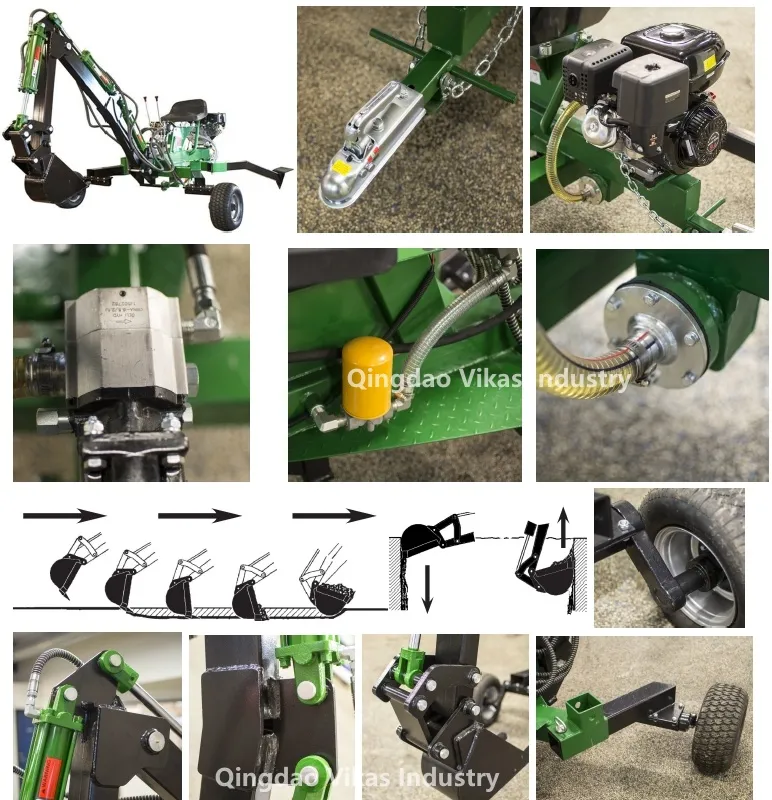

| Engine Power Options | 9HP / 13.5HP / 15HP |
| Engine Brands | JD, Loncin, B&S, Kohler |
| Displacement | 270cc / 420cc |
| Max Digging Radius | 2800mm |
| Max Digging Height | 2500mm |
| Max Unloading Height | 1400mm |
| Stabilizer Width | 1800mm |
| Hydraulic Pressure | 16Mpa |
| Coupler Size | 2'' or 5cm Ball |
| Dimensions | 3000 * 1500 * 2300mm |

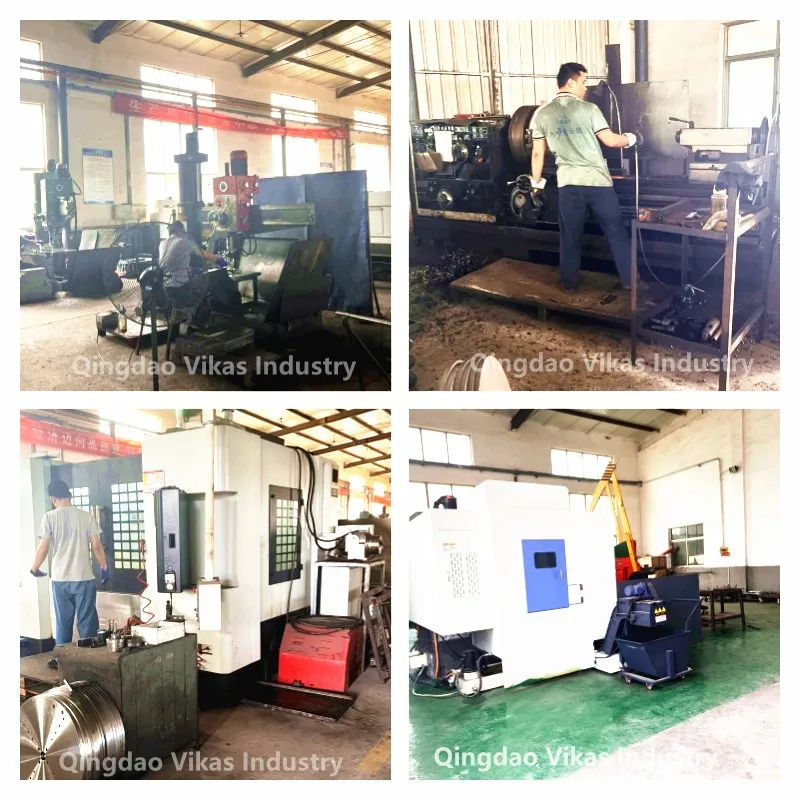

Our production facility utilizes advanced management systems including high-power laser cutting machines and multiple CNC centers for lathing, drilling, milling, and grinding. A complete powder coating line ensures durable and customizable finishes.
