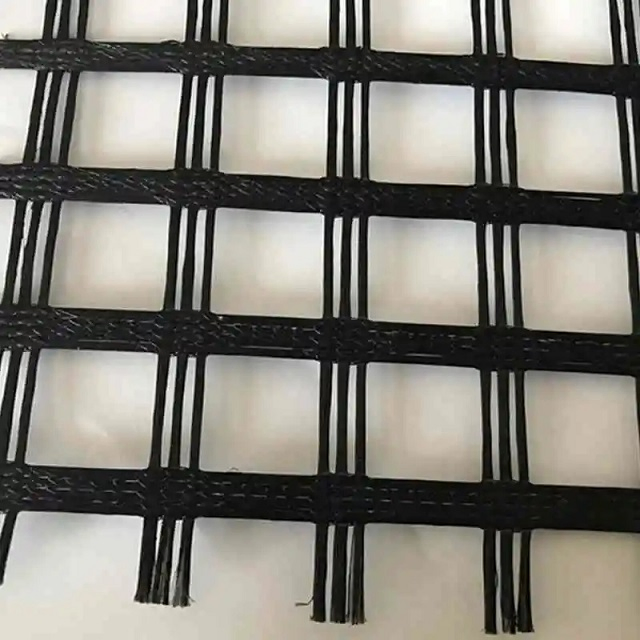

High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
1 / 5
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid
High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid

High-Strength 50kN 100kN Biaxial Fiberglass Geogrid for Roadworks Highways and Driveway Paving Fiber Glass Mesh Geogrid

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
30KN - 300KN Range
Application
Retaining Wall, Road Base
Material
High-Strength Fiberglass
Function
Reinforcement & Crack Control
Tensile Strength
30X30kN to 300X300kN/M
Elongation
≤ 3%
Mesh Size
12.7mm, 25.4mm, 50.8mm
Temp Resistance
-100°C to 290°C
Surface Coating
Modified Asphalt or Polymer
Roll Length
100m/Roll
📝 Product Description

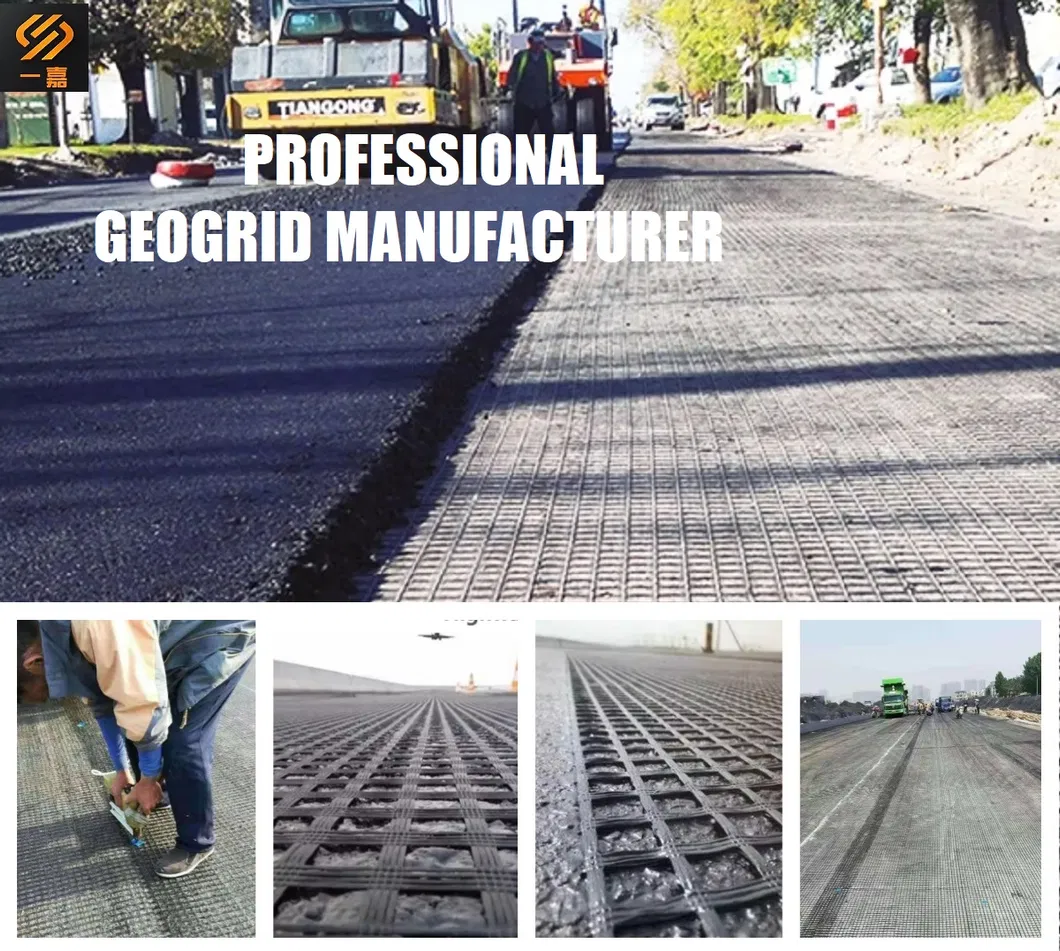

Fiberglass Geogrid Overview
Fiberglass Geogrid is a premium geosynthetic material designed for enhancing road surfaces, old roads, roadbeds, and soft soil foundations. It is an essential material for managing reflection cracks in asphalt road surfaces.
Utilizing high-strength alkali-free glass fiber woven through advanced warp knitting technology and finished with a specialized coating, this semi-rigid product offers exceptional tensile strength in both lateral and longitudinal directions. It features low extensibility and superior resistance to both high and low temperatures, aging, and corrosion.
⚙️ Technical Parameters
Specification EGA 30-30 EGA 50-50 EGA 80-80 EGA 100-100 EGA 150-150 EGA 200-200 EGA 300-300
Breaking Strength (kN/m) ≥ 30 ≥ 50 ≥ 80 ≥ 100 ≥ 150 ≥ 200 ≥ 300
Elongation (%) ≤ 3% ≤ 3% ≤ 3% ≤ 3% ≤ 3% ≤ 3% ≤ 3%
Mesh Size (mm) 25.4x25.4 / 12.5x12.5 / 50.8x50.8
Thermal Tolerance -100 ~ 280 ºC
Roll Width (m) 3.95m / 5.95m
⭐ Key Features & Benefits
  • Increase bearing capacity of roadbeds and foundations, significantly prolonging service life.
  • Prevent road surface and foundation sinking or flawing, maintaining a clean ground surface.
  • Convenient construction saves time, labor, and reduces overall maintenance expenses.
  • Prevents culverts from flawing and enhances earth slope stability.
  • Effective in preventing water loss and soil erosion on slopes.
  • Allows for decreased underlayer thickness, saving manufacturing costs.
  • Enhances the stability of side slope turf for improved greening projects.
  • Highly versatile for asphalt pavement, cement road surfaces, and airport runways.
📸 Detailed Photos

Road Pavement & Airport Reinforcement

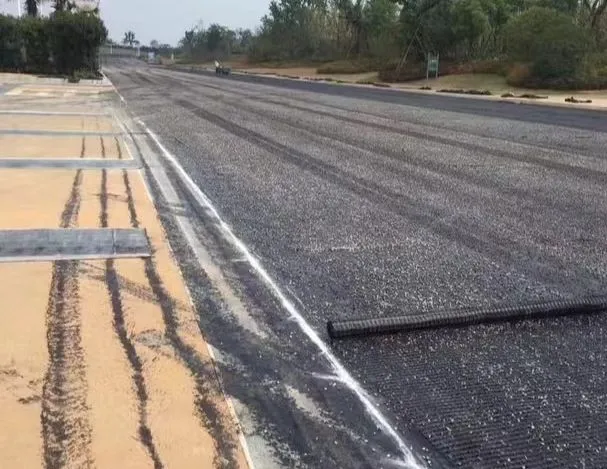

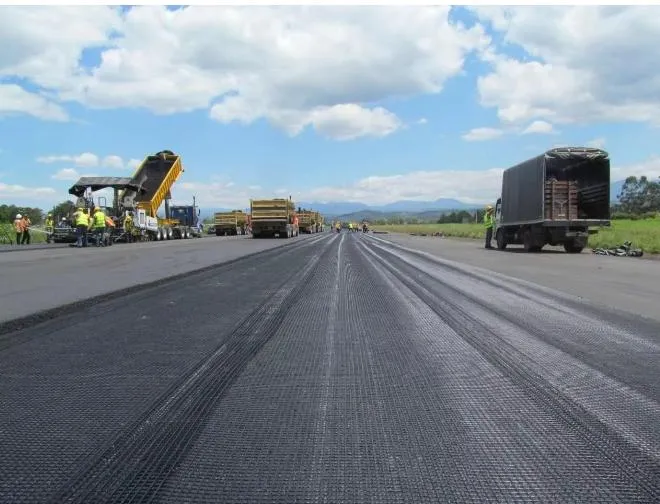

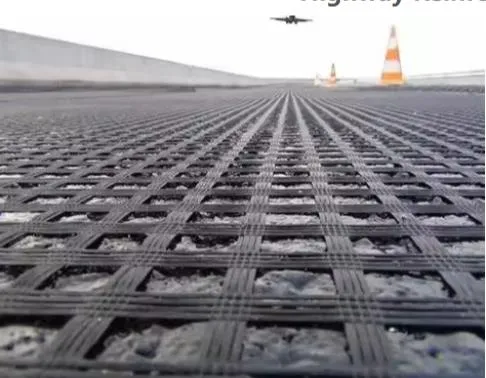

Road Construction Airport Runway Reinforcement Highway Reinforcement

Application Scenarios

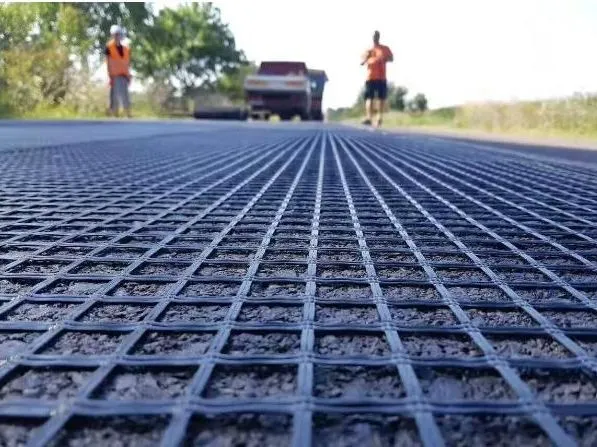

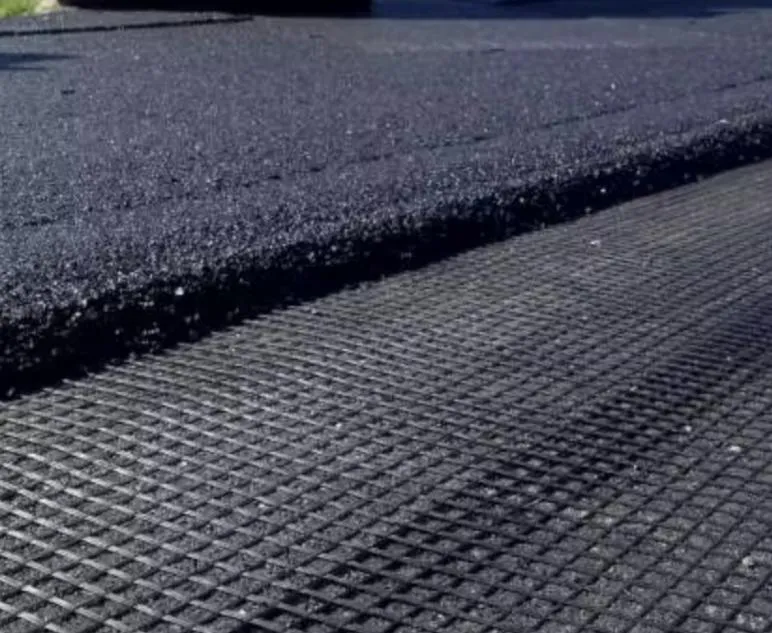

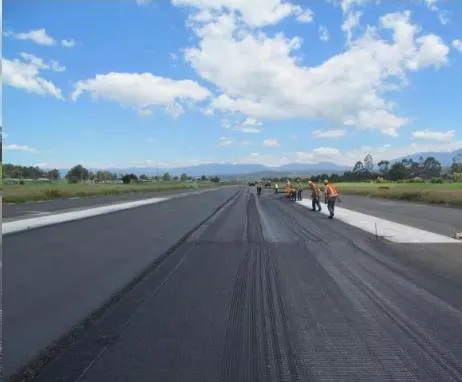

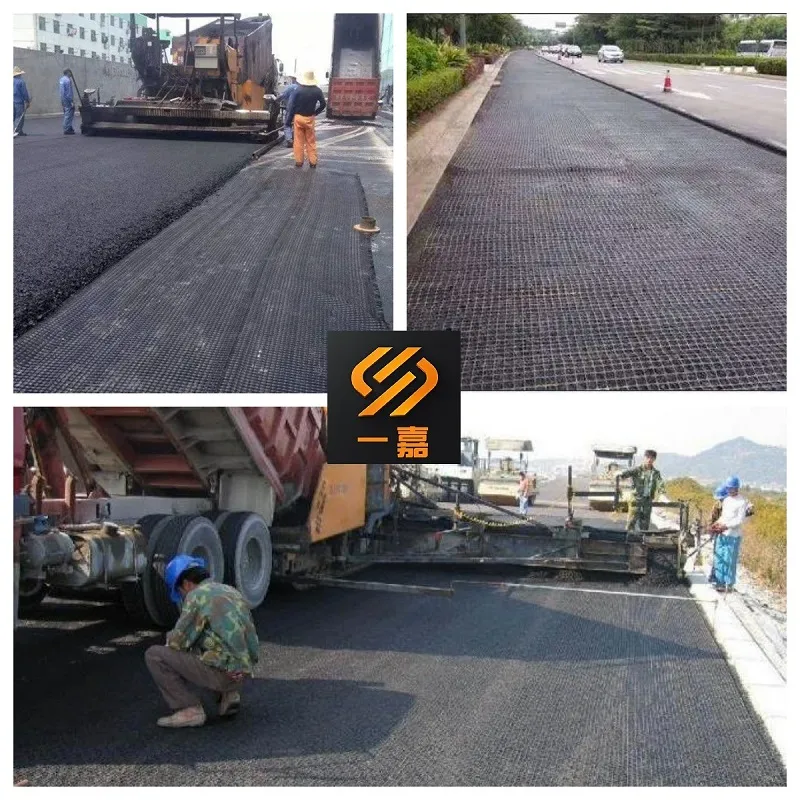

Geogrid Paving Site Installation Project Completion

Product Quality Details

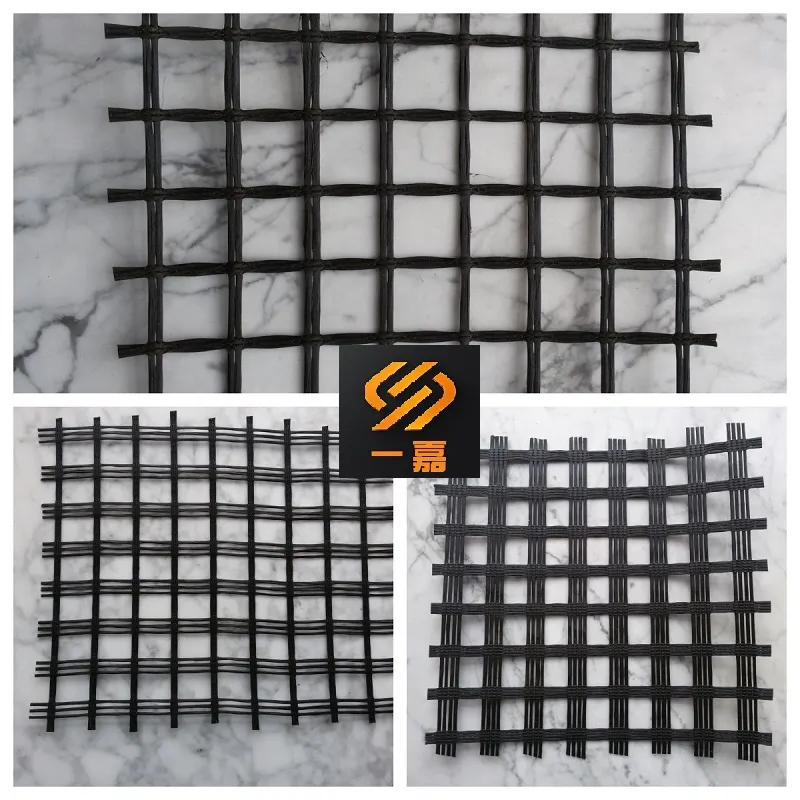

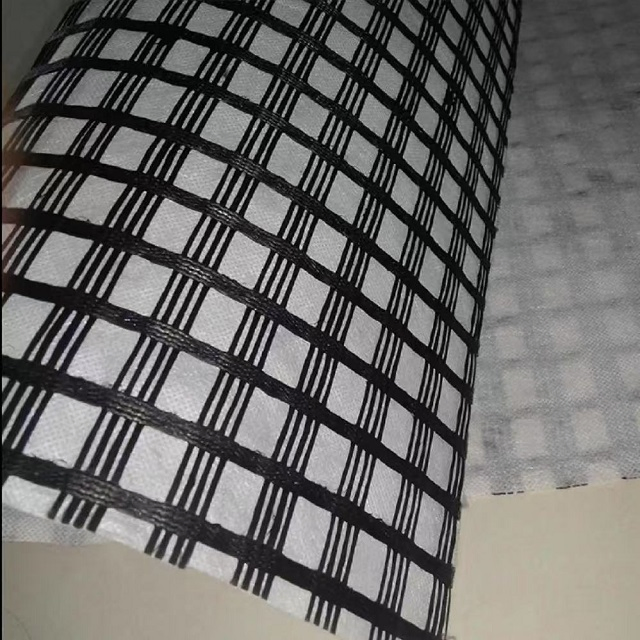

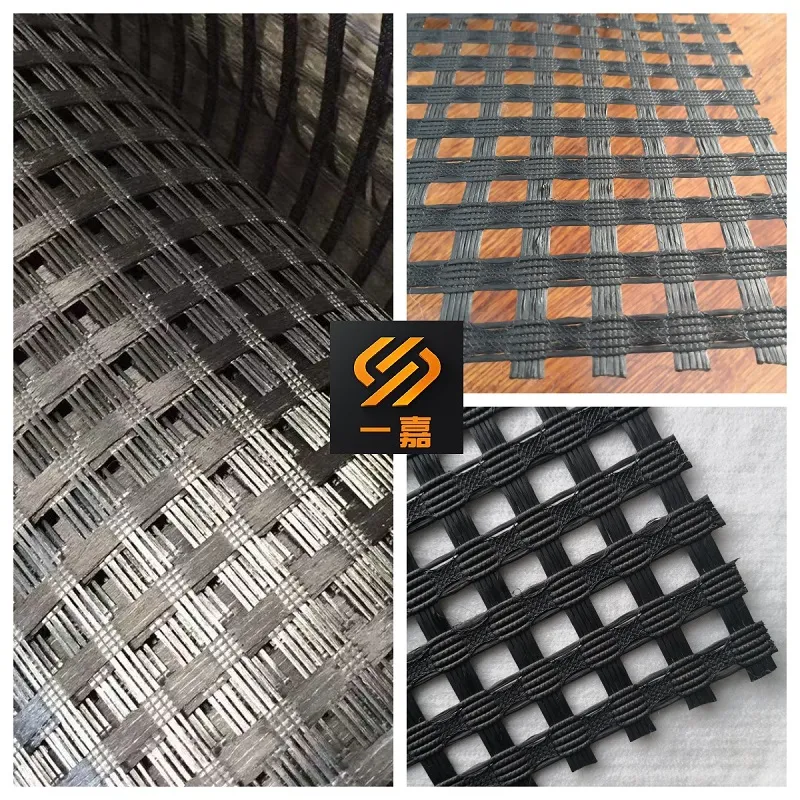

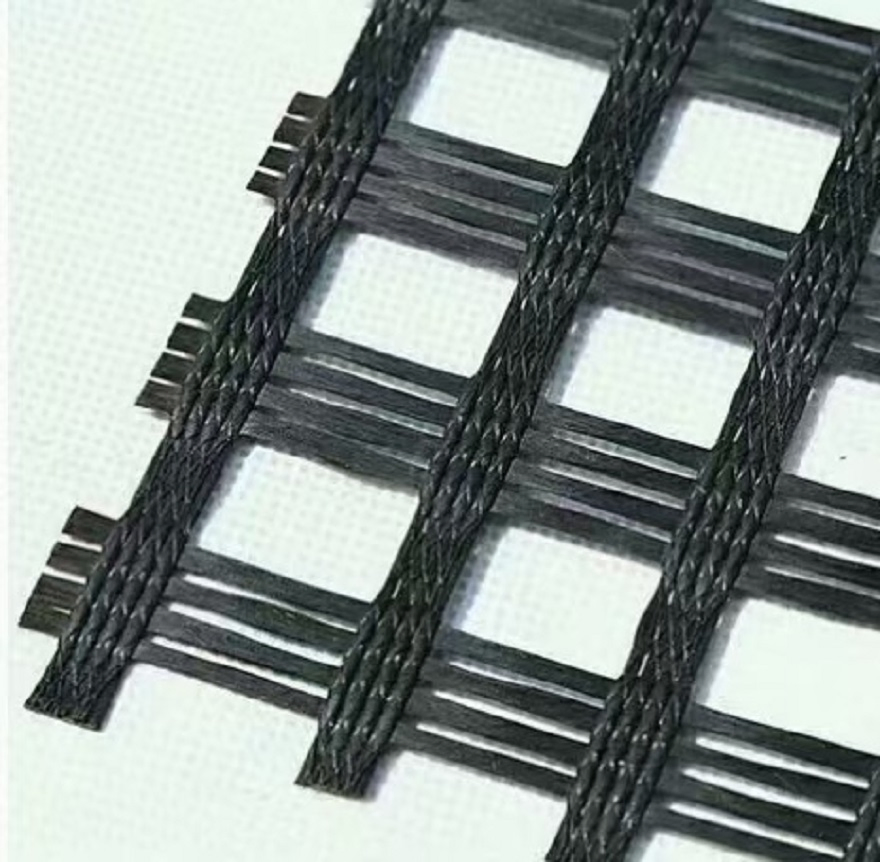

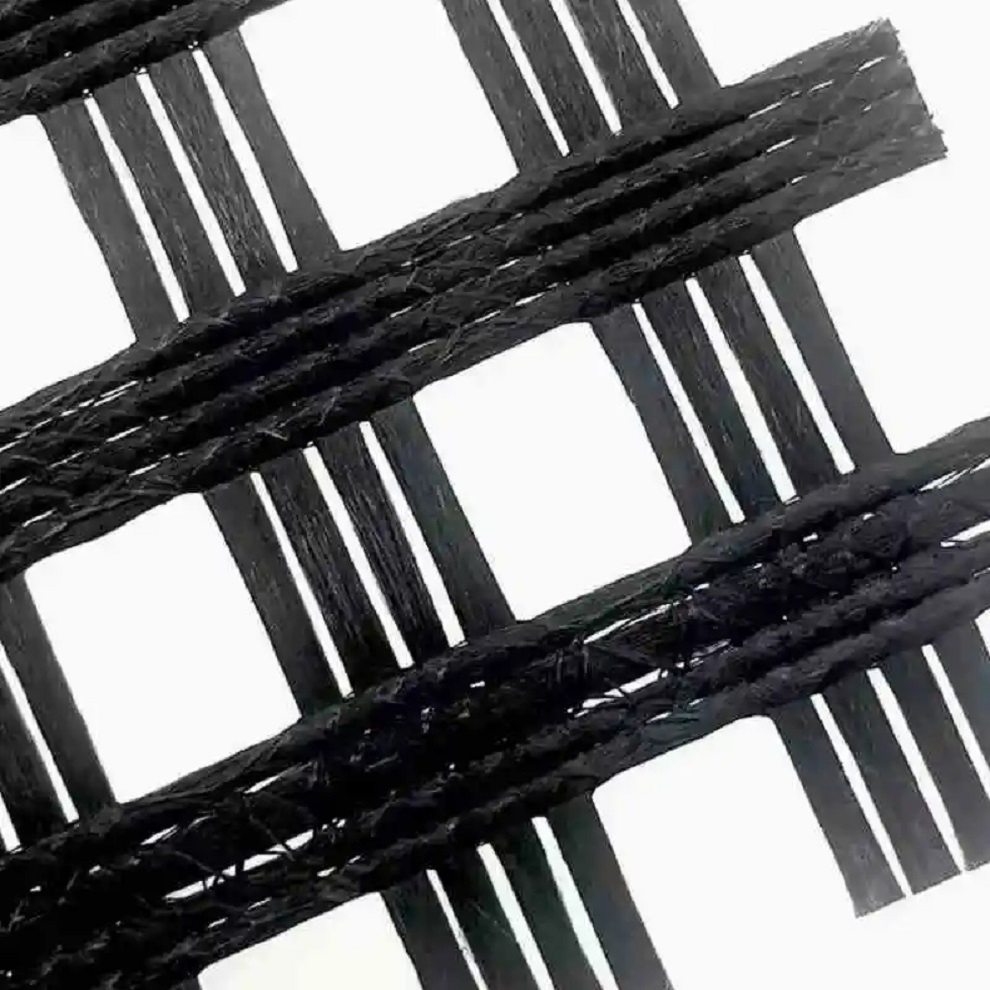

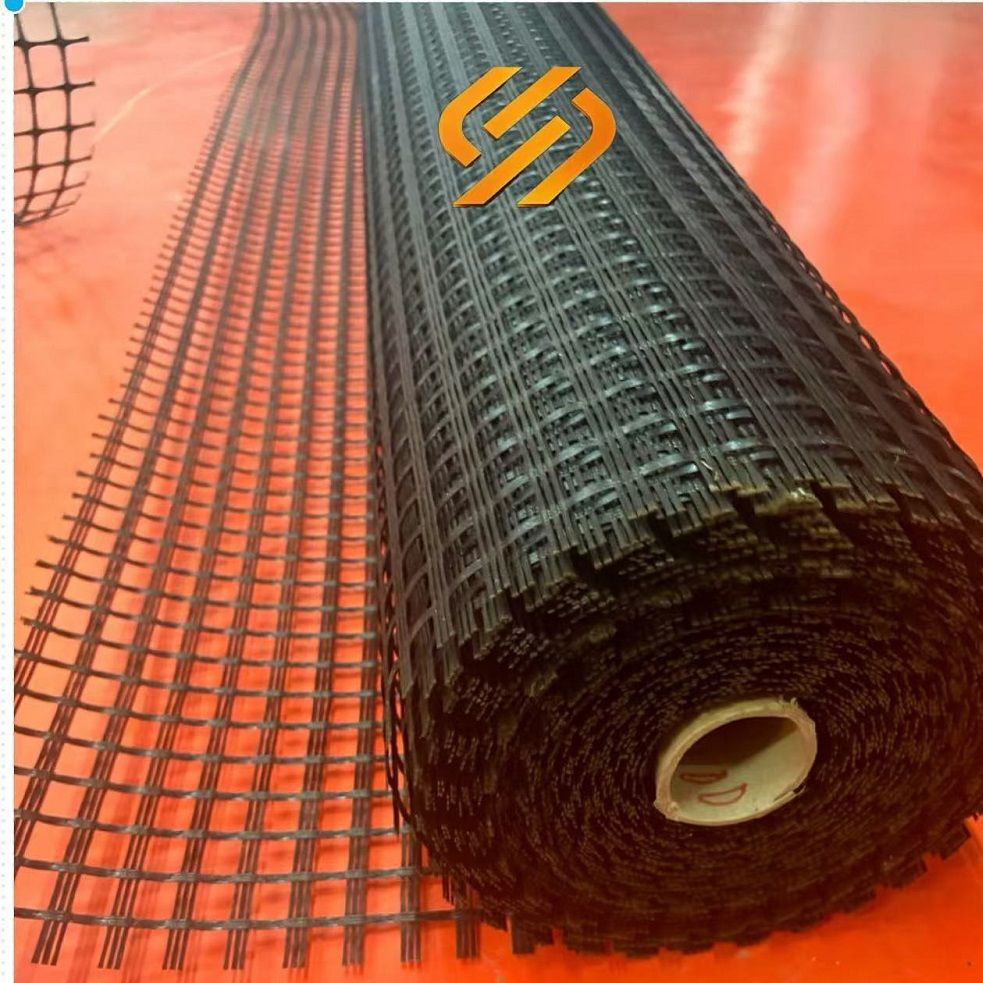

Fiberglass Mesh Detail Bitumen Coating Close-up Geogrid Roll

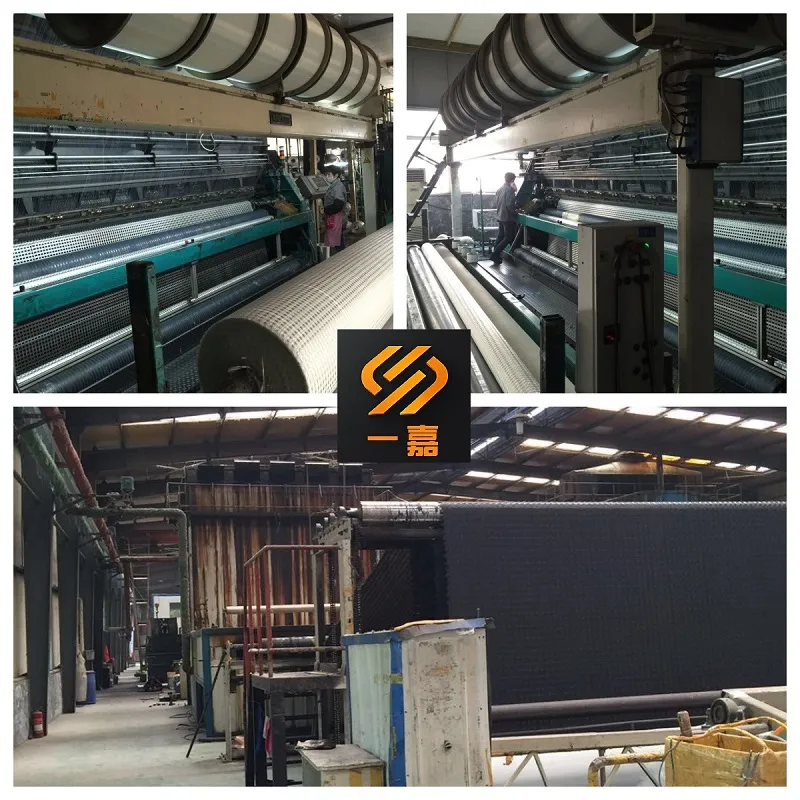

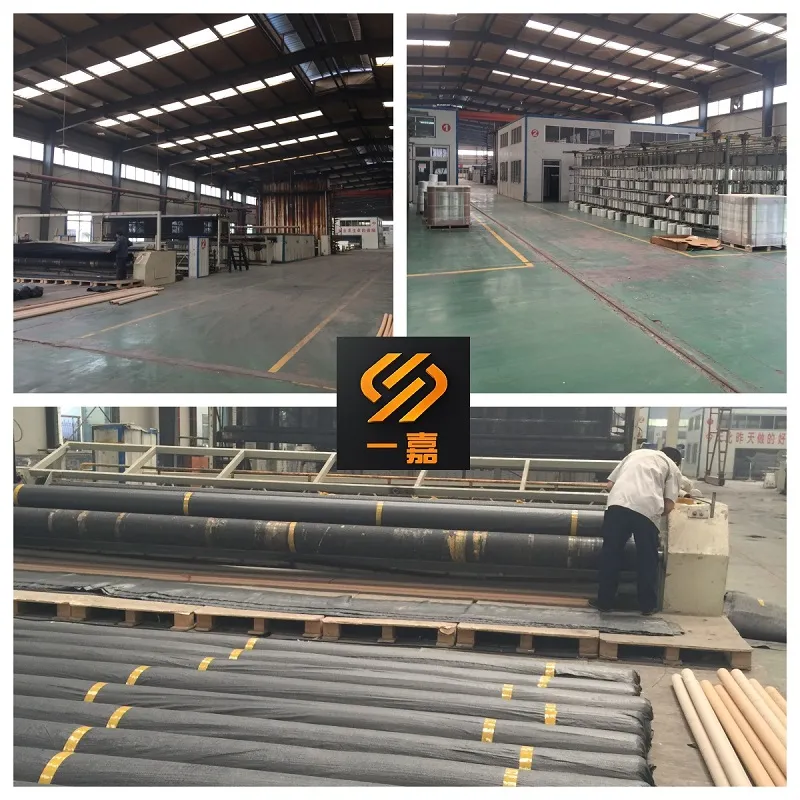

Storage and Logistics Material Inspection Finished Geogrid Product
❓ Frequently Asked Questions
1. What are the primary applications of fiberglass geogrids?
Fiberglass geogrids are mainly used for asphalt reinforcement, road base stabilization, airport runway construction, and preventing reflection cracks in old road renovations.
2. Does this geogrid come with bitumen coating?
Yes, the geogrid is treated with a modified asphalt or polymer coating to improve its compatibility with asphalt mixes and enhance its resistance to environmental factors.
3. What is the temperature resistance range?
Our fiberglass geogrid is designed to withstand extreme temperatures, ranging from -100°C to 290°C, making it suitable for hot-mix asphalt paving.
4. How does fiberglass geogrid prevent road cracking?
By providing high tensile strength and a low elongation rate (≤3%), it redistributes the stress load over a wider area, effectively stopping reflection cracks from reaching the surface.
5. What roll sizes are available for international shipping?
Standard widths are 3.95m and 5.95m, with a standard roll length of 100m. Custom widths between 1m and 6m can be accommodated based on specific project needs.
