| Specification | Value |
|---|---|
| Model NO. | RWQ621 |
| Fuel | Diesel |
| Certification | EPA |
| Emission Standard | Euro 4 / EU Stage IIIA |
| Condition | New |
| Engine | Cummins Qsb6.7-C260-31 |
| Fuel Tank Volume | 270 L |
| Heating Efficiency | 4000 - 6000 Kg/H |
| Roller Width | 900 mm |
| Dimensions | 7220*2880*3100 mm |

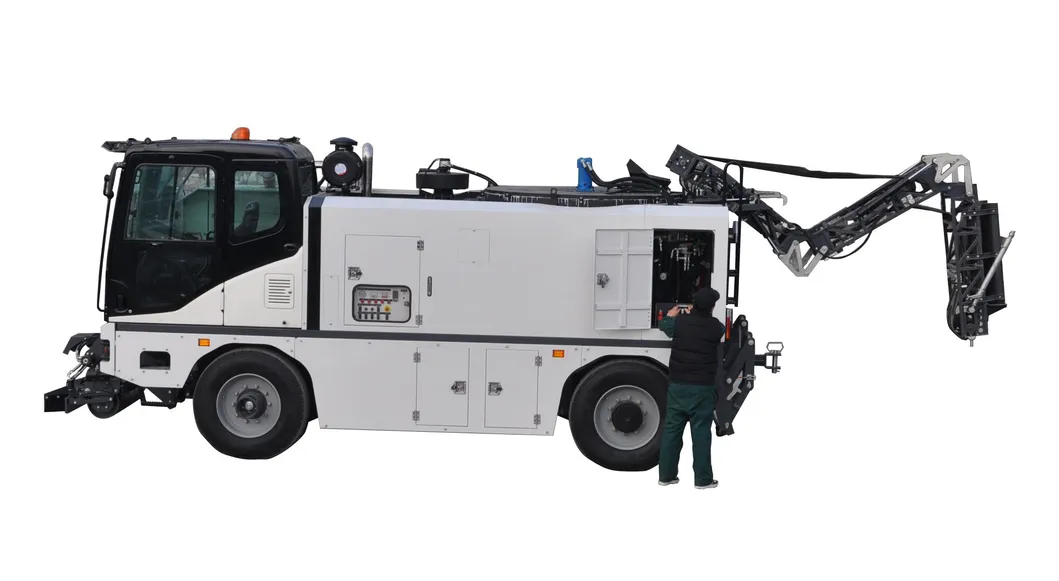

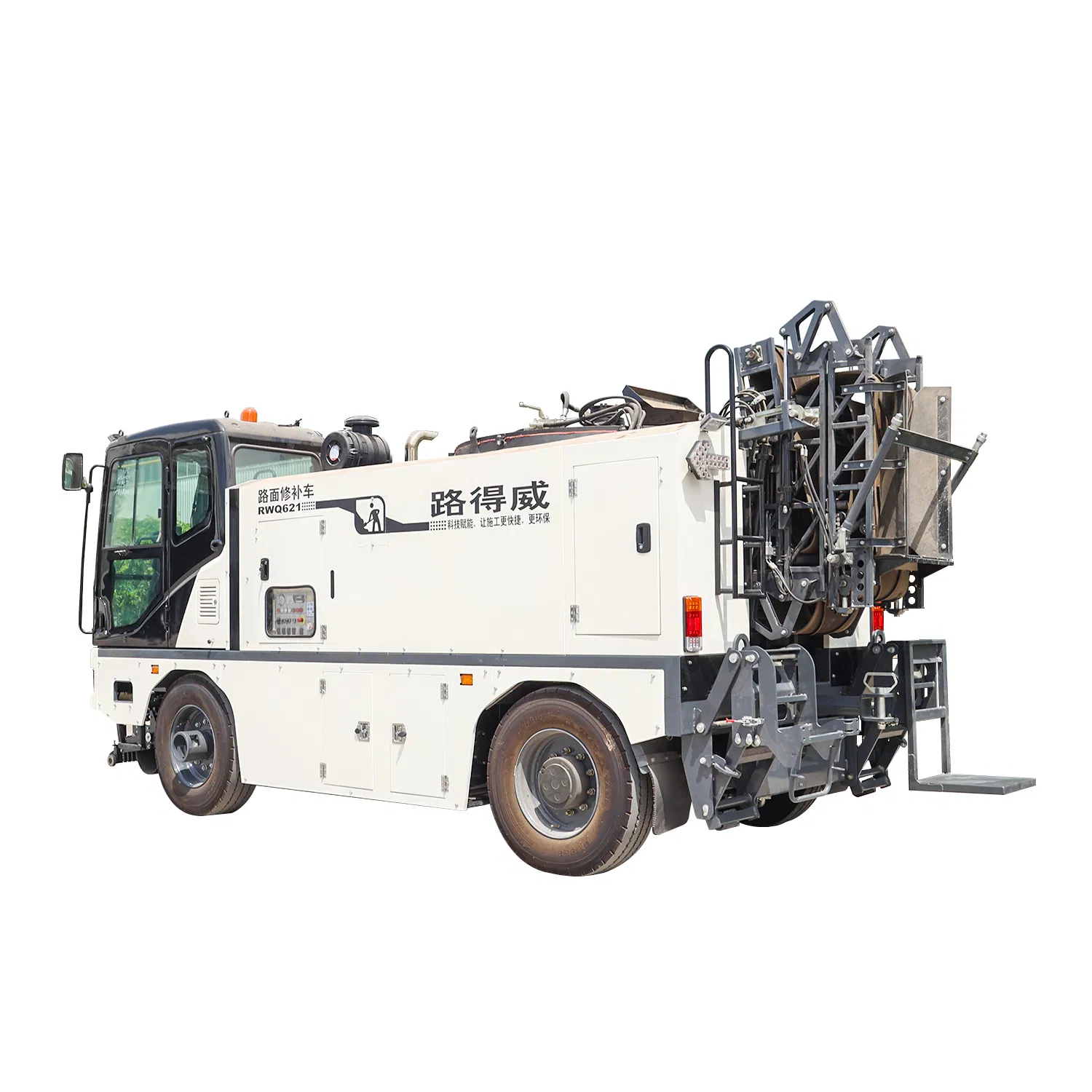

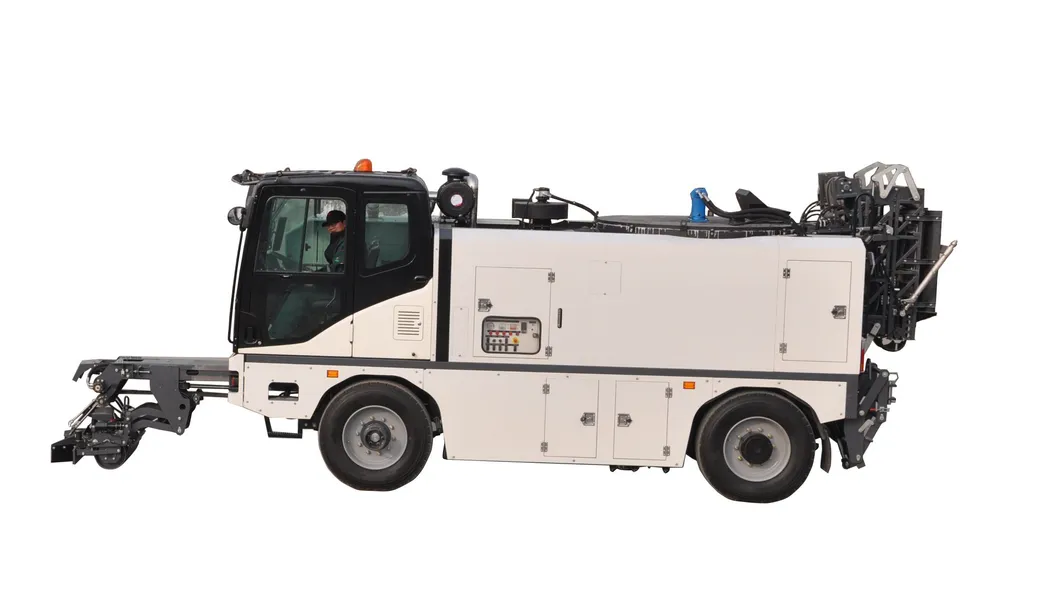

RWQ621 Pothole Patcher: Introducing a revolutionary solution for road repairs. This groundbreaking machine excels in providing seamless, continuous, and rapid construction of asphalt thermal regeneration, paving, and compaction.
| Engine System | |
| Model | Cummins QSB6.7-C260-31 |
| Fuel consumption | 215g/kwh |
| Loading System | |

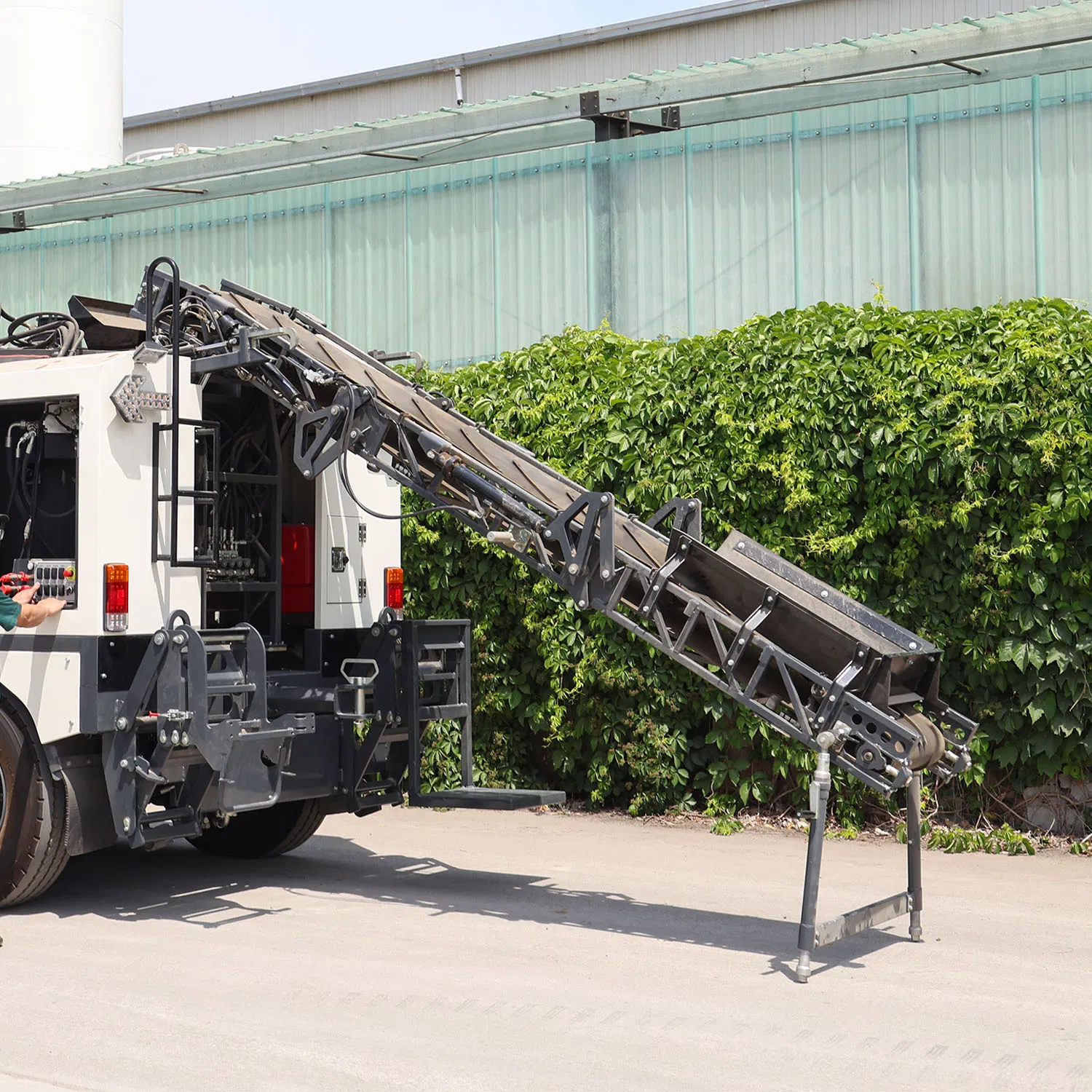

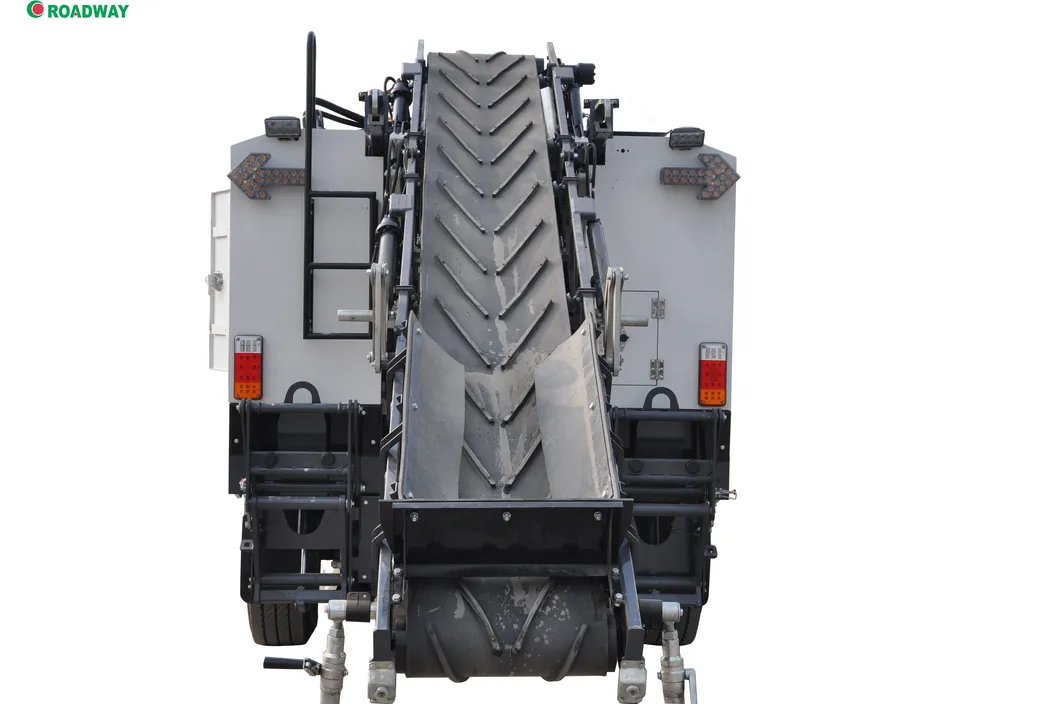

| Loading type | Rubber belt conveyor |
| Conveyor belt length/width | 4000mm / 500mm |
| Heating Kettle | |
| Volume | 0.6 m³ |
| Heater power | 276.3 KW |
| Heater fuel consumption | 23.3 kg/h |

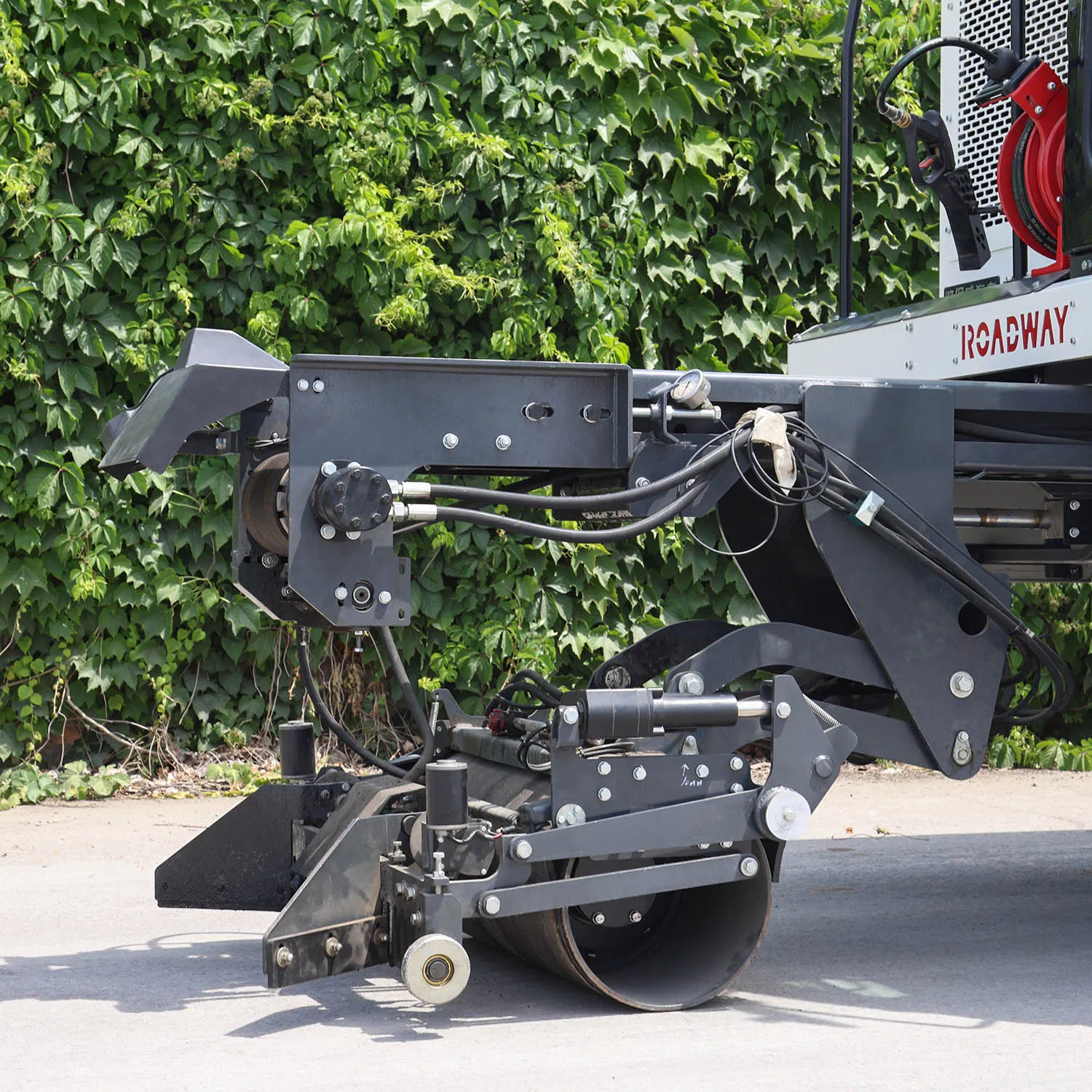

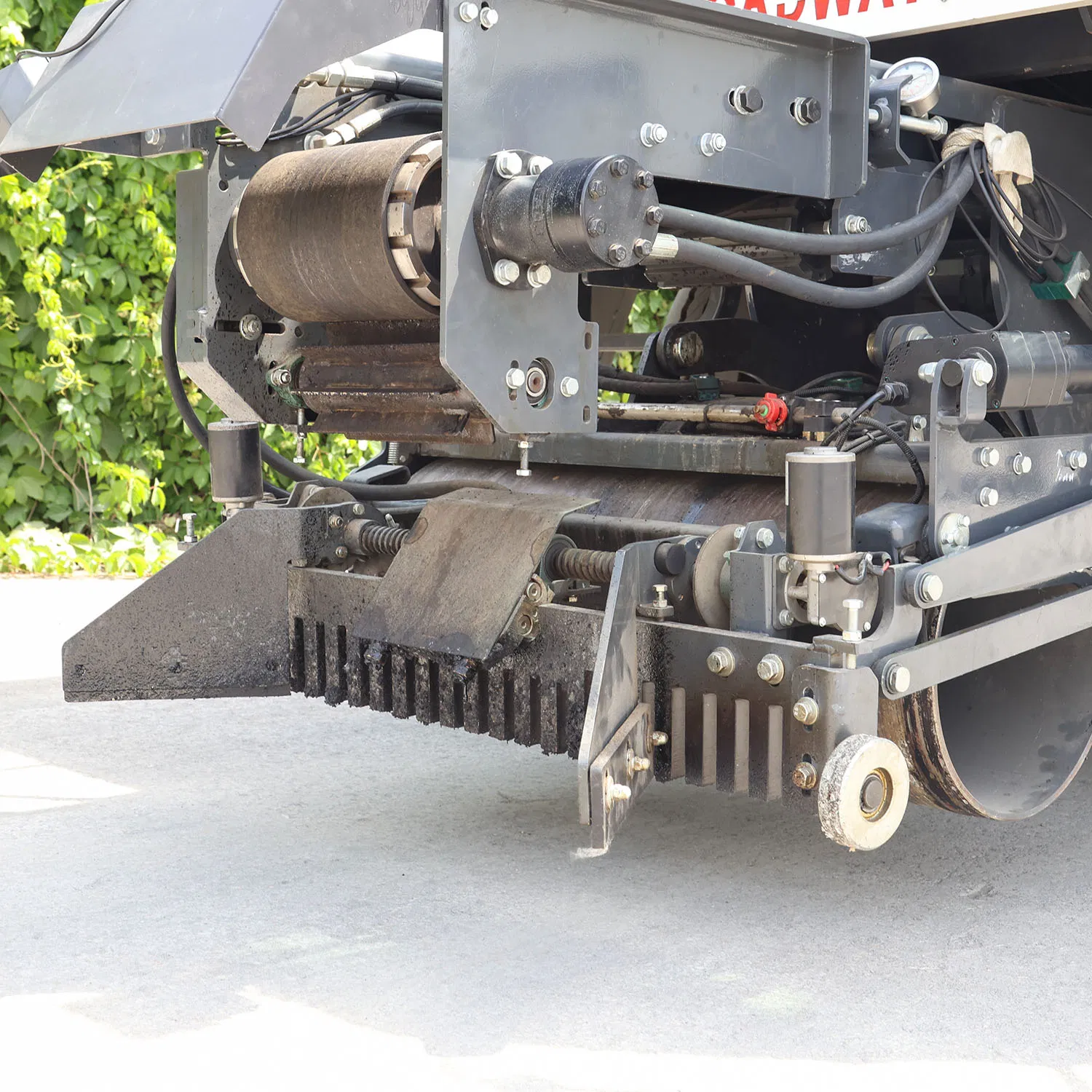

| Paving Compaction | |
| Roller width | 900 mm |
| Boom length | 1200 mm |
| Chassis & Mobility | |
| Max speed | 24 km/h |
| Equipment weight | 11630 kg |
The machine is powered by a high-performance Cummins QSB6.7-C260-31 engine, meeting EU Stage IIIA emission standards.
The heating kettle provides an impressive efficiency of 4000 - 6000 kg/h, powered by a 276.3 KW diesel heater.
The equipment features a 270 L fuel tank, designed to support extended work periods on construction sites.
It is designed for rapid road repairs, including asphalt thermal regeneration, paving, and compaction for highways and urban roads.
Yes, it includes a dedusting mechanism that utilizes both air filtration and water spray systems driven by a hydraulic motor.
The vehicle has a maximum speed of 24 km/h and a total equipment weight of approximately 11,630 kg.
