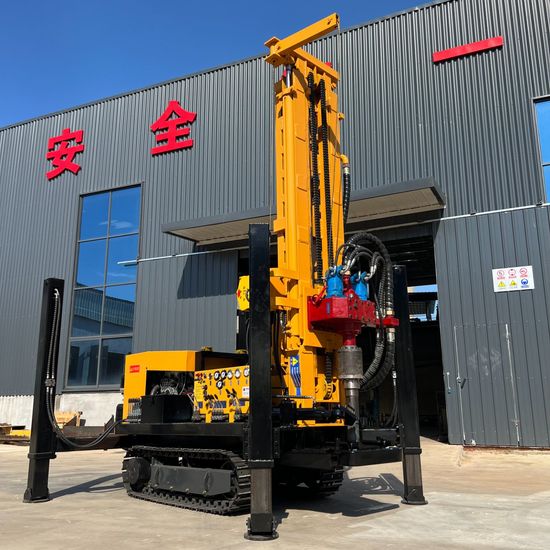

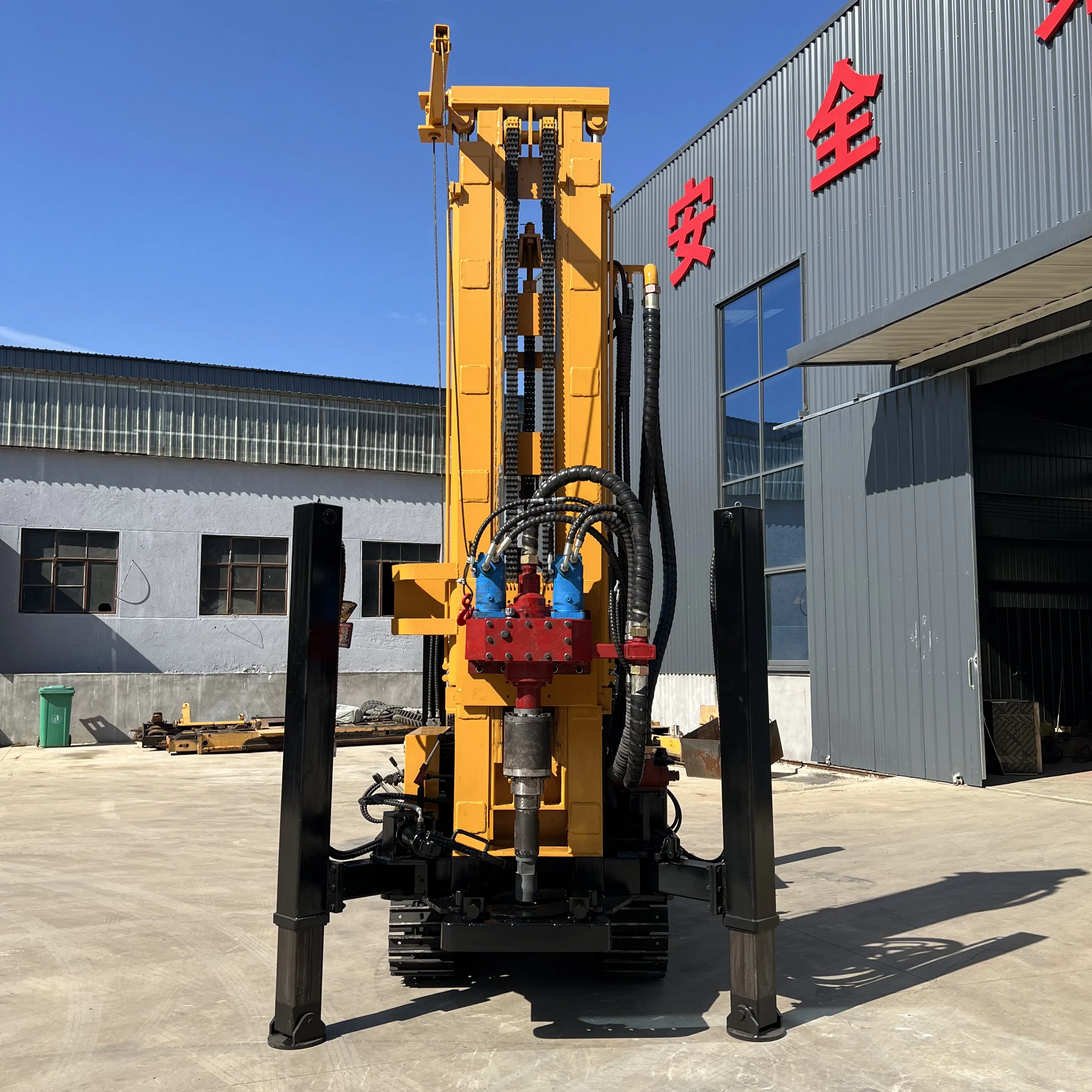

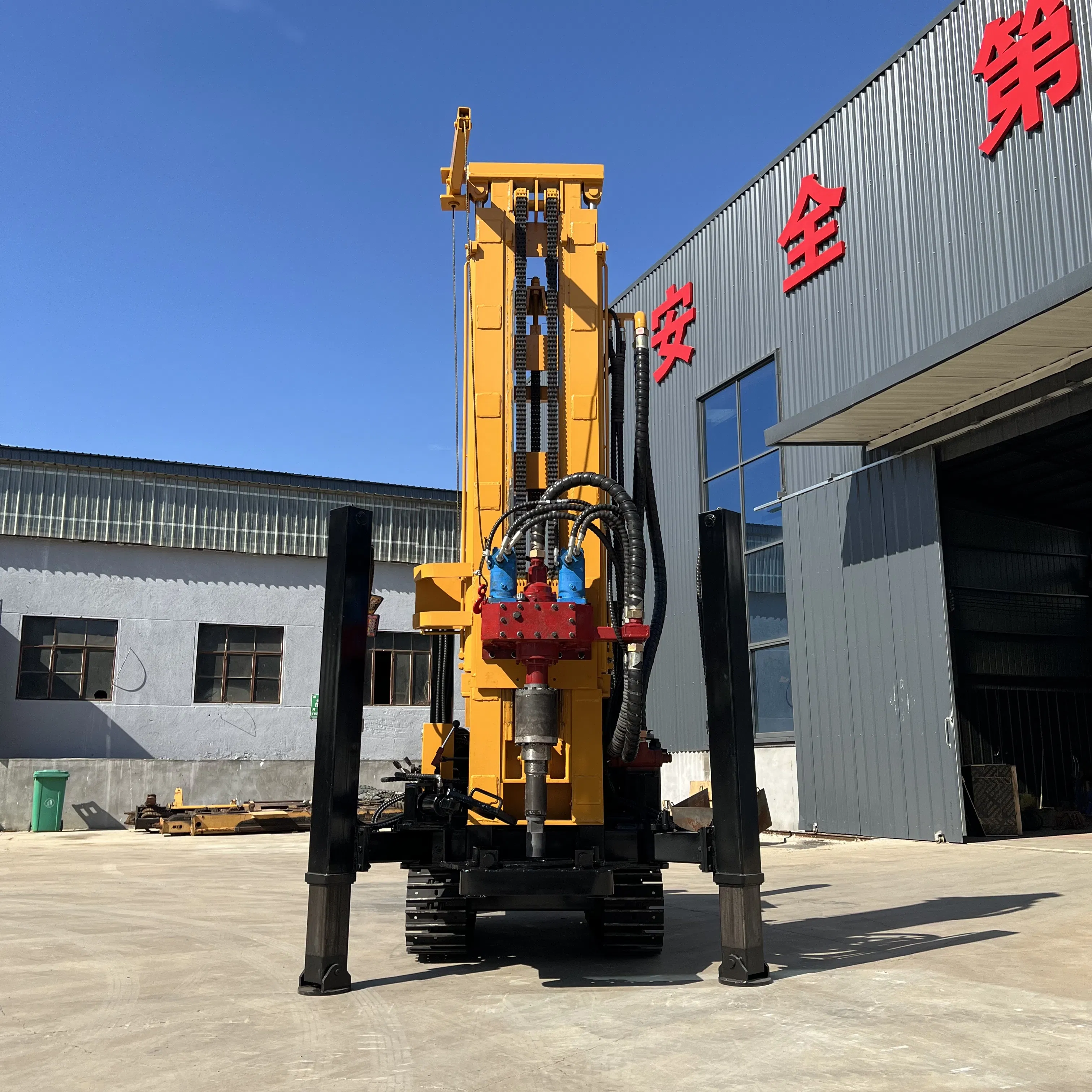

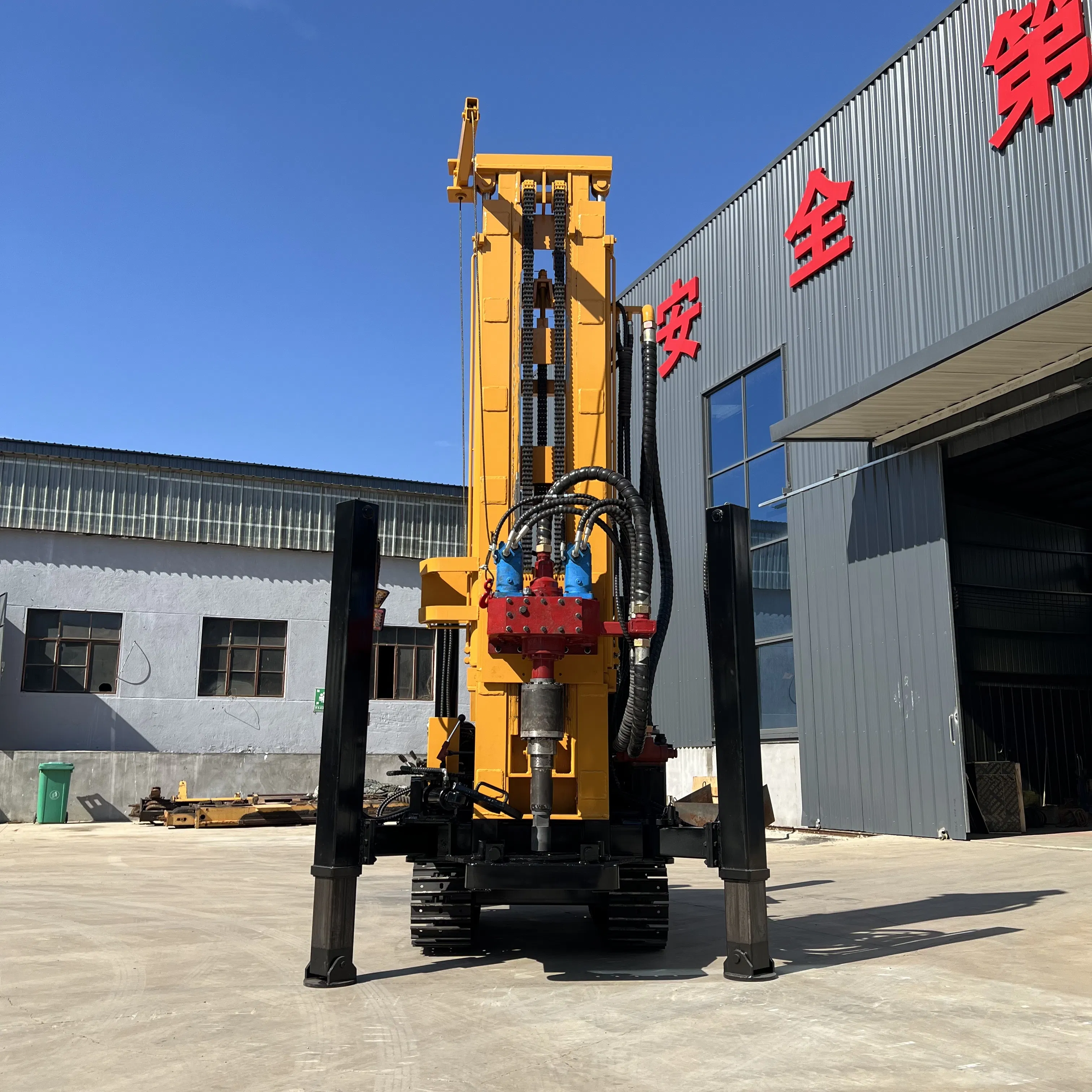

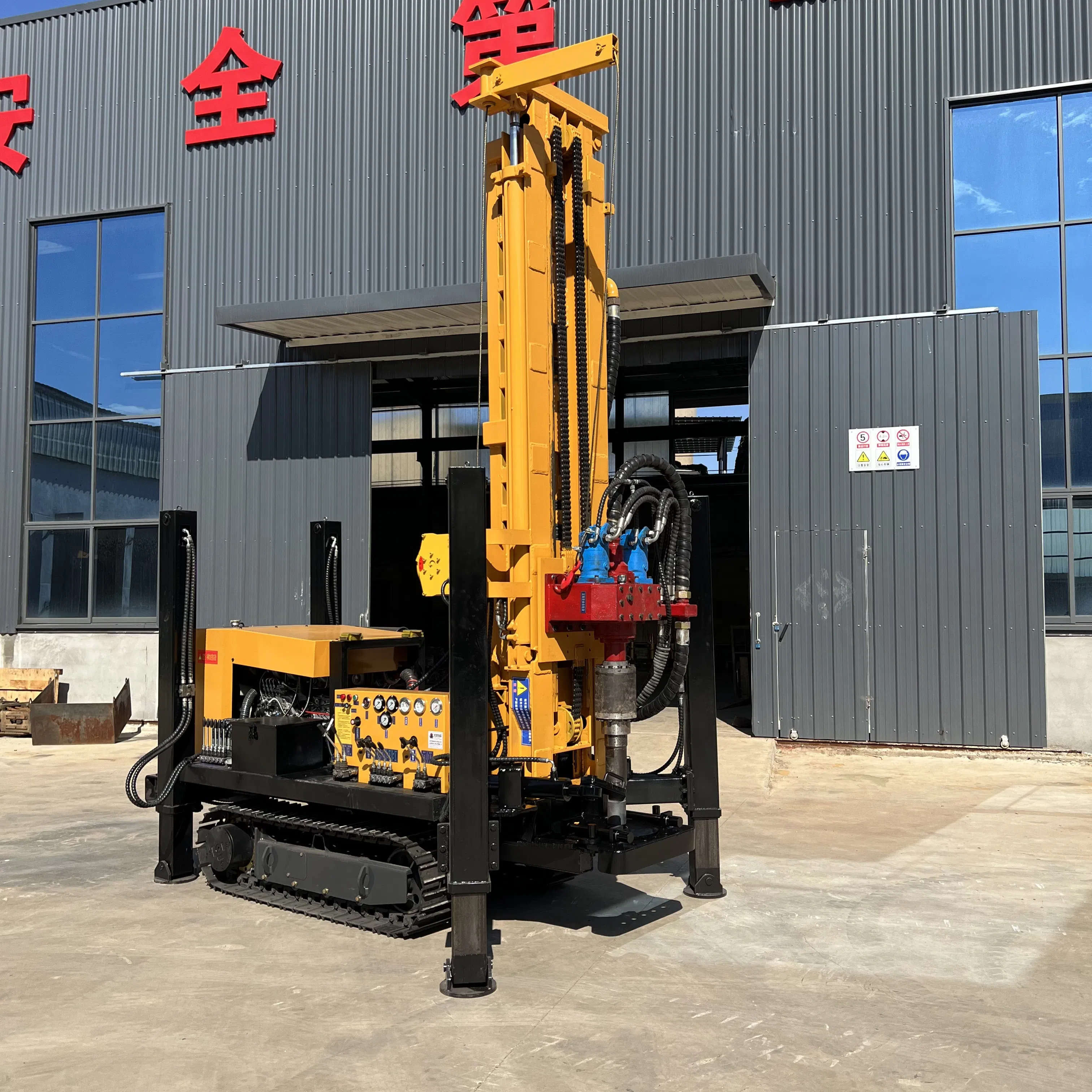

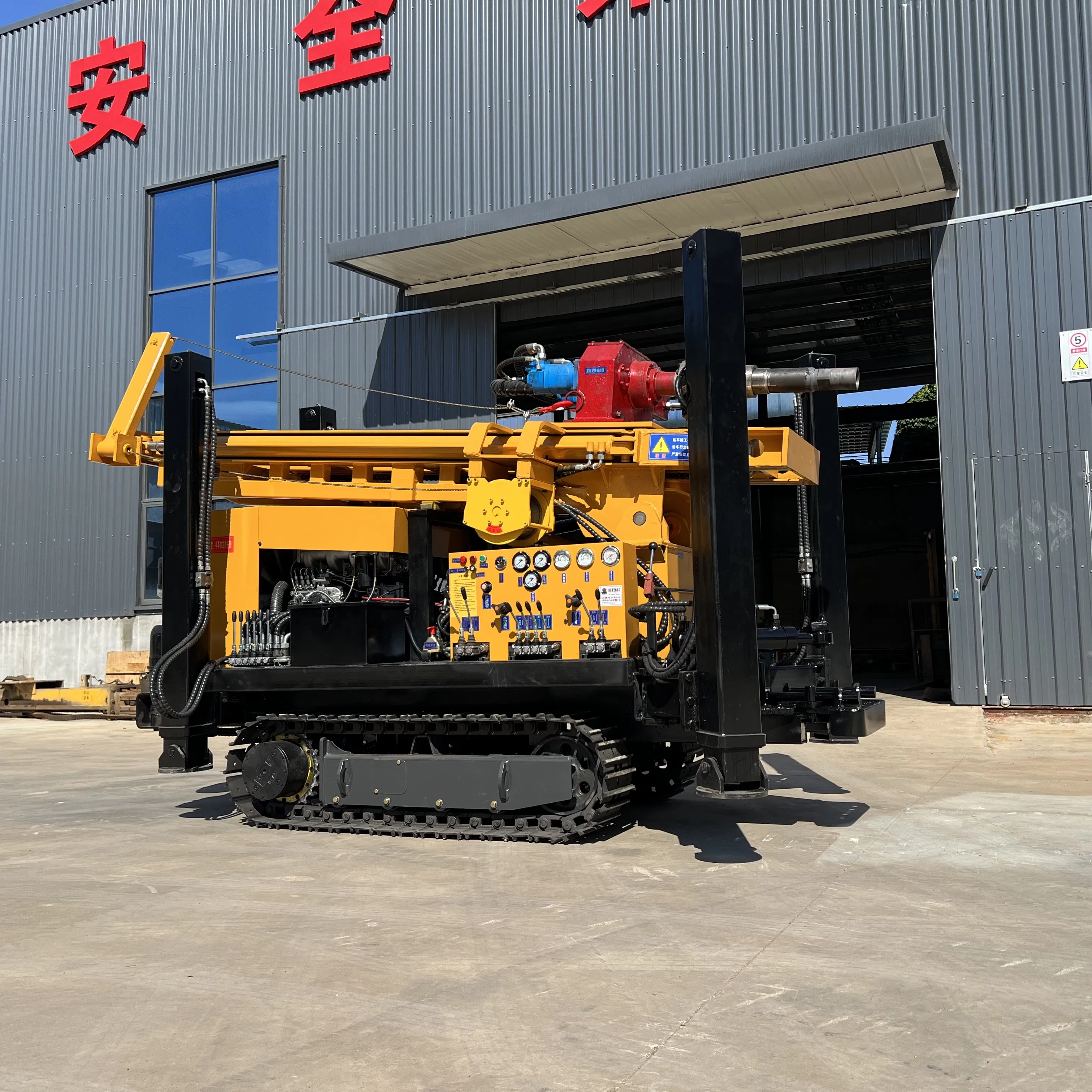

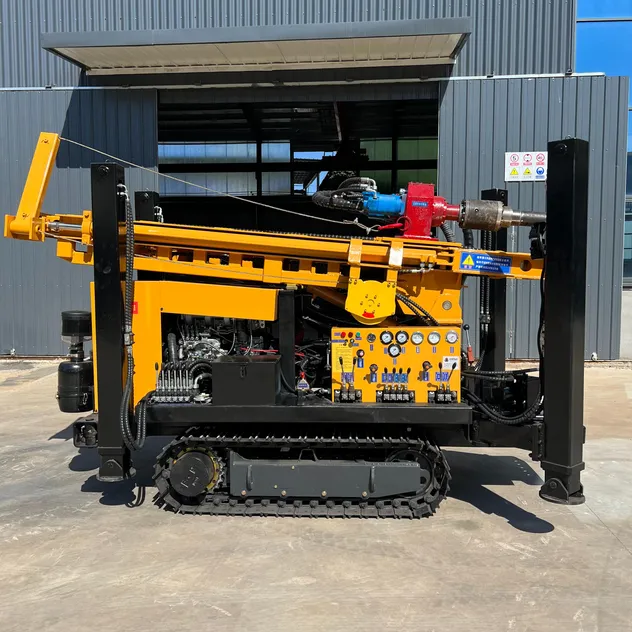

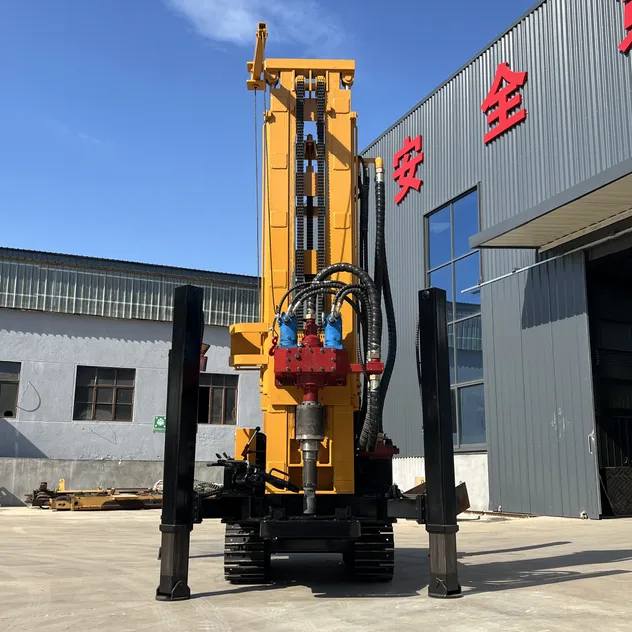

High-performance Water Well Drilling Rig
The Versatile Water Well Drilling Rig is a powerhouse machine equipped with a mighty 85kw engine and an impressive 3.5-6.6m reach. Crafted with precision, this rig is designed to excel in applications from water well drilling to geophysical explorations and construction investigations.
This lightweight, efficient, and multifunctional masterpiece is tailored for industrial, civil, and geothermal drilling. With large diameter capabilities and deep drilling potential, it ensures swift progress and flexible mobility.
| Technical parameters | Numerical value | Technical parameters | Numerical value |
|---|---|---|---|
| The weight (T) | 5.2 | Air consumption (m³/min) | 18-33 |
| Hole diameter (mm) | 138-300 | Drill pipe diameter (mm) | φ89 φ102 |
| Drill depth (m) | 300 | Drill pipe Length (m) | 1.5/3.0 |
| One-time advance length (m) | 3.5 | Rig lifting force (T) | 19 |
| Walking speed (km/H) | 2.5 | Swing speed (RPM) | 40-80 |
| Gradeability (Degree) | 30 | Swing torque (Nm) | 5500-7500 |
| Engine power (kw) | 85 | Dimension (L*W*H) | 4200*1950*2600 |
| Working pressure (Mpa) | 1.8-3.0 | Type | Crawler |

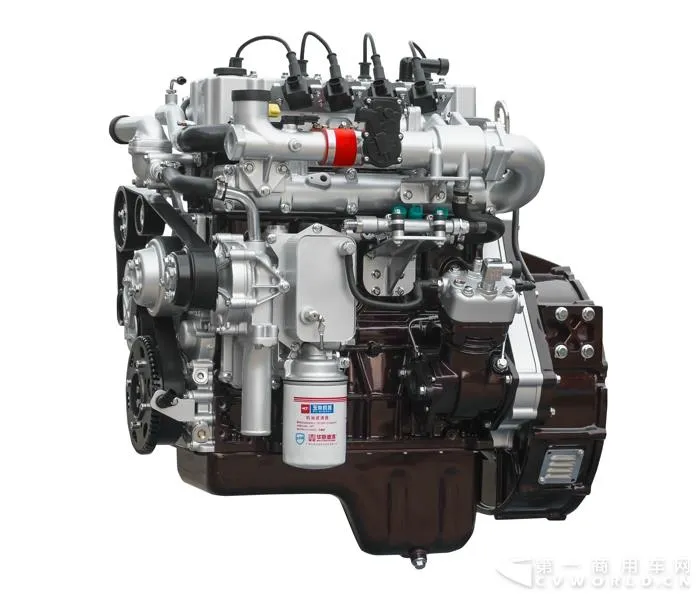

Features a robust, high-performance 85kw diesel engine from a prestigious Chinese brand, ensuring unmatched reliability and performance in challenging environments.

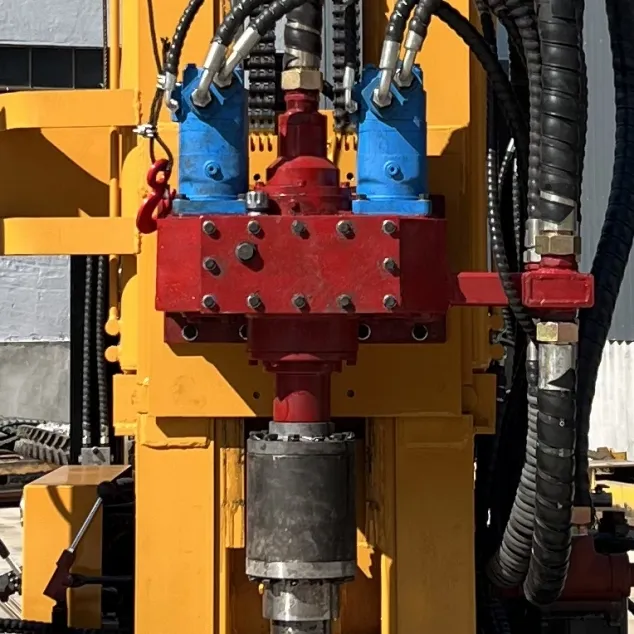

Equipped with an advanced dual-pump hydraulic system and dual-power head motors. These components work in harmony to provide enhanced torque and accelerate the drilling process.

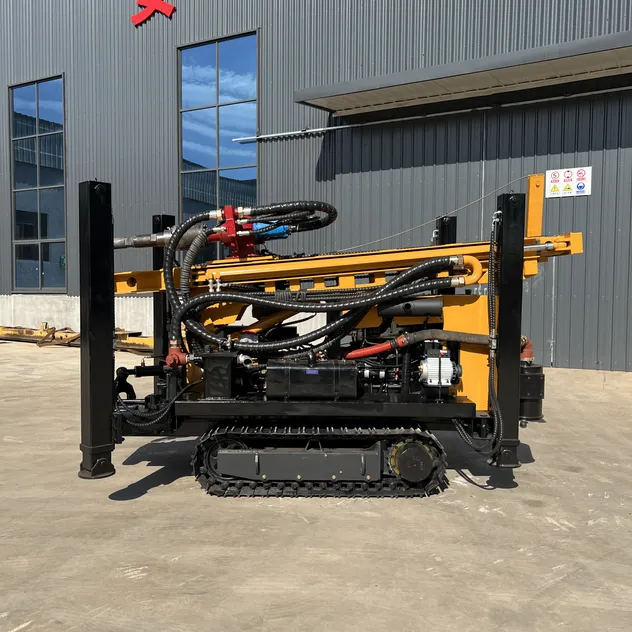

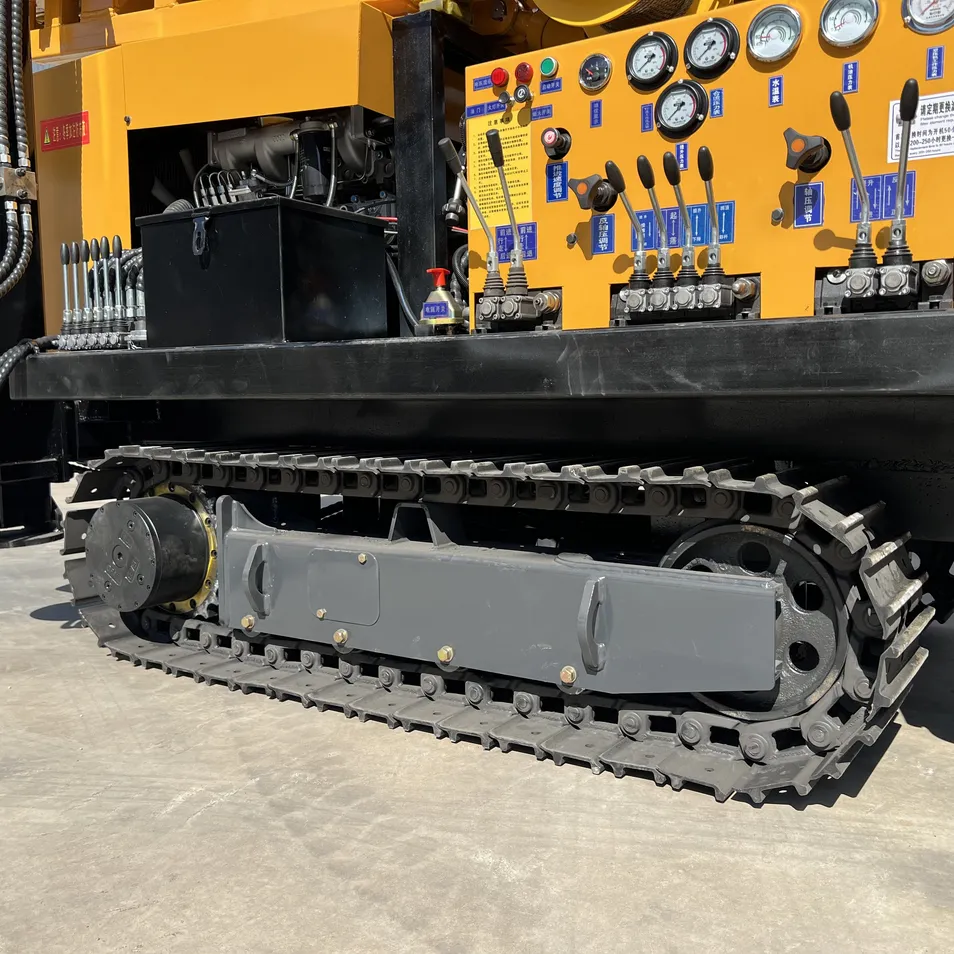

Steel crawler tracks provide exceptional load-bearing strength, anti-slip features, and wear resistance, allowing for operation on complex terrains with rock-solid stability.

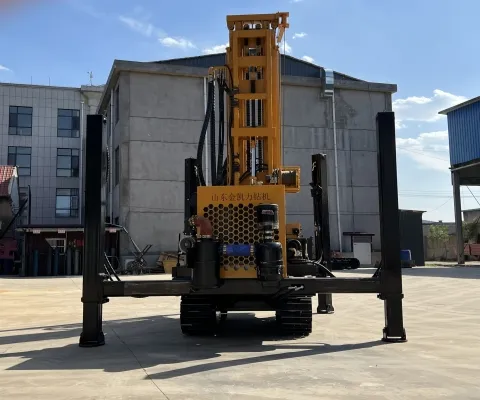

Individually controllable hydraulic outriggers navigate complex ground conditions, ensuring precise drilling angles and easy transportation between jobs.
High-strength composite tower design for steadfast drilling support.
A: The GKL300 model is specifically designed to reach a maximum drilling depth of 300 to 400 meters depending on the geological conditions and configuration.
A: The robust steel crawler tracks are engineered for complex and rugged terrains, offering anti-slip and wear-resistant properties for high stability on uneven ground.
A: Yes, our pneumatic drilling machine integrates seamlessly with air compressors and can be enhanced with mud pumps and foam pumps to suit various soil and rock layers.
A: It is ideal for water well drilling, geothermal heat pump projects, industrial and civil drilling, and construction investigations or blasting hole projects.
A: Standard tower height is 4 meters, but we offer optional configurations of 5 meters and 6.6 meters to meet specific operational requirements.
A: We provide a comprehensive joint warranty, a full range of premium after-sales services, and a steady supply of original accessories and maintenance support.
