Water Well Drilling Rigs

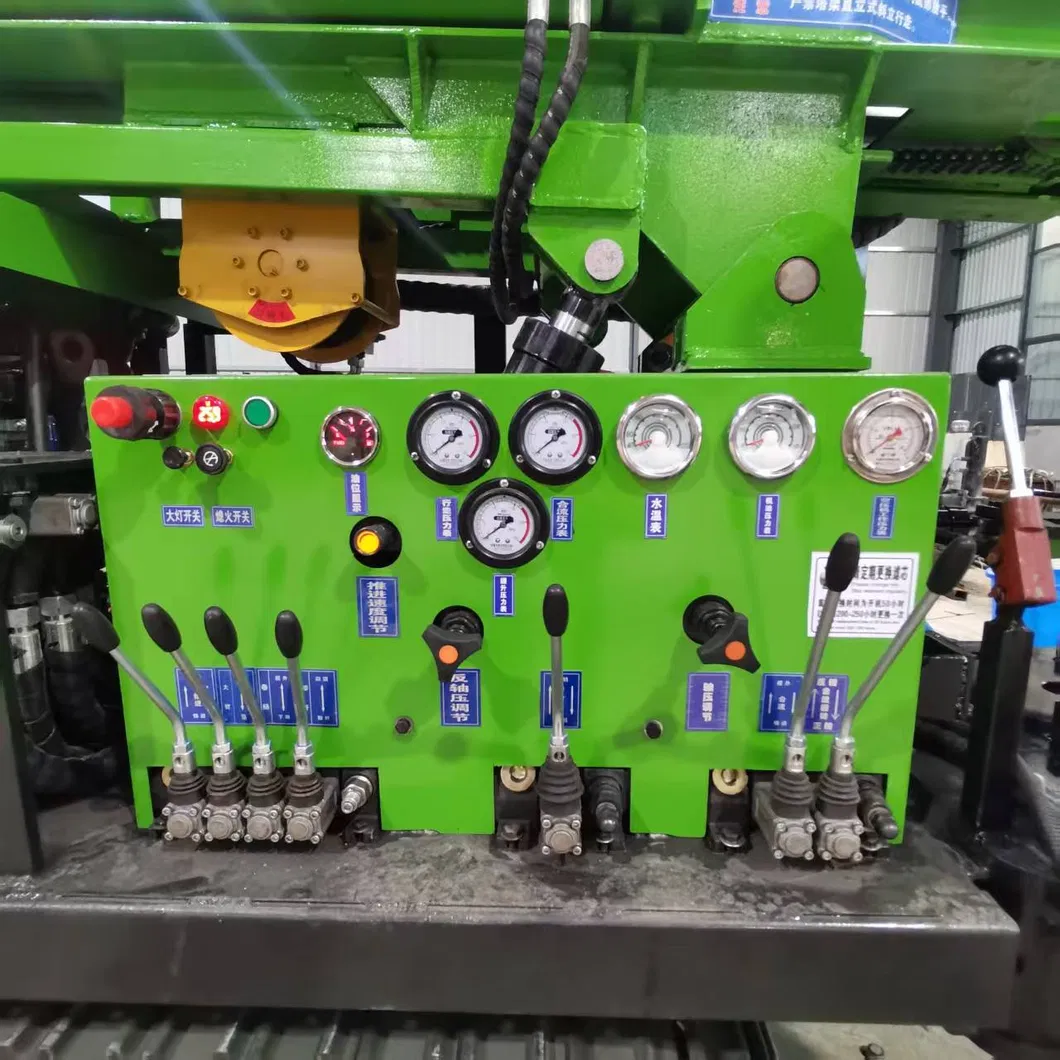

1. Introducing the JKL Series Deep Water Well Drilling Rig, a true marvel in engineering excellence! This state-of-the-art machine boasts full hydraulic controls paired with a top drive drilling tool rotation, ensuring unmatched efficiency and precision. Its thoughtfully designed structure guarantees effortless transportation, whether mounted on a tractor or an all-terrain chassis, delivering exceptional maneuverability and adaptability in the field.
2. Unleash unparalleled flexibility and power with this rig, even on the most challenging terrains. It's the ideal solution for a vast array of applications: from hydrological well exploration, coalbed methane extraction, and shale gas retrieval to shallow geothermal projects and coal mine gas rescue operations.
3. Equipped with a robust and generously sized overhead drive head spindle, this rig is expertly engineered for a wide range of drilling operations. Whether you require mud, air, or air foam drilling, the rig efficiently tackles the varied demands of well drilling across diverse terrains.

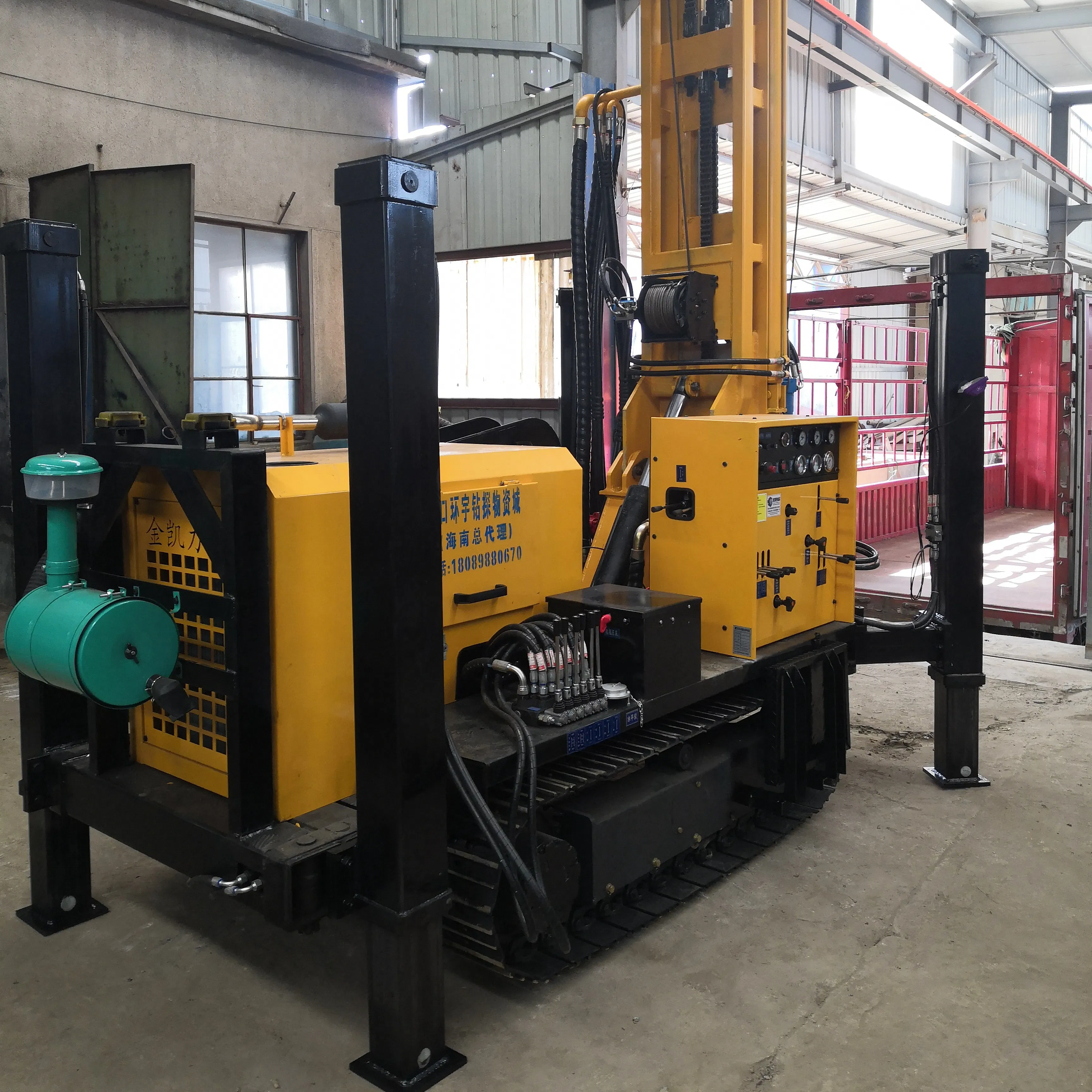

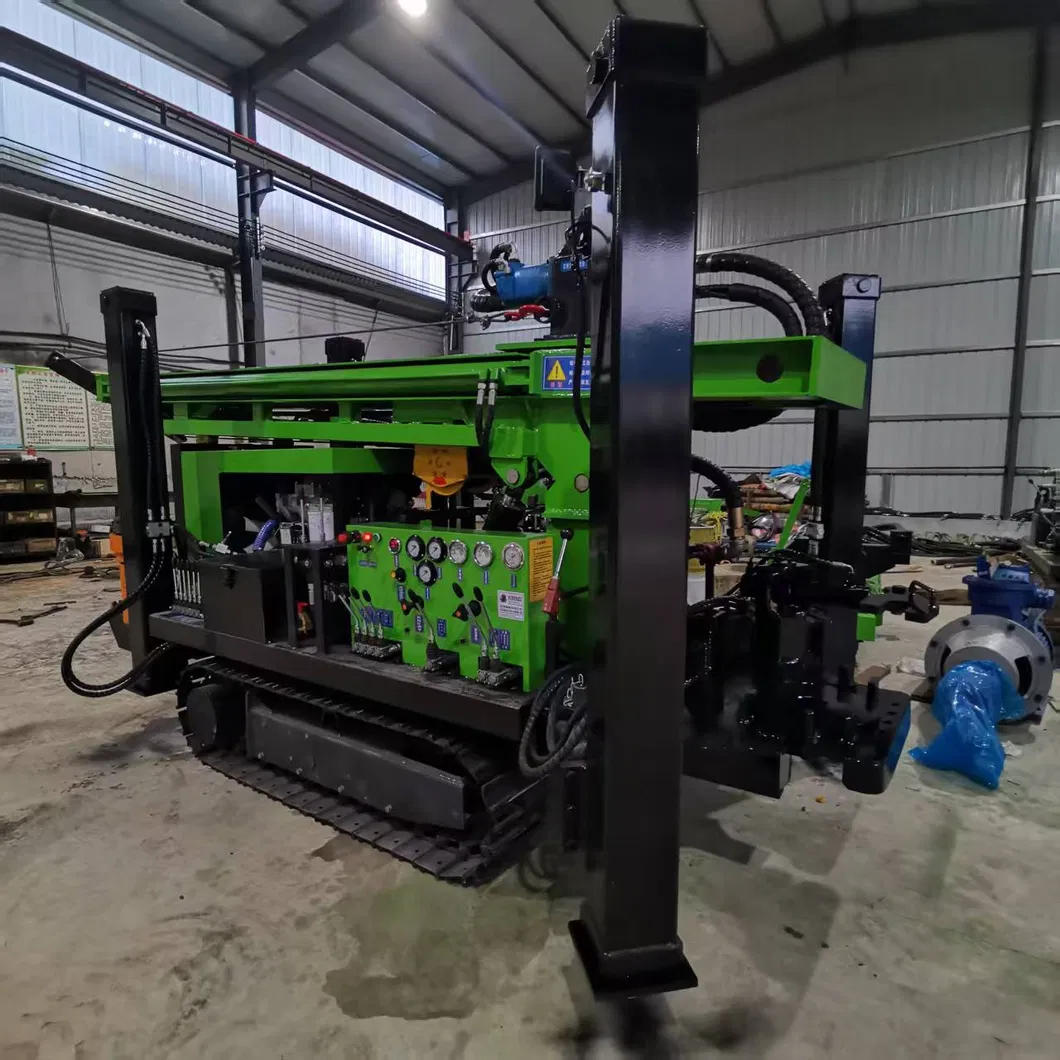

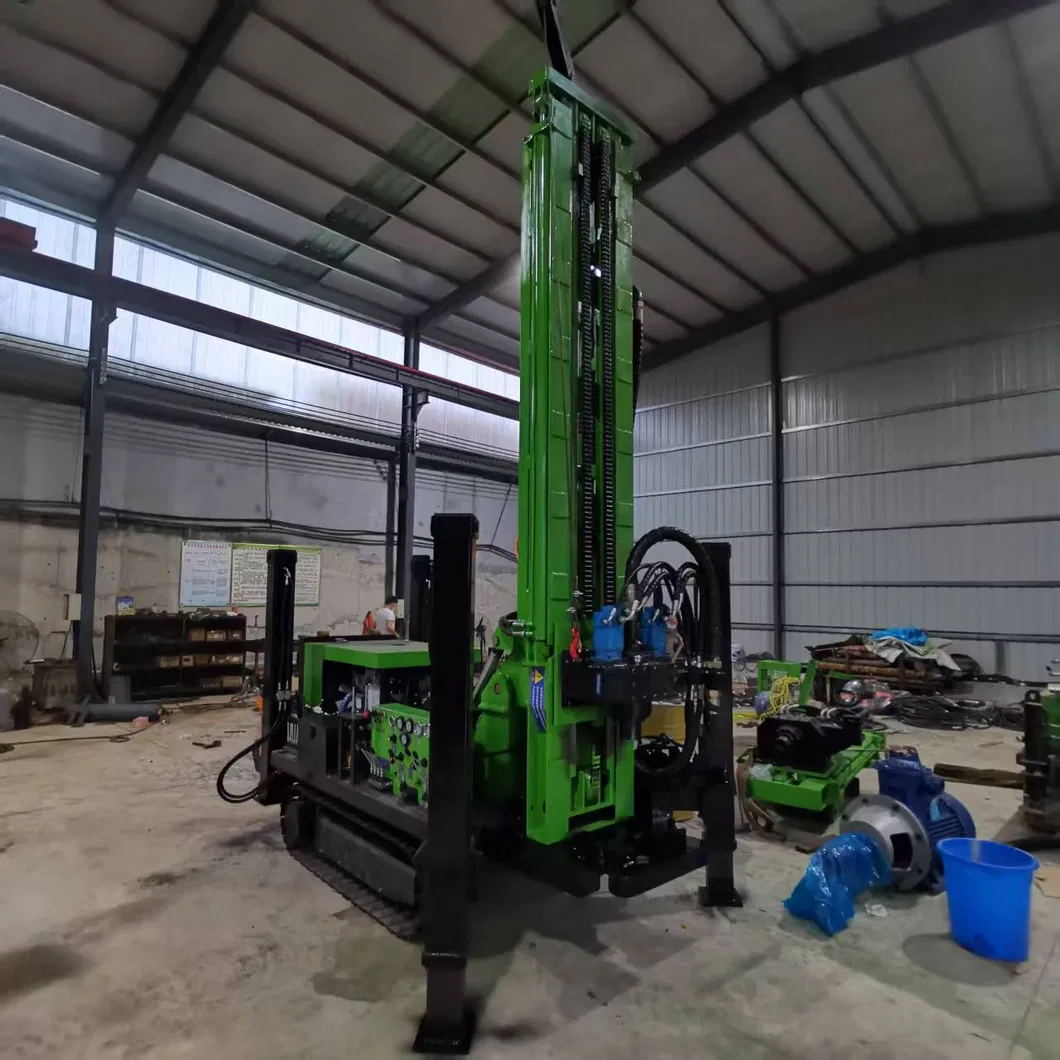

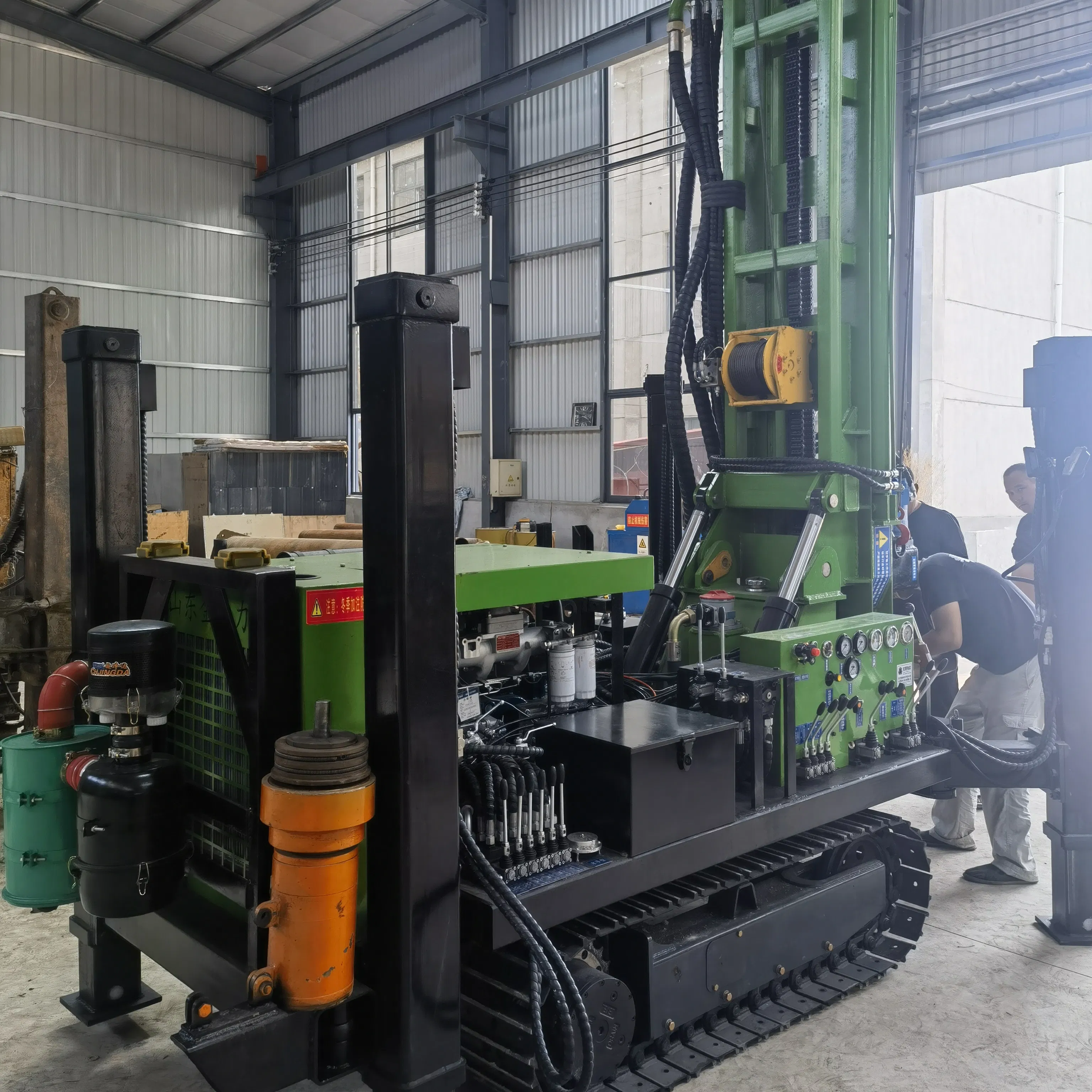

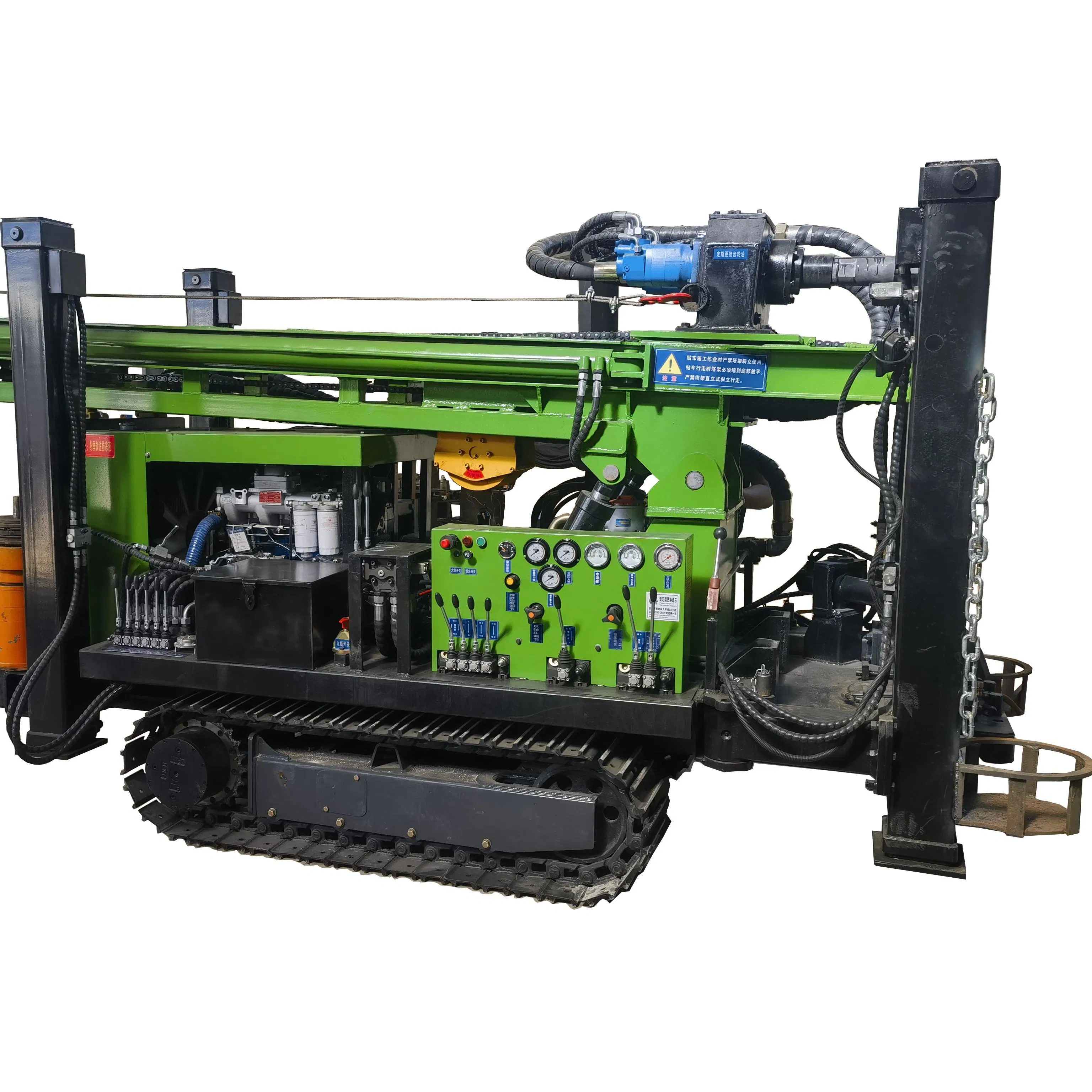

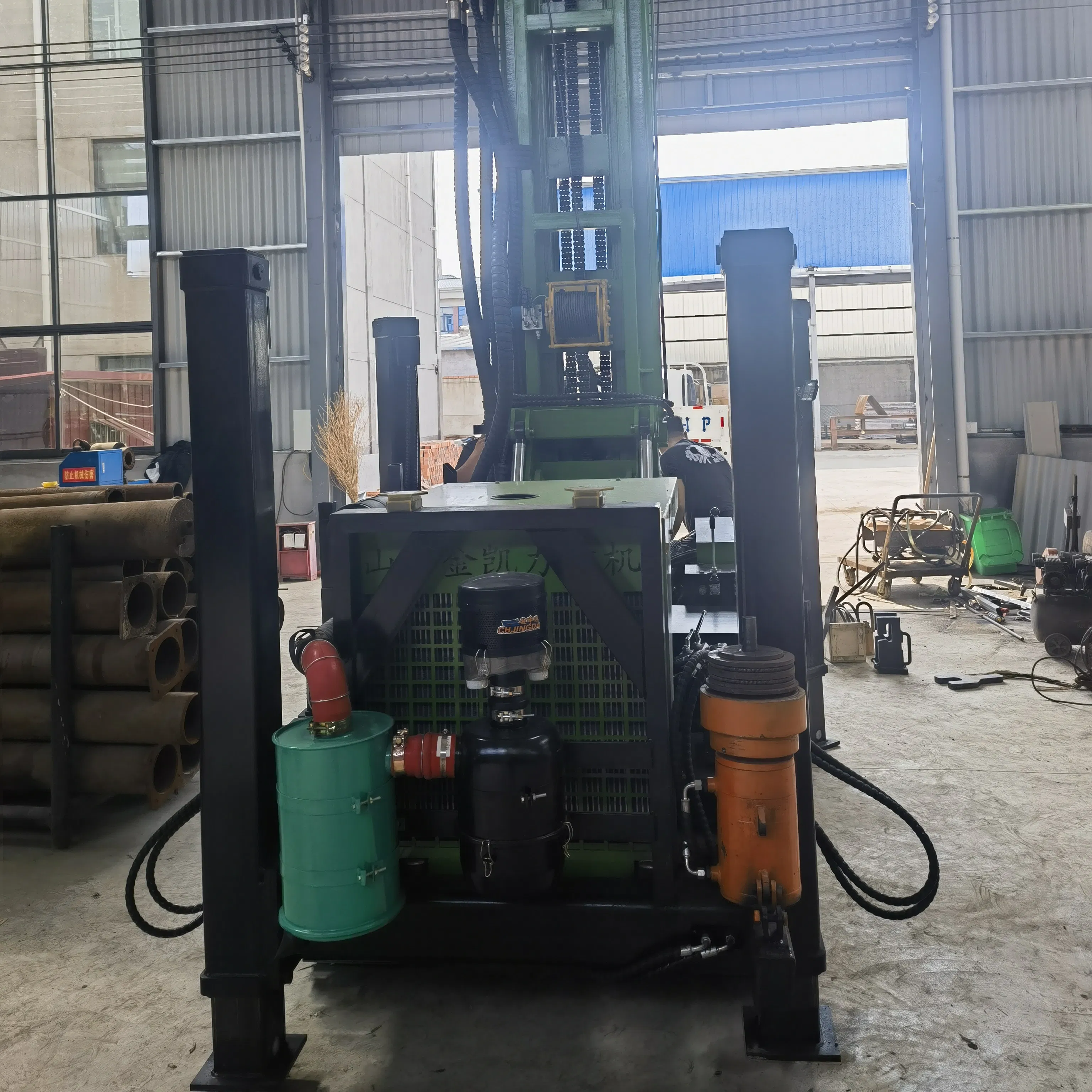

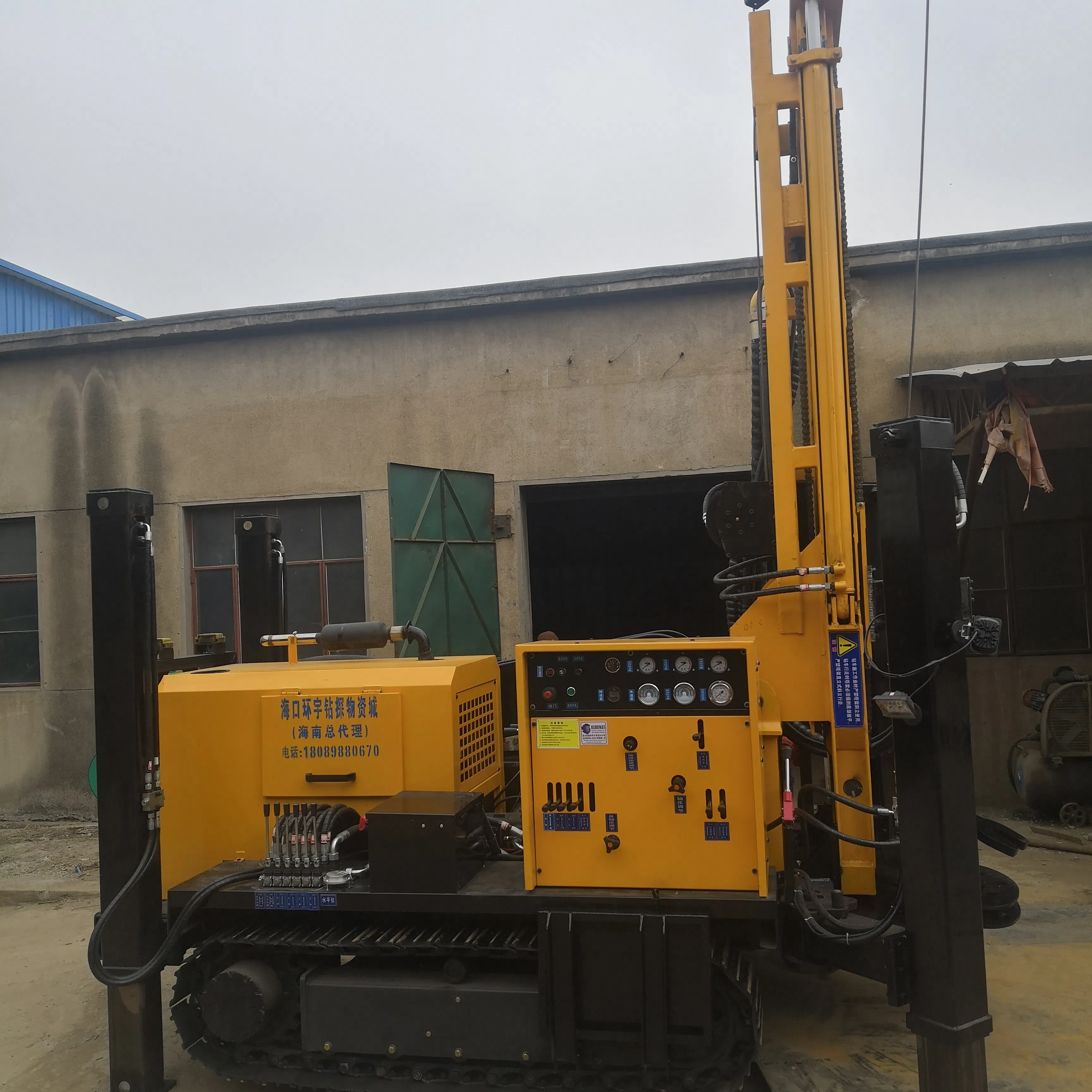

| GKL-300 Crawler Water Well Drilling Rig | |
|---|---|
| The weight(T) | 7.2 |
| Hole diameter(mm) | 138-300 |
| Drill depth(m) | 300 |
| One-time advance length(m) | 3.5 |
| Walking speed(km/H) | 2.5 |
| Gradeability (Degree) | 30 |
| Engine power(kw) | 85 |
| Working pressure(Mpa) | 1.8-3.0 |
| Air consumption(m³/min) | 18-33 |
| Drill pipe diameter(mm) | φ89 φ102 |
| Drill pipe Length(m) | 1.5/3.0 |
| Rig lifting force(T) | 19 |
| Swing speed(RPM) | 40-80 |
| Swing torque(Nm) | 5500-7500 |
| Dimension (L*W*H) | 4200*1950*2600 |
